Modern warehouses depend on every movement being visible, timed, and traceable. China warehouse doors are no exception. A fast roll-up door may open hundreds of times daily, but its status still needs to reach the warehouse management system. Without that connection, operators may see a closed door while a pallet is already moving through it.
So, How to integrate warehouse doors with a WMS? The practical answer begins with the door controller, sensors, and communication layer. A PLC can collect signals from photoelectric sensors, magnetic switches, safety edges, and emergency stops. Middleware or an industrial gateway can then send these events to the WMS through an API, MQTT connection, or another approved protocol. The WMS may request door access after checking an order, dock assignment, or inventory task.
Details matter. A loading-bay door should record opening time, closing time, operator identity, and fault status. These records help supervisors investigate delays or repeated safety interruptions. Door commands should also include permission checks, timeout rules, and manual override procedures. Safety controls must remain independent from warehouse software.
Field experience shows that integration often fails during small moments. The sensor may be misaligned. The network may drop briefly. A pilot test can expose these weaknesses before full deployment. The first design is rarely right.
Reliable implementation requires coordination between warehouse managers, door manufacturers, controls engineers, and WMS specialists. Test real workflows, including blocked sensors, power recovery, and simultaneous dock requests. A clean interface is useful, but a clear fallback process matters more. Data should support safer decisions, not merely create another dashboard.
Define the Role of Warehouse Doors in a WMS Environment
In a China warehouse, a door is more than a physical opening. It is a controlled point in the warehouse management system (WMS). The WMS should know whether each door is open, closed, locked, or unavailable. This status supports receiving, storage, picking, and dispatch decisions. When a truck reaches a scheduled bay, the WMS can assign the correct door and release the related task. Timing matters.
The door controller should exchange signals with the WMS through a stable industrial interface. Sensors can confirm vehicle presence, door position, and loading completion. The WMS can then record each event with a timestamp and operator reference. If a door remains open too long, the system may create an alert instead of silently delaying work. Clear rules are essential. A door must not open only because an order exists; safety conditions and authorization should also be verified.
In practical projects, the difficult part is rarely the software connection. It is matching real movement with digital status. A sensor may report “closed” while a pallet still blocks the threshold. Small errors spread. I have found that site testing during busy shifts reveals issues that laboratory tests miss. Teams should document fallback actions for network loss, sensor failure, and manual operation. Reliability improves when workers can understand the door status without reading complex screens. The WMS should support people, not force them to guess.
Map Door Hardware, Sensors, and Control Interfaces
When integrating China warehouse doors with a WMS, start with a clear hardware map. Record each door’s location, type, motor, controller, and safe operating limits. Include dock doors, fire-rated shutters, pedestrian doors, and vehicle barriers. A useful map connects every physical point to one digital equipment ID. This prevents a common error: the WMS opens Door 04 while operators see Door 05. Watch the labels.
For each door, document sensors that report open, closed, locked, obstructed, or moving status. Use separate inputs for command and confirmation. Never treat an open signal as proof of safe movement. Photoelectric sensors, limit switches, edge sensors, and emergency stops should be tested under real loading conditions. Record signal type, voltage, response time, and failure behavior. The interface may use digital I/O, industrial Ethernet, or a secure gateway. Keep safety circuits independent from ordinary WMS commands. This detail matters.
Map WMS actions to control commands, then map feedback to warehouse events. A vehicle request can create an “opening” event, while the closed sensor confirms completion. Add timestamps, operator identity, alarm codes, and manual override records. These logs help technicians distinguish a network delay from a damaged sensor. During commissioning, test power loss, communication failure, blocked travel, and duplicate commands. A clean diagram is not enough. In practice, undocumented wiring and inconsistent sensor names still cause delays. Review the map with electricians, controls engineers, and shift supervisors before go-live. Leave room for revision.
Connect China Warehouse Doors to WMS Communication Systems

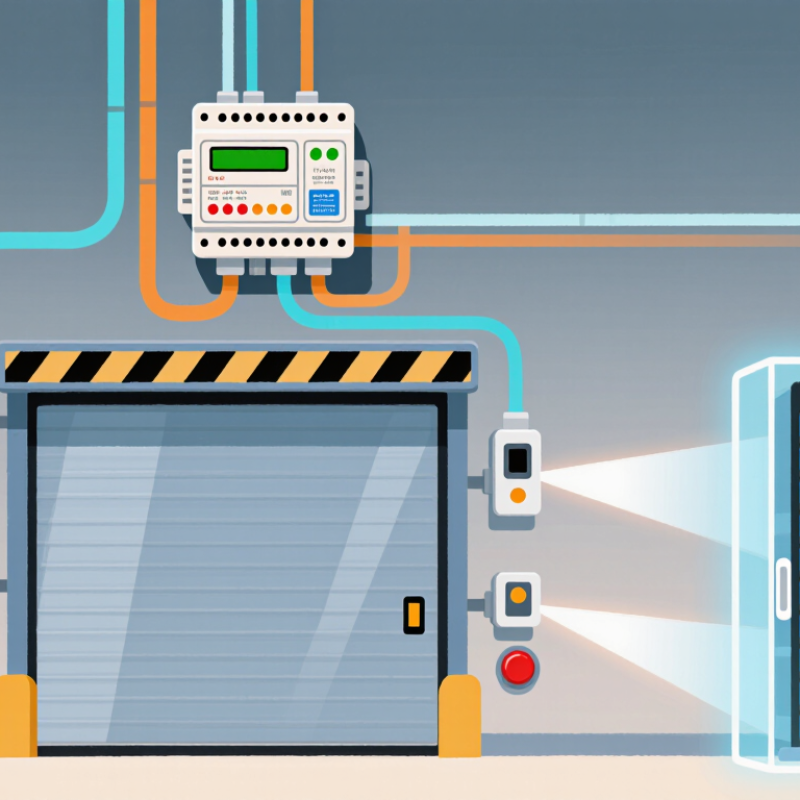

How to Integrate China Warehouse Doors With a WMS?
Connect China Warehouse Doors to WMS Communication Systems
Connecting China warehouse doors to a WMS communication system requires more than installing sensors. Each door should report clear states, such as open, closed, blocked, or faulted. At the local controller, photoelectric sensors and safety edges can send signals to a PLC. An industrial gateway then translates these signals into secure API, MQTT, or OPC UA messages. The WMS receives an event, checks the task, and returns an approved opening command. Keep events time-stamped. That detail matters.
In practical deployments, network design deserves careful attention. Separate door controls from office traffic with segmented networks and role-based access. Use encrypted communication, device authentication, and signed software updates where supported. Define what happens when the WMS, gateway, or network becomes unavailable. A local controller may hold safe operating rules, while operators use a manual release procedure. Do not let a temporary software error trap people or vehicles. Test alarm responses, command delays, and duplicate messages during quiet shifts.
Reliable integration also depends on useful data. Record the door ID, warehouse zone, command source, response time, and fault code. These records help maintenance teams identify a drifting sensor before it causes repeated stoppages. During one pilot-style review, a simple state mismatch exposed a weak assumption about door feedback. The command succeeded, but the WMS still displayed the door as closed. That was not a dramatic failure. Still, it showed why simulation and site testing are essential. Review timeout values with operators, because real traffic rarely follows a clean schedule. Leave room for human judgment.
Configure Door Events, Access Rules, and Workflow Triggers
Integrating China warehouse doors with a WMS starts with clear event definitions. A door opening, closing, access denial, or emergency release should create a specific system event. Avoid using one generic “door status” signal. It hides operational details. During a recent warehouse configuration, the team mapped each sensor to a unique door ID. This made dock activity easier to trace. The mapping still needed manual checking because two sensors reported delayed closing signals.
Access rules should reflect real warehouse roles and working conditions. Receiving staff may access inbound doors during scheduled delivery windows. Picking teams may need different permissions near outbound docks. The WMS should verify user credentials, door status, time, and task assignment before allowing entry. Keep permissions narrow. Review them regularly. Temporary access also needs an expiry time. Otherwise, an old permission can remain active longer than intended.
Workflow triggers connect door events with warehouse actions. A confirmed door opening can start a loading task, alert a supervisor, or pause vehicle movement. A door left open for two minutes may trigger a local warning and an WMS exception record. Test every trigger with real operating examples. Network delays, sensor faults, and manual overrides can produce confusing results. Our initial workflow was too strict and interrupted legitimate loading work. We adjusted the delay threshold after reviewing event logs and operator feedback. Reliable integration depends on both accurate configuration and careful observation.
China Warehouse Door Integration with a WMS
Average response time for common door events after configuring access rules and workflow triggers.
Fast event handling helps the WMS release loading, unloading, safety, and exception workflows with less delay. Access-denied events typically require more processing because they may trigger alerts, manual verification, and security workflows.
Test, Monitor, and Maintain the Integrated Door Operations
Integrating China warehouse doors with a WMS requires more than opening and closing commands.
Each door should exchange clear status signals, including open, closed, blocked, fault, and manual override. The WMS should record every event with a timestamp, operator ID, and equipment location. This creates evidence for troubleshooting and audits. MHI’s 2024 Annual Industry Report identifies robotics and automation as major supply-chain investment priorities. That pressure makes dependable door data increasingly important. Test the boring cases. Disconnect the network, trigger a safety sensor, and simulate a delayed response. The door must stop safely, while the WMS shows an understandable alarm.
Monitoring should combine live dashboards with practical checks on the warehouse floor.
Track response time, failed commands, repeated reversals, sensor faults, and manual interventions. Zebra Technologies’ 2023 Warehousing Study reported that 58% of warehouse decision-makers planned to deploy automation by 2028. More automation also creates more points of failure. A weekly review can reveal patterns that dashboards miss, such as condensation affecting photoelectric sensors or forklifts damaging cable covers. Maintenance teams should inspect safety edges, interlocks, hinges, and emergency stops on a defined schedule. Keep firmware, network settings, and WMS interface records controlled. A perfect dashboard is not proof of a healthy operation. We may still be measuring the wrong delay. Re-test after layout changes, software updates, and seasonal temperature shifts.
FAQS
It acts as a controlled operating point, not merely a physical opening. The WMS tracks its status and availability.
Useful states include open, closed, blocked, faulted, unavailable, and manually overridden.
Sensors send signals to a local controller or PLC. An industrial gateway then transfers approved data to the WMS.
Record the door ID, warehouse zone, timestamp, command source, response time, operator ID, and fault code.
Local controls should maintain safe operating rules. Workers need a clear manual release procedure.
Confirm authorization, vehicle presence, clear thresholds, working safety sensors, and correct task assignment.
Disconnect the network, trigger safety sensors, delay responses, and send duplicate commands during quiet shifts.
Not always. A door may show “closed” while a pallet blocks the threshold. We may measure the wrong delay.
Inspect sensors, safety edges, cable covers, hinges, interlocks, and emergency stops on a defined schedule.
Re-test after layout changes, software updates, network changes, and seasonal temperature shifts. Real traffic is rarely tidy.
Conclusion
Integrating warehouse doors with a warehouse management system (WMS) creates a coordinated connection between physical movement and digital workflow control. How to integrate warehouse doors with a WMS? Start by defining each door’s operational role, such as receiving, storage, picking, or shipping. Then map the door hardware, position sensors, safety devices, access controls, and control interfaces so the WMS can identify door status accurately and respond to authorized commands.
The integration should connect China warehouse doors to suitable communication systems and establish reliable data exchange with the WMS. Configure events such as door opening, closing, faults, and unauthorized access as workflow triggers for tasks, alerts, or status updates. Before daily operation, test each scenario, confirm timing and safety responses, and verify that records are complete. Ongoing monitoring, scheduled inspections, sensor checks, and software maintenance help keep door operations synchronized, secure, and efficient as warehouse processes change.
