| Model NO. | UBT-01 poultry equipment | Usage | Chicken Broiler Breeder Farm House |
|---|---|---|---|
| Application | Chicken | Power Source | Electric |
| Equipment Type | Fans, Cooling Pad, Air Inlet, Heater | Epidemic Prevention | Spraying Line |
| Condition | New | Warranty | 1 Year |
| Main Filling | Silo, Feed Hopper | Feeding System | 3 or 4 Feeder Per 3m |
| Drinking System | 12 or 15 Nipple Per 3m | Environment System | T607, T616, Image II, Retom2000 |
| Production Capacity | 300 Set Per Month | HS Code | 8436290000 |

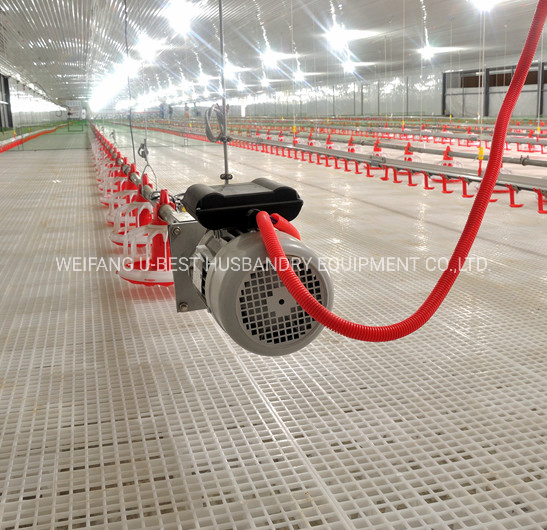

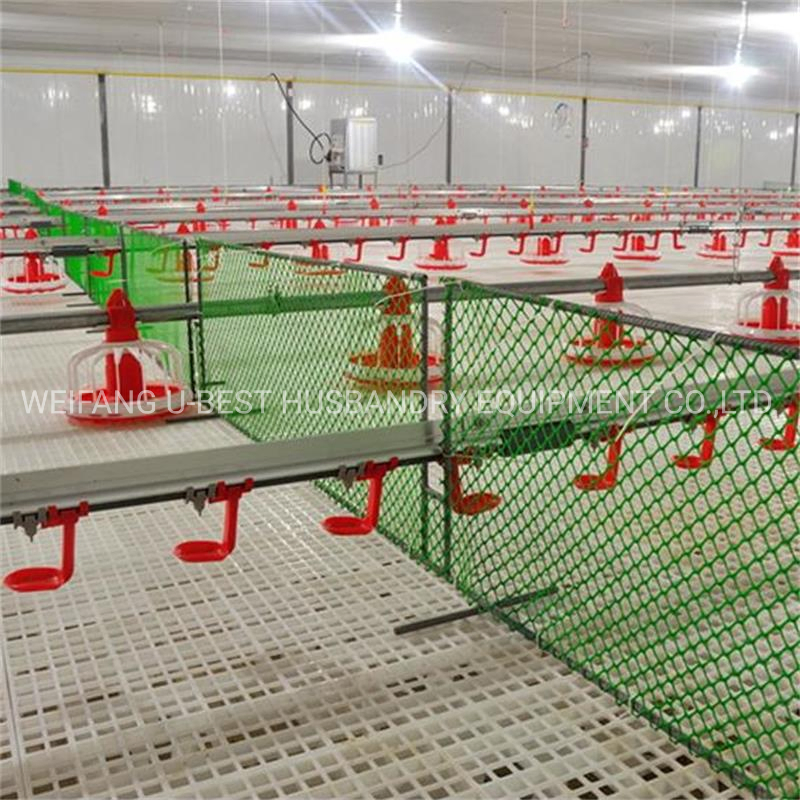

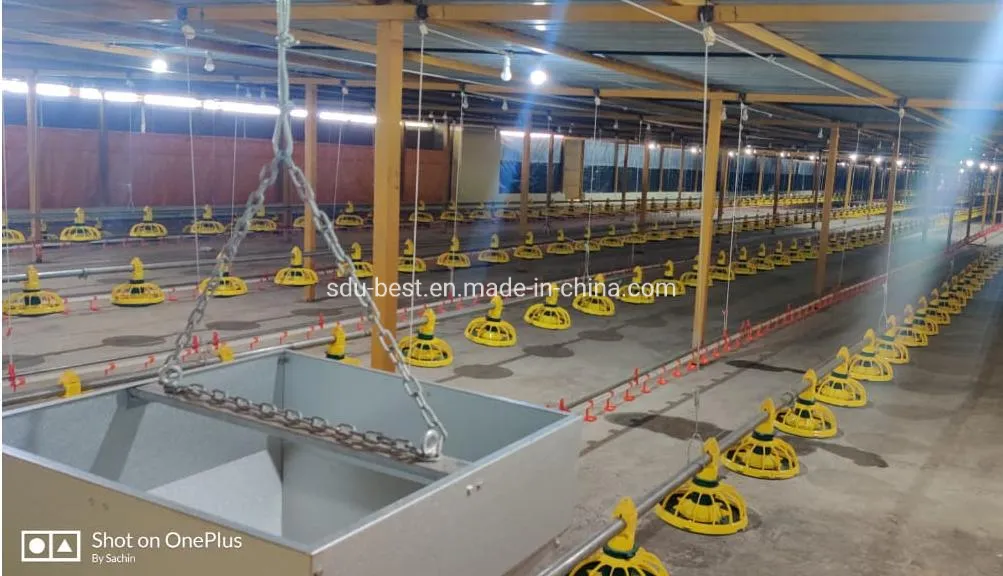

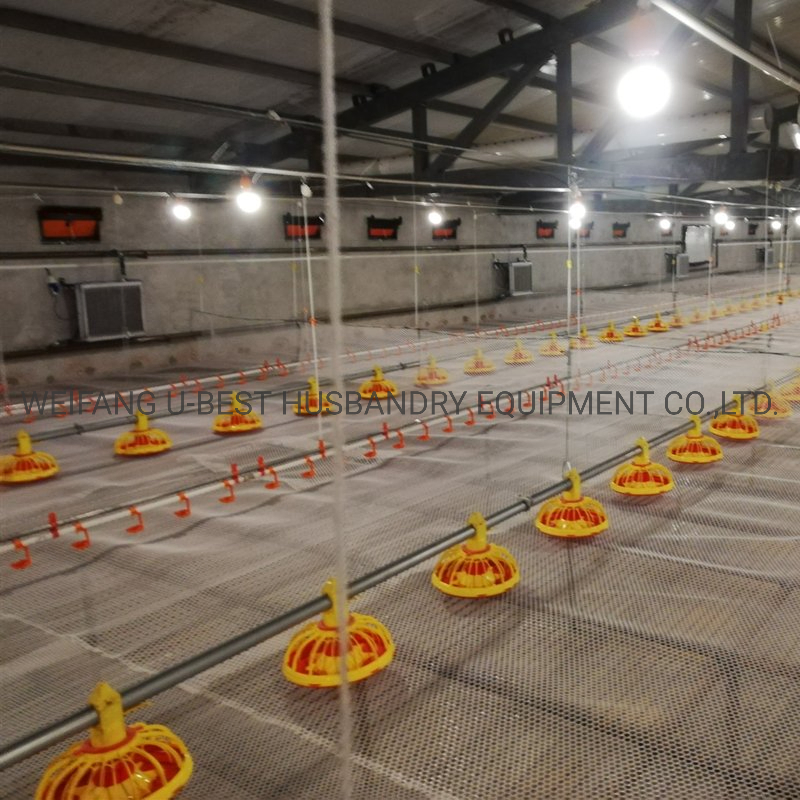

Poultry farm automatic chicken raise feeding system on floor

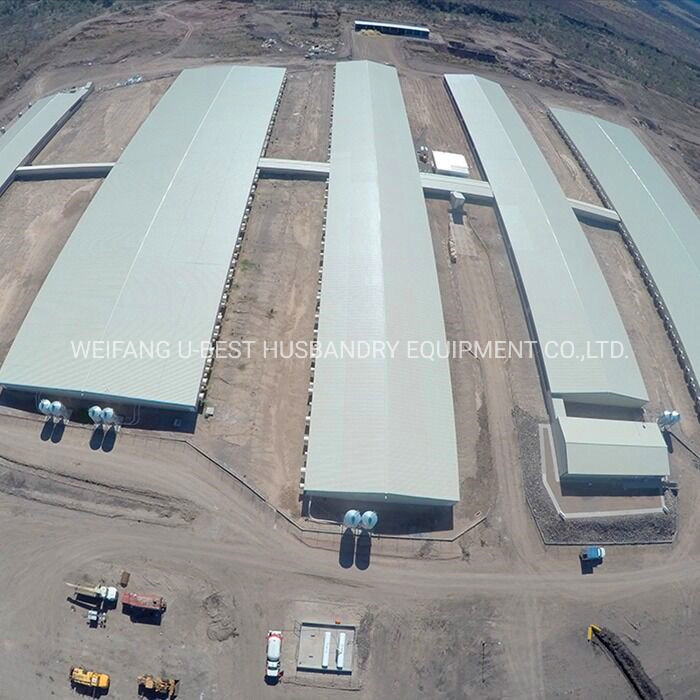

Chicken Farm Overview
| System Configuration Example | |
|---|---|
| House Size | 110m x 12m chicken house |
| Lines | 4 pan feed line, 5 drink line |
| Capacity | 20,000 chickens |

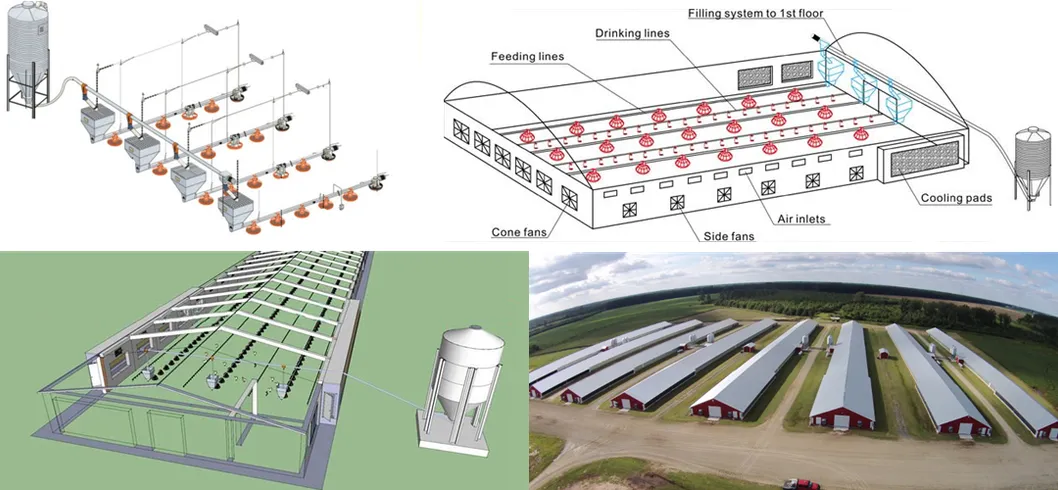

Layout of Chicken House
Silo/manpower hopper is the starting part. A feed sensor at the end controls the motor to achieve automatic delivery.
| Silo Specifications | |
|---|---|
| Material | 1.2mm thickness hot galvanized steel (275g/m²) |
| Capacity | 3T, 5T, 8T, 10T, 12T, 14T, 15T, 16T, 18T, 20T |
| Conveying Pipe | Diameter 75*3.6mm PVC; Feeding ability 1400Kg/h |

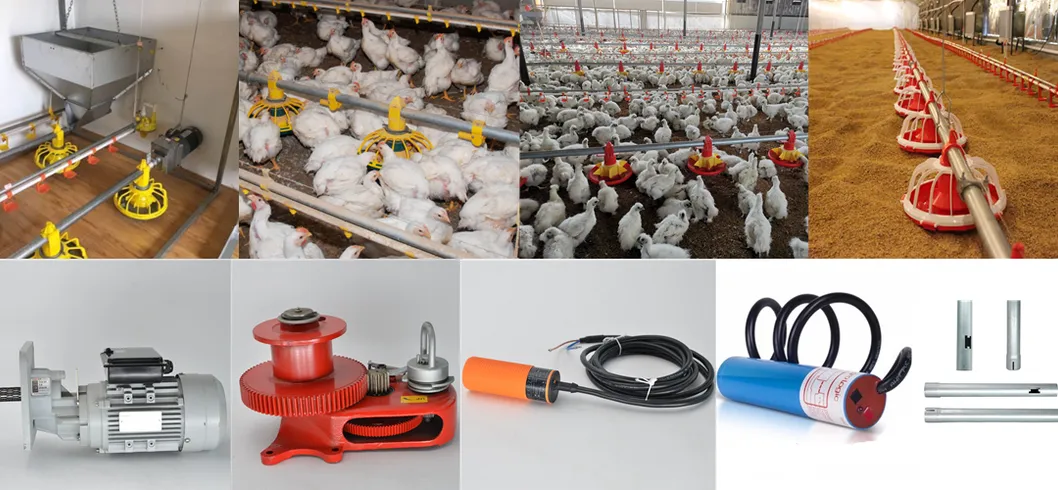

Features 14-grill feed pans with automatic sensors. Made of anti-aging PP/UV material.
| Feed Pan | Diameter 330mm, 14/16 grills, capacity 45-65 birds |
| Auger | Imported spring auger, diameter 36mm |
| Motor | 0.7KW/1.1KW/1.5KW; 380V/220V |
Provides fresh water via 360-degree touch nipples. Includes a pressure regulator and filtration system.

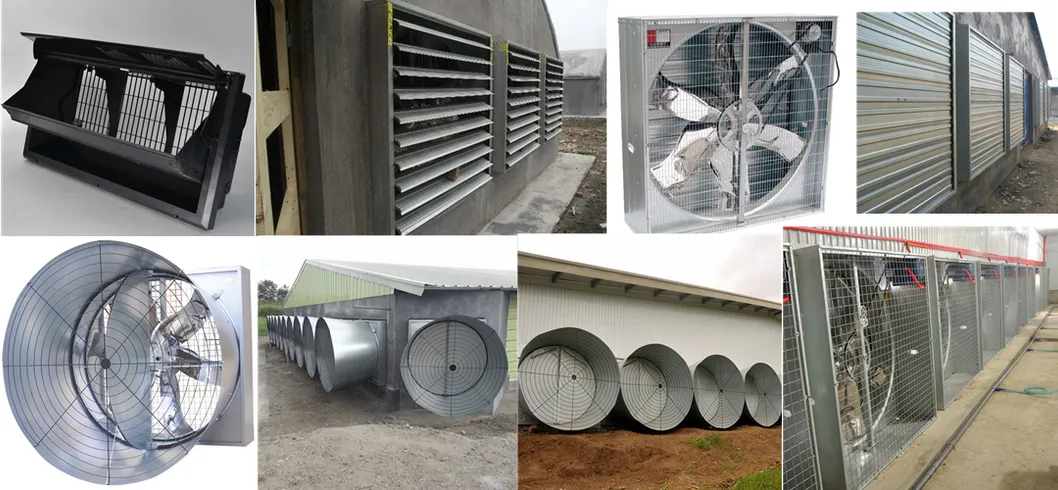

Economical and effective temperature reduction using exhaust fans and air inlets.
| Specification | 50'' Butterfly Fan | 50'' Box Fan | 36'' Box Fan |
|---|---|---|---|
| Flow (m3/h) | 51020 | 43170 | 20800 |
| Power (Kw) | 1.1 | 1.1 | 0.4 |

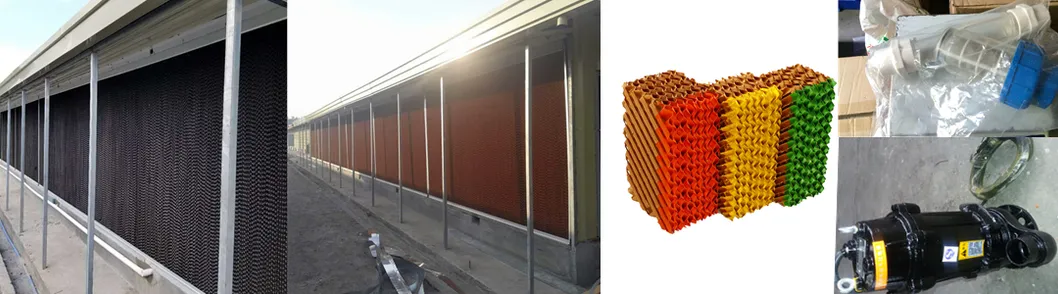

Uses water evaporation to cool air before it enters the shed. Galvanized or Aluminum frames available.

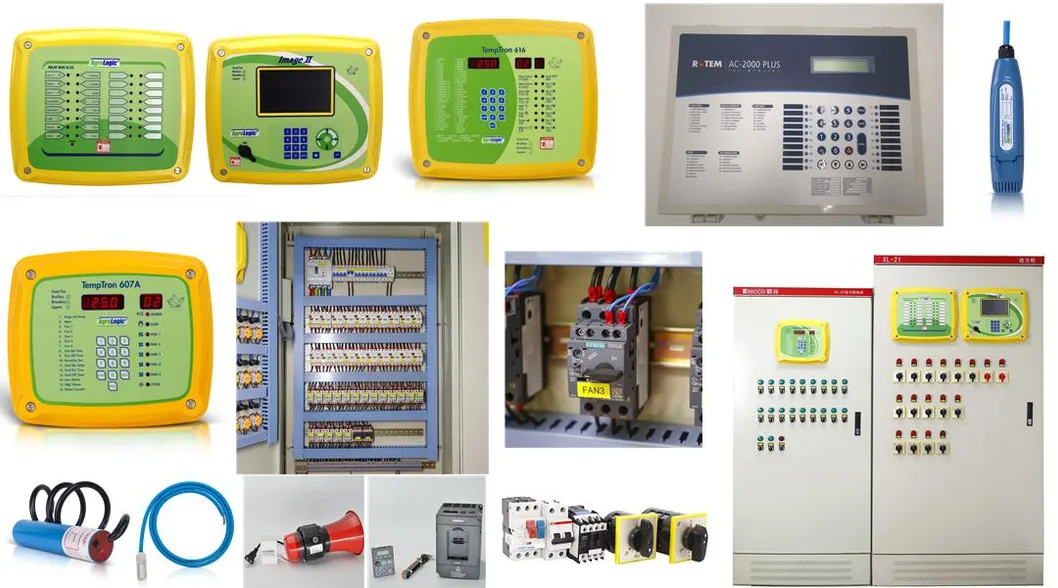

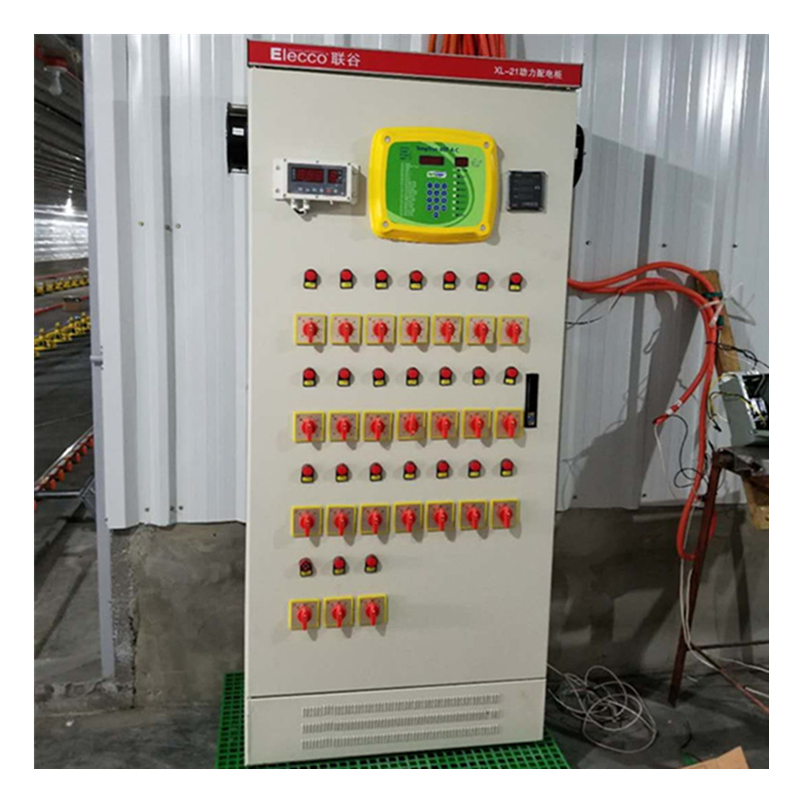

Integrated control of fans, pads, inlets, heaters, lighting, and feeding via advanced sensors.

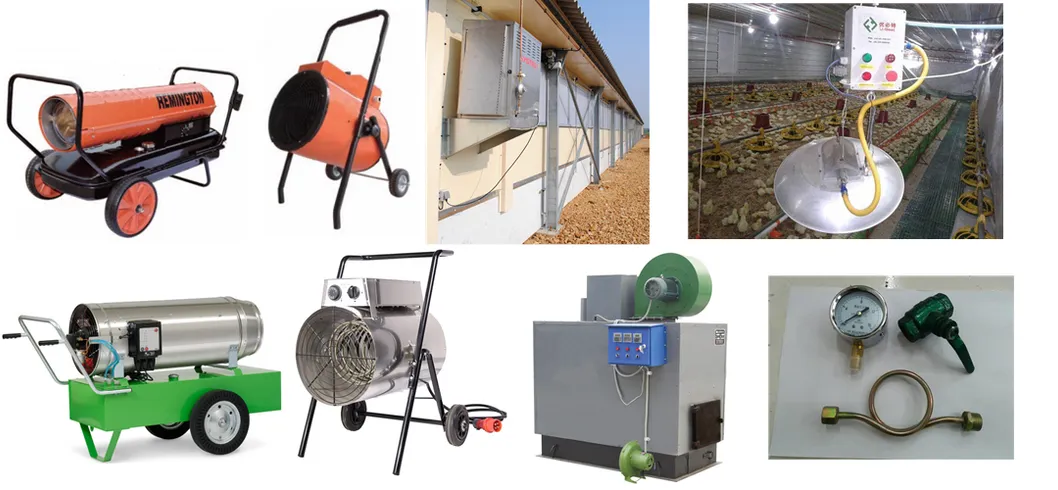

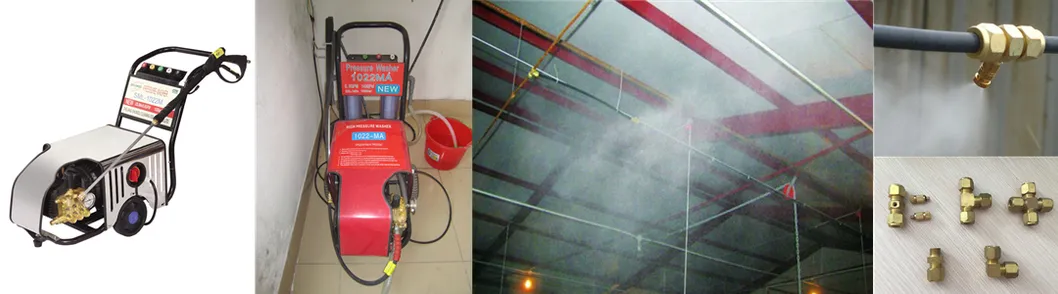

Fogging system for 3-8°c reduction in 3 minutes. Heating system options: Coal, diesel, gas, or electric brooders.
