Product Description

i

Basic Information

Material
Aluminum Alloy
Open Style
Sliding
Opening Type
With Remote Control
Special Function
Waterproof
Color
Black
Certification
ISO9001, CE
Motor Power
40W
Working Sound
<60dB
Driving Mode
Crank Connecting Rod Drive
Max Opening Angle
+90°
✓

Product Specifications

Product NameSide-mounted Door Opener
Supply Voltage220VAC±15% 50Hz
Motor Voltage24VDC
Rated Torque24.6Nm
Angular Velocity69.7°/s
Max Door Width1.5m (single leaf)
Thermal ProtectionClass F 155°C

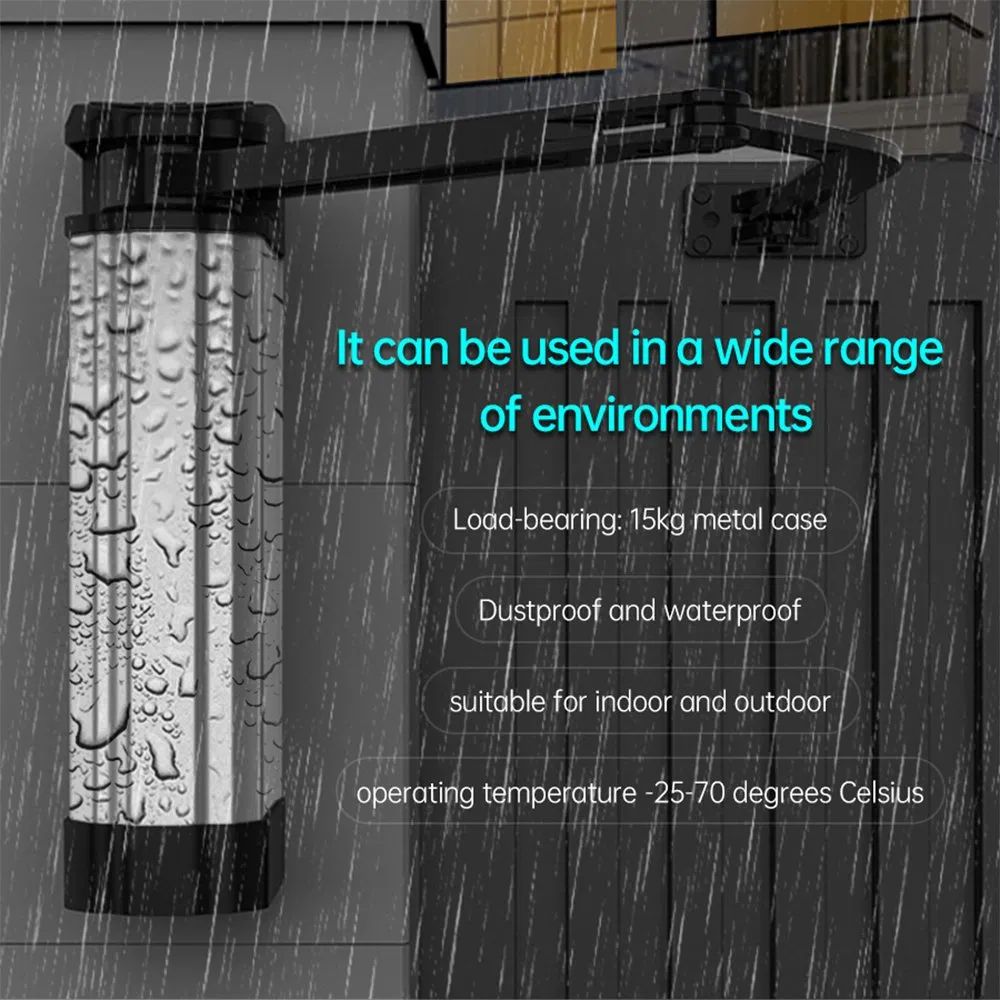

Environment Temp-25-70°C

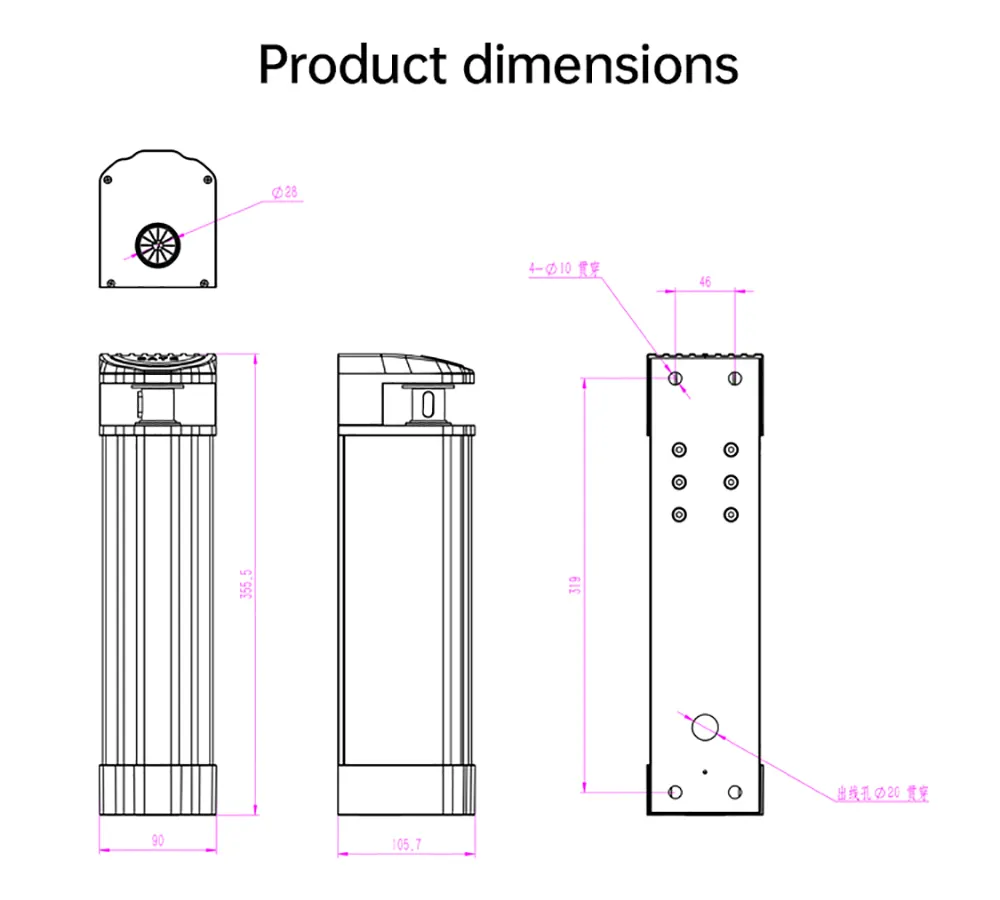

Body Dimensions89.6 × 355.7 × 105.7mm
Packaged Weight6.4kg
📷

Product Presentation

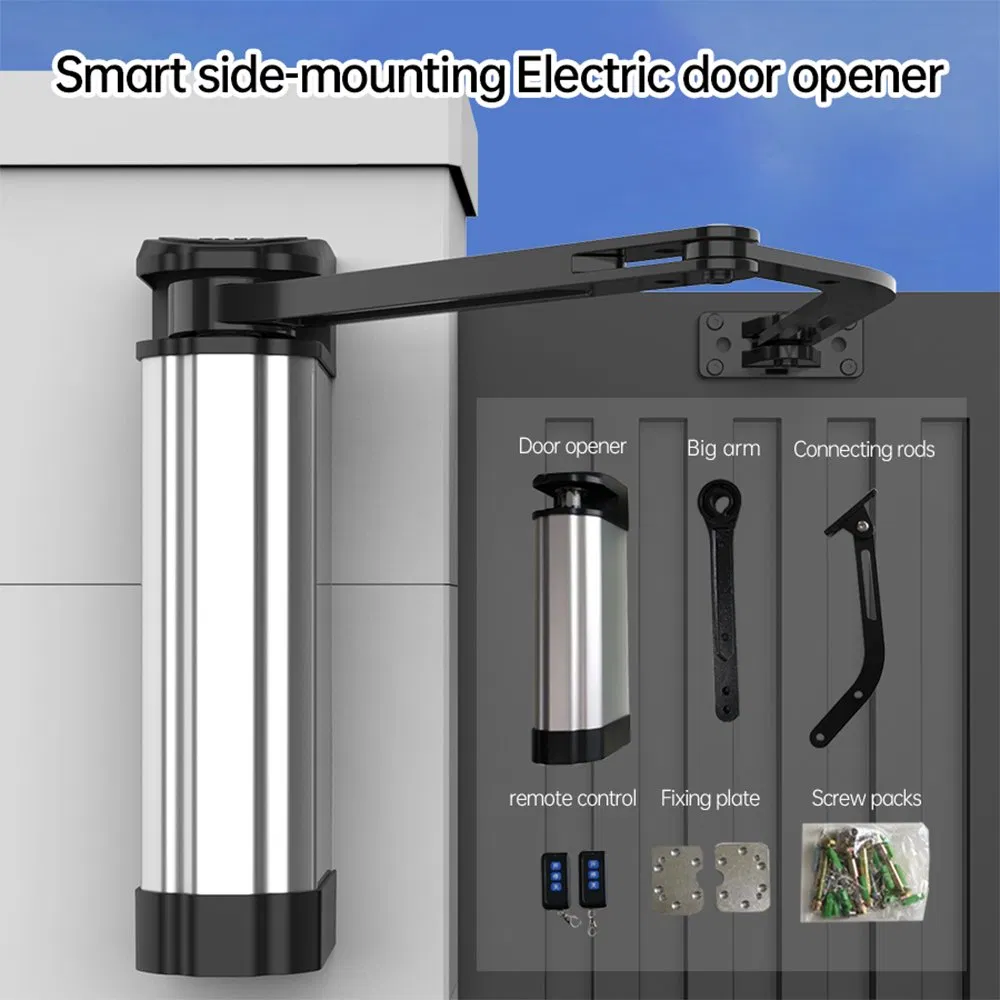

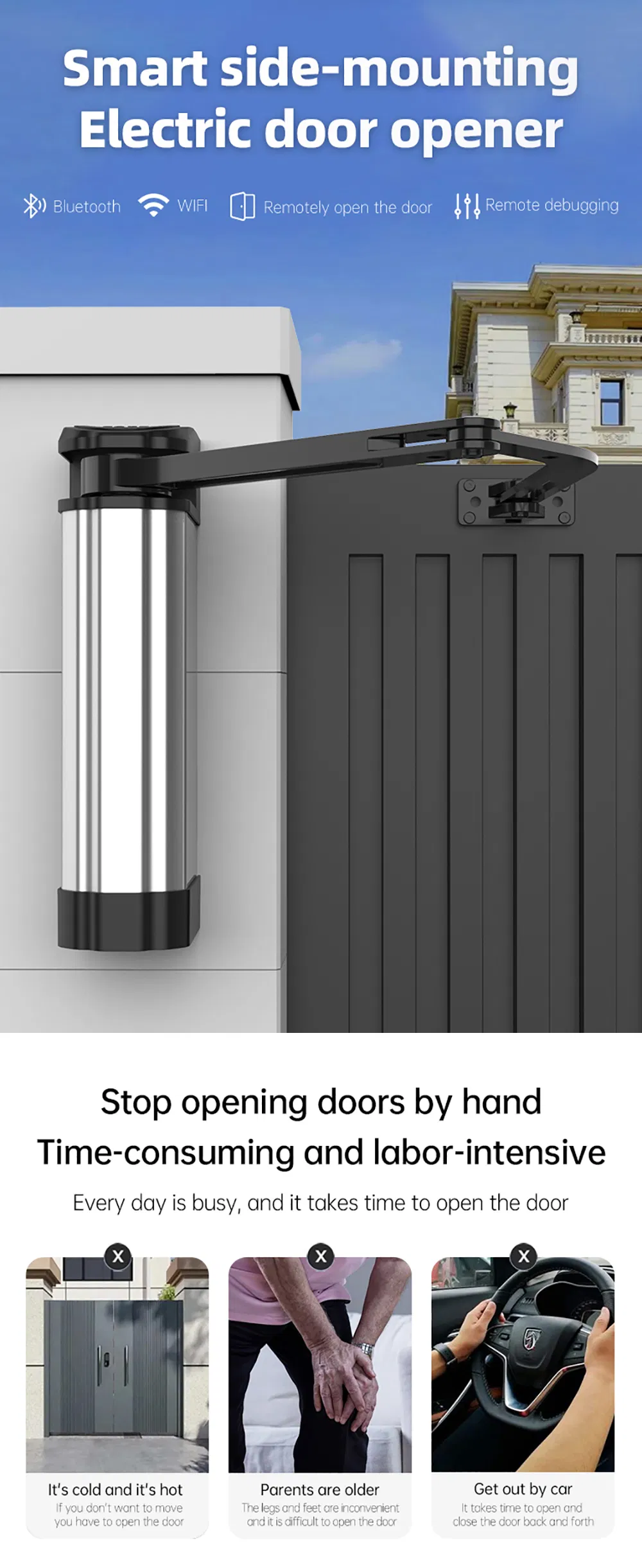

Door Opener Overview

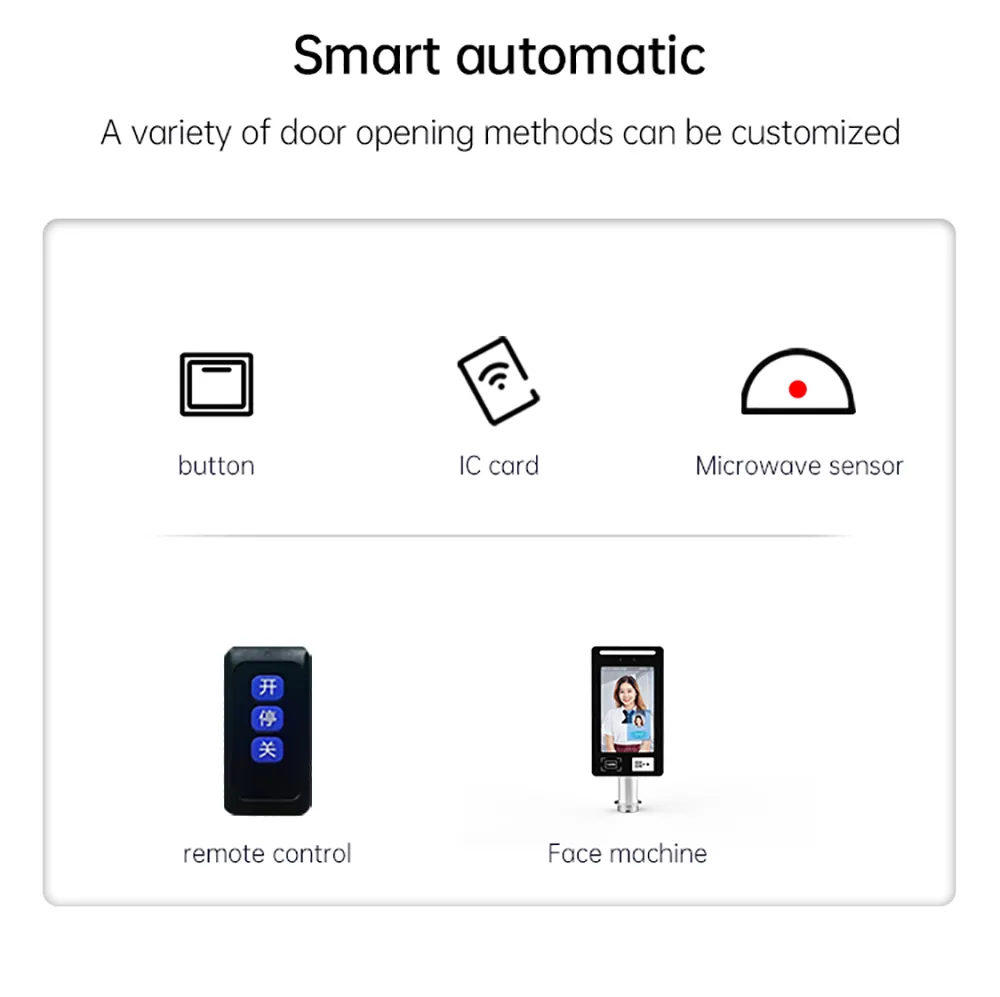

Detail 1

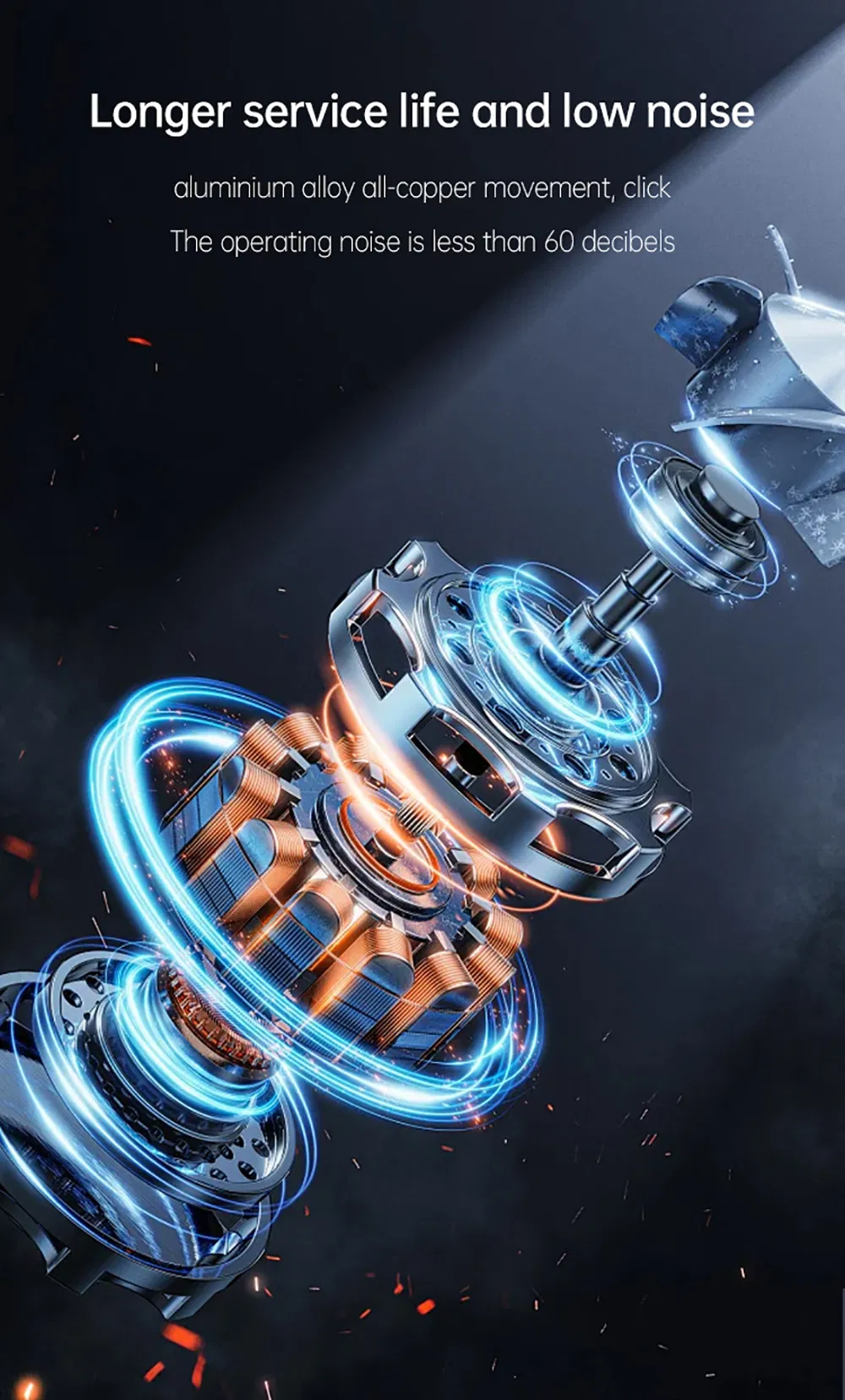

Detail 2

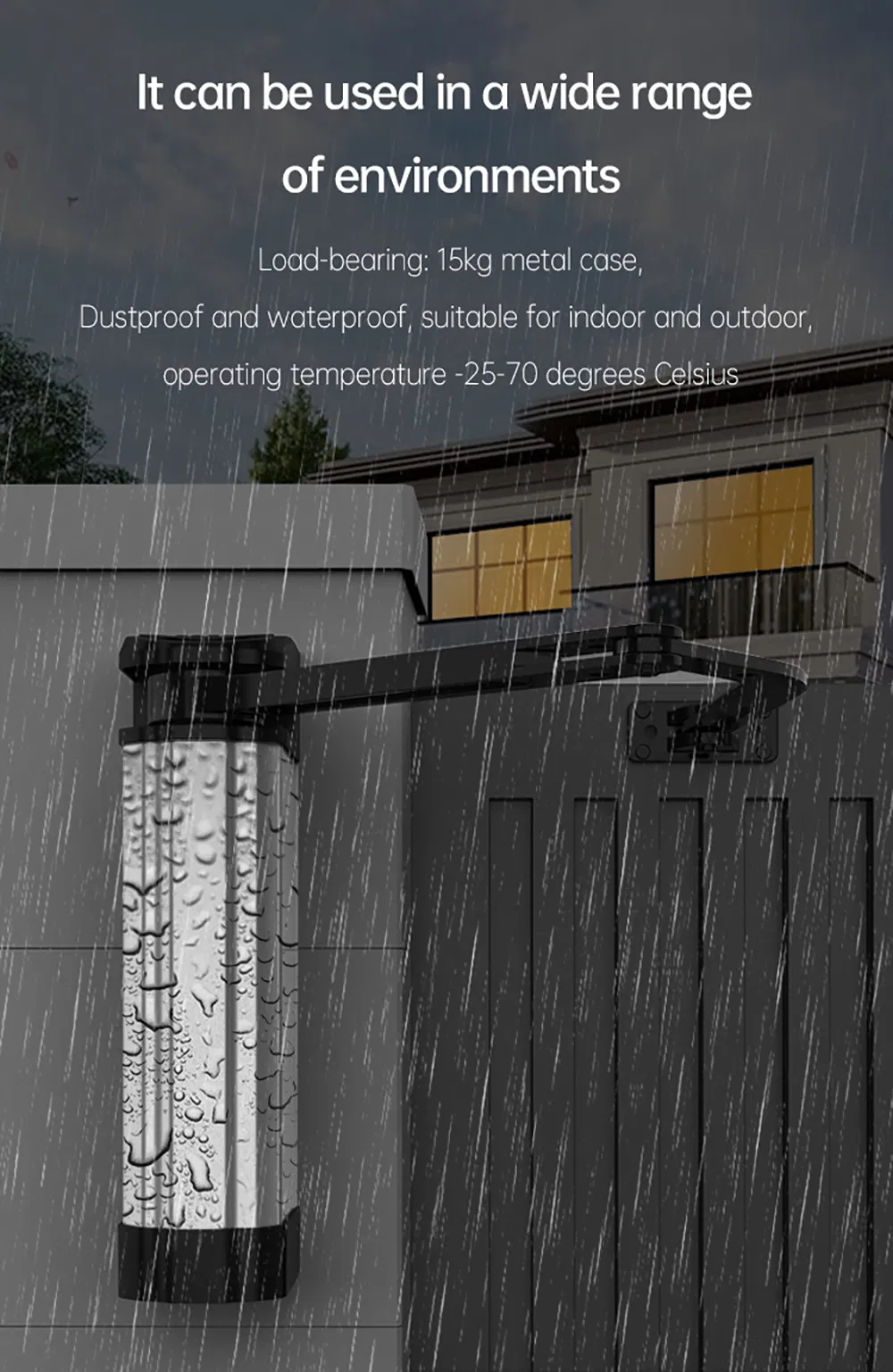

Detail 3

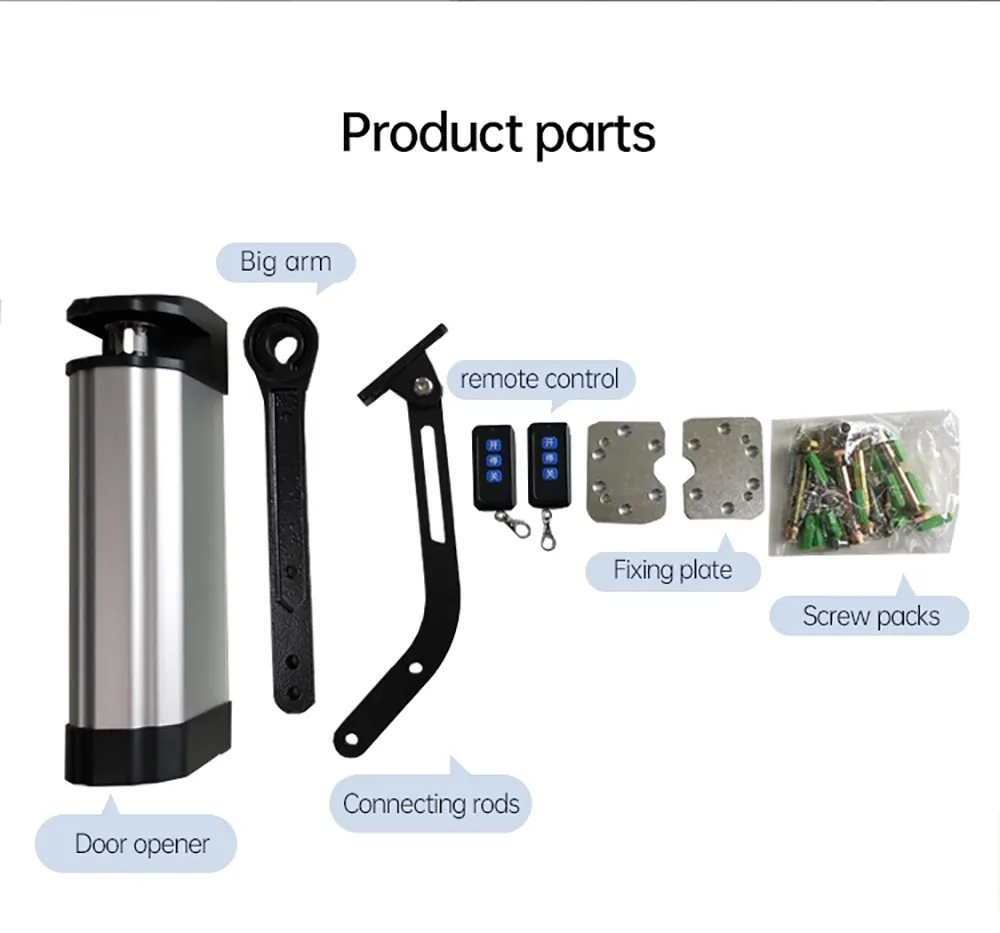

Detail 4

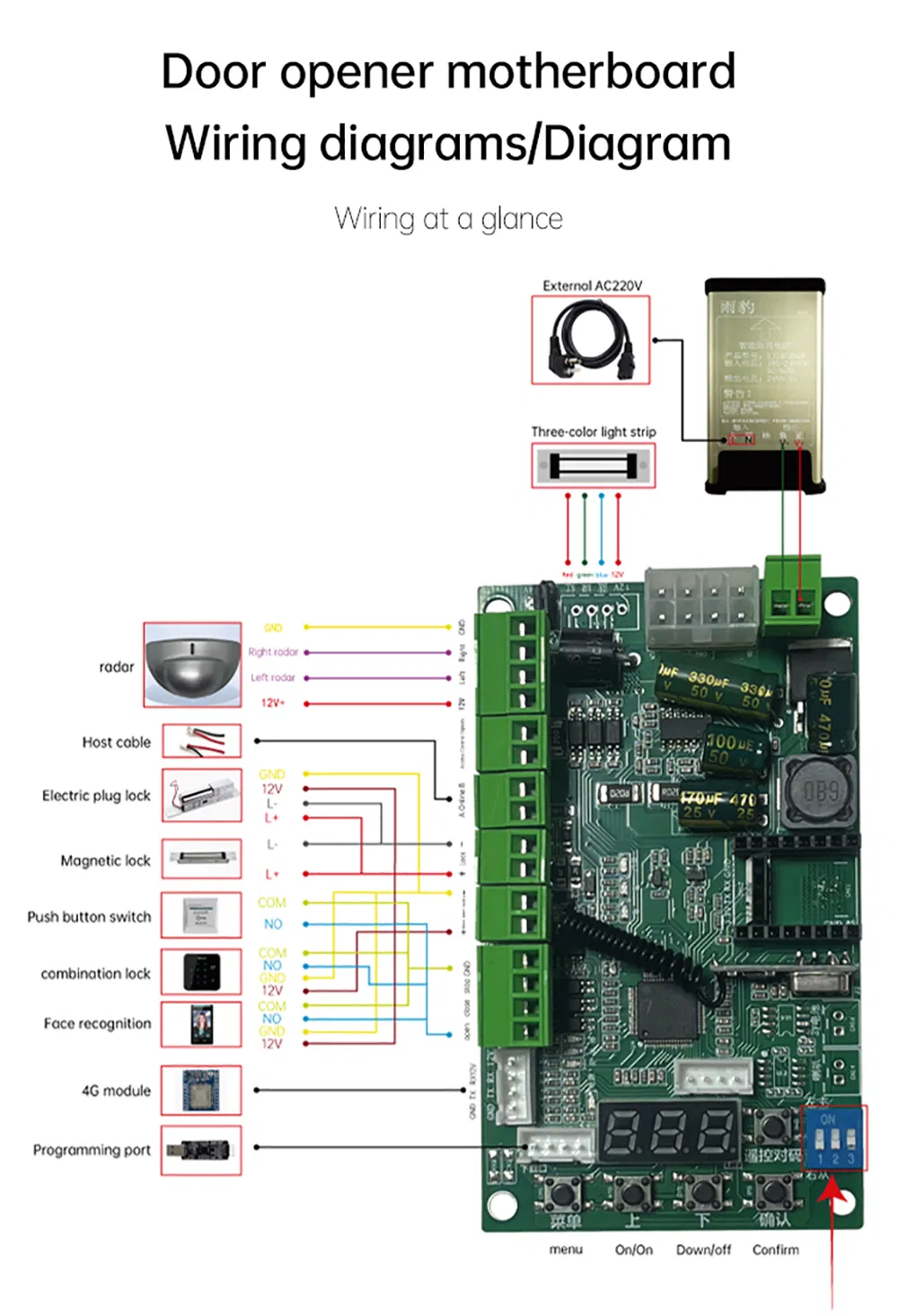

Detail 5
Detail 6

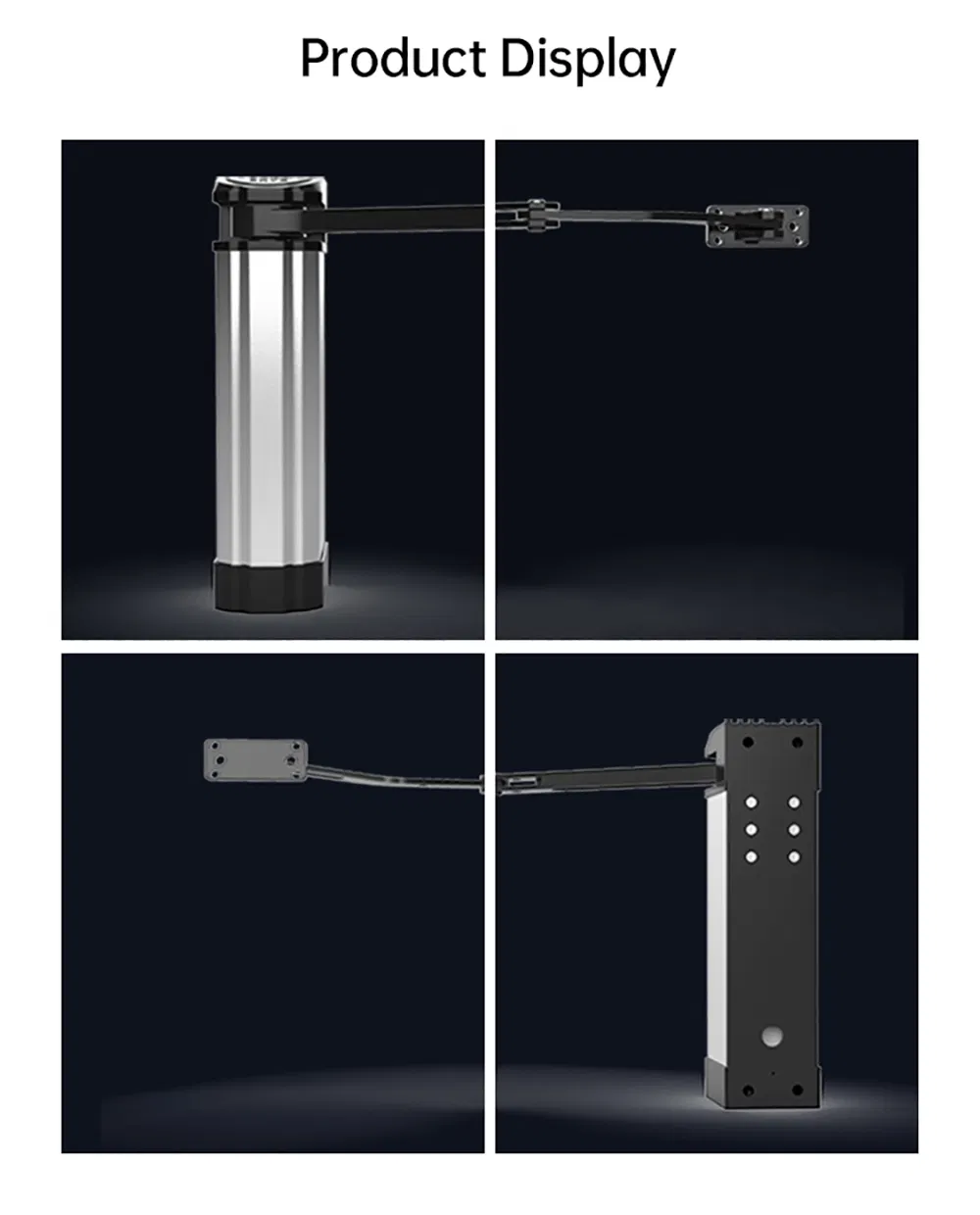

Dimensions

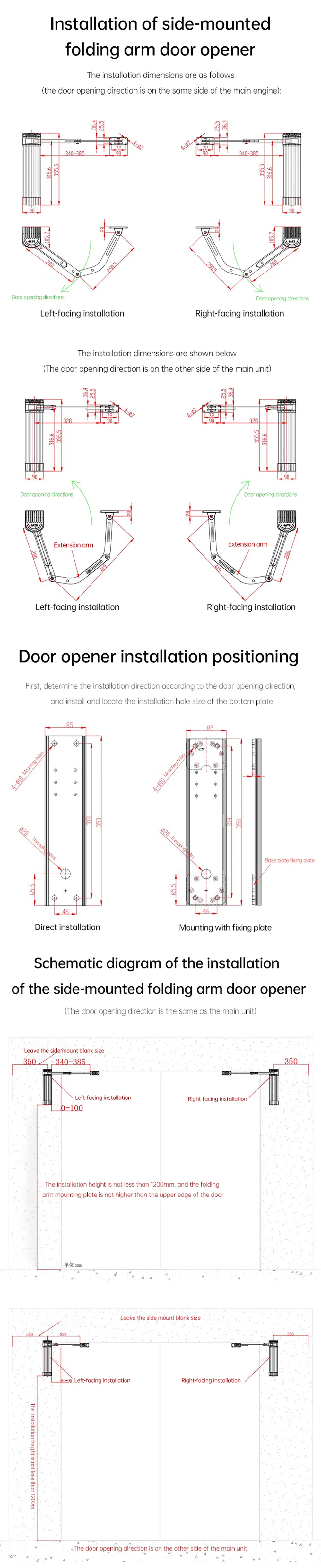

Application Scenes
Packaging
?

Frequently Asked Questions

What kind of access control products are available?
We offer high-quality face recognition access control machines, attendance systems, temperature measuring devices, and various turnstile gates including speed, swing, wing, and tripod models.
What pre-sale and customization services do you offer?
We provide consultancy to find optimal products, along with secondary development, software/hardware customization, and OEM services to meet specific project requirements.
What after-sale support can I expect?
Our support includes emergency repair services, detailed installation guidance, and regular software upgrade services to ensure system longevity.
What is the warranty period for the devices?
We offer a 1-year warranty for our products (excluding man-made damage) and provide full technical support for any operational problems.
Do the devices support multiple languages?
Yes, our devices support multi-language customization including English, Spanish, Portuguese, Russian, Arabic, French, German, and more.
What are the lead times for orders?
Small orders are typically processed within 1 week after payment, while large mass-production orders usually take between 2 to 3 weeks.
