Welcome to professional farming solutions. Let us achieve better farming efficiency together.

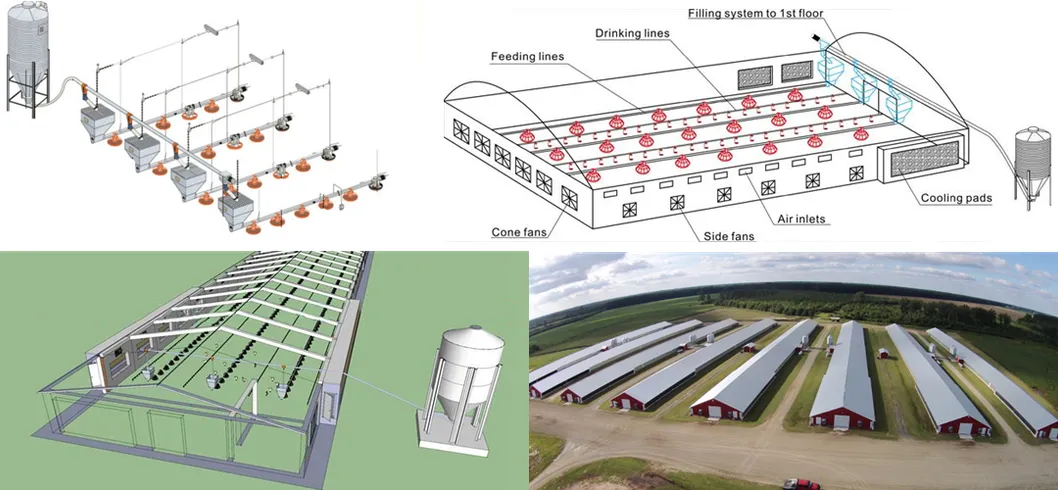

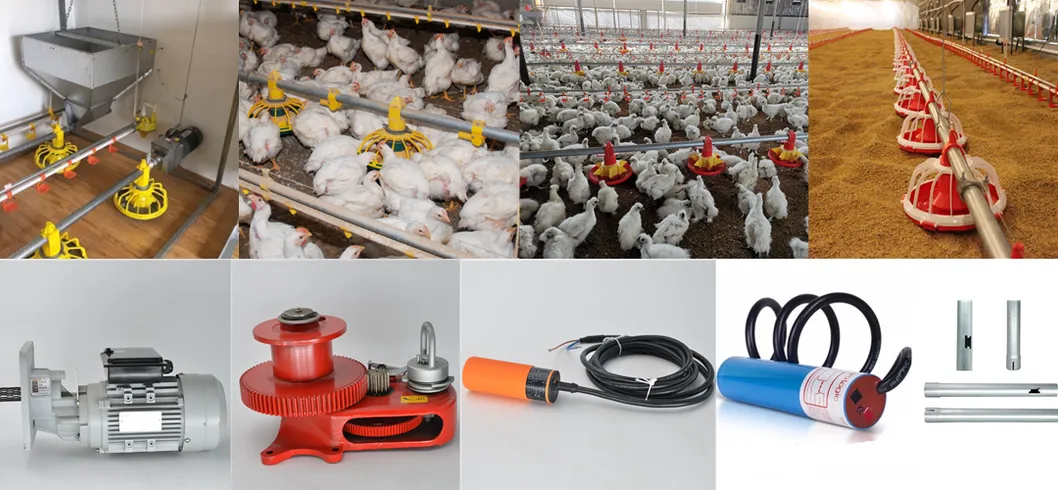

Silo or manpower hopper is the starting part of the system. A feed sensor at the end controls the motor automatically for precise delivery.
| Component | Specifications |
|---|---|
| Silo Size | 3T, 5T, 8T to 20T options |
| Material | Hot-dip galvanized steel (275g/m²) |
| Driving Motor | 0.75Kw, 380V/220V |
| Conveying Pipe | PVC, 75*3.6mm |

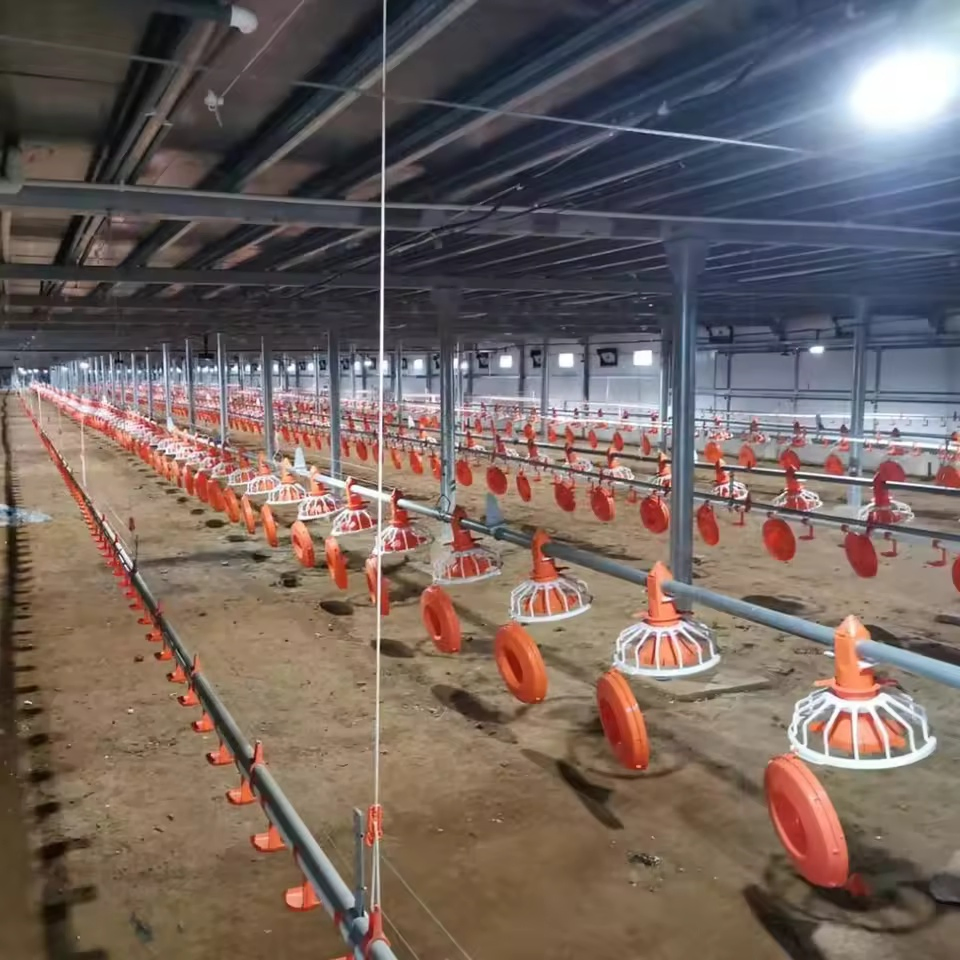

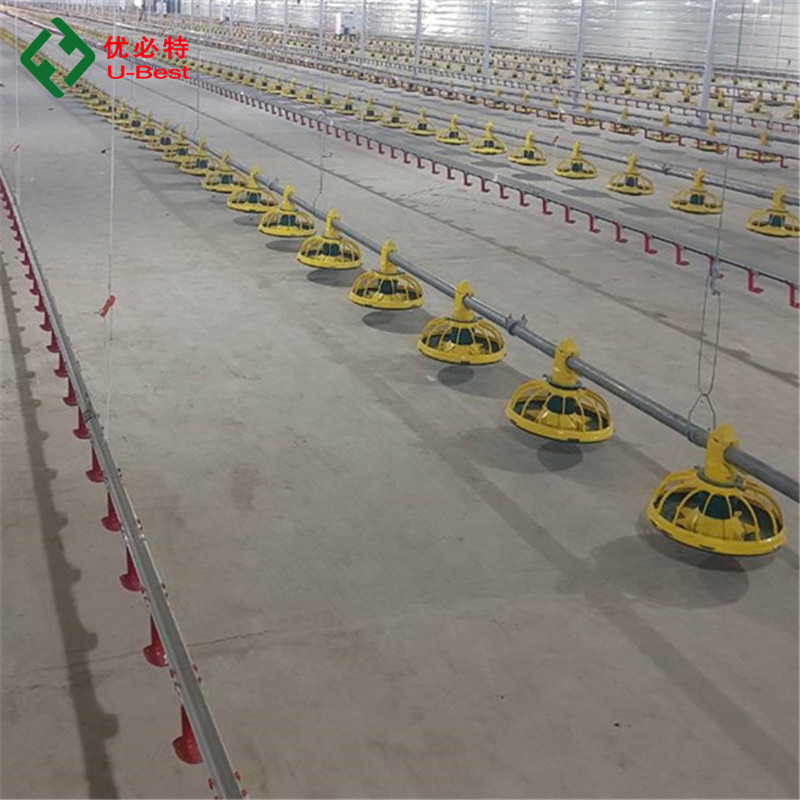

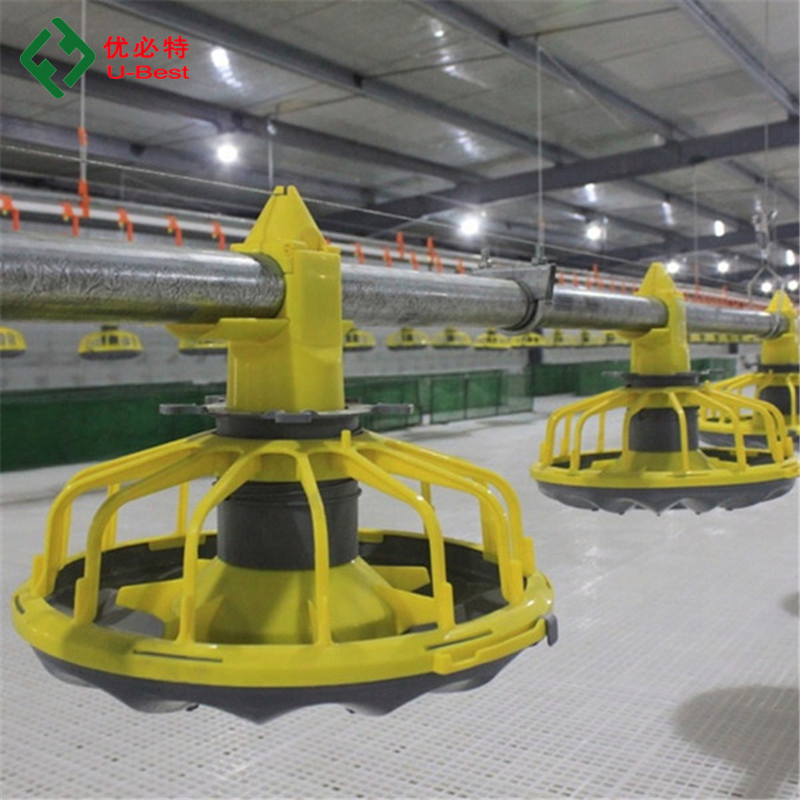

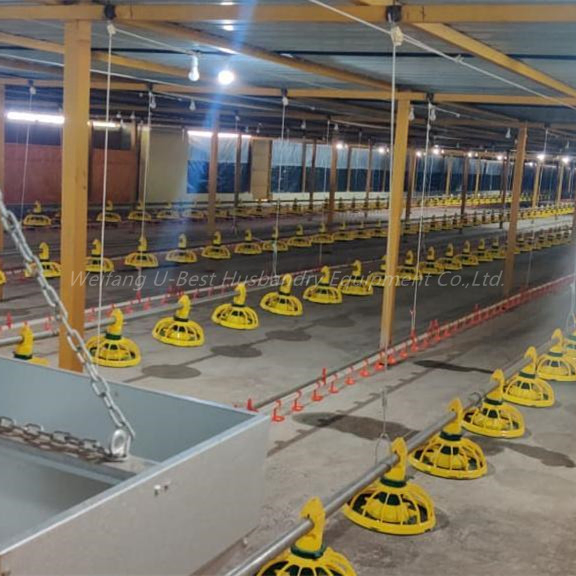

Includes high-quality feed pans made of pure engineering plastic. Height is easily adjustable via winch to match the birds' growth stage.
| Feed Pan Material | Pure engineering plastic (580g/pc) |
| Raising Ability | 50~55 broilers per pan |
| Spring Auger | Imported from South Africa |

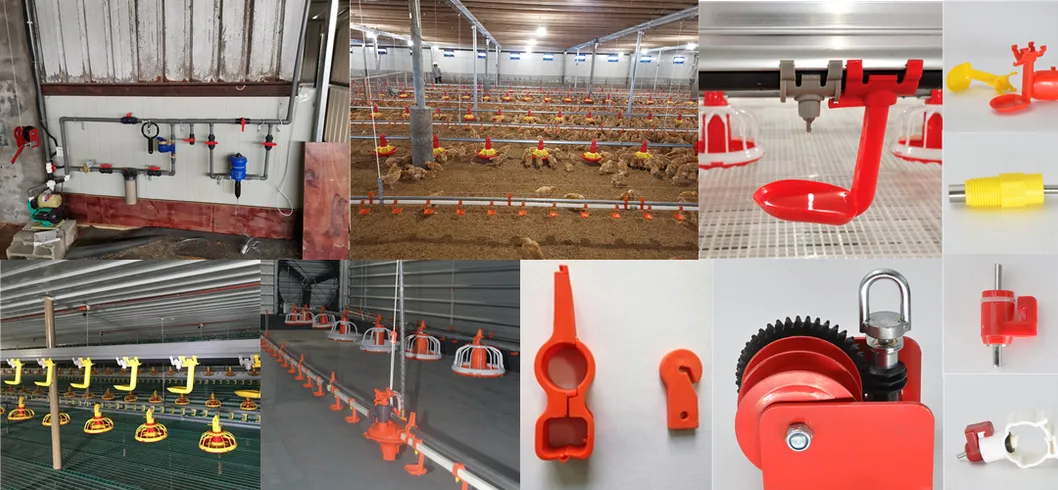

Provides fresh, clean water vital for healthy growth. Water flows from 360-degree nipples upon touch.
| Nipple Type | Stainless steel inner valve, 360° movable |
| Doser | France Dosatron brand for automatic medicine adding |
| Water Pipe | PVC, 12 or 15 nipples per 3m |

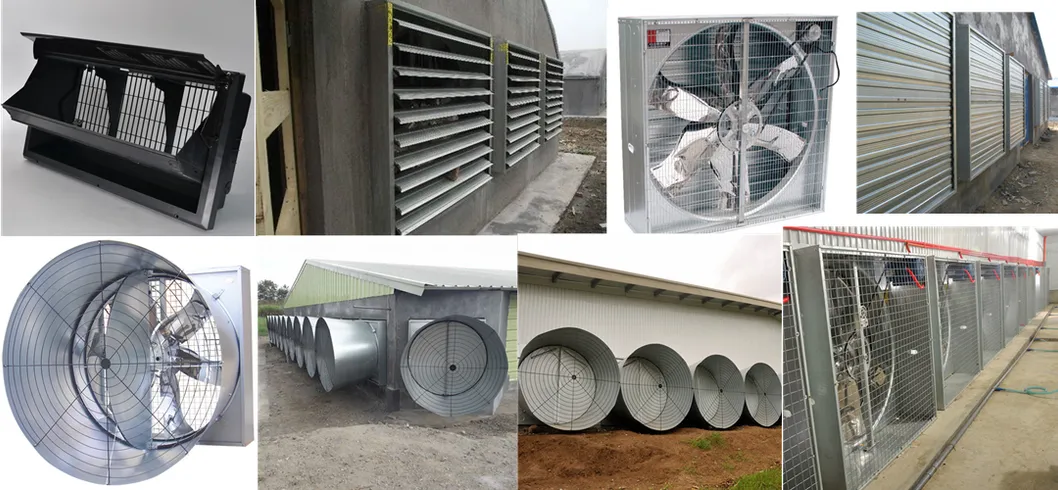

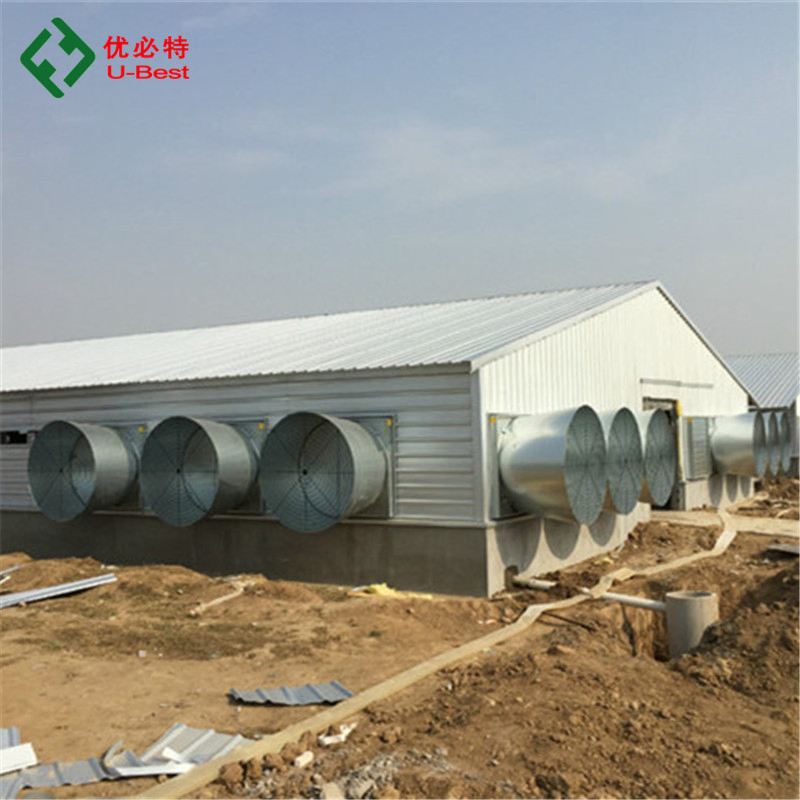

Utilizes exhaust fans and air inlets to maintain optimal air quality and temperature. Includes centrifugal push-pull fans and cone fans.

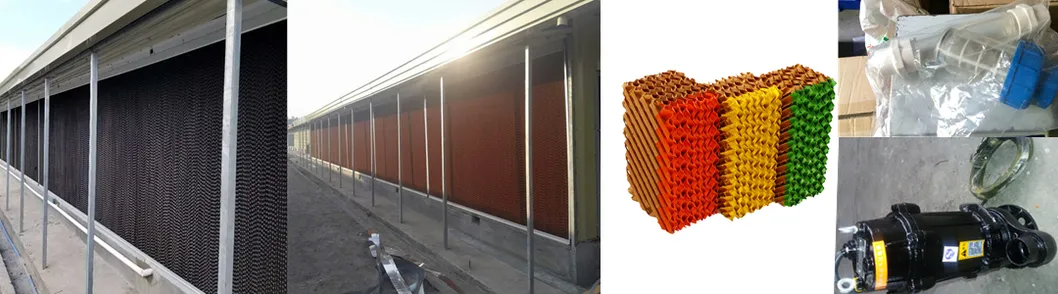

The most economical way to reduce temperature. Air is cooled by evaporation as it passes through the wet pads.
| Thickness | 100mm, 150mm |
| Frame Material | Aluminum alloy or Galvanized sheet |

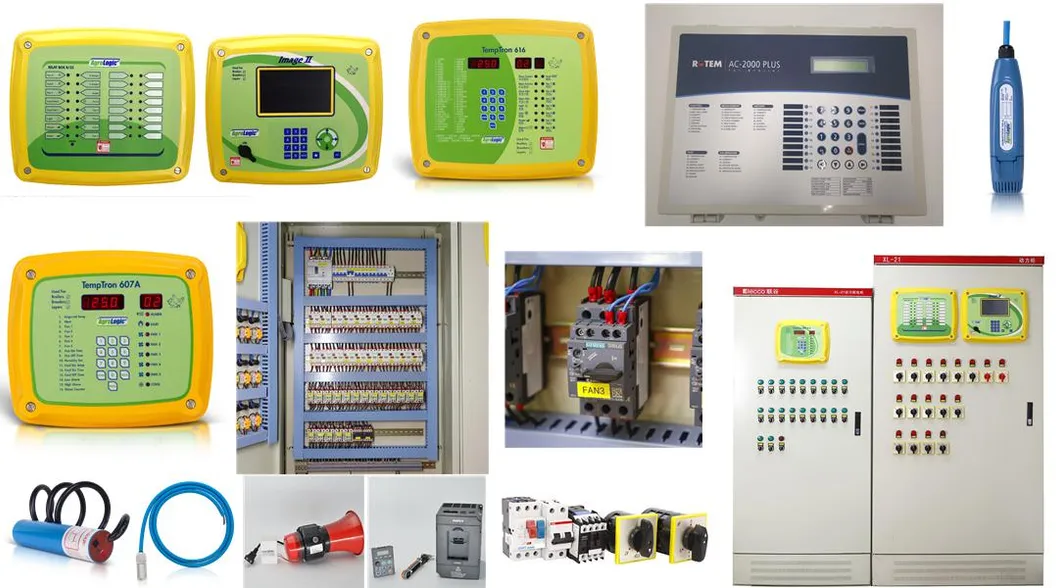

Automated management of fans, cooling pads, heaters, lighting, and water consumption via advanced controllers.

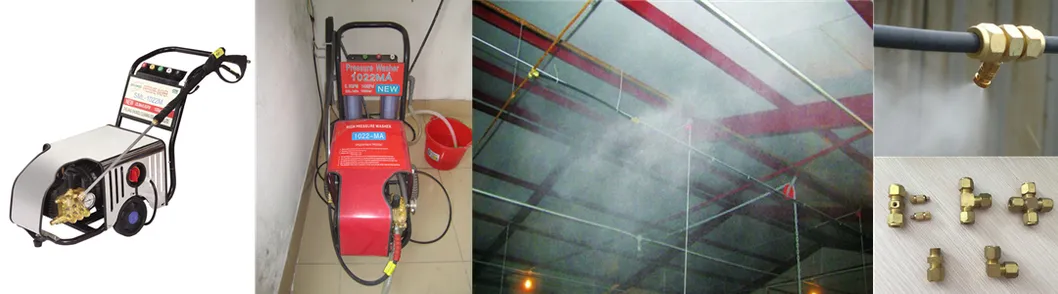

Effective tool for cooling, damping, and disinfecting. Can reduce temperature by 3-8°C within 3 minutes.

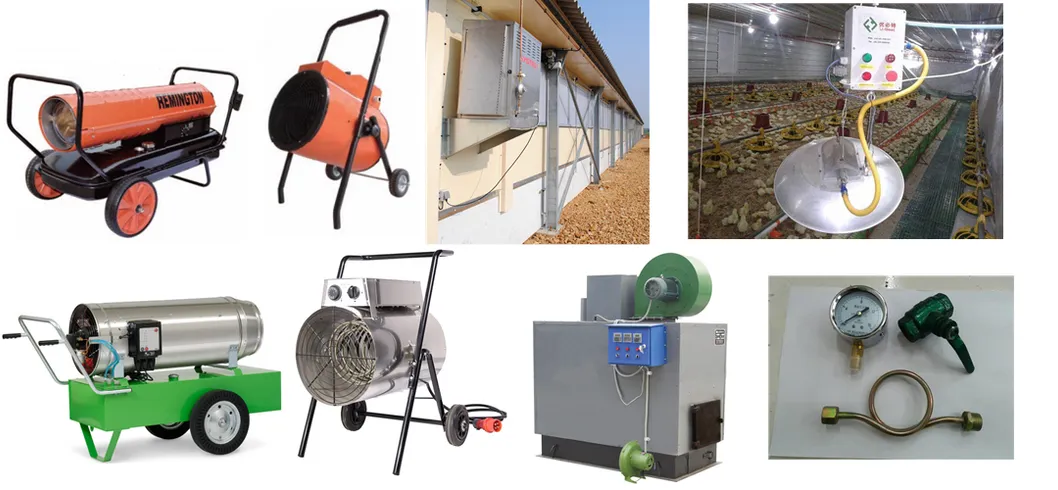

Critical for day-old chicks. Options include gas heaters, diesel, coal, or electric heaters, plus professional gas brooders.
