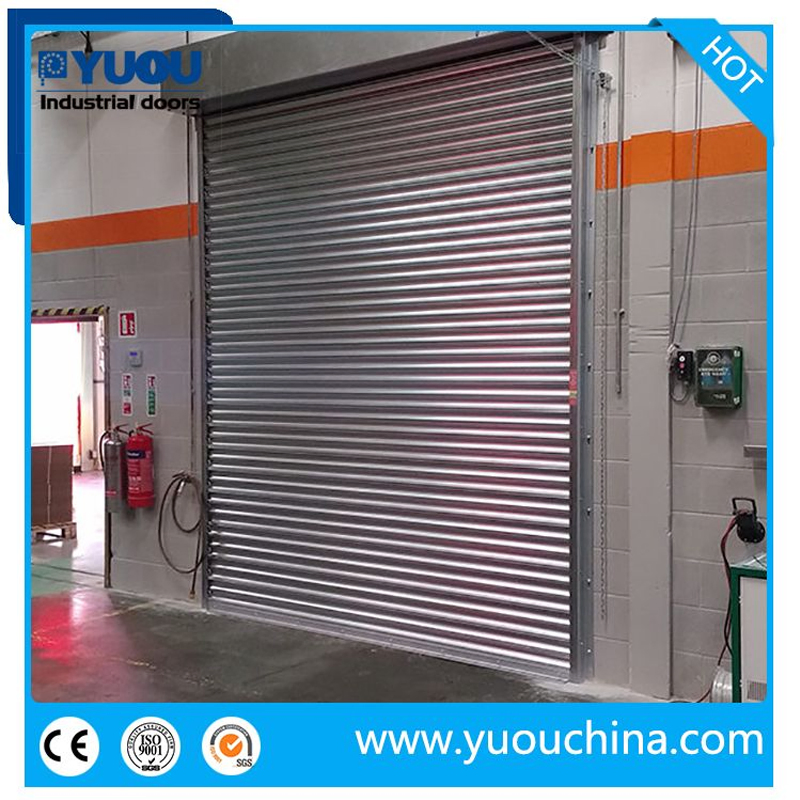

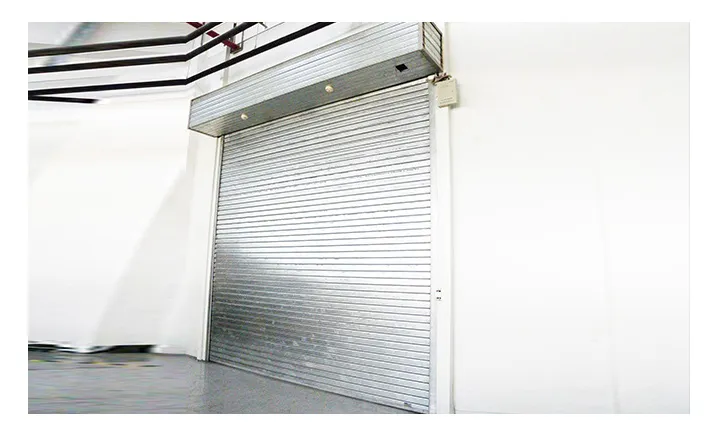

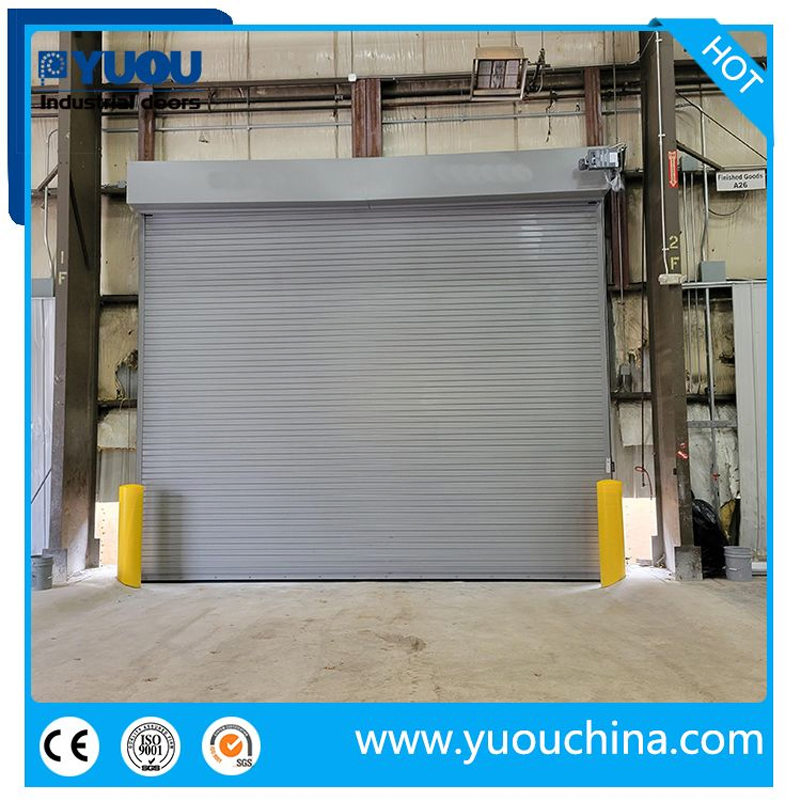

Automatic Steel Fire-Rated Roller Shutter
Automatic Steel Fire-Rated Roller Shutter
Automatic Steel Fire-Rated Roller Shutter
Automatic Steel Fire-Rated Roller Shutter
Automatic Steel Fire-Rated Roller Shutter
1 / 5
Automatic Steel Fire-Rated Roller Shutter
Automatic Steel Fire-Rated Roller Shutter
Automatic Steel Fire-Rated Roller Shutter
Automatic Steel Fire-Rated Roller Shutter
Automatic Steel Fire-Rated Roller Shutter

Automatic Steel Fire-Rated Roller Shutter

Customization: Available
After-sales Service: 1.5 Years
Material: Galvanized Steel
Send Inquiry

Product Description

Basic Information
Model NO.
YO-Fire Roller
Slats Material
Galvanized Steel
Core Material
Fire-Proof Aluminum Silicate Cotton
Special Design
Fire Fighting Linkage
Warranty
1.5 Years
Type
Rolling
Open Style
Rolling
Certification
ISO9001, CCC, CE
Position
Industrial
Specification
Max size 6m*6m
Packaging & Delivery
Package Size
600.00cm * 100.00cm * 100.00cm
Gross Weight
300.000kg
Transport
Export Wooden Box
Product Description

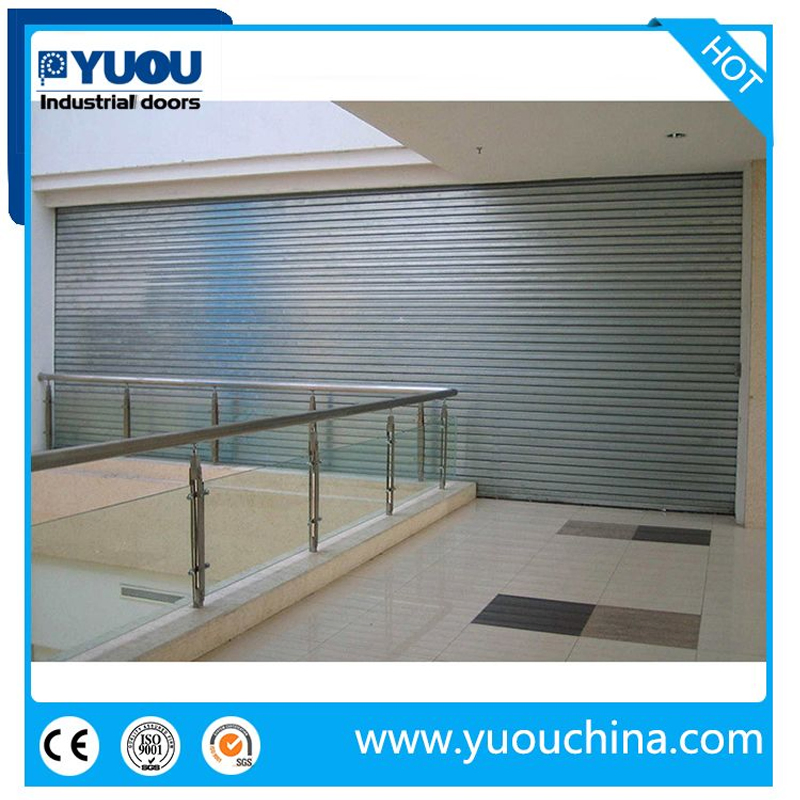

Steel fire proof roller shutter door's fire limit is greater than 3 hours. Widely used in shopping malls, hotels, office buildings, underground garages and other public places divided into fire zones.

Automatic Steel Fire-Rated Roller Shutter
Technical Data
Max Dimensionwidth * height 8000mm*10000mm
Opening Speed5-7.5m/min
Power Supply3phase 380v±10% 50HZ, DC24V Controller
Fire Resistance≥3 HOURS
Wind Resistance10level-12level (34m/s)
Air Tightness95m³/hour under 30 pa pressure
Smoke Leakage≤0.12M3/(SQM/MIN)

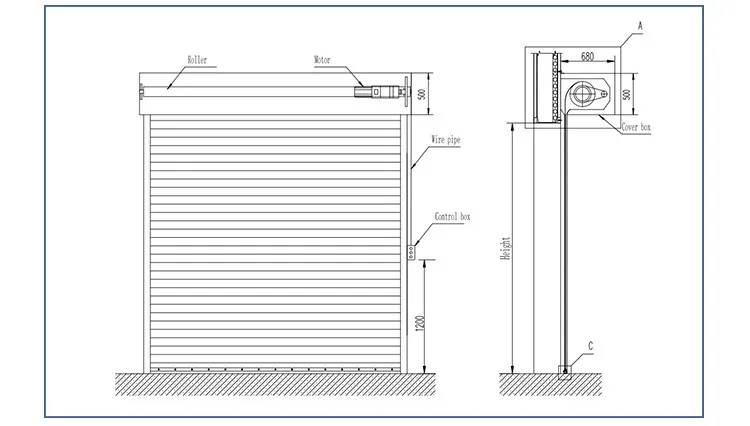

Structure Diagram
Structure Diagram
Product Details

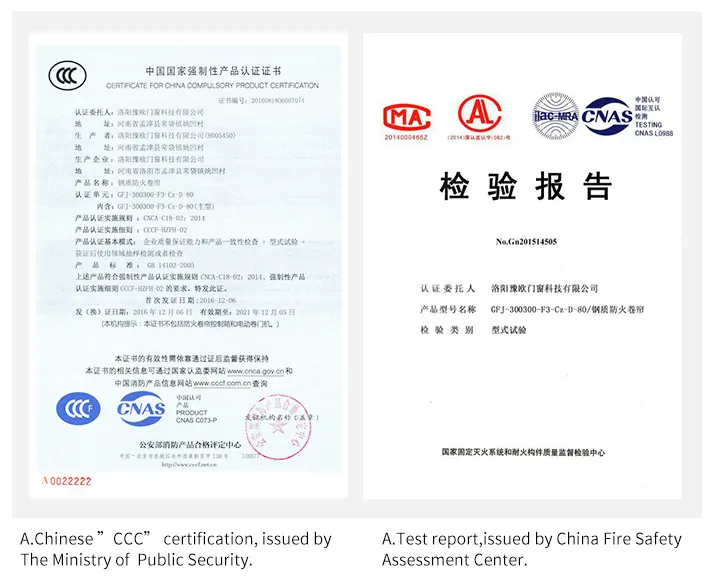

1. Certification

Authorized by the National Fire Protection Center, manufactured according to national standard GB14102-2005.

Certification

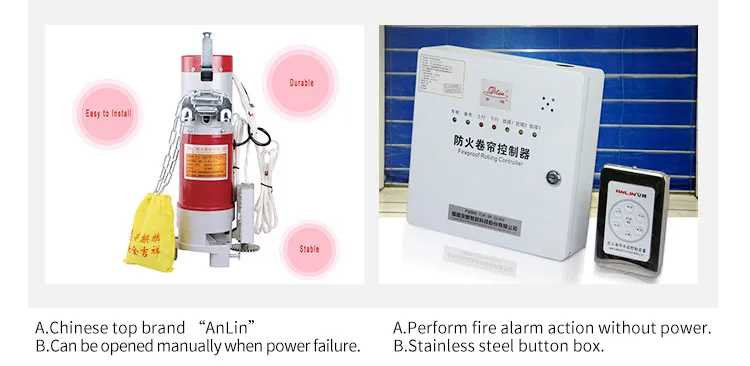

2. Motor System
  • Chinese top brand components.
  • Perform fire alarm action even without power.
  • Manual override available during power failure.
  • Stainless steel button box included.
Motor Details

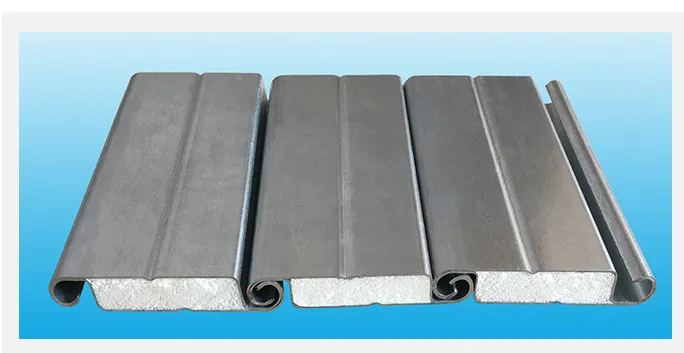

3. Slats & Construction

Double skin 0.8mm thickness with Aluminum silicate wool filling in the middle for superior fire insulation.

Slats Details

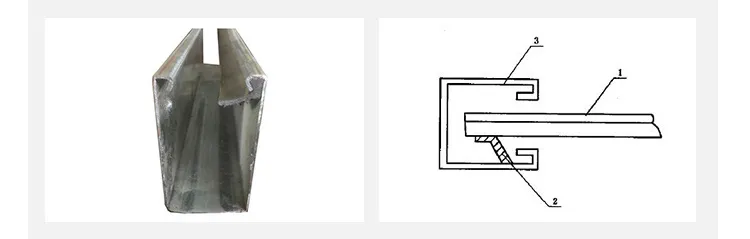

4. Rails & Expansion Seal

Galvanized steel thickness 1.5-3mm. Includes expansion seals that activate at high temperatures to isolate smoke.

Rails Details

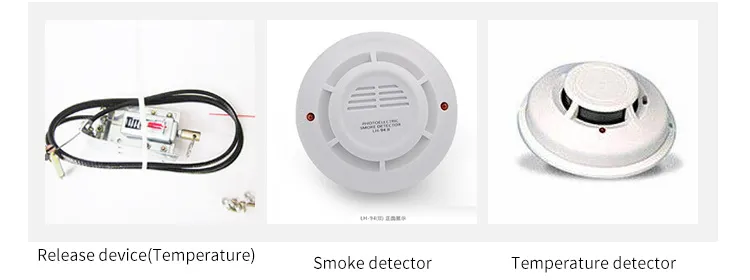

5. Optional Accessories & Hood
Optional devices

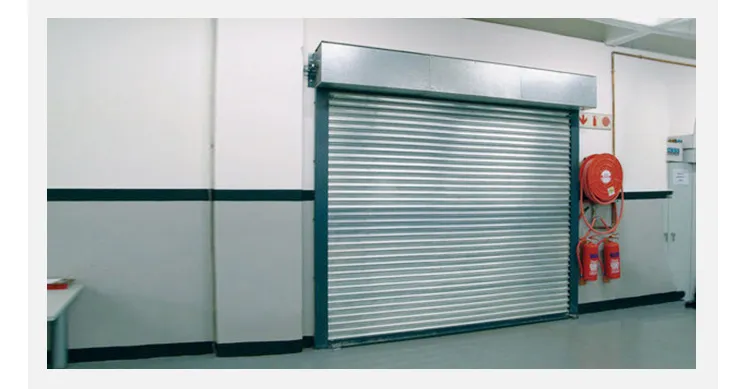

Hood cover

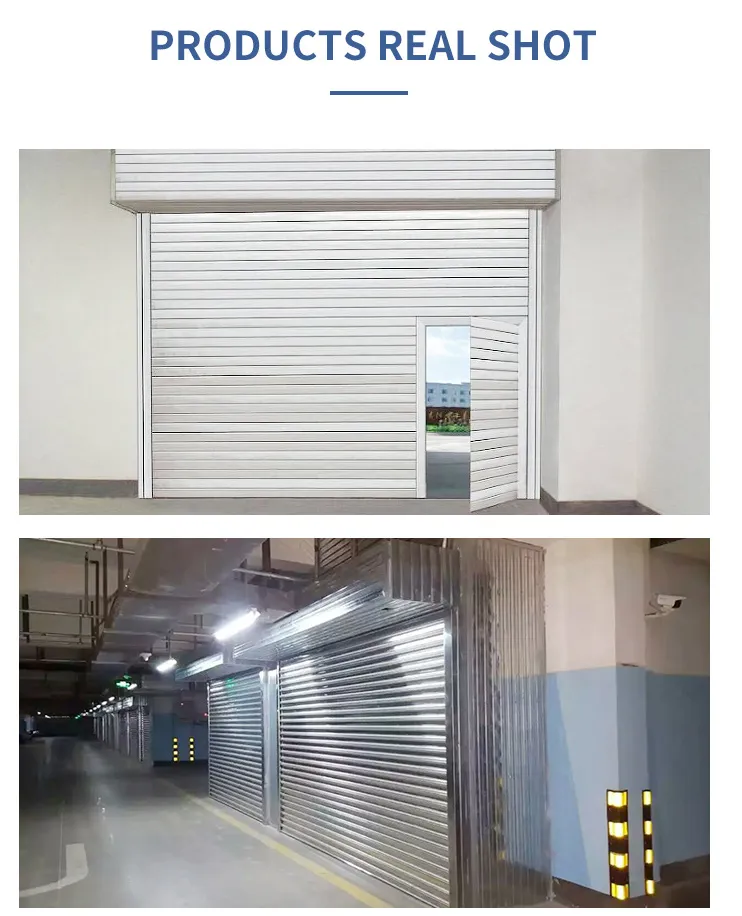

Real Shot Gallery

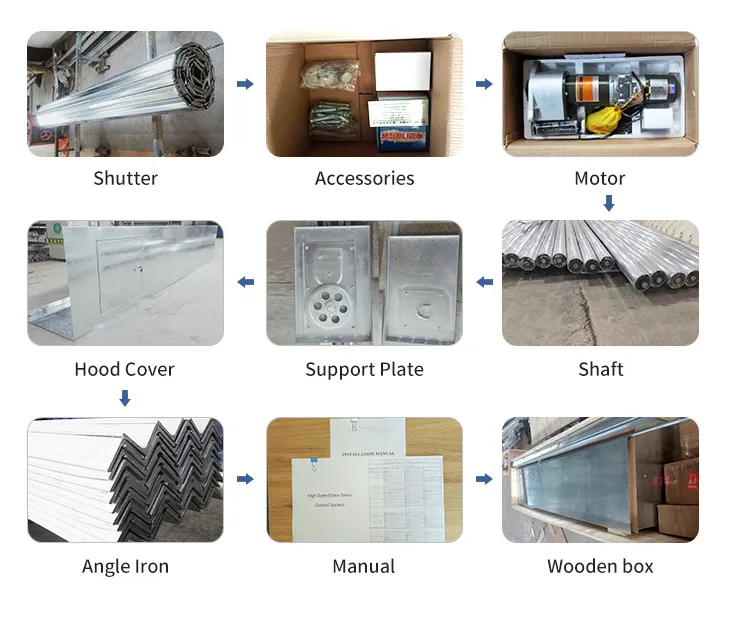

Package Contents
Real Shot 1
Real Shot 2
Real Shot 3
Real Shot 4
Real Shot 5
Frequently Asked Questions
Q1: What is the fire resistance rating of this roller shutter? A: Our steel fire-rated roller shutters have a fire limit greater than 3 hours, complying with national safety standards.
Q2: Can the door be operated during a power failure? A: Yes, the system is designed to perform fire alarm actions without power and can be opened manually in case of emergencies.
Q3: What materials are used for insulation? A: The slats are filled with fire-proof aluminum silicate cotton to provide excellent thermal insulation.
Q4: Is the door wind-resistant? A: Yes, it features high wind resistance rated between 10-12 level (up to 34m/s).
Q5: What is the maximum size available? A: We can manufacture doors up to a maximum dimension of 8000mm in width and 10000mm in height.
Q6: What certifications do these doors have? A: Our fire-rated doors are certified by ISO9001, CE, and the Chinese CCC (National Fire Protection Center).
