Automatic Swing Door Opener, Swing Gate Operator (BS-PK05)
Automatic Swing Door Opener, Swing Gate Operator (BS-PK05)
Automatic Swing Door Opener, Swing Gate Operator (BS-PK05)
Automatic Swing Door Opener, Swing Gate Operator (BS-PK05)
Automatic Swing Door Opener, Swing Gate Operator (BS-PK05)
1 / 5
Automatic Swing Door Opener, Swing Gate Operator (BS-PK05)
Automatic Swing Door Opener, Swing Gate Operator (BS-PK05)
Automatic Swing Door Opener, Swing Gate Operator (BS-PK05)
Automatic Swing Door Opener, Swing Gate Operator (BS-PK05)
Automatic Swing Door Opener, Swing Gate Operator (BS-PK05)

Automatic Swing Door Opener, Swing Gate Operator (BS-PK05)

Customization: Available
Structure: Straight Arm
Driving Type: Electromechanical
Send Inquiry

Product Description

Product Overview

Automatic Swing Door Opener: BS-PK05

Automatic Swing Door Opener
Technical Specifications
Model NO.
BS-PK05
Supply Voltage
24VDC
Power
40W*2
Current
2A
Rotational Speed
1500RPB
Rod's Running Speed
1.6cm/S
Rod's Max Travel
300mm
Max Single-Leaf Length
3m
Max Single-Leaf Weight
500kgs
Environmental Temp
-20°C ~ 55°C
Protection Class
IP55
HS Code
85012000
Key Features
✓
Obstacle Detection: The swing gate opener stops acting immediately when the gate meets an obstacle.
✓
Manual Release: Equipped with a release unit for operation during power failure.
✓
Flexible Operation: Controlling single or double-leaf is optional.
✓
Backup Power: Supports 24VDC back-up battery input.
✓
Multi-Device Integration: One control unit for two motors; compatible with photocells, loop detectors, IC card readers, and alarm lamps.
✓
Intelligent Limits: Newly updated with easier and more intelligent limit adjustment methods.
Warranty: 2 years for mechanical parts, 1 year for digital parts
Packaging & Gallery
Package Size
83.00cm * 28.00cm * 28.50cm
Gross Weight
25.00kg

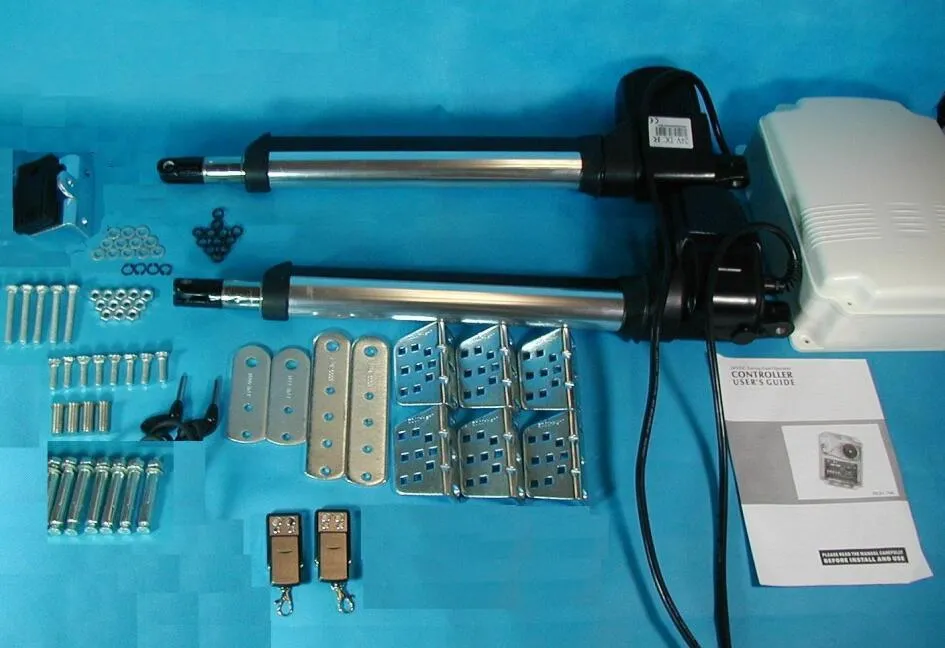

Whole Set
Gate Operator Detail 1
Gate Operator Detail 2
Gate Operator Detail 3
Gate Operator Detail 4

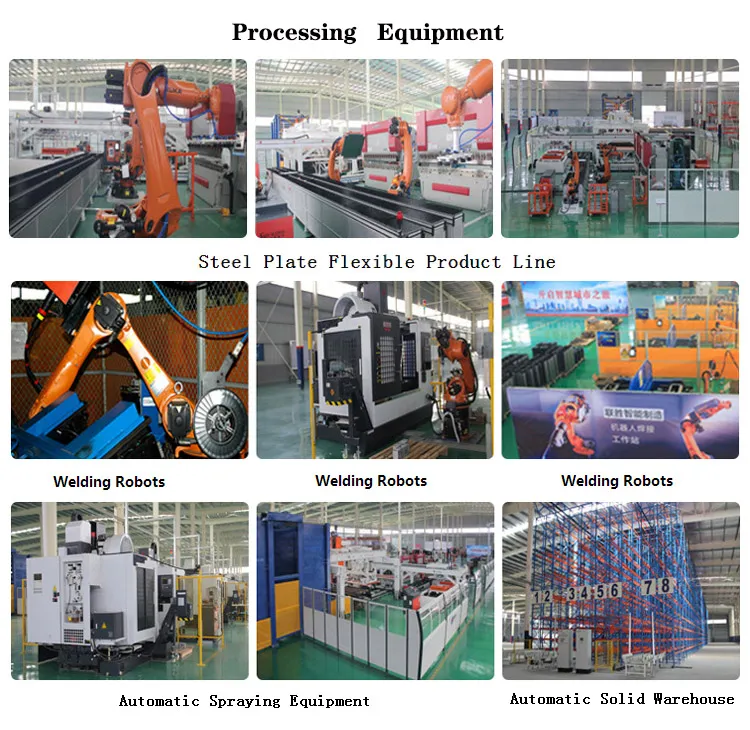

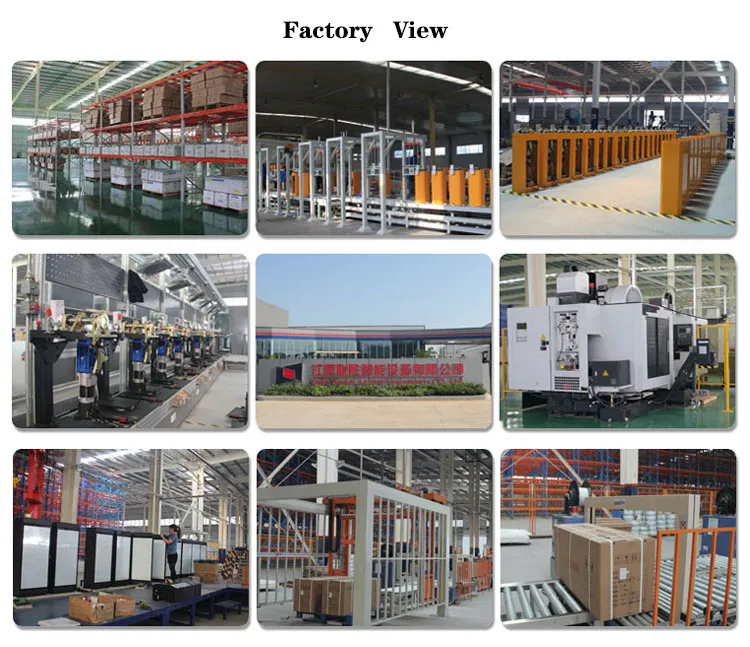

Factory Capability
●
Factory area exceeds 30,000 square meters.
●
Specializing in automatic door and gate openers since 1998.
●
Products include traffic barriers, garage door openers, sliding gate openers, and industrial door operators.
●
Certifications: CE, ISO9001:2008.
●
Equipped with 10 production lines.
Frequently Asked Questions
Q: What happens if the gate encounters an obstacle during operation?
A: The BS-PK05 is designed with safety in mind and will stop acting immediately when it meets an obstacle.
Q: How can I open the gate if there is a power failure?
A: The system includes a release unit that allows you to manually operate the gate in case of power loss.
Q: What is the maximum weight and length of the gate leaf it can handle?
A: It can handle a maximum single-leaf length of 3 meters and a maximum weight of 500kgs.
Q: Is the system suitable for outdoor use in harsh weather?
A: Yes, it has an IP55 protection class rating and can operate in temperatures ranging from -20°C to 55°C.
Q: Can I connect external safety devices to the controller?
A: Yes, the control panel is compatible with photocells, loop detectors, IC card readers, and alarm lamps.
Q: Does it support backup battery power?
A: Yes, the system supports 24VDC back-up battery input for uninterrupted operation.
