■ Basic Information
Surface Finishing
Finished
Production Capacity
10000 Per Month
■ Product Description

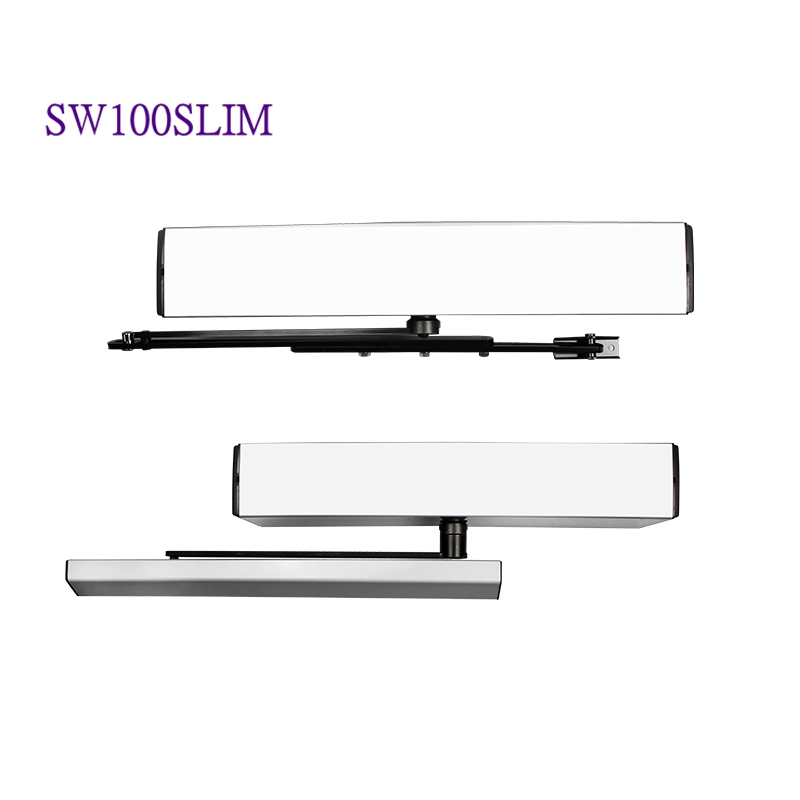

SW100-SLIM Automatic Swing Door Operator

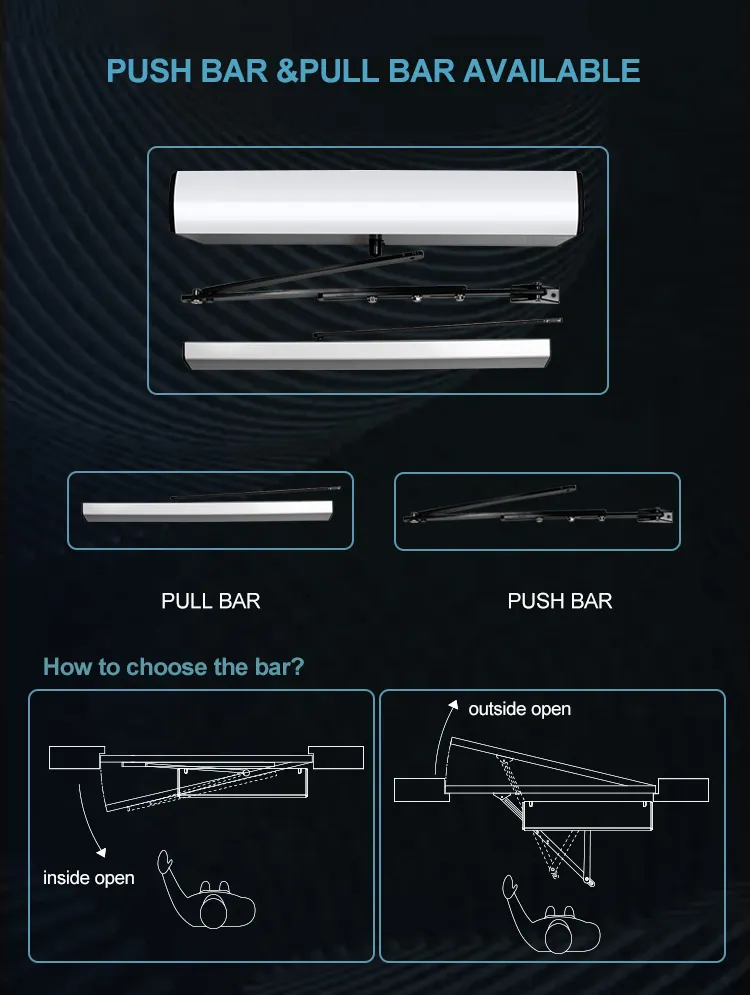

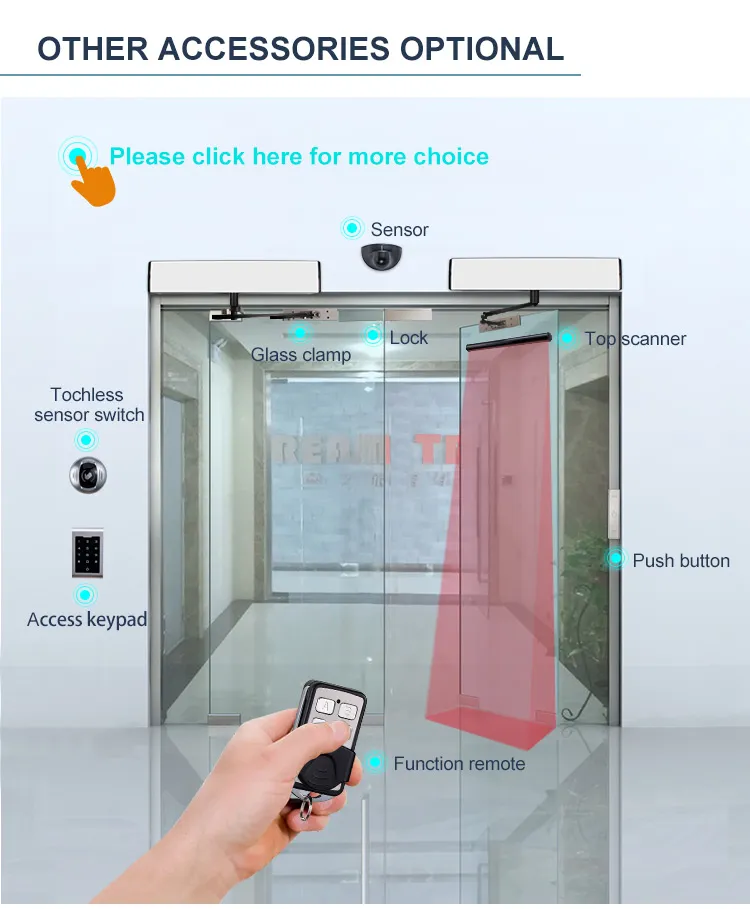

01Flexible Hardware: Push bar & Pull bar optional.

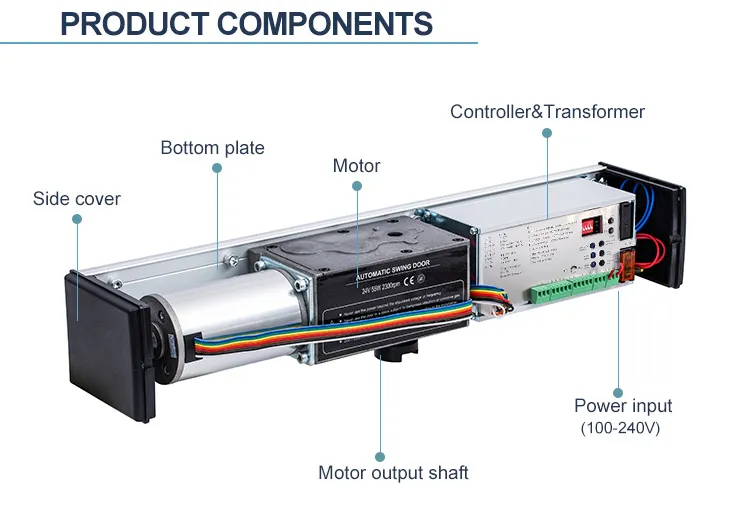

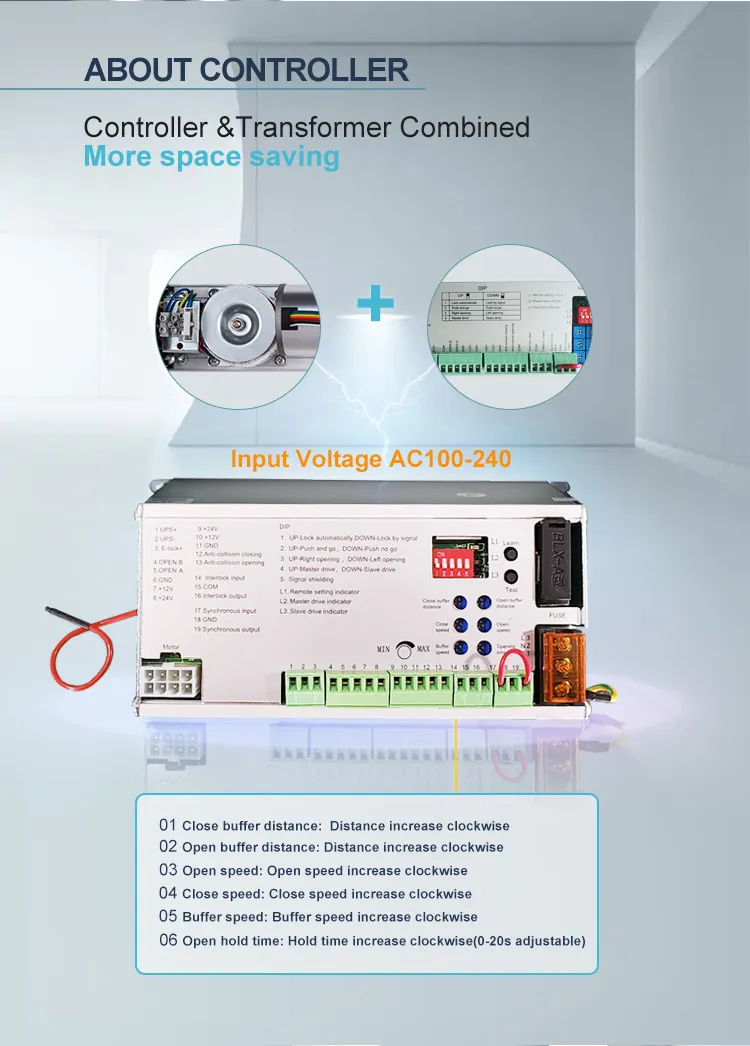

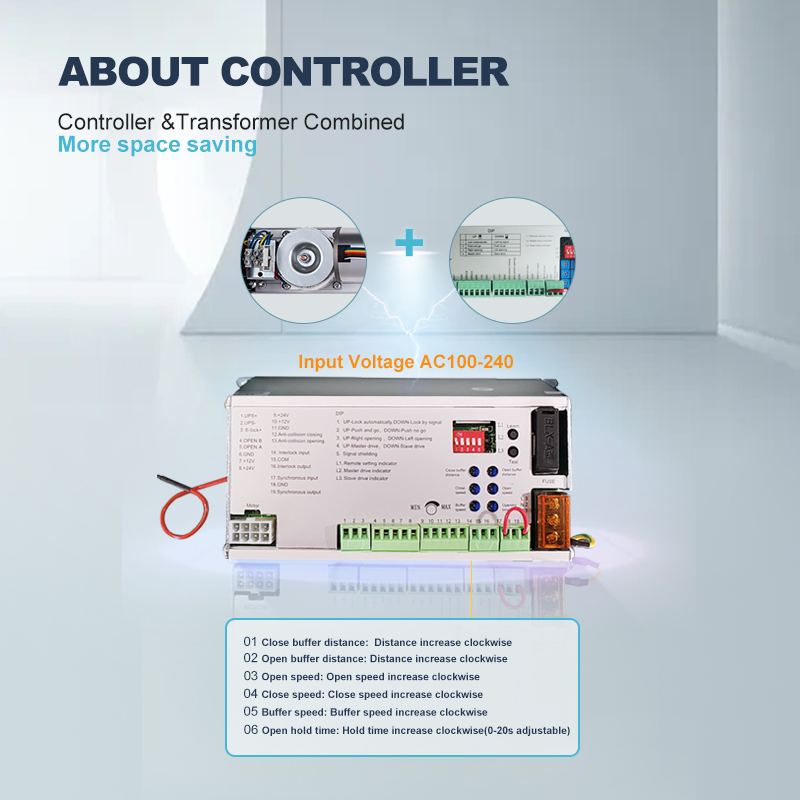

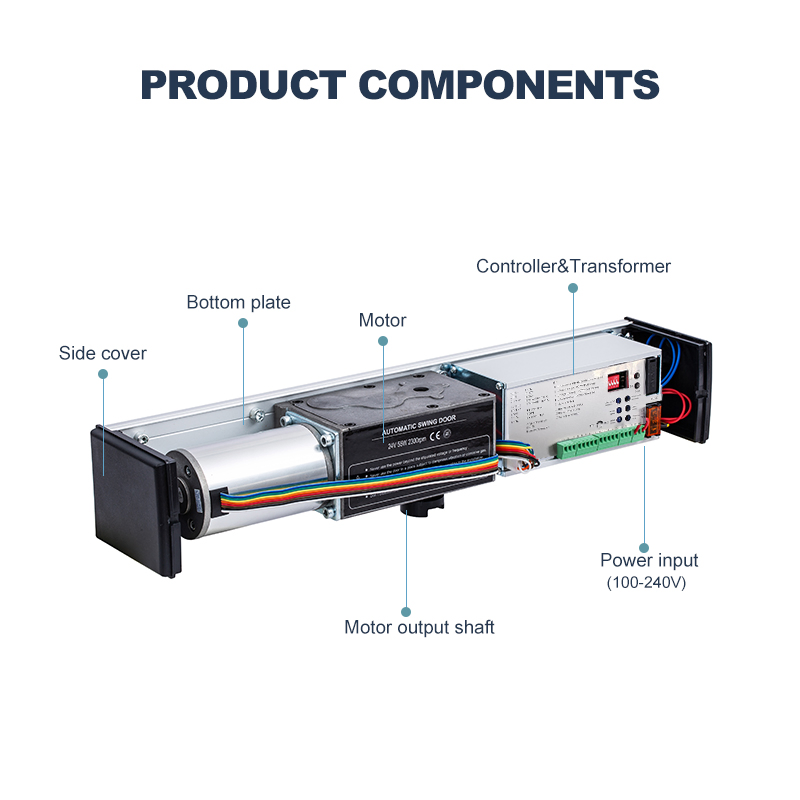

02Compact Design: Controller & Transformer combined for maximum space saving.
03Global Compatibility: Wide input voltage range AC100-240V.
04Non-interference Sensors: Inside and outside sensors connect directly without interference.

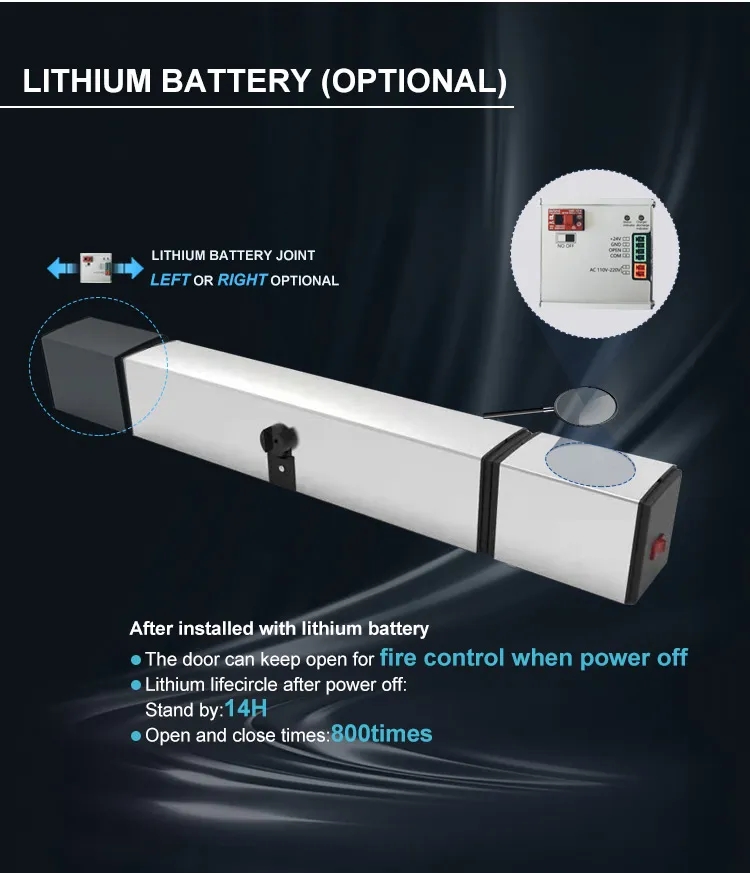

05Emergency Backup (Optional): Lithium battery allows door to stay open for fire control during power failure. Standby: 14H, cycles up to 800 times.

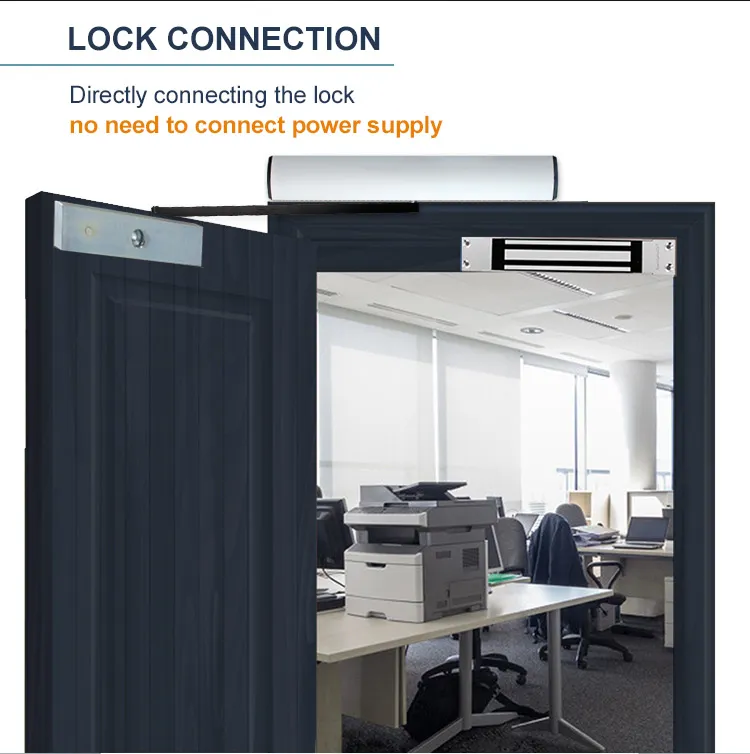

06Efficient Wiring: Directly connects to the lock with no need for an extra power supply.

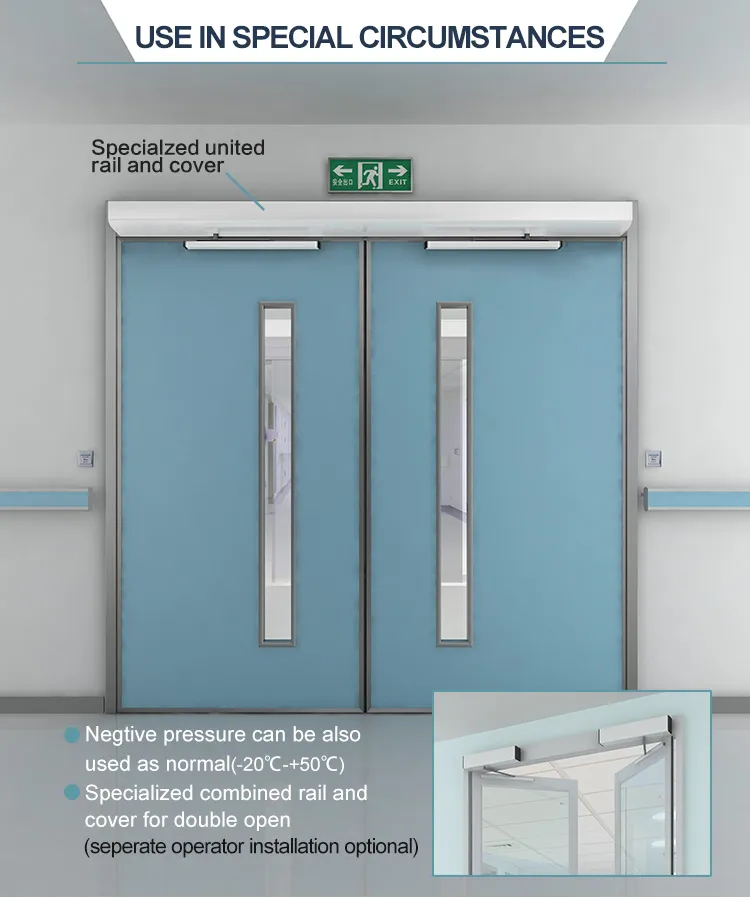

07Double Open Support: Specialized combined rail and cover for double open configurations.

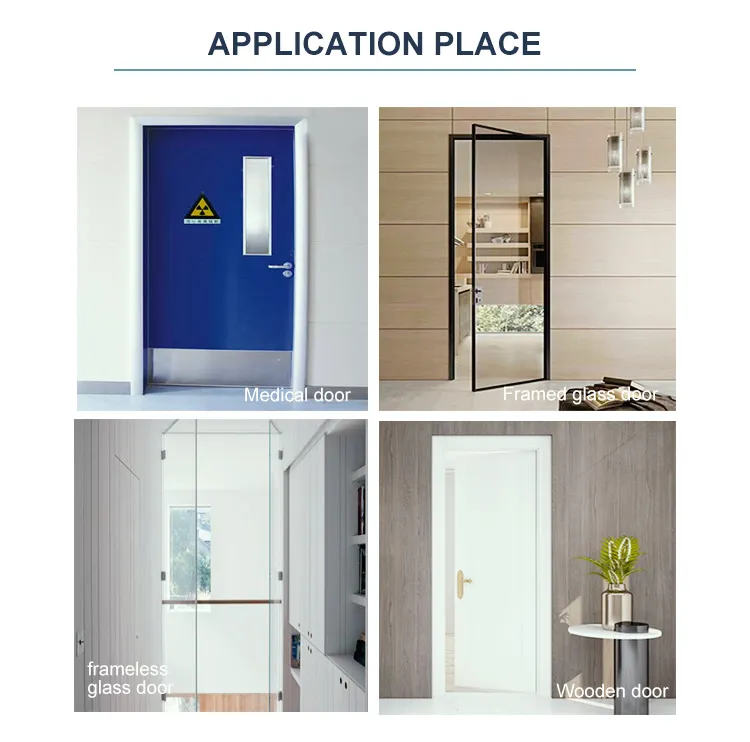

08Versatile Application: Suitable for Medical doors, Framed/Frameless glass doors, and Wooden doors.

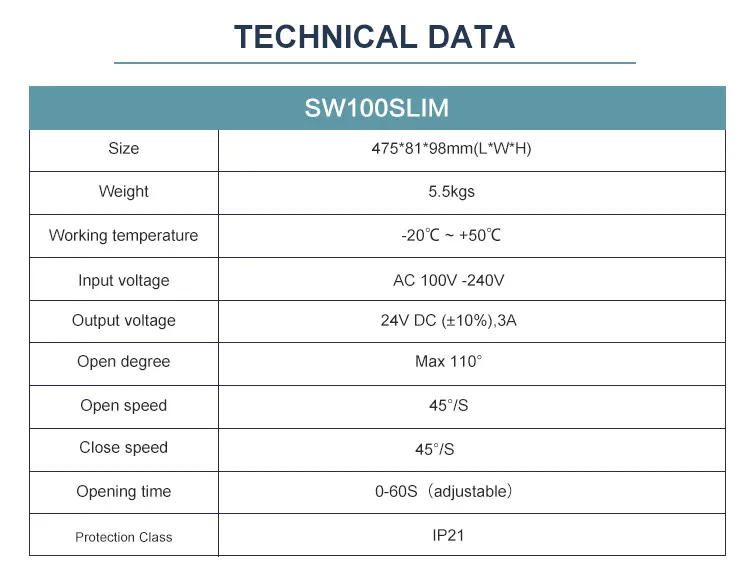

■ Technical Specifications
| Model | SW100slim |
| Product Weight | 5.5KG |
| Voltage | AC100-240V |
| Opening Degree | Max 110 degree |
| Opening Speed | 45 degree/s |
| Closing Speed | 45 degree/s |
| Opening Time | 0-60 second (Adjustable) |
| Protection Class | IP21 |
■ FAQ
1. What types of doors is the SW100slim suitable for?
The SW100slim is highly versatile and can be used for medical doors, framed glass doors, frameless glass doors, and wooden doors.
2. Does it support backup power during a blackout?
Yes, an optional lithium battery is available. It provides up to 14 hours of standby time and can operate the door approximately 800 times. It also supports fire control by keeping the door open when power is off.
3. What is the weight limit for this operator?
The system is designed to handle a maximum door weight of up to 100kgs.
4. Can the opening and closing speeds be adjusted?
The standard speed is 45 degrees per second, and the hold-open time is fully adjustable between 0 and 60 seconds.
5. Is the installation space-efficient?
Yes, the SW100slim features a combined controller and transformer design, which significantly saves space compared to traditional operators.
