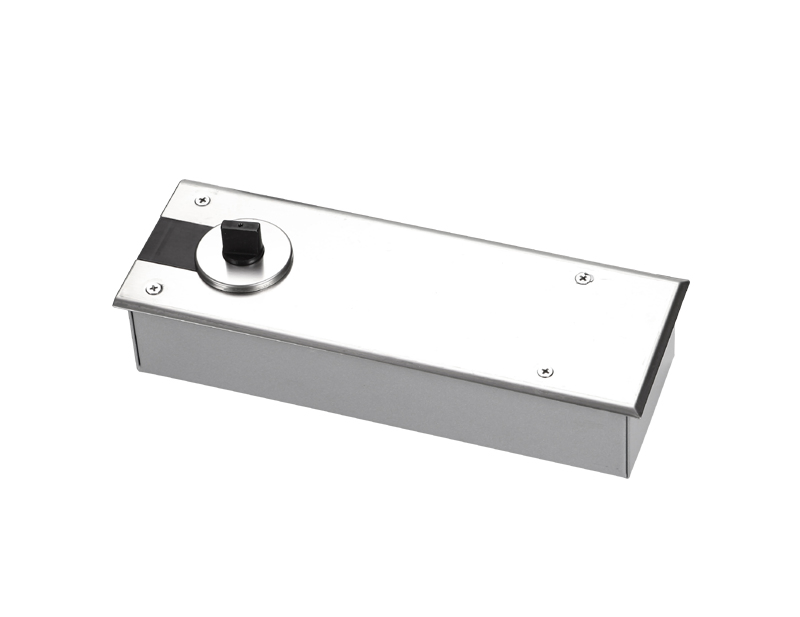

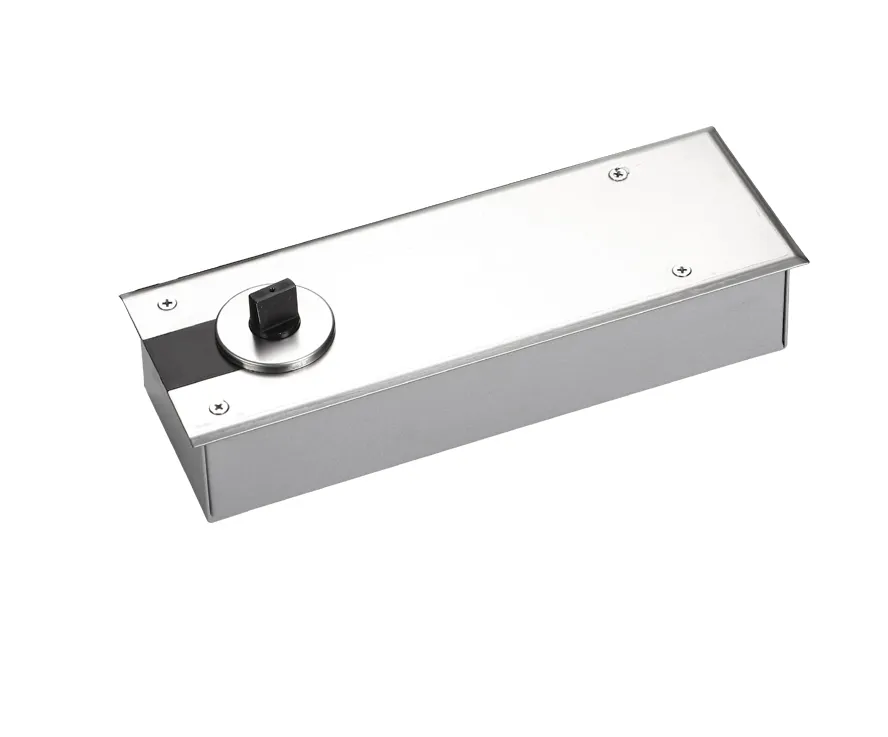

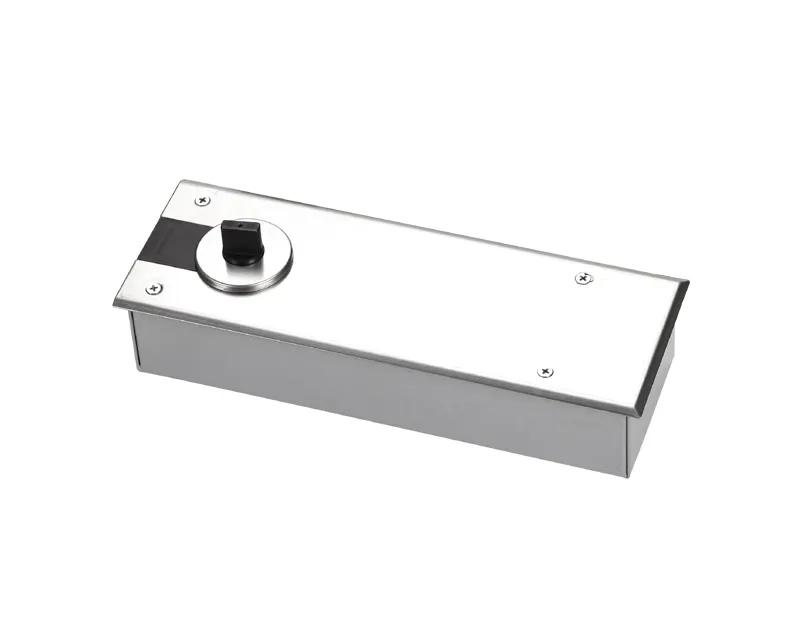

Automatic Swing Door Operator in Ground Mounting
Automatic Swing Door Operator in Ground Mounting
1 / 2
Automatic Swing Door Operator in Ground Mounting
Automatic Swing Door Operator in Ground Mounting

Automatic Swing Door Operator in Ground Mounting

Customization: Available
Structure: Underground
Driving Type: Electromechanical
Send Inquiry

Product Description

Basic Information
Model NO.1093.1832
Electric Current TypeAC
Unit Weight5.5kg
Installation ModeIn Ground
Opening Angle86°-95°
Transport PackageBrown Carton
OriginChina
Production Capacity1000PCS/Month
Product Description

In-ground swing door operator

The model 1093.1832 provides an aesthetic and reliable in-ground door operating system for frame and frameless swing doors. This system includes the in-ground motor gear, adapters, separate control box, and the in-ground mounting way offers the ideal solution for modern architectural masterpieces or preserving the historical integrity of buildings.

Automatic Swing Door Operator in Ground Mounting
Automatic Swing Door Operator in Ground Mounting
Art. 1093.1832
Key Features
✓Heavy load capacity, concealed mounted in ground, beautify the building's entrance.
✓One-way swing or two-way swing available.
✓Motor weather-proof, ideal for interior and exterior use and free maintenance.
✓Push & go function allows pedestrian to push/collide the door roughly without damage.
✓Support double door synchronization.
✓One model suits both left or right-handed doors.

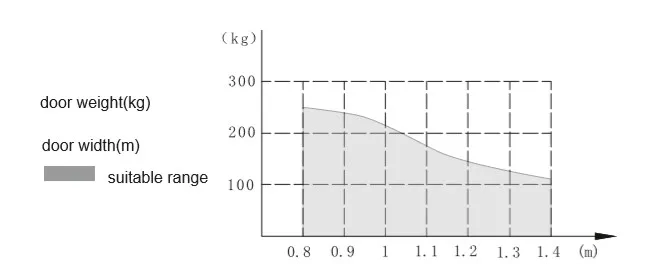

Automatic Swing Door Operator Features
Technical Parameters
Model 1093.1832A 1093.1832B
Opening directionOne wayTwo way
Max door weight (kg)150
Max door width (mm)1200
Max torque (N.m)165
Unit weight (kg)5.5
Installation modeIn ground
Noise (dB)<60
Electric lock outputDC12V NO / NC
Opening/Closing time6-12s
Opening angle86°-95°
Supply powerAC230V /50Hz, AC110V /60Hz
Power rated55W
Standby power<2W
Environment temperature-20ºC to +50ºC
Protection levelIP68
Operator dimension (mm)330*116*100
Control box dimension (mm)215*205*60

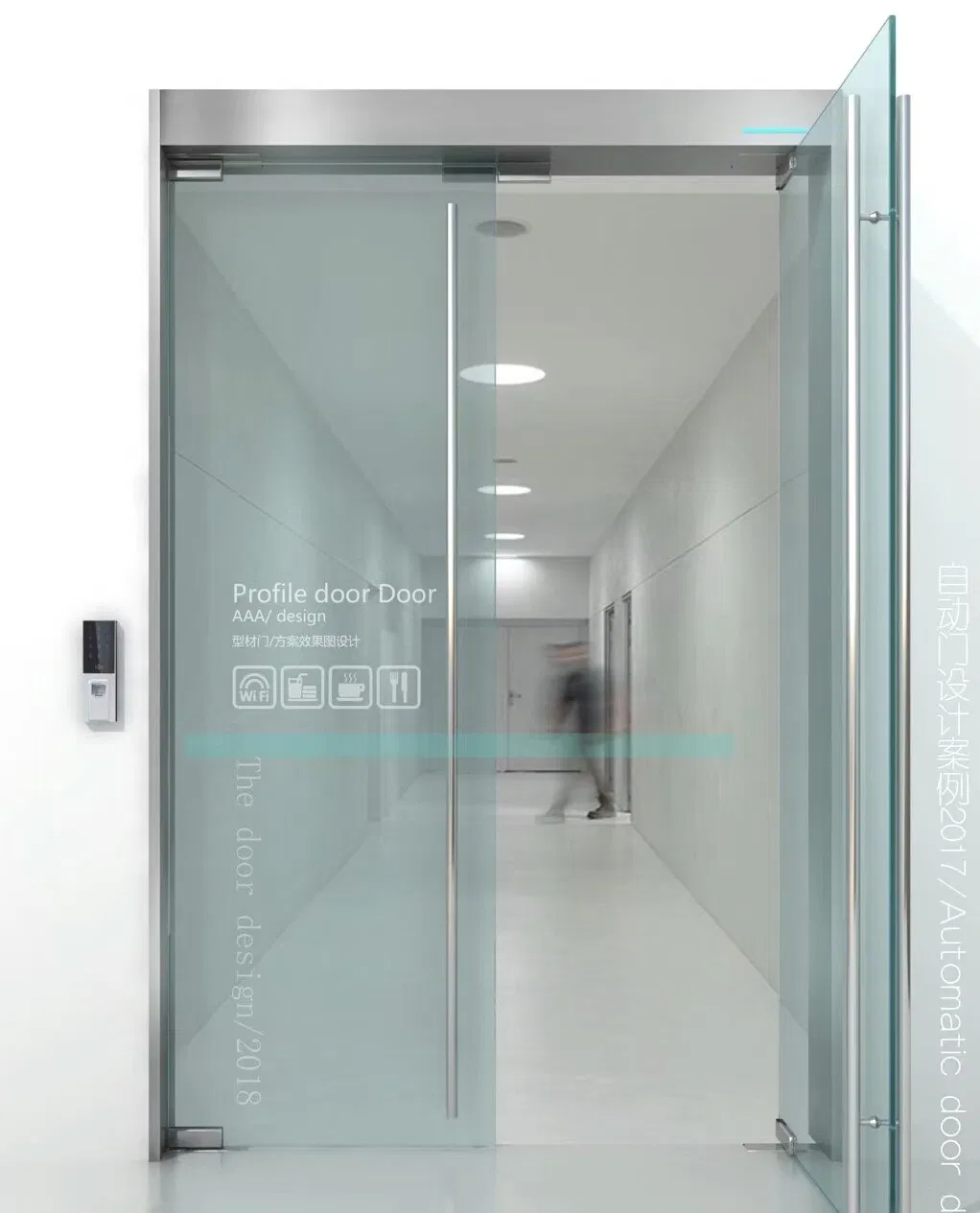

In-ground operator details
In-ground operator dimensions
Standard Accessories

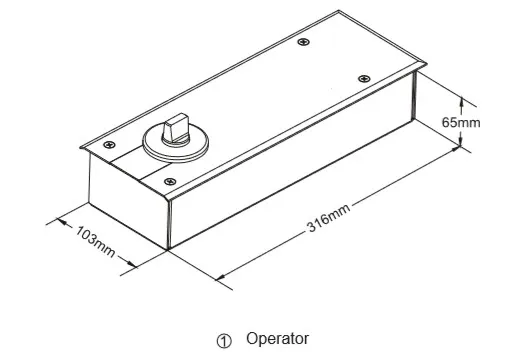

Standard Accessory 1

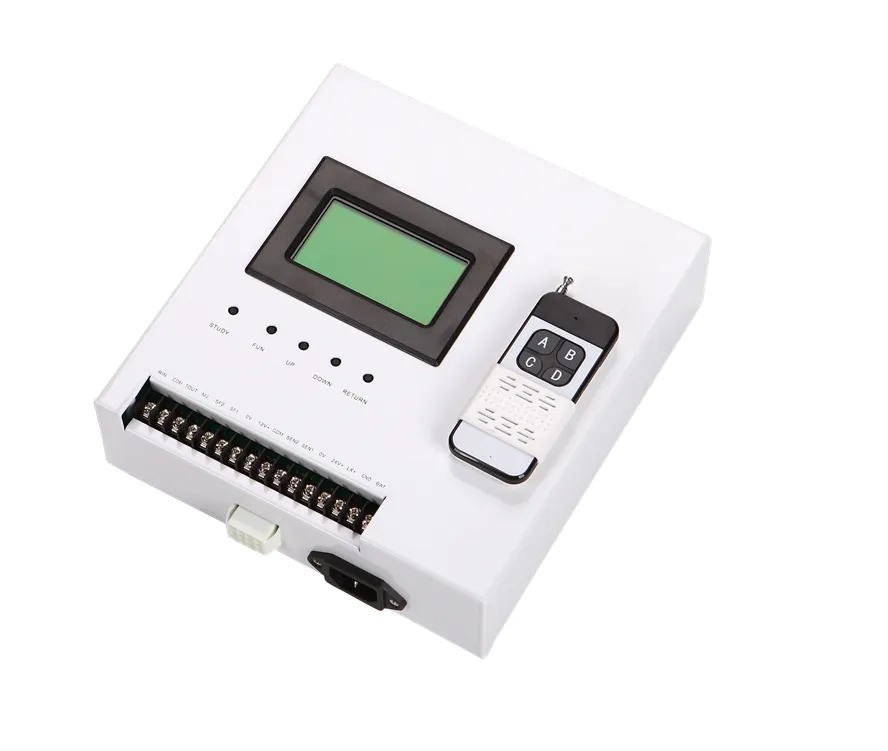

Standard Accessory 2

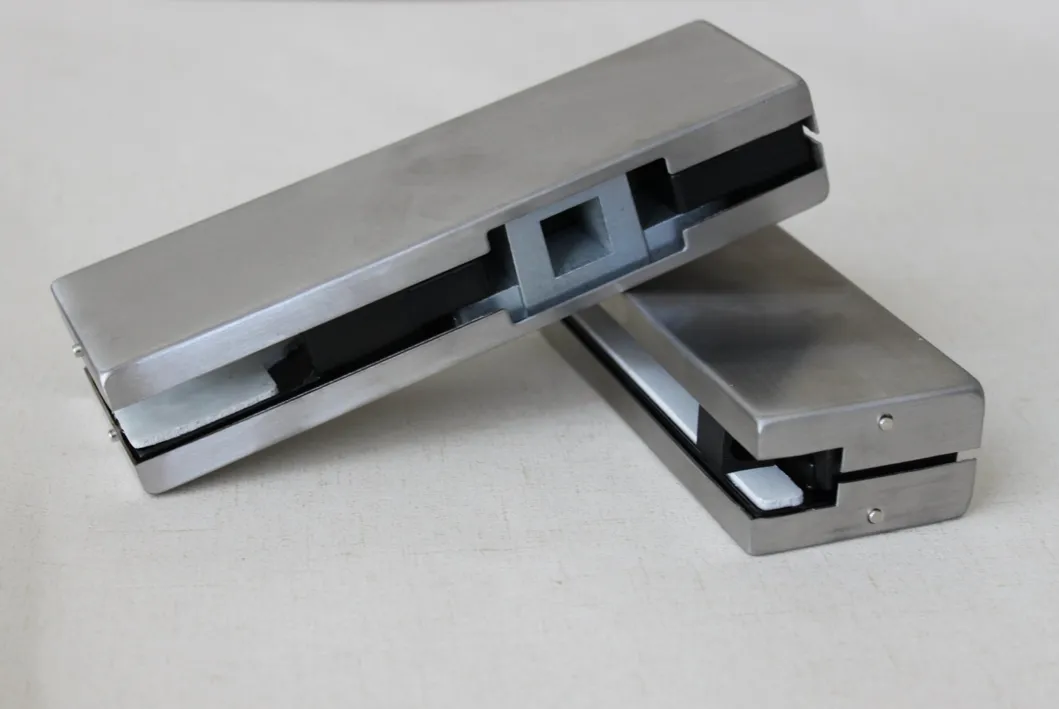

Standard Accessory 3

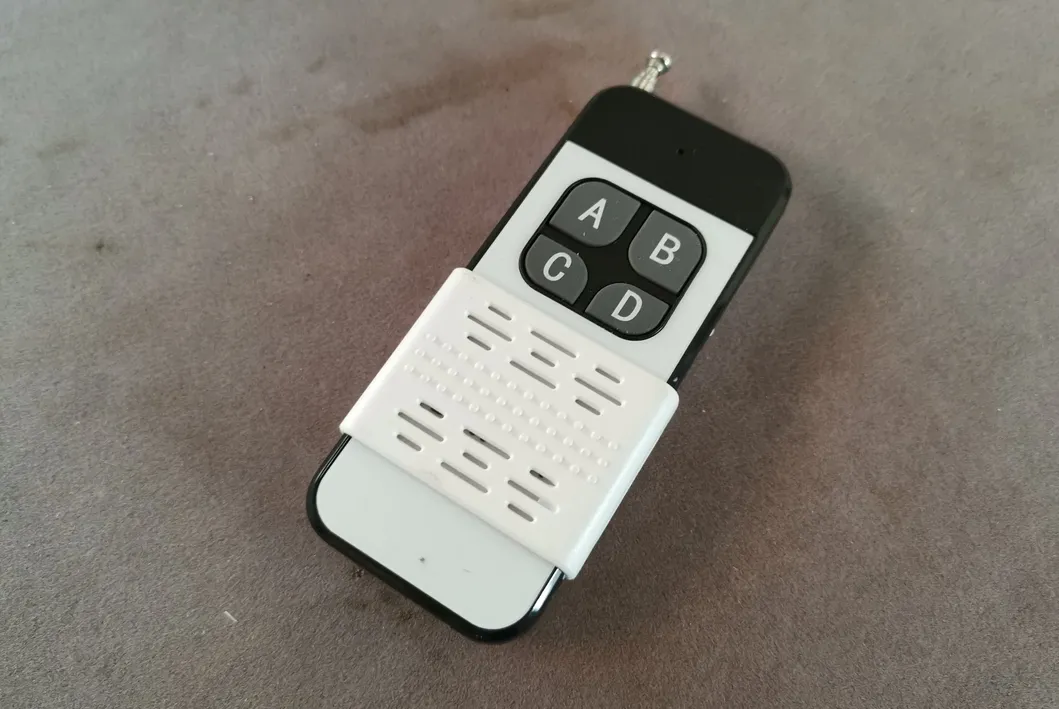

Standard Accessory 4

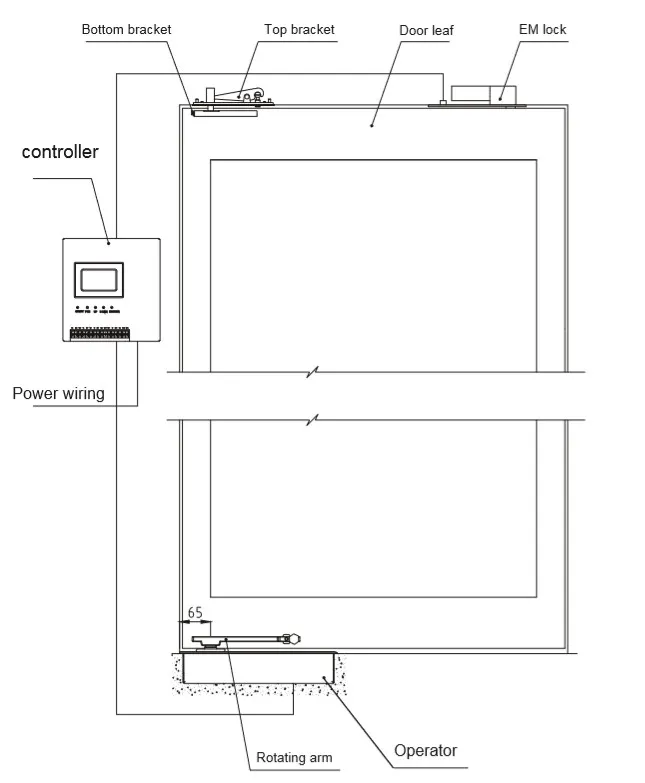

Installation Diagram
Frequently Asked Questions
What are the main advantages of an in-ground swing door operator?
The primary advantage is aesthetics. Being concealed in the ground, it maintains the building's architectural integrity while providing a heavy-duty, reliable opening system for both modern and historical entrances.
Can this operator be used for exterior gates or doors?
Yes, the motor is weather-proof with an IP68 protection level, making it ideal for both interior and exterior use with minimal maintenance required.
What is the "Push & Go" function?
The Push & Go function allows pedestrians to manually push or collide with the door without causing damage or malfunction to the motor gear, ensuring durability in high-traffic areas.
Does the system support double swing doors?
Absolutely. The system supports double door synchronization, allowing two operators to work in perfect harmony for wider entrance requirements.
What is the maximum weight capacity for model 1093.1832?
The system is designed for heavy-load capacity, supporting a maximum door weight of up to 150kg and a maximum door width of 1200mm.
Is it difficult to choose between left or right-handed models?
No, it's very simple. One single model is designed to suit both left and right-handed doors, simplifying the ordering and installation process.
