| Chicken House Reference | 110m x 12m chicken house |
| Equipment Configuration | 4 pan feed line, 5 drink line |
| Capacity | 20,000 chickens |

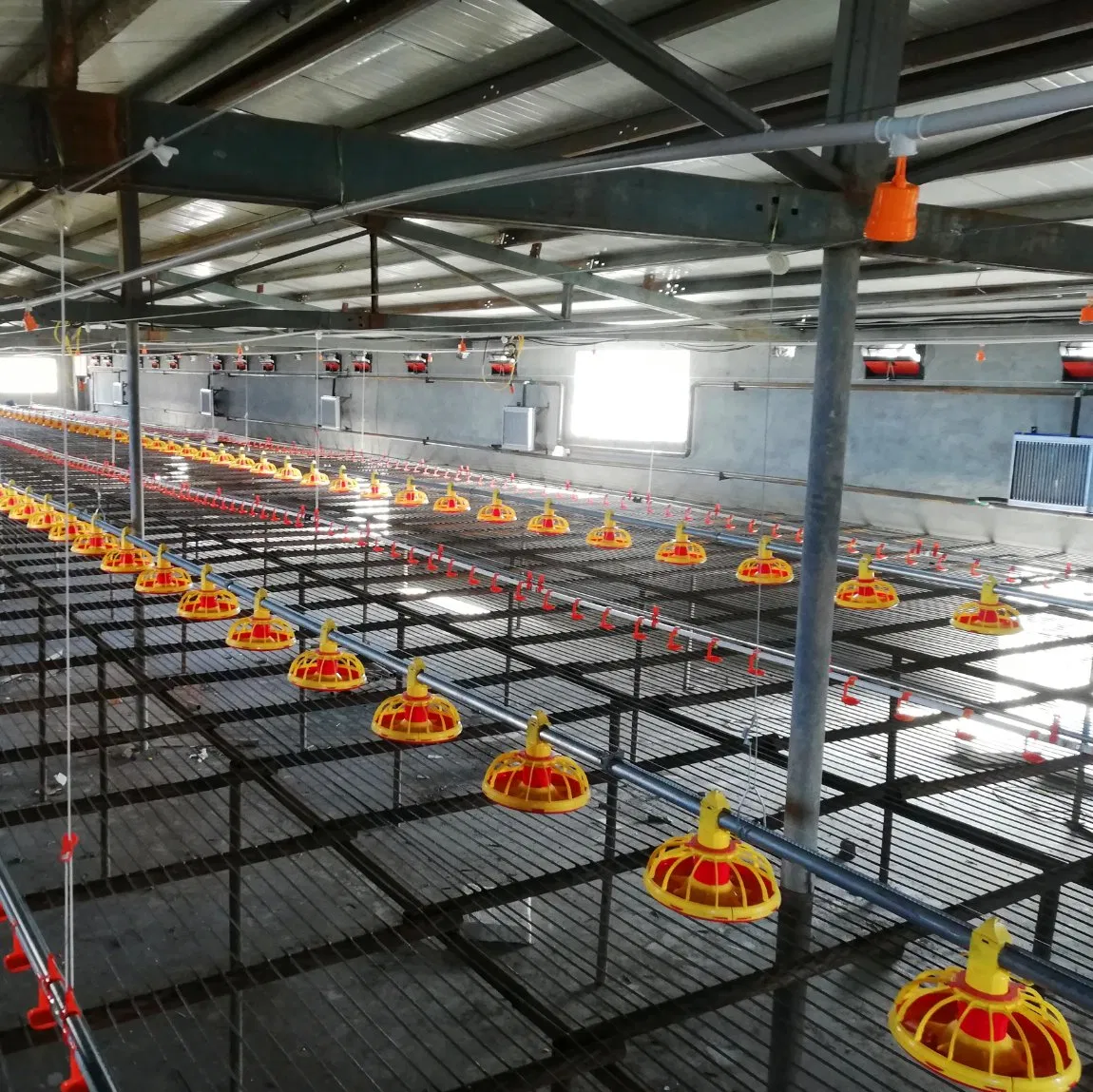

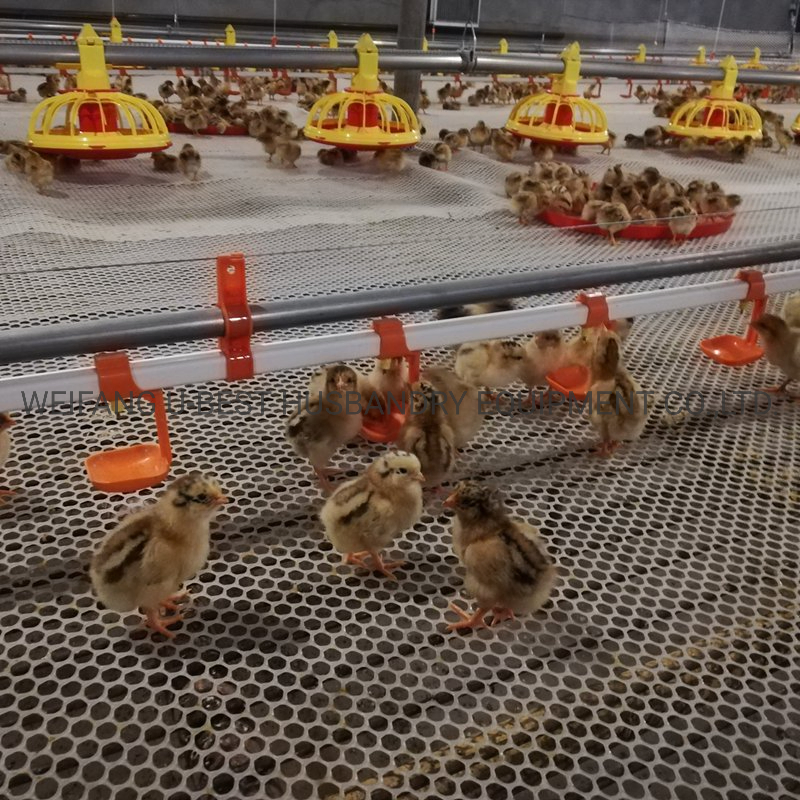

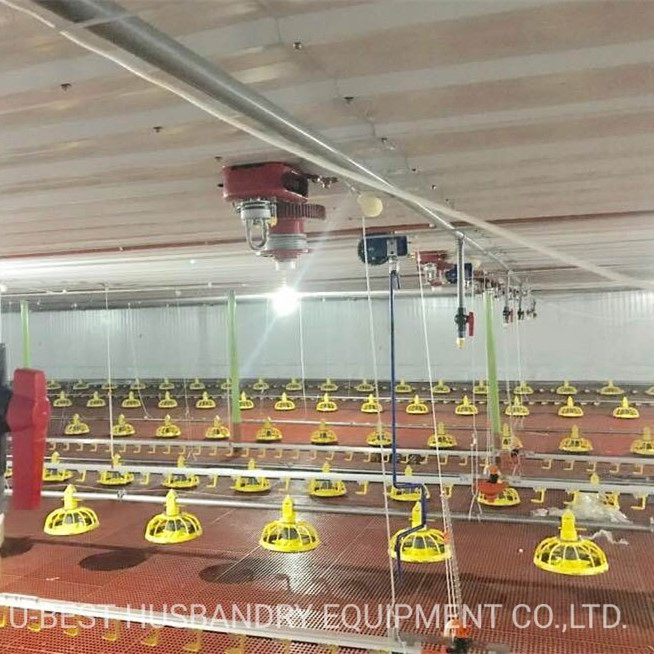

Broiler chicken floor feeding system picture

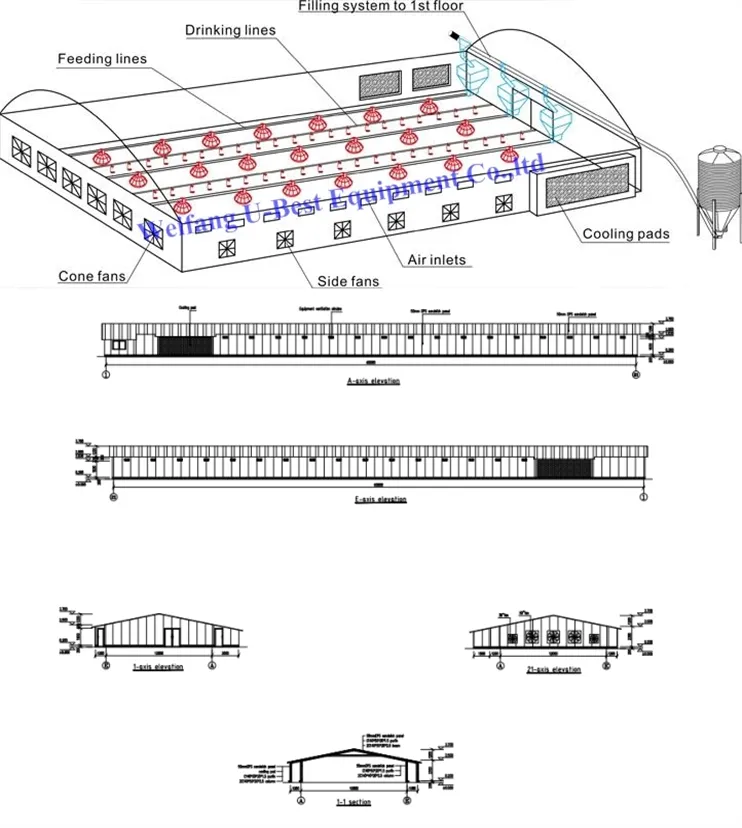

Layout of chicken house

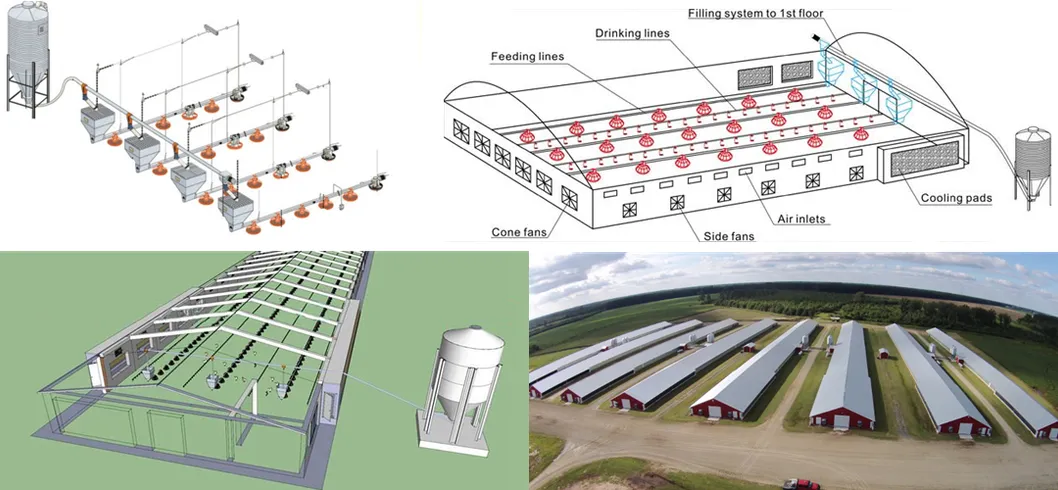

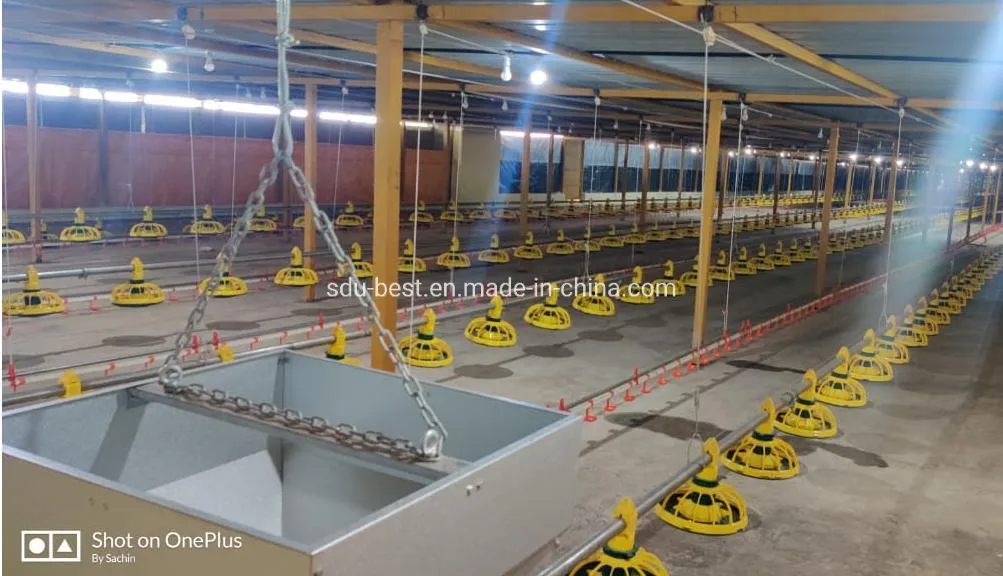

The system begins with the silo or manpower hopper. A feed sensor at the end of the main feed line controls the motor to achieve automatic delivery.
| Silo Specifications | |
|---|---|
| Material | 1.2mm hot galvanized steel, zinc coating 275g/m² |
| Sizes | 3T, 5T, 8T, 10T, 12T, 14T, 15T, 16T, 18T, 20T |
| Conveying Pipe | PVC, Diameter 75*3.6mm |
| Motor | 0.75Kw, 380V/220V |

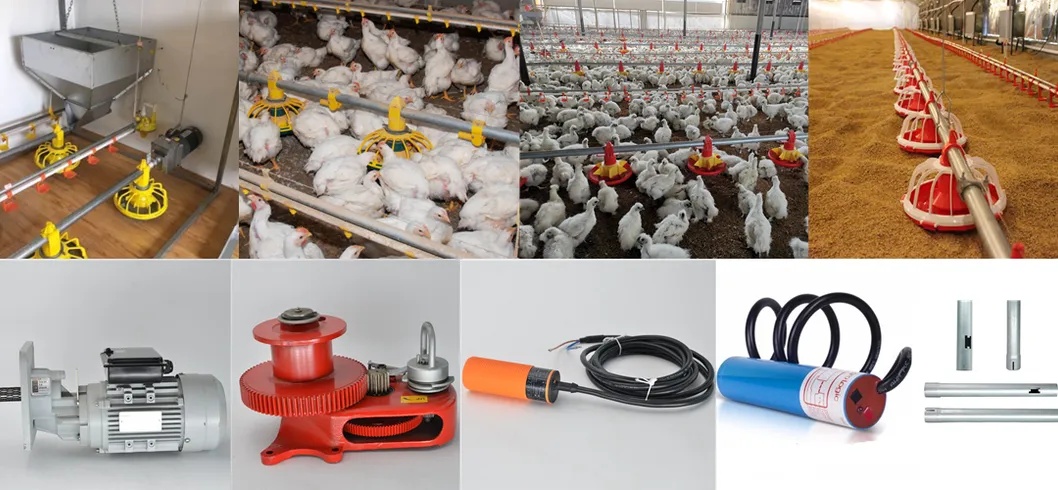

Each feeding line includes a sensor that controls the motor for precise feed delivery. Features an anti-perching system to maintain order.

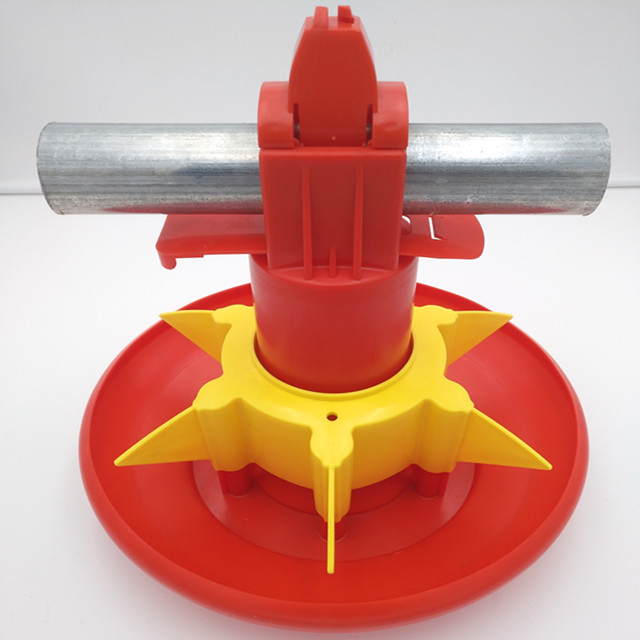

| Feed Pan | Material: Pure engineering plastic; 14/16 grilles; 50~55 broilers per pan |
| Spring Auger | Imported from South Africa; Diameter 36mm |
| Feeding Capacity | 400Kg/h |

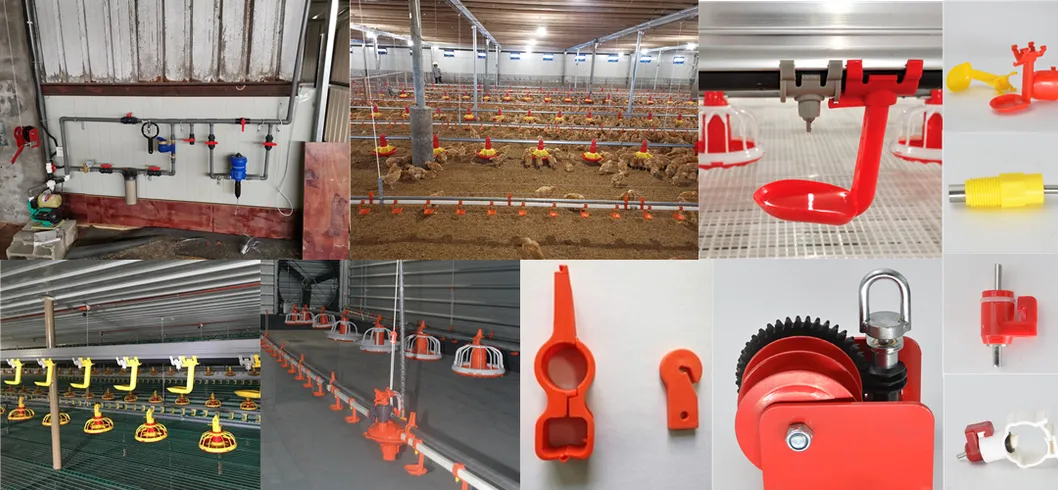

Provides fresh water with 360-degree touch nipples. Includes a front-line filter and medical pump (Dosatron) for health management.

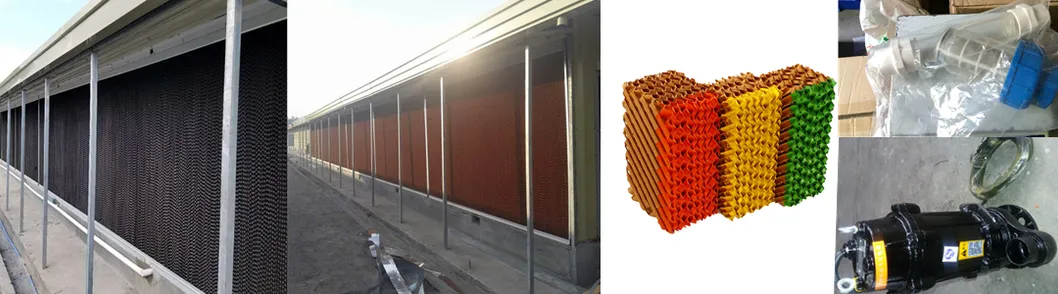

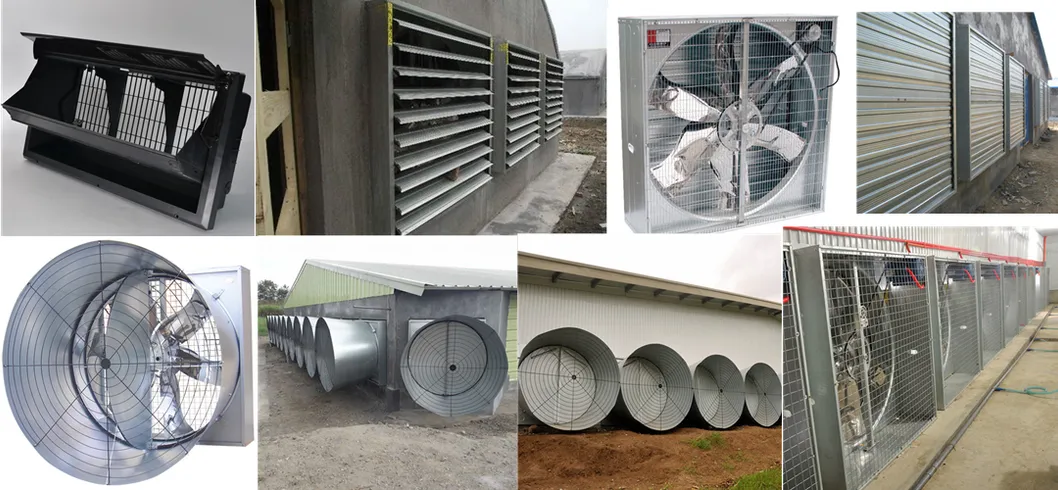

Combines exhaust fans and cooling pads for an economical way to reduce shed temperature.

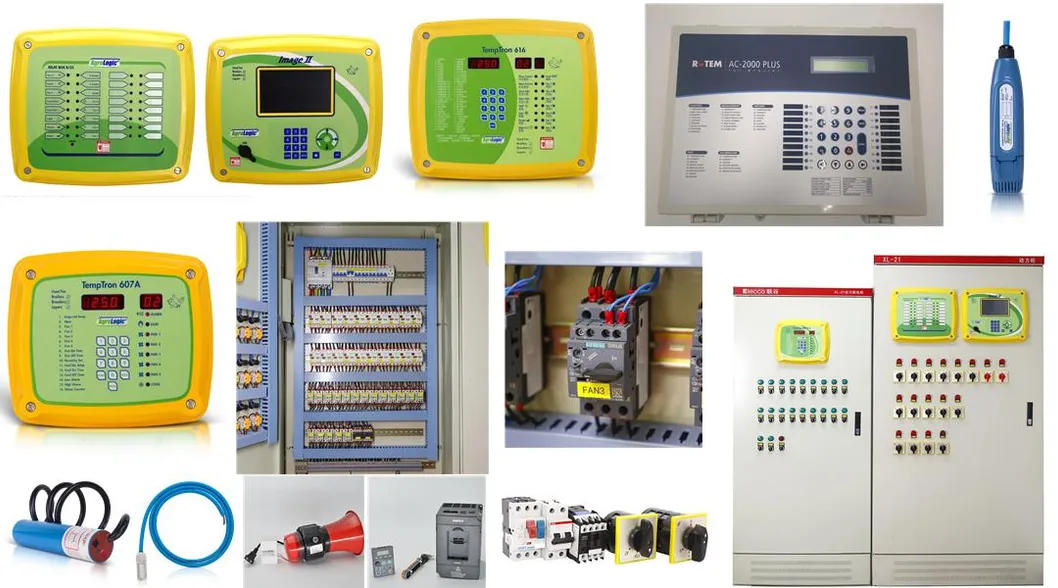

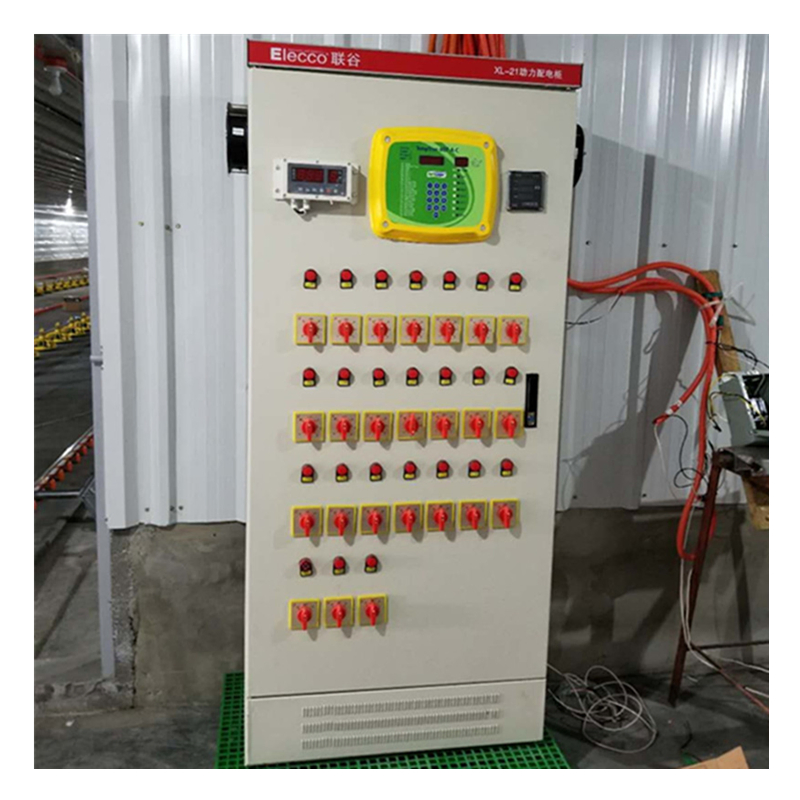

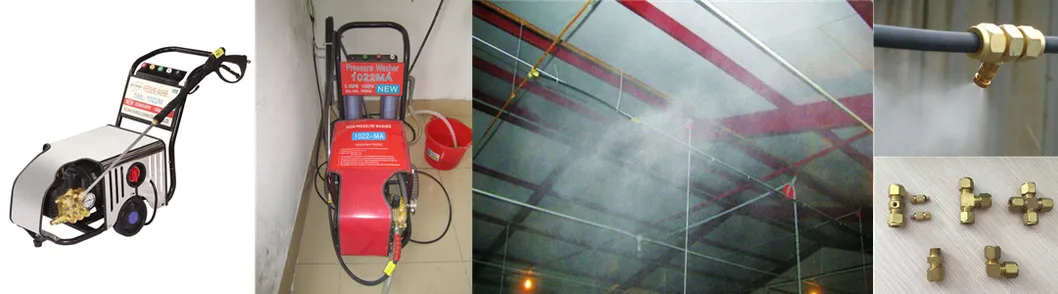

Smart controllers manage temperature, humidity, light, and fogging systems for disinfection and cooling.
