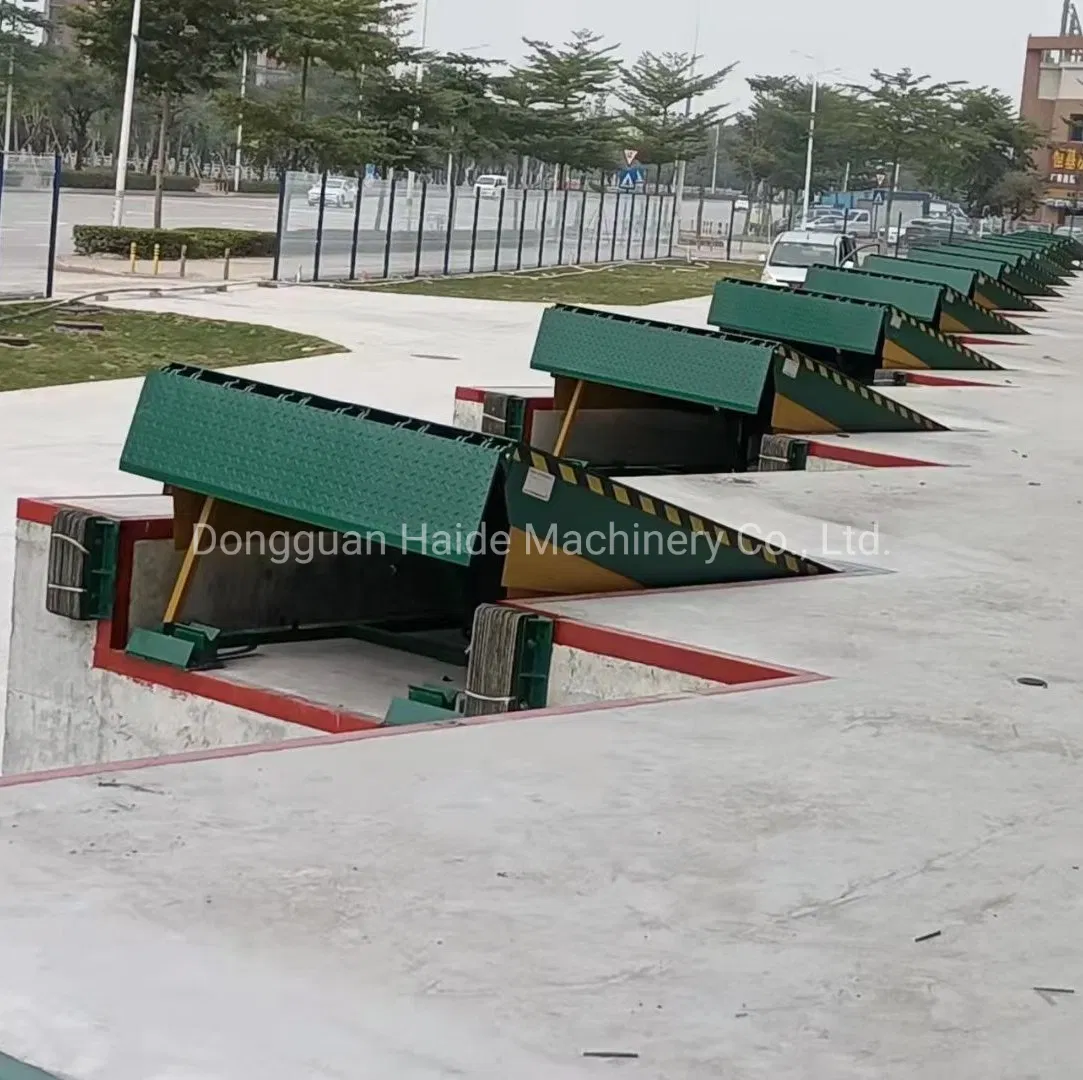

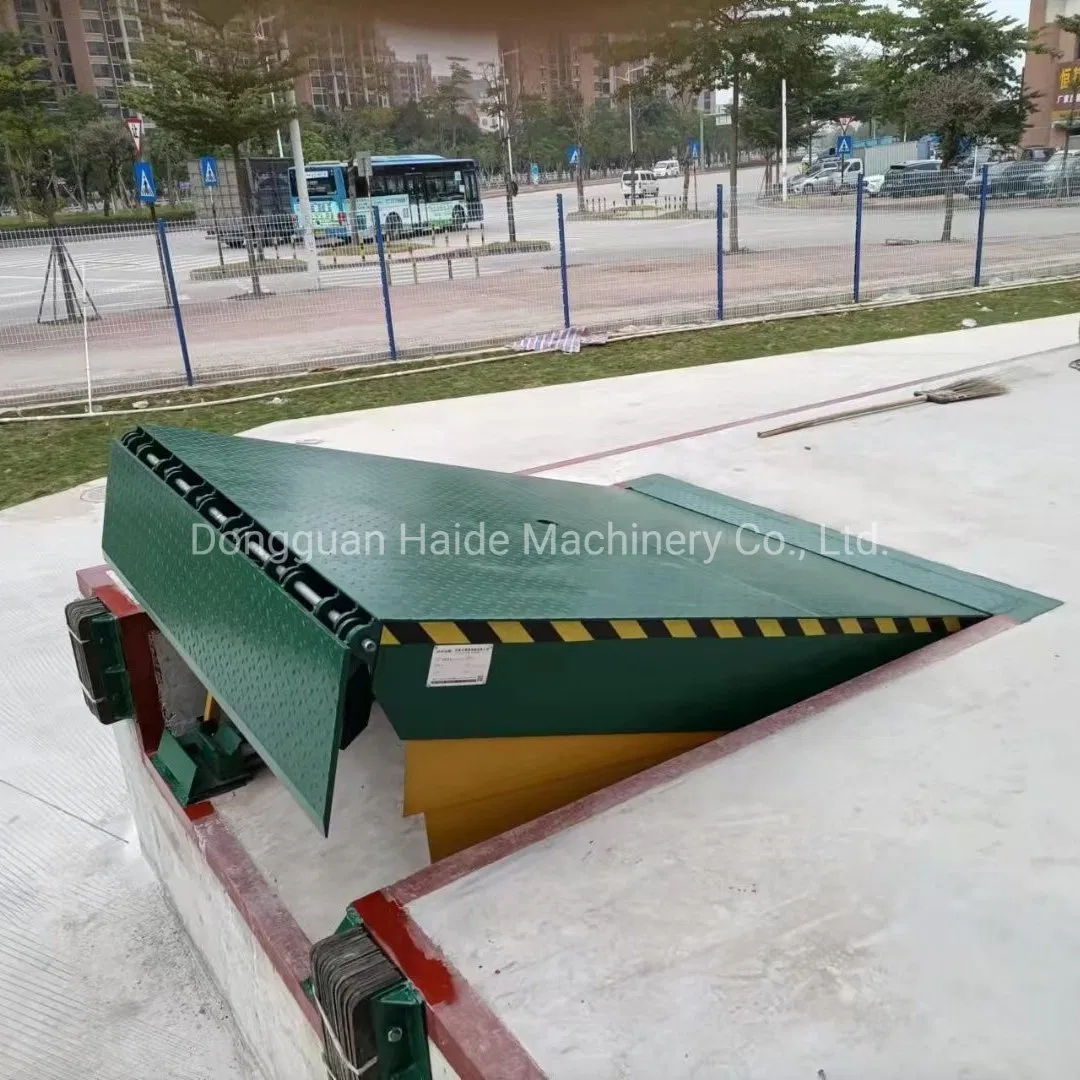

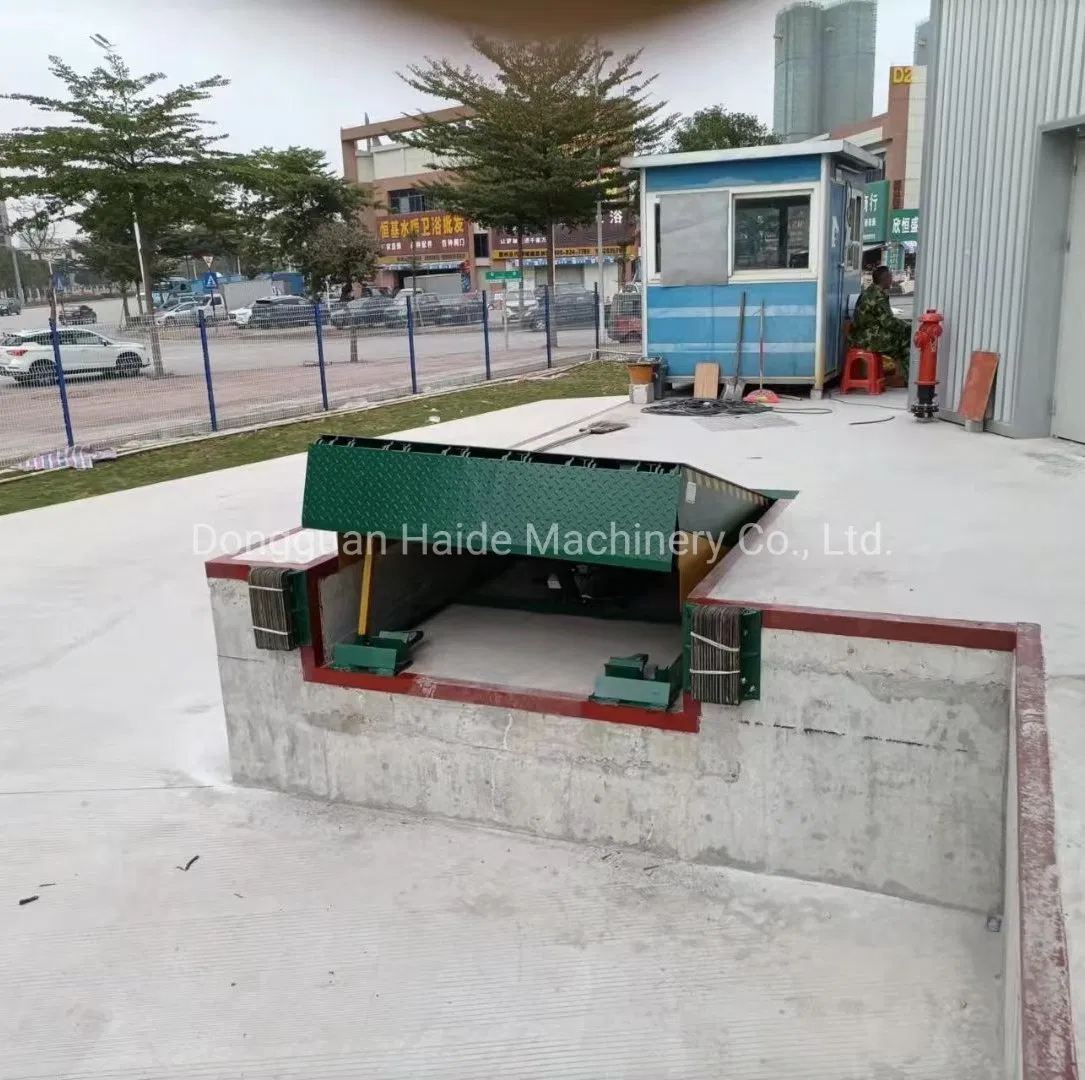

CE-Approved High-Performance Dock Leveler provides a seamless bridge between your loading dock and delivery vehicles, ensuring maximum efficiency and safety during cargo operations.
Features a 3-fragment full range toe-guard to prevent accidental entry and potential injuries to operators during the leveling process.
Constructed with an 8mm main deck and 16mm lip board, supporting dynamic capacities from 10 tons up to 25 tons.
Complies with European EN1398 standards and holds CE Certification (No. DGS12082902) for guaranteed reliability.
1. Press "UP": Platform rises to the highest point.
2. Press "EXTEND": Lip board extends out.
3. Press "DOWN": Platform lowers to rest on the truck bed.
4. Post-loading, use "UP", "RETRACTION", and "DOWN" to restore the leveler to its original position.

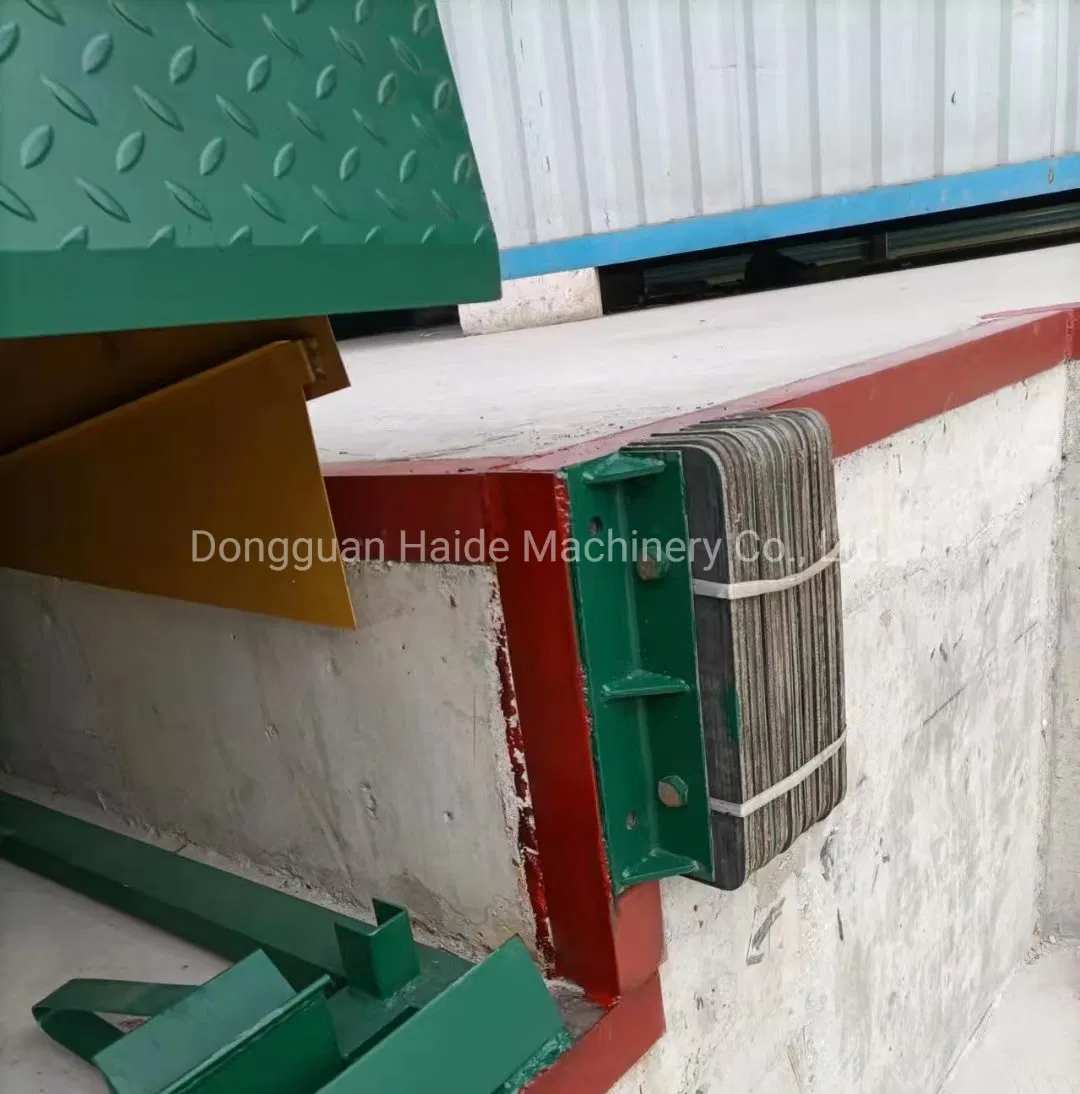

Includes two laminated rubber bumpers with woven fiber reinforcement to withstand high-impact shocks between trucks and the dock.
| Model | Equipment Spec (W*L*H)mm | Pit Dimension (W*L*H)mm | Capacity | Adjust Range | Lip Board (W*L*T) |
|---|---|---|---|---|---|
| 6*6 | 1830*1830*490 | 1870*1680*500 | 10~25T (10T Standard) | +300mm/-300mm | 1830*400*15 |
| 6.5*6 | 1980*1830*490 | 2020*1680*500 | 1980*400*15 | ||
| 7*6 | 2130*1830*490 | 2170*1680*500 | 2130*400*15 | ||
| 6*8 | 1830*2440*490(590) | 1870*2280*500(600) | +300mm/-300mm | 1830*400*15 | |
| 7*10 | 2130*3050*490(590) | 2170*2880*500(600) | 10~25T | +400mm/-300mm | 2130*400*15 |
