China New Custom Industrial Security Garage Automatic Aluminium Sliding Interior Lifting Industrial Sectional Door
China New Custom Industrial Security Garage Automatic Aluminium Sliding Interior Lifting Industrial Sectional Door
China New Custom Industrial Security Garage Automatic Aluminium Sliding Interior Lifting Industrial Sectional Door
China New Custom Industrial Security Garage Automatic Aluminium Sliding Interior Lifting Industrial Sectional Door
China New Custom Industrial Security Garage Automatic Aluminium Sliding Interior Lifting Industrial Sectional Door
1 / 5
China New Custom Industrial Security Garage Automatic Aluminium Sliding Interior Lifting Industrial Sectional Door
China New Custom Industrial Security Garage Automatic Aluminium Sliding Interior Lifting Industrial Sectional Door
China New Custom Industrial Security Garage Automatic Aluminium Sliding Interior Lifting Industrial Sectional Door
China New Custom Industrial Security Garage Automatic Aluminium Sliding Interior Lifting Industrial Sectional Door
China New Custom Industrial Security Garage Automatic Aluminium Sliding Interior Lifting Industrial Sectional Door

China New Custom Industrial Security Garage Automatic Aluminium Sliding Interior Lifting Industrial Sectional Door

Customization: Available
After-sales Service: Available
Warranty: 12 Months
Send Inquiry

Product Description

Basic Information
Model NO.
ISD-21
Material
Aluminum Alloy
Type
Sliding
Open Style
Sliding
Special Function
Insulated and Cold Storage
Certification
TUV, CCC, ISO9001, RoHS, CE
Wind Resistant
Standard 450PA, Higher to 700PA
Panel Thickness
Anti-Pinch: 40mm
Opening Speed
0.25m/S
Size Range
W:1500-6000mm H:2000-6000mm
Application
Factory, Garage, Hotel, Warehouse etc
Origin
China
Product Description
Industrial Sectional Door Overview

>> Industrial Sectional Door

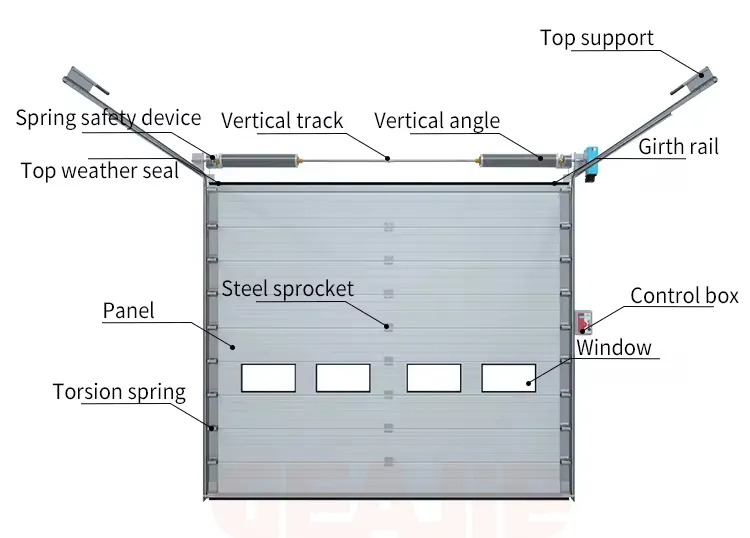

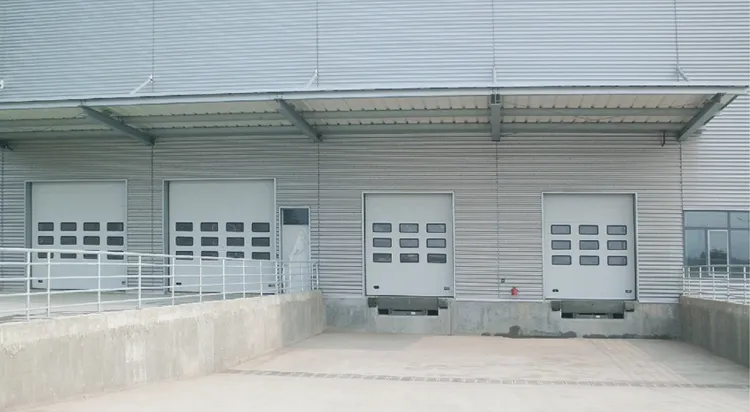

Sectional Door Design Lifting Mechanism

>> Product Show

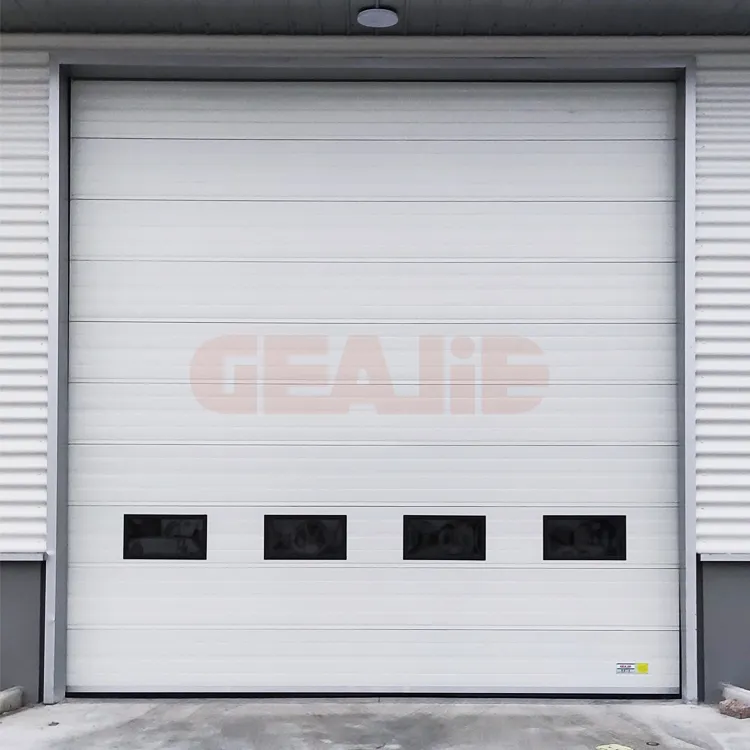

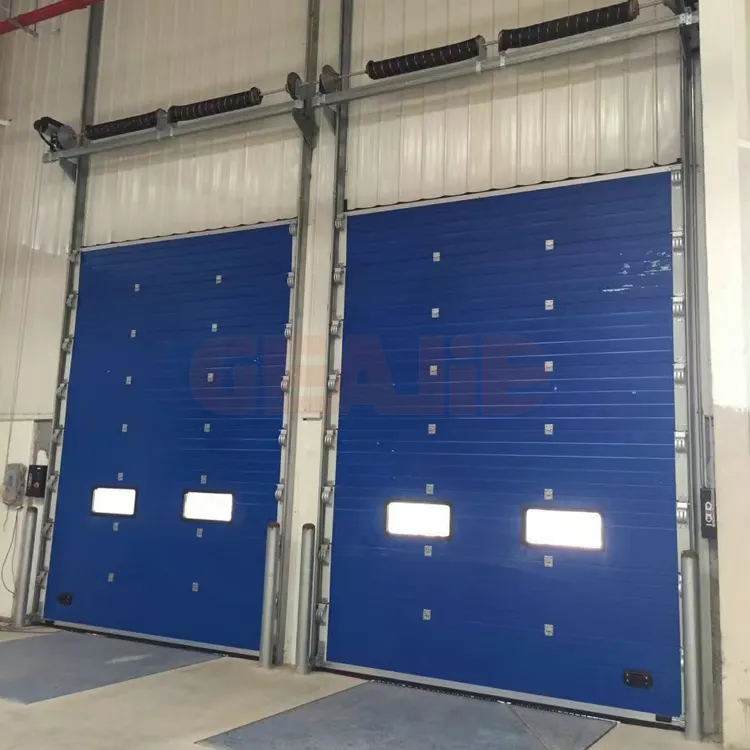

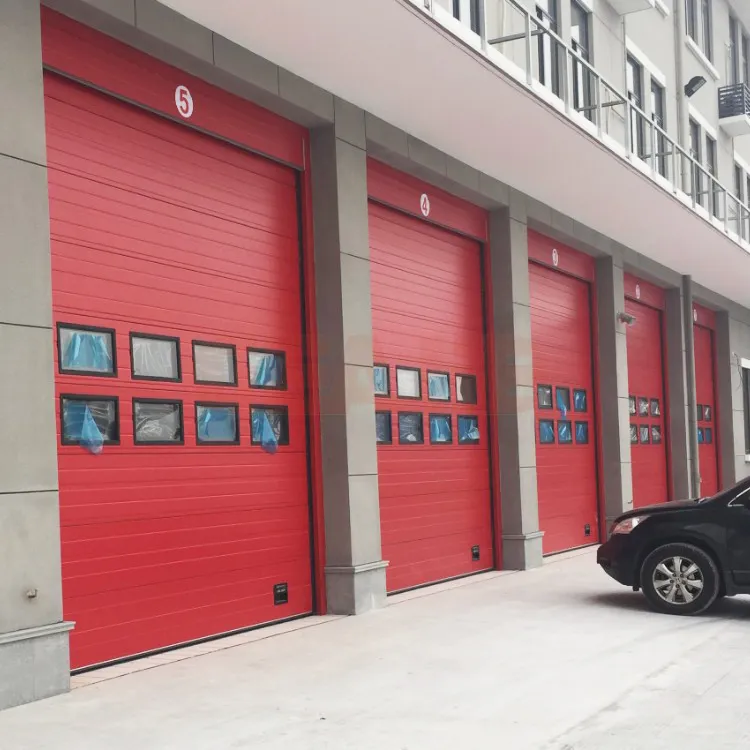

Product Display 1 Product Display 2 Product Display 3

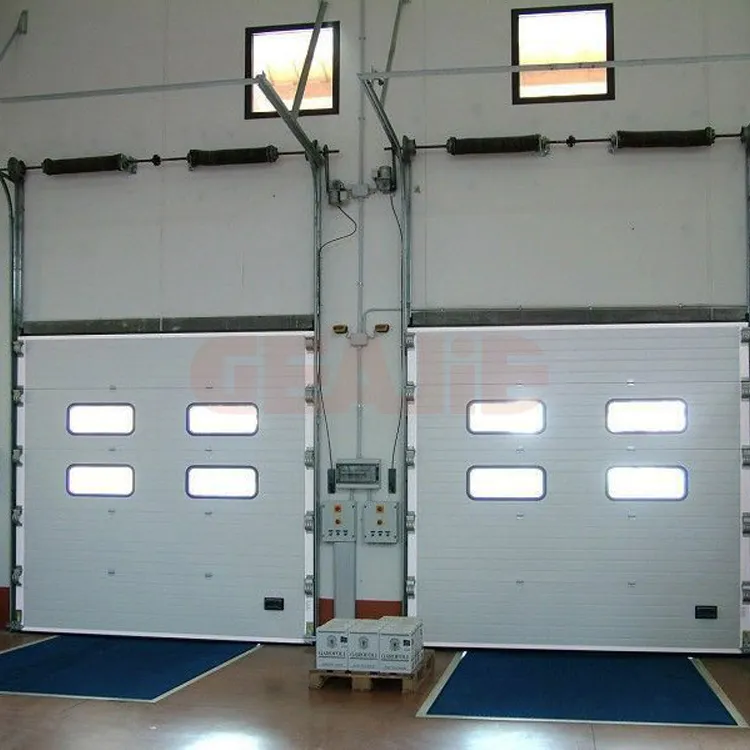

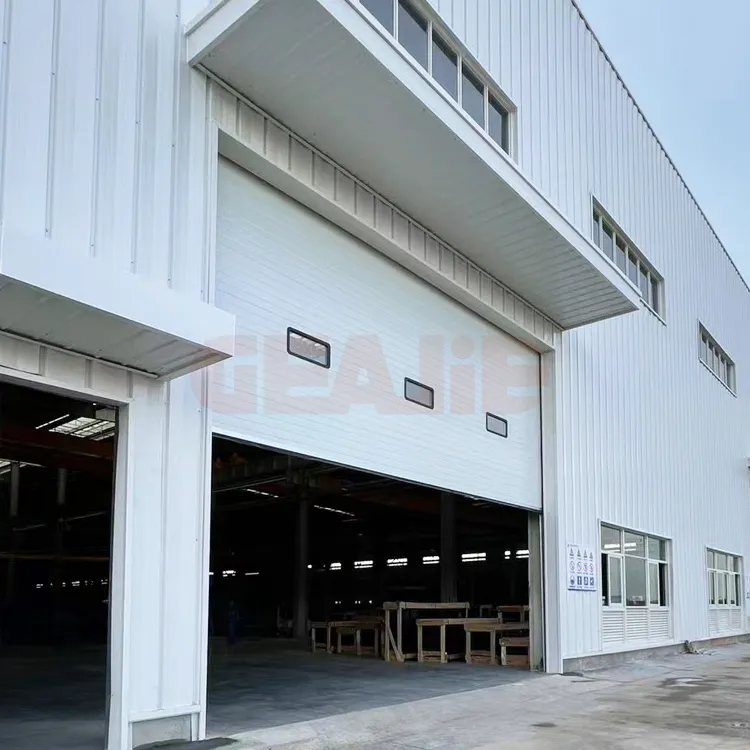

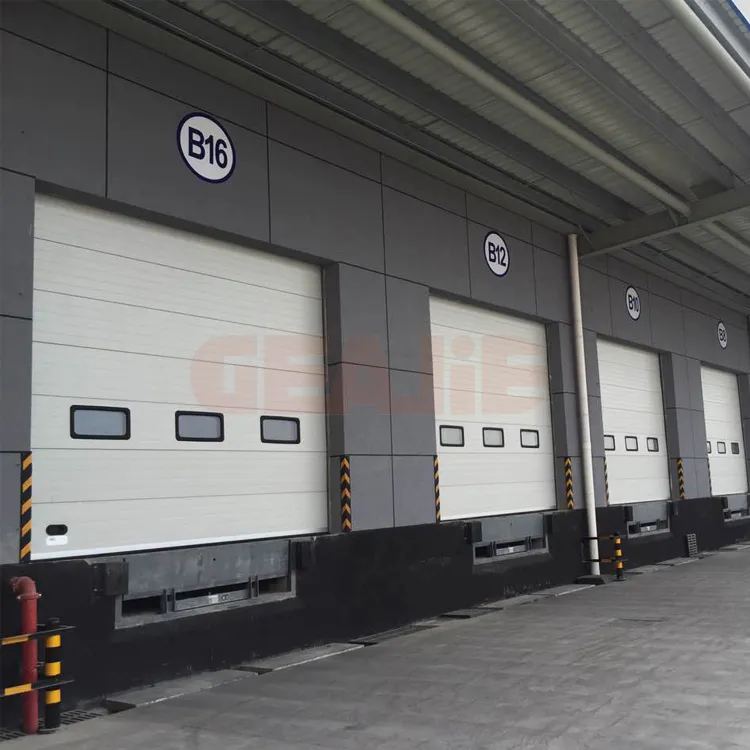

Product Display 4 Product Display 5 Product Display 6
Material Specifications
Material Description
Size rangeW:6000-12000mm, H:2000-8000mm
Opening and closing speed0.25m/s
Door panel materialGalvanized steel or aluminum plate
Door panel thicknessAnti-pinch: 40mm; Insulated: 43mm
Safety devicesWire rope breakage protection, torsion spring breakage protection, wireless airbag
Wind resistantStandard 450Pa, higher to 700Pa
Open methodElectric, manual
ColorsRAL9002, RAL9016, RAL1023, RAL5005, RAL3002, Customizable
Motor Technical Parameters
Model 10DI 10C 14 H-F
Output torque100Nm100Nm140Nm
Rated power0.37KW0.37KW0.55KW
Rated voltage1*AC 230/440V3*AC 230/440V1*AC 230V
Protective levelIP 54IP 54IP 54
Motor Technical Details
Structural Drawing

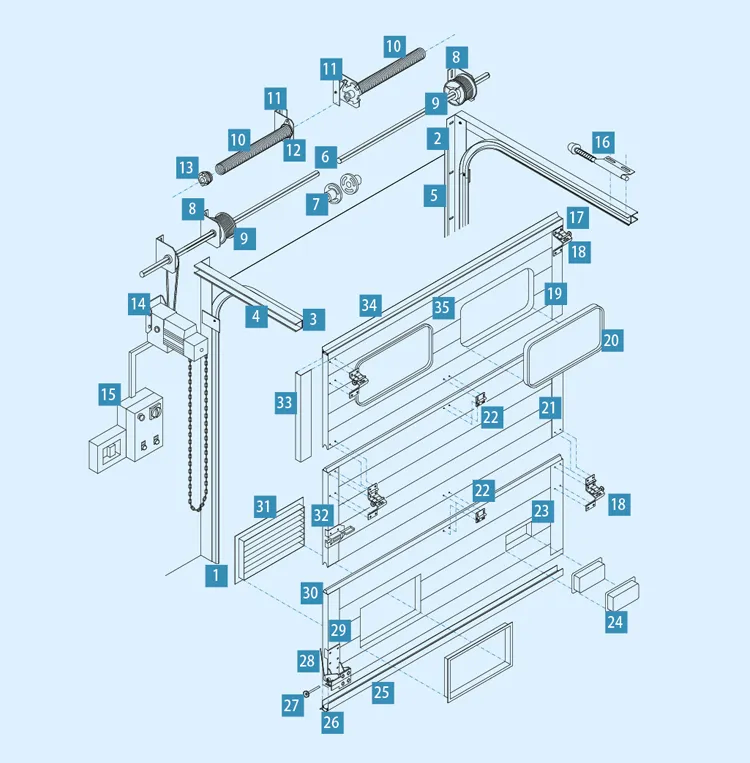

Structural Drawing Component
Product Advantages
⚡

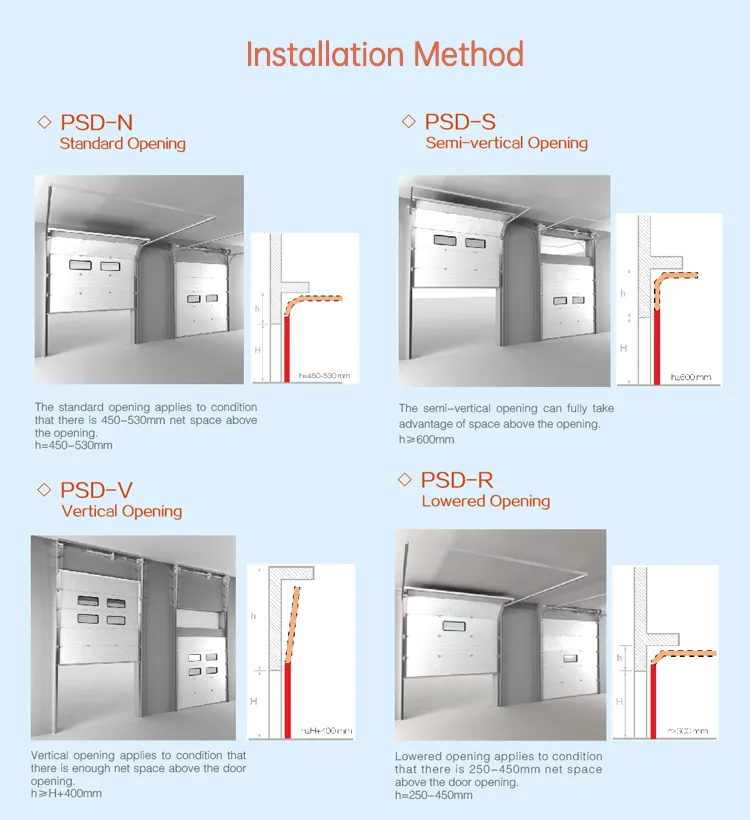

Flexible Lifting Methods: straight type, standard lifting, high lintel, or low lintel lifting to customize building space.
🛡️
Durable Structure: Unique roller shaft design distributes force to extend overall service life.
❄️
High Insulation: High-density polyurethane foam layer with double-sided hot-dip galvanized steel.
🔒
Safety Features: Anti-pinch door panels, spring brake devices, and wireless safety airbags to ensure safe operation.
Production Facilities

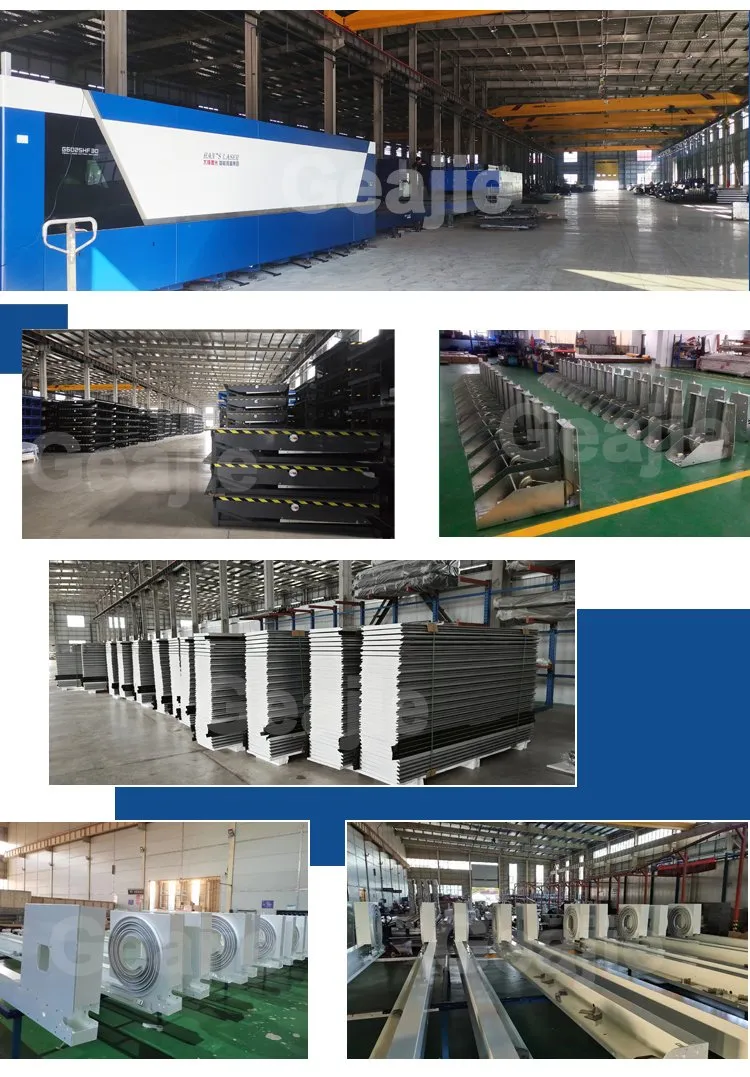

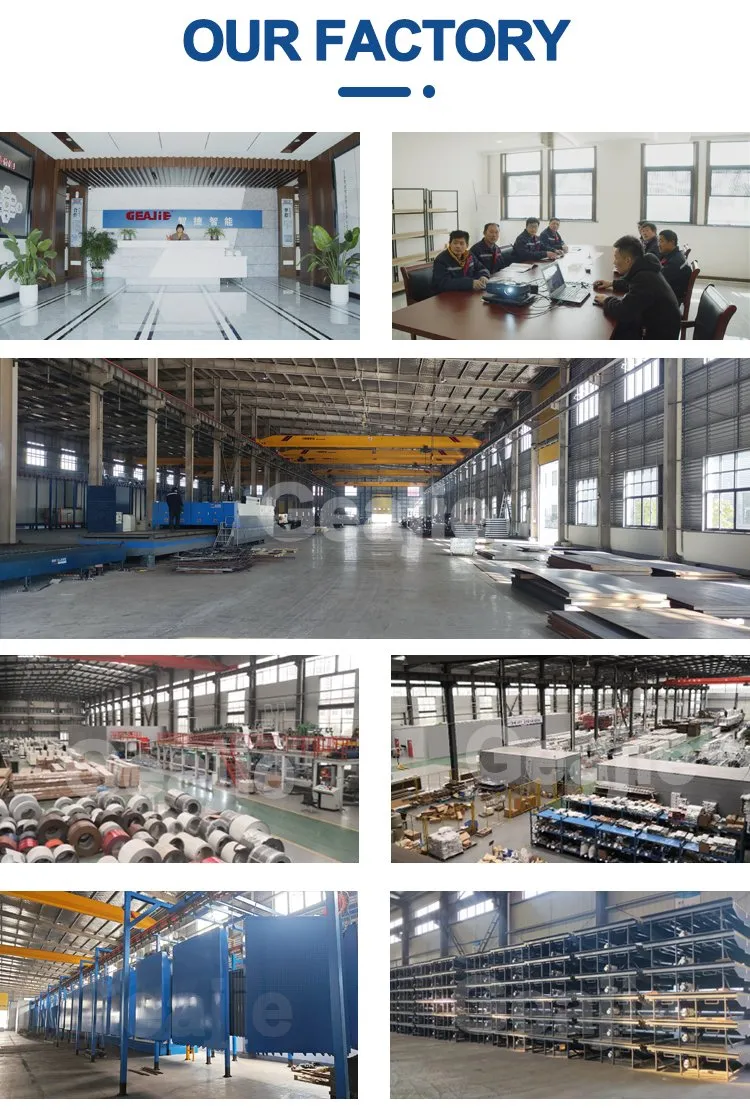

Workshop 1 Workshop 2 Workshop 3
Testing Area Production Line
Frequently Asked Questions
What is the Minimum Order Quantity (MOQ)?
The minimum order quantity is 1 set.
What is the maximum available size for the sectional doors?
The maximum width is 6M and the maximum length can be up to 6.5M, both of which are adjustable according to requirements.
Is the installation process difficult?
No, our industrial sectional doors are designed for very easy installation.
Where are these doors typically used?
They are widely used in factory outlets, warehouses, logistics parks, garages, and hotels.
What benefits do your safety devices provide?
Our doors come with spring brake devices, cable breakage protection, and wireless safety airbags that stop or reverse movement if an obstruction is detected, ensuring maximum security.
Do you produce your own door parts?
Yes, we produce most components and accessories by ourselves to strictly control quality and reduce costs.
