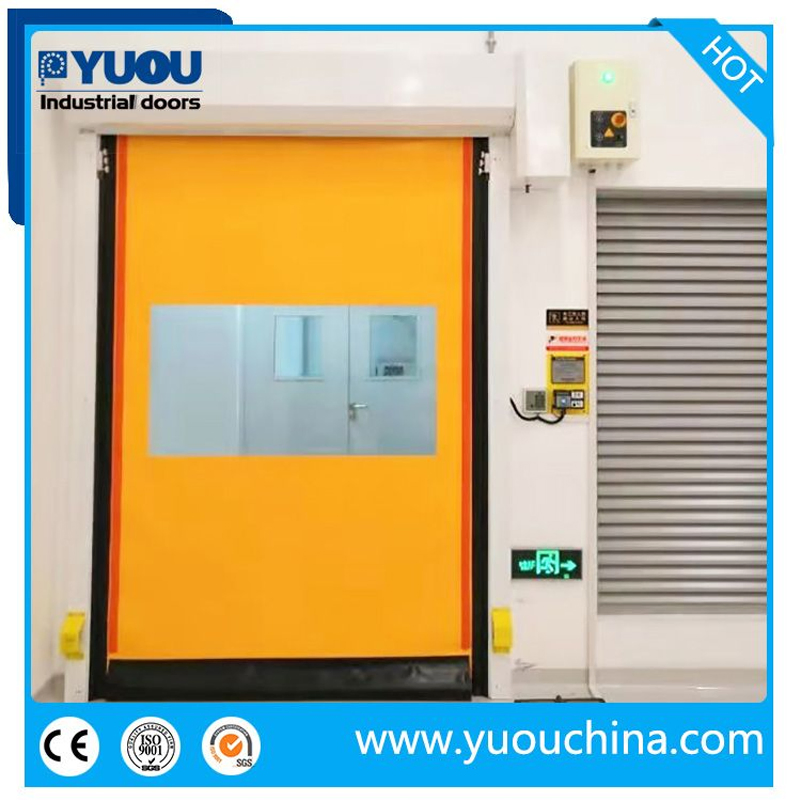

Home > Clean Room Doors > Clean Room Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Quick Acting Door
Clean Room Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Quick Acting Door
Clean Room Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Quick Acting Door
Clean Room Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Quick Acting Door
Clean Room Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Quick Acting Door
Clean Room Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Quick Acting Door
1 / 5
Clean Room Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Quick Acting Door
Clean Room Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Quick Acting Door
Clean Room Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Quick Acting Door
Clean Room Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Quick Acting Door
Clean Room Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Quick Acting Door

Clean Room Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Quick Acting Door

Customization: Available
After-sales Service: 1.5 Years
Warranty: 1.5 Years
Send Inquiry

Product Description

Basic Specifications
Model NO.
YO-Zipper
Material
PVC Fabric
Special Function
Self Repairing
Wind Resistance
25m/S
Power Supply
1-Phase 220V / 3-Phase 380V
Certification
ISO9001, CE
Product Description
Clean Room High Speed Rolling Up Doors are ideal for food and drug factories, clean rooms, and dust-free workshops where hygienic and indoor cleanness requirements are strict.

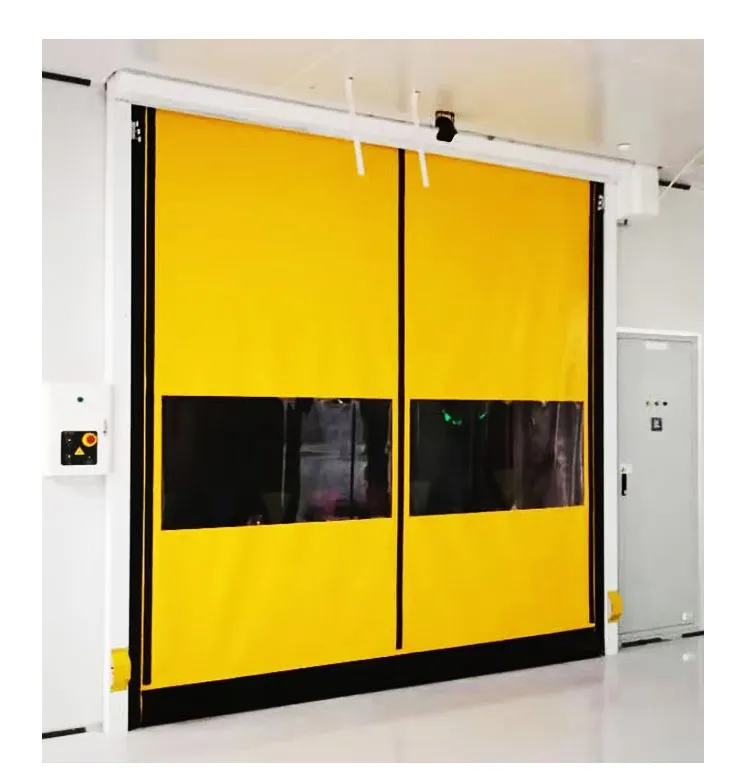

High Speed Door

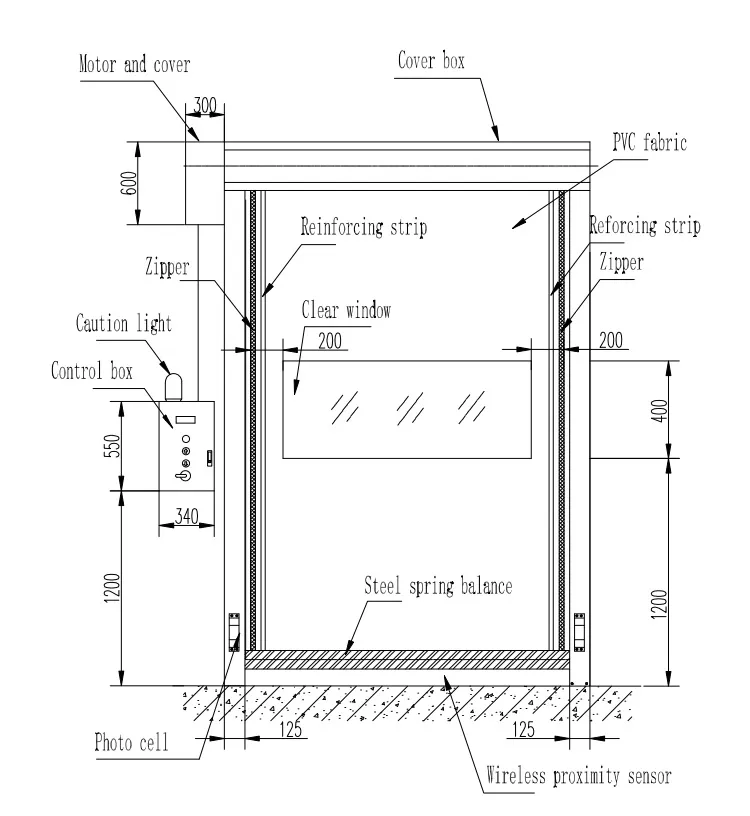

Structure Diagram
Technical Data
Max Dimension5000mm * 5000mm
Normal SpeedOpen 1.2m/s, Close 0.6m/s
Max SpeedOpen 2.5m/s, Close 1.0m/s
Protection LevelIP55
Control SystemServo Type
Fabric ColorsYellow, Blue, Red, Grey, White
Product Details

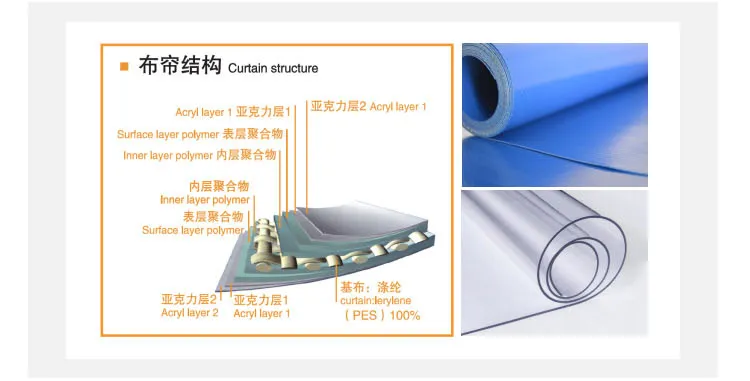

1. PVC Fabric

Standard 1.0mm thick (950g/sqm); Available 1.2mm-1.5mm; Flame resistant material.

PVC Fabric

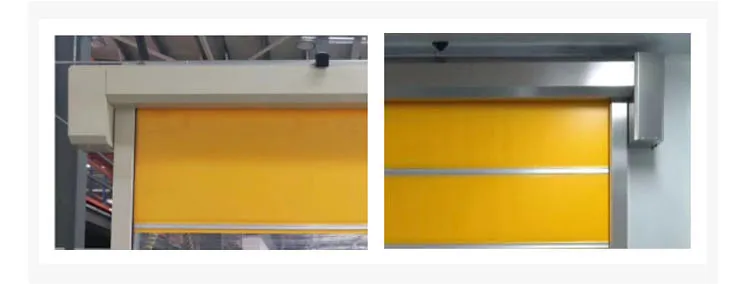

2. Frame and Tracks

Thickness: 1.5mm for guide rail, 1.0mm for cover box. Available in Galvanized steel, 304 stainless steel, or aluminum alloy.

Frame Details

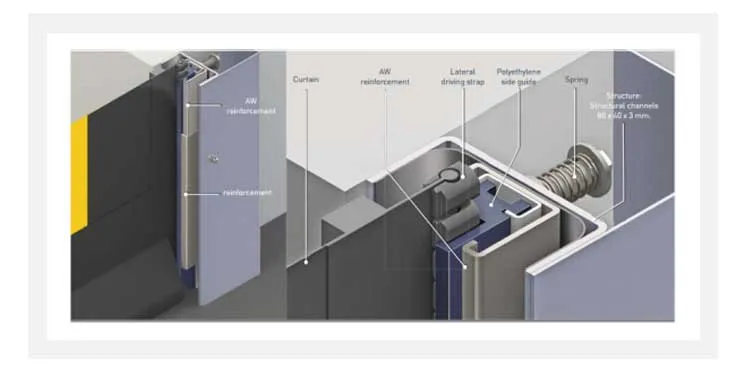

Self Repairing Structure

3. Motor and Safety Devices

Italy Servo Technology: More stable and quicker response with English interface.

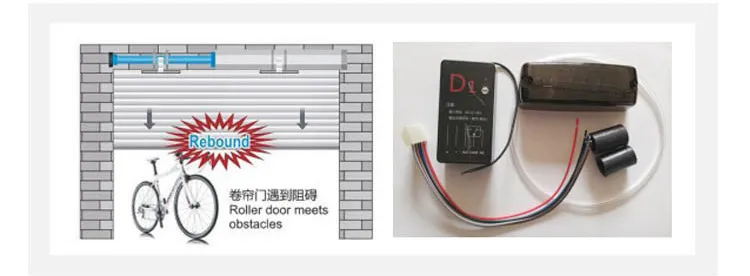

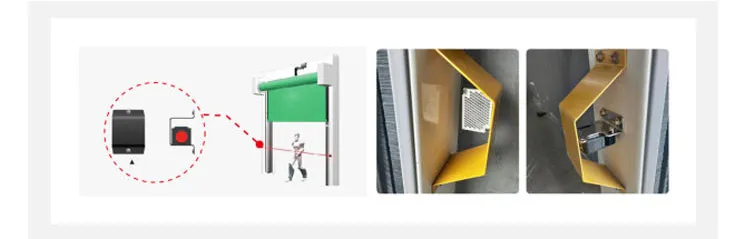

Safety Photo Cell: Automatic stop and reverse when obstacles are detected.
Bottom Airbag: Immediate stop upon contact.
Motor
Safety Sensor
Safety Airbag
Operation Methods

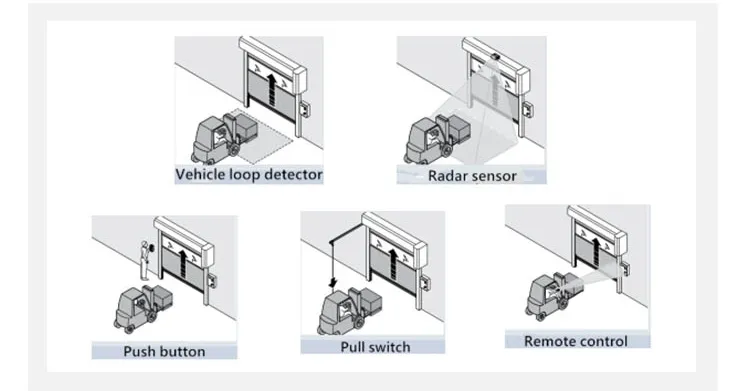

Standard options include: Vehicle loop detector, Radar sensor, Push button, Pull switch, and Remote control.

Operation

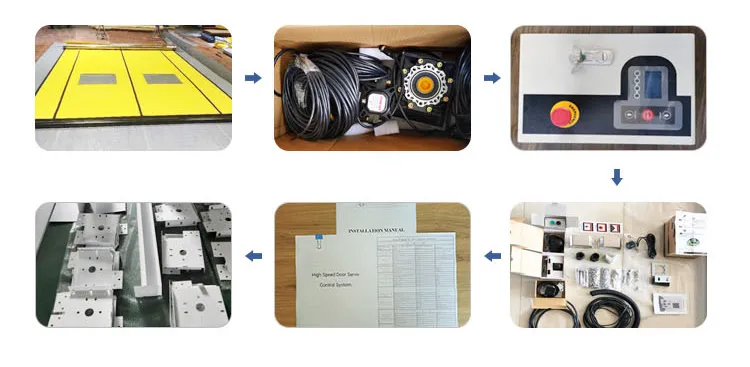

Package
Real Shot Gallery
Shot 1

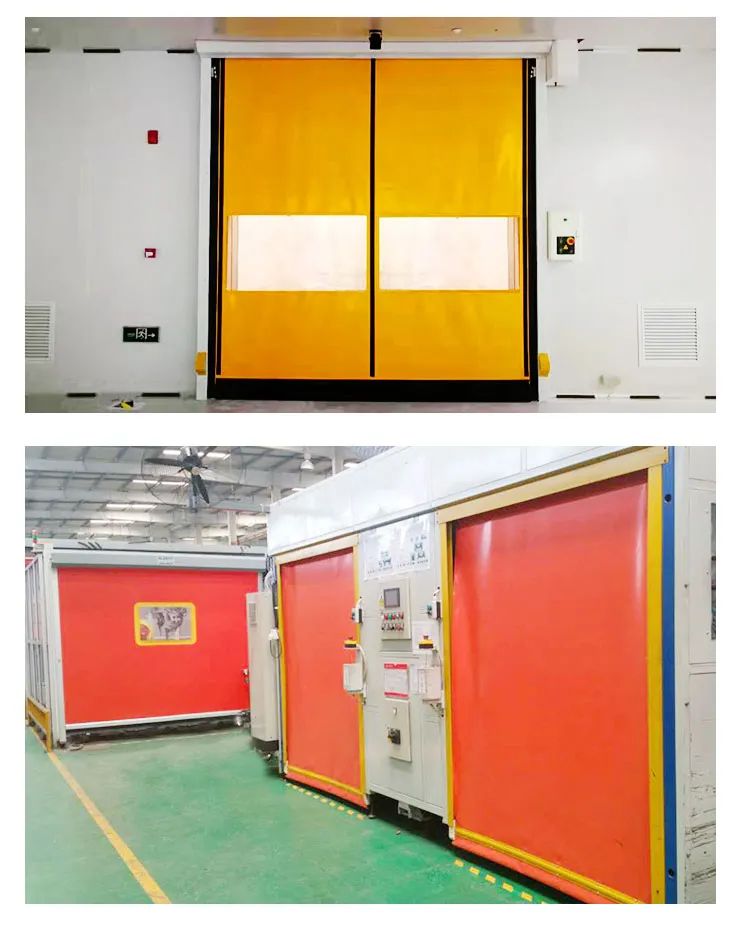

Shot 2
Shot 3
Shot 4
Shot 5
Shot 6
Frequently Asked Questions

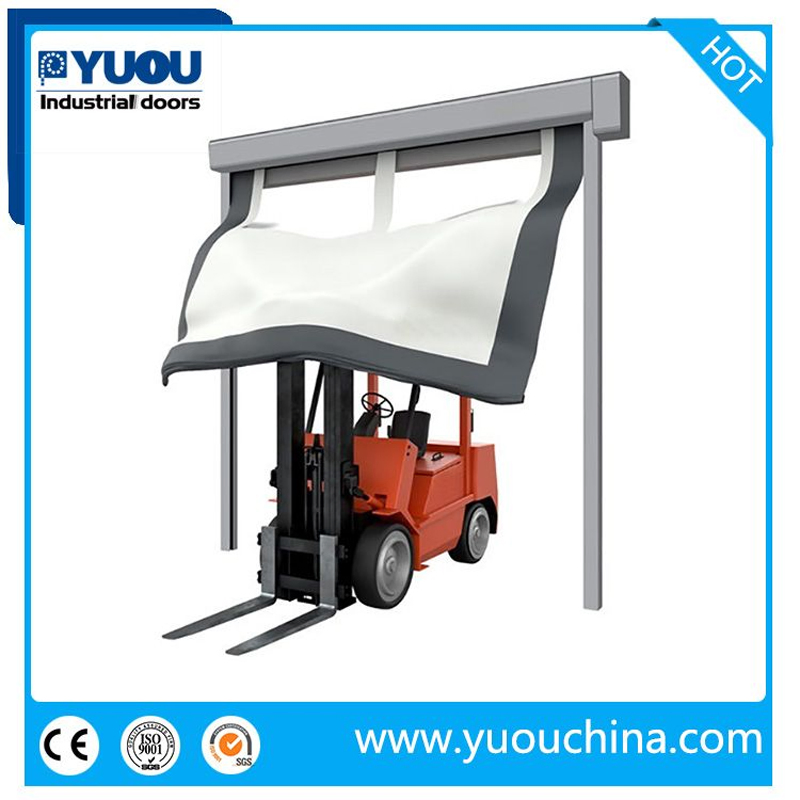

Q1: What is the "Self-Repairing" function?
It means the zipper-type door can automatically reset into its guide rails after a collision, reducing maintenance time and costs.
Q2: Can the door be used in high-wind areas?
Yes, the door is designed with a wind resistance of up to 25m/s (Beaufort scale 8).
Q3: What power supply is required?
The system supports 1-Phase 220V or 3-Phase 380V, 50/60Hz, depending on your local industrial standards.
Q4: Are different colors available for the PVC fabric?
Yes, we offer multiple colors including Blue, Yellow, Red, Grey, White, Orange, and even Full Transparent.
Q5: Is the motor system easy to operate?
Absolutely. It uses Italy servo technology with an English interface controller, making it user-friendly for global operators.
Q6: What is the maximum size available for this door?
The maximum standard specification for this model is up to 6m in width and 6m in height.
