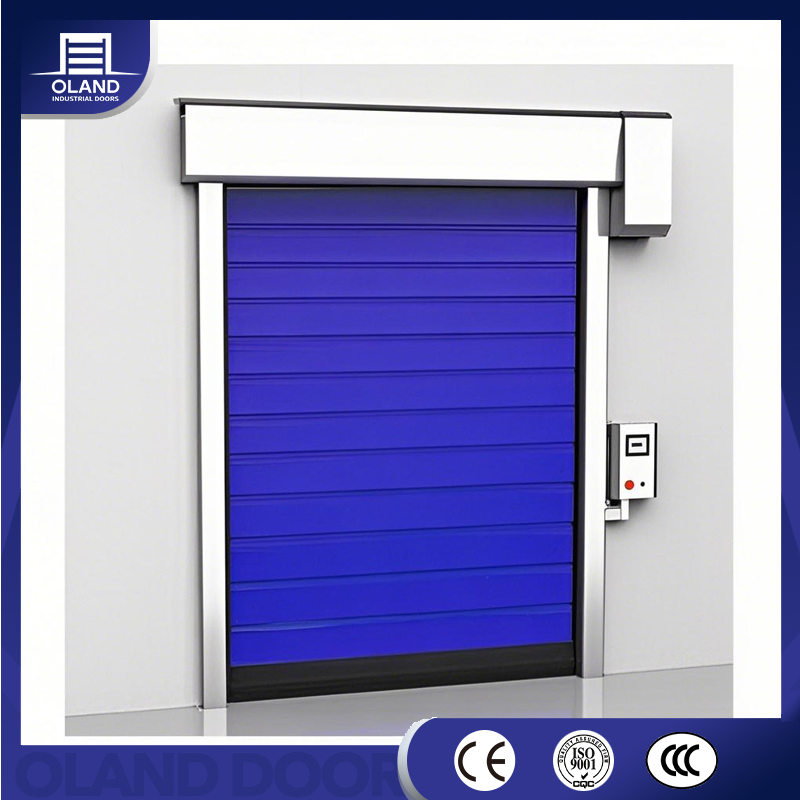

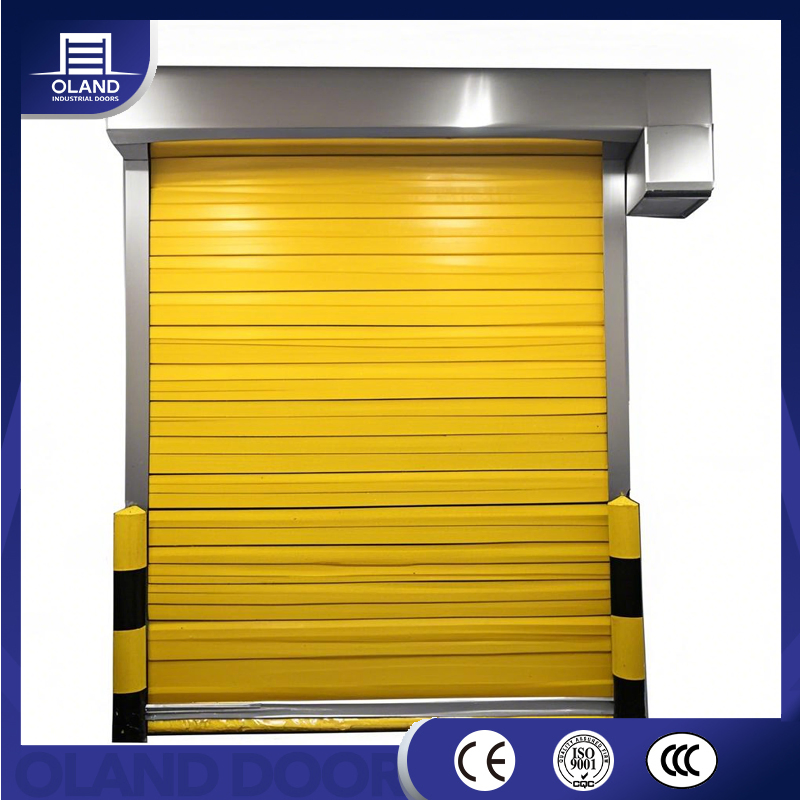

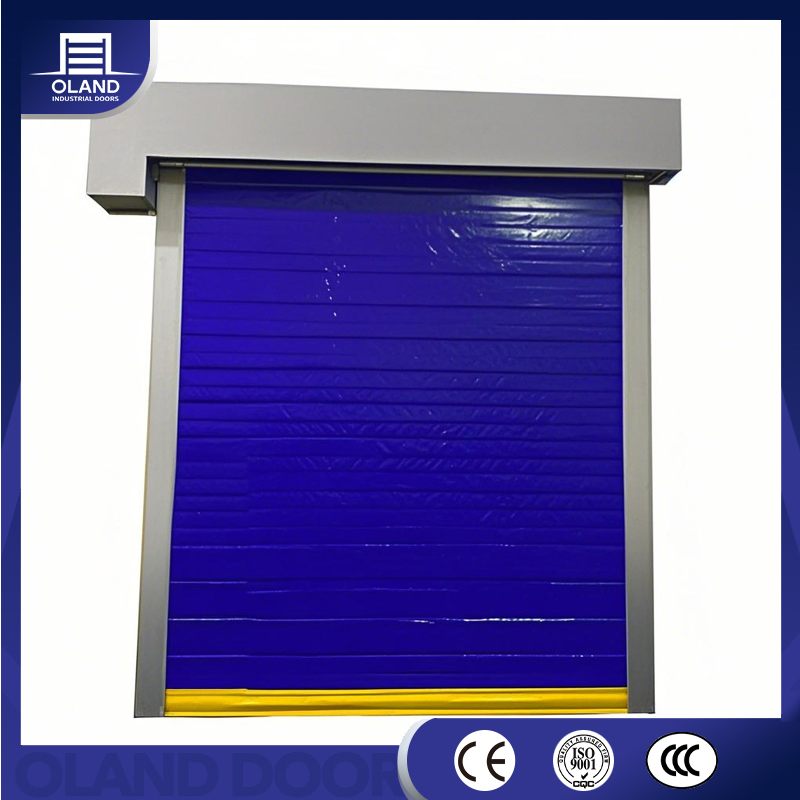

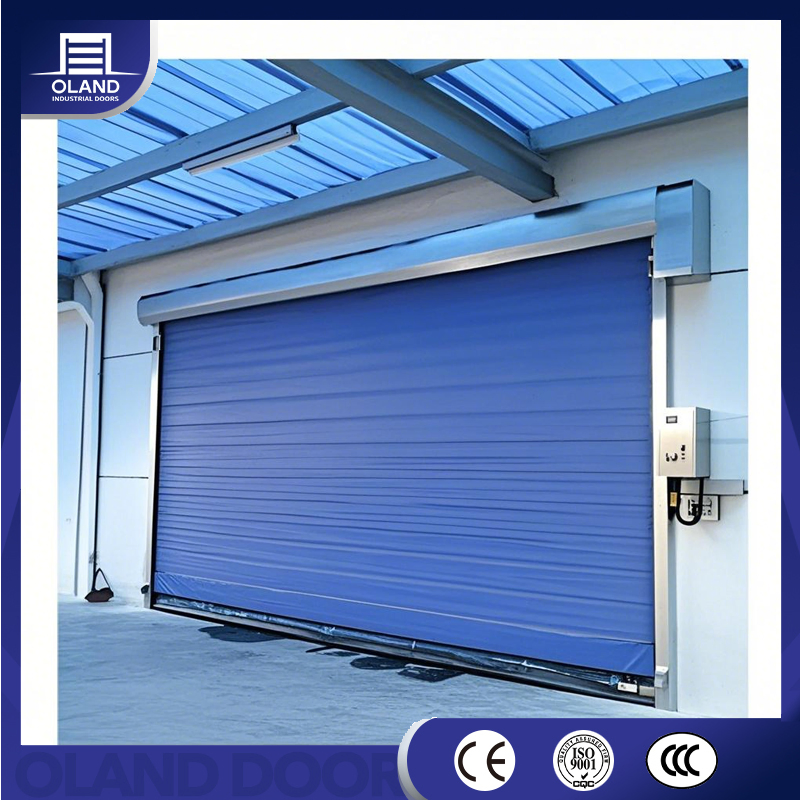

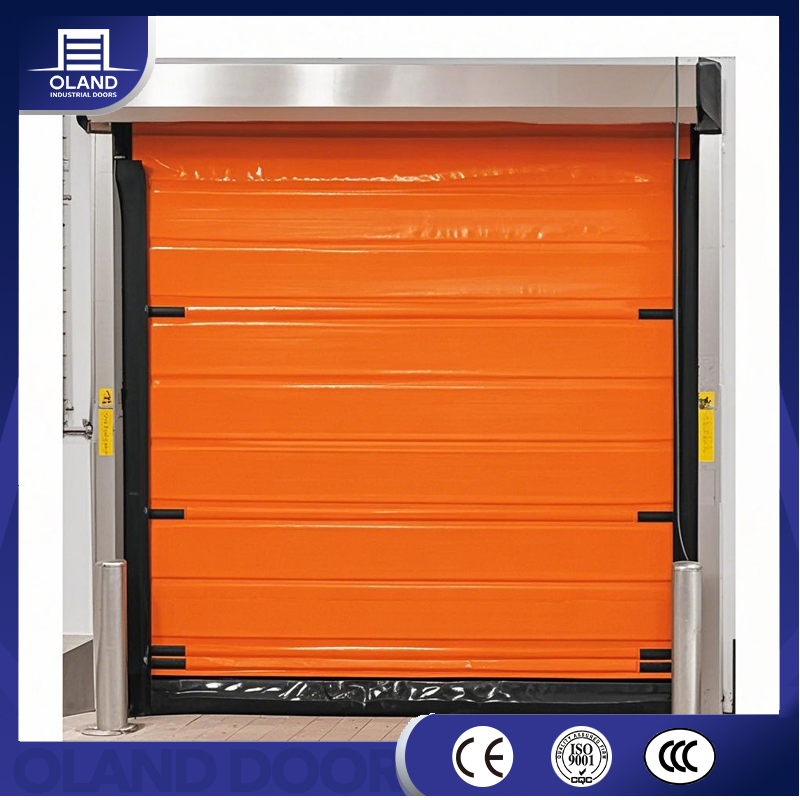

Cold Storage Freezer Room High Speed Fast Overhead Rapid Roll up Door

Customization: Available
After-sales Service: Online Technical Support/Parts Replacement
Warranty: 1.5 Years

Product Description

Basic Information
Model NO.
freezer high speed door
Material
PVC Fabric+Rock Wool
Type
Rolling
Open Style
Rolling
Special Function
Thermal Insulated
Certification
ISO9001, CE
Wind Resistance
Beaufort Scale 10 (25m/S)
Power Supply
1-Phase 220V±10%, 50/60Hz
Product Description

Designed for low-temperature environments, the fast door of cold storage adopts high-strength heat preservation curtain and sealing structure, which effectively reduces the loss of cold air and improves the efficiency of heat preservation. Configuration of low-temperature-resistant motor and heating system to ensure stable operation in low-temperature and high humidity environment. The flexible door curtain is equipped with high-speed opening and closing and self-resetting functions, which greatly improves the efficiency of logistics passage and prevents the leakage of cold air and the entry of hot air.

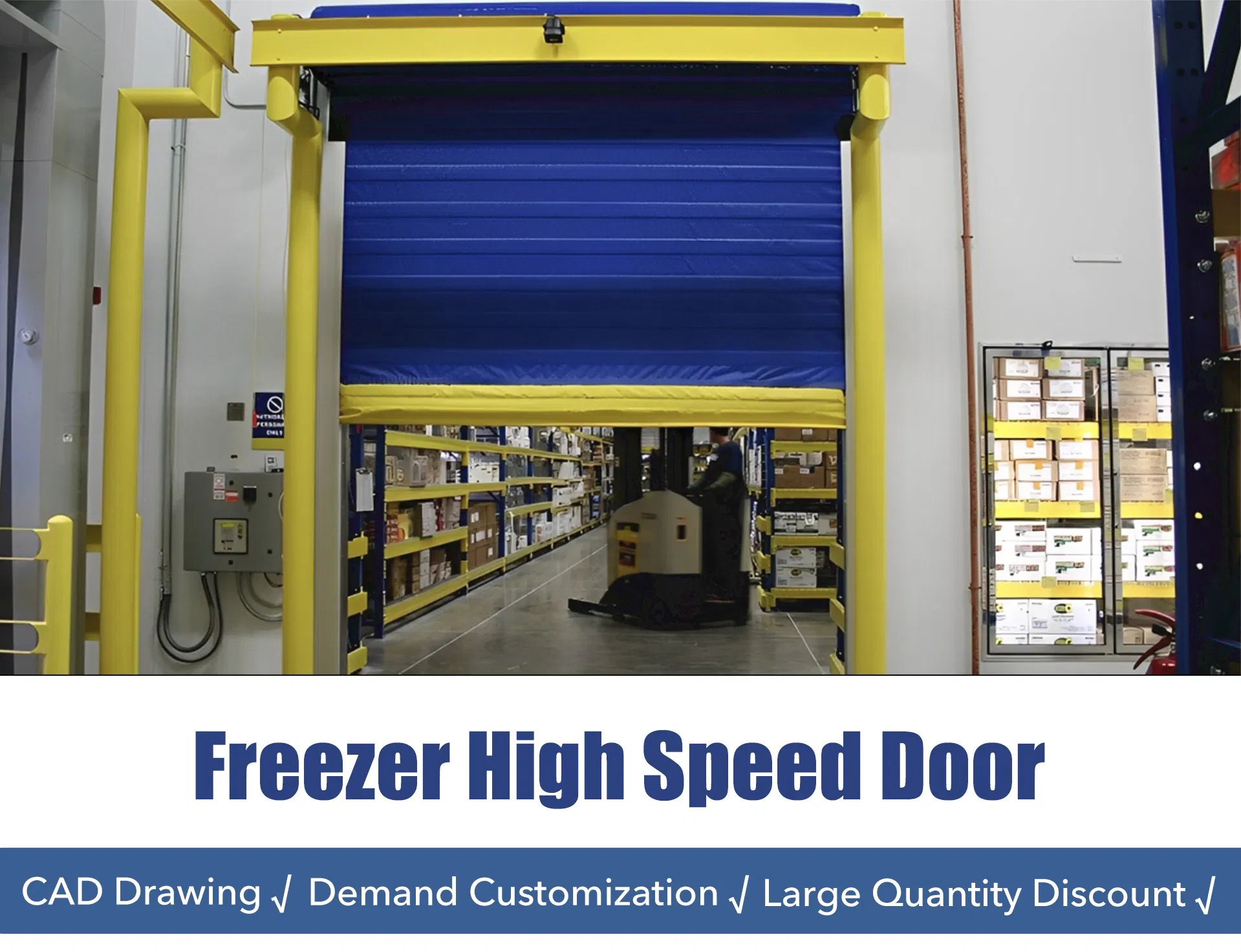

Cold Storage Freezer Room High Speed Door
Technical Data
Maximum sizeWidth 3370mm * Height 4700mm
Power supply220±10%V, 50/60Hz. Output power 0.75-1.5KW
Max speedOpen 2.0m/s, Close 1.0m/s
Protection levelIP65
Control systemServo type
Driving systemServo motor for cold storage
Wind resistanceBeaufort scale 10 (25m/s)
K-Value0.4W/m²·K
Structure Diagram

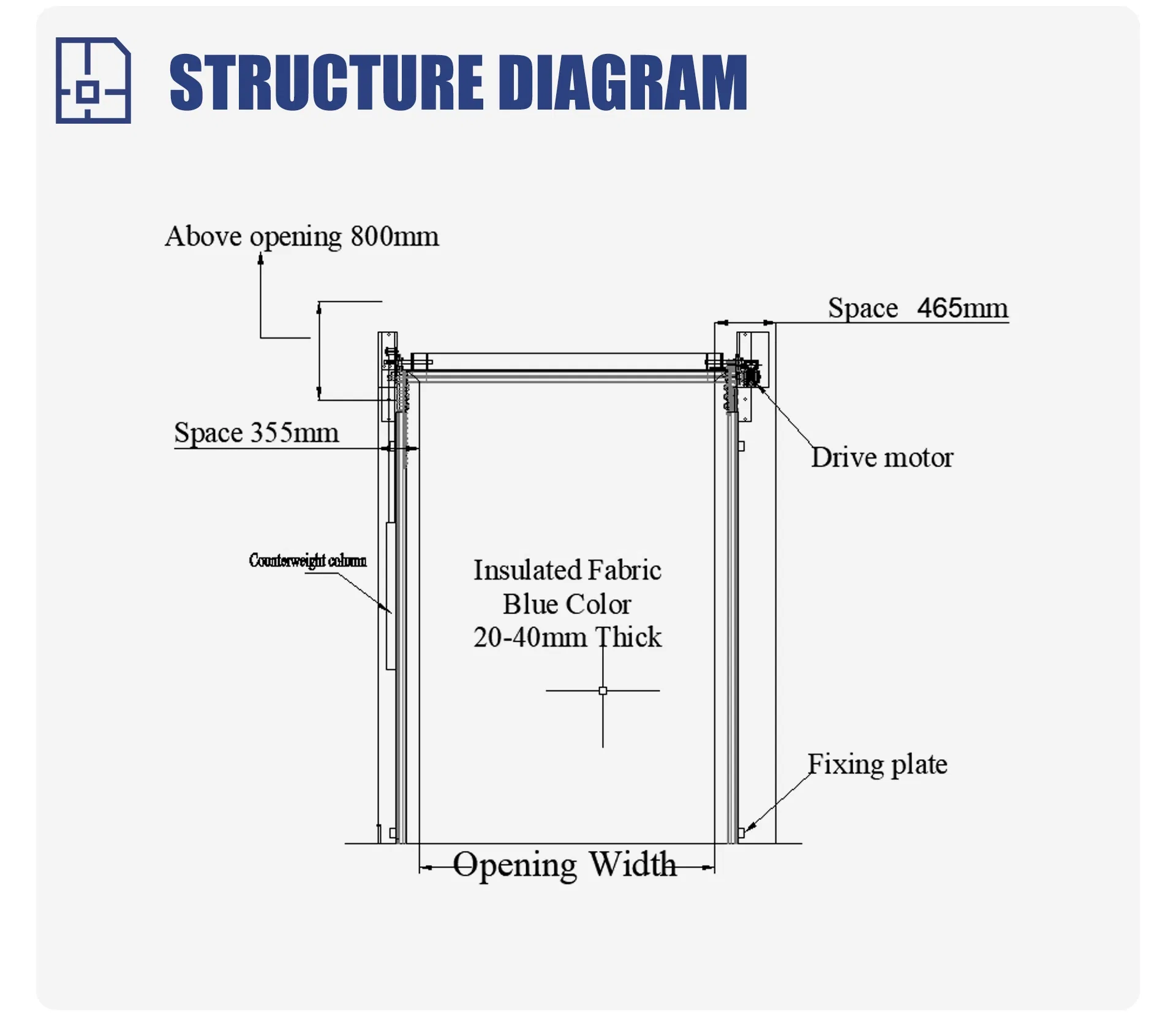

Structure Diagram of Freezer Door
⚙️

Standard version of the freezer high speed door structure and accessories can be customized according to specific requirements.

Product Details

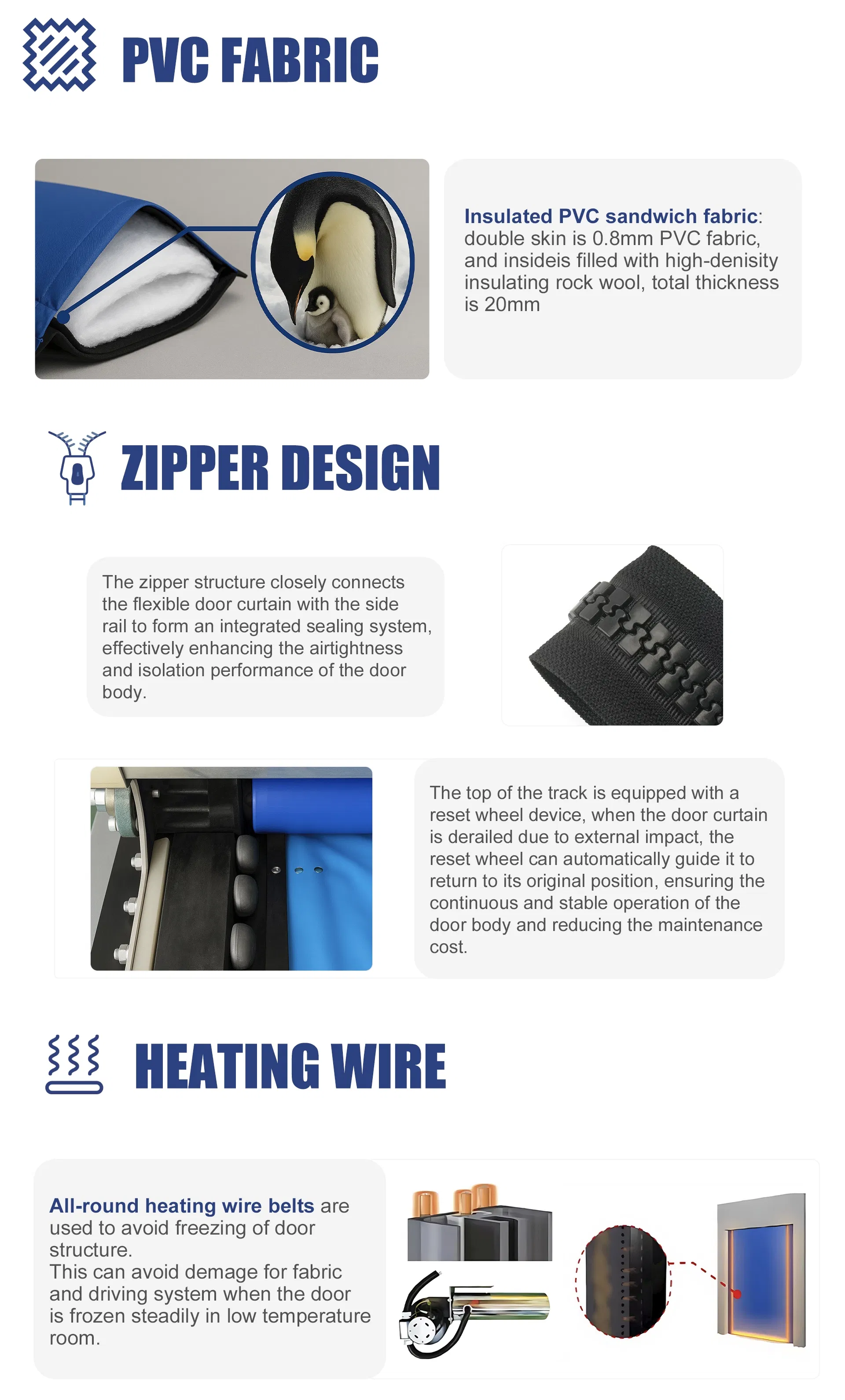

Freezer Door Detail 1

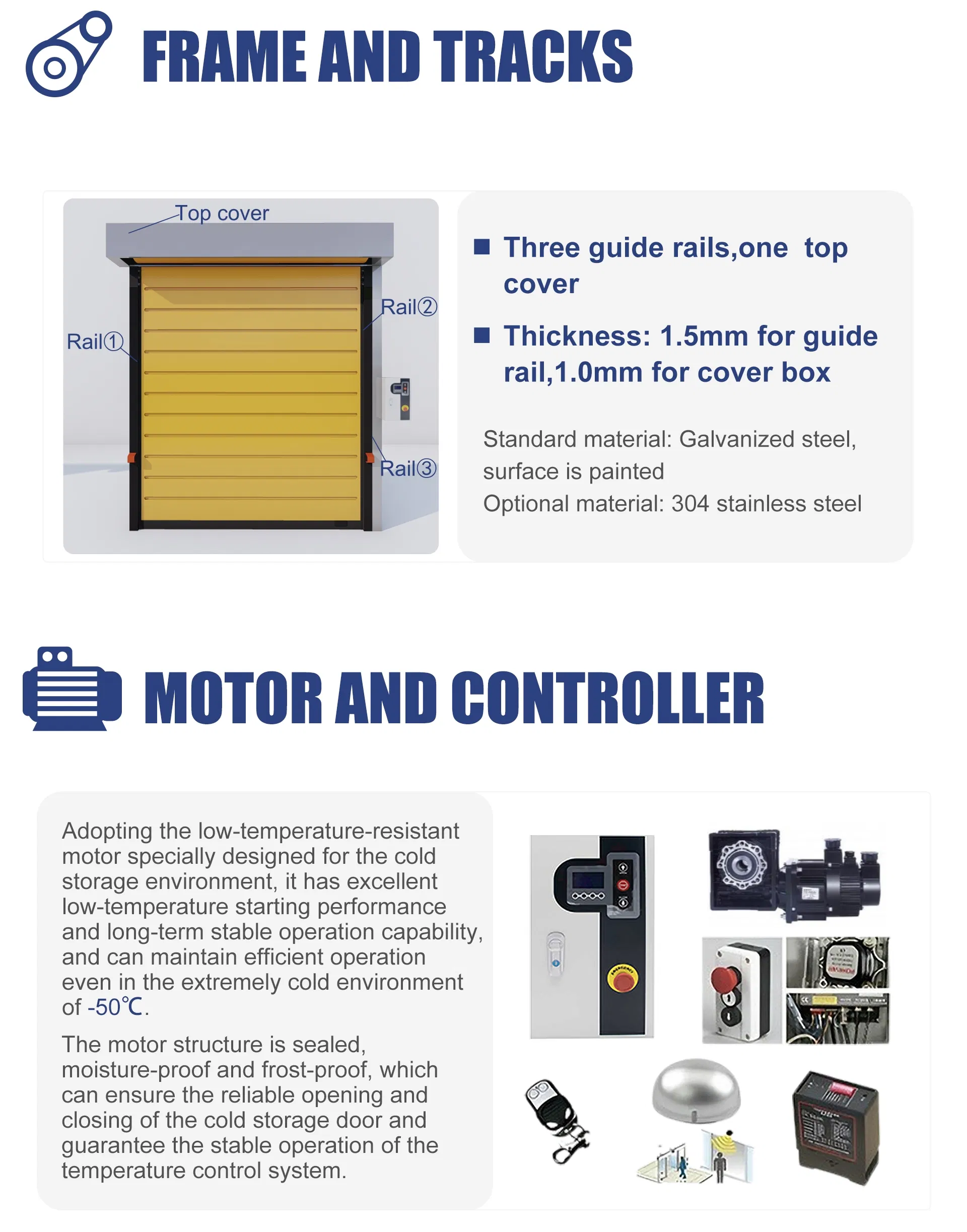

Freezer Door Detail 2

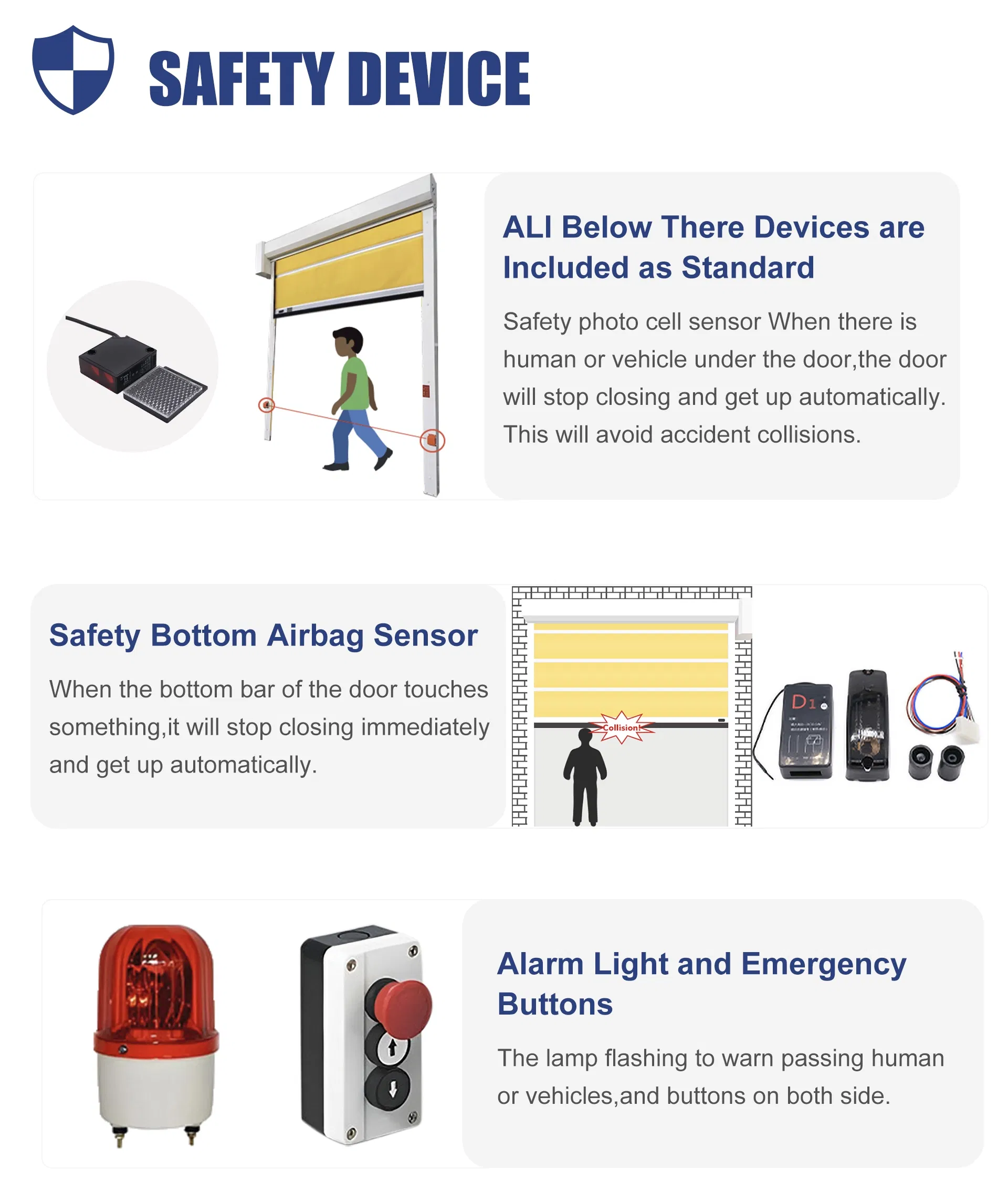

Freezer Door Detail 3

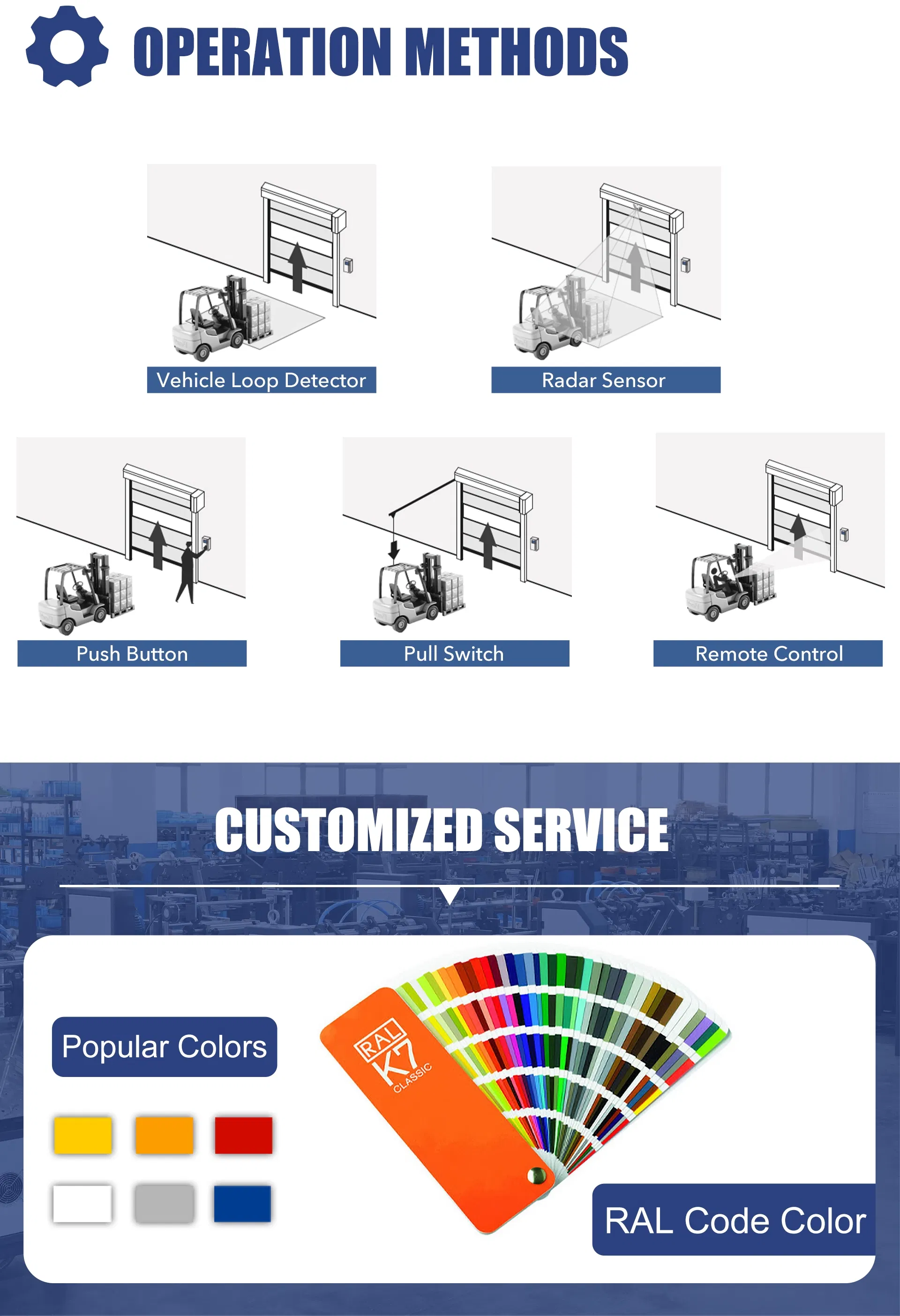

Freezer Door Detail 4
Production & Quality
Production Facility

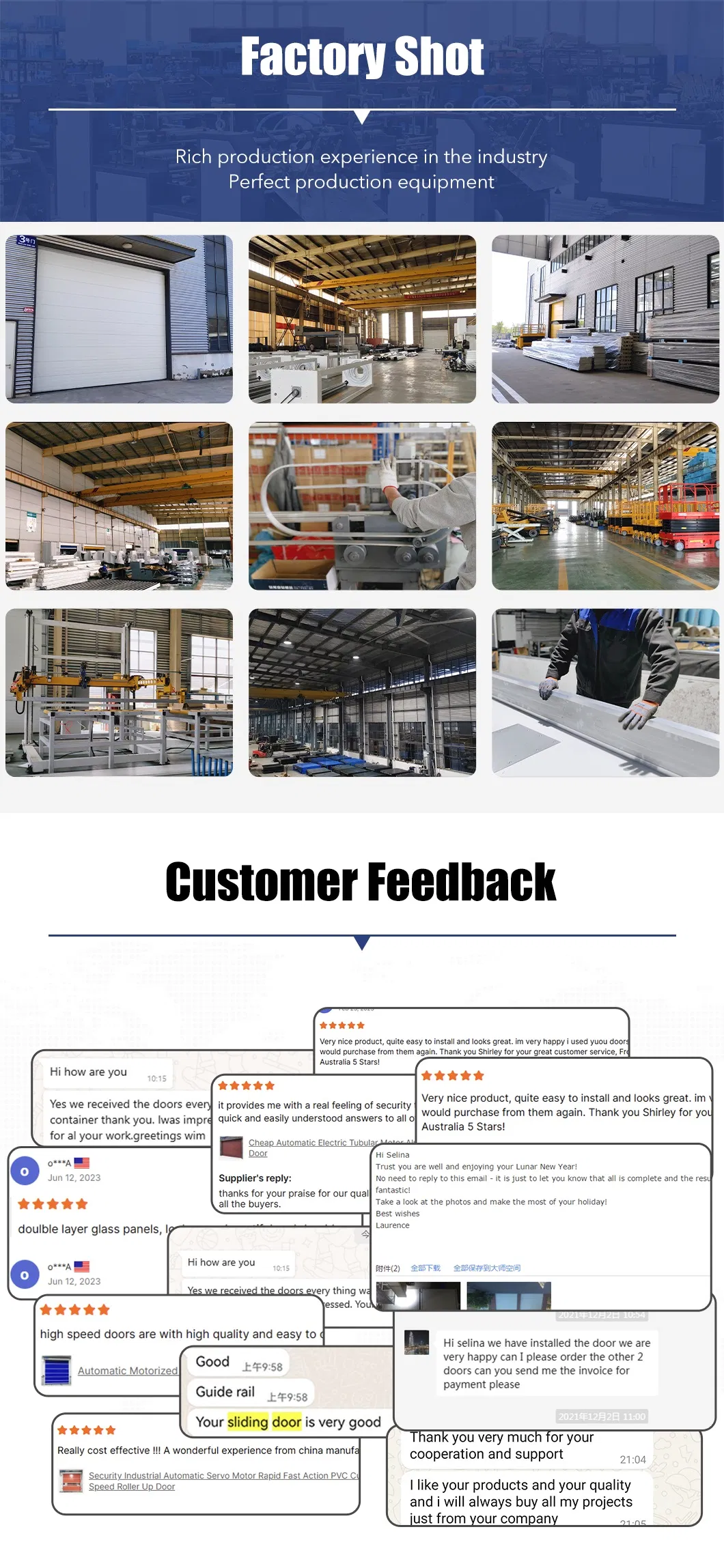

Manufacturing Process
Quality Control
Testing Area
Frequently Asked Questions
What is the minimum order quantity (MOQ)?
There is no strict limit. We accept orders starting from 1 set.
What is the standard delivery time?
The typical delivery time ranges between 15 to 30 days depending on the customization.
How are the products packaged for shipping?
All products are securely packed in plywood boxes to ensure safety during transit.
Is it difficult to install these doors?
No, it is designed for easy installation. We provide a comprehensive manual book and installation videos for your reference.
What other types of doors do you produce?
We specialize in a variety of industrial solutions including sectional garage doors, industrial doors, roll up shutter doors, and high-speed doors.
How can I obtain an accurate price quote?
Please provide the exact dimensions (width and height) and the quantity required. We will then provide a detailed quotation based on your specific requirements.
