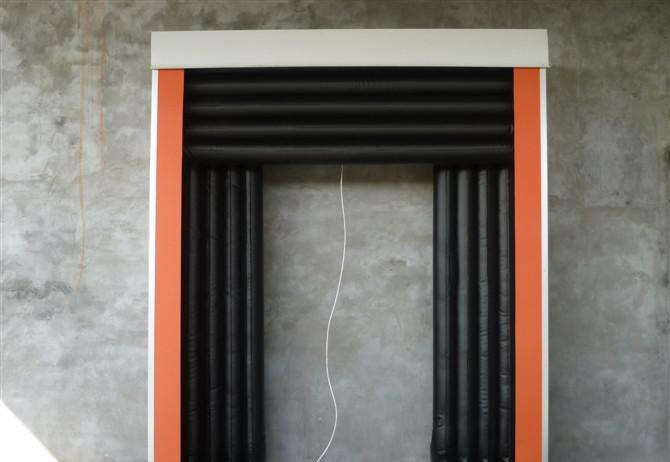

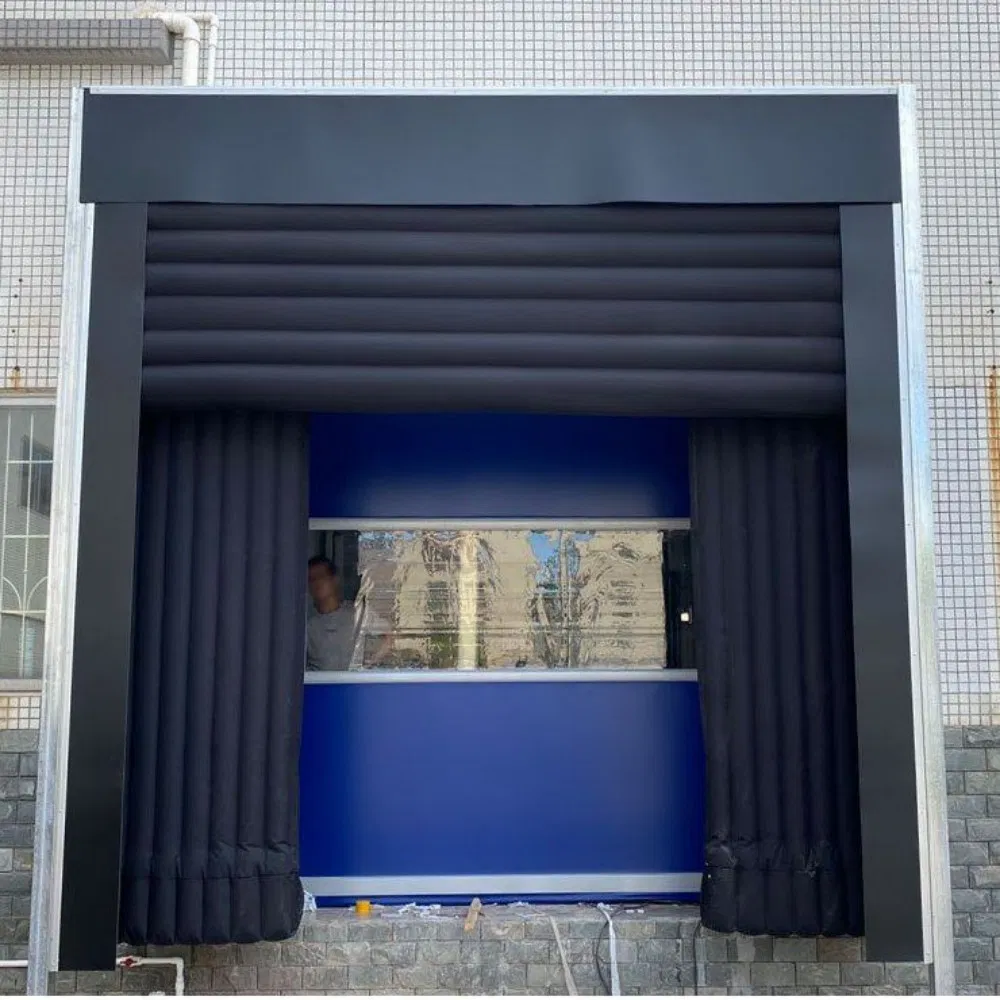

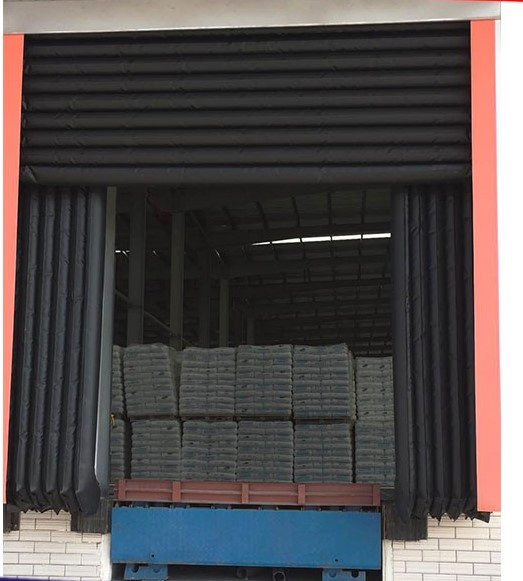

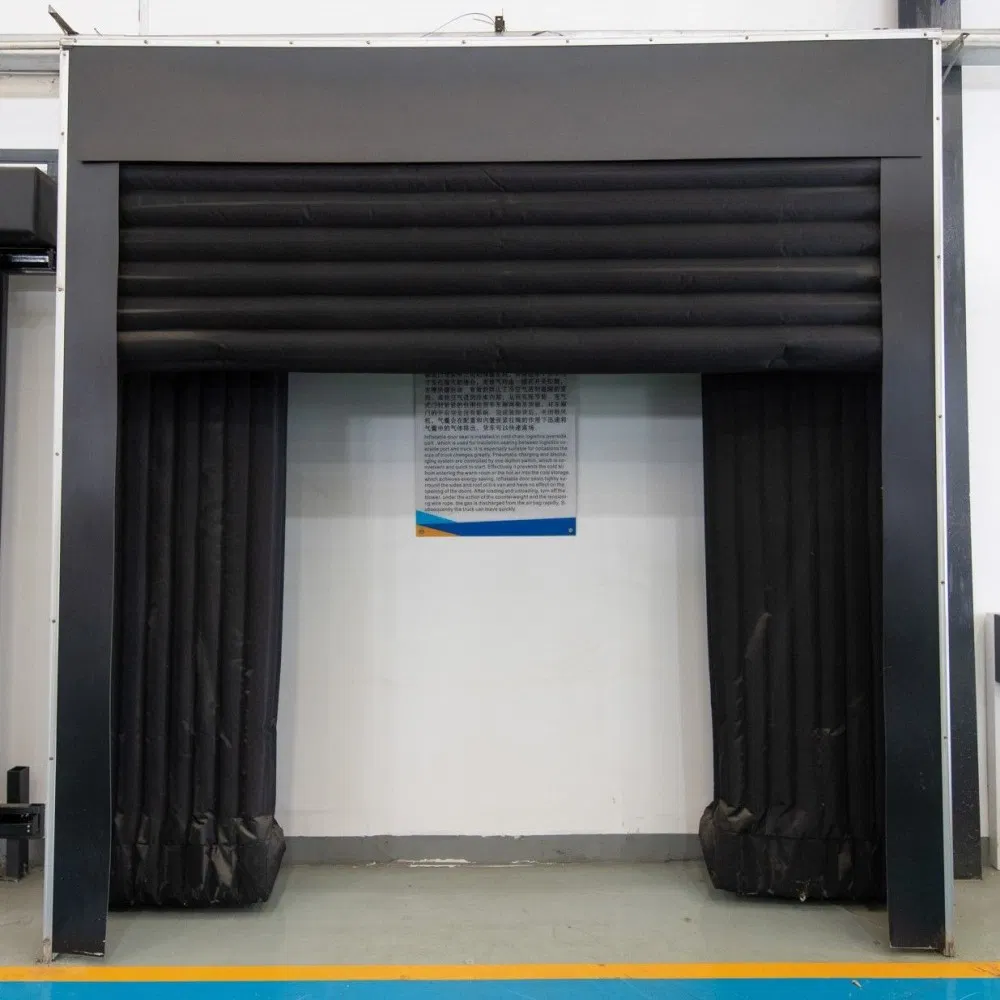

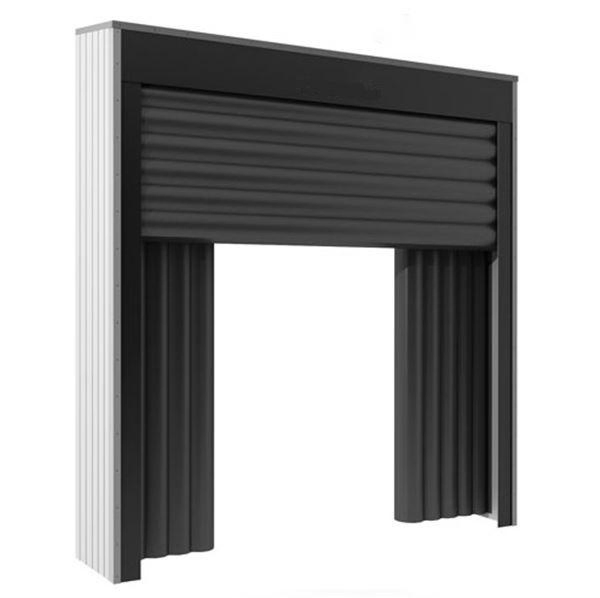

Food Factory Cold Warehouse PVC Fabric Retractable Loading Bay Loading Container Logistics Anti-Crush Adjustable Inflatable Dock Shelter Dock Door Shelter

1 / 5

Food Factory Cold Warehouse PVC Fabric Retractable Loading Bay Loading Container Logistics Anti-Crush Adjustable Inflatable Dock Shelter Dock Door Shelter

Customization:	Available
After-sales Service:	Yes
Warranty:	12 Months After Delivery

Send Inquiry

Product Description

Basic Specifications

Model NO.

XF-O-2000

Material

PVC + Aluminum Alloy Frame

Type

Air Tight

Open Style

Air Blowing

Opening Type

Automatic

Special Function

Sealing

Color

Customer-Tailor

Certification

ISO9001, CE

Position

Industrial

Fireproof Grade

EU Grade II

Specification

3400*3400 mm

Origin

Made in China

📦

Packaging & Delivery

Package Size

200.00cm * 100.00cm * 60.00cm

Gross Weight

100.000kg

Transport

Wooden Case

★

Product Description

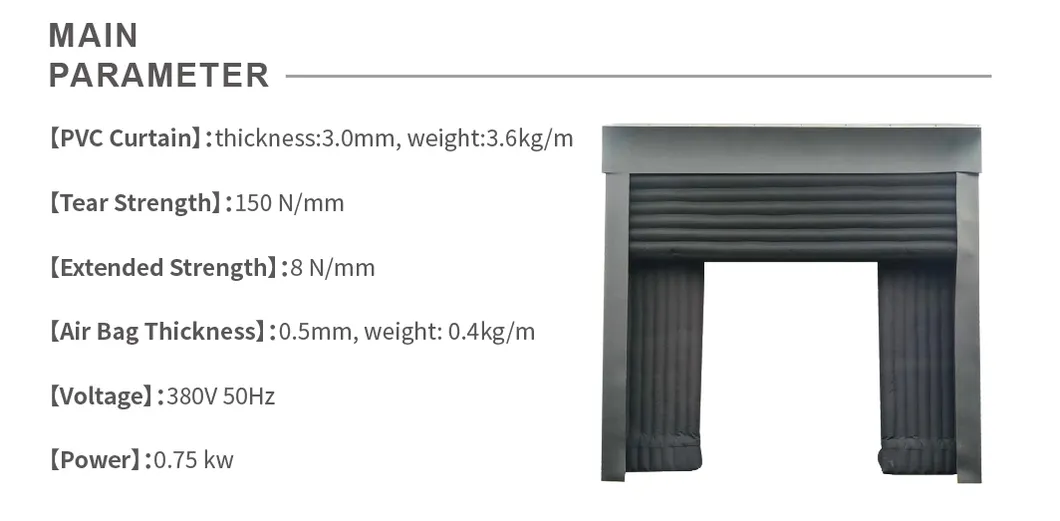

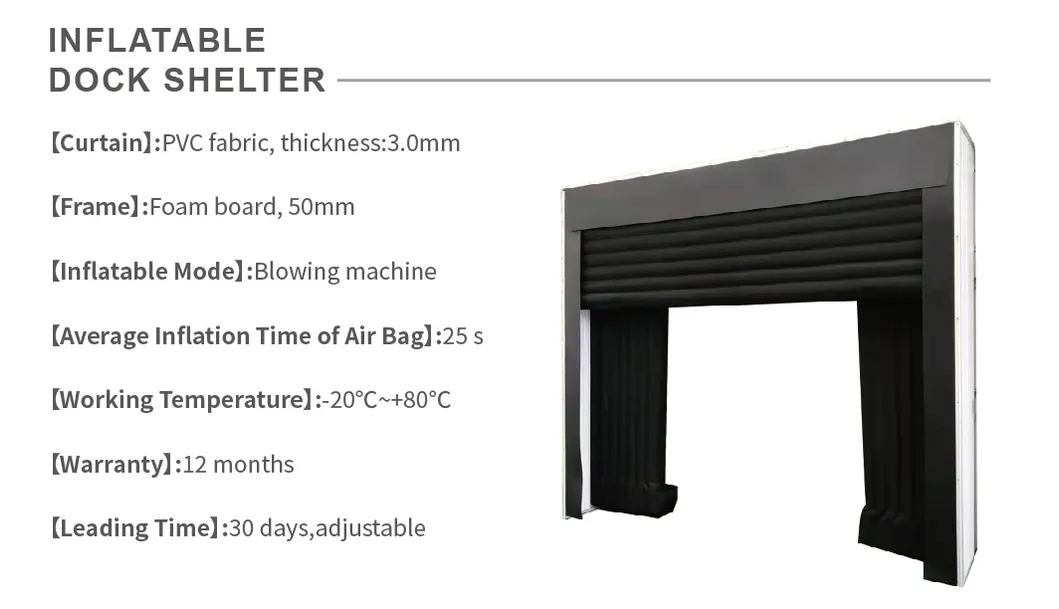

TECHNICAL PARAMETERS
Feature & Benefits	• Adjustable space between truck and door • Meets various truck dimensions and loading conditions • Maintains indoor temperature, cleanliness, and wind protection • Airbag inflation achieves superior sealing effect
Air Bag Fabric	Polyester fabric with PVC coating; Thickness: 0.5mm; Strength at break: 290N/mm²; Weight: 0.4kg/m²; Fireproof: EU grade II

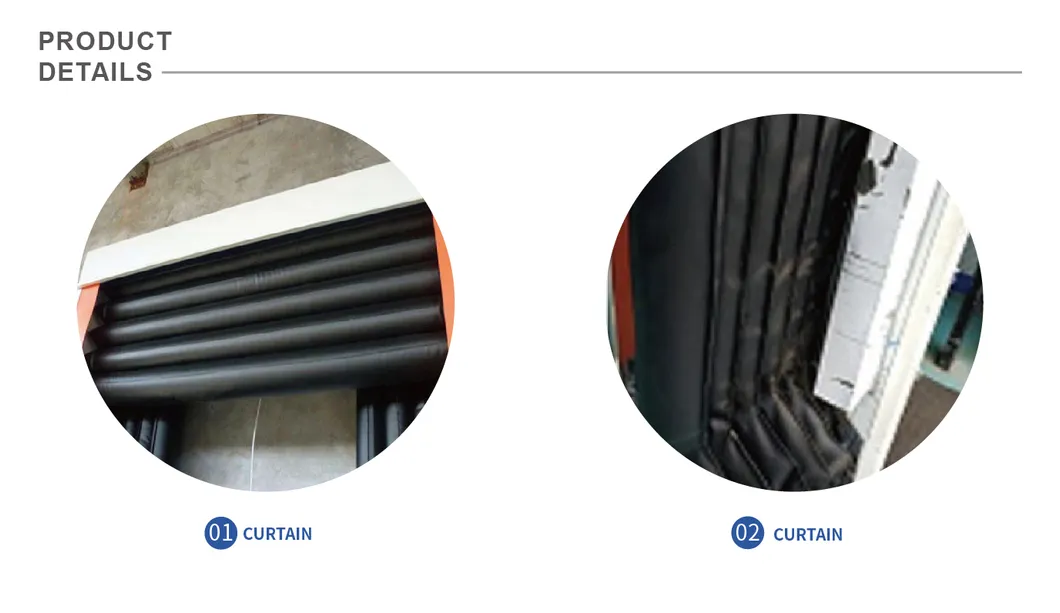

Front Fabric Curtain	Polyester fabric with PVC coating; Thickness: 3.0mm; Strength at break: 150N/mm²; Weight: 3.6kg/m²; Fireproof: EU grade II
Air Pump System	Voltage: 380V 50Hz, 3 Phase; Power: 0.75kw; Avg. Inflation Time: 25s
Metal Frame	Aluminum alloy / polyurethane sandwich panel / galvanized steel; Thickness: 50mm
Dimensions & Color	Standard: 3600(W)*3600(H) MM; Color: Black / Blue or Custom
Temperature Scope	-35ºC to +70ºC

✔

Certifications & Quality

ISO9001: 2000 Management Certification
CE Certification
China AAA Enterprise Standard
EU Grade II Fireproof Material

Frequently Asked Questions

1. What is the primary benefit of an inflatable dock shelter?

The primary benefit is the superior airtight seal it creates by inflating around the truck, which significantly reduces energy loss and prevents dust or pests from entering the warehouse during loading.

2. Is this model suitable for cold storage environments?

Yes, the XF-O-2000 is designed to operate in temperatures ranging from -35ºC to +70ºC, making it ideal for food factories and cold warehouses.

3. How long does it take for the airbags to fully inflate?

The average inflation time is approximately 25 seconds using a 0.75kw high-efficiency air pump.

4. Can the dimensions be customized for non-standard dock doors?

While the standard size is 3600mm x 3600mm, the product can be customer-tailored to fit your specific loading bay requirements.

5. What materials are used for the front curtains?

The front curtains are made of high-strength polyester fabric with a 3.0mm PVC coating, ensuring durability and EU Grade II fire resistance.

6. How is the product shipped to ensure it arrives safely?

All dock shelters are packed in robust wooden cases to protect the aluminum frames and PVC fabrics during international transport.
