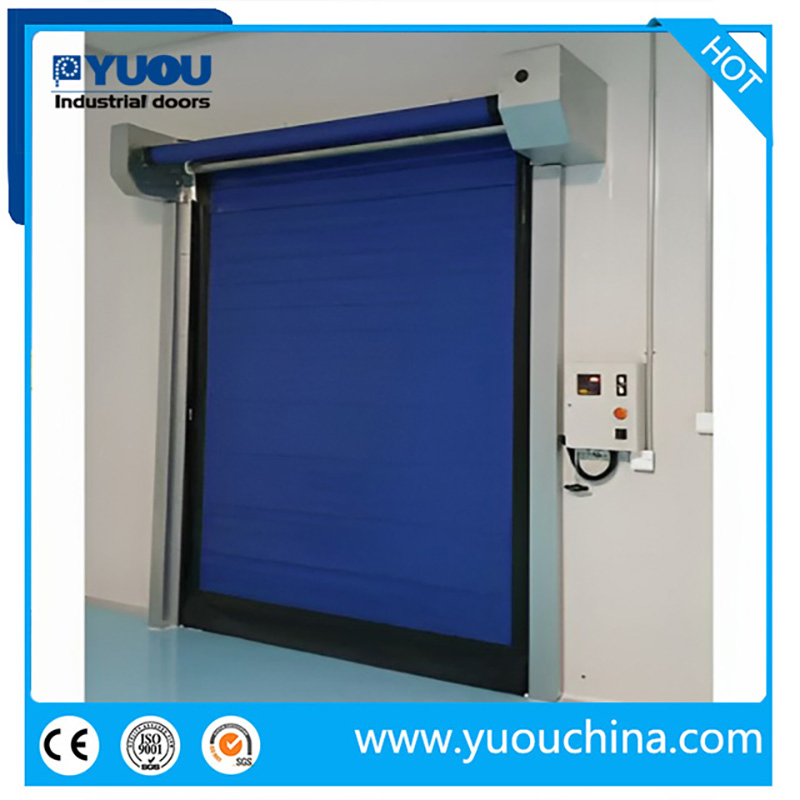

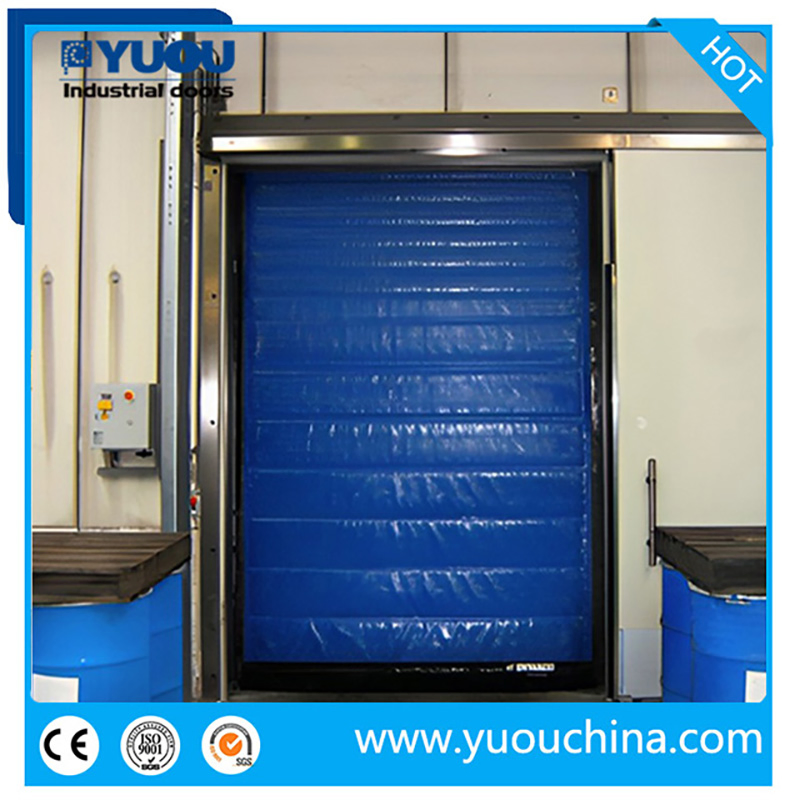

Cold storage rapid door widely used in food, chemical, textile, electronics, supermarket, cold storage, logistics, warehousing and other production efficiency, dust-free and high temperature level requirements.

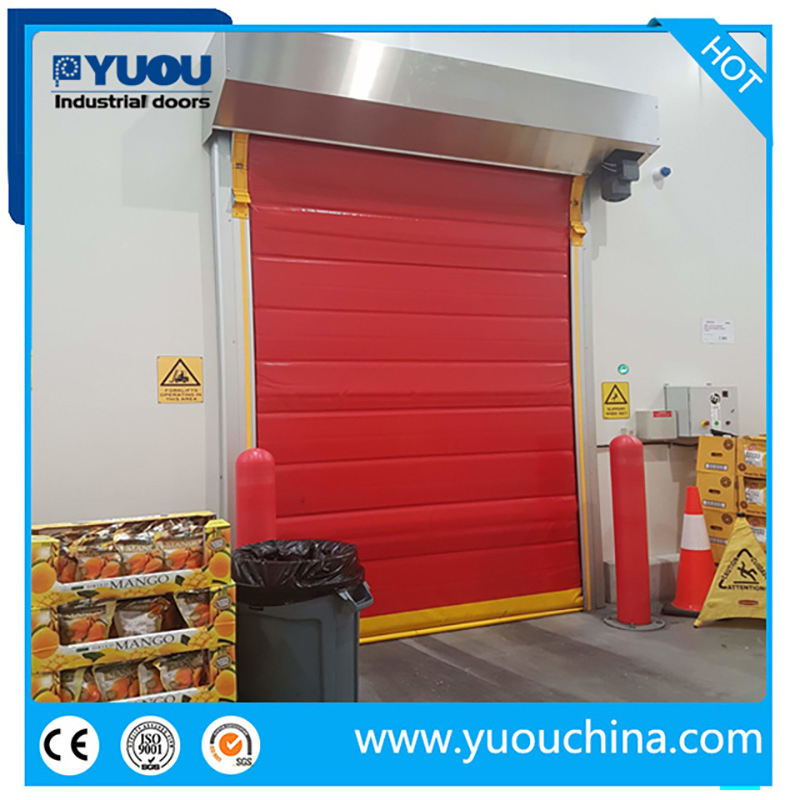

| Freezer Room Insulated Cold Storage Door | |
| Max dimension | width * height 3500mm*4000mm |
| Power supply | 220±10%V, 50/60Hz. Output power 0.75-1.5KW |
| Normal speed | open 1.2m/s, close 0.6m/s |
| Max speed | open 2.0m/s, close 1.0m/s |
| Opening frequency | 1000 times/day |
| Wind resistance | 28m/s (Class 10) |
| Air tightness | 95m³/hour leakage under 30 pa pressure |

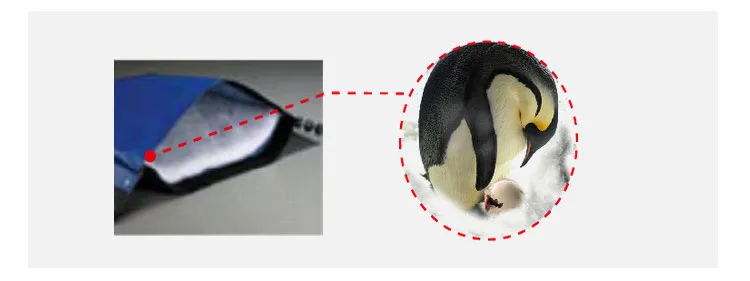

Insulated PVC sandwich fabric: double skin is 0.8mm PVC fabric, and inside is filled with high-denisity insulating rock wool, total thickness is 20mm.

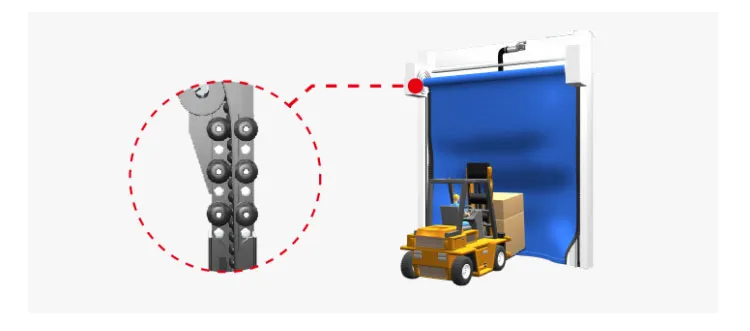

Use zipper to connect the fabric with frame side guide rail as a whole body, realizing better sealing performance and air-tightness. When there is accident collision, the fabric can get out from guide rail and return automatically, reducing maintenance.

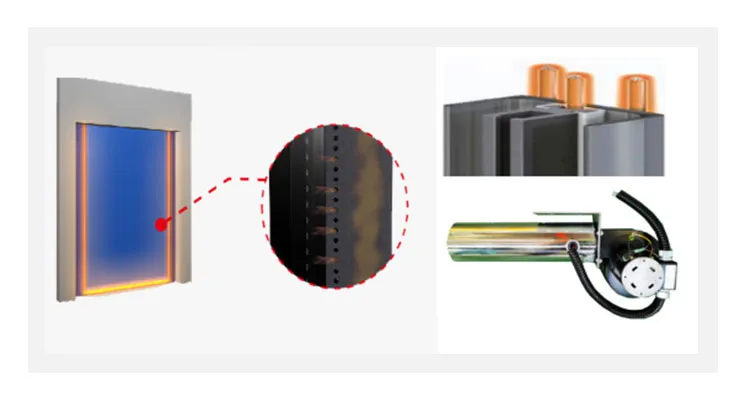

All-round heating wire belts are used to avoid freezing of door structure. This avoids damage to fabric and driving systems in low-temperature rooms.

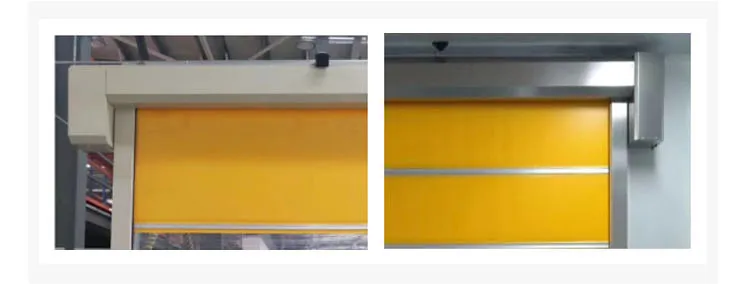

Thickness: 1.5mm for guide rail, 1.0mm for cover box. Standard material is Galvanized steel with painted surface. Optional 304 stainless steel or aluminum alloy available.

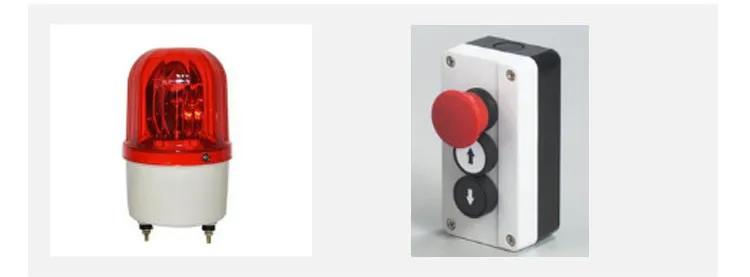

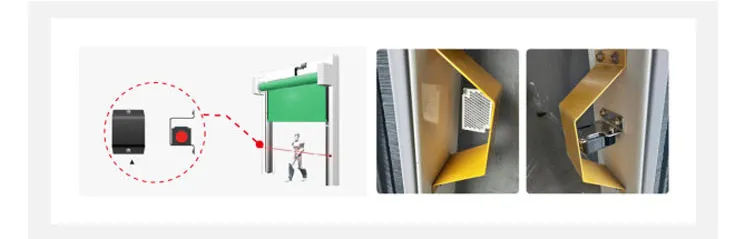

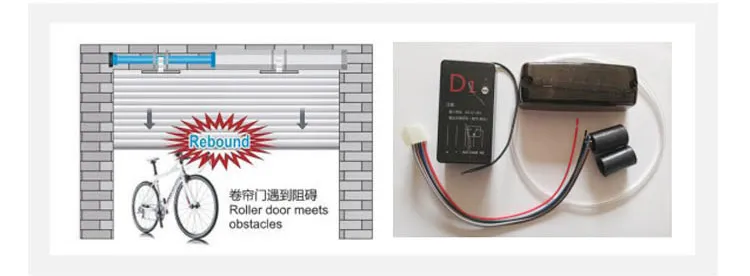

Included as standard: Safety photo cell sensor (stops for obstacles), Safety bottom airbag sensor (reverses upon contact), and Alarm light with emergency buttons.

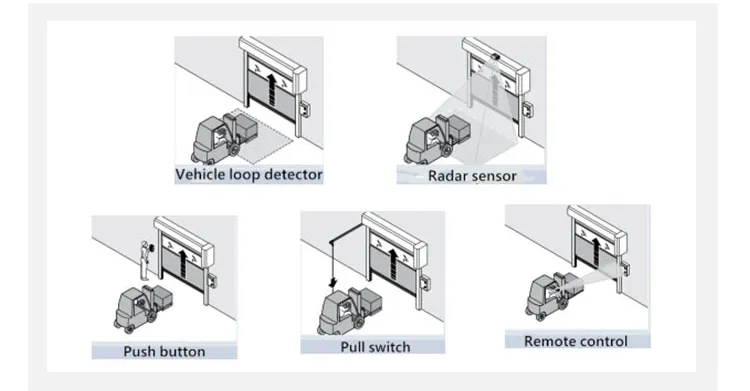

Vehicle loop detector, Radar sensor, Push button, Pull switch, Remote control.
