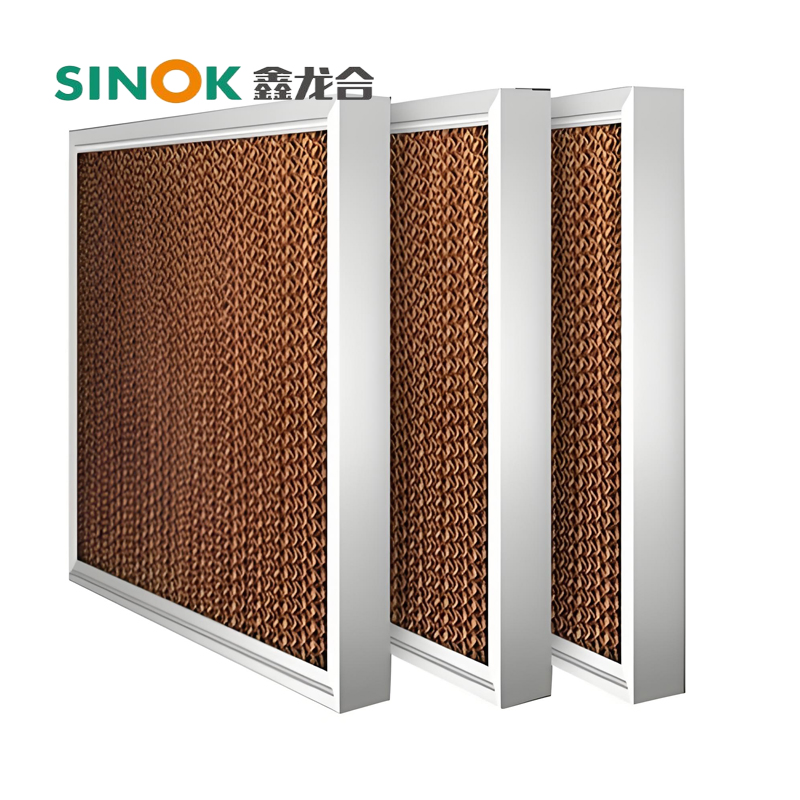

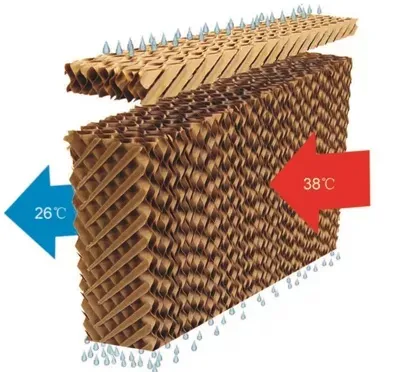

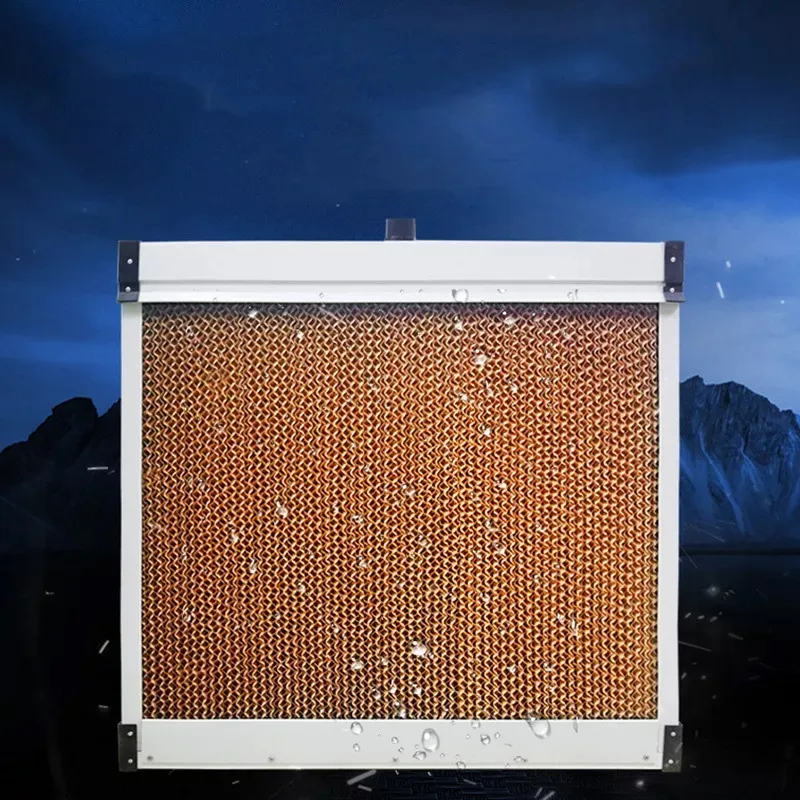

Evaporative industrial cooling pad is made of water absorbing kraft paper with superior properties, such as strong hydroscopicity, high wet stiffness, corrosion resistance and high durability. This unique design yields a cooling pad with a high evaporation efficiency while still operating with a very low pressure drop.

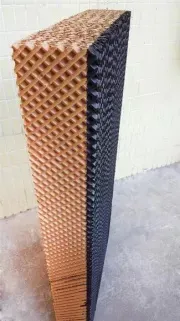

One side black coating treatment: A tough and resilient optional edge treatment applied to the air entering face. It prevents algae and minerals from anchoring themselves into the substrate of the pad, protecting it from severe weather and UV light.
| Type | 7090 | 7060 | 5090 |
|---|---|---|---|
| H (Height) mm | 1500 / 1800 / 2000 | 1500 / 1800 / 2000 | 1500 / 1800 / 2000 |
| L (Length) mm | 600 / 300 | 600 / 300 | 600 / 300 |
| D (Thickness) mm | 100 / 150 / 200 / 300 | 100 / 150 / 200 / 300 | 100 / 150 / 200 / 300 |
| Angle α | 45° | 15° | 45° |
| Angle β | 45° | 45° | 45° |
| Hp (Flute Height) | 7mm | 7mm | 5mm |

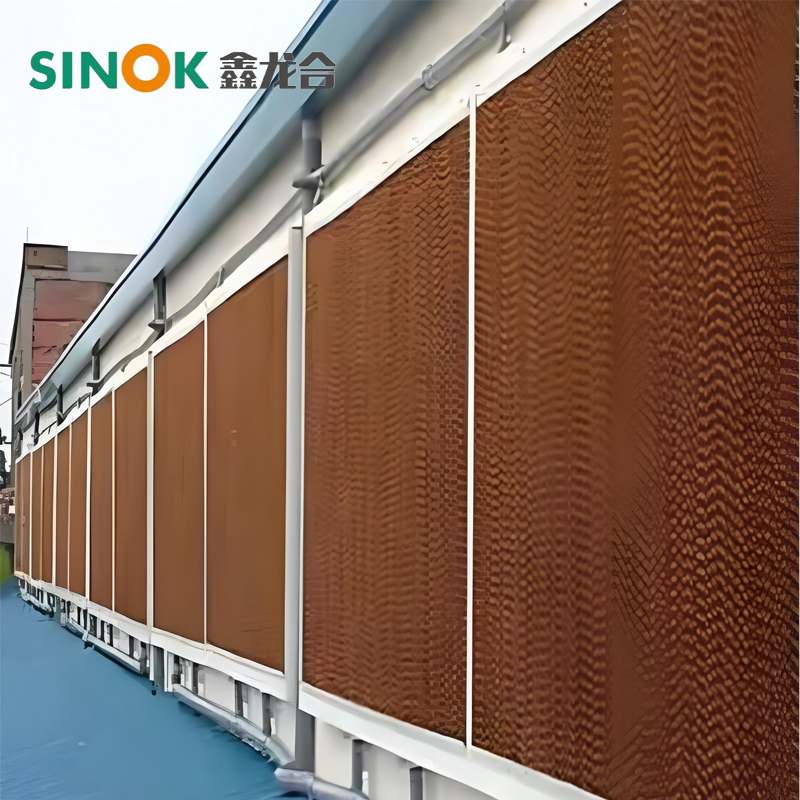

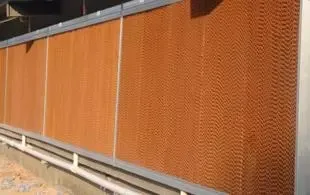

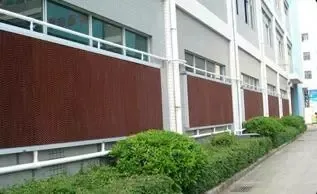

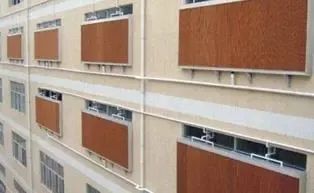

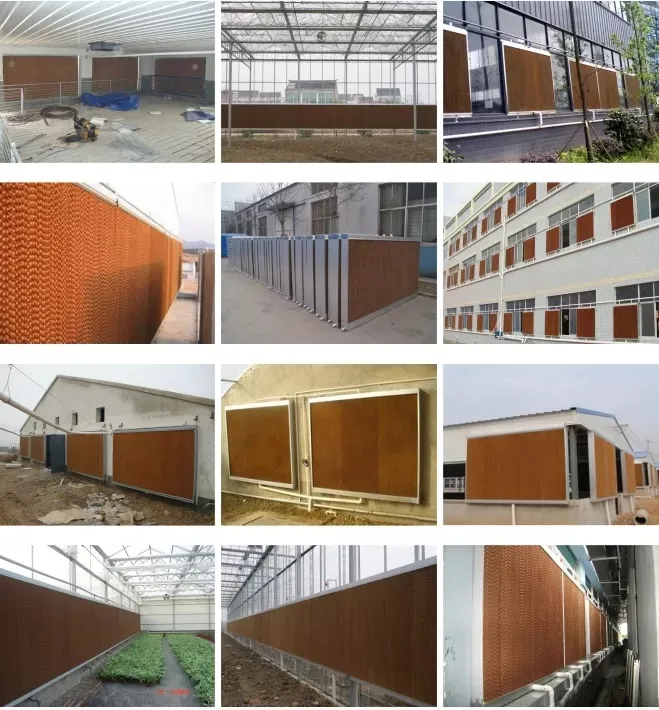

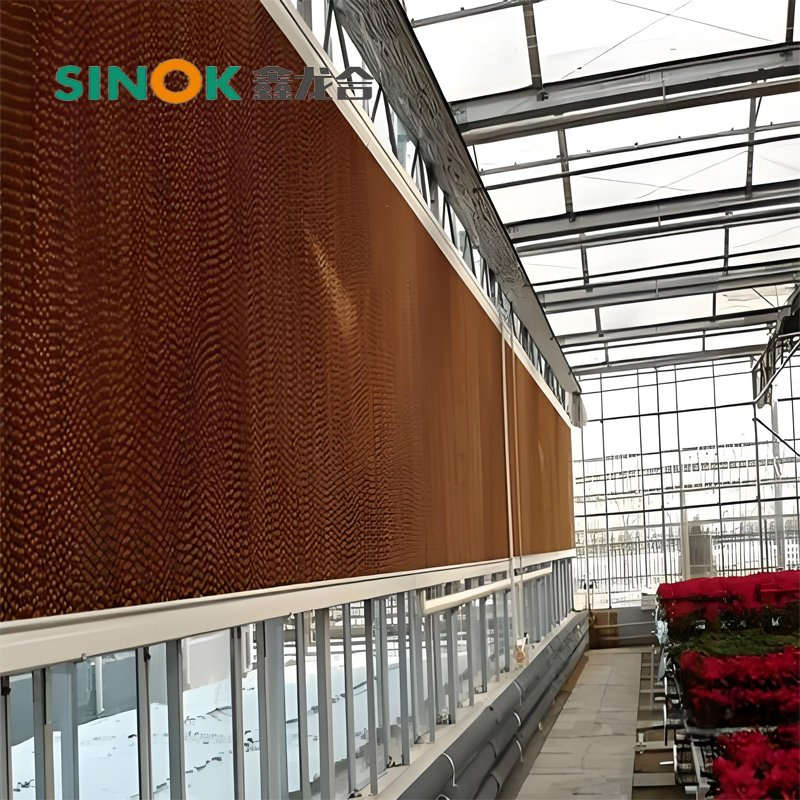

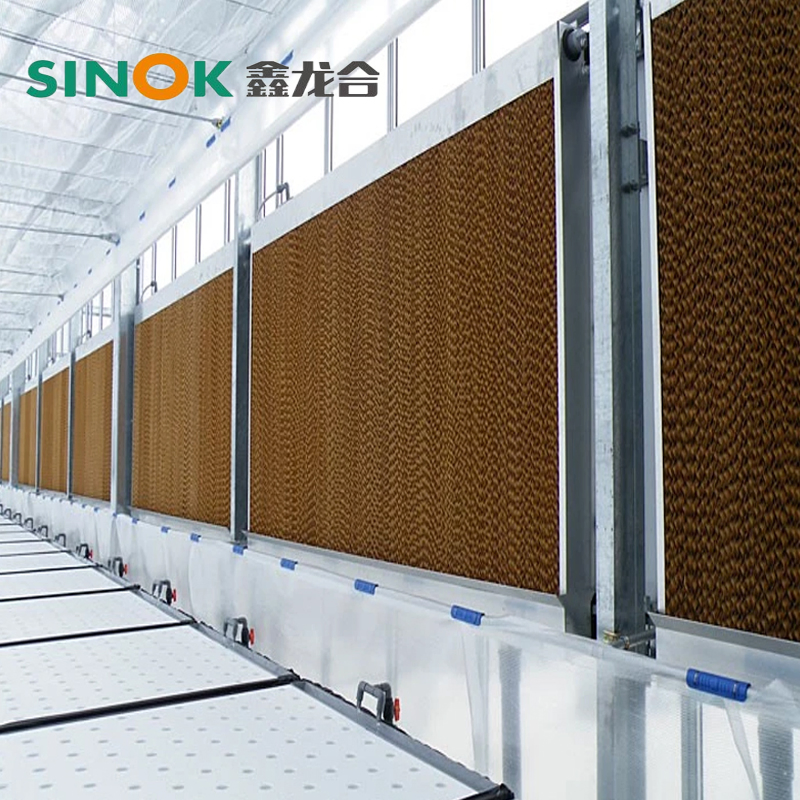

Honey comb evaporative cooling pads are mainly used for ventilation and cooling in chicken farms, pig farms, greenhouses, and factories. It is particularly suitable for livestock buildings where higher air velocity and high-efficiency cooling are required.
Accept OEM & ODM, supporting custom products. Professional suggestions according to different markets.
Training on installation and usage. Feedback valued for continuous improvement. Quality issues handled promptly.
