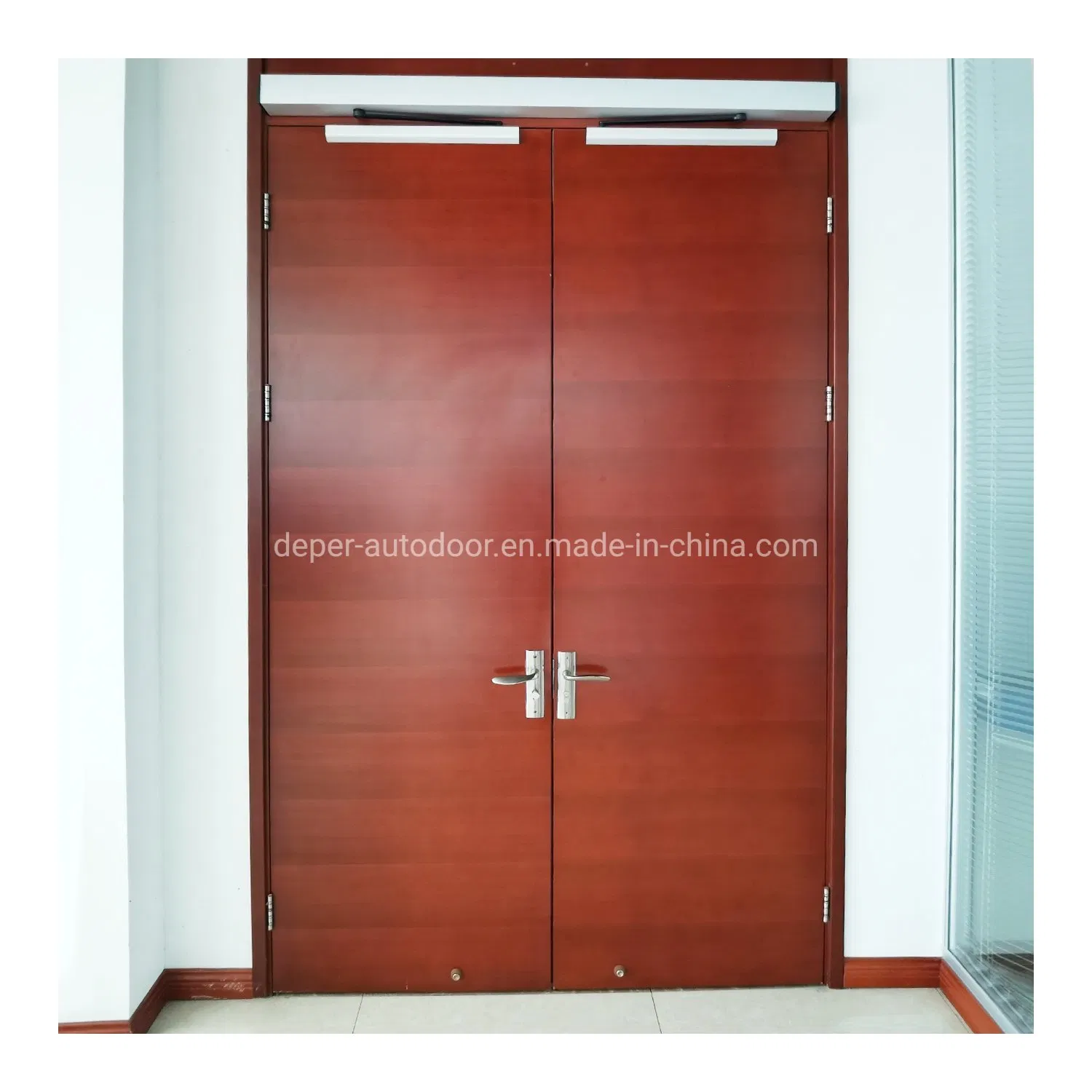

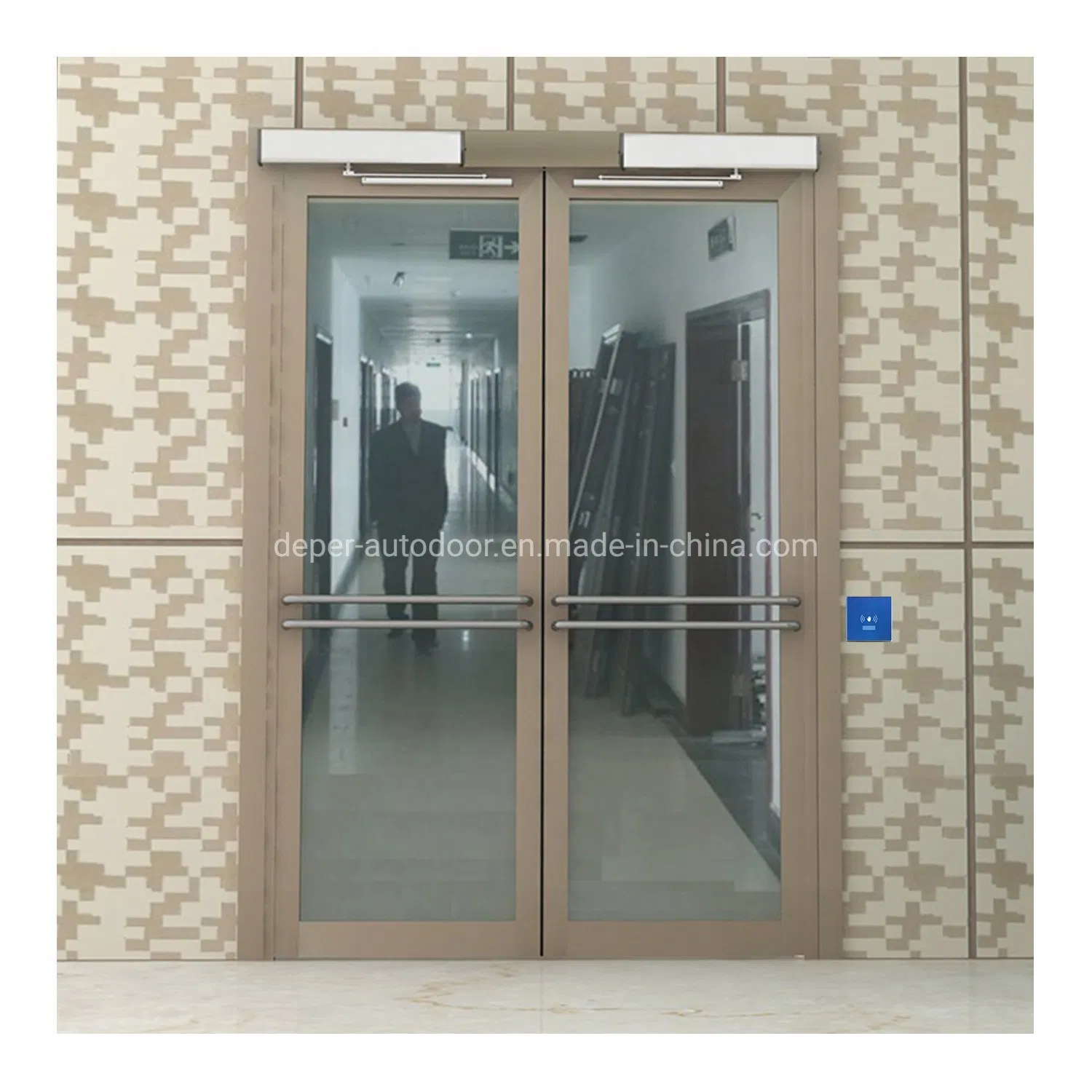

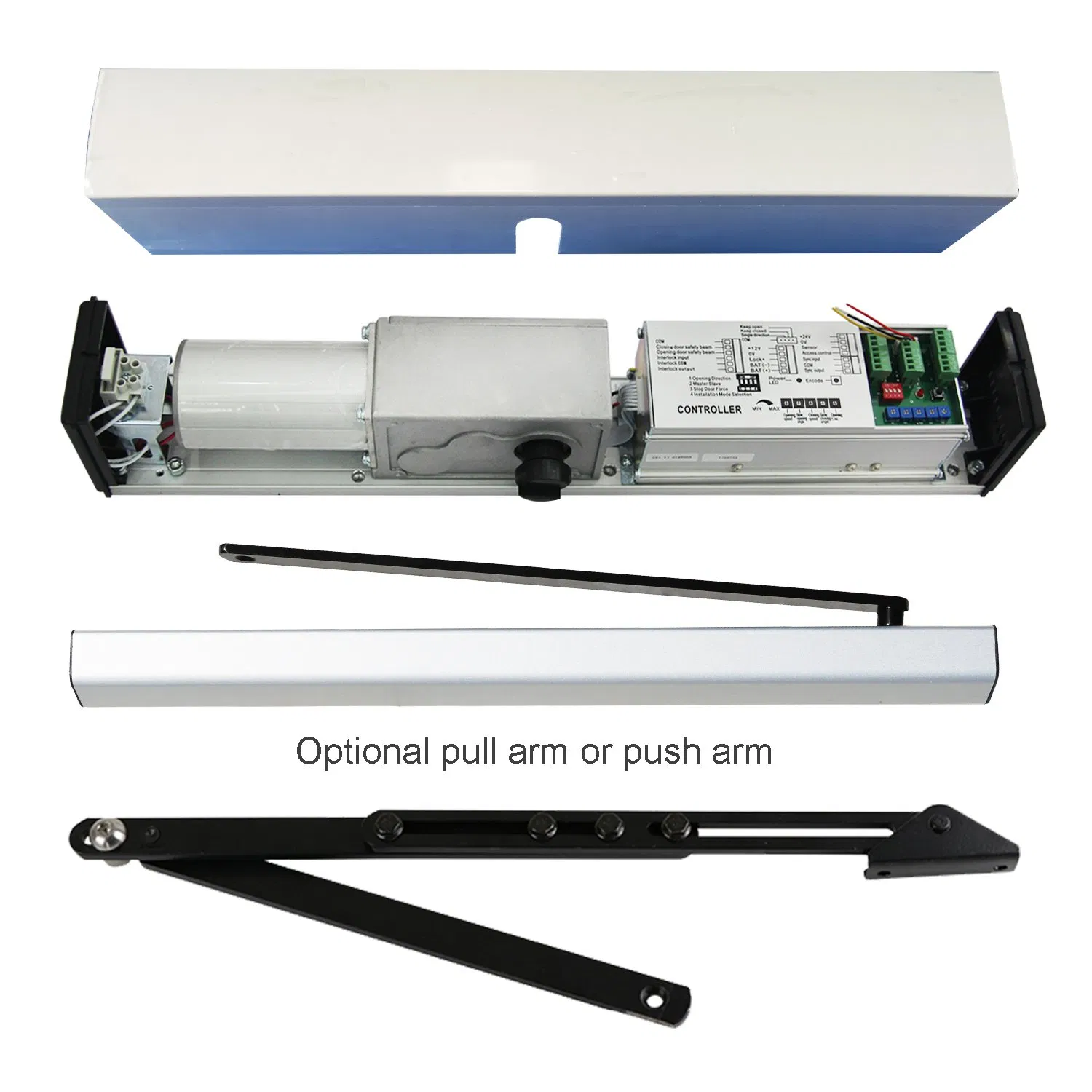

Deper Single Open/Double Open Automatic Swing Door Operator (DSW100N)

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.
DSW100N
Open Style
Swing
Opening Type
Induced
Special Function
Security
Color
Silver
Certification
CCC, ISO9001, CE
Position
Commercial
Surface Finishing
Finished
Export Experience
17 Years
Selling Points
Low Price, Reliable Quality
Production Capacity
300 Sets/Week
Origin
China

Product Description

Single/Double Open Automatic Swing Door Operator (DSW100N)

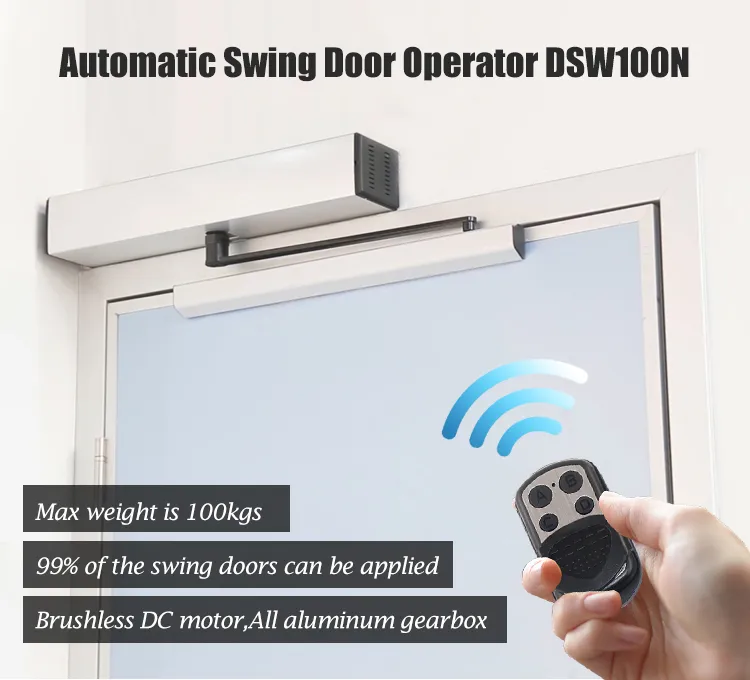

Automatic Swing Door Operator
Swing Auto-Door can be opened and closed automatically in any ordinary doors, widely used in offices, hospitals, commercial and industrial environments.
The DSW-100N is a new upgraded transformer-less drive that offers a wider range of supply power voltages and interlocking function.
Operates with low noise, reliable performance, and safe use for living and working environments.

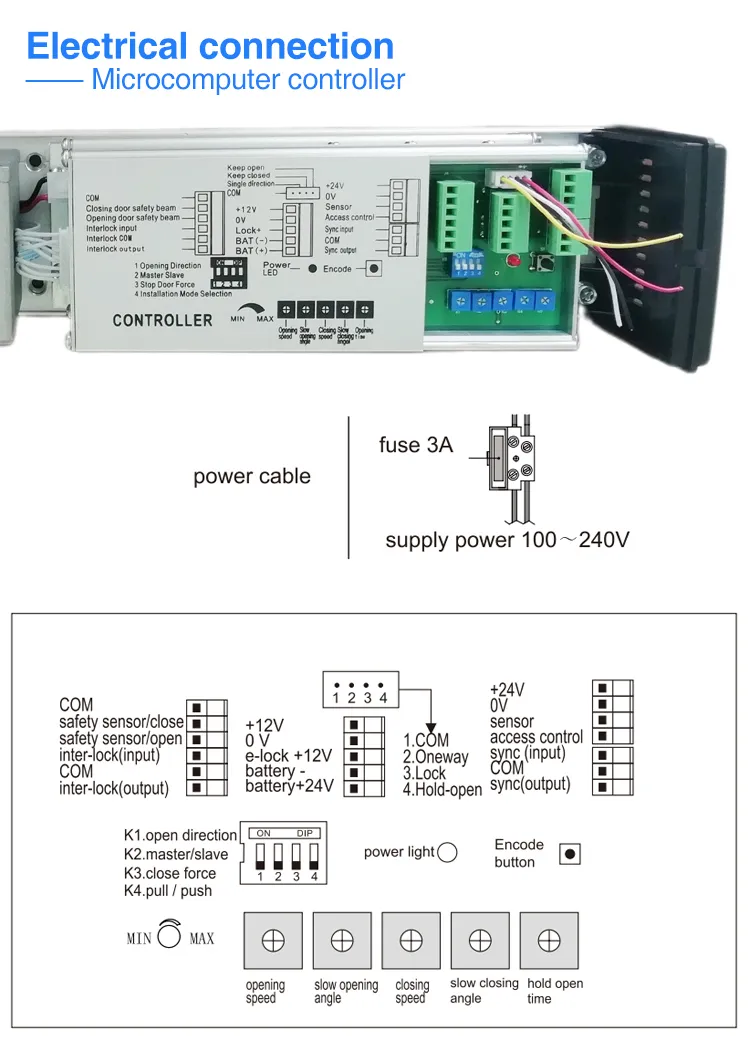

Provides interfaces for sensors, access control, security sensor protection, magnetic electric locks, and backup battery.
UPS power configuration available to meet security requirements.
Obstacle detection: The door reverses direction immediately if it encounters an obstacle or personnel.

Technical Specification

Technical Data Details
Product NameAutomatic Swing Door Opener
Door FormSingle Door / Double Door

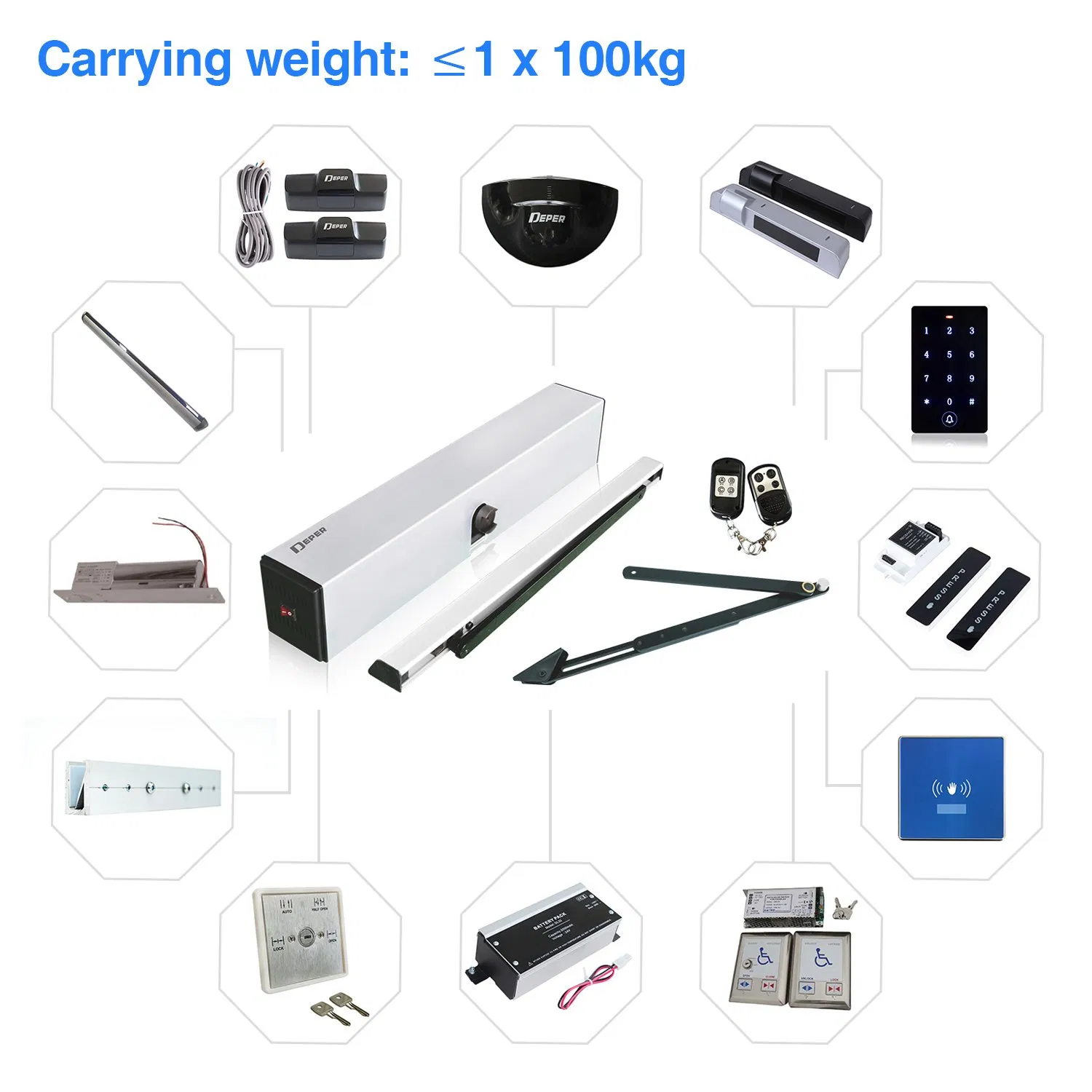

Carrying Weight≤1×100kg
Applicable Door Width≤1200mm
Power Supply VoltageAC 220V ± 10%, 50/60Hz
Power Consumption50W
Opening Speed250-450mm/S (adjustable)
Closing Speed250-450mm/S (adjustable)
Opening Time3-7S (adjustable)
Hold-Open Time1-30S (adjustable)
Manual Force<30N
Running Noise≤55dB

Product Application & Details

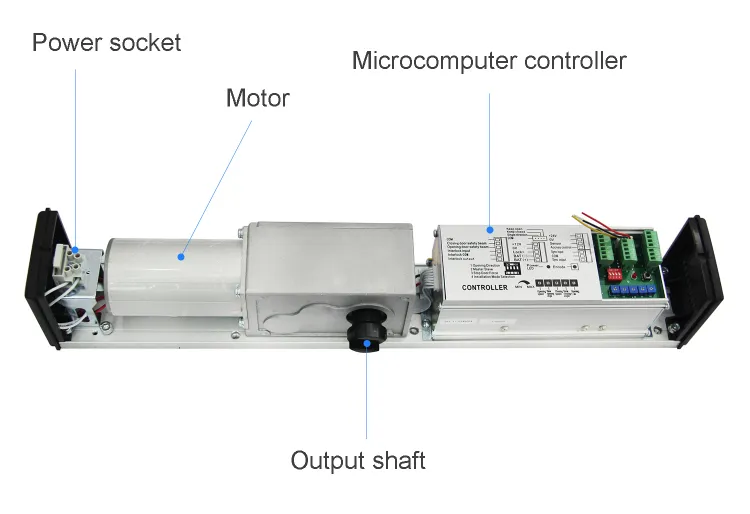

Key switch operator

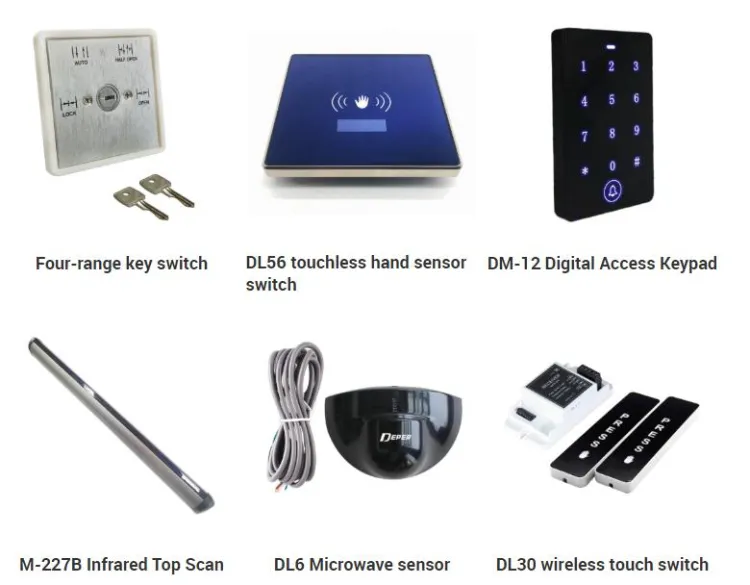

Optional Accessories & Installation Scenarios

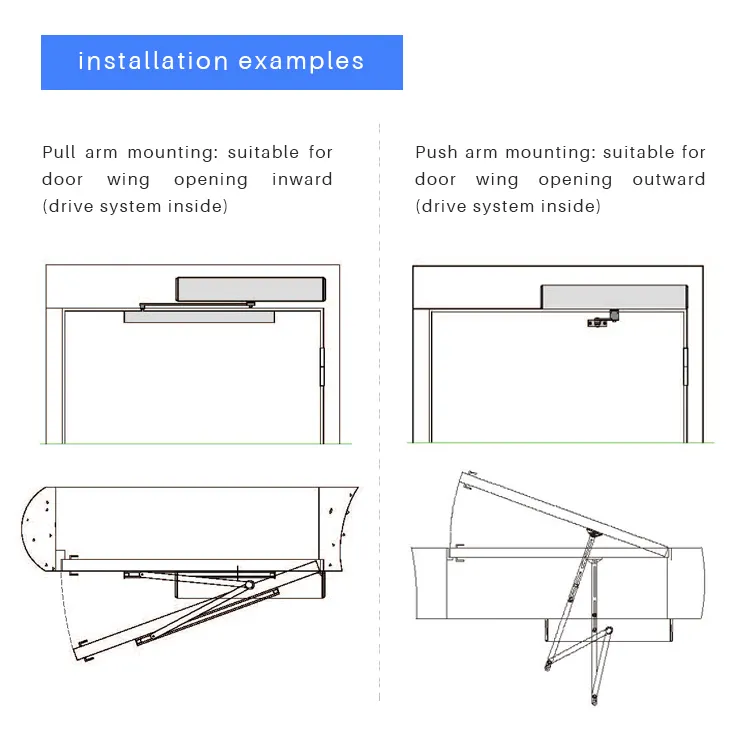

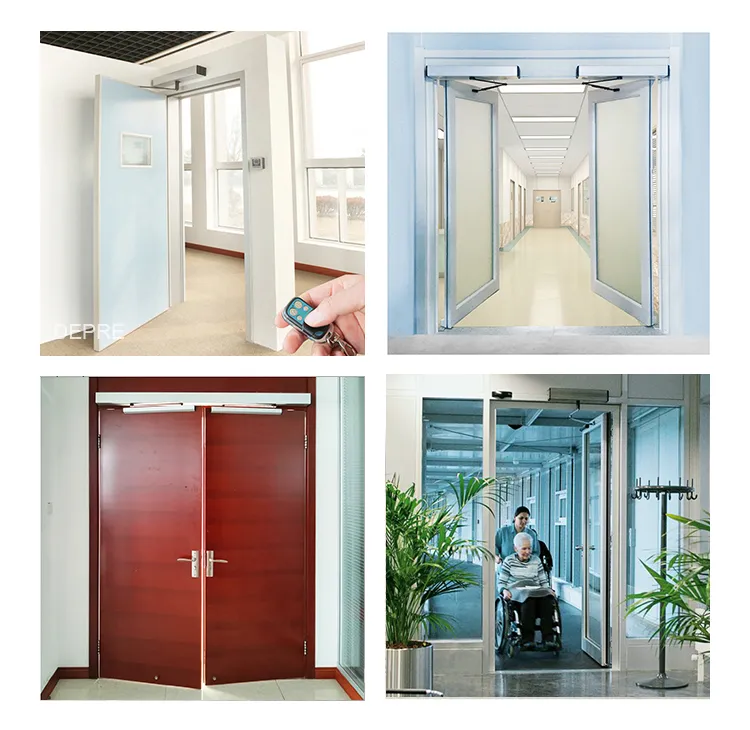

Accessories Application 1 Application 2

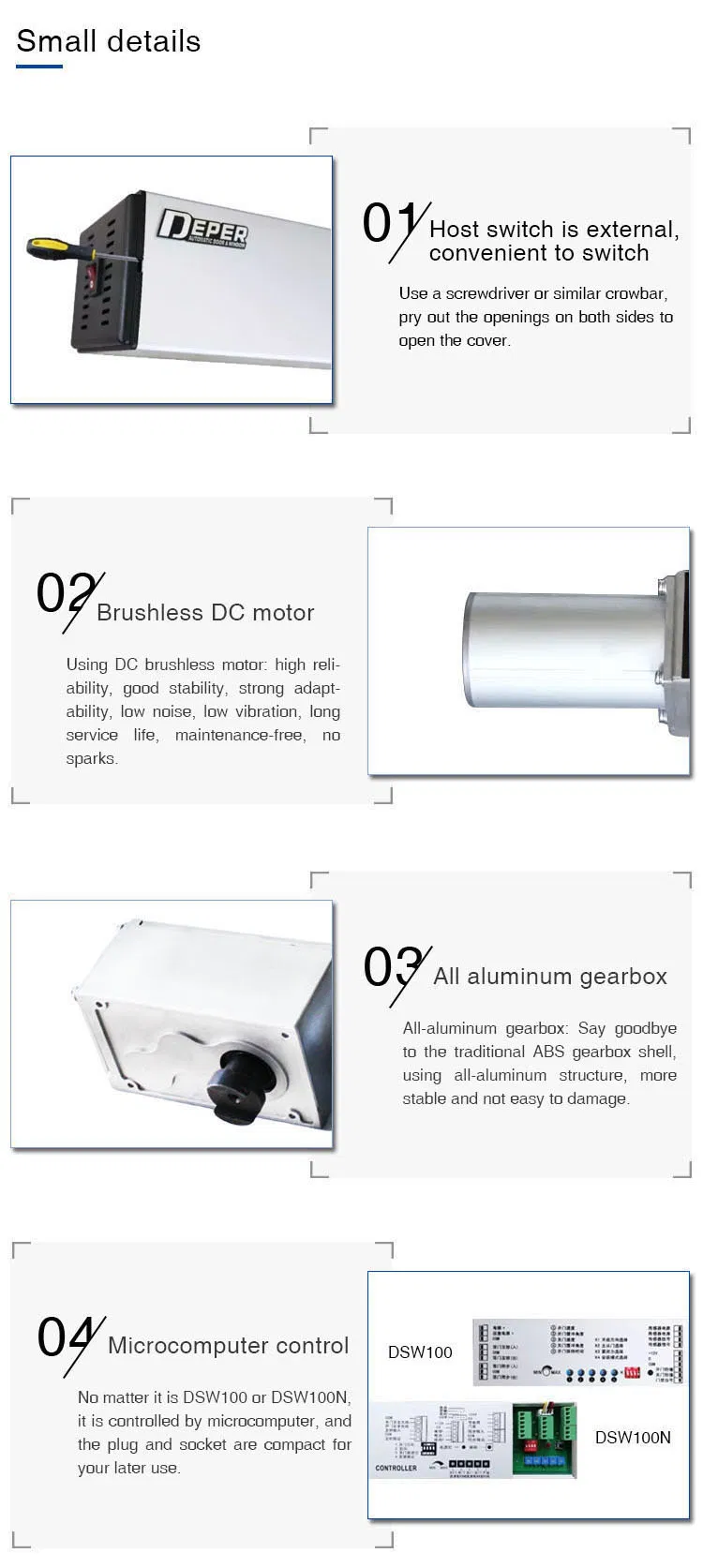

Component 1 Component 2 Component 3

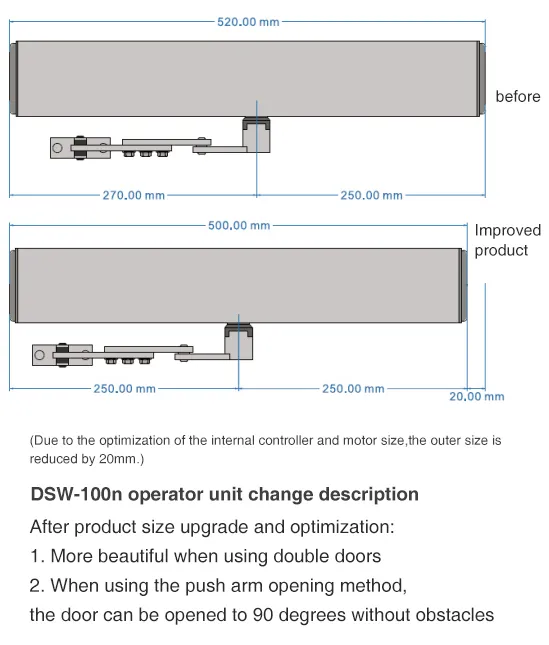

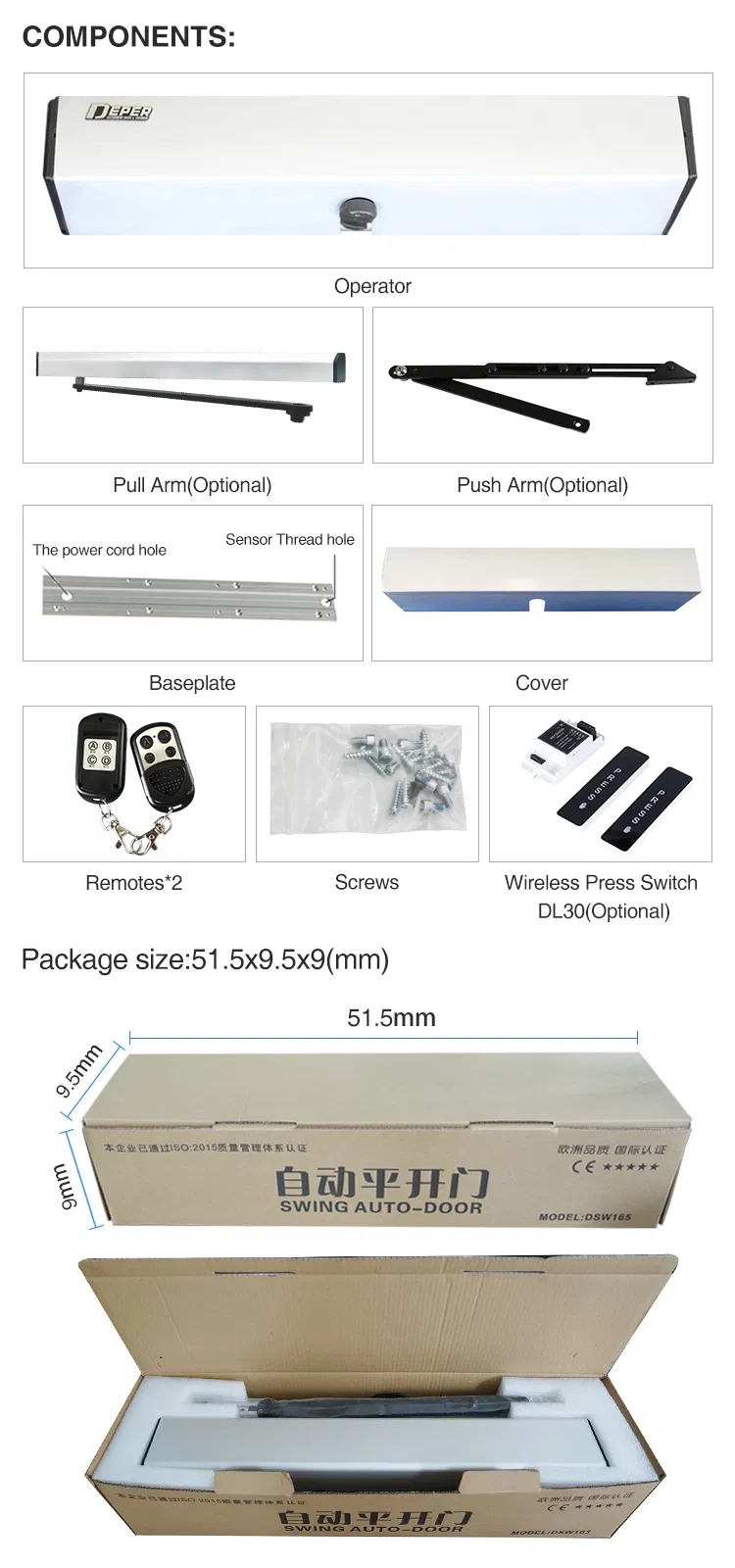

Details 1 Details 2 Details 3

Frequently Asked Questions

What are the main advantages of this automatic swing door operator?
It offers low price with reliable quality, passed 1 million test cycles, and features an intelligent design that is easy to install. It also includes safety reversing when encountering obstacles.
Is the door operator suitable for commercial use?
Yes, it is designed for commercial positions such as office buildings, storefronts, banks, hospitals, and shopping centers.
What certifications do these products have?
The products are CE, ISO9001:2015, and CCC certified, ensuring they meet international quality and safety standards.
Can I adjust the opening and closing speed?
Yes, both the opening and closing speeds are adjustable between 250-450mm/s to suit different environment needs.
What happens if the power goes out?
The system can be configured with a UPS backup battery to meet security requirements, and the manual opening force is very low (less than 30N).
What types of doors can this operator be used with?

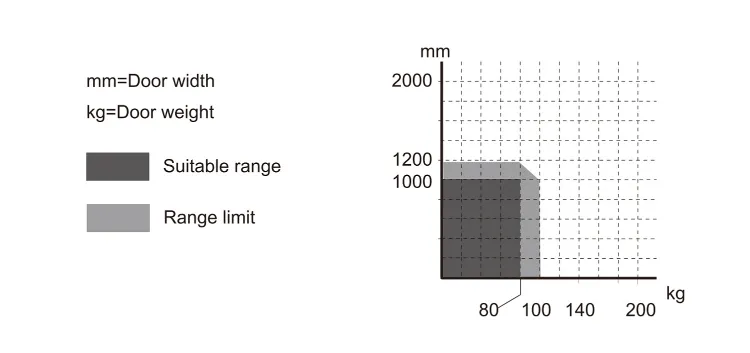

It is suitable for single or double swing doors with a width of up to 1200mm and a weight of up to 100kg per leaf.
