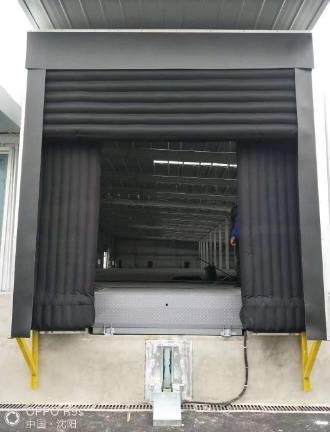

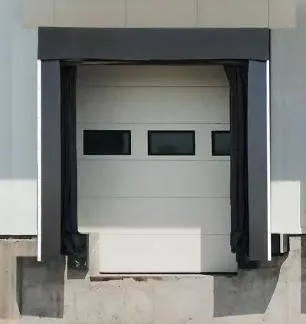

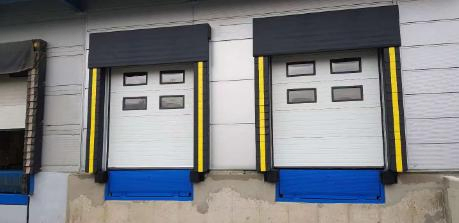

Airbag Dock Shelter When Used, The Air Bag Will Wrap Around The Vehicle To Achieve The Best Sealing Effect
Airbag dock shelters are mainly installed in places with high insulation requirements and strong sealing properties. When loading and unloading the cargo, the airbag of the dock shelter will be closely attached to the vehicle from all directions to achieve the best sealing effect.
The airbag material is tensile and abrasion resistant. During the loading and unloading process, the rear of the truck enters the dock shelter, and the airbag inflates to ensure a good seal between the truck and the building. After loading and unloading, the airbag is deflated. The airbag dock shelter is controlled by the dock shelter control module. When using this dock shelter, it is recommended to install the tire guide and metal baffle.
| Width | 3400/3600 (mm) |
| Height | 3400/3800 (mm) |
| Top airbag elongation | 1200 (mm) |
| Airbag elongation on both sides | 800 (mm) |
| Top visor | 500 (mm) |
| Side visor | 250 (mm) |
| Profile color | Aluminum color |
| Door color | White |
| Control Unit | External IP54 |
| Airbag Material | Cordura 1000 (0.5mm) |
| Max Tensile Capacity | >290N/mm2 |
| Foam Board | Thickness 50mm (Black) |
