📋 Basic Specifications
Surface Finishing
Finished

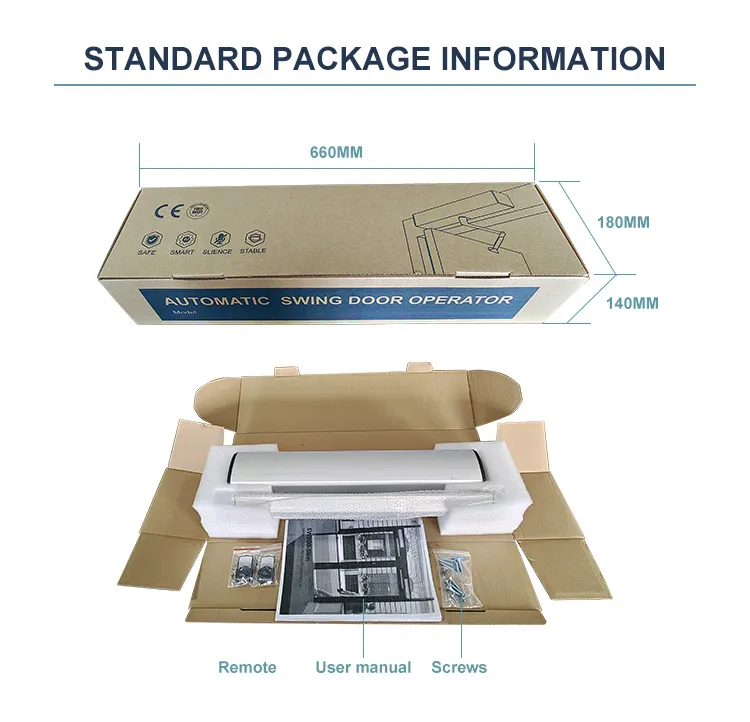

Transport Package
Carton Box
🚀 Product Description

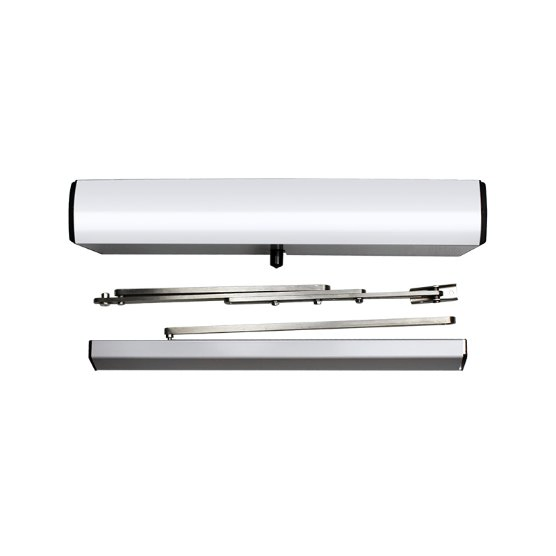

SW200-SLIM Automatic Swing Door Operator

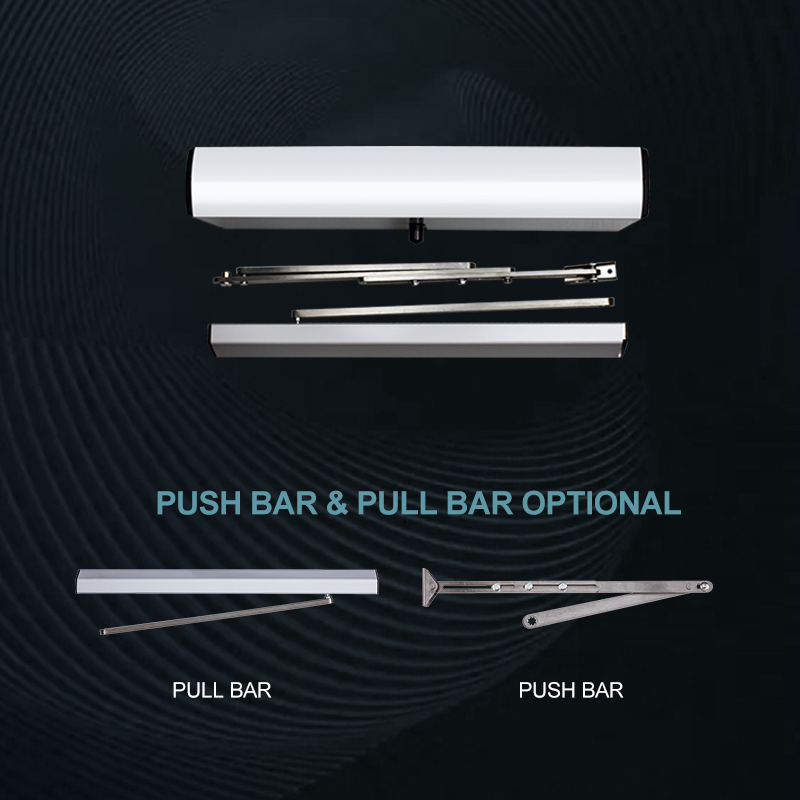

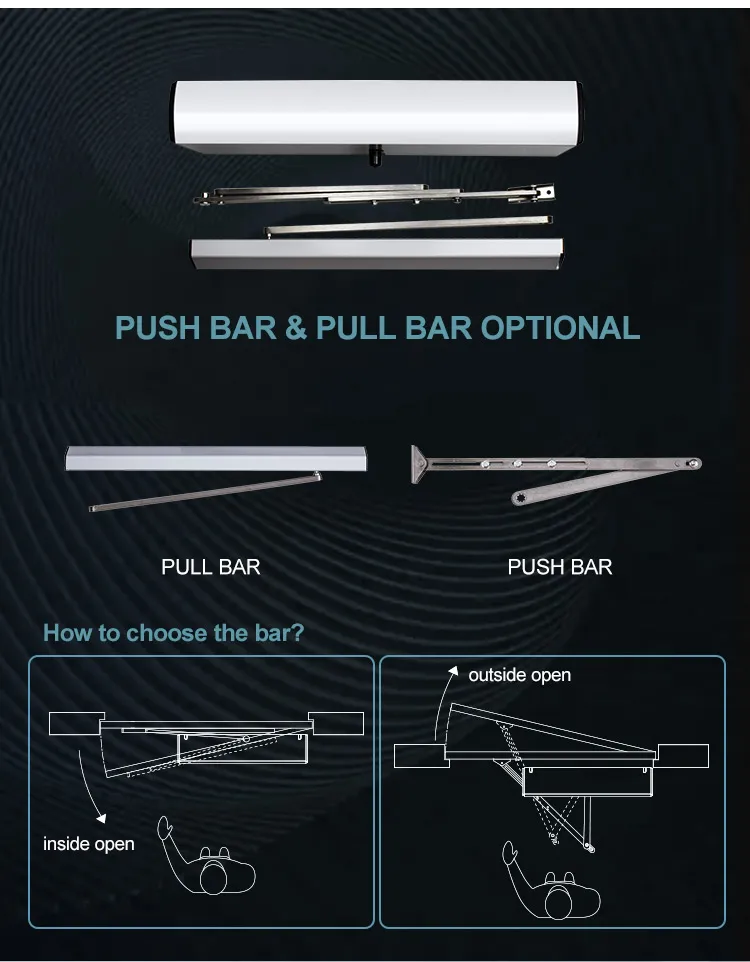

- Push bar & Pull bar optional configurations

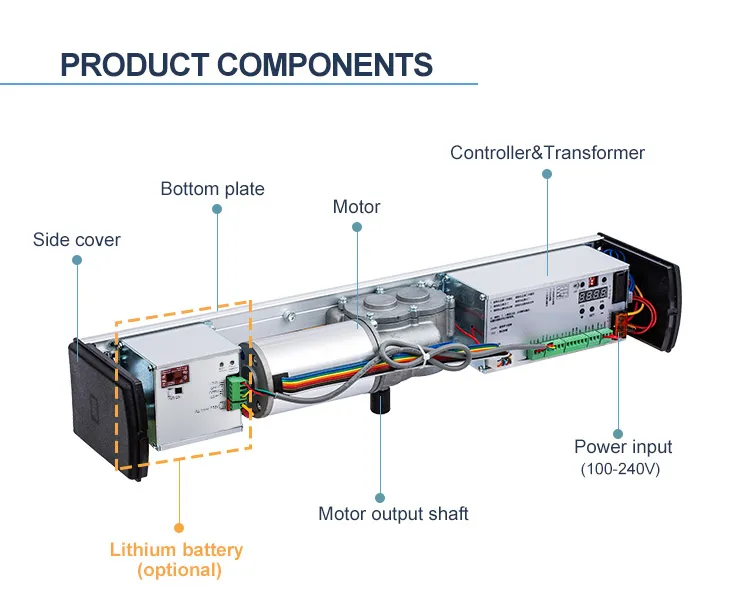

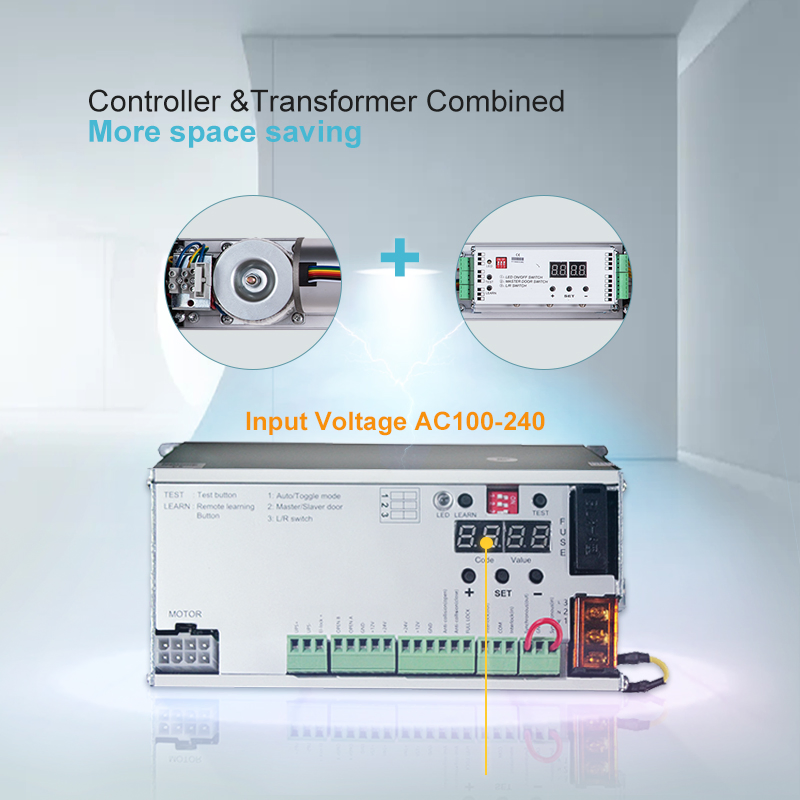

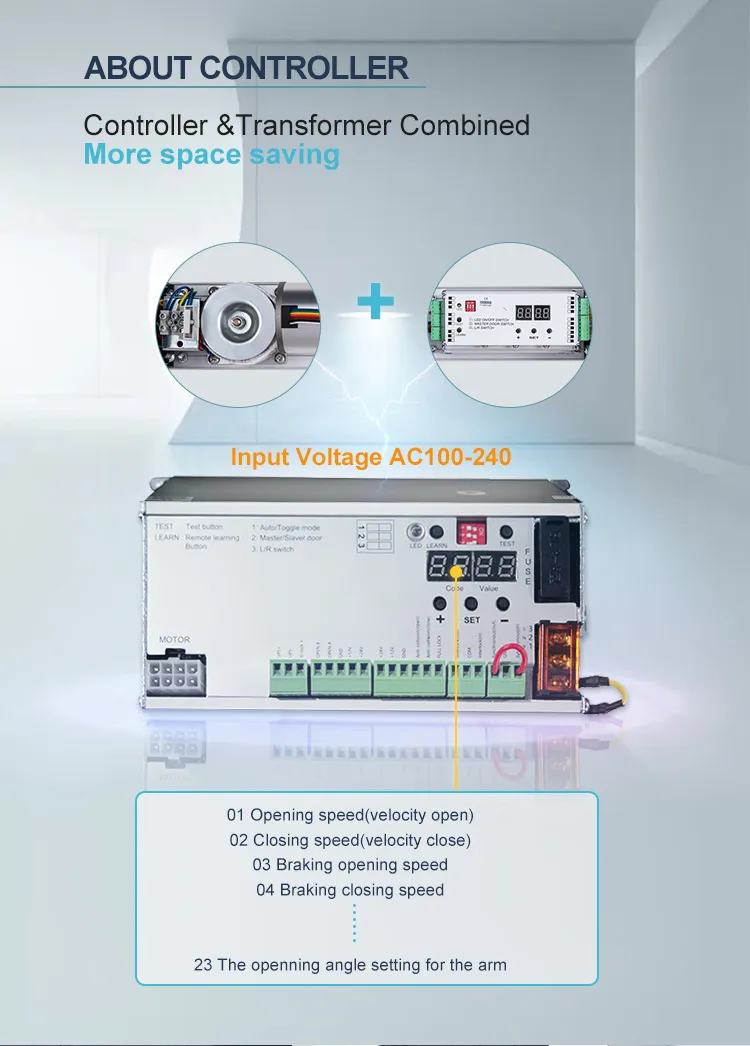

- Integrated Controller & Transformer: Combined for superior space-saving
- Universal Input Voltage: AC100-240V compatible

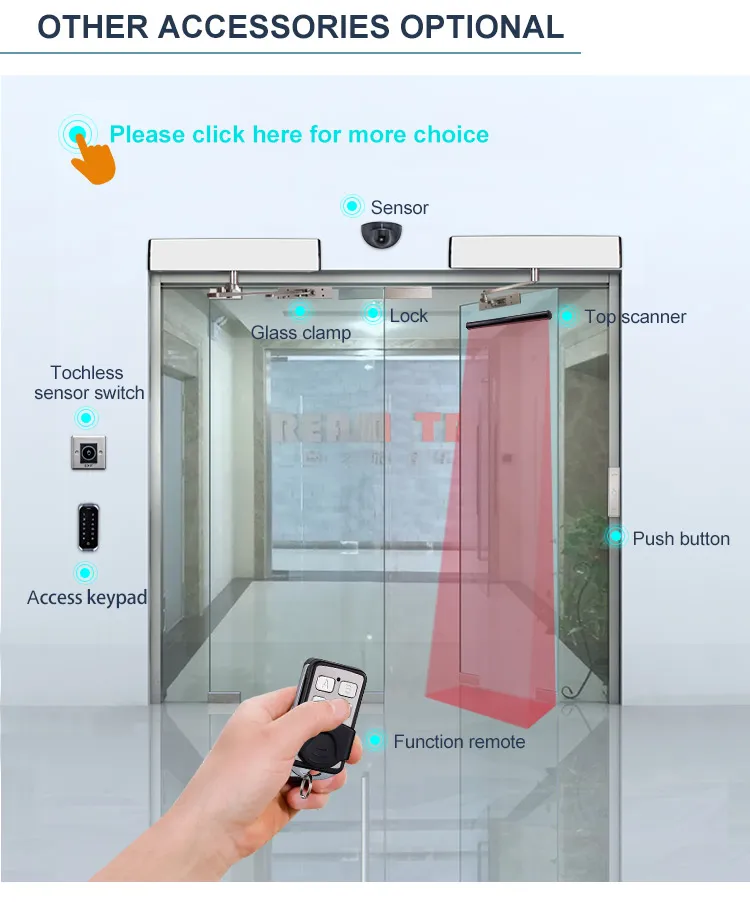

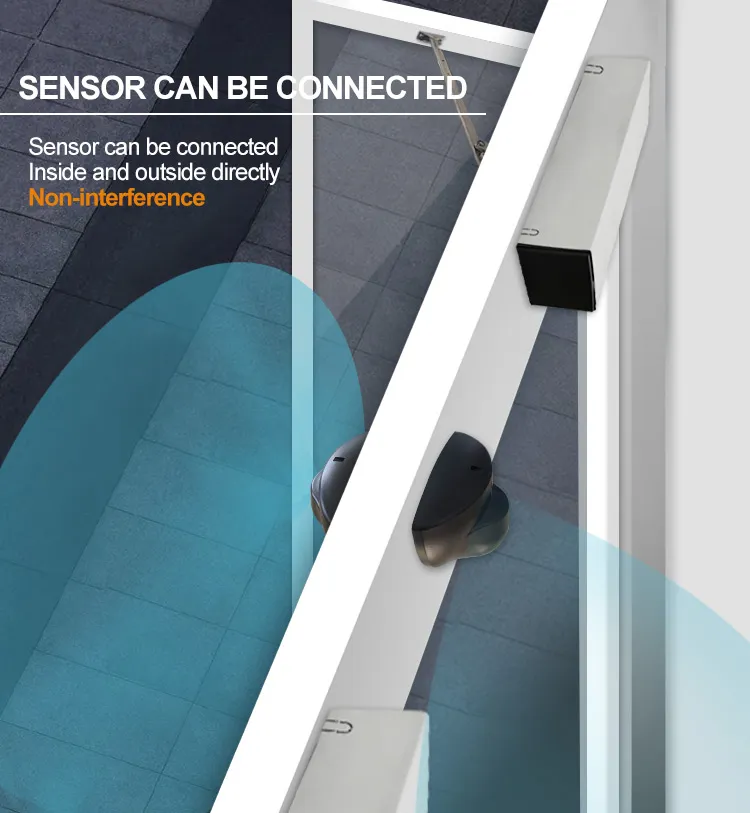

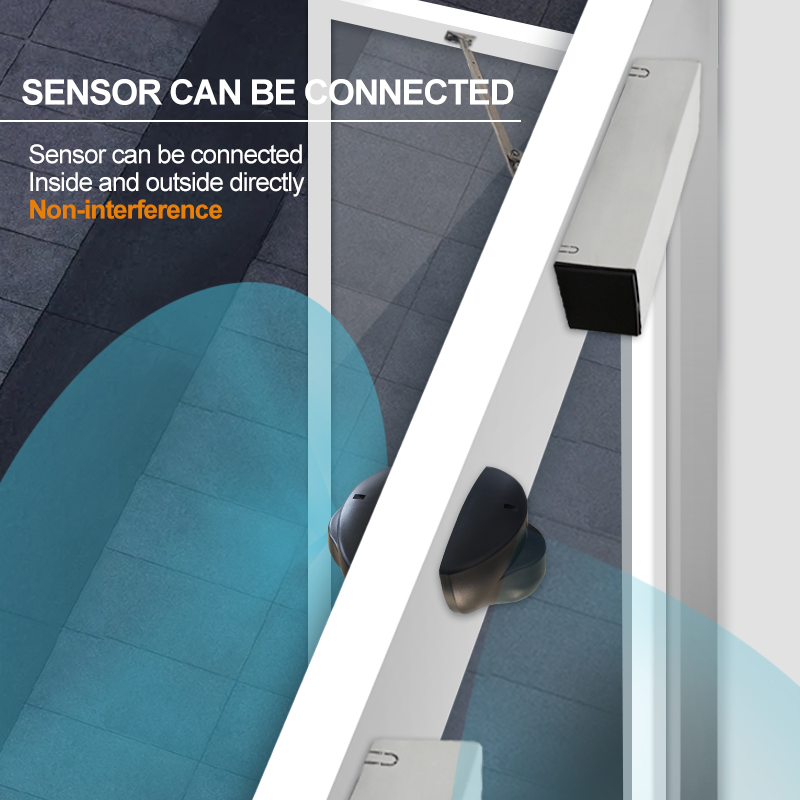

- Direct Sensor Connectivity: Non-interference connection for inside and outside sensors

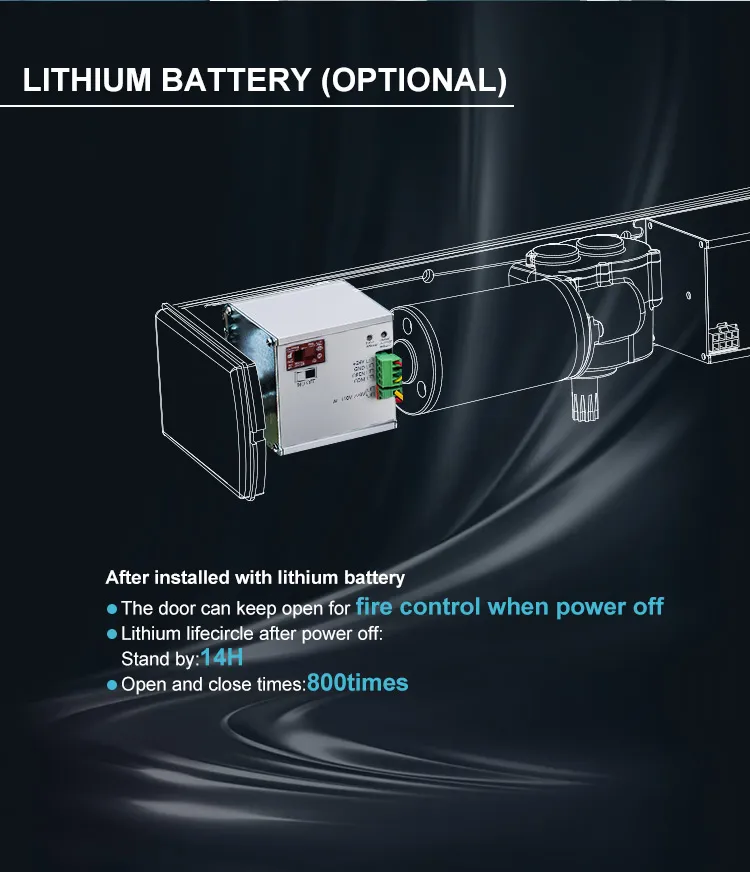

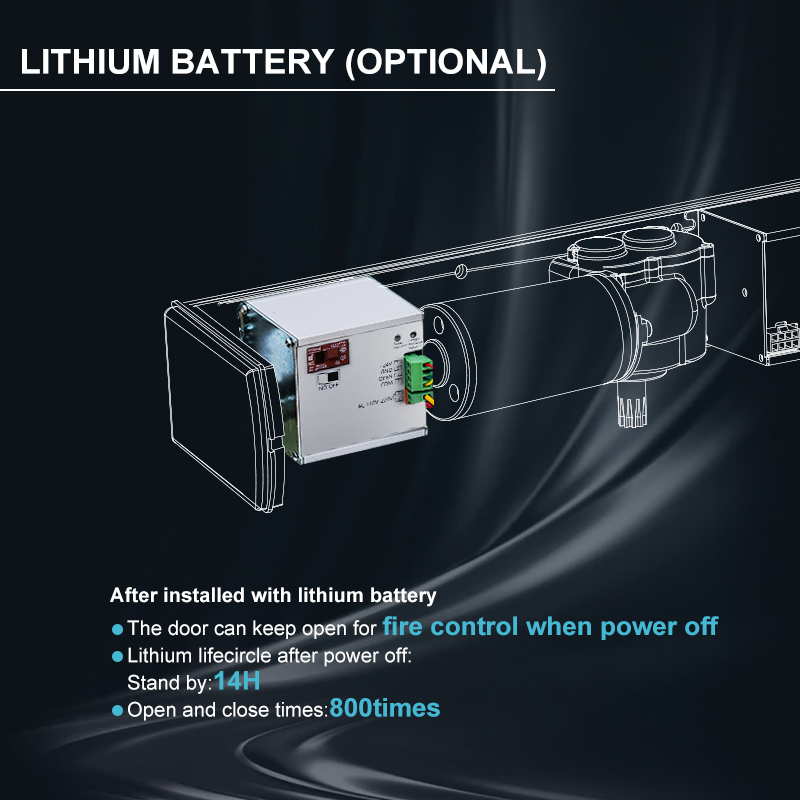

- Optional Lithium Battery: Keeps door open for fire control during power outages (Standby: 14H / 800 cycles)

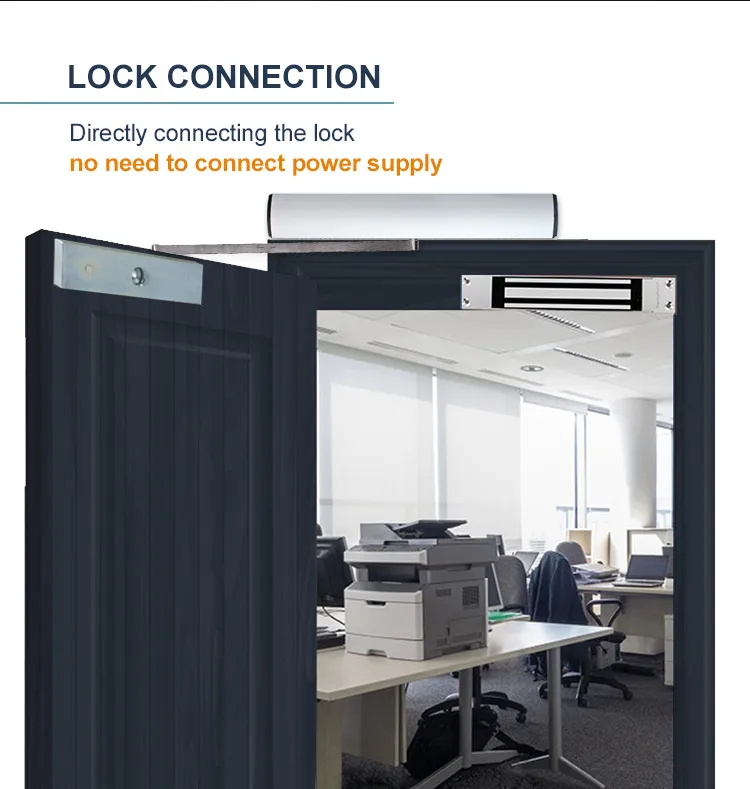

- Simplified Wiring: Directly connects to the lock without extra power supply

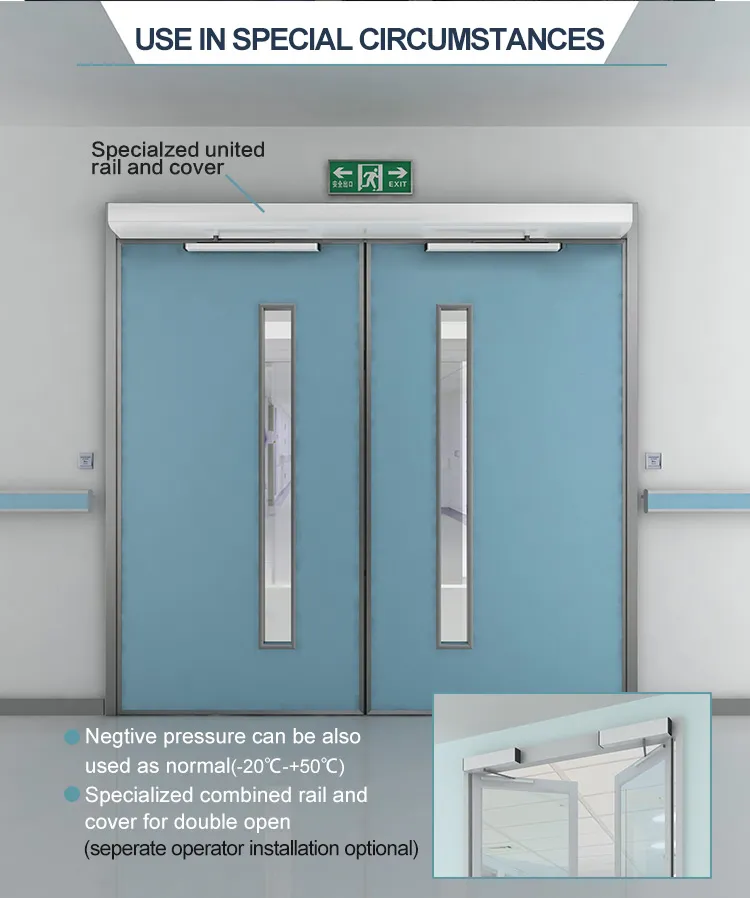

- Versatile Design: Specialized combined rail and cover for double-open setups
- Wide Application: Suitable for Medical doors, Framed/Frameless glass doors, and Wooden doors
✨ High performance. Portable and compact design. Suited for different door structures with a simple mechanism for easy installation.
⚙️ Technical Parameters
| Power Supply | AC 100V-240V |
| Active Open Time | 3-7s / 90° |
| Hold Open Time | 0-20s |
| Operating Temperature | -20ºC to +55ºC |
| Protection Class | IP21 |
| Product Weight | 6 KG |

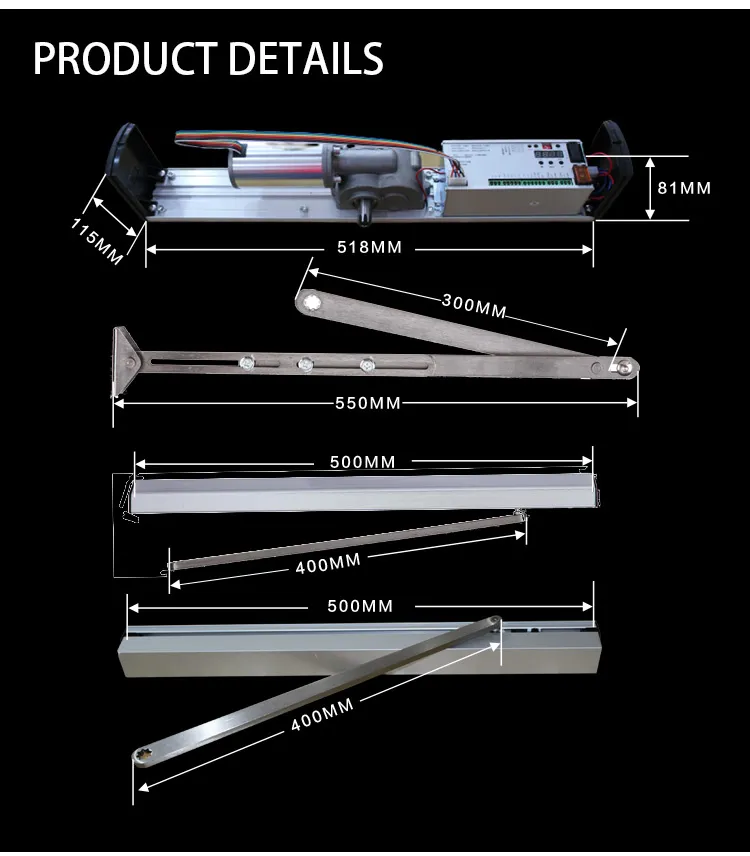

| Product Size | 475 * 81 * 115 mm |
| Max Opening Angle | 115° |
| Max Door Weight | 200 KG |
❓ Frequently Asked Questions
What is the maximum door weight this operator can handle?
The SW200-SLIM automatic swing door operator is designed to handle a maximum door weight of 200KG.
Is it compatible with both glass and wooden doors?
Yes, it is highly versatile and can be used for framed glass doors, frameless glass doors, wooden doors, and even specialized medical doors.
What happens if there is a power failure?
There is an optional lithium battery backup. It can keep the door open for fire control or allow for approximately 800 open/close cycles after power is lost.
Does this unit require a specific power transformer?
No, the controller and transformer are combined into one compact unit, supporting a wide input voltage range of AC 100V-240V.
How fast does the door open?
The active opening time is adjustable between 3 to 7 seconds for a 90-degree swing.
What are the installation space requirements?
Thanks to its slim design (size: 475*81*115mm), it is much more portable and smaller than standard operators, making it ideal for compact spaces.
