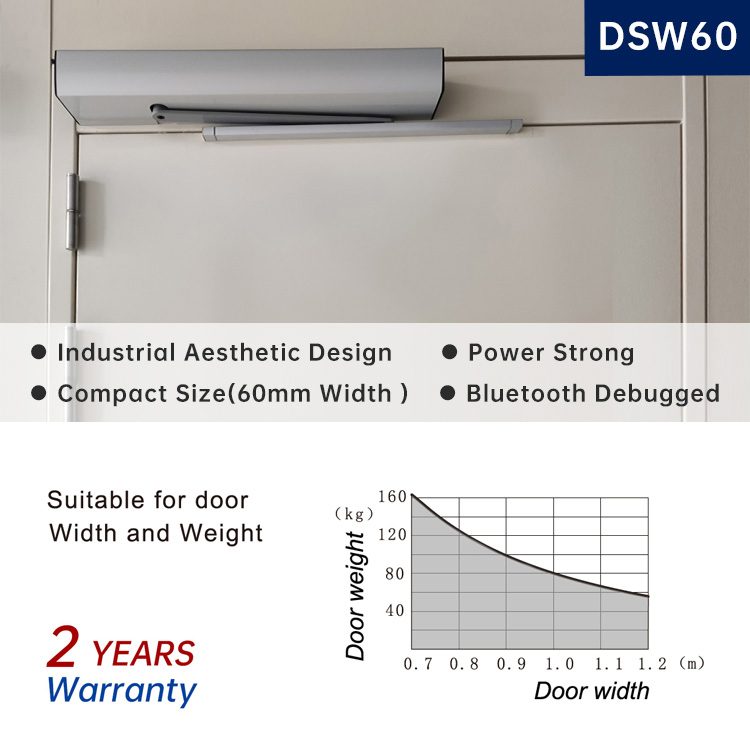

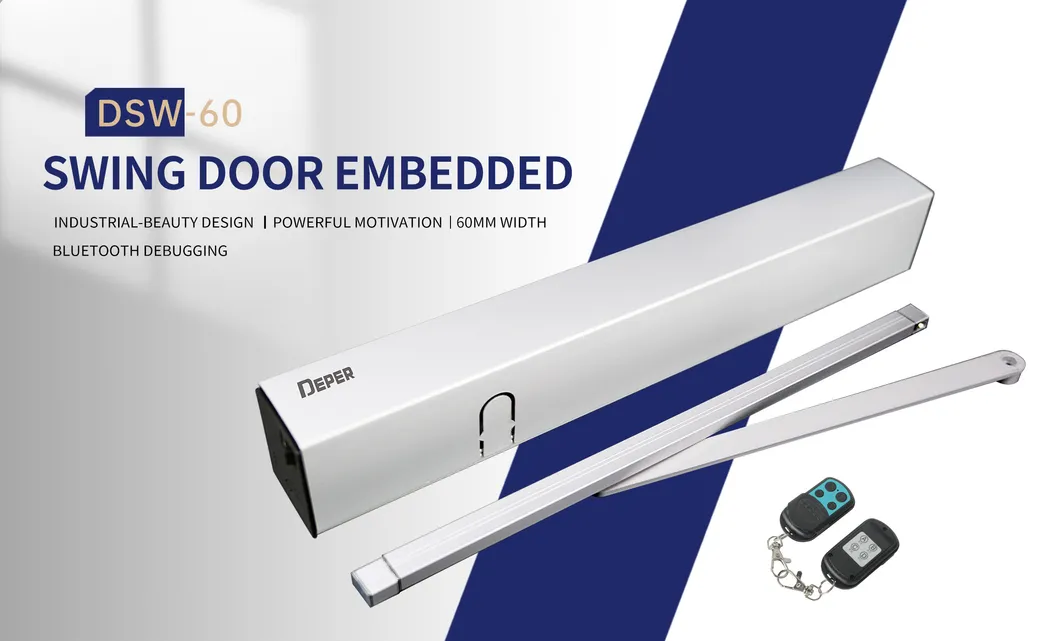

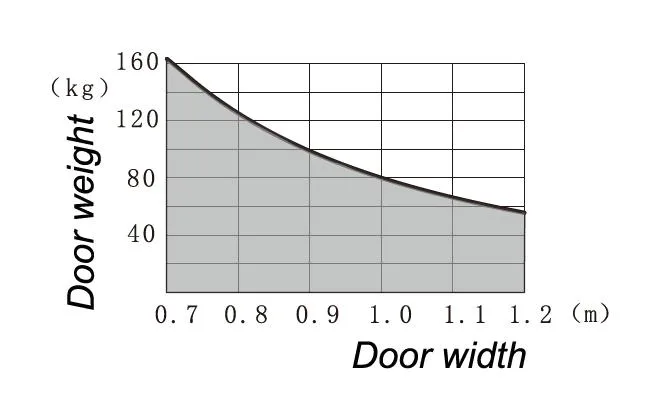

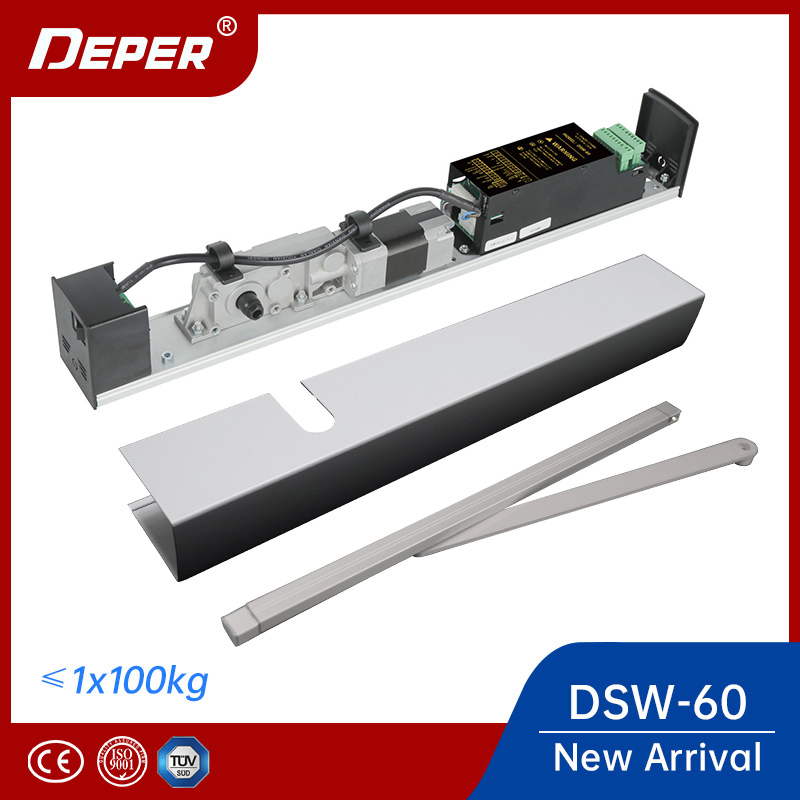

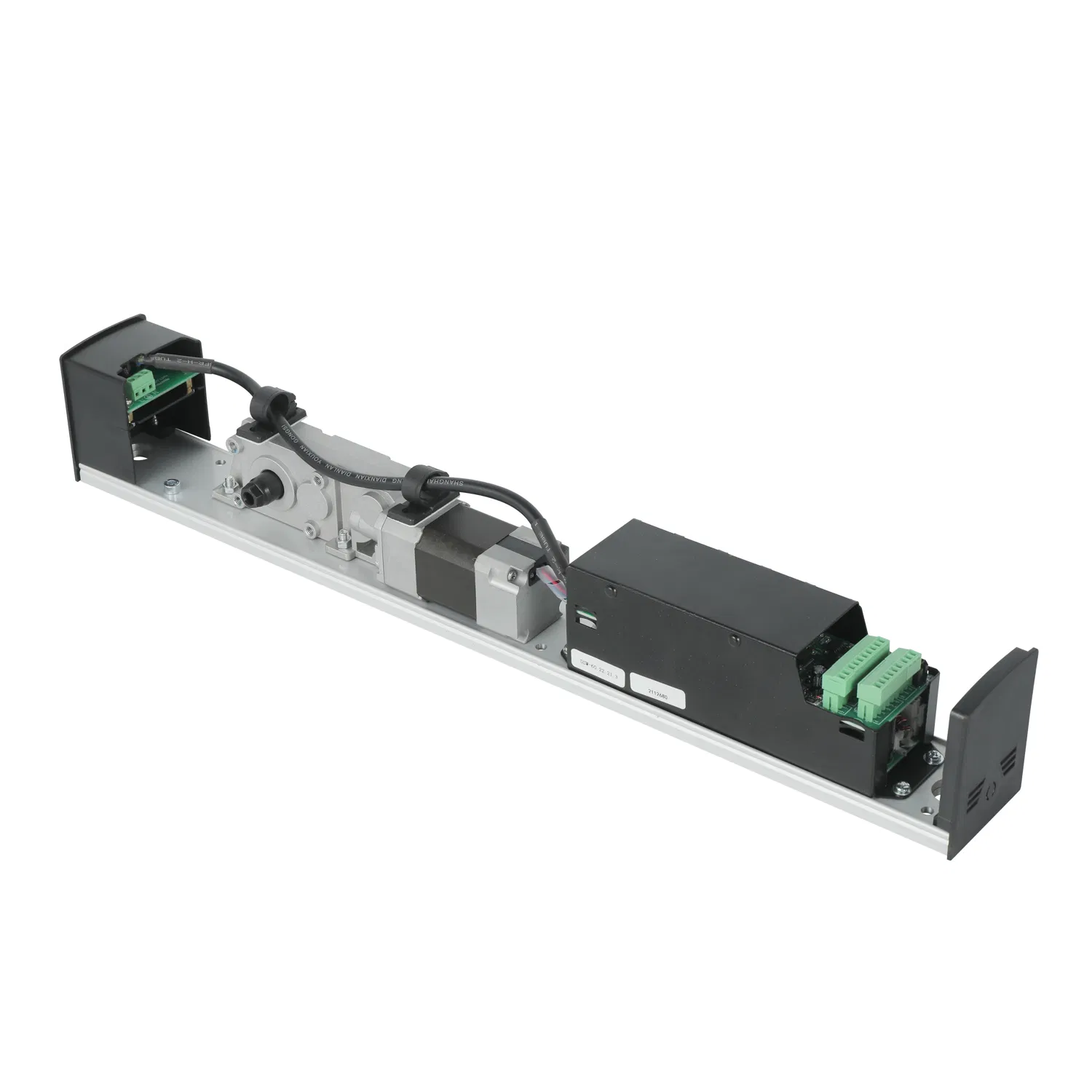

100KG Reliable Double Operators with Pull Bar or Push Bar

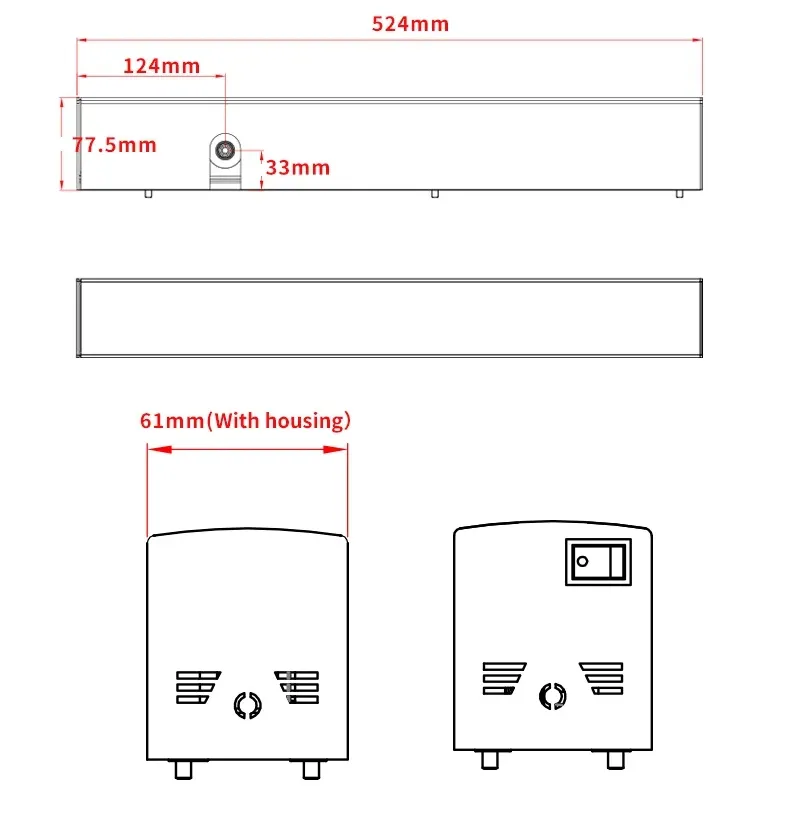

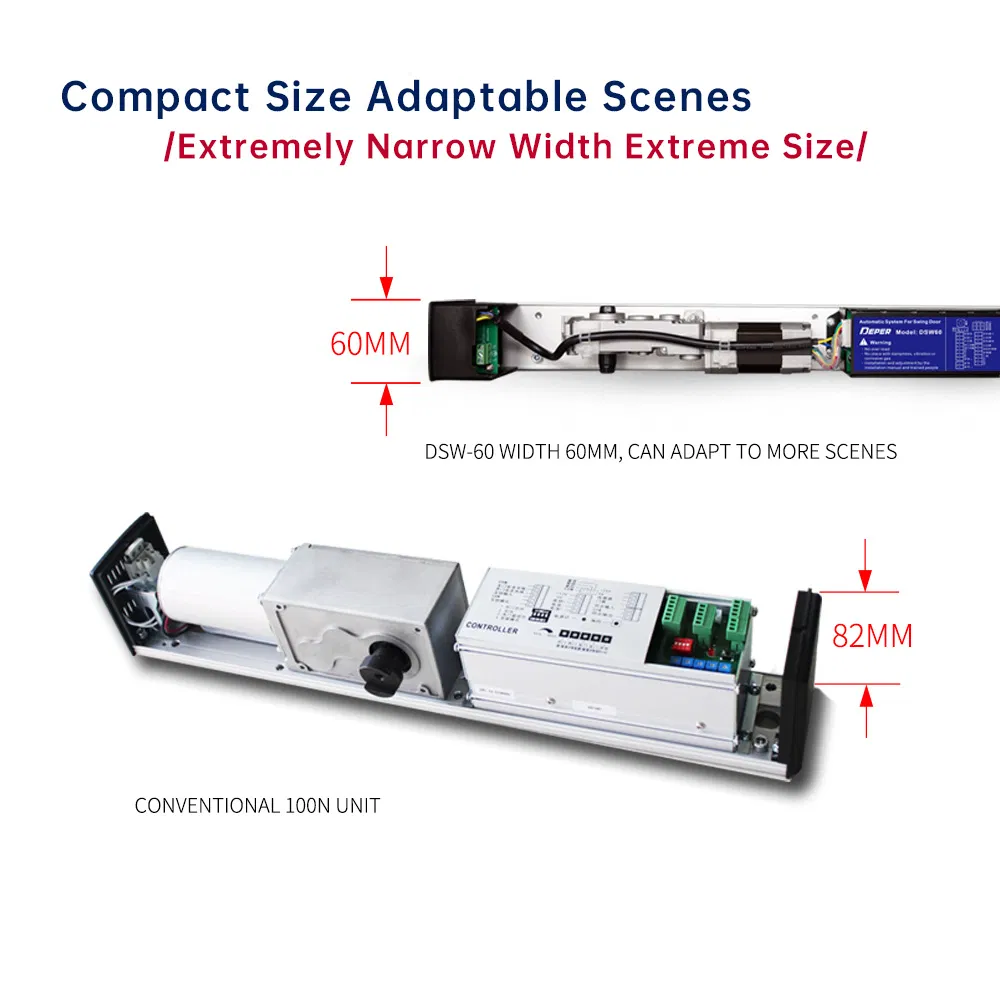

The unit width is only 60mm, making it suitable for a variety of application scenarios.
Strives for a small and beautiful artistic feeling without compromising functionality.
Despite its small size, the power remains robust, rivaling traditional large units.
| Parameter | Specification |
|---|---|
| Model Number | DSW-60 |
| Type | Automatic Door Operators |
| Power supply | AC220V±10%, 50/60HZ |
| Power consumption | <75W |

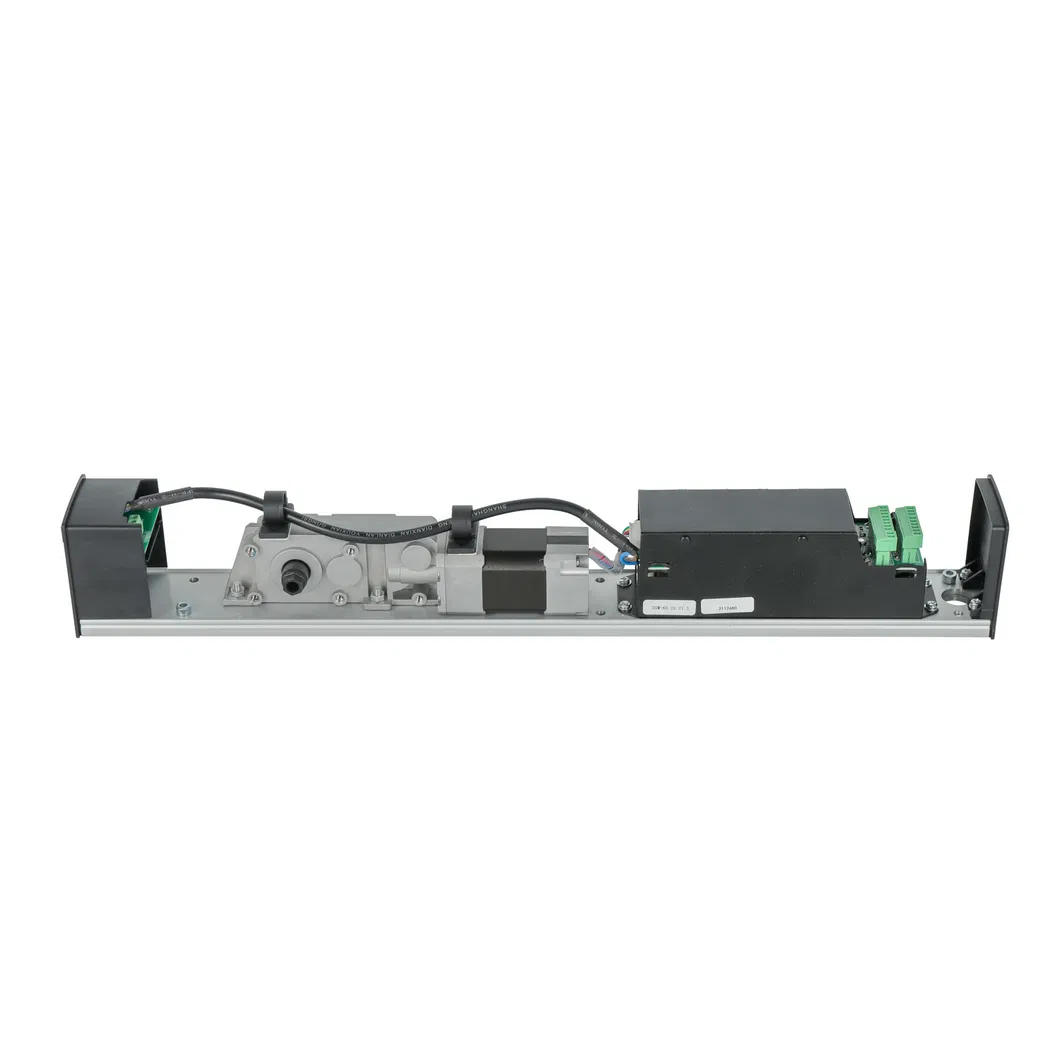

| Drive unit | 24V DC motor |
| Anti-extrusion device | Standard |
| Opening angle | 80°~100° |
| Opening time(speed) | 3-7S adjustable |
| Closing time(speed) | 3-7S adjustable |
| Open time | 0.5~30s adjustable |

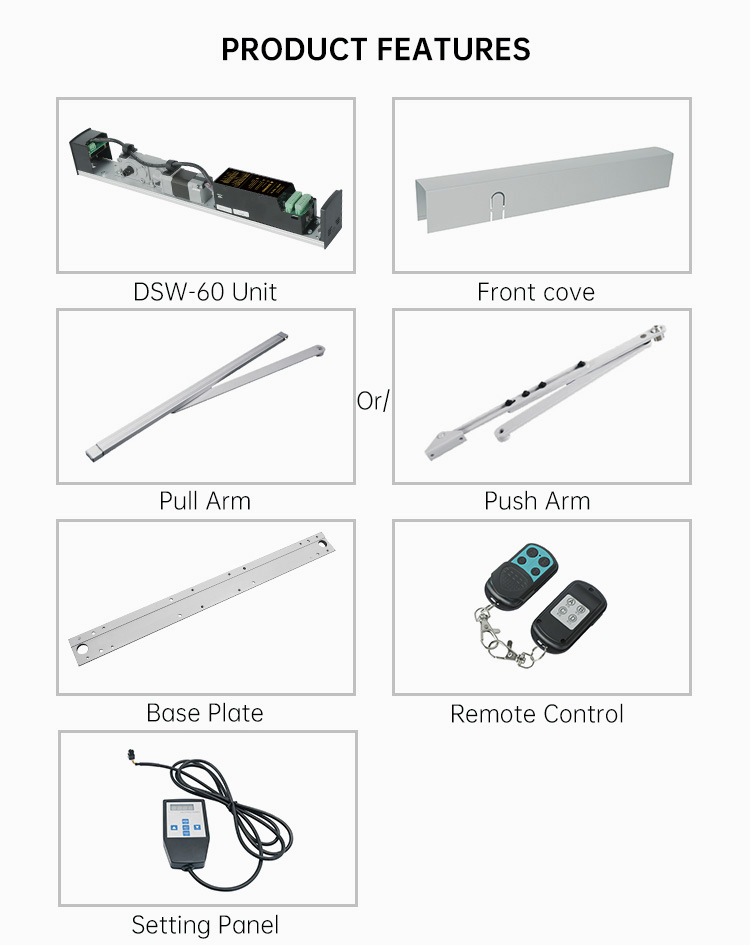

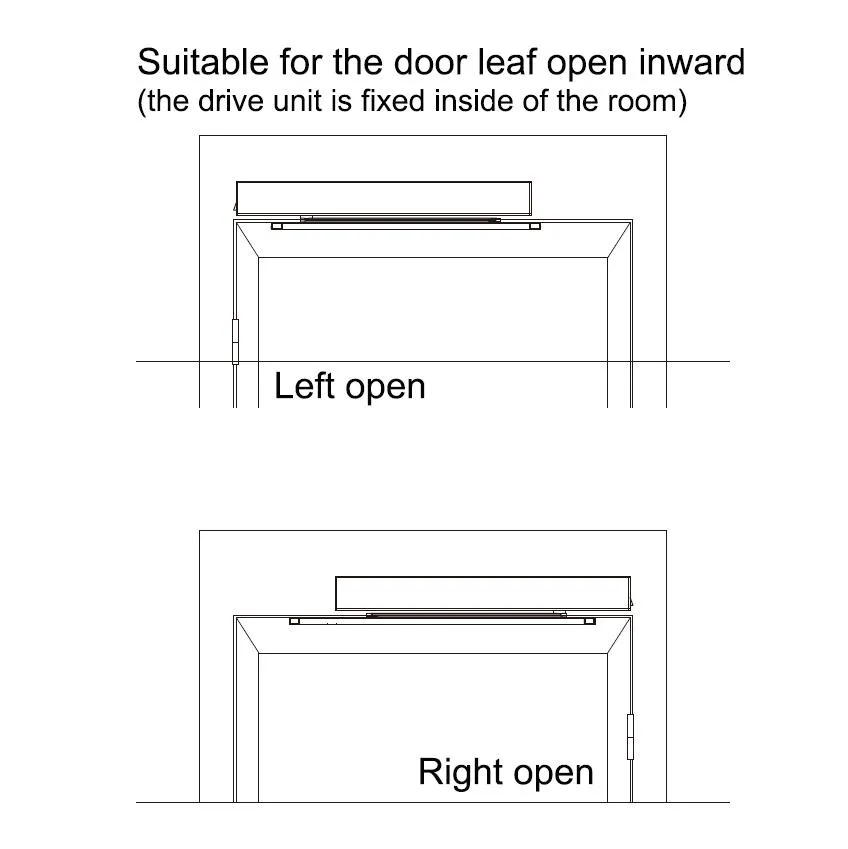

| Drive arm | Pull arm, push arm |
The manufacturing facility has obtained "GF" EU certification and "AVC" certification, and is recognized as a National High-tech Enterprise. The quality systems comply with ISO9001:2015, ISO14001 environmental management, and OHSAS18001 occupational health and safety standards.
The production base spans over 68,000 square meters with standardized workshops of approximately 31,000 square meters. The team includes over 300 staff members, with more than 40 dedicated technical development engineers and QC specialists.
