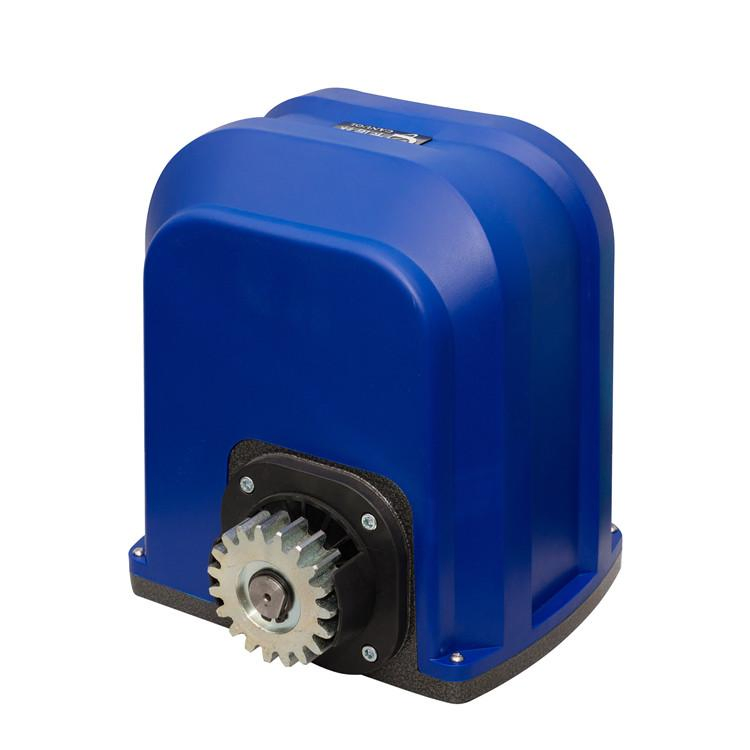

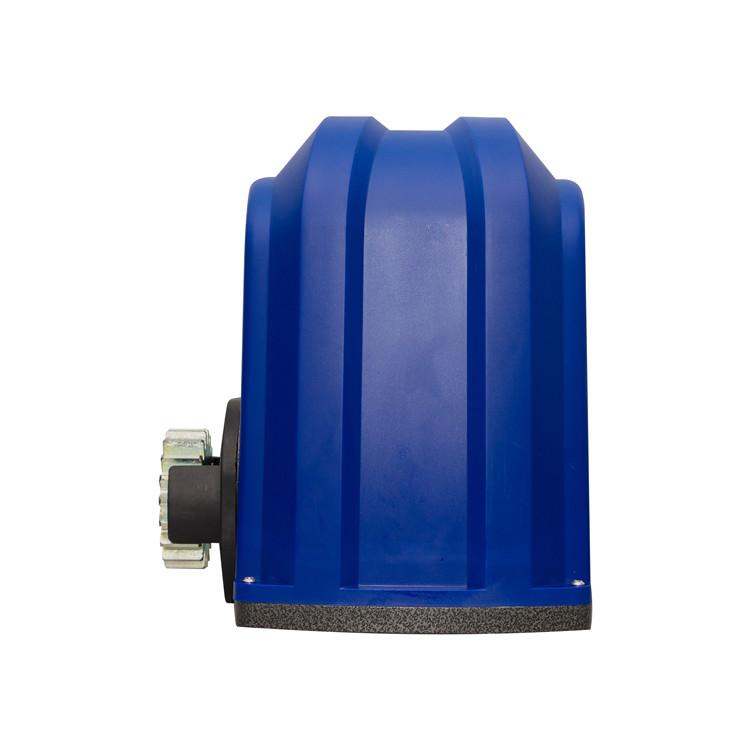

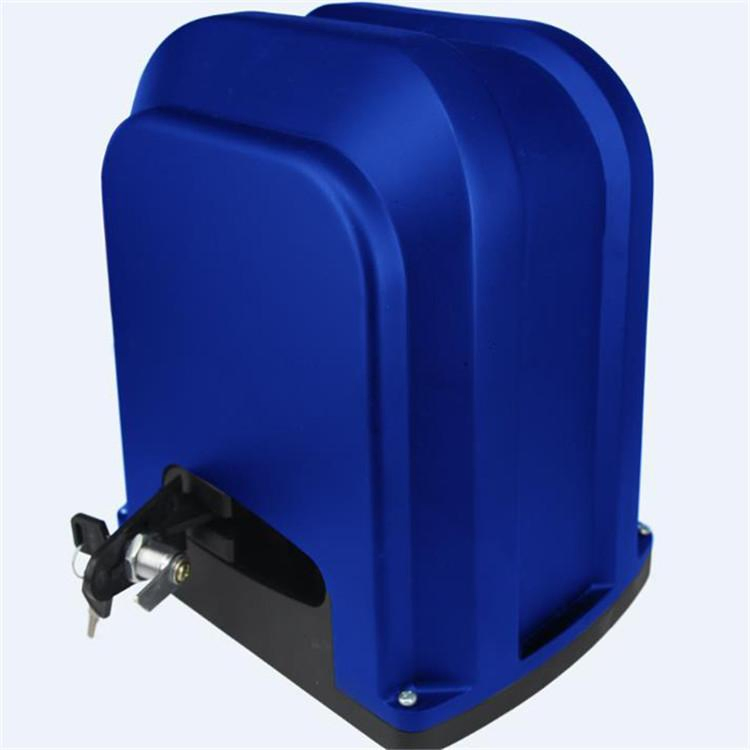

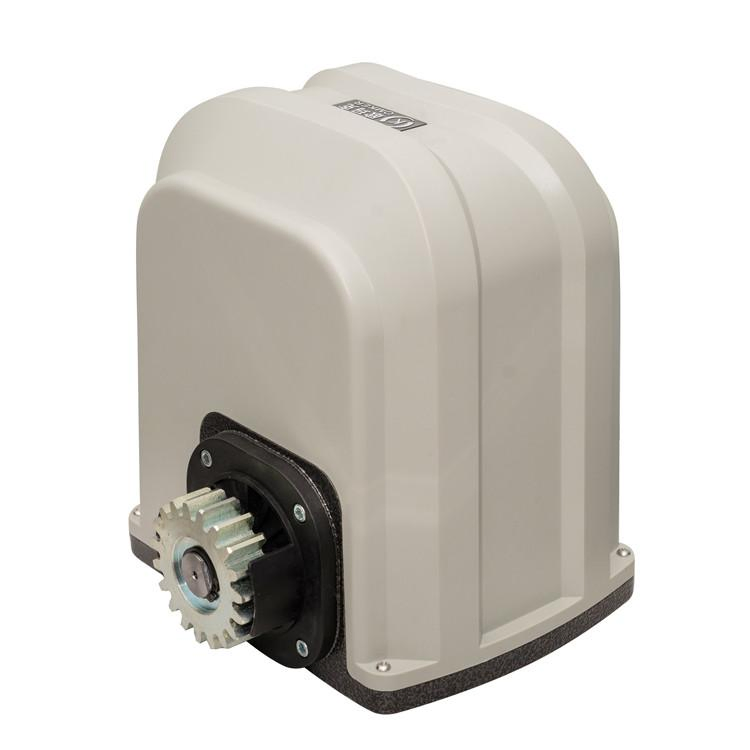

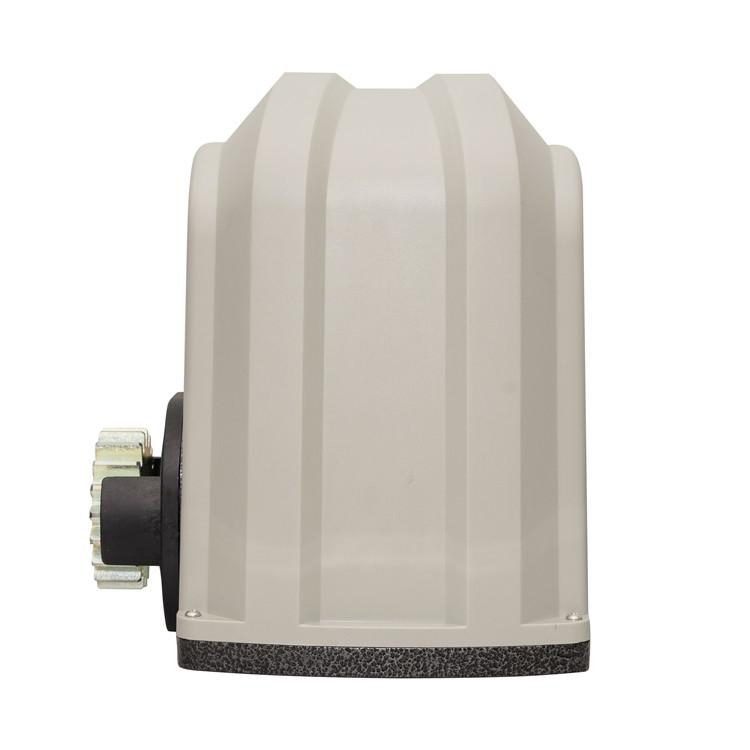

Electric Swing Motor Door Operator of Automatic Gate Opener
Electric Swing Motor Door Operator of Automatic Gate Opener
Electric Swing Motor Door Operator of Automatic Gate Opener
Electric Swing Motor Door Operator of Automatic Gate Opener
Electric Swing Motor Door Operator of Automatic Gate Opener
1 / 5
Electric Swing Motor Door Operator of Automatic Gate Opener
Electric Swing Motor Door Operator of Automatic Gate Opener
Electric Swing Motor Door Operator of Automatic Gate Opener
Electric Swing Motor Door Operator of Automatic Gate Opener
Electric Swing Motor Door Operator of Automatic Gate Opener

Electric Swing Motor Door Operator of Automatic Gate Opener

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Info

Model NO.:DCK-156D
Structure:Built-in Controller
Driving Type:Electromechanical
Electric Current:AC
Type:Automatic Door Operators
Max. Weight:500kg
Rated Power:370W
Protection Class:IP44
Speed:12m/Min
Temperature:-45℃ to +65℃
Electric Swing Motor Door Operator
📊

Product Parameters

Model DCK-156D DCK-166D DCK-166E DCK-176D DCK-186D DCK-196D
Input Power AC Single-phase 120V/220V~240V
Max. Gate Weight 500KG 800KG 1200KG 1600KG 2000KG 2500KG
Max. Torque 18Nm 22Nm 35Nm 50Nm 60Nm 75Nm
Rated Power 370W 450W 550W 750W 900W 1200W
Protection Class IP44 IP44 IP44 IP44 IP44 IP44
Speed (m/min) 12 12 12 12 12 12
Certification CCC/CE CCC/CE CCC/CE CCC/CE CCC/CE CCC/CE
🌟

Function And Features

  • Anti-collision design: Only after pressing reverse key can the motor be activated after travel is completed to avoid over-travel.
  • Power-off lock: When using remote to set manual keyboard, only the remote can unlock, even after power-off.
  • Motor time protection: Default 90s value prevents continuous working if travel order is broken.
  • Auto close: Adjustable delay time from 1 to 120 seconds.
  • Force adjustment: The working force and starting torque of the motor are fully adjustable.
  • Soft starting: Motor starts and stops slowly for stable operation with no inertia.
  • High security: Advanced jump codec technology with one million password groups to prevent deciphering.
  • Anti-clamping: Reverses or stops automatically when barrier blocks the infrared rays to ensure safety.
📷

Detailed Photos

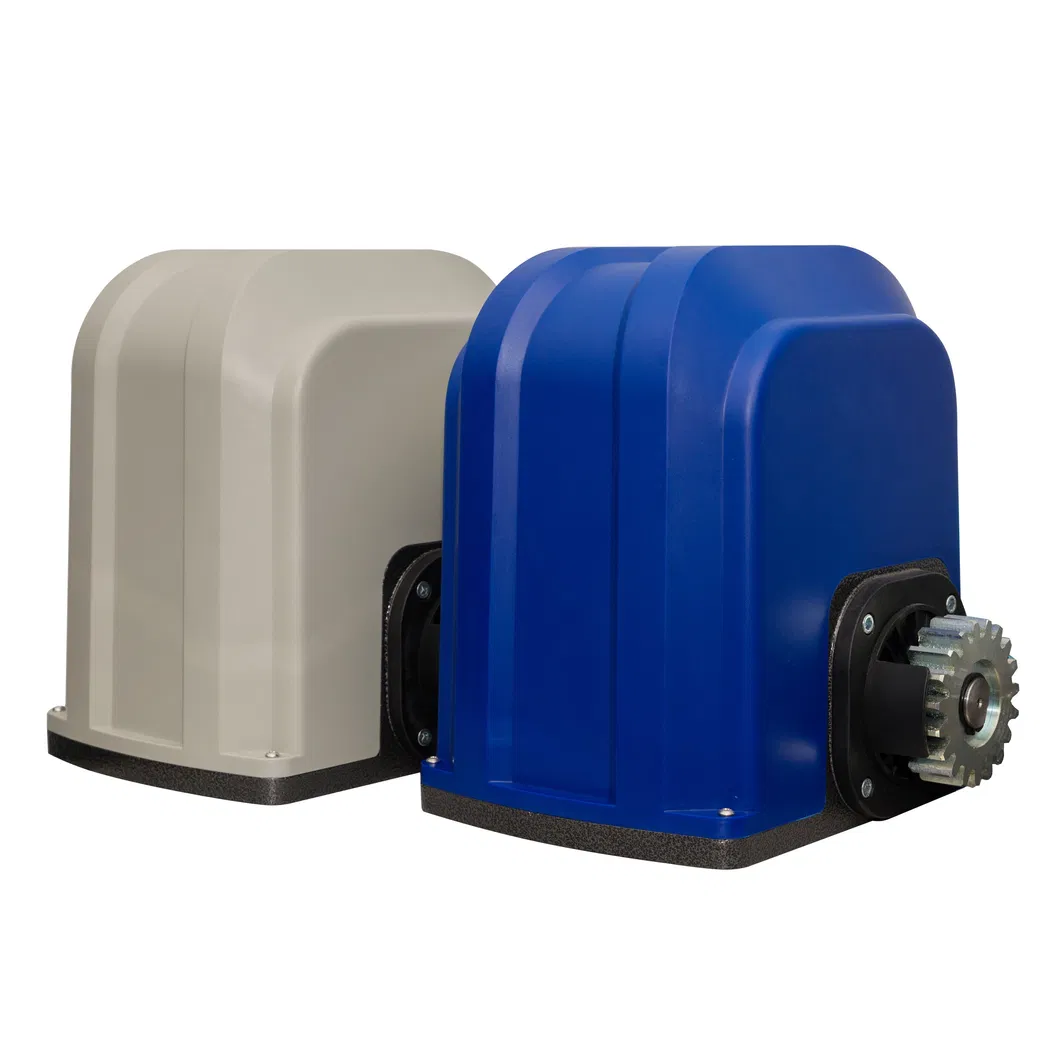

Detail 1

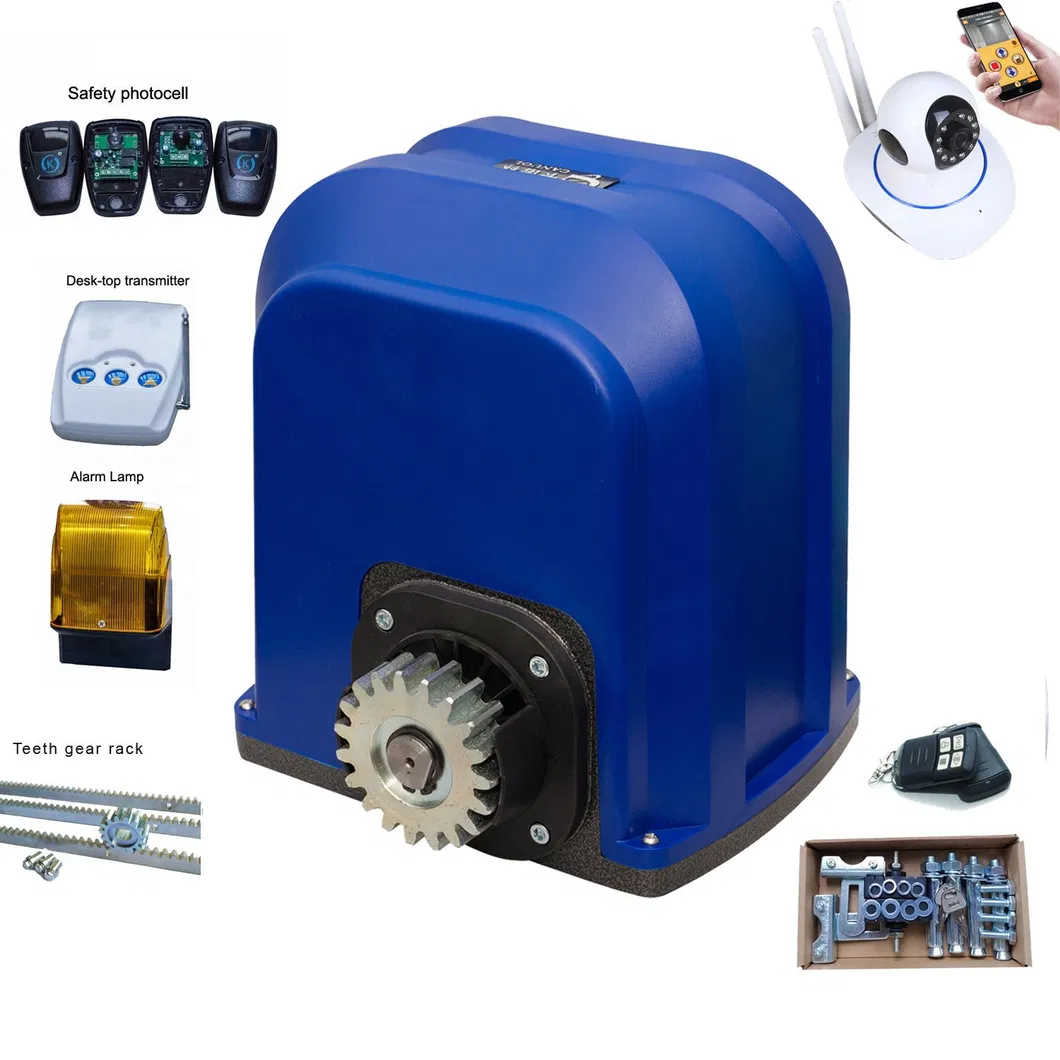

Detail 2

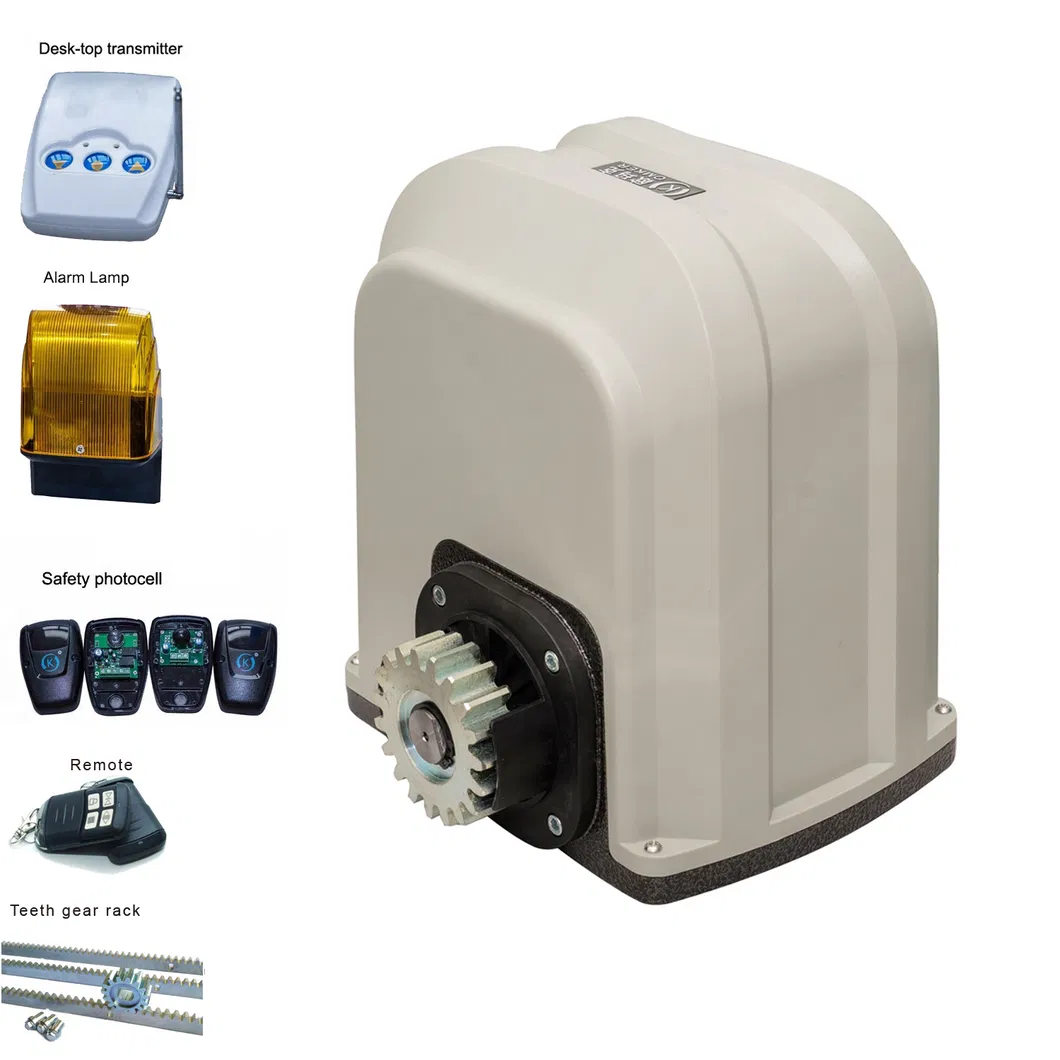

Detail 3
🏗️

Application Cases

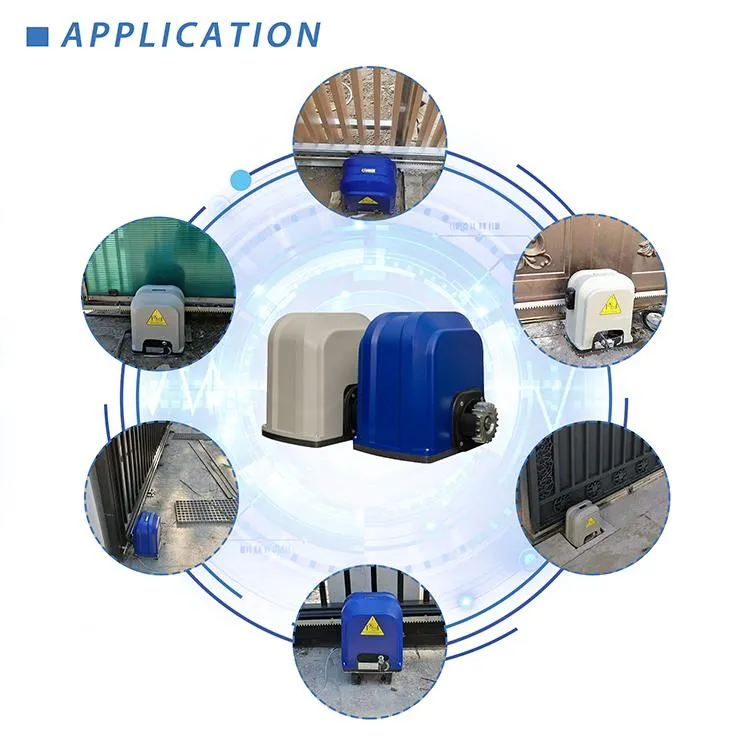

Application 1

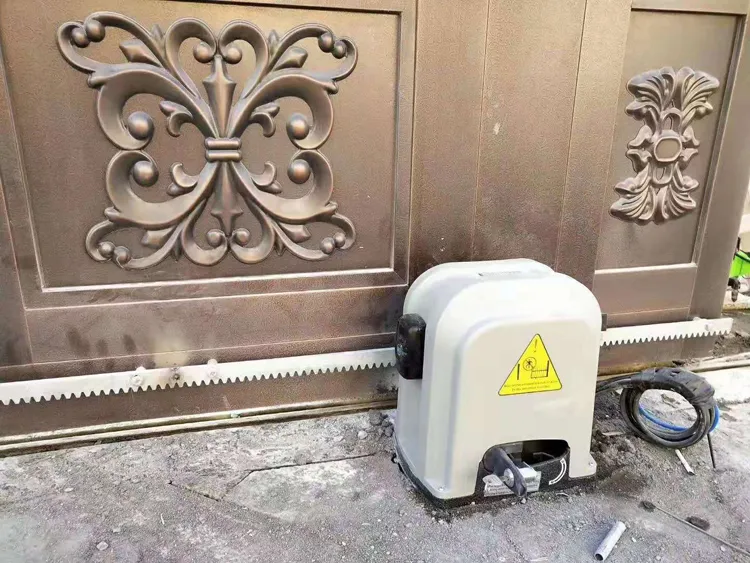

Application 2

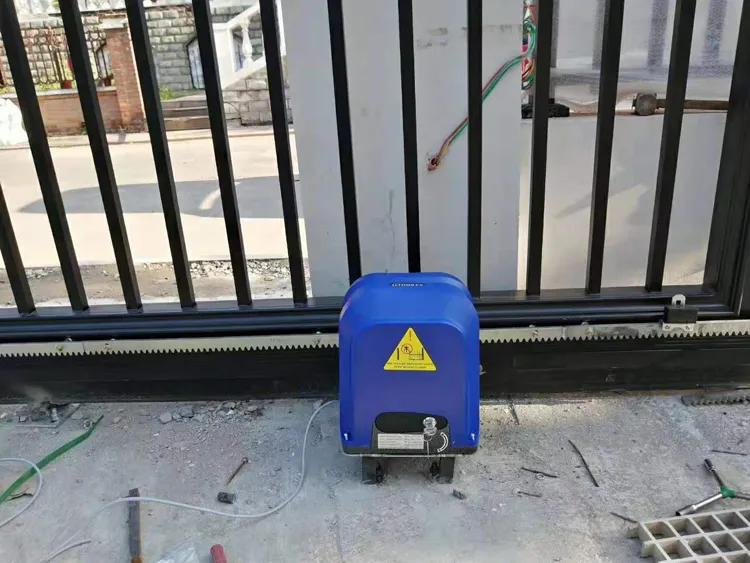

Application 3

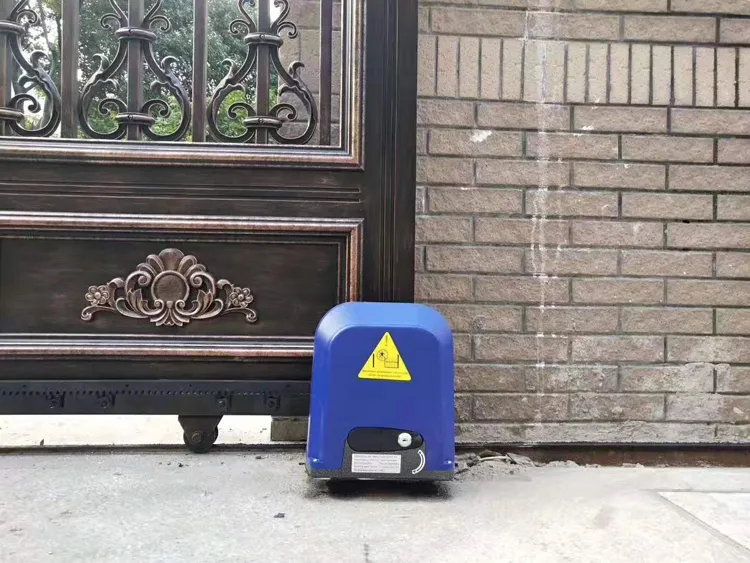

Application 4
🏭

Factory Display

Factory 1
Factory 2
Factory 3
❓

Frequently Asked Questions

What is the maximum gate weight this operator can handle?
The series ranges from the DCK-156D (up to 500kg) to the DCK-196D, which can handle heavy-duty gates up to 2500kg.
Is the device suitable for extreme weather conditions?
Yes, the motor is designed to operate in temperatures ranging from -45°C to +65°C and features an IP44 protection class rating.
How does the anti-clamping function work?
When the infrared sensors detect a barrier or object during operation, the door will automatically stop and move in the reverse direction to prevent injury or damage.
Can I adjust the speed and force of the motor?
Yes, the motor force, resistance, and starting torque are all adjustable. It also features a soft start/stop function for stable operation.
What kind of remote control technology is used?
We use advanced jump codec technology with over one million password groups, making it highly secure and resistant to interference.
Does it support automatic closing?
Yes, the auto-close function is built-in and can be adjusted to delay closing between 1 and 120 seconds.
