Product Description

📋 Basic Information
Model NO.
DSW-85
Material
Steel
Type
Swing
Open Style
Swing
Opening Type
Induced
Special Function
Automatic
Certification
ISO9001, CE
Limited Weight
≤1×100kg
Door Leaf Width
≤1200mm
Power Voltage
AC220V±10%
Opening Speed
250-450mm/S
Production Capacity
1000sets/Month
🚀 Product Description

DSW85 Interior Remote Control Electric Automatic Swing Door Operator With Spring Return

Automatic Swing Door Operator

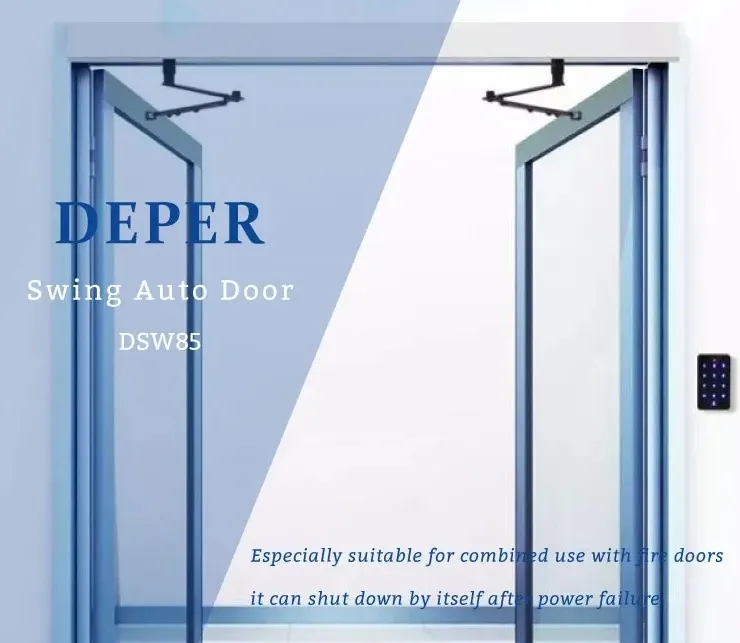

Product Detail 1

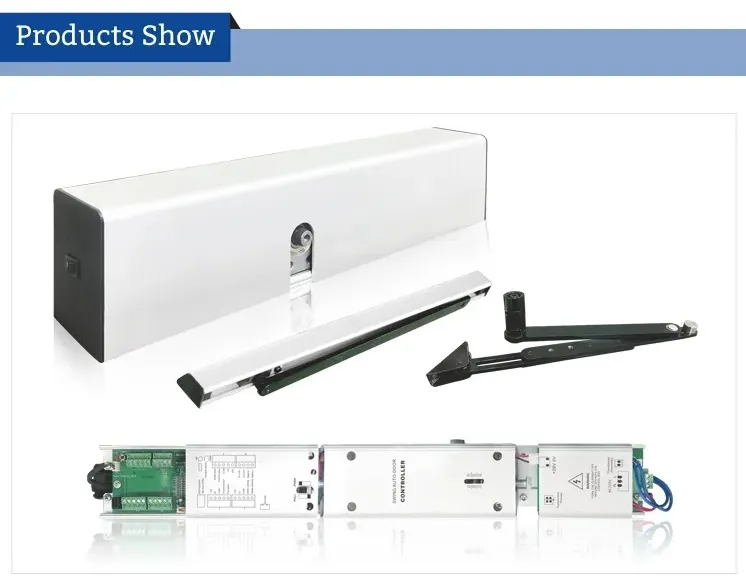

Product Detail 2
⭐ Product Advantages
  • Microprocessor-controlled automatic door closer, simple design and self-monitoring.
  • Microprocessor provides precise position and speed control for optimal motion modes.
  • Automatic spring force closing during power failure.

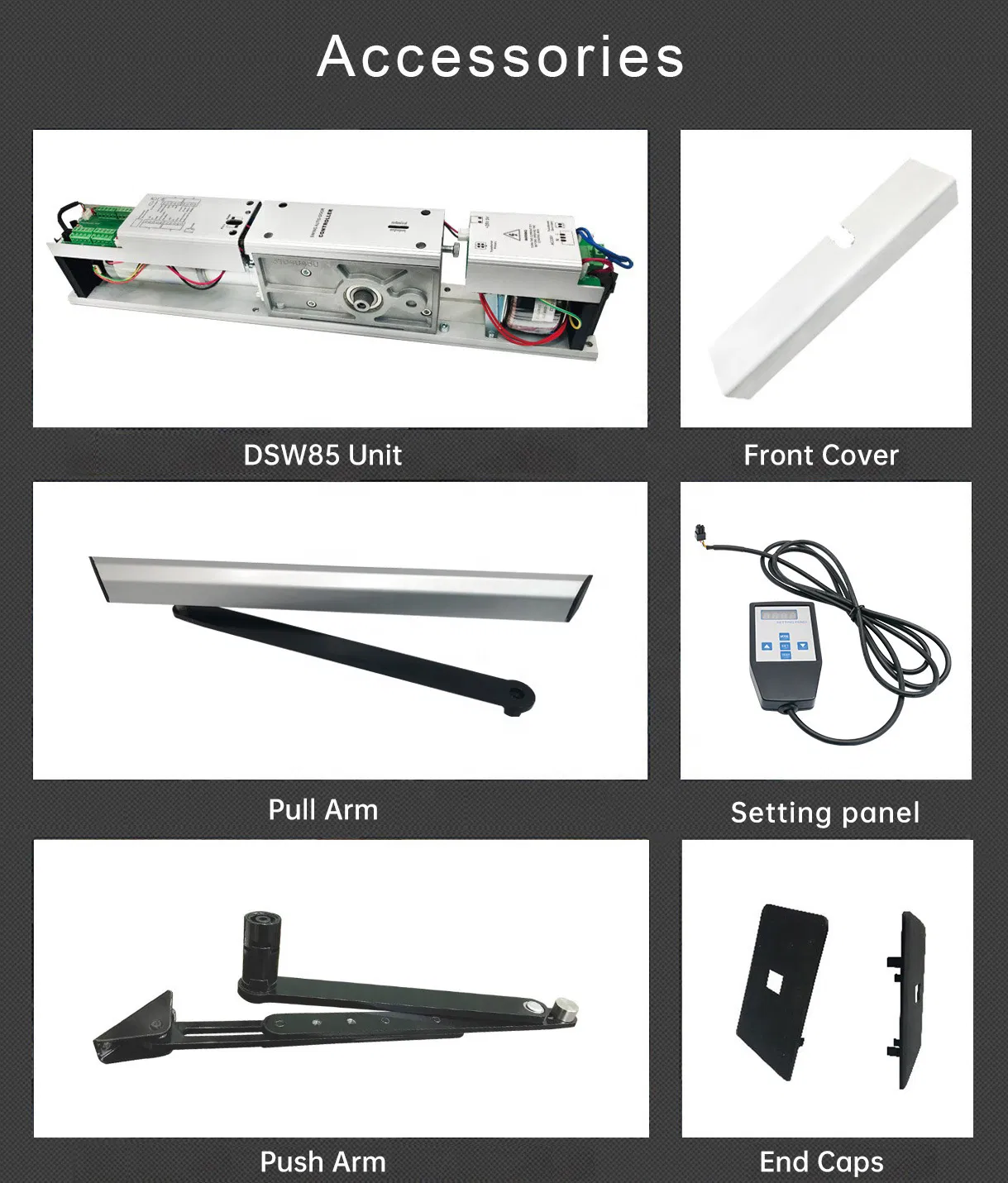

  • Pull-arm and push-arm mounting available depending on the application.
  • Particularly suitable for use with fire doors.
  • High security: door opens immediately if an obstacle is encountered.
📊 Technical Data
Technical Specifications
Drive unit24V DC motor, spring close door
Anti-extrusion deviceStandard
Power supply voltageAC220V ± 10%, 50/60Hz
Rated power consumption100W (MAX)
Opening/Closing time3-7S adjustable
Open time0.5-30S adjustable
Opening angle80°-100°

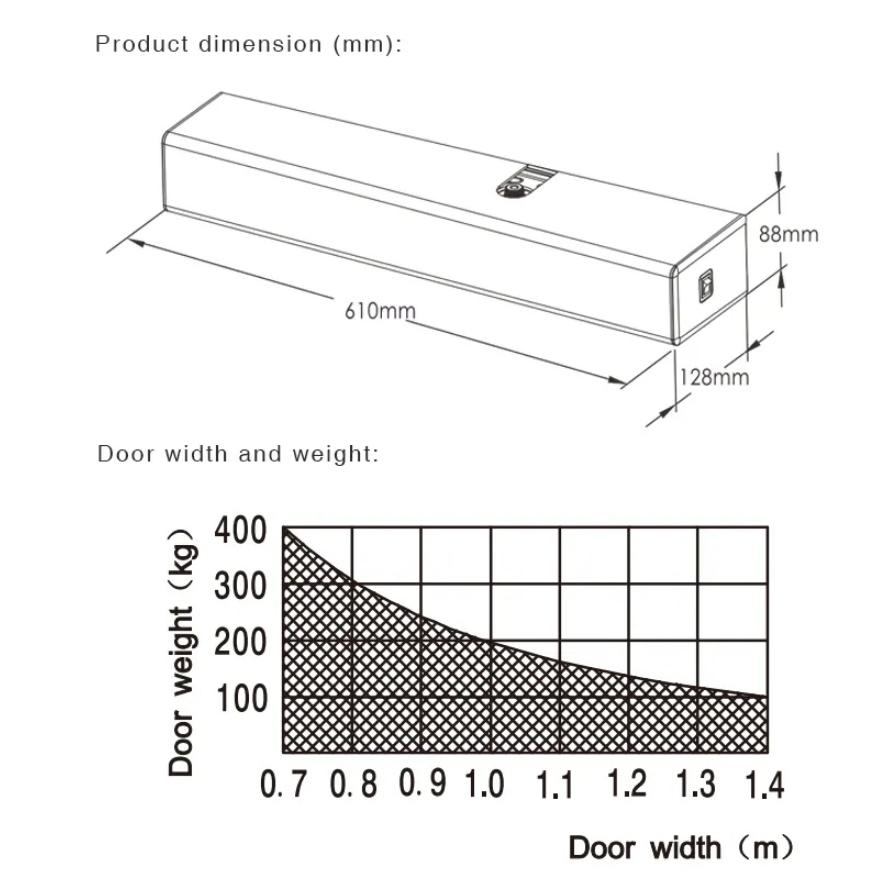

Unit size610 X 128 X 88 (mm)
Ambient temperature-20 ~ +45°C
Product Showcase

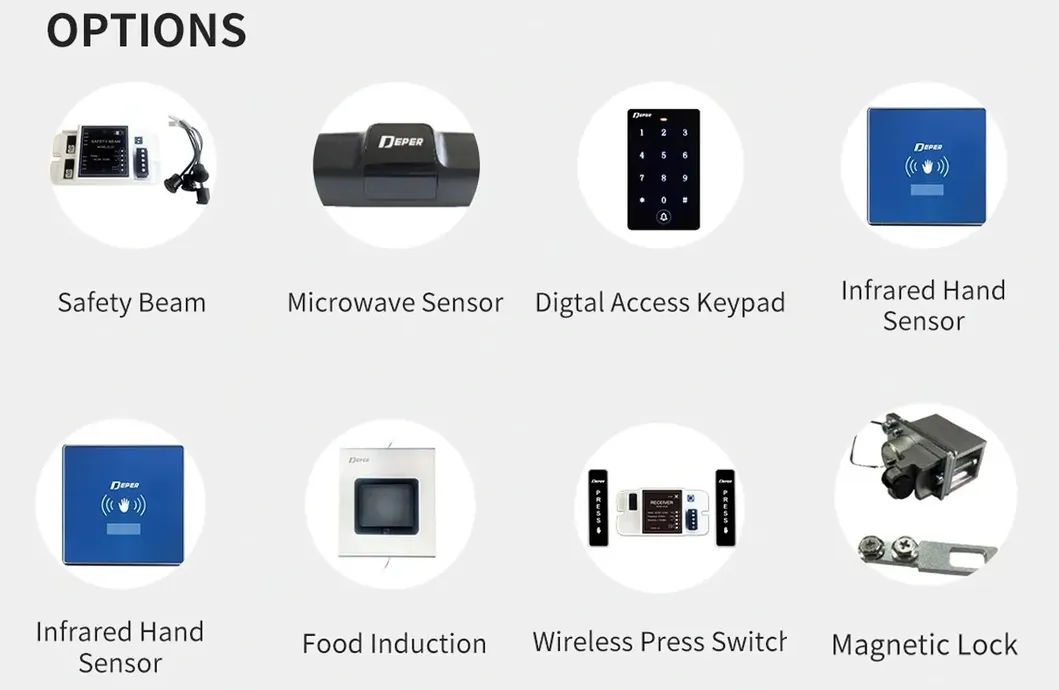

Installation Detail

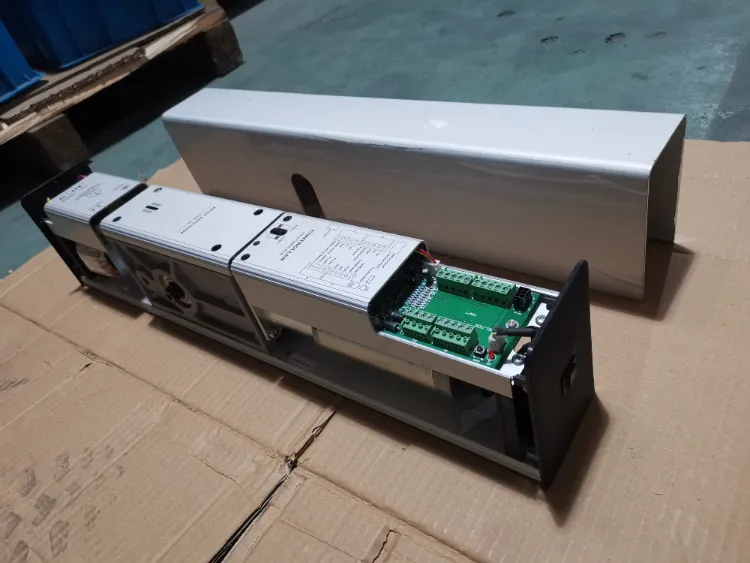

Mechanism View

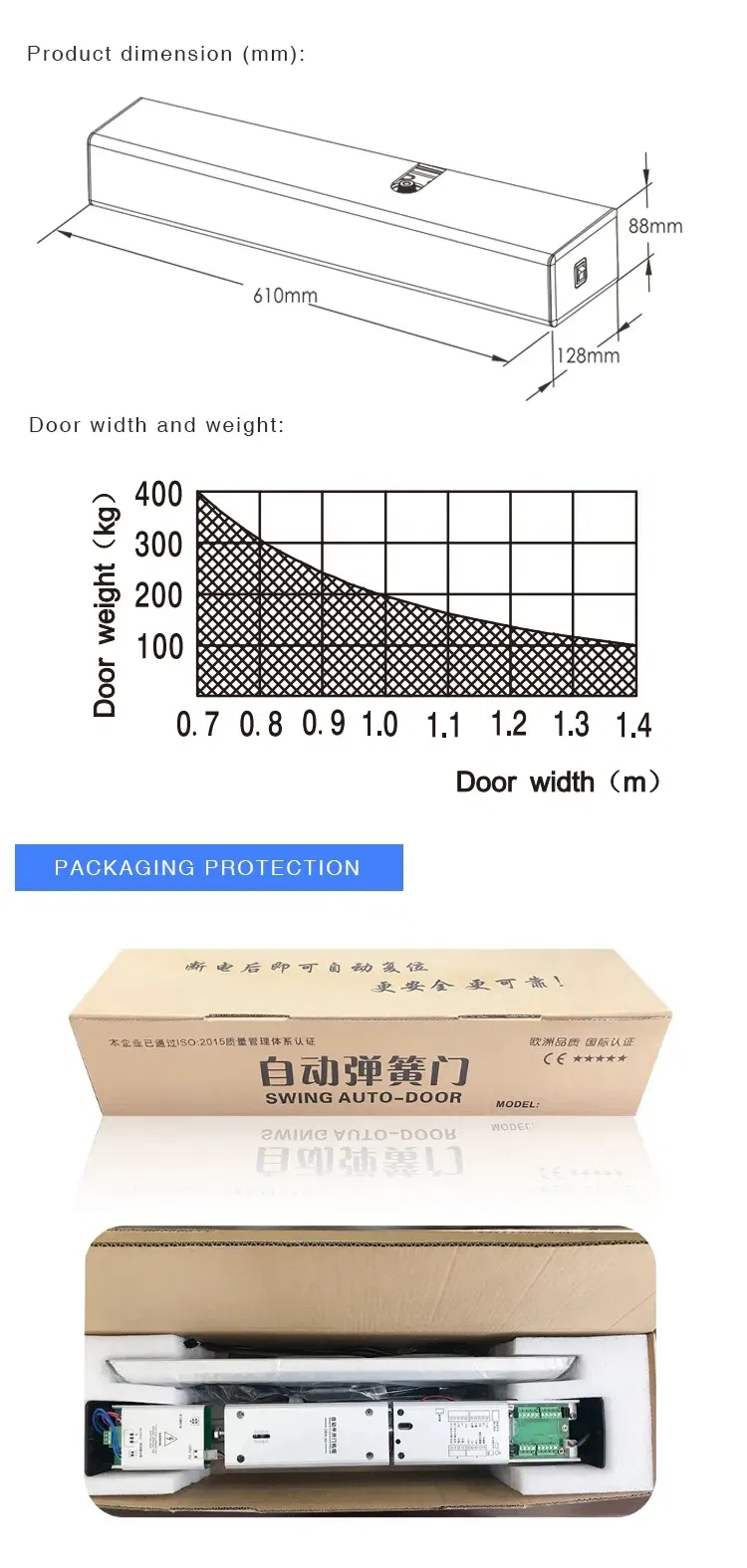

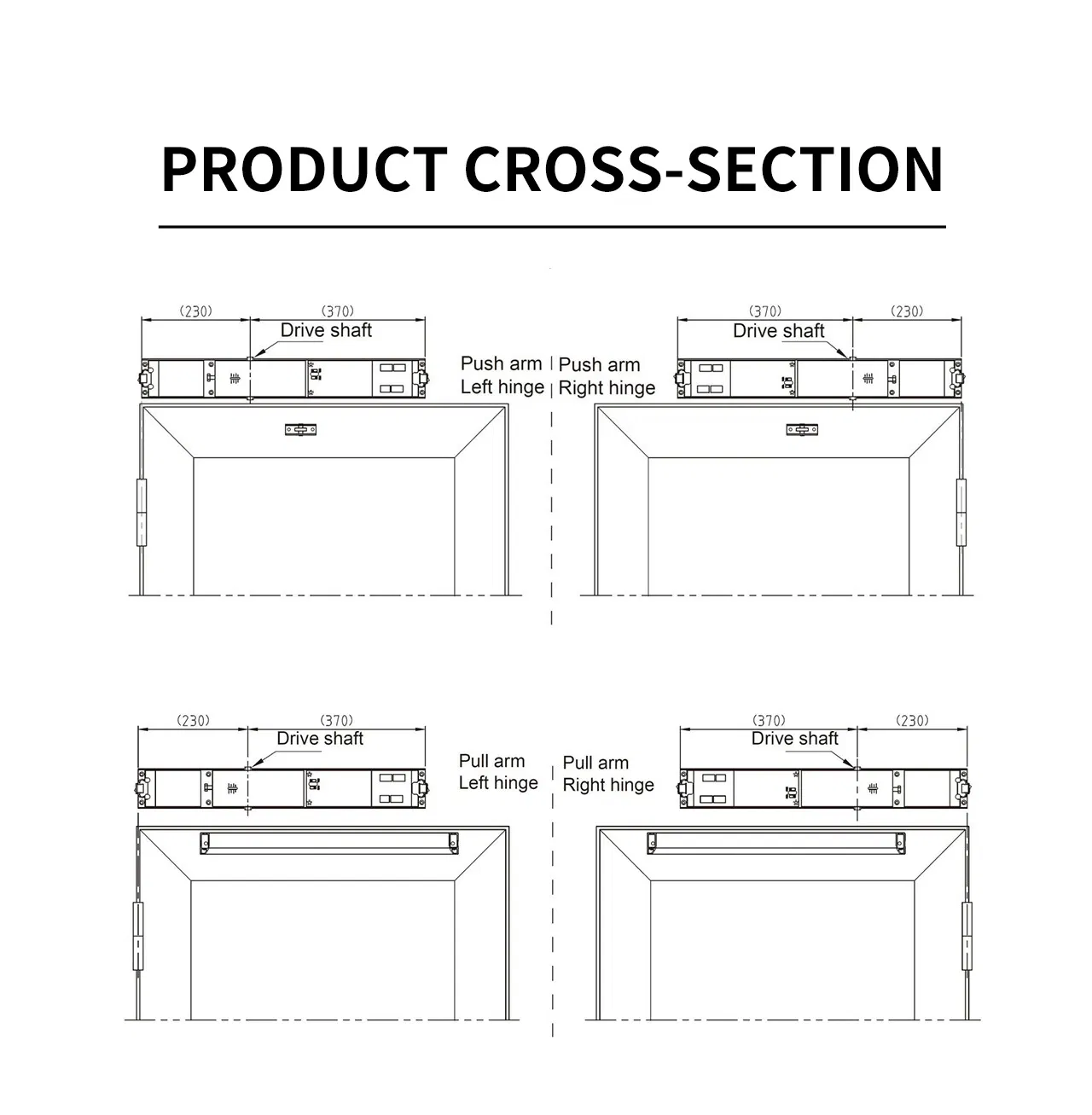

Technical Drawing
🛡️ Quality & Service

Passed 1 million times of tests, CE and ISO9001:2015 certified. We provide OEM/ODM services including customized packaging and logo designs.

Certificate 1
Certificate 2
📦 Packaging & Delivery
Package Size
61.00cm * 13.00cm * 9.00cm
Gross Weight
14.000kg
Packing Process
❓ Frequently Asked Questions
Q1: Are you a Manufacturer or a Trading company?
We are a specialized manufacturer for automatic doors and windows with a production base of over 68,000 square meters.
Q2: What kind of packaging do you use for delivery?
Our standard packages include foam, cartons, and plywood cases to ensure safety. OEM packaging is also accepted.
Q3: Can I get a sample for quality testing?
Yes, samples are available. Generally, clients are responsible for the express cost and sample fee.
Q4: What is your Minimum Order Quantity (MOQ)?
For automatic door accessories, the MOQ is negotiable. Quantity significantly influences the final price.
Q5: What happens if there is a power failure?
The DSW85 unit is designed to start closing automatically using spring force in the event of a power failure.
Q6: What certifications do your products have?
Our products are CE, ISO9001:2015, ISO14001, and OHSAS18001 certified, meeting international quality and safety standards.
