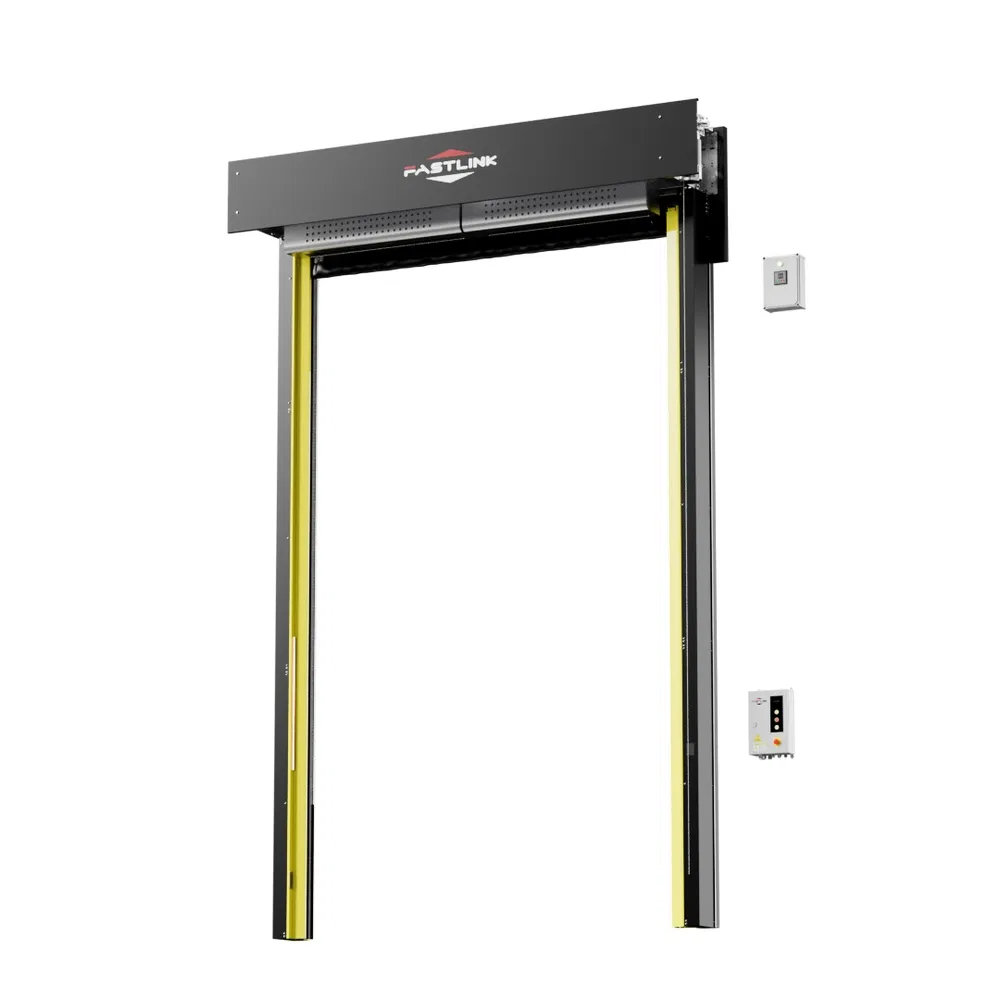

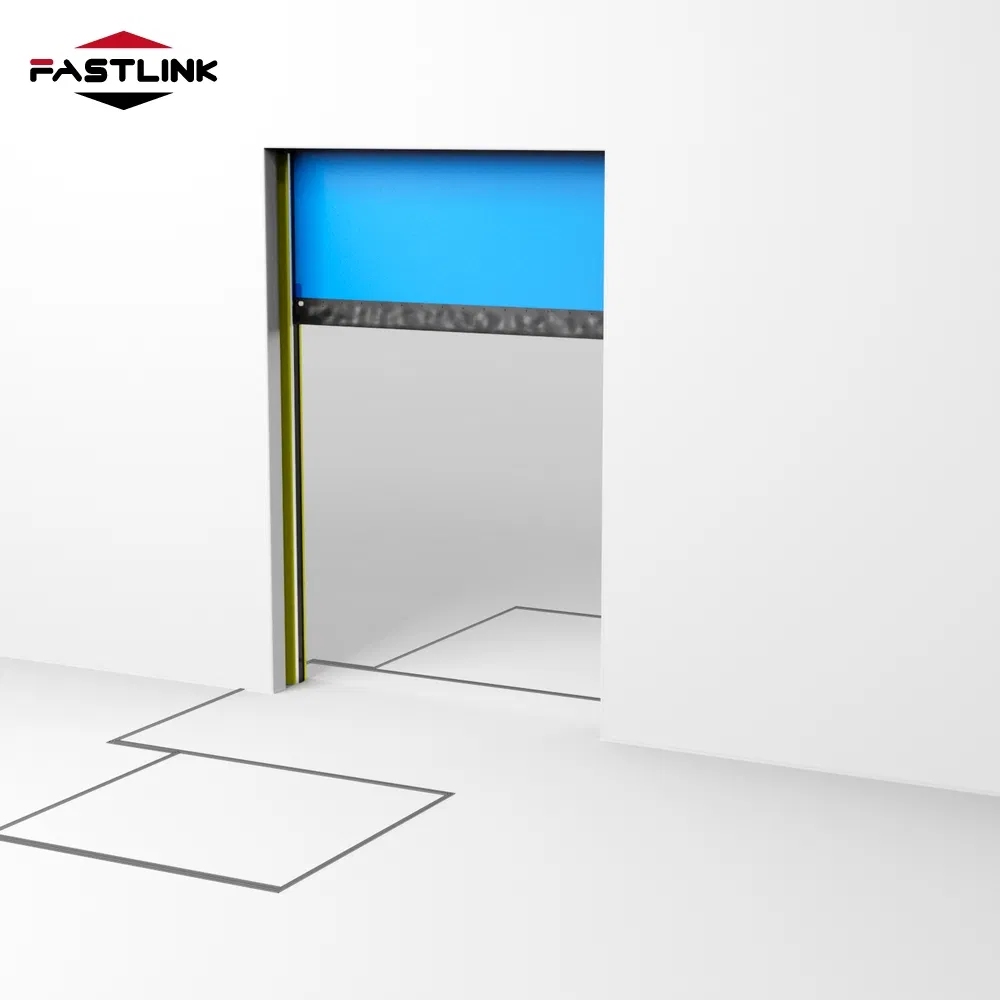

Fastlink Wholesale Warehouse Cold Chain Logistics Factory Clean Room Rapid Electric Cold Storage High Speed Industrial Doors
Fastlink Wholesale Warehouse Cold Chain Logistics Factory Clean Room Rapid Electric Cold Storage High Speed Industrial Doors
Fastlink Wholesale Warehouse Cold Chain Logistics Factory Clean Room Rapid Electric Cold Storage High Speed Industrial Doors
Fastlink Wholesale Warehouse Cold Chain Logistics Factory Clean Room Rapid Electric Cold Storage High Speed Industrial Doors
Fastlink Wholesale Warehouse Cold Chain Logistics Factory Clean Room Rapid Electric Cold Storage High Speed Industrial Doors
1 / 5
Fastlink Wholesale Warehouse Cold Chain Logistics Factory Clean Room Rapid Electric Cold Storage High Speed Industrial Doors
Fastlink Wholesale Warehouse Cold Chain Logistics Factory Clean Room Rapid Electric Cold Storage High Speed Industrial Doors
Fastlink Wholesale Warehouse Cold Chain Logistics Factory Clean Room Rapid Electric Cold Storage High Speed Industrial Doors
Fastlink Wholesale Warehouse Cold Chain Logistics Factory Clean Room Rapid Electric Cold Storage High Speed Industrial Doors
Fastlink Wholesale Warehouse Cold Chain Logistics Factory Clean Room Rapid Electric Cold Storage High Speed Industrial Doors

Fastlink Wholesale Warehouse Cold Chain Logistics Factory Clean Room Rapid Electric Cold Storage High Speed Industrial Doors

Customization: Available
After-sales Service: 2 Years
Warranty: 1year
Send Inquiry

Product Description

⚙️ Basic Specifications
Model NO.
HSR-IPP
Material
PVC, Polymer
Type
Cold Storage High Speed Door
Speed
2.0 M/S
Thermal Insulation
K=1.2W/(M².K)
Wind Resistance
225PA
Sheet Thickness
28mm
Certification
CE, CPR, UL

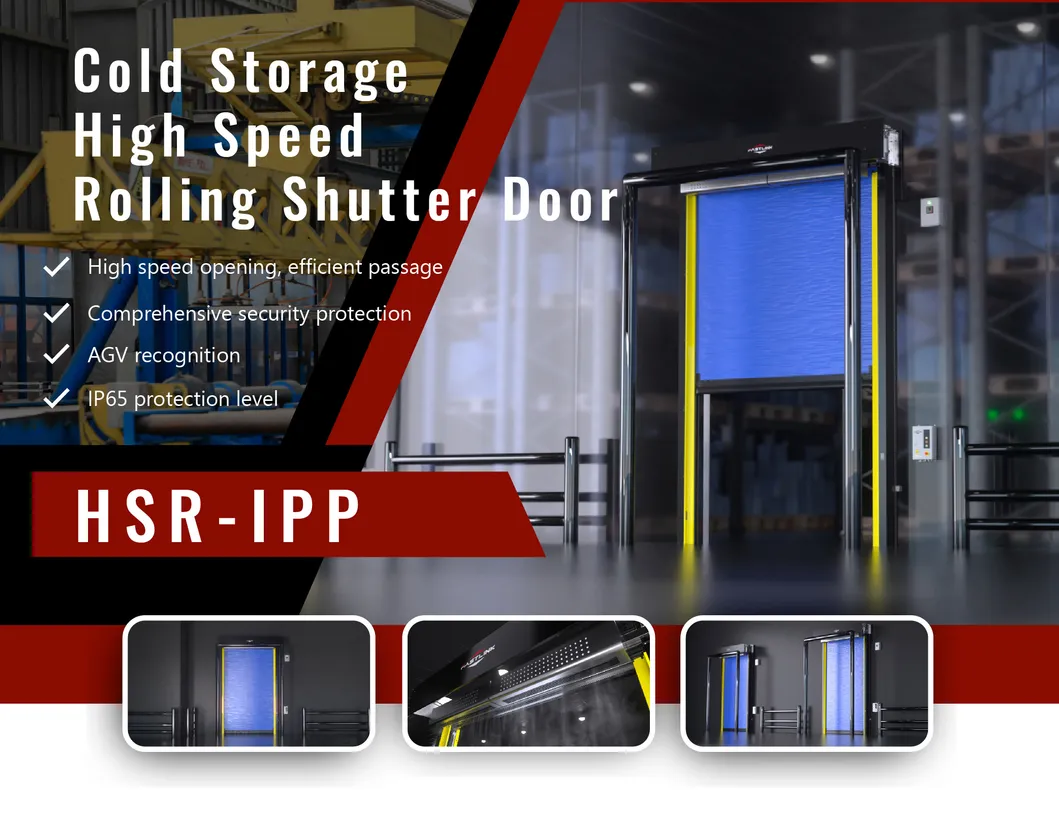

High Speed Cold Storage Door Overview

🚀 High Performance Features

The high-speed industrial door is engineered for cold chain logistics and warehouse environments. It features a PVC composite insulation curtain with a thickness of 28mm, ensuring superior thermal efficiency and energy savings.

Equipped with a self-developed frequency conversion control system, the door achieves a maximum opening speed of 2.0 m/s, perfectly meeting high-frequency passing demands.

📋 Technical Details
Attribute Detail Specification
Size Range Min: W1200mm*H2000mm | Max: W3000mm*H5600mm
Sealed Rail Built-in heating system to prevent frost/ice; Patented spherical seal design.
Control Box Intelligent system with fault code display and operation status monitoring.
Safety Devices Wireless safety bottom sensor, Infrared device, Emergency manual opening.
Air Impermeability 7 level (GB/T 7106-2019)

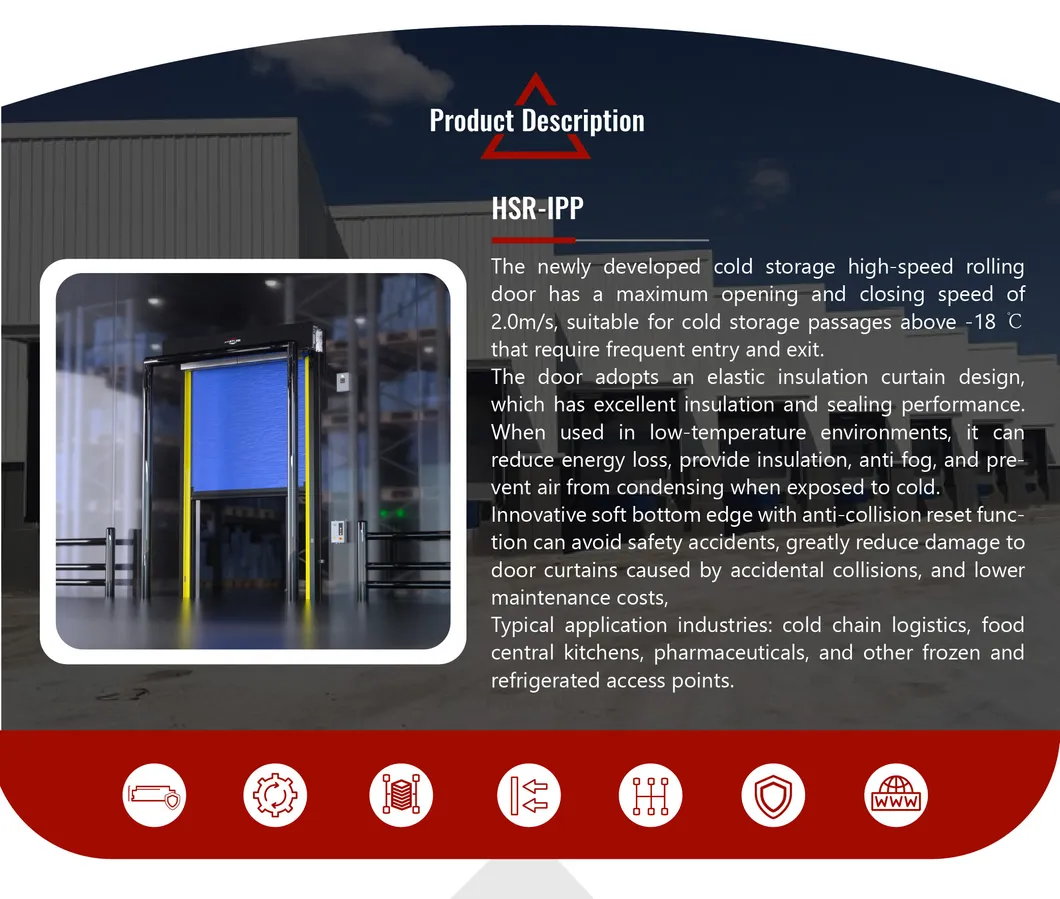

Door Structure and Rail

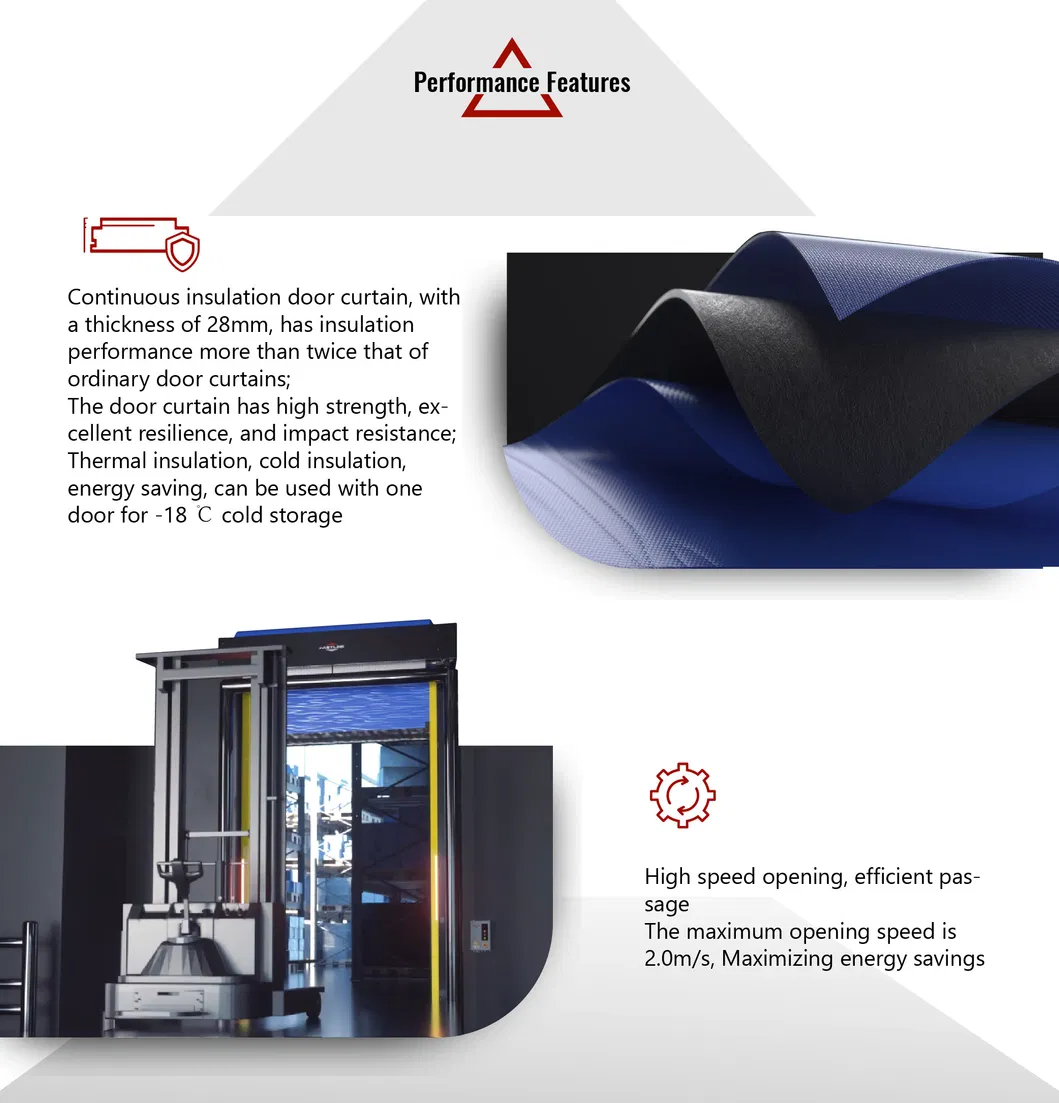

Thermal Insulation View

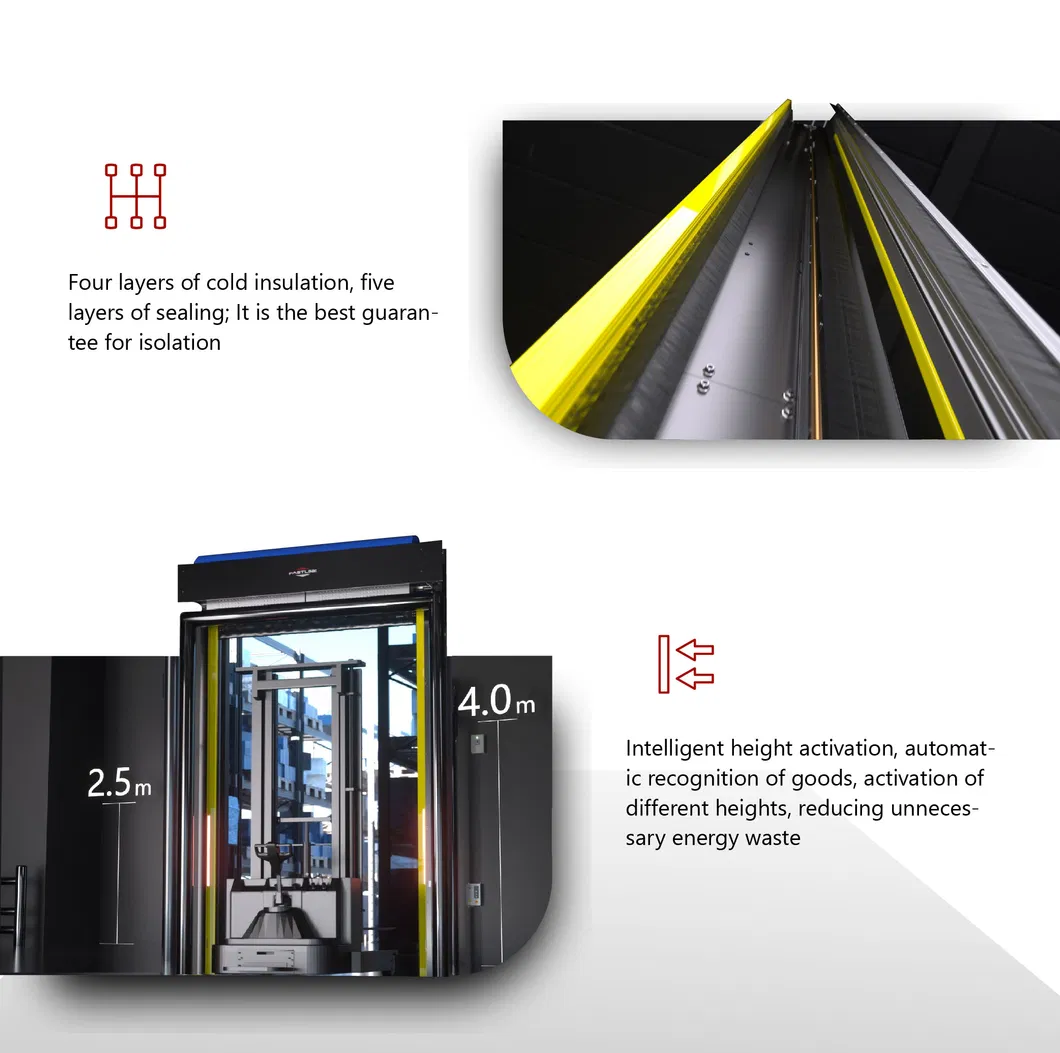

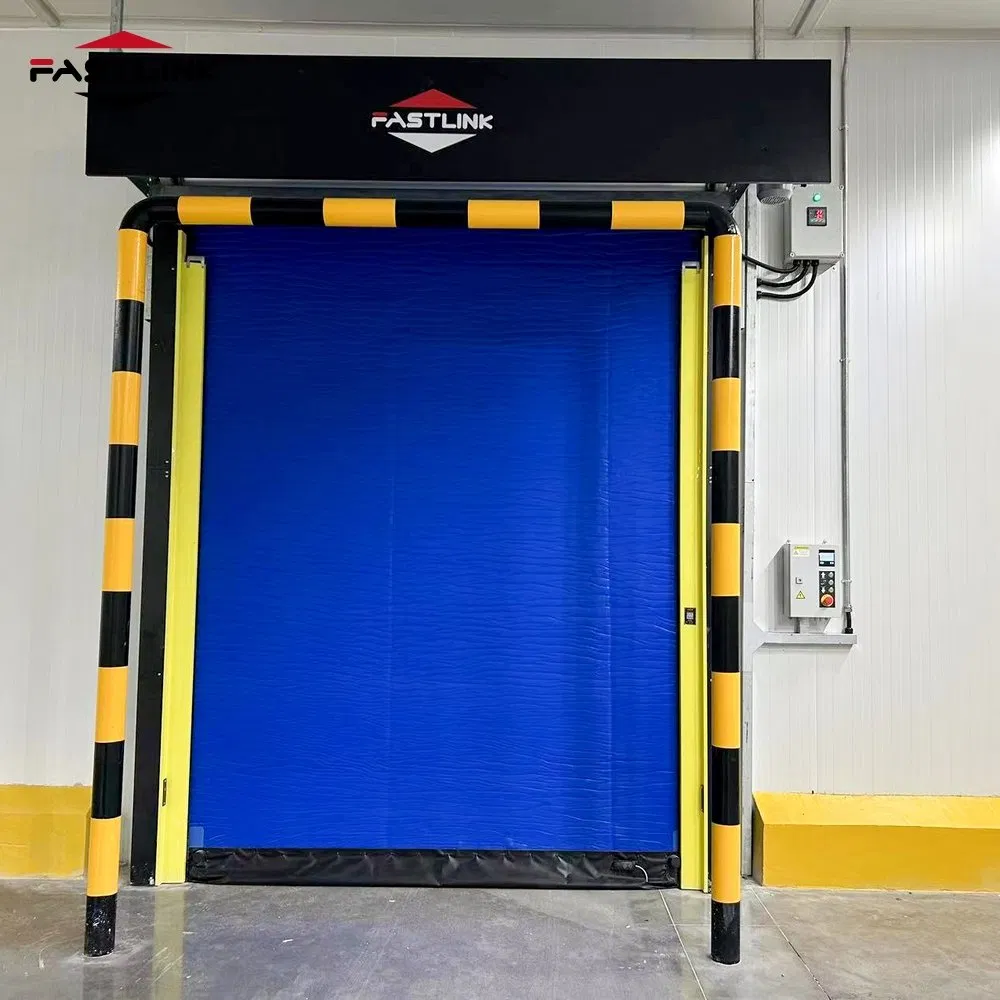

Cold Storage Application
Control System Detail
📦 Packaging & Delivery
Package Size
407.20cm * 87.20cm * 104.80cm
Gross Weight
700.00kg
Packing Type
Standard Wooden Box
Lead Time
30 Days
Installation Guide 1

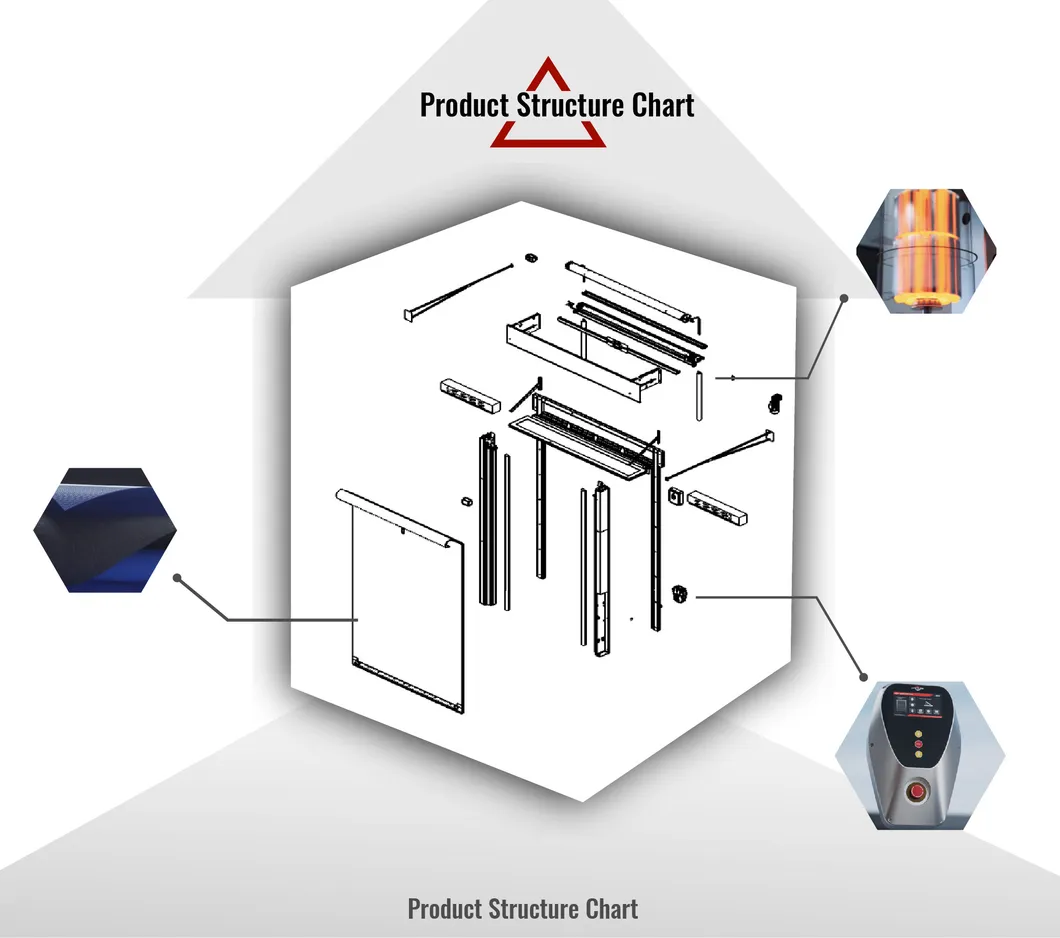

Installation Guide 2
Installation Guide 3

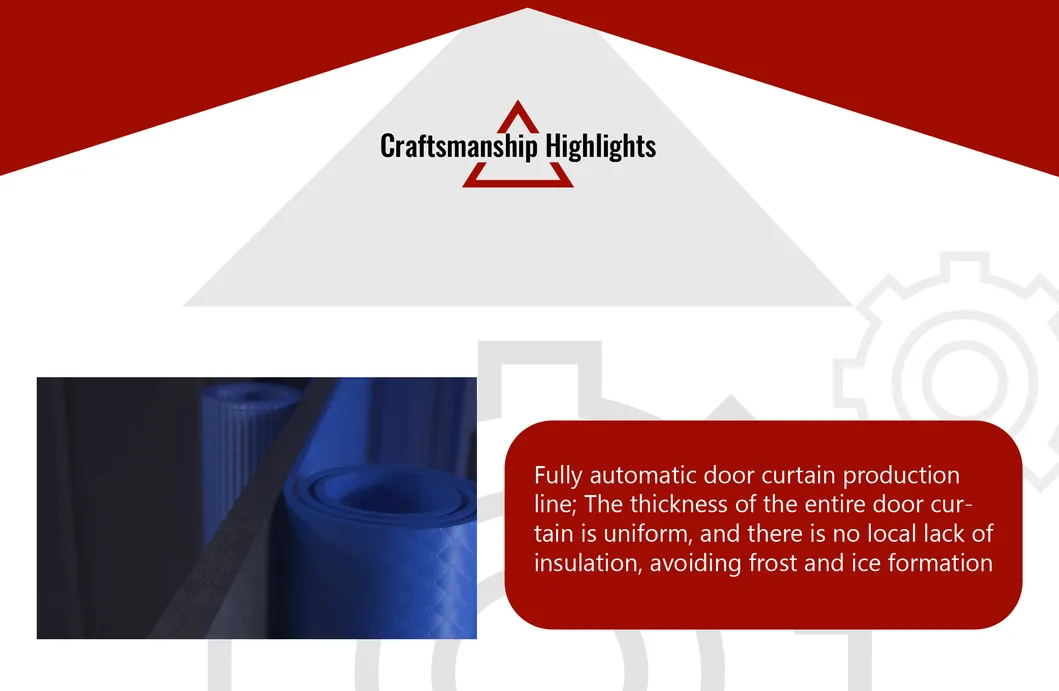

Safety Mechanism

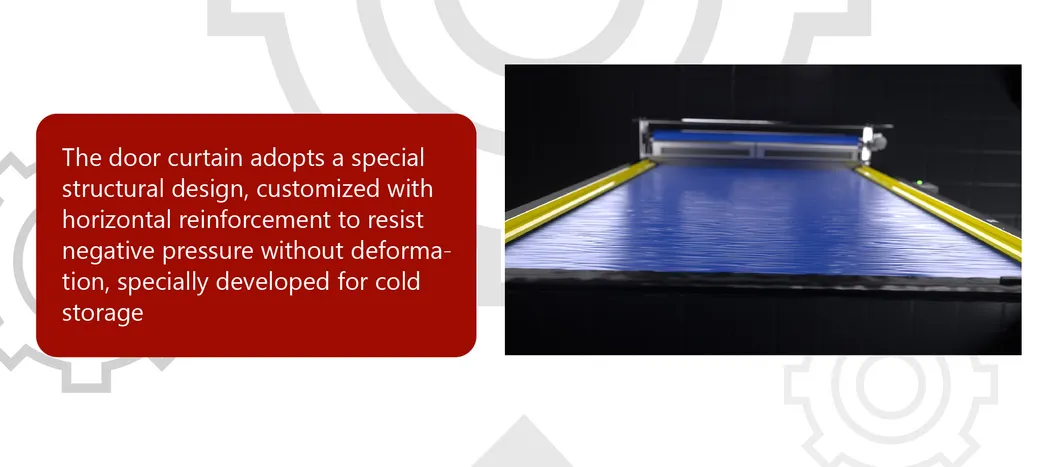

Component Detail

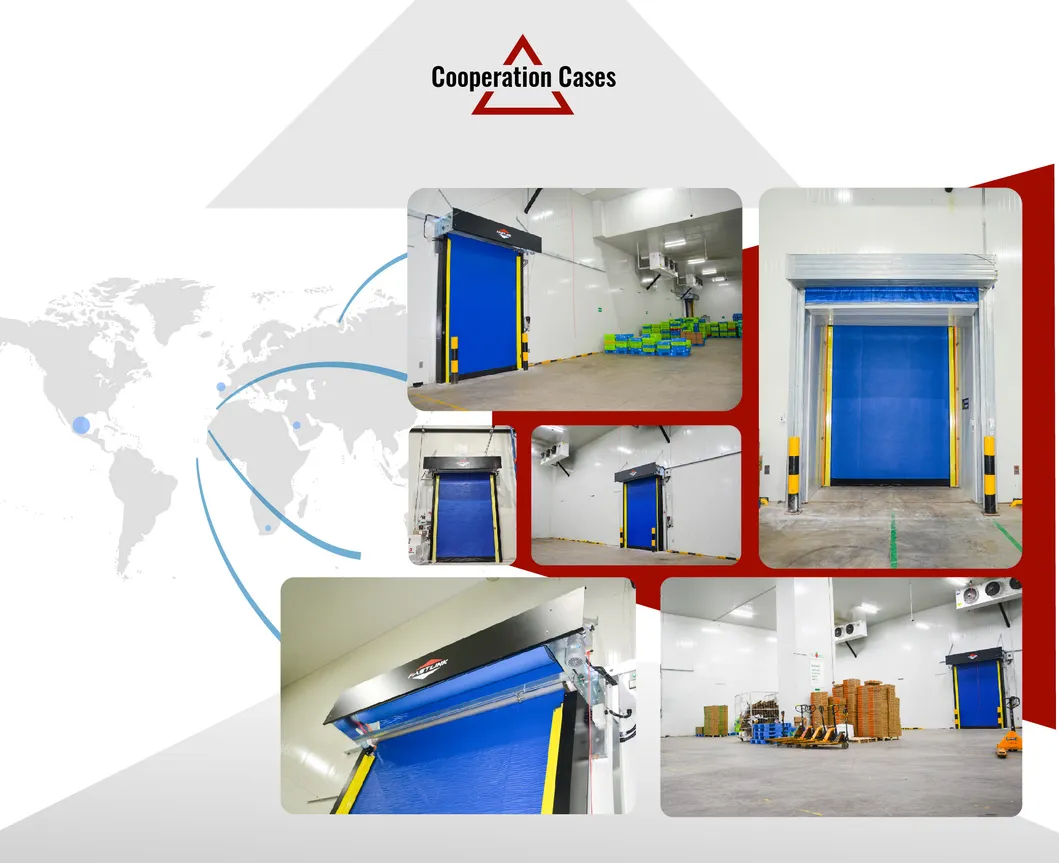

Product Layout 1
Product Layout 2

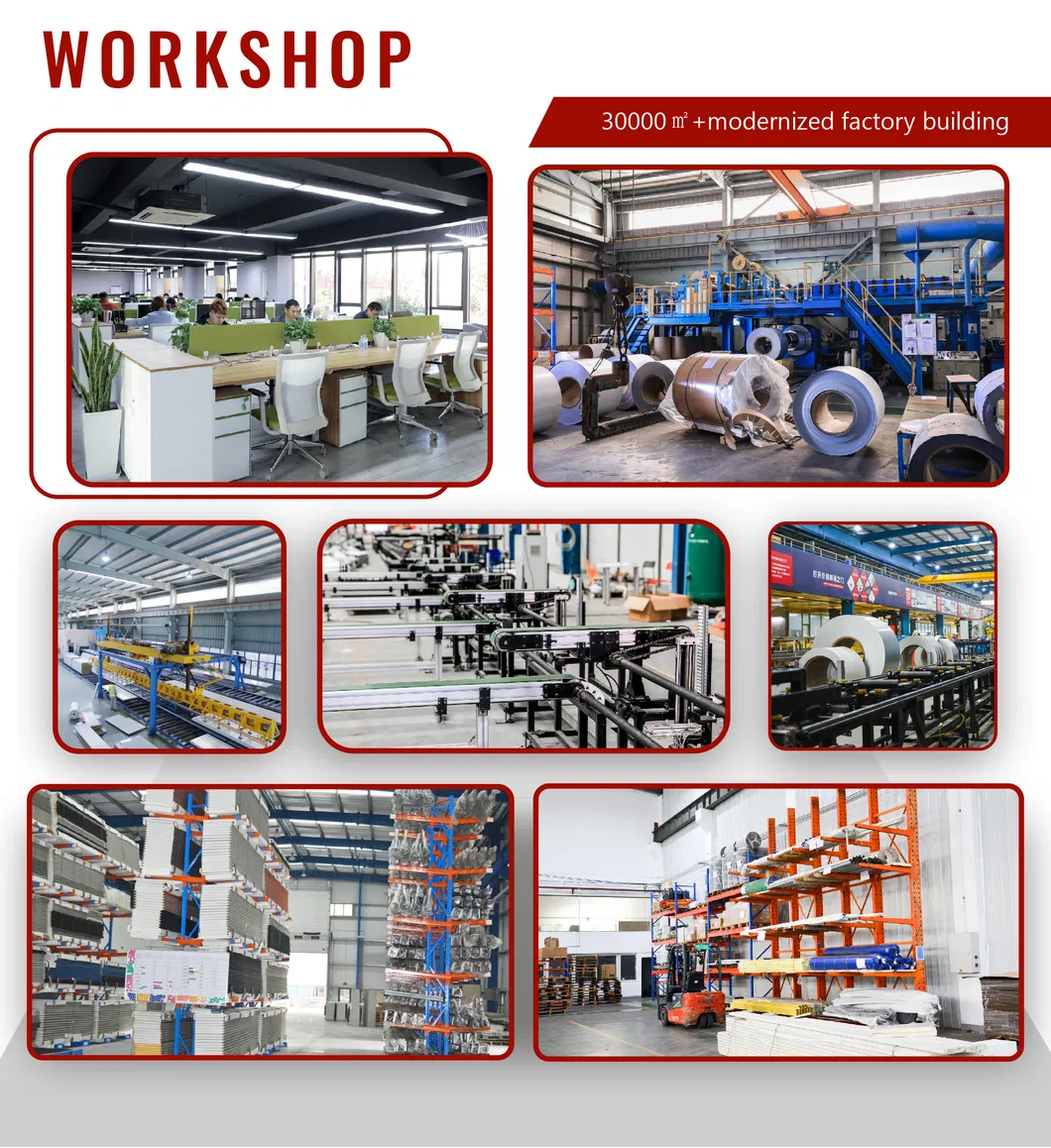

Manufacturing Process
Quality Control
❓ Frequently Asked Questions
How is the insulation performance in extreme cold?
The door uses a composite insulation curtain with uniform thickness. Even in -18 ºC cold storage environments, the curtain is designed to prevent frosting and freezing.
How much installation space is required above the door?
A minimum headroom of 1000mm is required for proper installation of the roll and motor mechanism.
What prevents the door from icing up in high-humidity areas?
The door rails are equipped with a built-in heating system that effectively prevents the accumulation of frost and ice, ensuring smooth operation.
What is the maximum speed of the door?
The maximum opening speed is 2.0 m/s. This high speed helps reduce energy loss in cold storage by minimizing the time the door stays open.
Does the door include safety features for workers?
Yes, it comes standard with a wireless safety bottom sensor and safety infrared devices. If an obstruction is detected, the door will automatically reopen.
What materials are used for the main structure?
The door frame and components are primarily made of high-quality Aluminum Alloy for durability and corrosion resistance.
