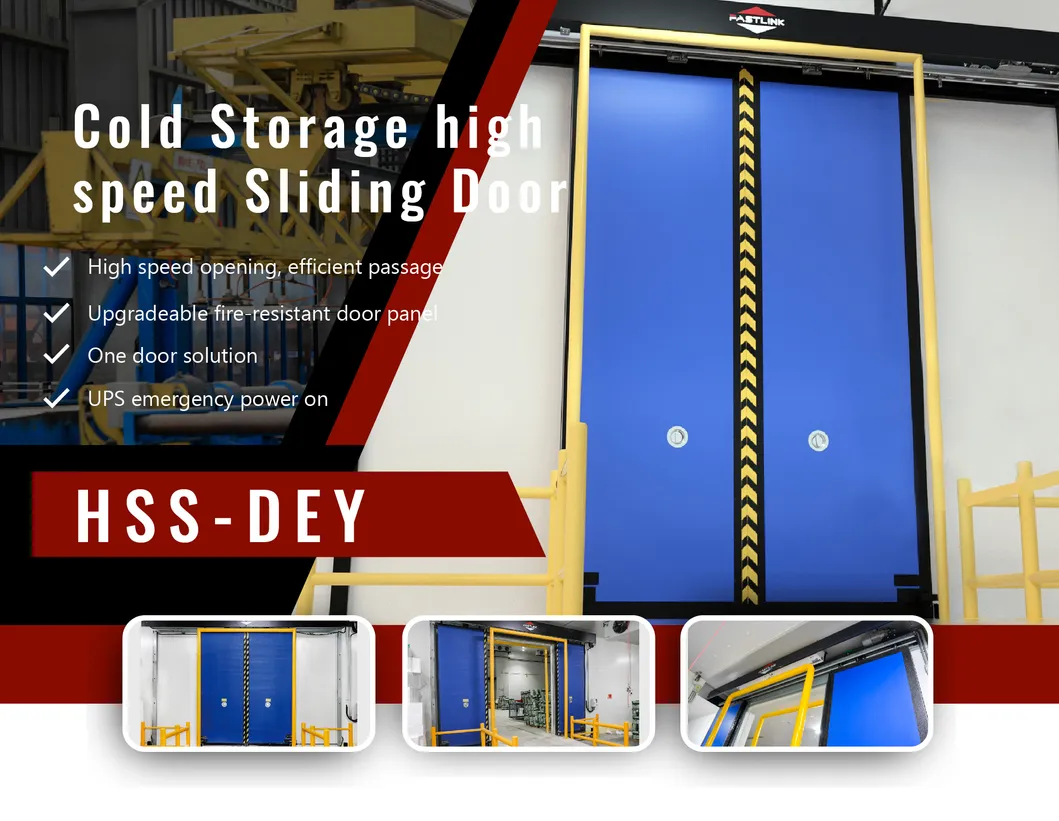

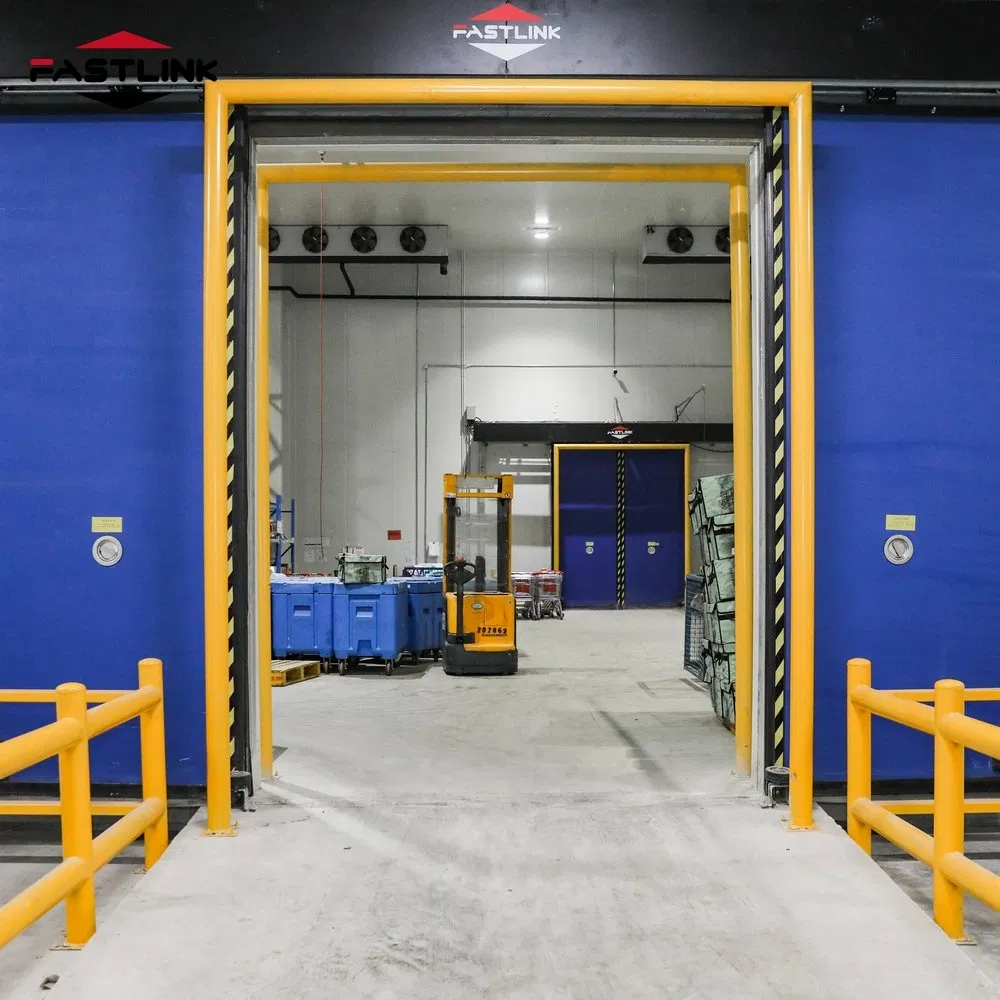

Fastlink in Stock Factory Customized PU Anti-Collision Automatic Cold Storage Automatic PVC High Speed Doors
Fastlink in Stock Factory Customized PU Anti-Collision Automatic Cold Storage Automatic PVC High Speed Doors
Fastlink in Stock Factory Customized PU Anti-Collision Automatic Cold Storage Automatic PVC High Speed Doors
Fastlink in Stock Factory Customized PU Anti-Collision Automatic Cold Storage Automatic PVC High Speed Doors
Fastlink in Stock Factory Customized PU Anti-Collision Automatic Cold Storage Automatic PVC High Speed Doors
1 / 5
Fastlink in Stock Factory Customized PU Anti-Collision Automatic Cold Storage Automatic PVC High Speed Doors
Fastlink in Stock Factory Customized PU Anti-Collision Automatic Cold Storage Automatic PVC High Speed Doors
Fastlink in Stock Factory Customized PU Anti-Collision Automatic Cold Storage Automatic PVC High Speed Doors
Fastlink in Stock Factory Customized PU Anti-Collision Automatic Cold Storage Automatic PVC High Speed Doors
Fastlink in Stock Factory Customized PU Anti-Collision Automatic Cold Storage Automatic PVC High Speed Doors

Fastlink in Stock Factory Customized PU Anti-Collision Automatic Cold Storage Automatic PVC High Speed Doors

Customization: Available
After-sales Service: 2years
Warranty: 1year
Send Inquiry

Product Description

Basic Specifications
Model NO.
HSS-DEY
Material
PVC + Composite Insulation
Type
High Speed Sliding Door
Opening Speed
2.5 M/S
Opening Type
Electric/Manual
Sheet Thickness
100mm
Color
RAL 5017
Temperature Range
Down to -25°C
Feature
Windproof & Anti-Collision
Certification
CE, UL Recognized

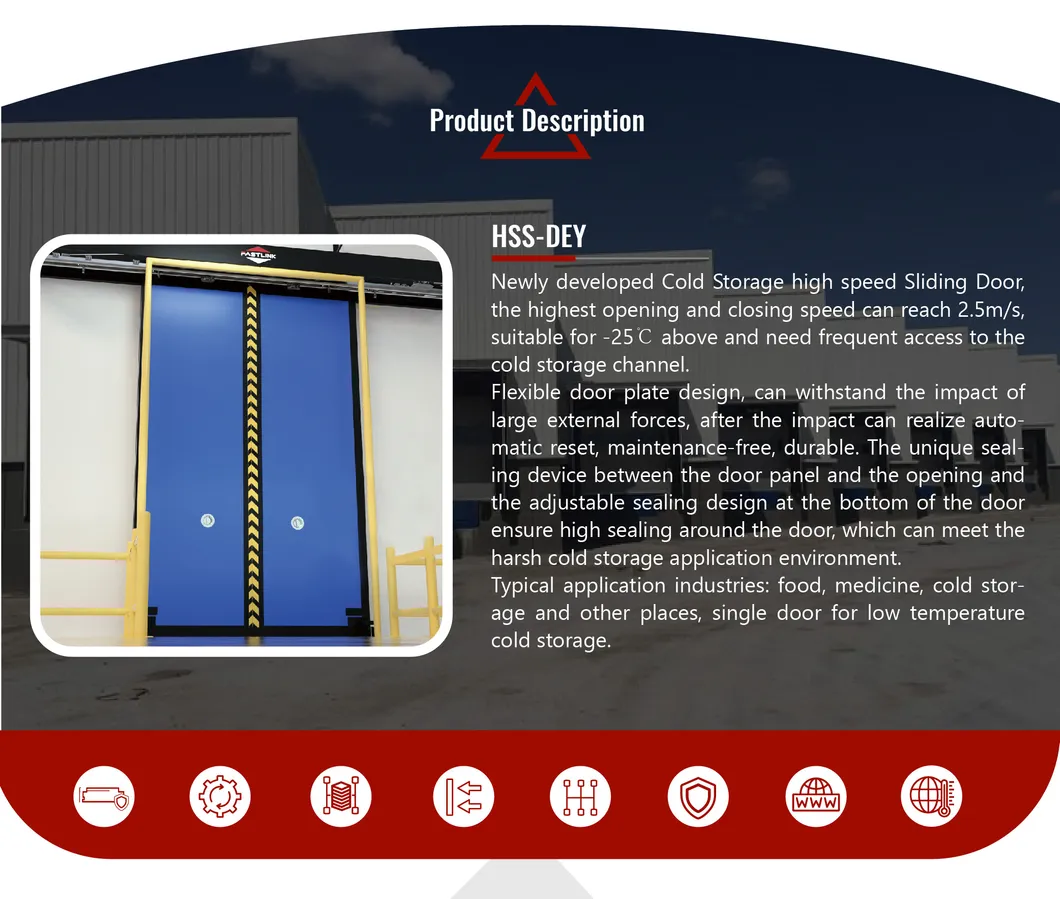

Product Overview
High Speed Cold Storage Door Anti-Collision PVC Door Automatic High Speed Door Detail

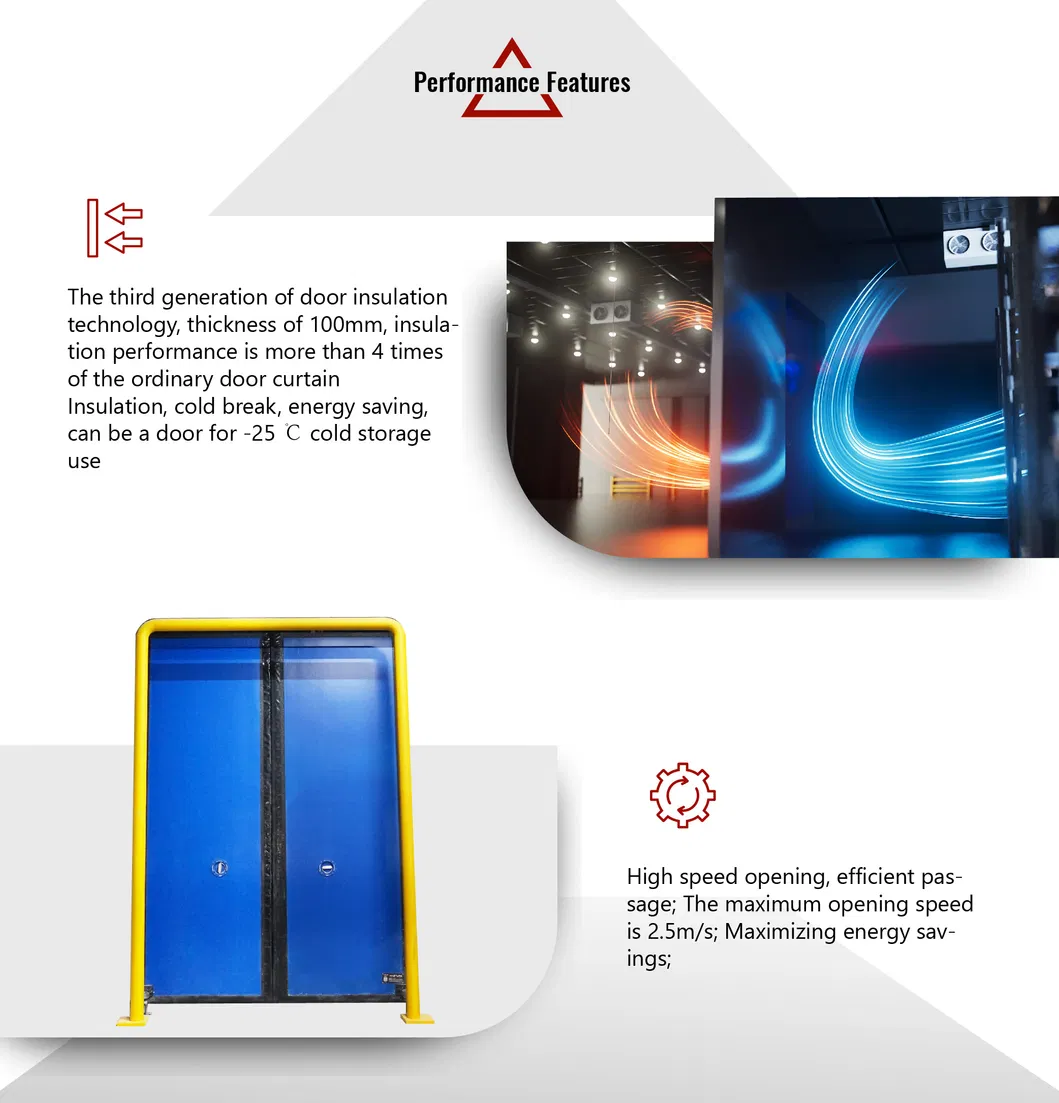

⚡ High Frequency Operation

The maximum opening speed of 2.5 m/s meets high-frequency passing demand, significantly reducing energy consumption in cold storage environments.

🛡️ Anti-Collision Design

Equipped with an anti-collision derailment reset function. In the event of an impact, the plate resets automatically without maintenance downtime.

❄️ Advanced Insulation

100mm thickness composite insulation curtain provides 4x the performance of ordinary curtains. Features built-in heating to prevent frost accumulation.

Technical Attributes
Performance Indicators
Thermal InsulationK=0.4W/(m².K)
Air ImpermeabilityGrade 7 (GB/T 7106-2019)
Min Opening SizeW1800mm * H2000mm
Max Opening SizeW4000mm * H5300mm

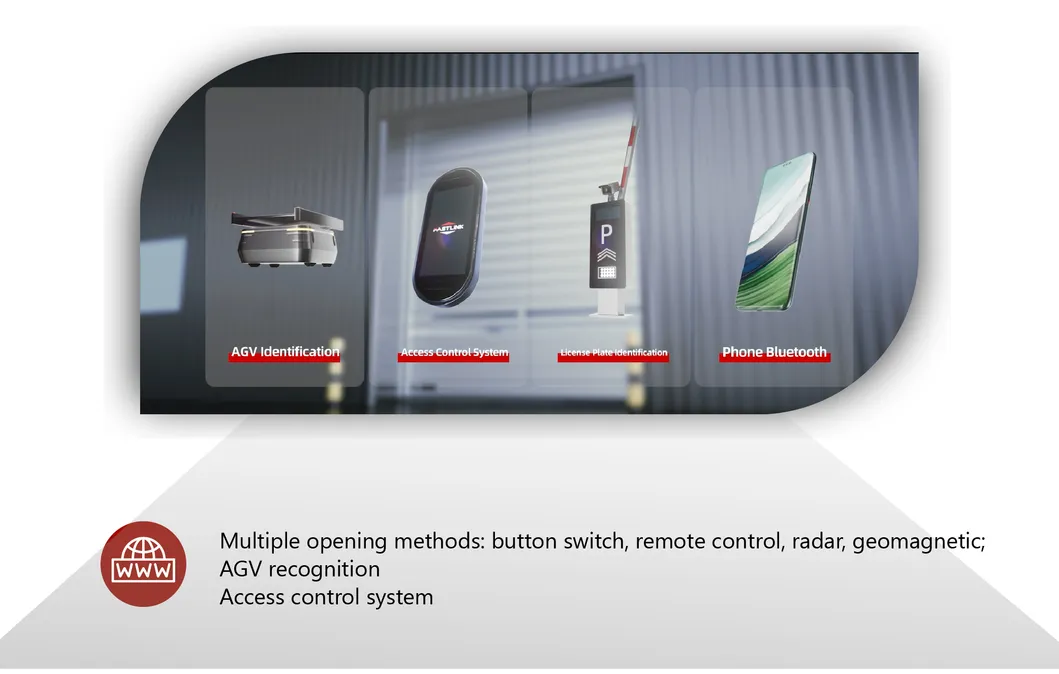

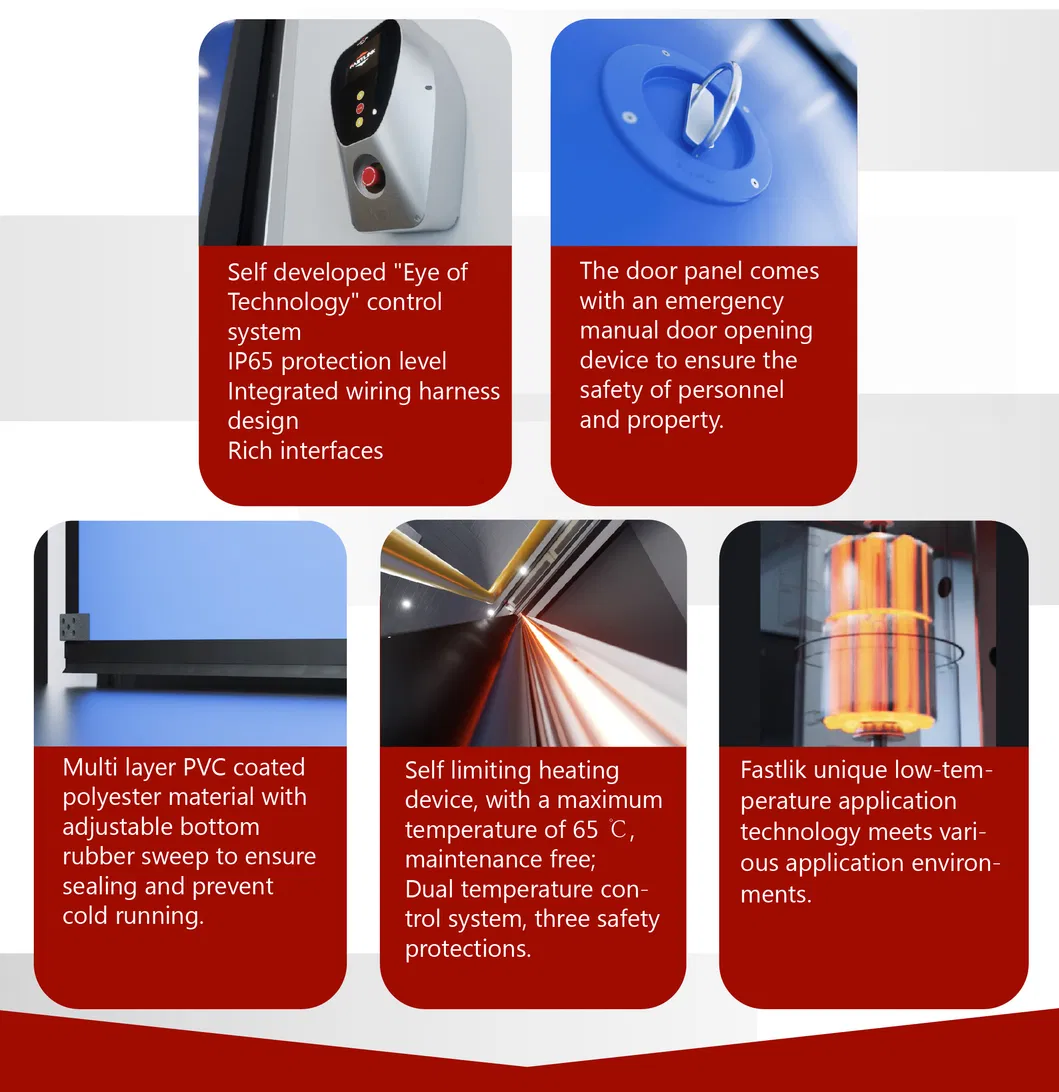

Security & Control
Safety DevicesStandard Safety Infrared, Optional Light Curtain
Emergency ModeManual Opening Device / Optional UPS

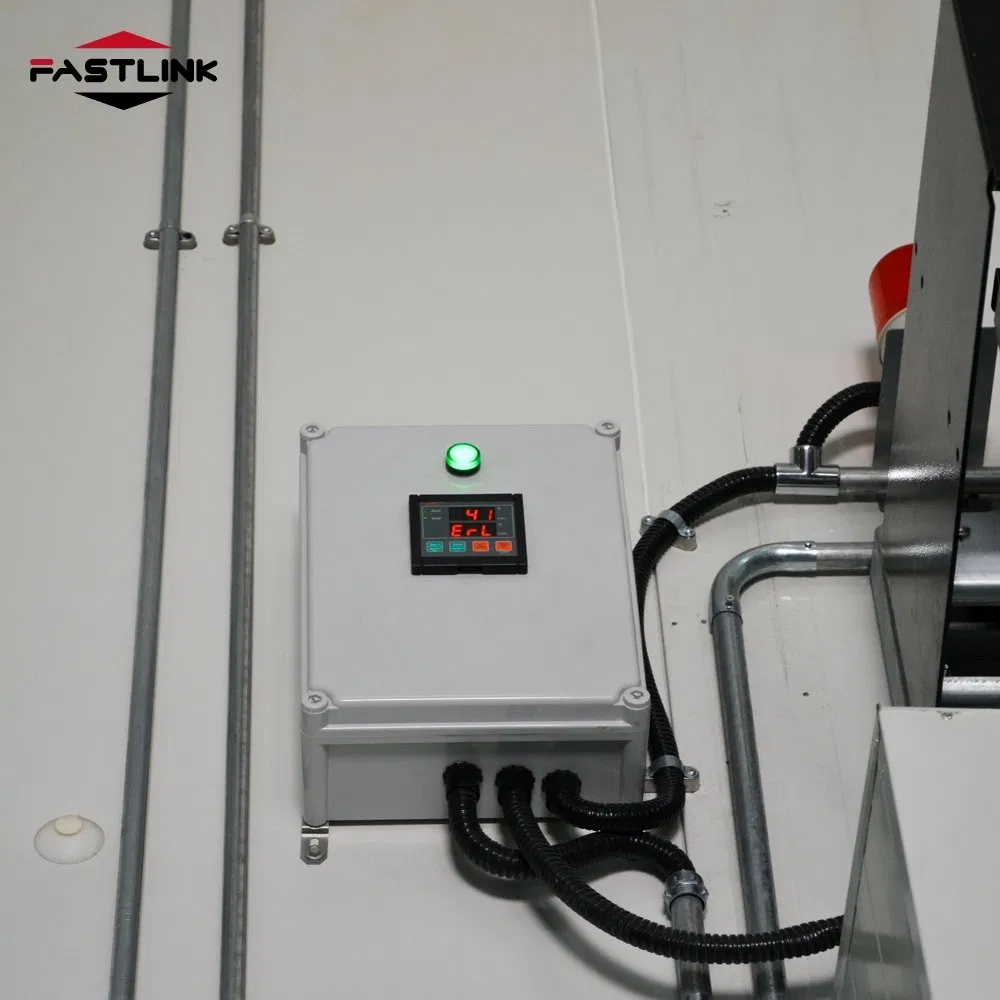

Control SystemFrequency Conversion Intelligent Control System
Detailed Product Gallery

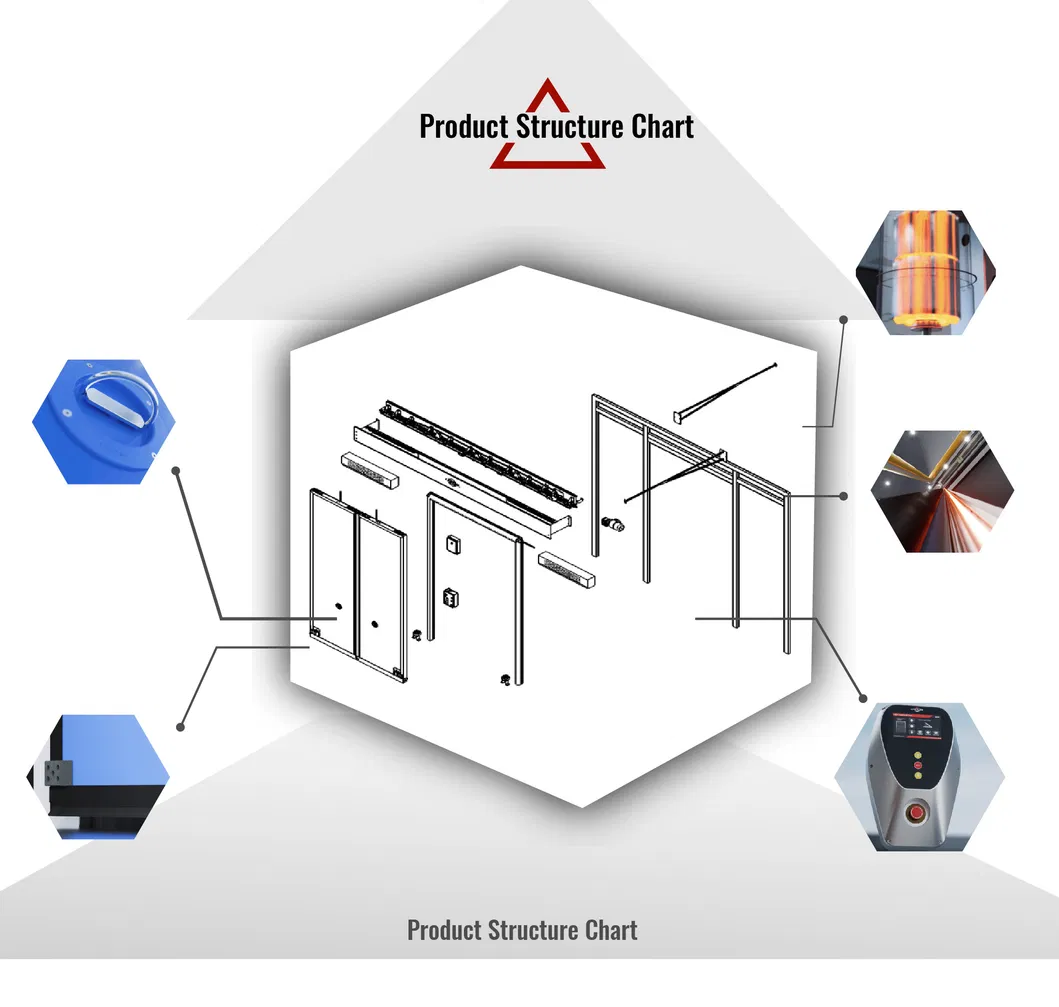

Cold Storage Door Structure Insulation Performance Security Features Installation Guide Control Box Detail Application Scenario Production Line Manufacturing Process Quality Control Sealing System Anti-frost System Packaging Detail
Technical Specifications Summary Engineering Drawing

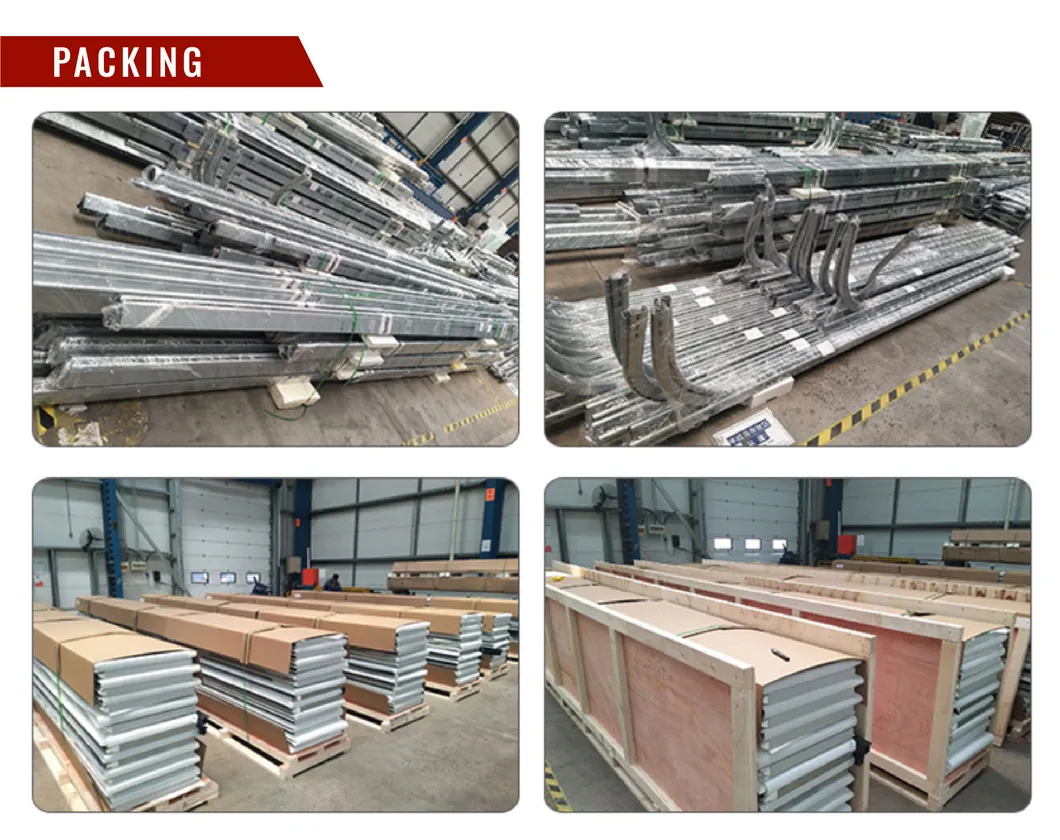

Packaging & Delivery Information
Package Type
Wooden Box
Package Size
716.40cm * 86.40cm * 77.10cm
Gross Weight
530.00kg
Lead Time
30 Days
Frequently Asked Questions (FAQ)
How much installation space is required above the door opening?
A minimum reserved space of 800mm is required above the door opening for installation.
Is this door suitable for extreme cold storage environments?
Yes, it is designed for environments down to -25°C. The 100mm composite insulation and built-in heating system effectively isolate air convection and prevent frost.
What is the advantage of the opening speed of 2.5 M/S?
The high speed ensures rapid passage, which significantly reduces the time the door remains open, thereby lowering energy loss and maintaining stable internal temperatures.

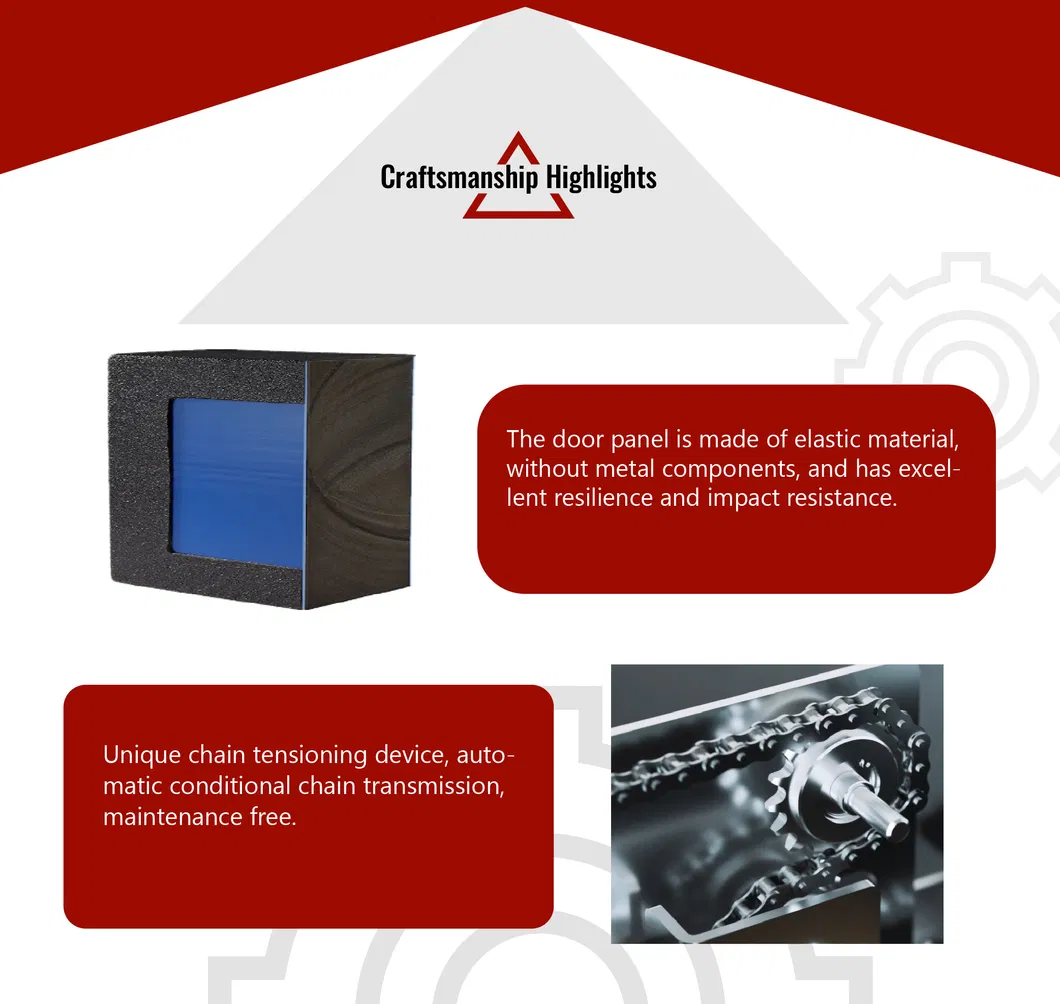

How does the anti-collision system work?
The door panel features an innovative elastic design and a derailment reset function. If hit, the door automatically resets, avoiding repair downtime and maintenance costs.
What safety features are included as standard?
Standard safety features include a safety infrared device and an emergency manual opening device. Optional features like safety light curtains and warning lights are also available.

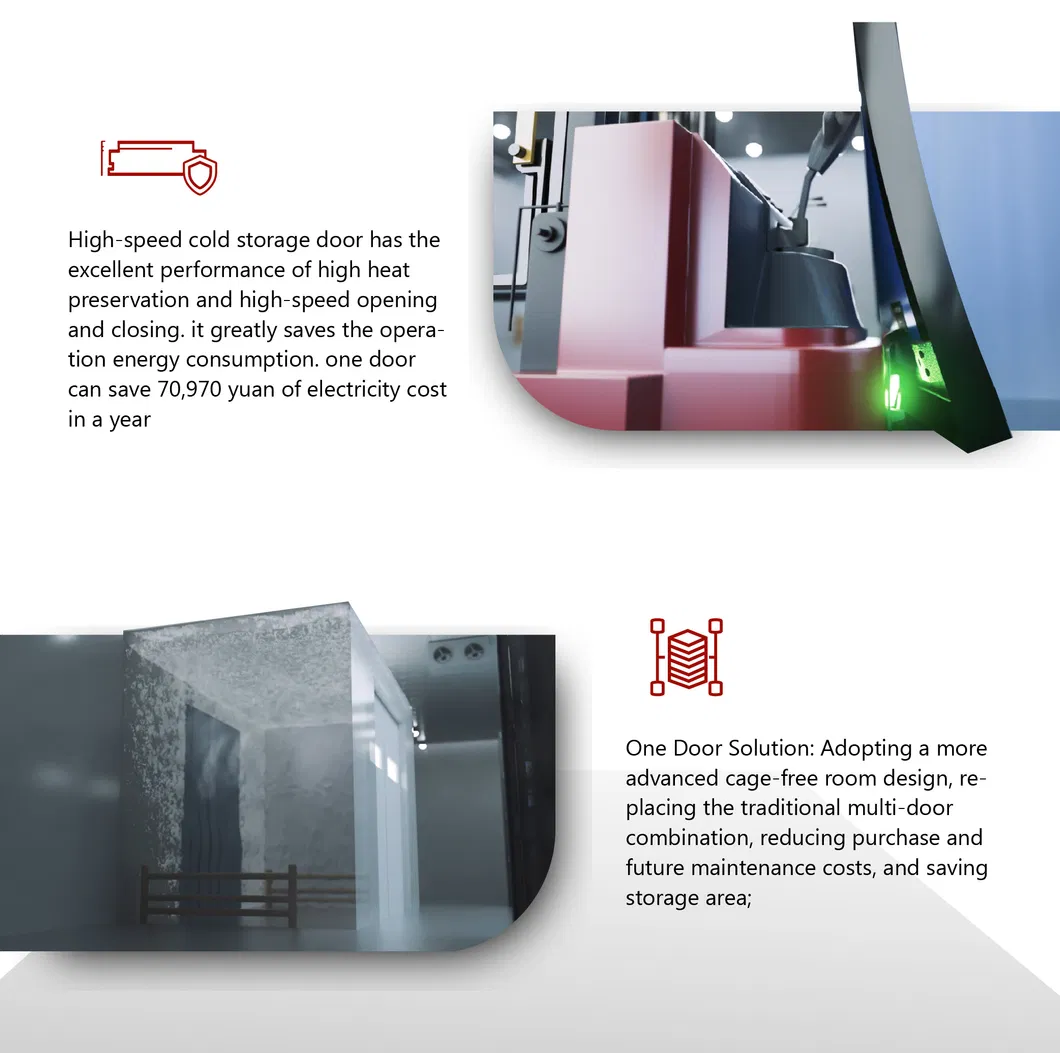

Can this door replace a multi-door setup?
Yes, the HSS-DEY model is designed with a no-return cage room concept, allowing a single door to handle high-frequency pass-through and insulation, saving both space and cost.
