Fastlink Hot Sale Industrial Intelligent Control Safety Protection Mechanical Hydraulic Loading Dock Leveler Lifts

1 / 5

Fastlink Hot Sale Industrial Intelligent Control Safety Protection Mechanical Hydraulic Loading Dock Leveler Lifts

Customization:	Available
After-sales Service:	2years
Warranty:	1year

Send Inquiry

Product Description

Basic Specifications

Model NO.

DLS-SHK

Application

Workshop Crane, Warehouse Crane

Lift Mechanism

Hydraulic

Driven Type

Hydraulic

Certification

Dynamic Load

6.8t/10t/15t

Table Size

W2000mm*L2500mm*H600mm

Opening Mode

Electro-Hydraulic

Lip Length

400mm

Power

380V, 3pH, 50Hz

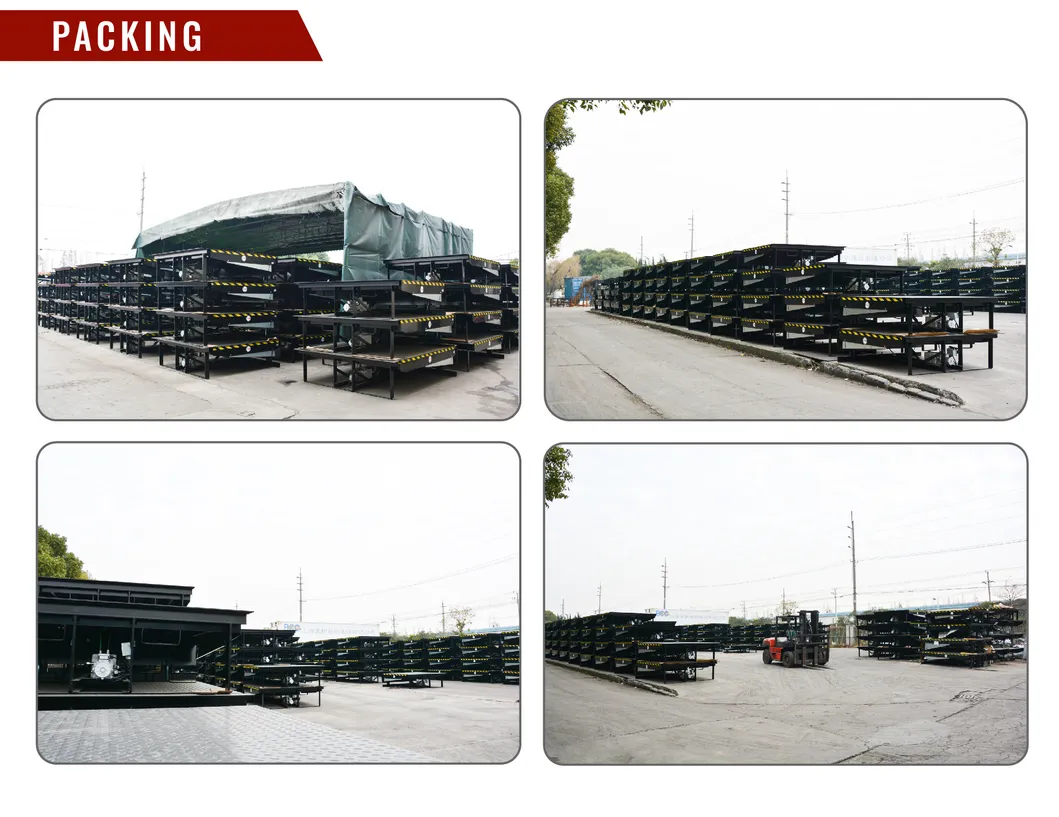

Package

Wooden Box

HS Code

8428909090

Product Description

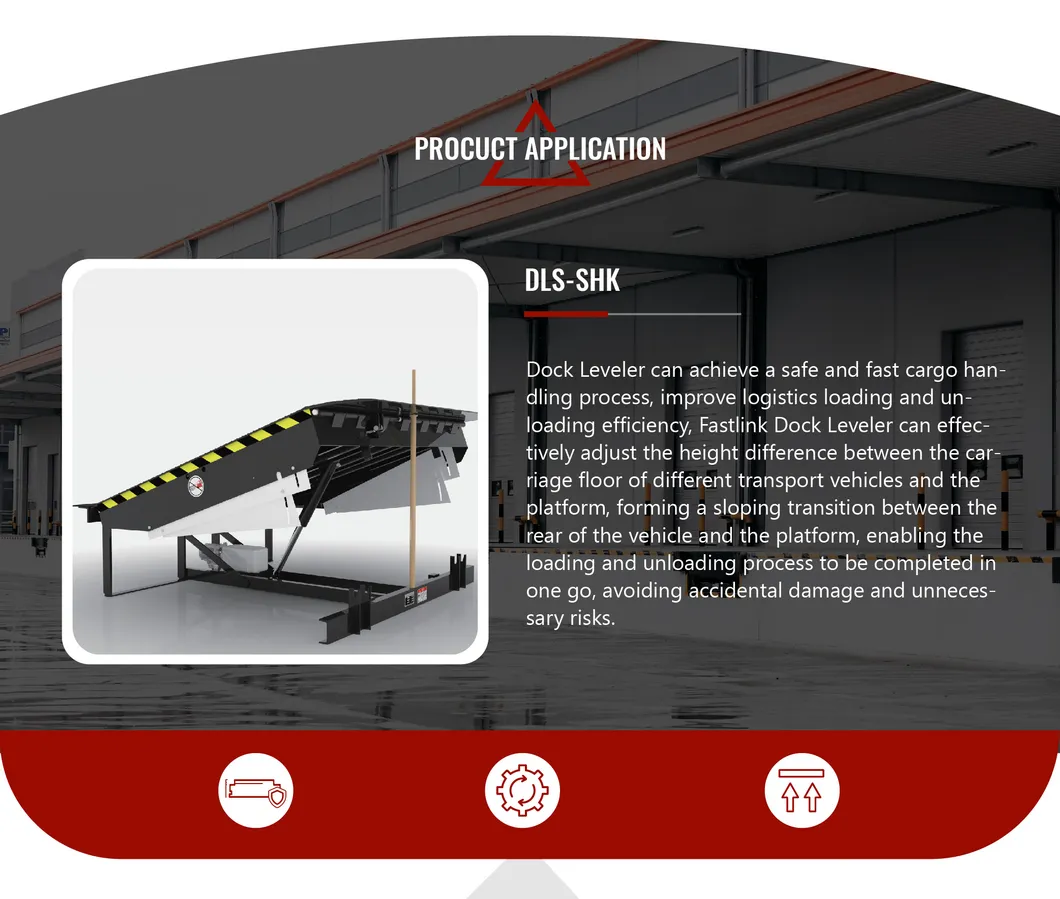

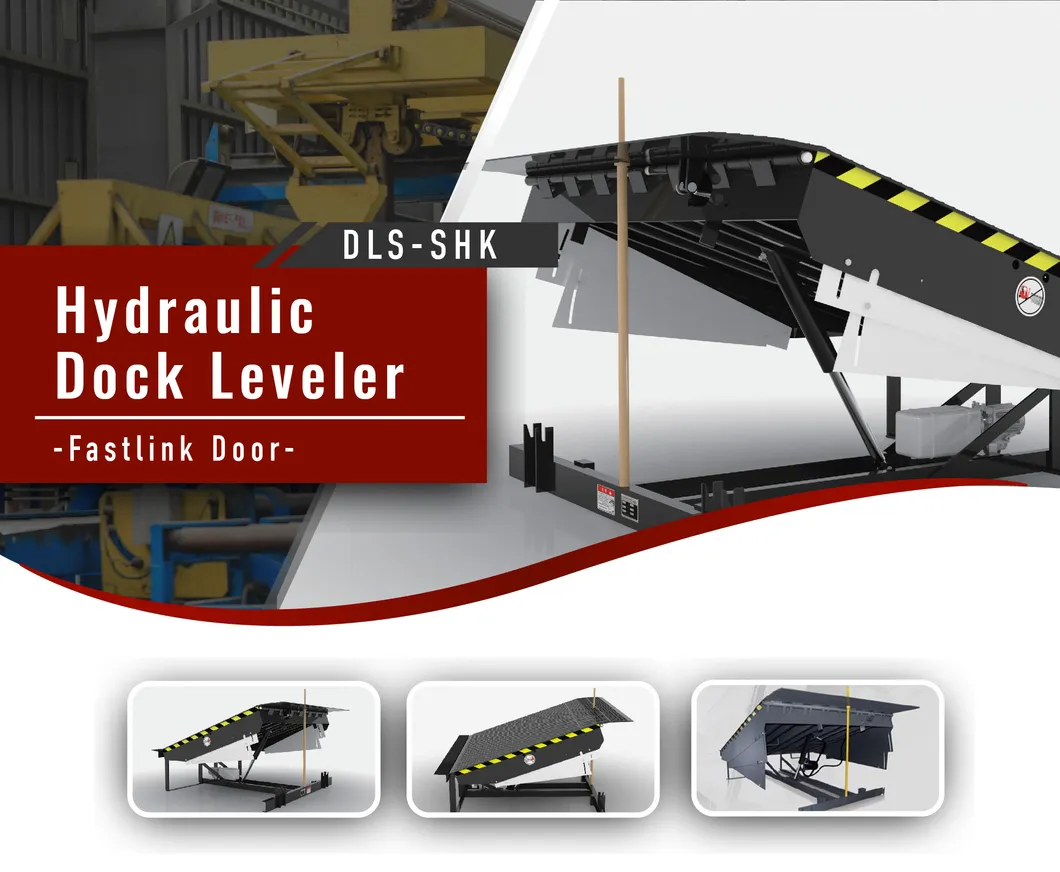

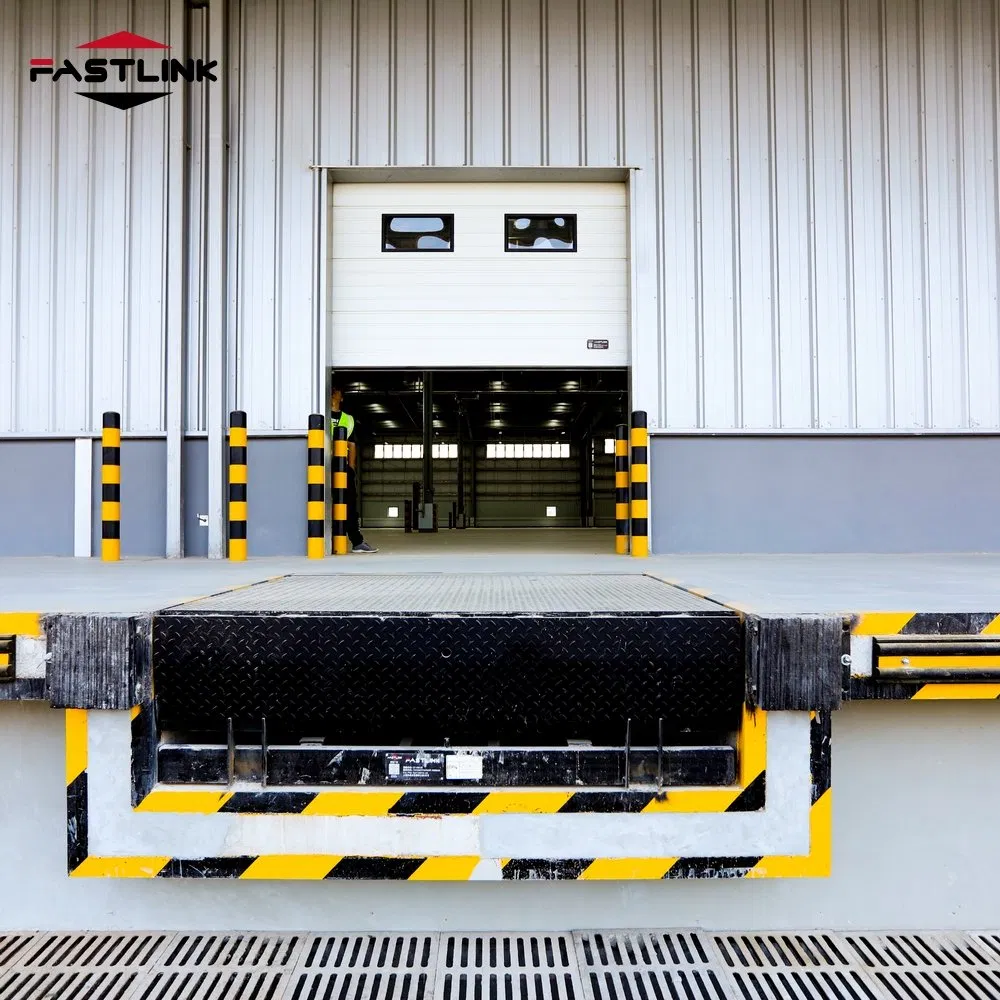

Mechanical Hydraulic Loading Dock Leveler Lifts

Industrial Intelligent Control Safety Protection

Technical Attributes
Product Type	Hydraulic docks leveler
Material	High strength steel

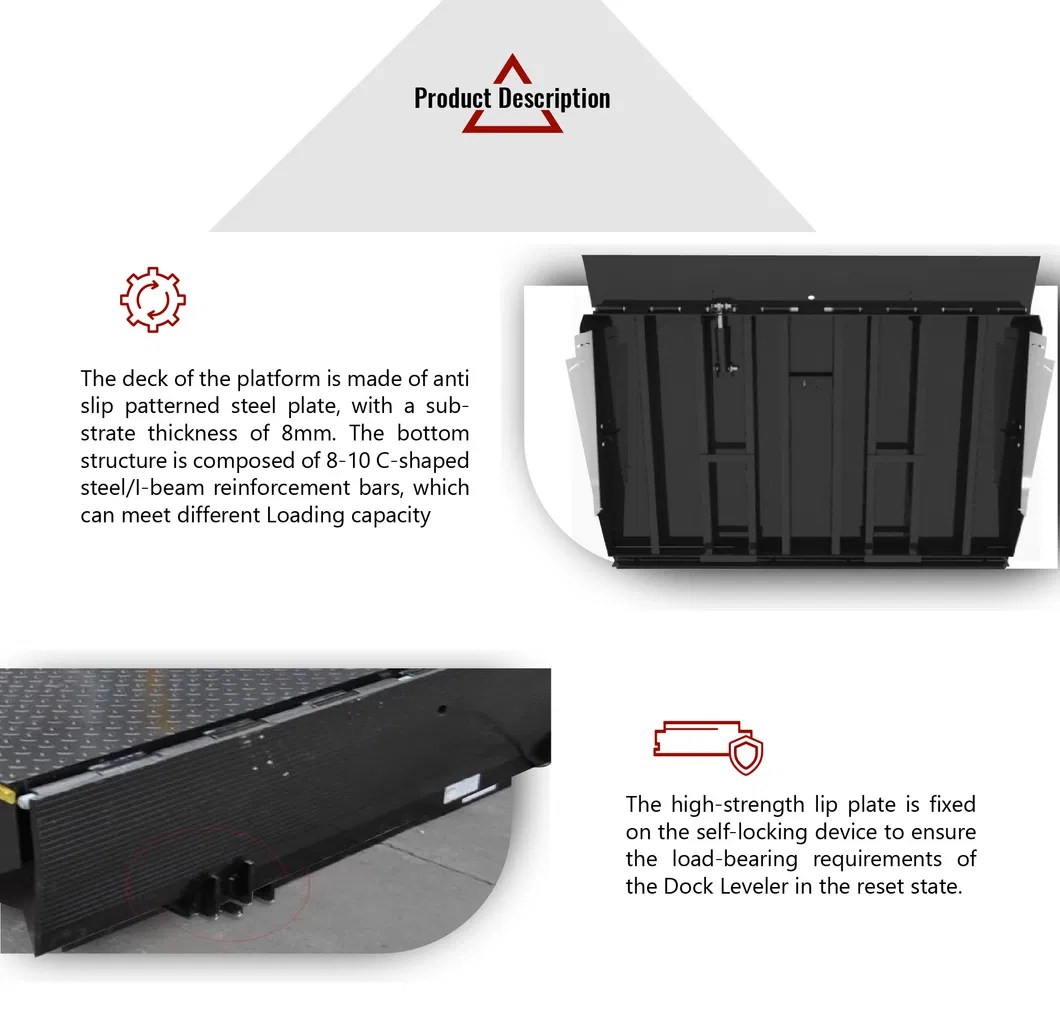

Deck Plate	Non-slip pattern steel plate, substrate thickness 8mm

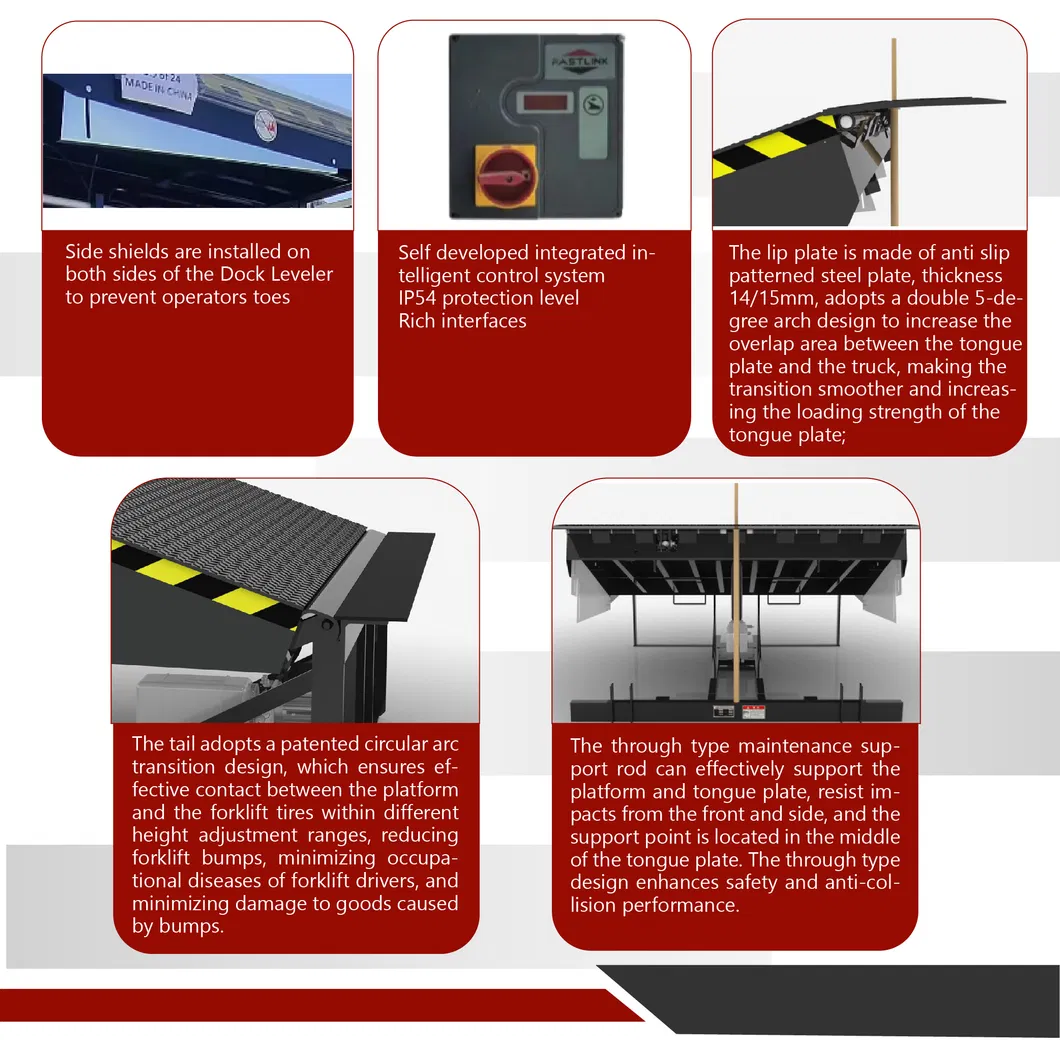

Lip Plate	Anti-slip tread steel plate, thickness 14/15mm, double 5-degree arch design

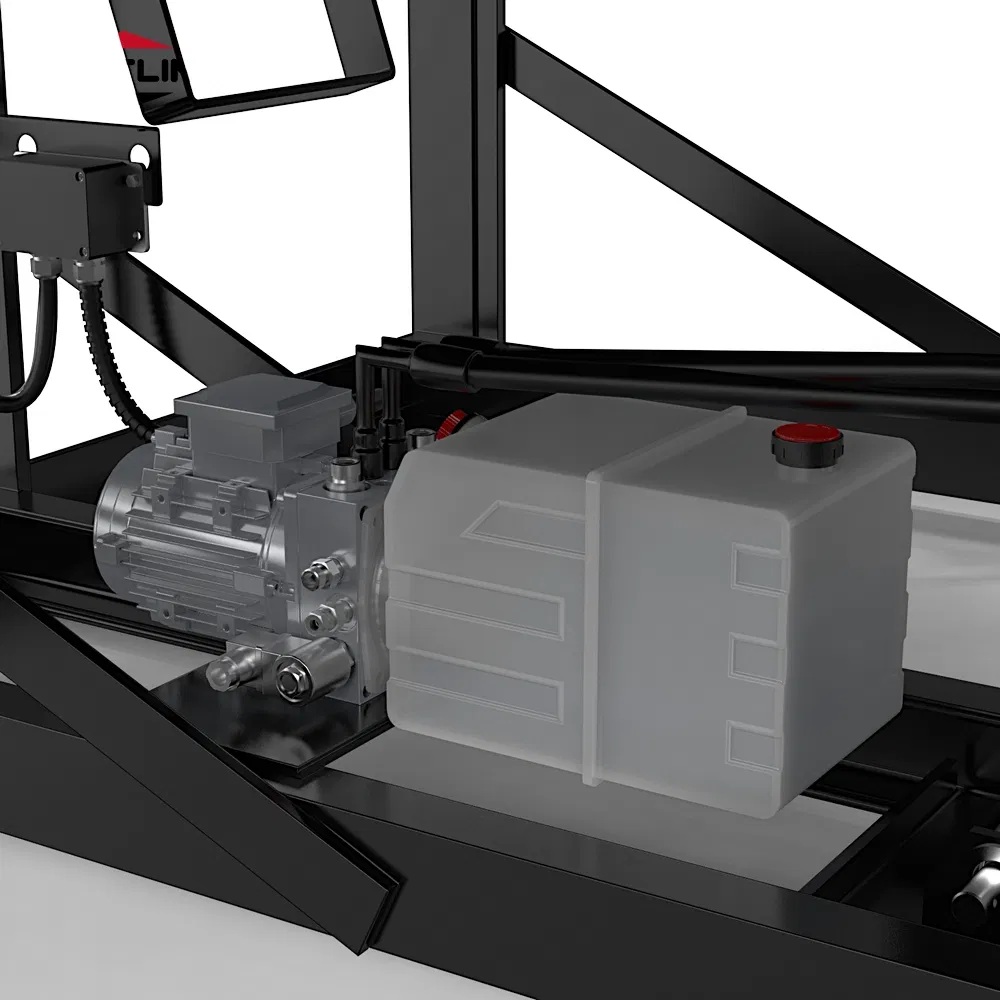

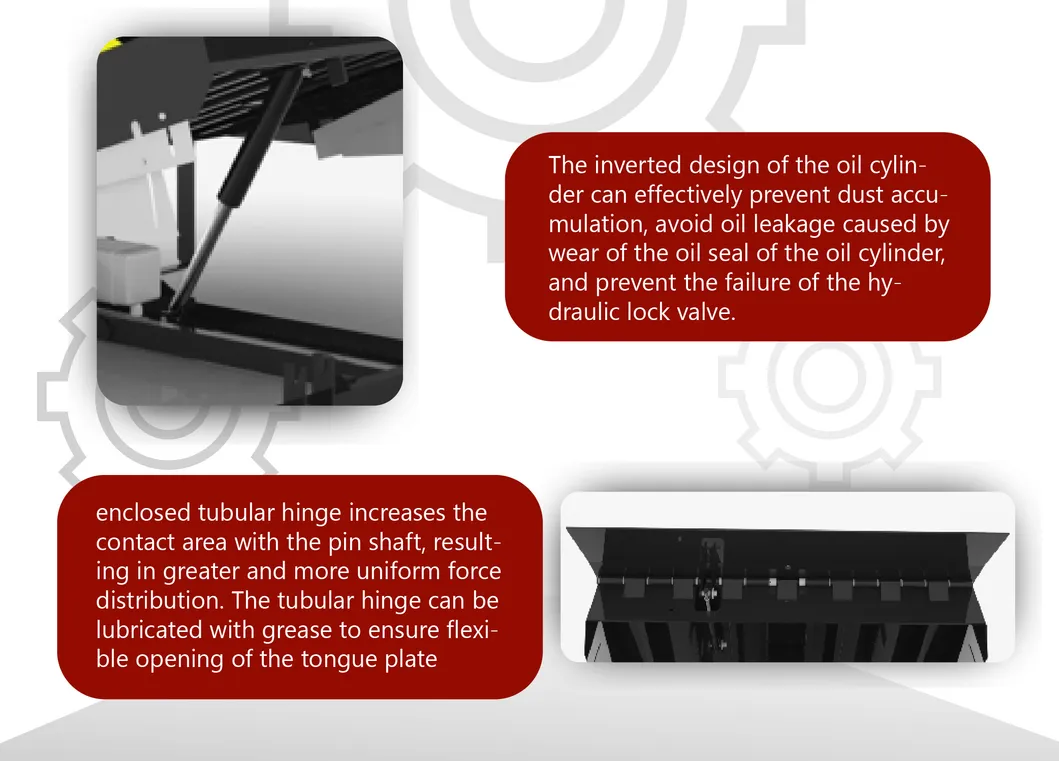

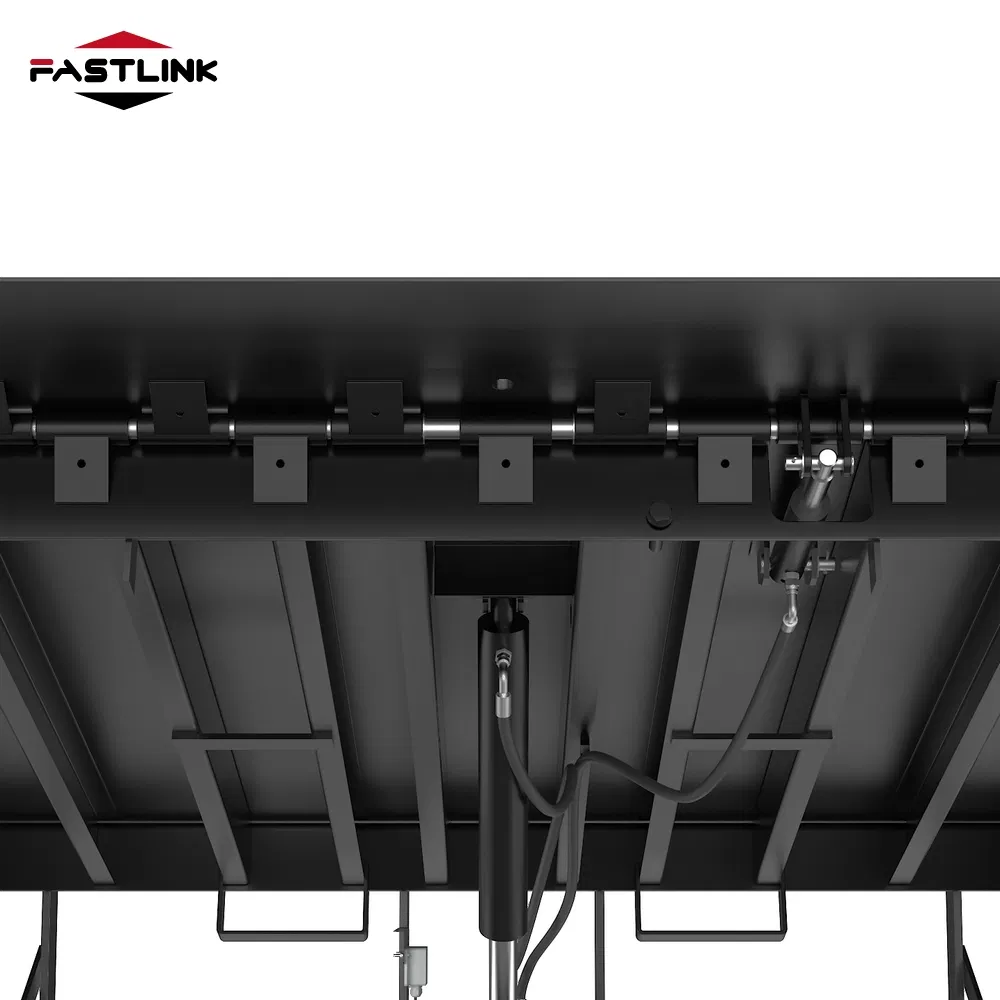

Hydraulic System	Integrated hydraulic power unit; tongue controlled by hydraulic system
Control System	Intelligent control: fault code display, operation status, fire linkage, interlock function

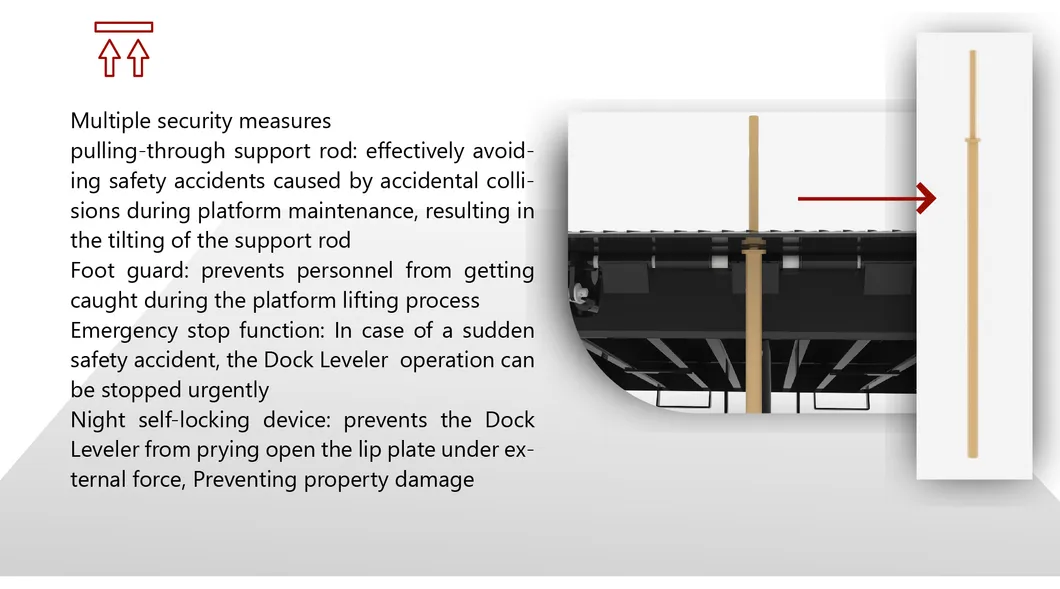

Safety Config	Penetrating maintenance support bar, Side foot protectors
Dynamic Load	6.8T / 10T / 15T
Color Options	RAL9011 / RAL7012 / RAL5002

Frequently Asked Questions

How do I choose the correct length for the Hydraulic Dock Leveler?

The length of the platform depends mainly on the difference between the height of the carriage floor and the height of the platform. The formula used is: Platform length L = h (height difference) / 0.125.

What are the common sizes available for these dock levelers?

Commonly selected sizes include W2000mm * L2000mm * H600mm. Minimum sizes start from W1400mm * L2000mm * H500mm, and maximum sizes can go up to W2200mm * L4000mm * H600mm.

What is the difference between dynamic and static platform loads?

Dynamic load refers to the maximum combined weight of the forklift and cargo during active operation. Static load is the maximum weight of static objects that can be placed on the platform when it is in its reset state.

What safety features are included in the DLS-SHK model?

The leveler is equipped with penetrating maintenance support bars that protect against front and side impacts, as well as side foot protectors to prevent operator injury by keeping feet away from the underside of the platform.

How does the intelligent control system add value?

The intelligent control system includes fault code displays, operation status monitoring, fire linkage, and interlock functions. It is designed for safer operation and better integration into intelligent warehouse management.

What are the primary applications for this equipment?

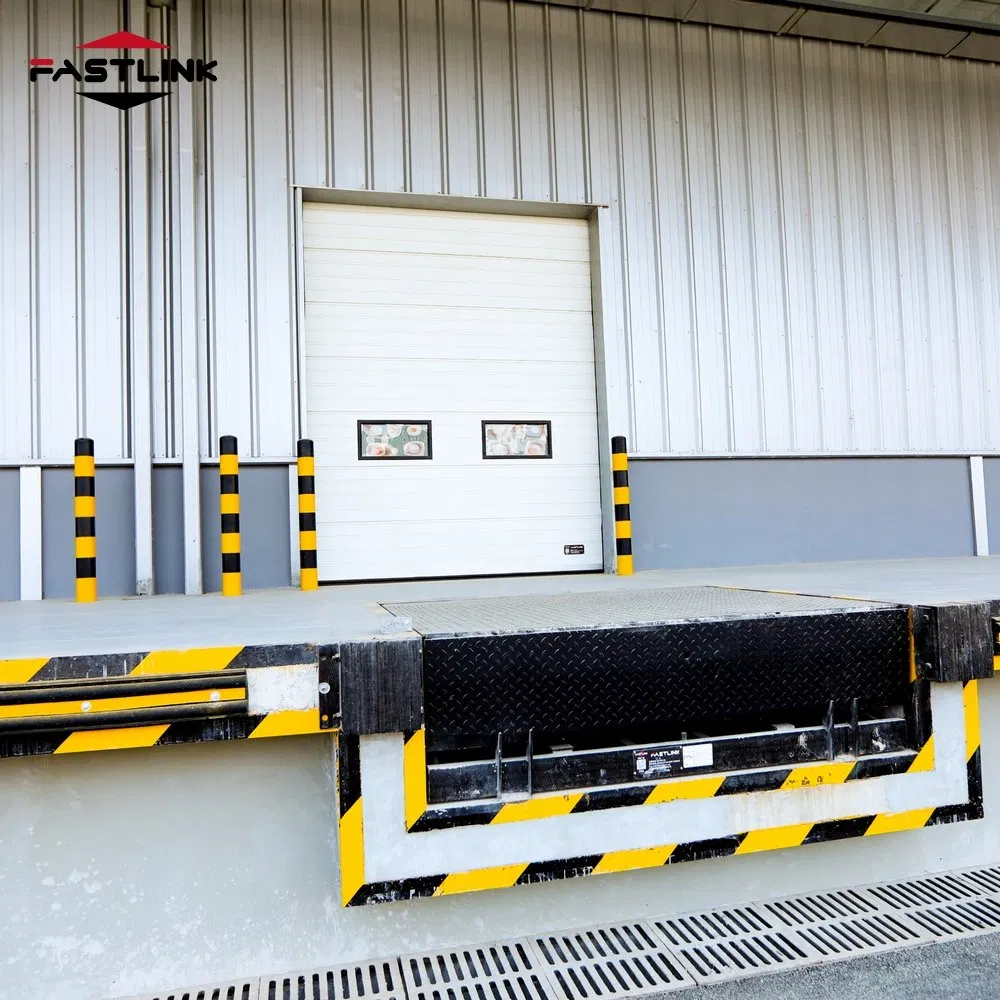

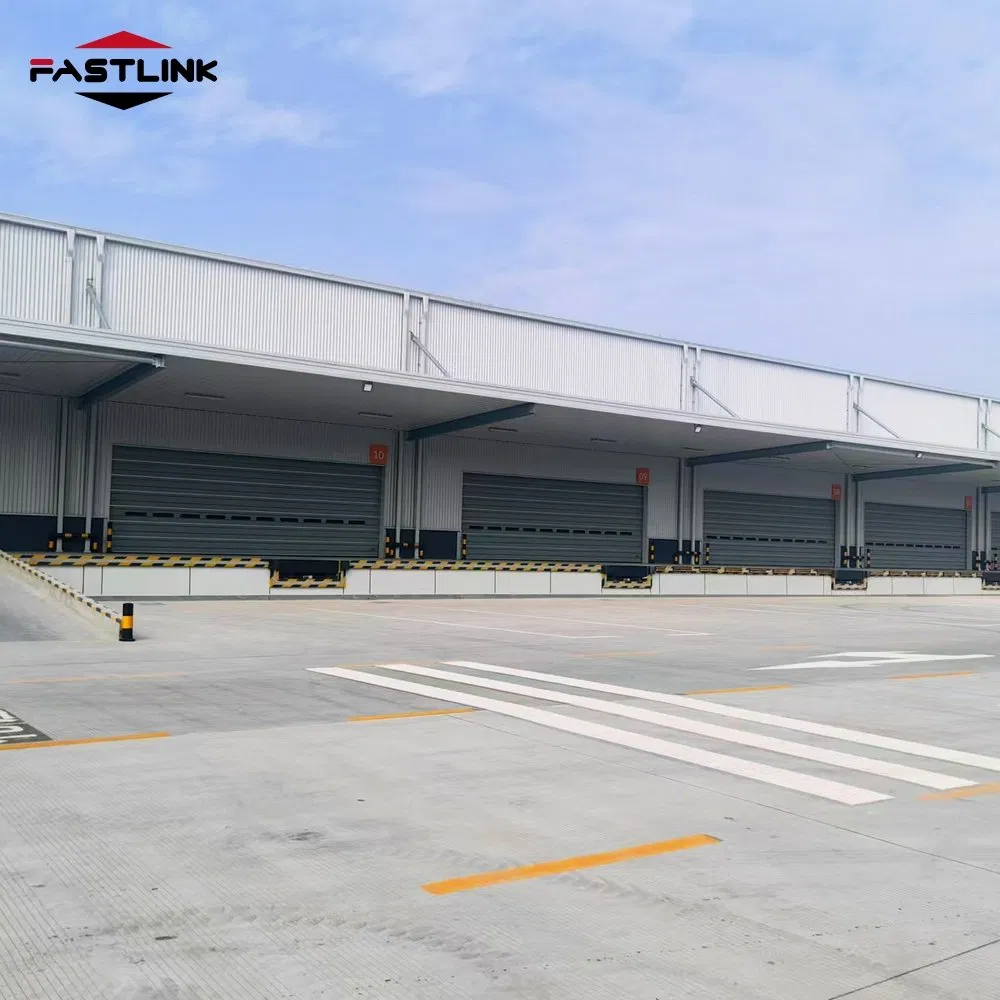

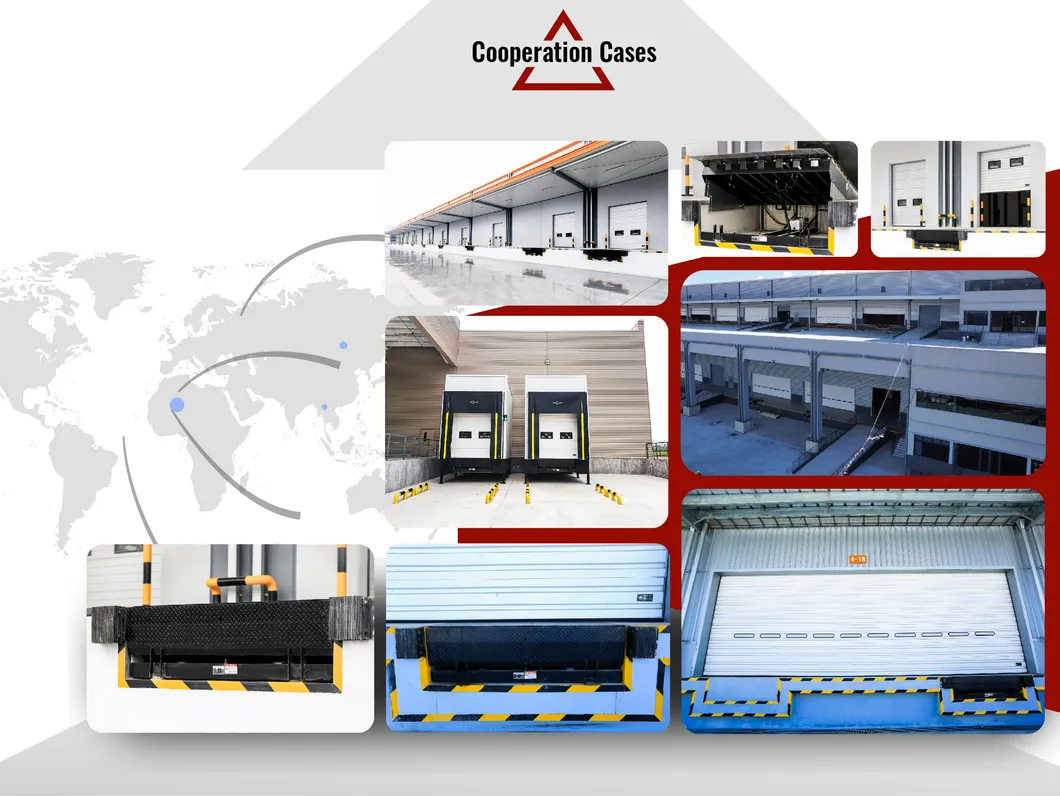

It is primarily designed for dock leveling in industrial plants, logistics centers, and warehousing buildings, suitable for both workshop and warehouse crane applications.
