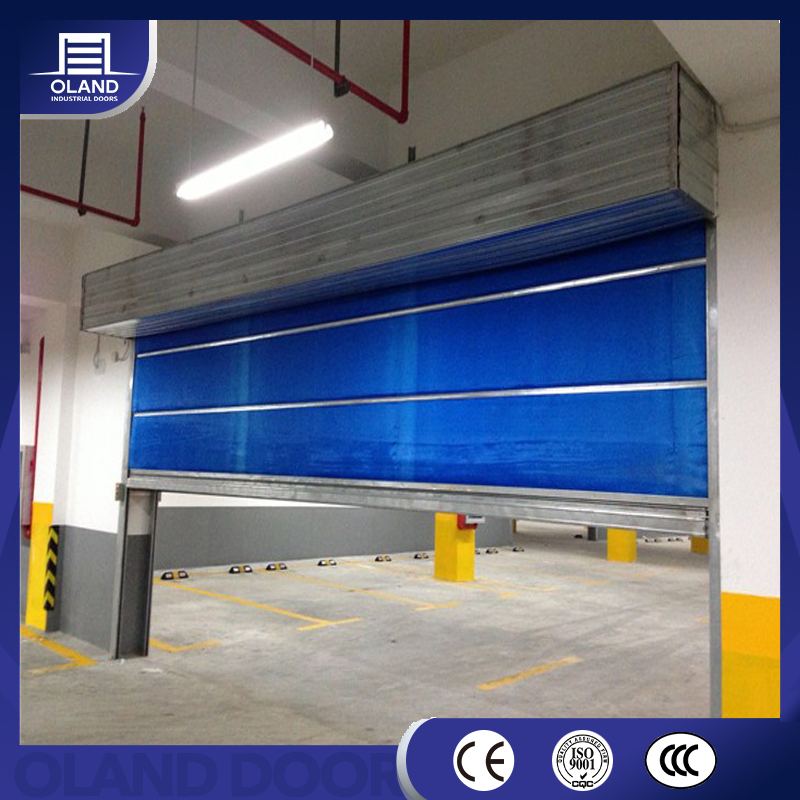

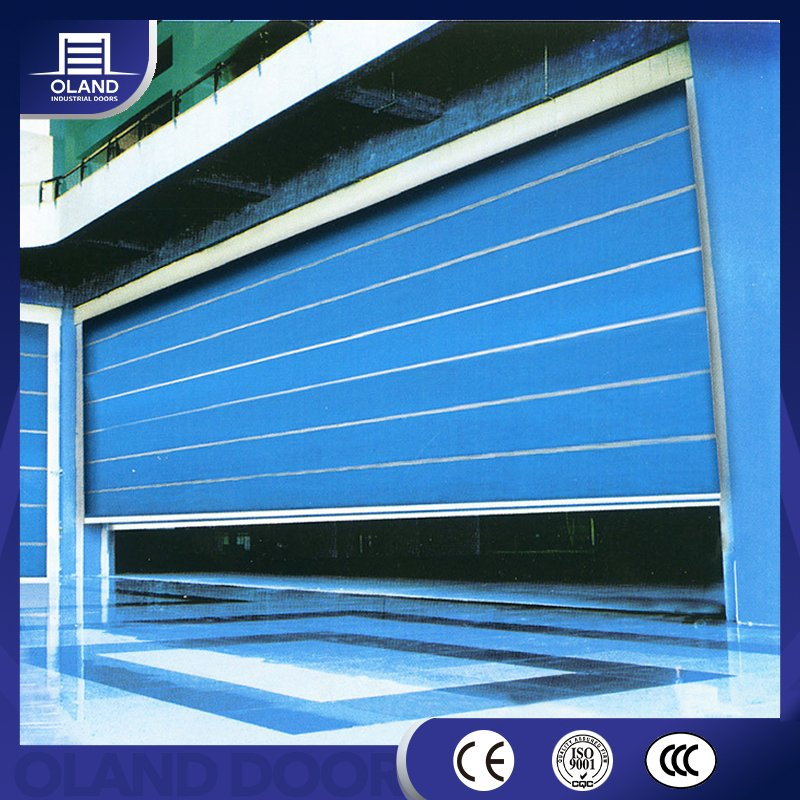

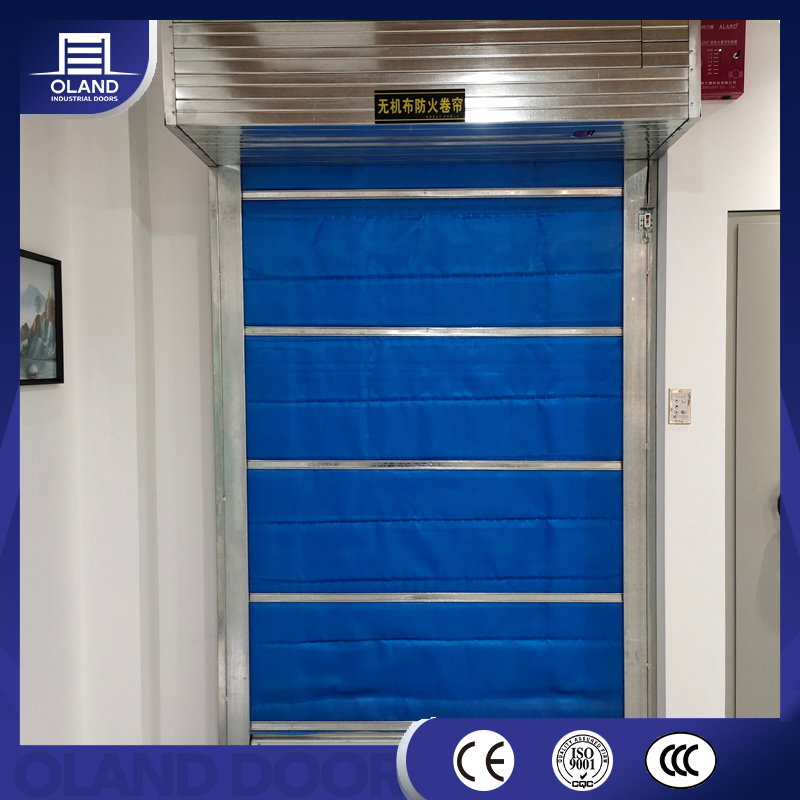

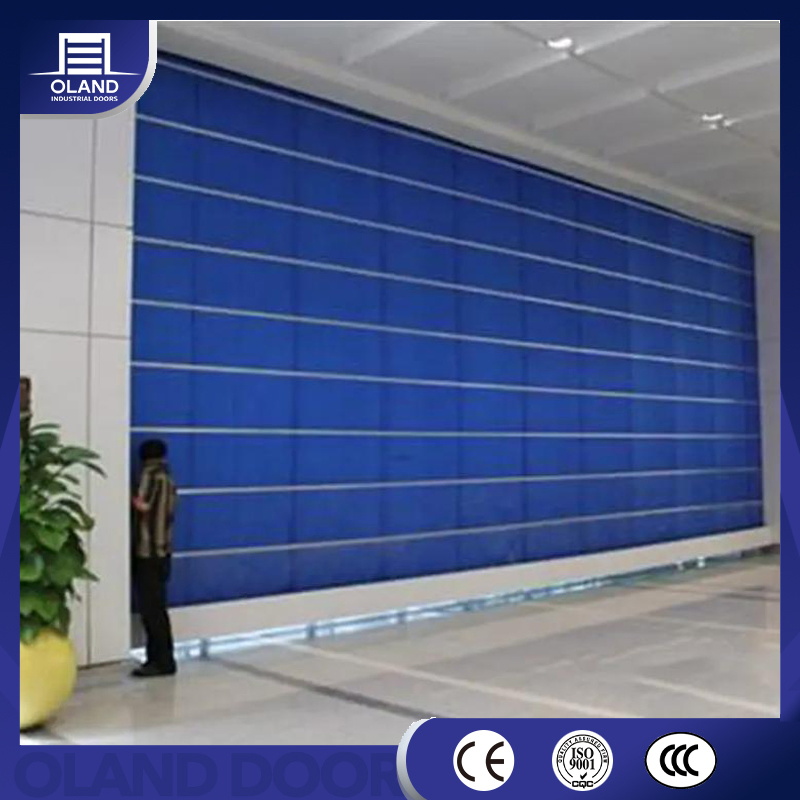

Emergency Exit Fireproof Rolling Doors Electric Automatic Fire Rated Inorganic Fabric Curtain Roller Shutter Door
Emergency Exit Fireproof Rolling Doors Electric Automatic Fire Rated Inorganic Fabric Curtain Roller Shutter Door
Emergency Exit Fireproof Rolling Doors Electric Automatic Fire Rated Inorganic Fabric Curtain Roller Shutter Door
Emergency Exit Fireproof Rolling Doors Electric Automatic Fire Rated Inorganic Fabric Curtain Roller Shutter Door
Emergency Exit Fireproof Rolling Doors Electric Automatic Fire Rated Inorganic Fabric Curtain Roller Shutter Door
1 / 5
Emergency Exit Fireproof Rolling Doors Electric Automatic Fire Rated Inorganic Fabric Curtain Roller Shutter Door
Emergency Exit Fireproof Rolling Doors Electric Automatic Fire Rated Inorganic Fabric Curtain Roller Shutter Door
Emergency Exit Fireproof Rolling Doors Electric Automatic Fire Rated Inorganic Fabric Curtain Roller Shutter Door
Emergency Exit Fireproof Rolling Doors Electric Automatic Fire Rated Inorganic Fabric Curtain Roller Shutter Door
Emergency Exit Fireproof Rolling Doors Electric Automatic Fire Rated Inorganic Fabric Curtain Roller Shutter Door

Emergency Exit Fireproof Rolling Doors Electric Automatic Fire Rated Inorganic Fabric Curtain Roller Shutter Door

Customization: Available
After-sales Service: Online Technical Support/Parts Replacement
Warranty: 1 Years
Send Inquiry

Product Description

Basic Information
Model NO.
Inorganic cloth roller shutter door
Material
Inorganic Fireproof Cloth
Type
Rolling
Open Style
Rolling
Opening Type
Power Driven
Special Function
Fire Proofing
Color
Customized
Certification
CCC, ISO9001, CE
Position
Industrial
Production Capacity
1000 Sets/Year
Product Description

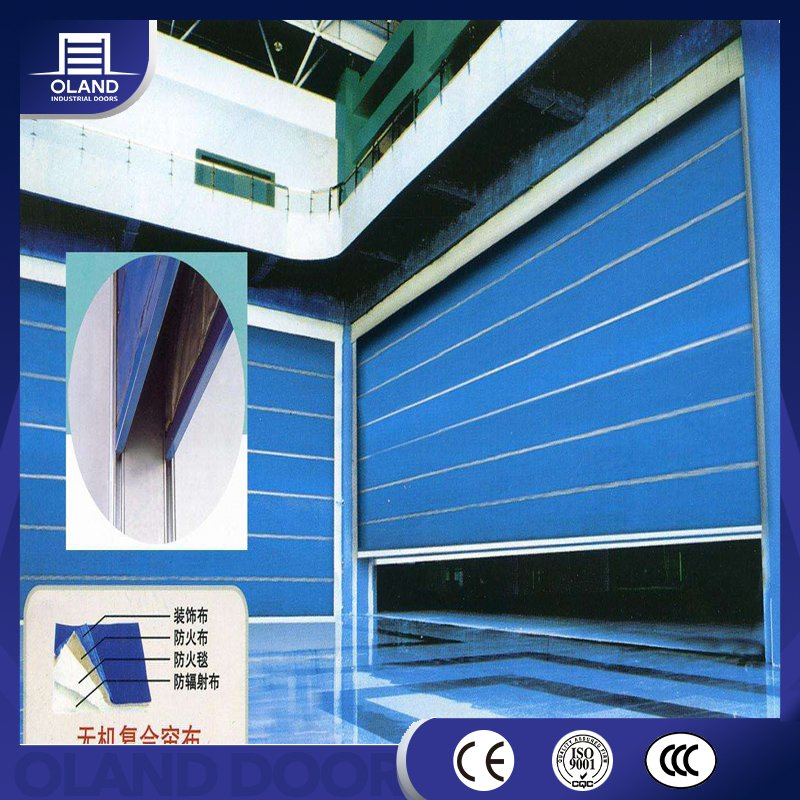

Inorganic cloth roller shutter door adopts lightweight and flexible four-layer inorganic fireproof fabric as the curtain material, which has excellent high temperature resistance, flame retardant and smoke-proof performance. The design of double-track and double-curtain structure further enhances its heat insulation and protection effect, which is suitable for commercial and public buildings with high requirements on space aesthetics and safety. It can be linked with the fire fighting system to respond quickly in case of fire, forming an effective fire separation to protect the safety of people and property.

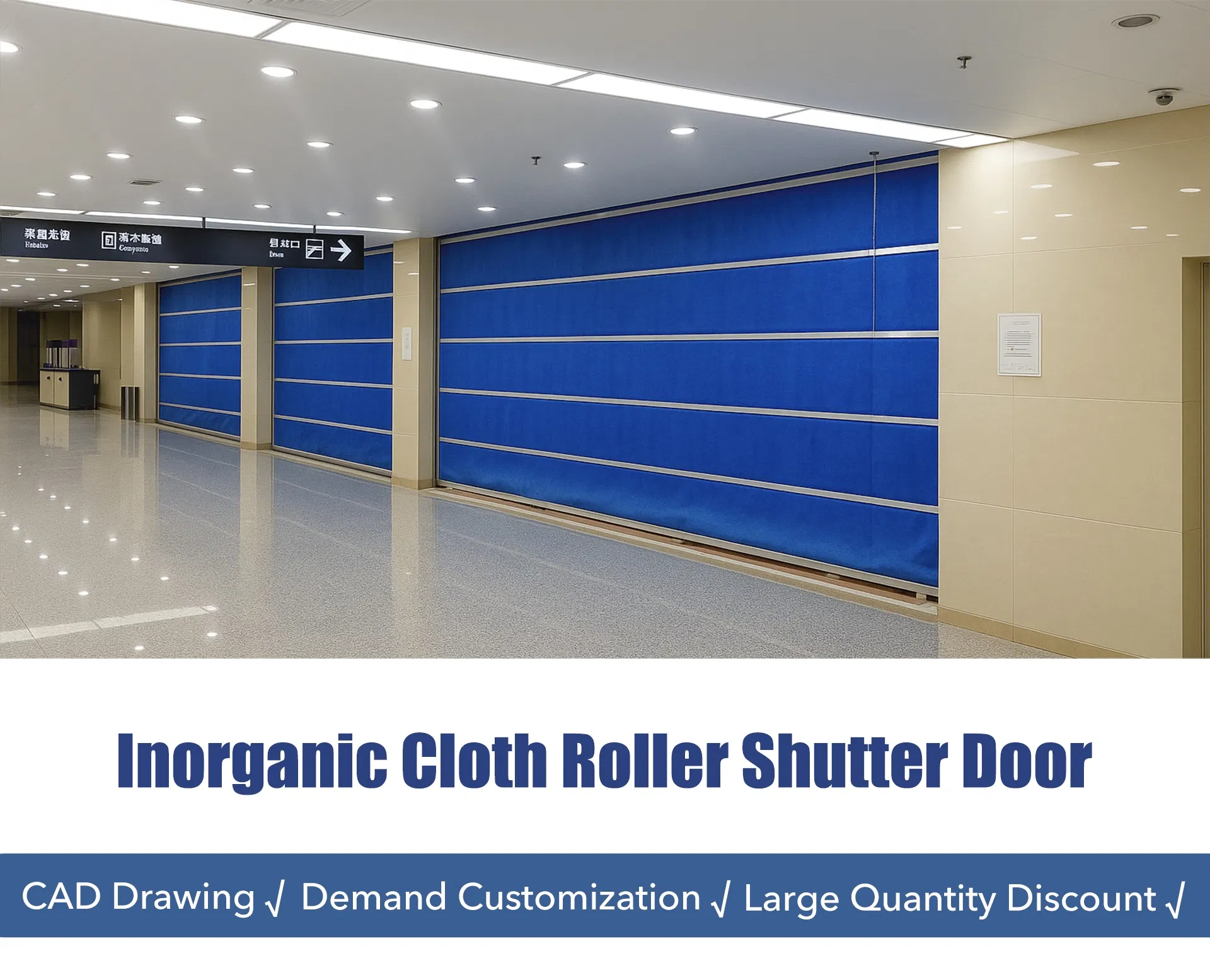

Fireproof Rolling Doors
Technical Specifications
Parameter Item Technical Detail
Max sizeRoller type: 12m*12m; Stacking type: customized sizes for ultra-wide openings
Opening speed6m/min - 10m/min
Power supply3phase 380v±10% 50HZ, DC 24V CONTROLLER
Fire resistance time≥3 hours
Wind pressure490-1177Pa (14m/s)
Weight3.5kg/sqm
Curtain smoke leakage≤0.12m³/(sqm/min)
Unexposed surface temperature≤154℃
Structure & Components
Standard version of the inorganic cloth roller shutter door structure and accessories. Customization is available based on specific project requirements.

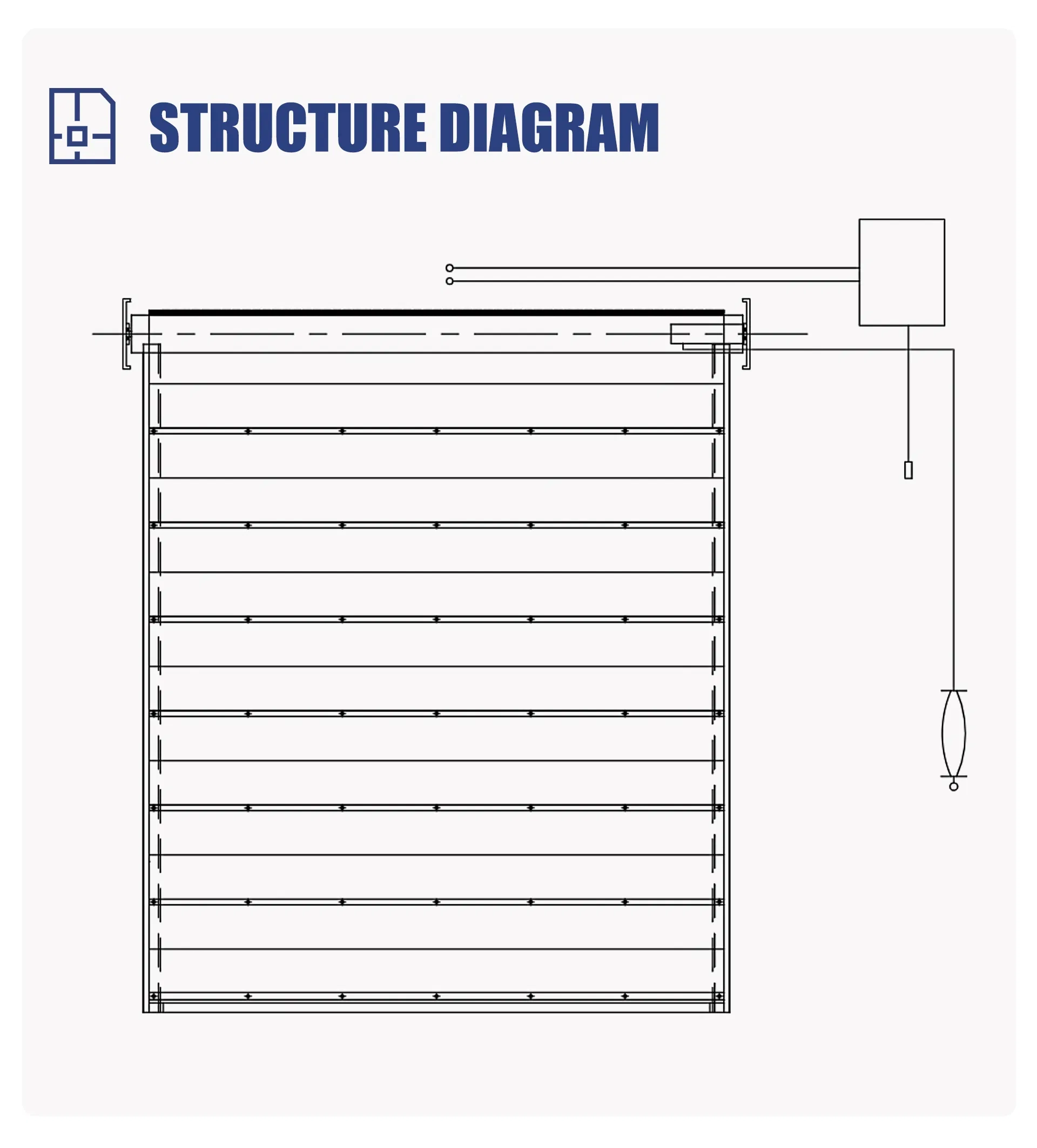

Structure Diagram

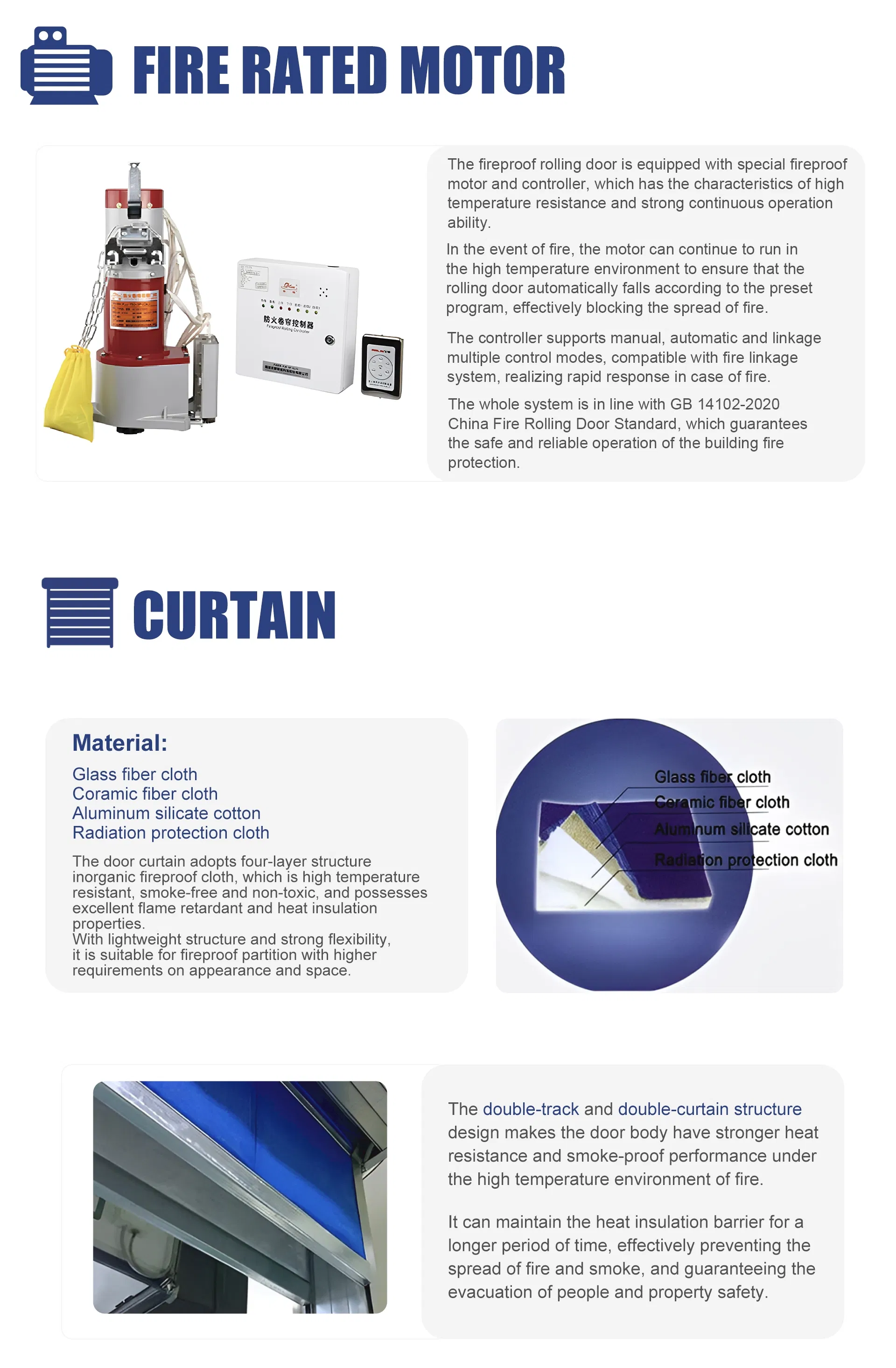

Product Details 1

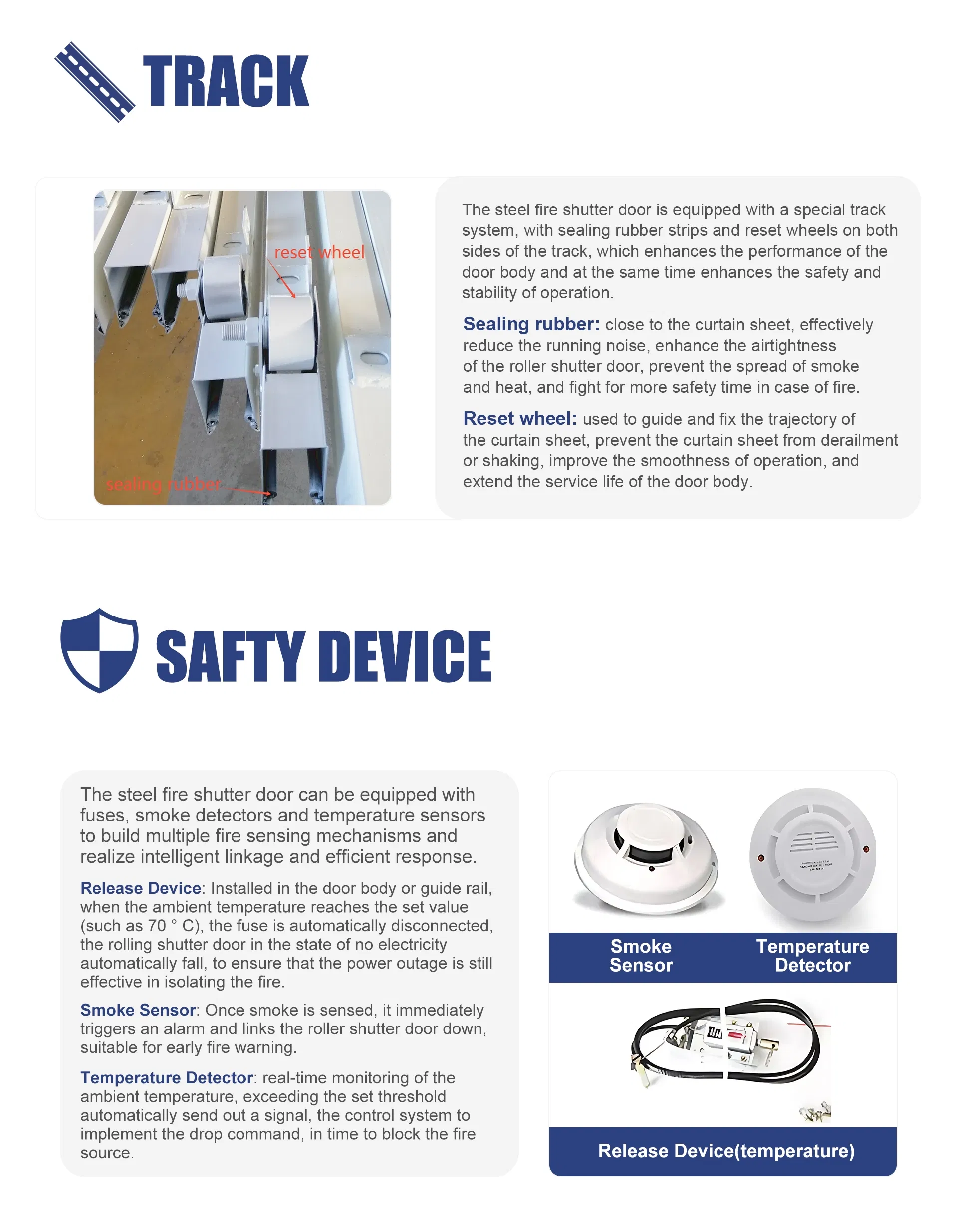

Product Details 2
Project Showcase
Project 1
Project 2
Project 3
Project 4
Frequently Asked Questions
Q: What is your Minimum Order Quantity (MOQ)?
A: There is no limit. We accept orders for 1 set or more.
Q: What is the typical delivery time?
A: The standard delivery time is approximately 15 to 30 days depending on the order size.
Q: How are the products packaged for shipping?
A: We use high-quality polywood boxes to ensure the safety of the doors during transport.
Q: Is it difficult to install the roller shutter doors?
A: They are easy to install. we provide a detailed manual and installation video for your reference, and offer technical support.
Q: How can I get an exact price for my project?
A: Please provide the exact dimensions and quantity required. We will provide a detailed quotation based on your specific requirements.
Q: What other types of doors do you produce?
A: We also produce sectional garage doors, industrial doors, high-speed doors, and hangar doors for various applications.
