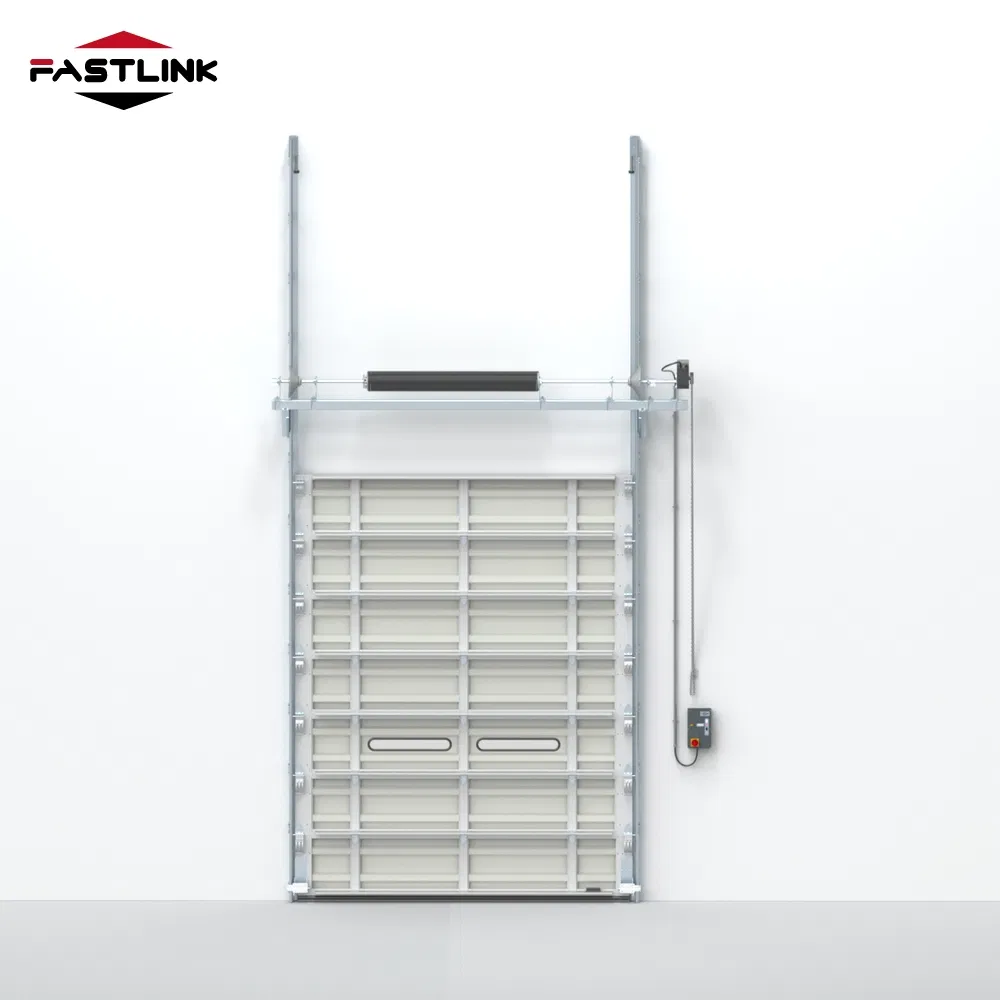

Fastlink High Quality Workshop Industrial Aluminum Overhead Single Plank Sectional Doors

1 / 5

Fastlink High Quality Workshop Industrial Aluminum Overhead Single Plank Sectional Doors

Customization:	Available
After-sales Service:	2 Years
Warranty:	1year

Send Inquiry

Product Description

Basic Specifications

Model NO.:SSP-SAS

Material:Aluminum Alloy

Type:Industrial Sectional Doors

Open Style:Sliding

Opening Type:Electric/Manual

Color:Ral9002 / Ral9006 / Ral7040 / Ral7045

Wind Resistance:700PA (GB/T 7106-2008)

Speed:0.25m/S

Certification:CE, CPR, UL

Application:Workshop, Logistics, Warehousing

★

Key Attributes & Features

Windproof

700pa high wind resistance design, suitable for coastal areas.

Security

Equipped with anti-breaking devices and optional infrared safety.

Precision Control

Intelligent control system with absolute encoder for positioning.

Durable Material

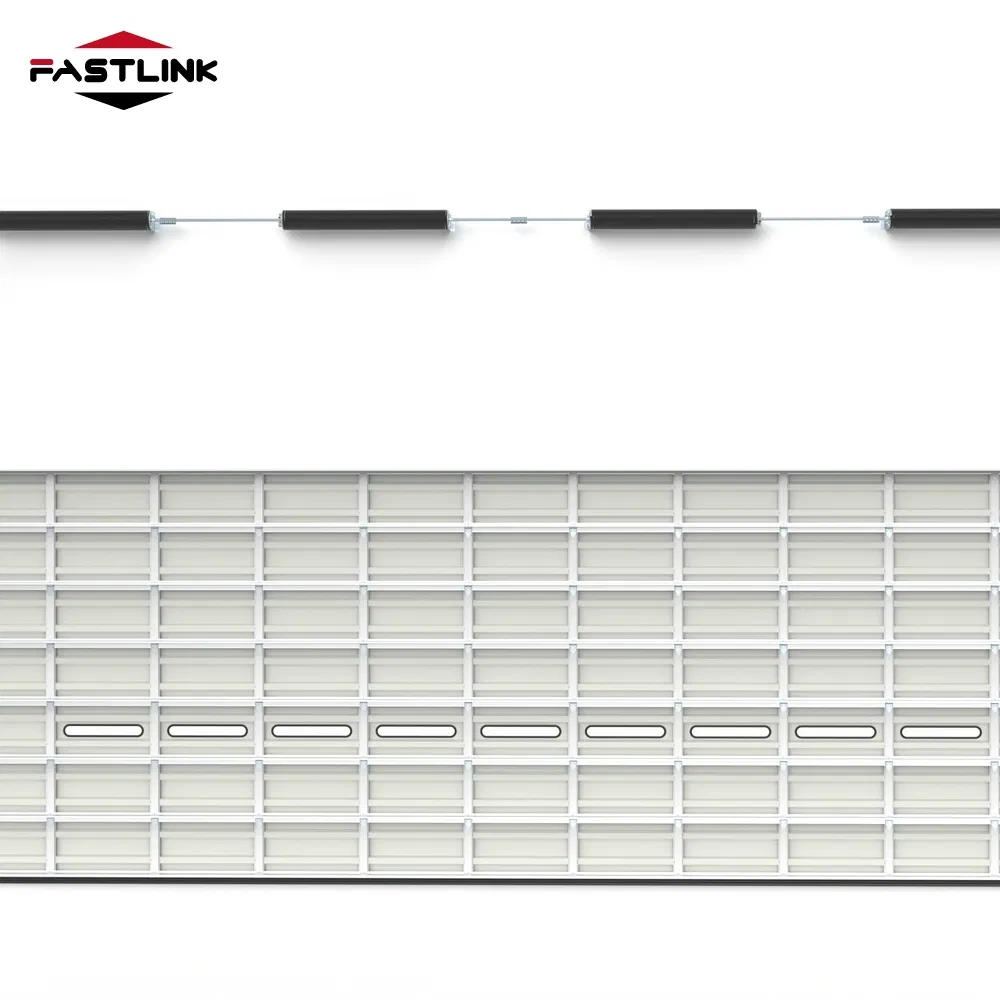

50mm aluminum alloy profiled plate with embossed surface.

📋

Technical Details

Attribute Configuration
Size Range	Min: W2000H2000mm; Max: W11500H6000mm
Panel Thickness	Total thickness 50mm

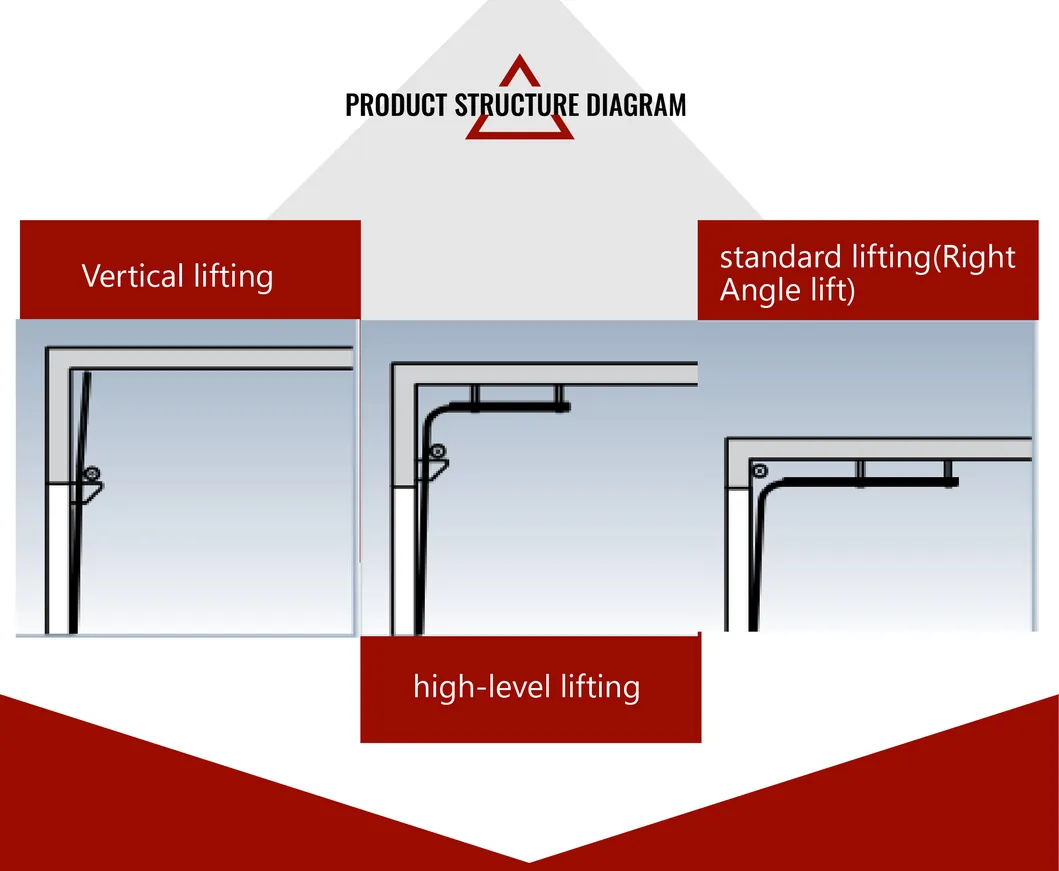

Lifting Methods	Vertical Lift / High Lift / Standard Lift (Right Angle)

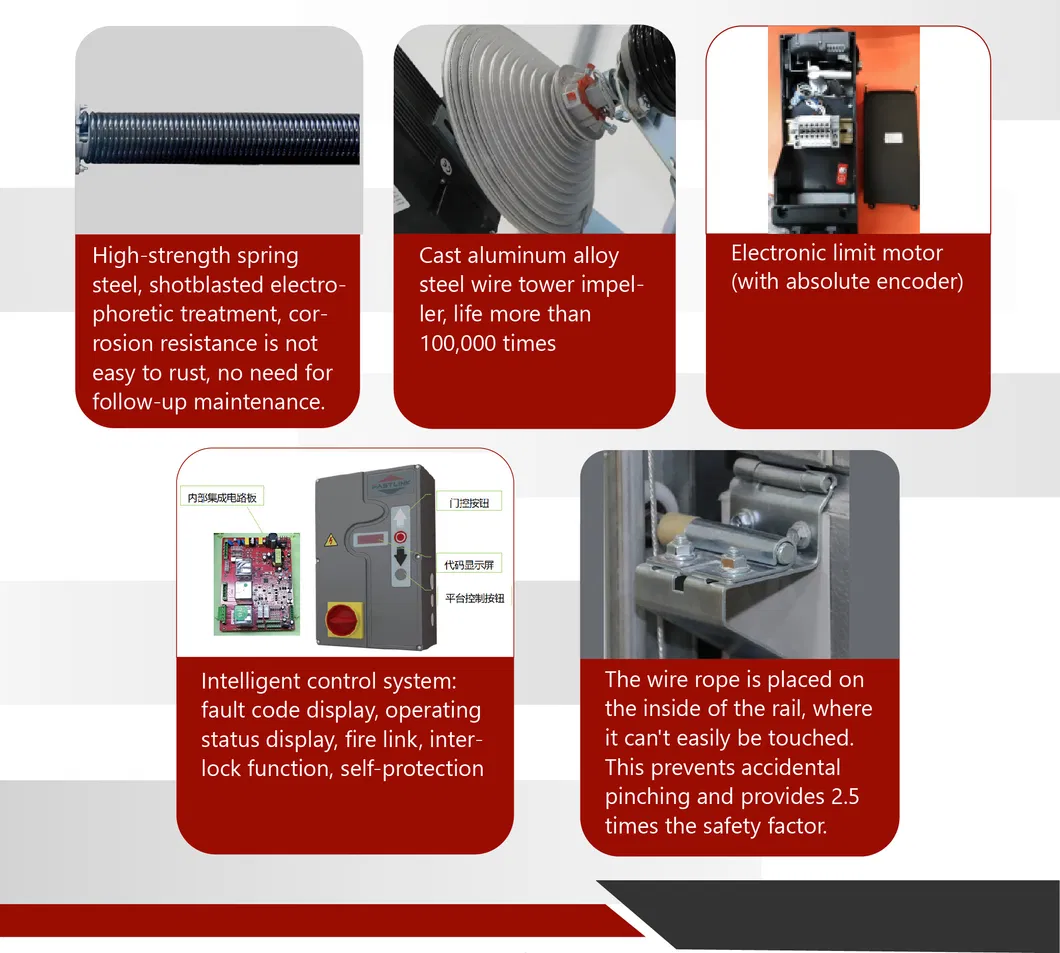

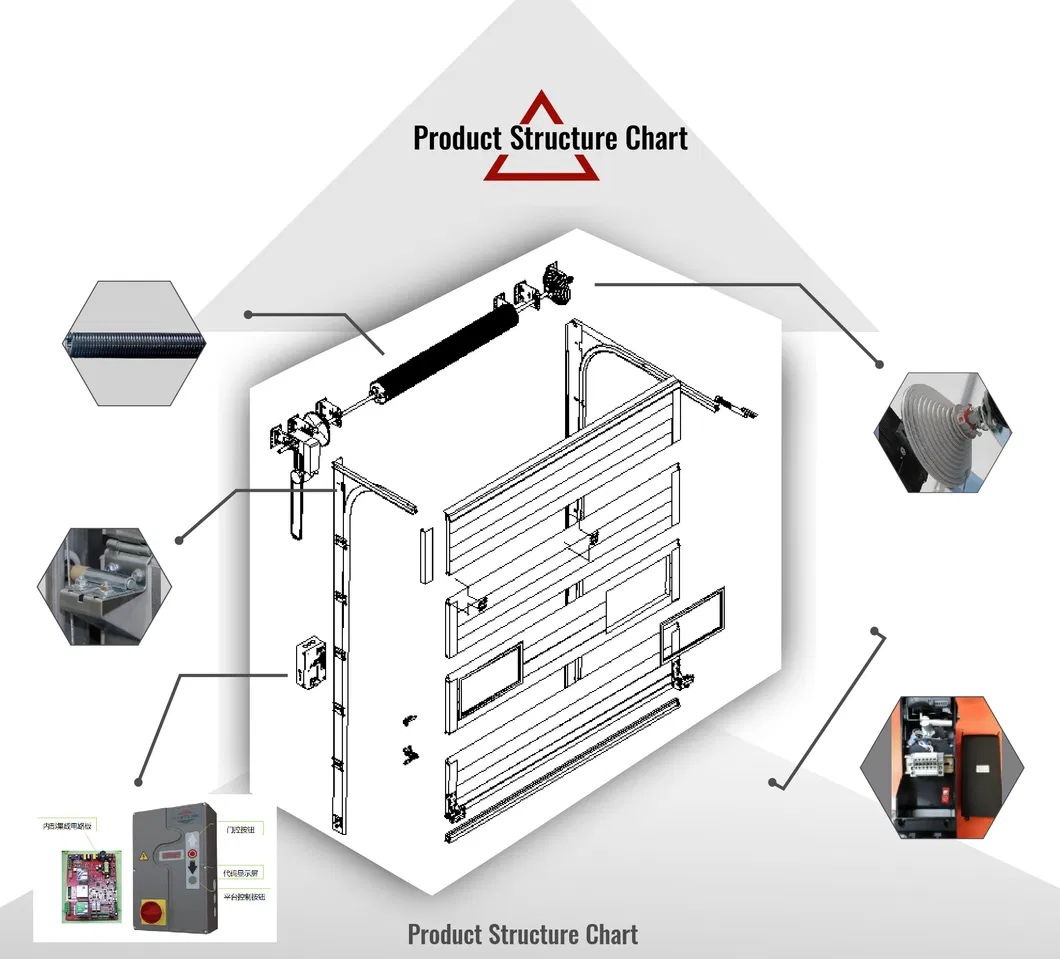

Torsional Spring	High-strength steel, shot blasting electrophoresis, corrosion resistant
Control Box	Fault code display, operation status, fire linkage, interlock function
Safety Design	Wire rope built-in safety; Wireless bottom safety device (optional)
Package Size	1016.40cm * 66.40cm * 97.10cm
Gross Weight	500.00kg

📷

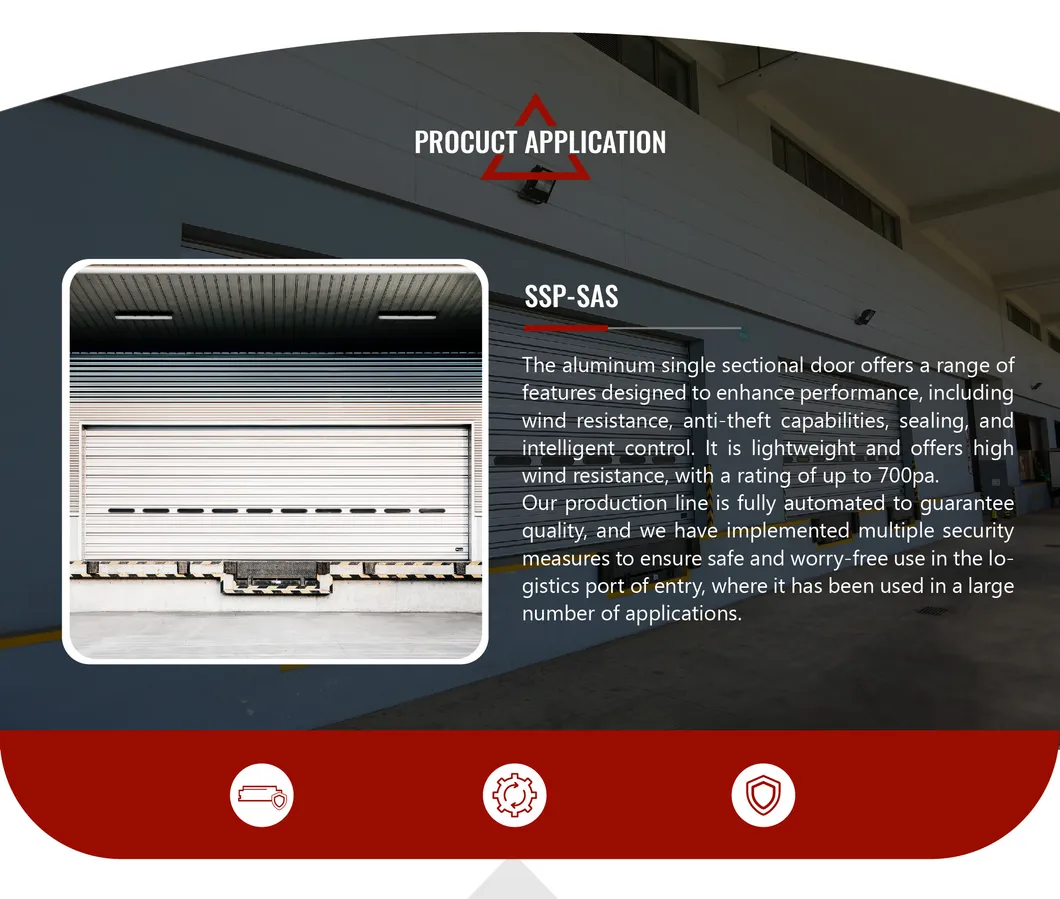

Product Showcase

Frequently Asked Questions

How much installation space is required above the door opening?

A minimum headroom space of 500mm is required to accommodate the track and lifting mechanism.

Can these single panel sectional doors be used in garages?

Yes, as long as the minimum installation space requirements are met, they are excellent for garage access.

What is the wind resistance performance of this aluminum door?

The door is rated at 700PA (GB/T 7106-2008), making it highly suitable for coastal areas with strong wind conditions.

Which locations are optimal for installing this specific door model?

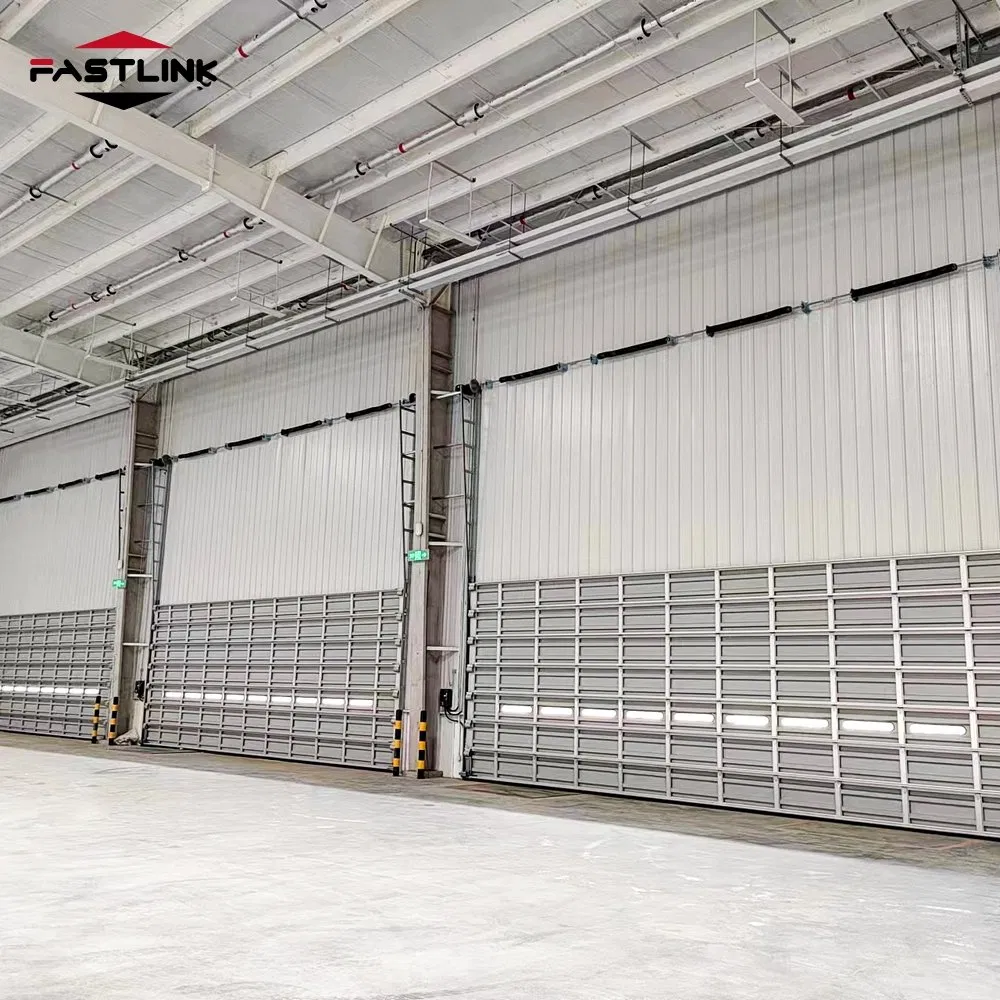

They are ideal for logistics warehousing, industrial plants, coastal buildings, and cold storage facilities requiring insulation.

What is the typical lifespan of this sliding sectional door?

With standard regular maintenance and correct usage, these doors are designed to last for more than 10 years.

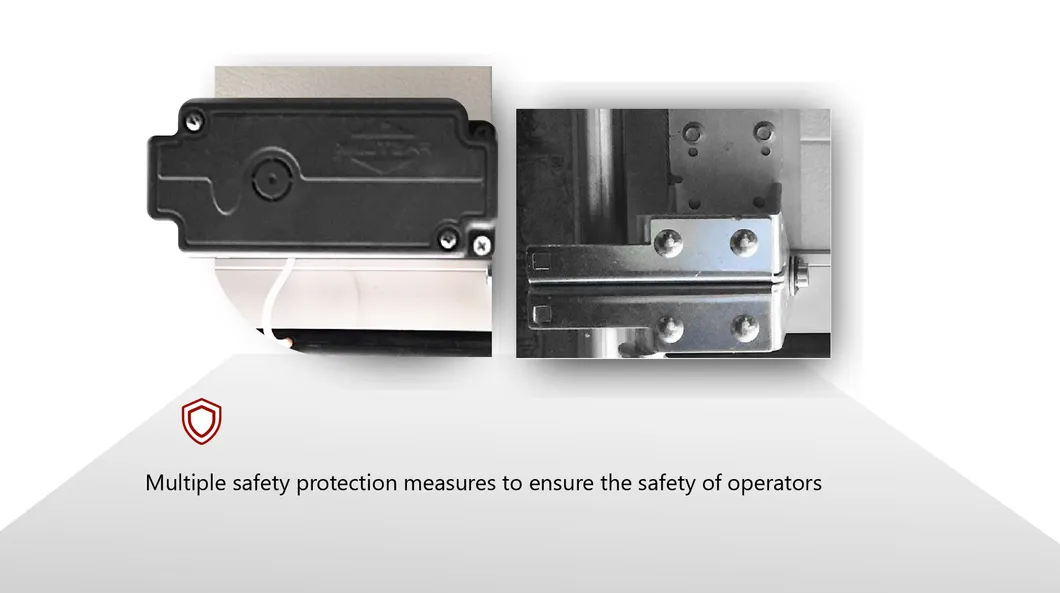

What safety features are included in the security configuration?

Standard safety features include wire rope anti-breaking devices, torsional spring anti-breakage functions, and hand guard track designs. Infrared devices are also optional.
