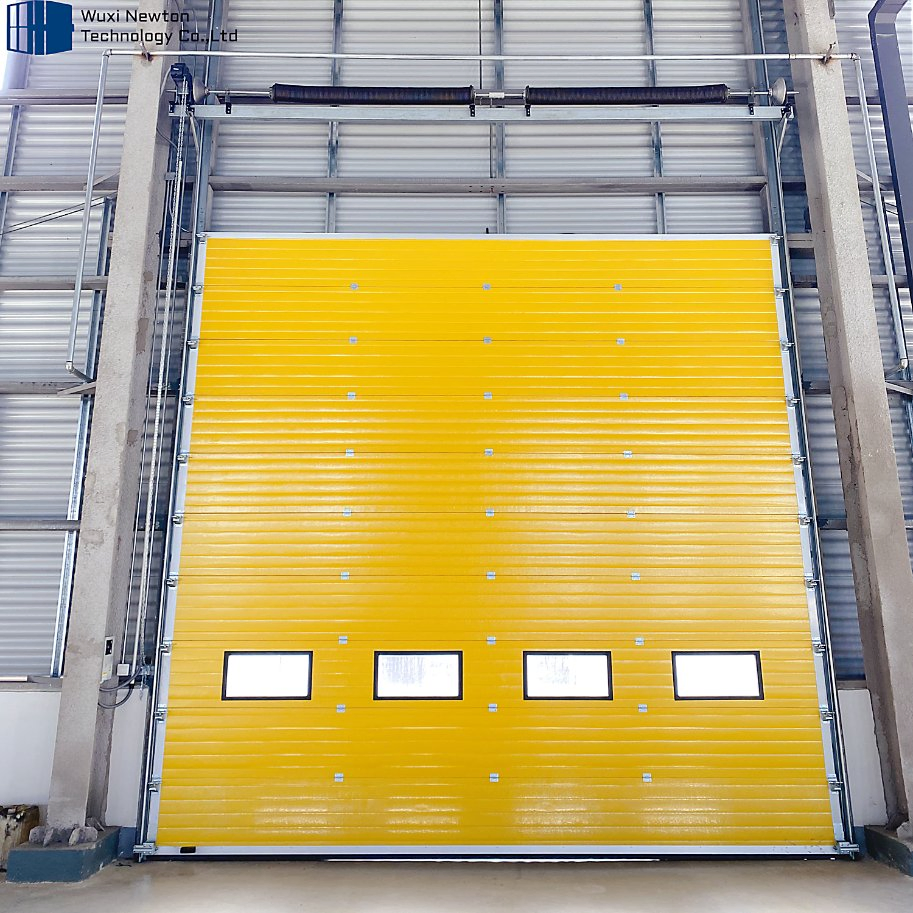

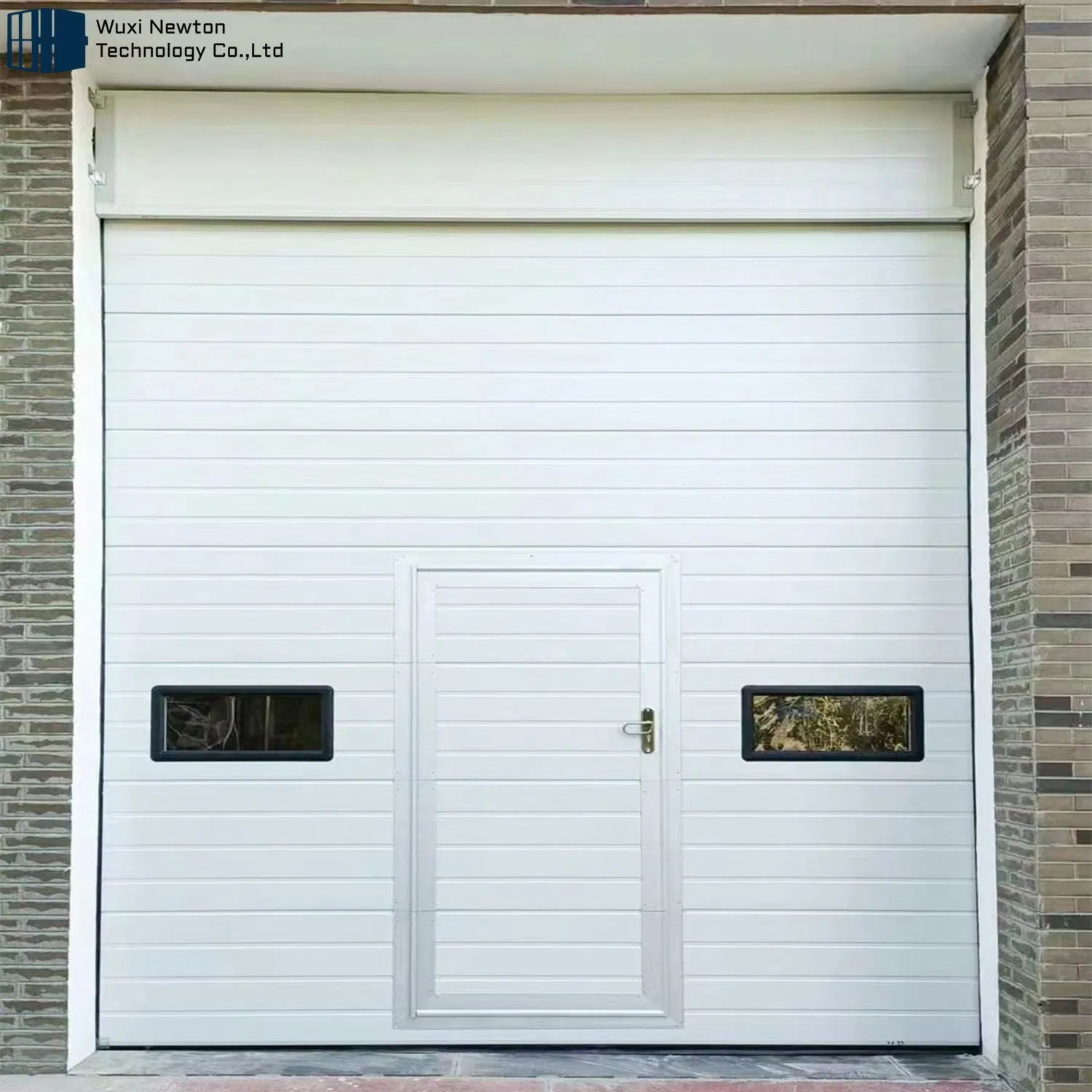

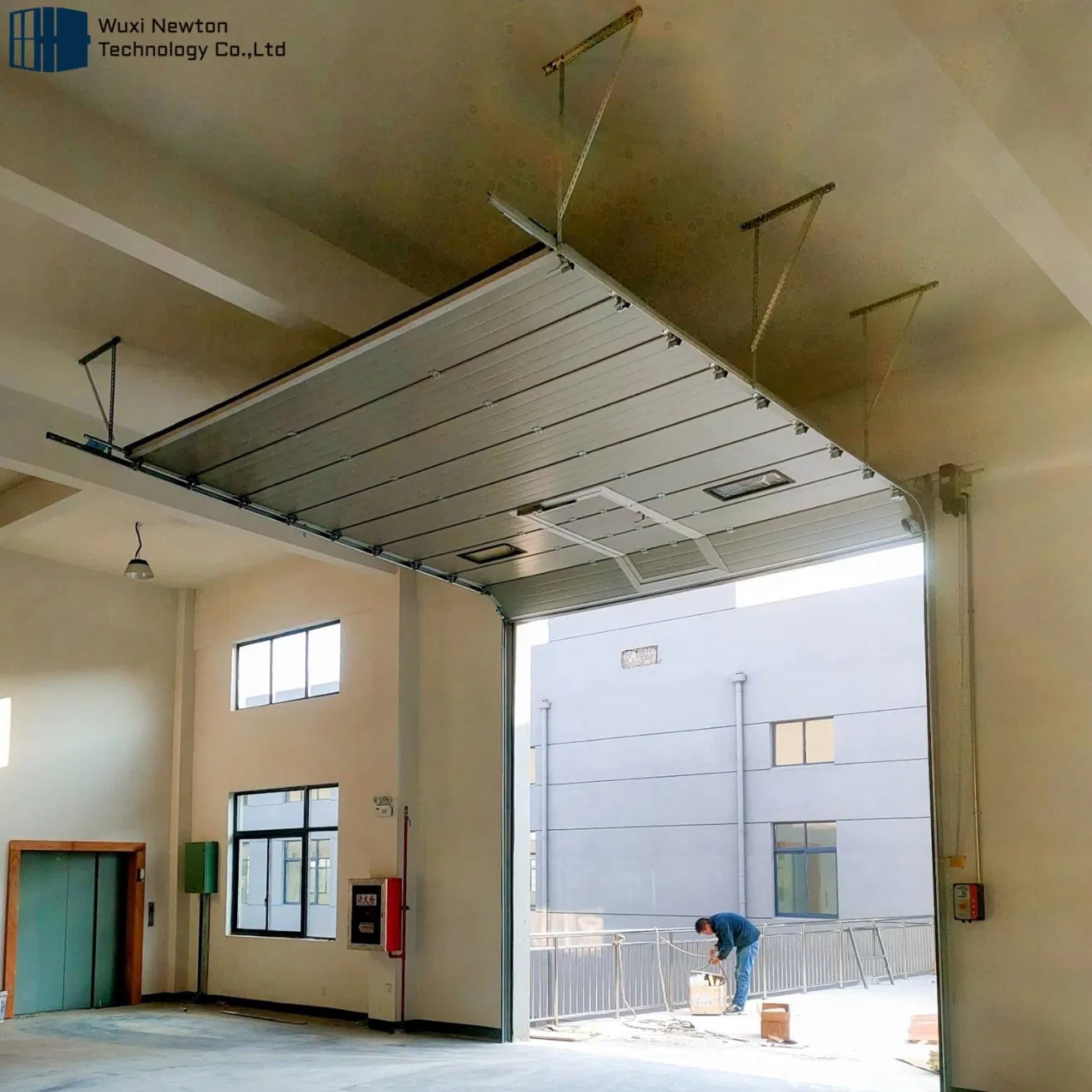

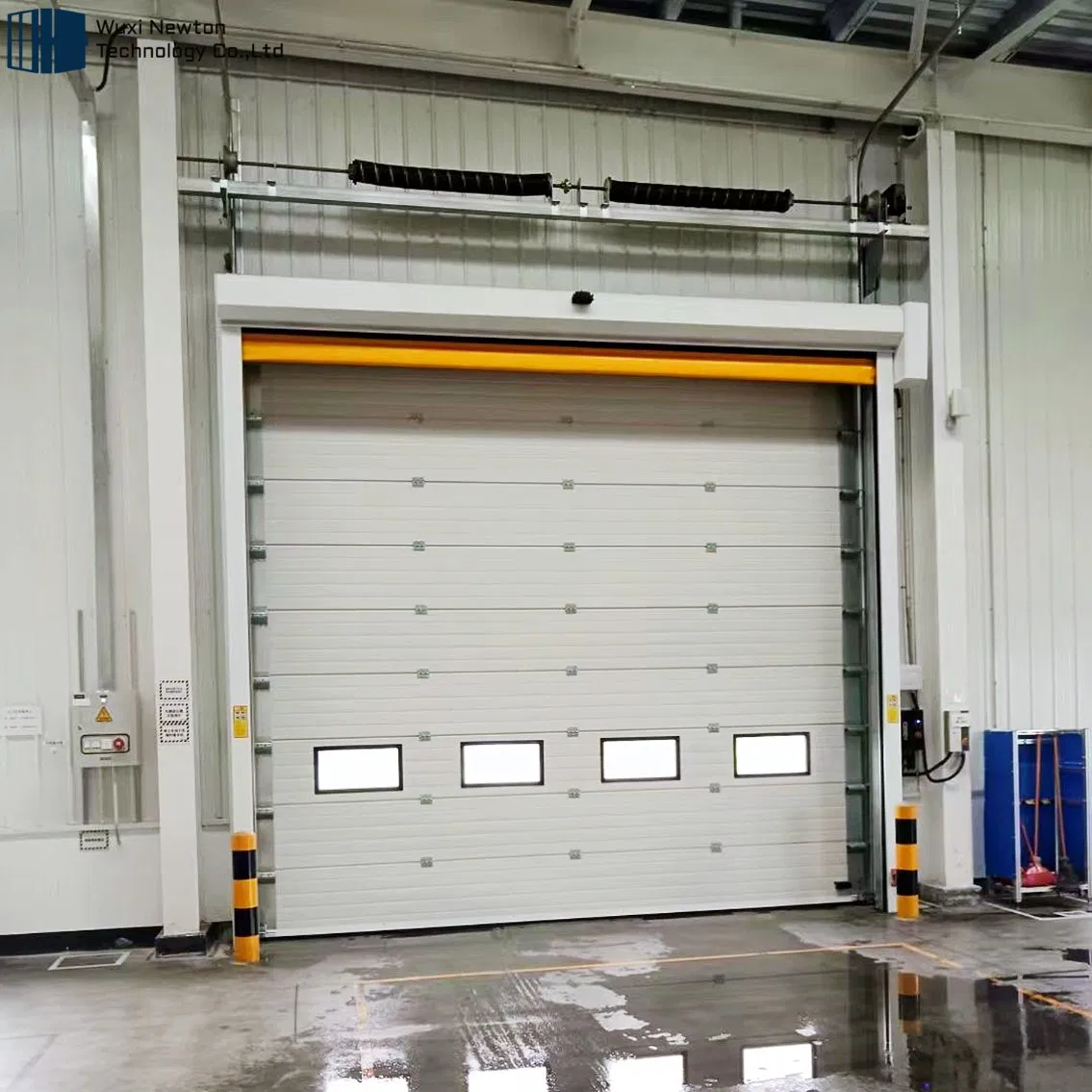

Industrial Automatic Steel Sectional PU Door is a high-quality solution for industrial facilities, warehouses, and commercial garages. Designed for durability and thermal efficiency, these doors provide superior security and wind resistance.
| STRUCTURE | FINGER SAFE | NON FINGER SAFE |
|---|---|---|

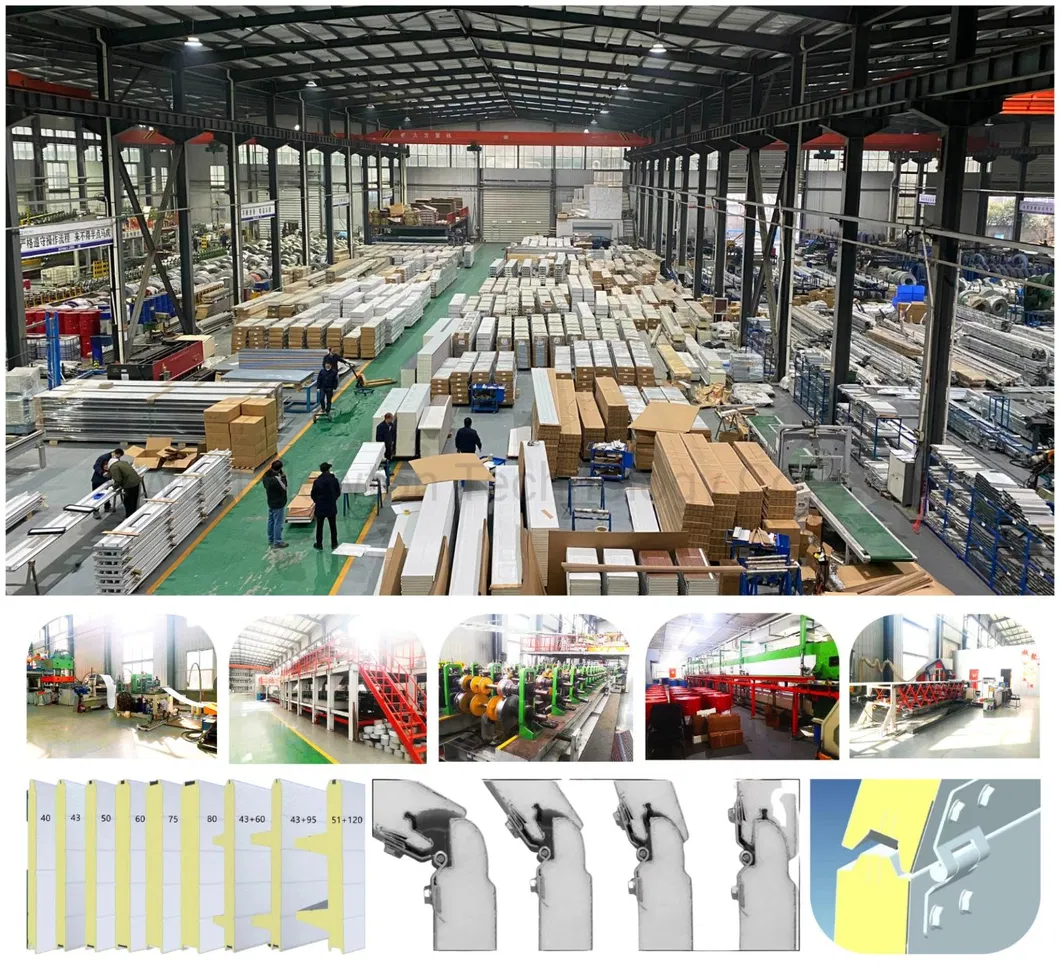

| Section's height | 450mm, 500mm, 550mm | 500mm, 550mm |
| Section's thickness | 40mm | 43mm, 50mm, 75mm |
| Material - external/inner | PPGL steel made of hot-dipped galvanized steel | |

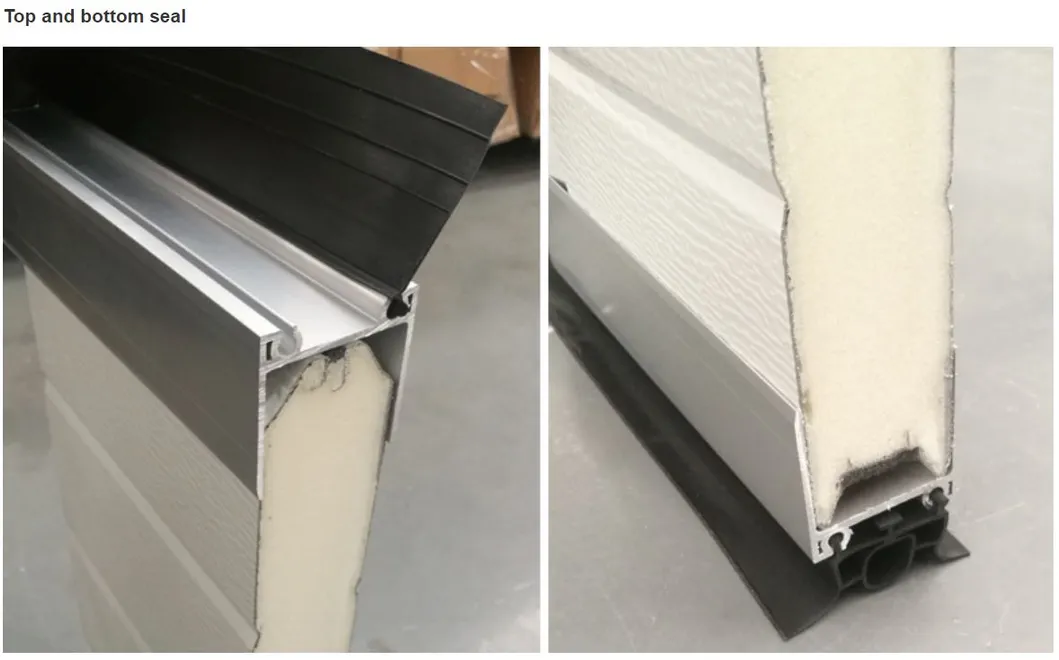

| Insulation | Polyurethane foam | |



| Lifting Speed | 0.2m/s |
| Wind Resistance | ≥450N/m2 |
| Torsion Spring Lifespan | At least 50,000 cycles |
| Motor Noise | ≤50db |
| Protection Level | IP54 |

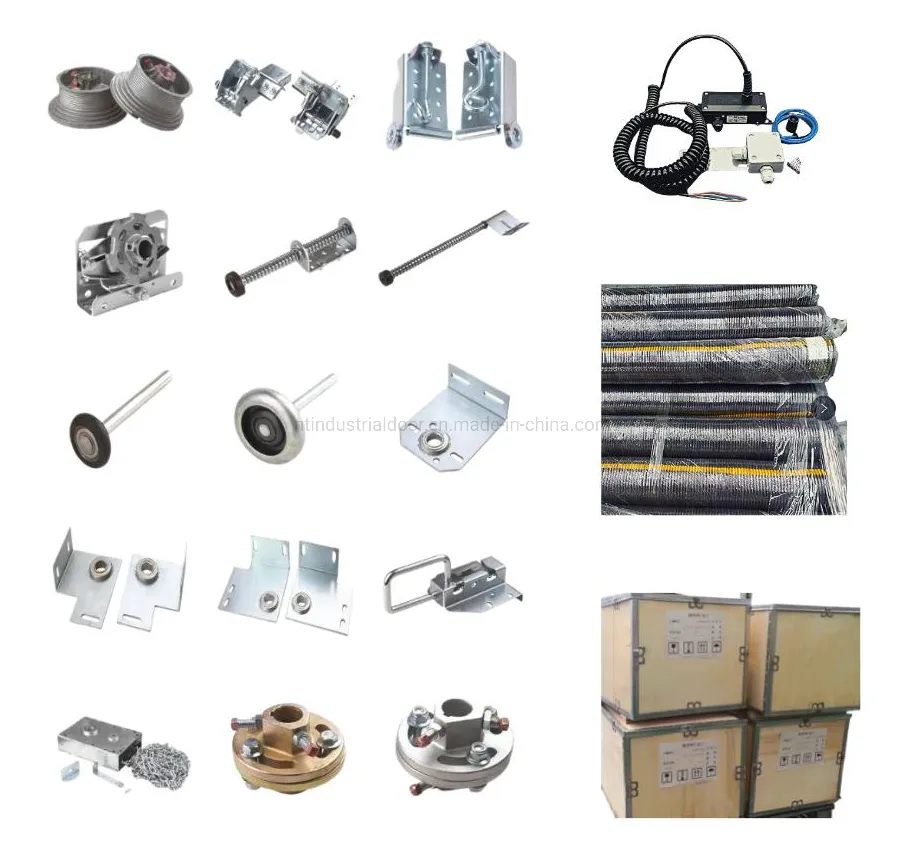

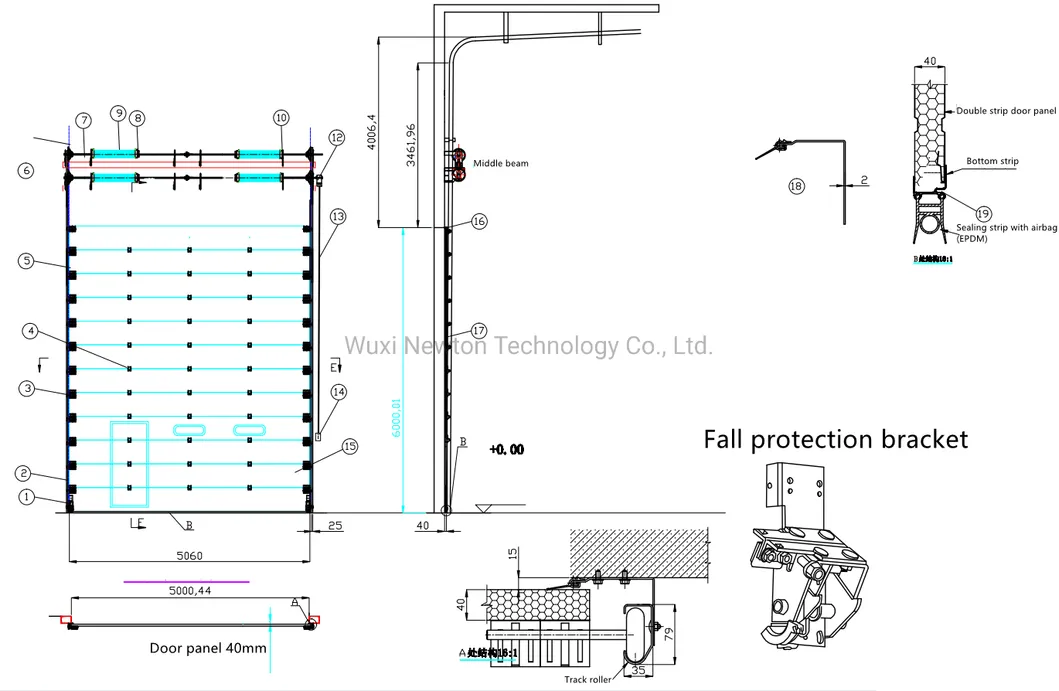

| 1. Fall protection supporter | 2. Straight track | 3. Side hinge & Top wheel seat |
| 4. Middle hinge | 5. Steel rope | 6. Drum |

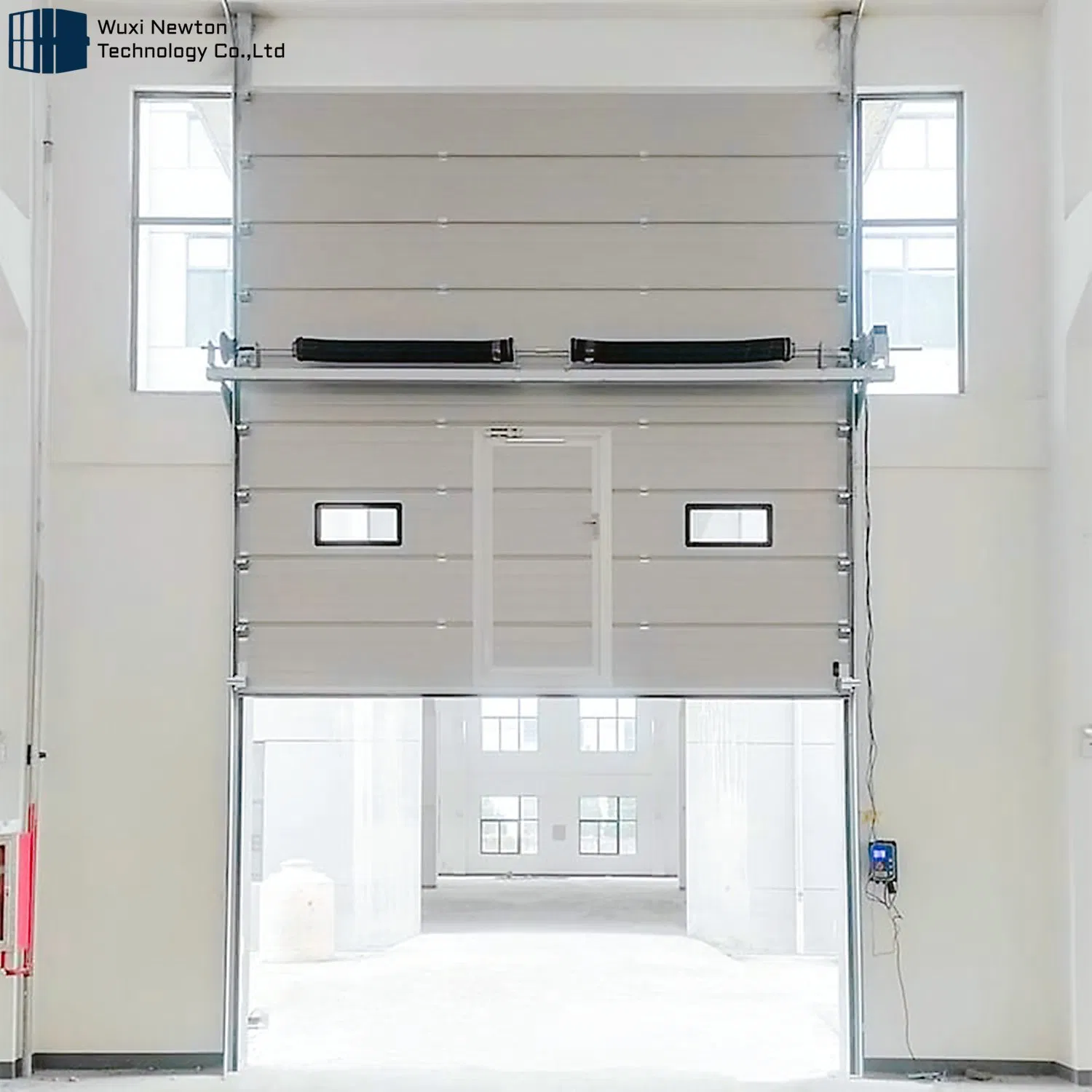

| 7. Transmission shaft | 8. Spring fastener | 9. Spring |

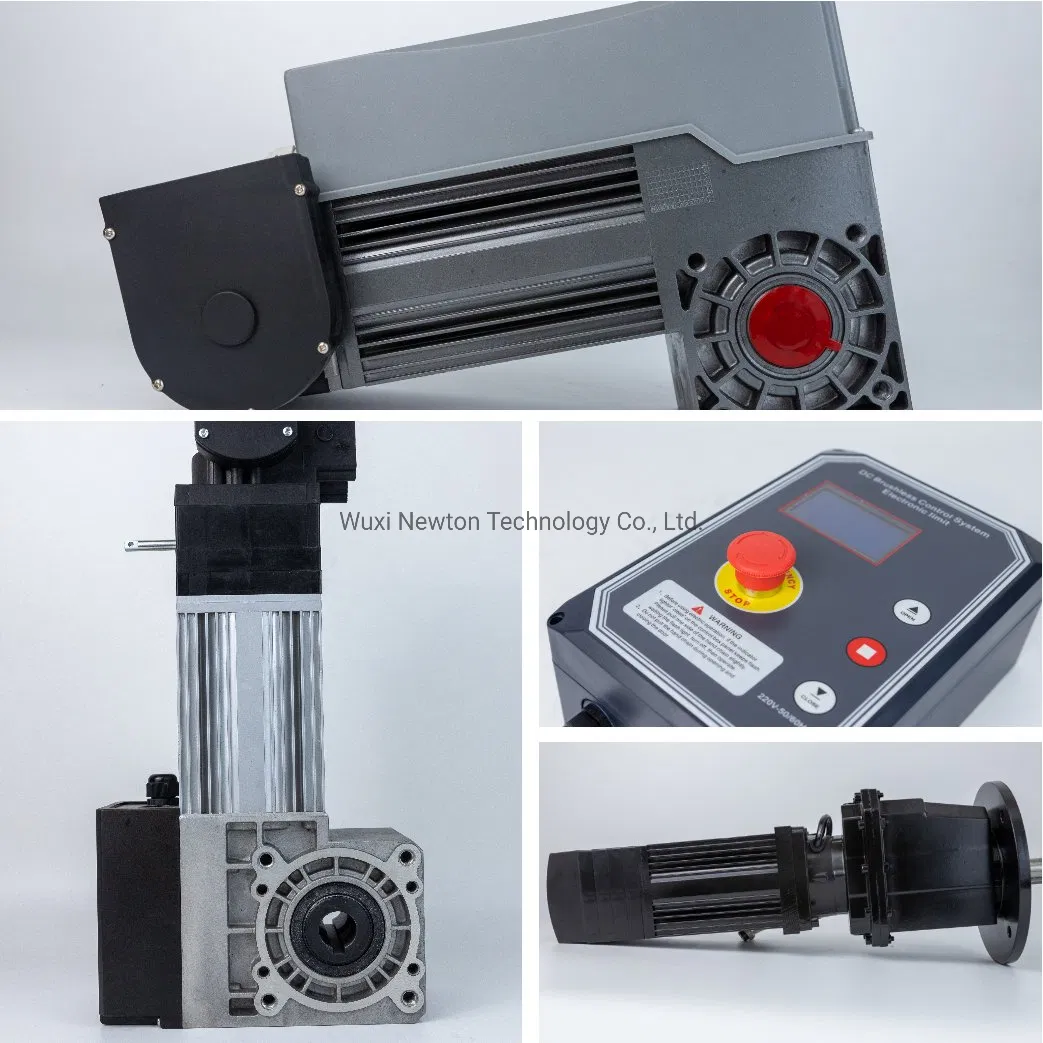

| 12. Opener | 14. Control panel | 15. Reinforcing rib |
With years of experience, we provide comprehensive support from design and manufacture to installation guidance and after-sales maintenance. Our technicians design cost-effective solutions tailored to practical site demands.
