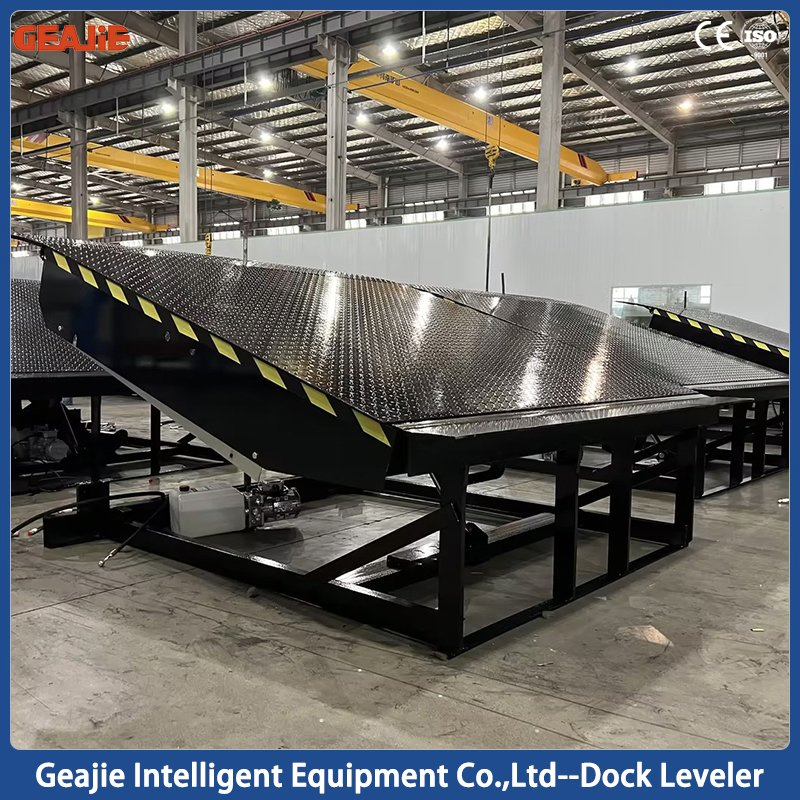

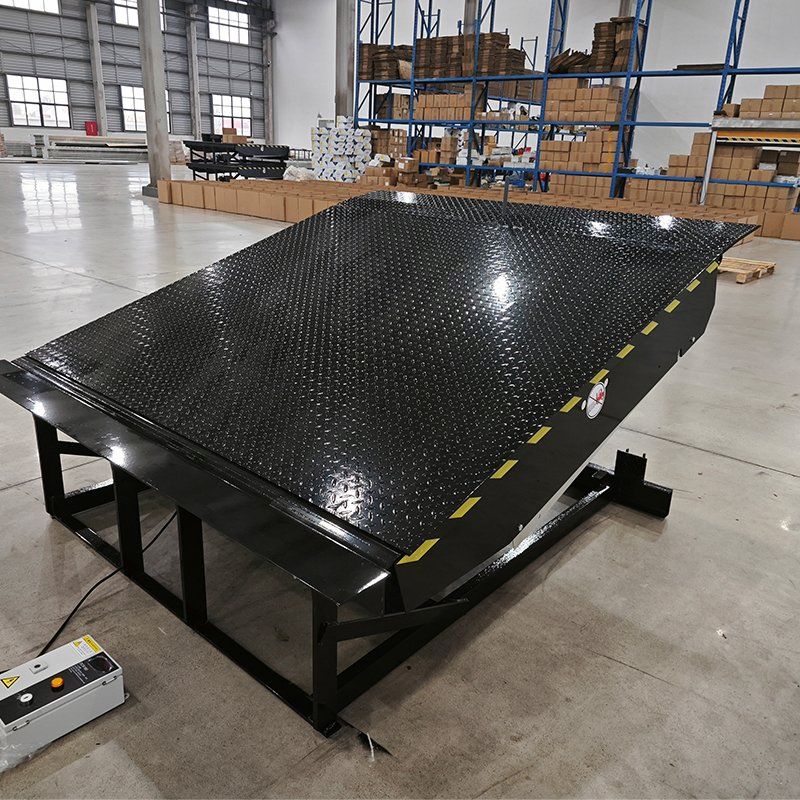

Stationary Price Industrial Warehouse Lifting Platform Loading Equipment Lift Table Hydraulic Dock Leveler

Customization: Available
After-sales Service: Available
Warranty: 1 Year

Product Description

📋

Product Overview

Hydraulic Dock Leveler Overview
Model NO.DL01
ApplicationWorkshop Crane, Warehouse Crane, Charge and Discharge
Lift MechanismArticulated Lift
Driven TypeHydraulic
Running ModeStationary
FeatureExplosion-Proof, Insulating
CertificationCE, RoHS, ISO 9001, AAA
Power Supply380V/0.75kw
Hydraulic Power UnitSwiss Bucher Hydraulic System
Loading Capacity10000kg
Working Range-300 to +350mm
OriginChina

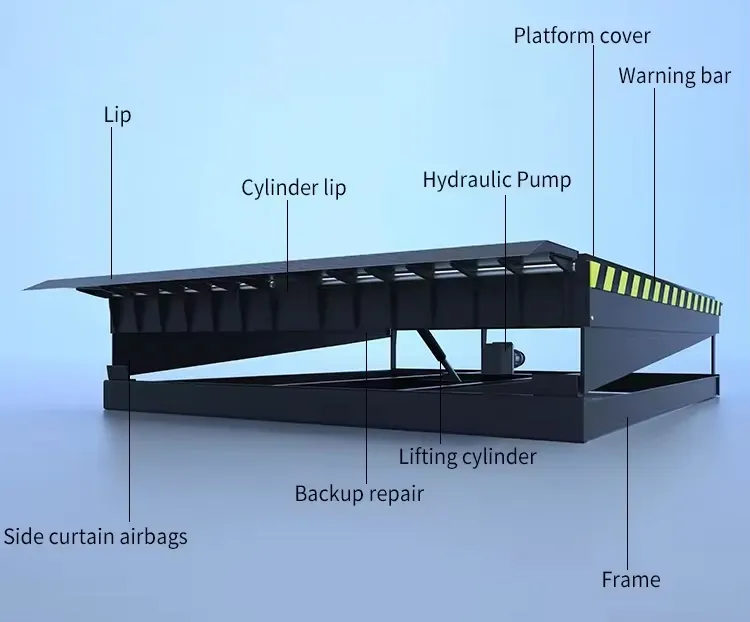

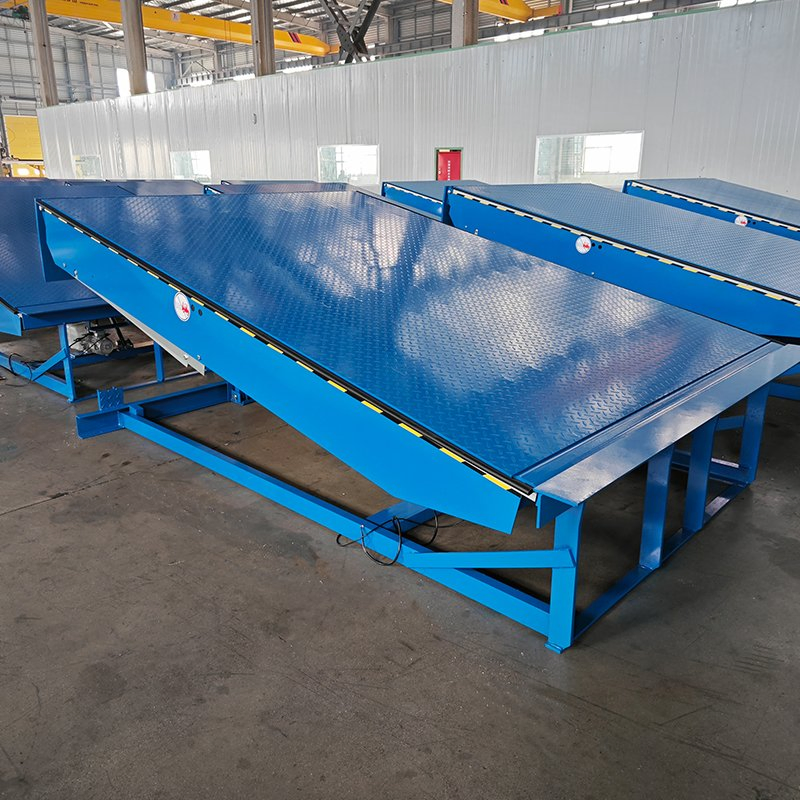

Electric Hydraulic Dock Leveller

Electric Hydraulic Dock Leveller

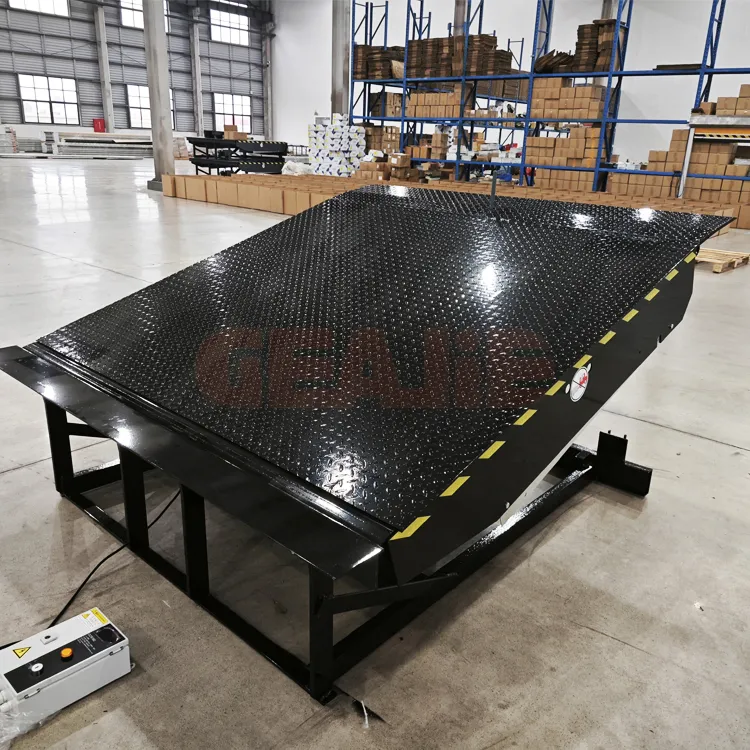

Product Show 1
Product Show 2
📊

Technical Parameters

Parameters Header
Material & Performance Details
Application EnvironmentLogistics unloading port
Load Capacity6-25 tons
Width Options1830mm, 2000mm, 2130mm
Length Options2000mm, 2500mm, 3000mm, 3500mm
Countertop Structure8mm high-strength anti-skid pattern steel plate with reinforced bottom.
Lip Thickness14mm, 16mm, or 20mm based on load capacity.
Security ConfigurationAnti-fall function, anti-pinch protection, maintenance support rod, night self-locking.
🌟

Product Advantages

Versatile Types Available in hydraulic, pneumatic, and mechanical types to meet various unloading requirements.
High Durability Made of heavy-duty steel treated for corrosion resistance to ensure long-term industrial use.
Smart Operation Equipped with automated control systems, buttons, or remote controls for efficiency and safety.
Safety First Includes anti-slip surfaces, safety barriers, and sensors to protect personnel during operations.

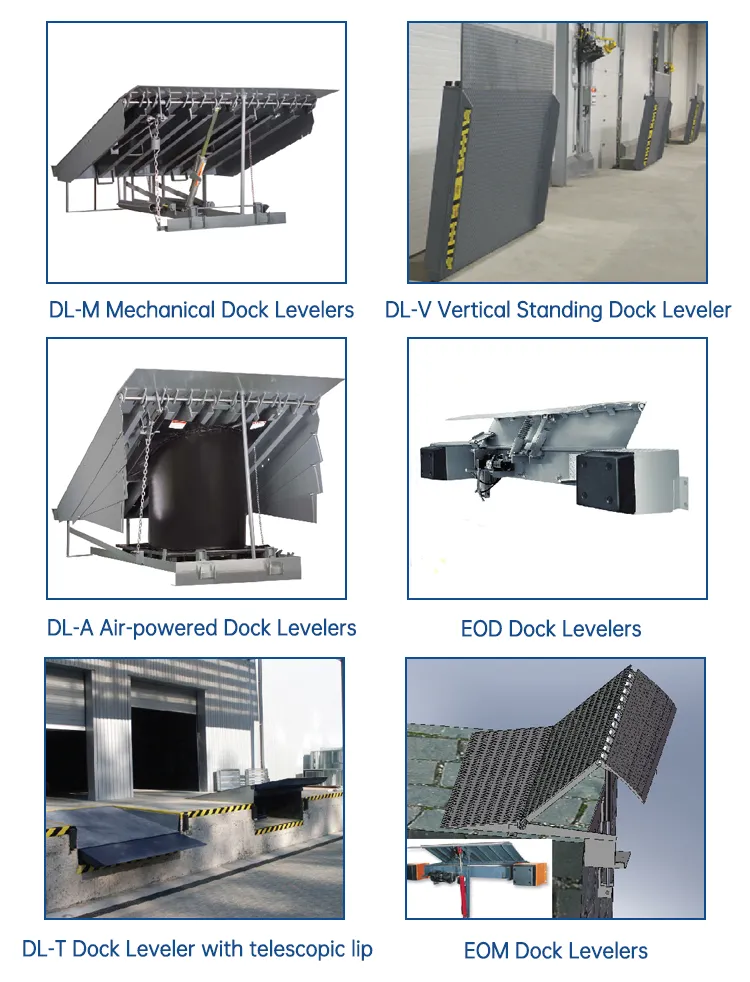

Related Equipment 1
Related Equipment 2
⚙️

Structural Components

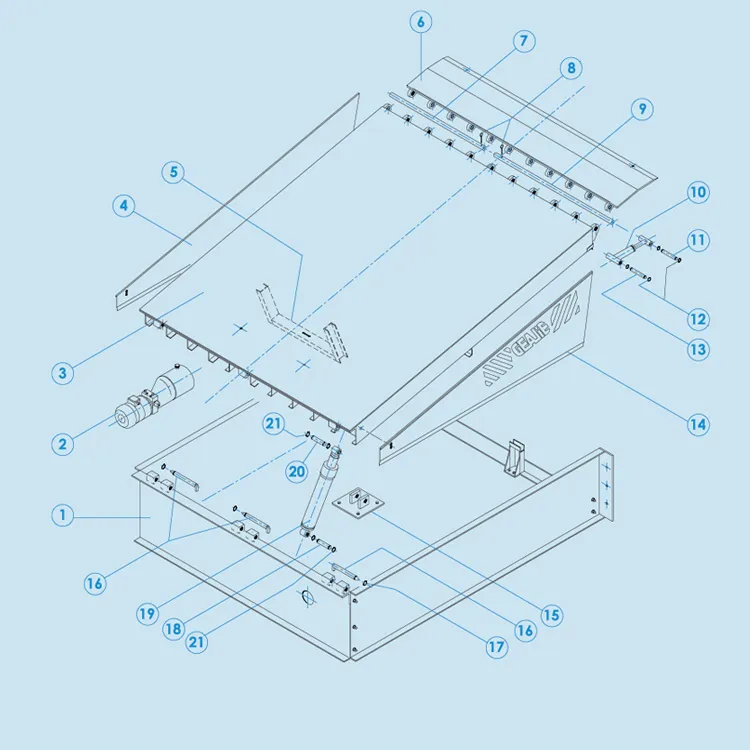

Structural Drawing
1. Mould12. Seeger straight pins
2. Hydraulic control unit13. Straight Pin body
3. Upper plate15. Flange fixing
6. Swinging lip19. Upper plate cylinder
10. Cylinder of the lip20. Cylinder shaft pin
Factory View

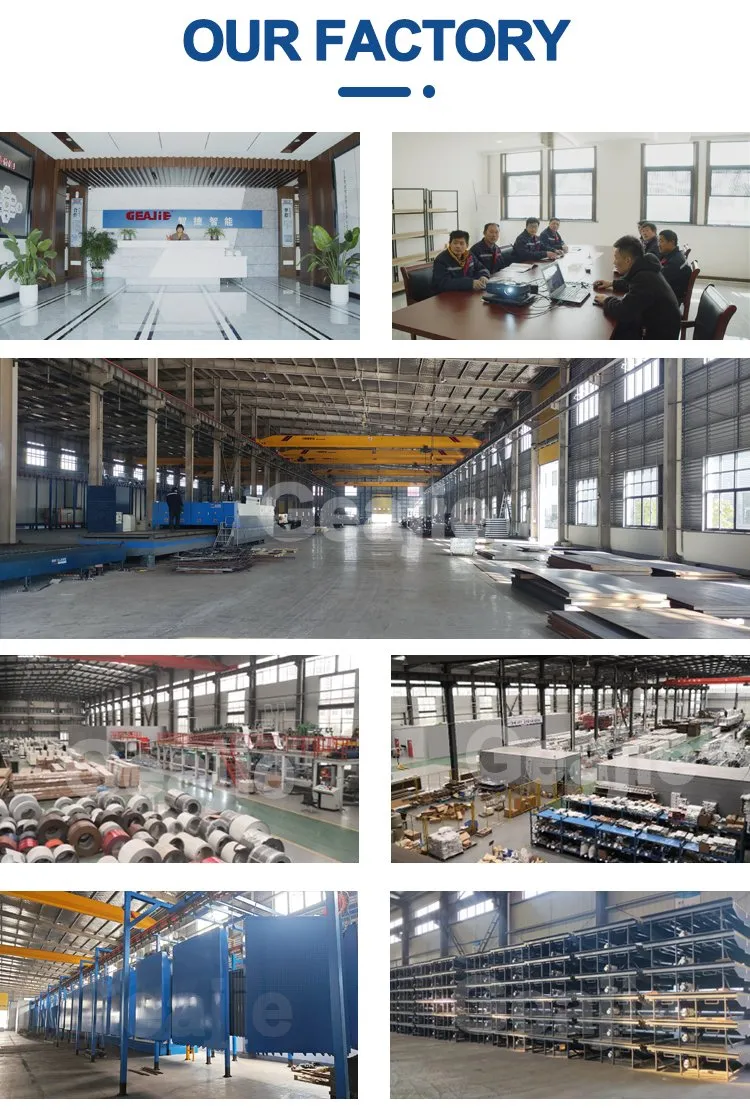

Production Line

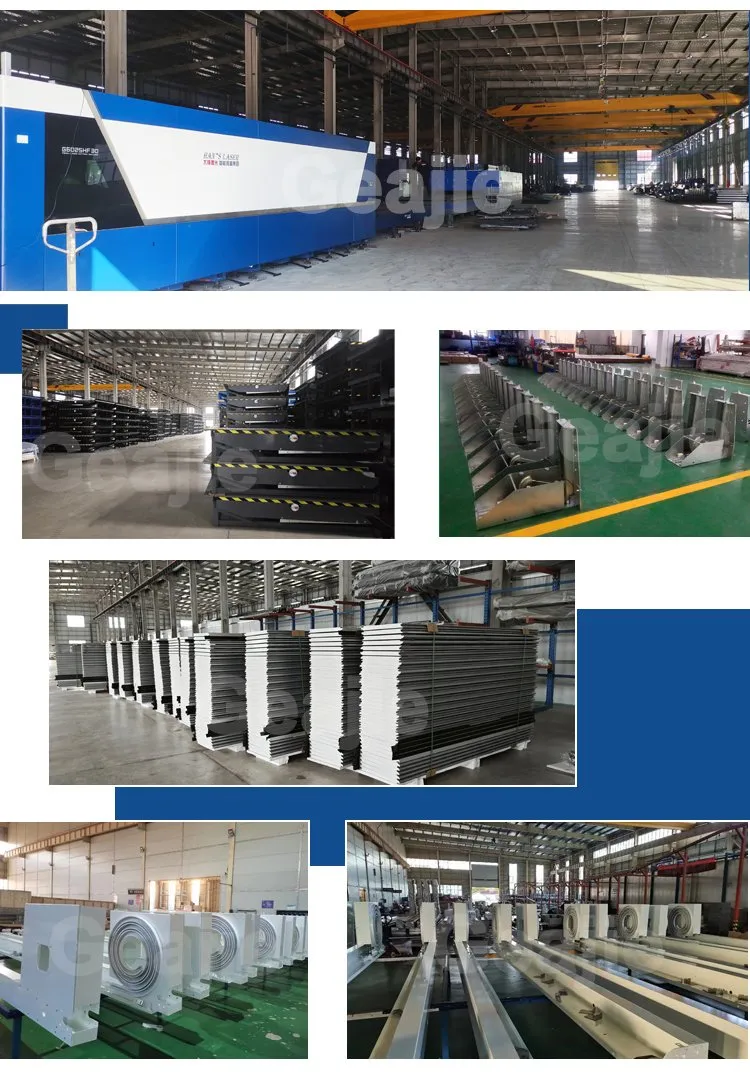

Quality Control

Frequently Asked Questions

What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set. We support both small and large scale orders.
What is the maximum available size for the dock levelers?
The maximum length can reach 6.5M and the maximum width is 6M, both of which are adjustable based on your needs.
Is the installation process difficult?
No, our products are designed for easy installation. We provide guidance to ensure a smooth setup.
What are the primary applications for this equipment?
They are ideal for factory outlets, logistics parks, warehouse docks, and any outgoing ports where efficient loading/unloading is required.
Can you customize the colors and load capacities?
Yes, we offer non-standard load capacities, custom sizes, and various colors (Black, Gray, Blue, Green, etc.) to match your facility requirements.
What safety features are included in the dock leveler?
Key safety features include platform anti-fall functions, anti-pinch protection, maintenance support rods, and night self-locking protection.
