Product Description

Automatic Stationary Fixed Hydraulic Dock Leveler

The dock leveler is the best solution to adjust the height difference between the loading platform and the container truck. The height can be adjusted arbitrarily, the loading and unloading efficiency is improved, and the manpower is saved.

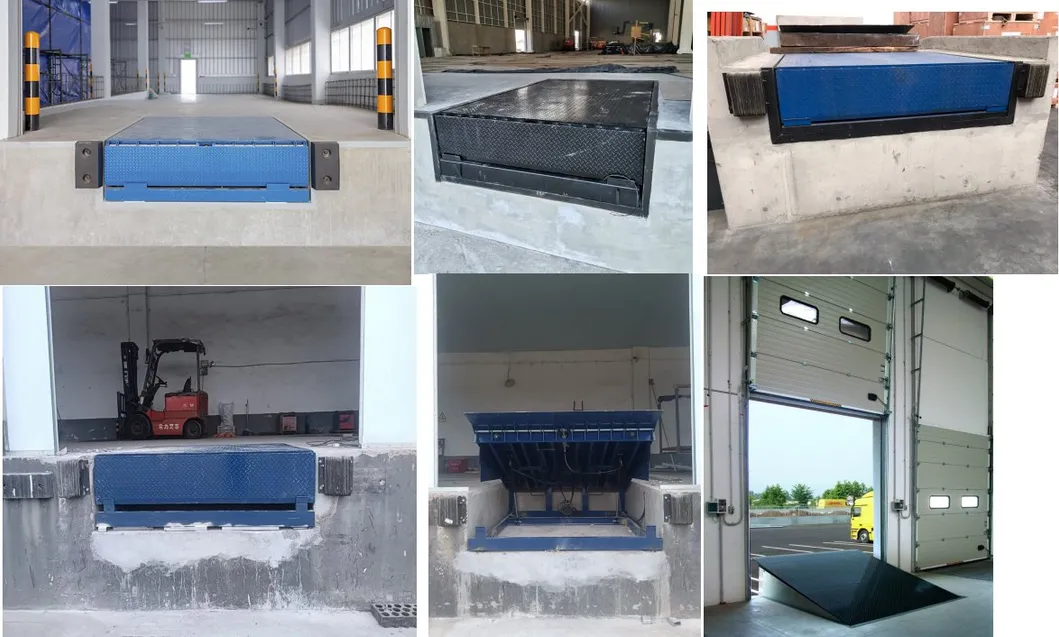

Hydraulic Dock Leveler

Basic Info.

Model NO.
Leveler
Application
Warehouse Crane
Lift Mechanism
Hydraulic Power
Capacity
6t, 8t, 10t, 15t
Moves
Stationary
Driven Type
Hydraulic
Feature
Explosion-Proof
Certification
CE, ISO 9001
Standard Size
2000*2000*600mm
Power Supply
220V/380V 50Hz
Protection Class
IP55
Origin
China

Type Selection & Loading Capacity

Dynamic load Panel thickness Reinforcement Mouth plate Static load Forklift range
5 tons6mm4mm L steel12mm8 tons2.5 tons
8 tons8mm4mm L steel16mm11 tons3.5 tons
10 tons8mm14# I-beam16mm13 tons5 tons
14 tons10mm16# I-beam16mm17 tons6 tons

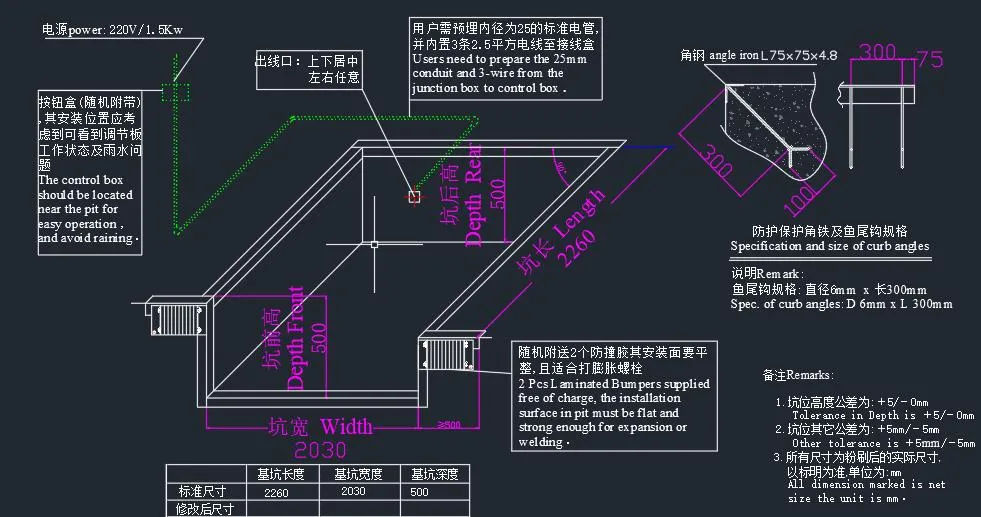

Technical Drawings & Dimensions

Accurate shop drawings to show the pit dimension clearly, ensuring accurate construction.

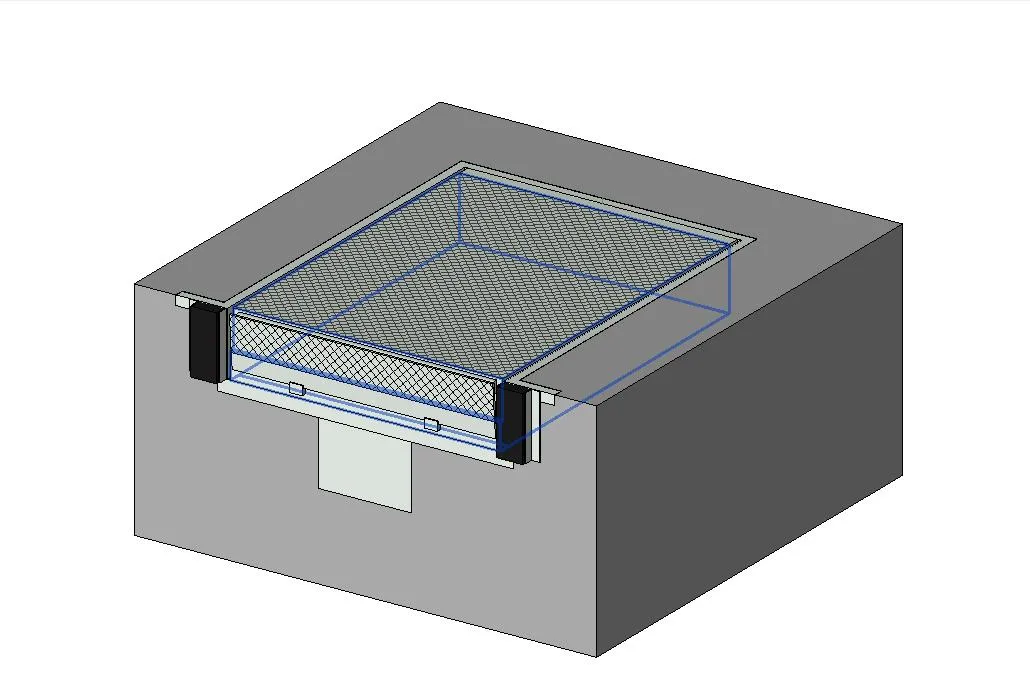

CAD Drawing 1 CAD Drawing 2

Most Widely Used Standard Sizes:

  • Width=1830mm, Length=2000m, Height=500mm
  • Width=2000mm, Length=2000m, Height=500mm
  • Width=2000mm, Length=2500m, Height=500mm

Main Platform & Top Lip

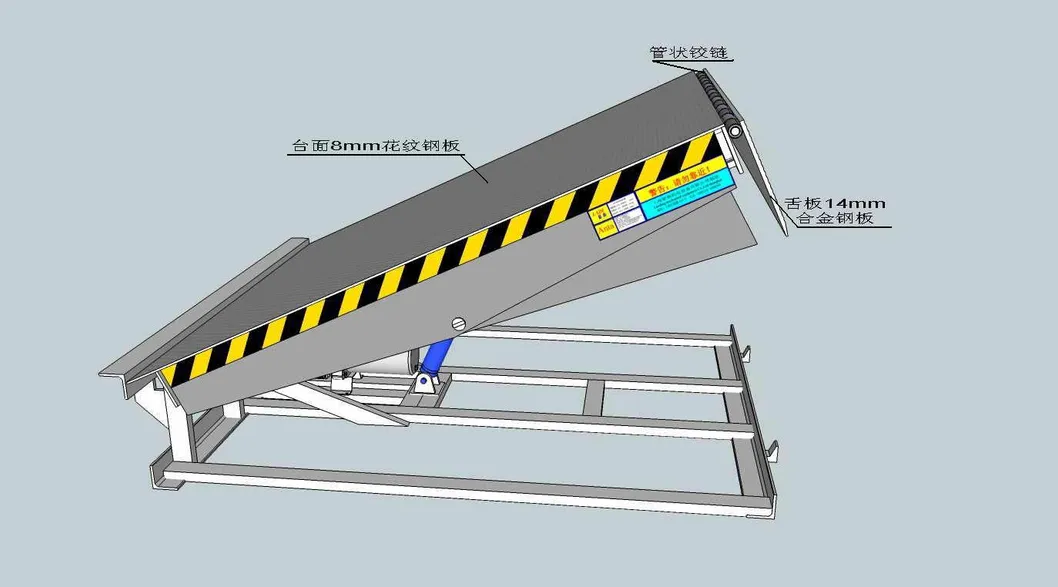

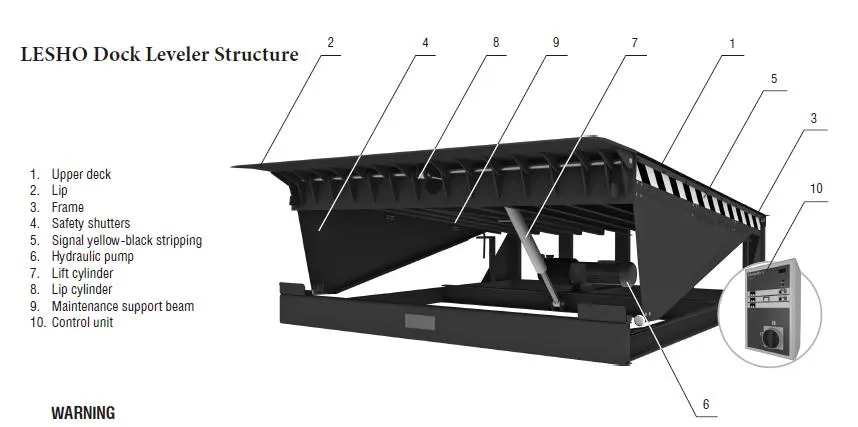

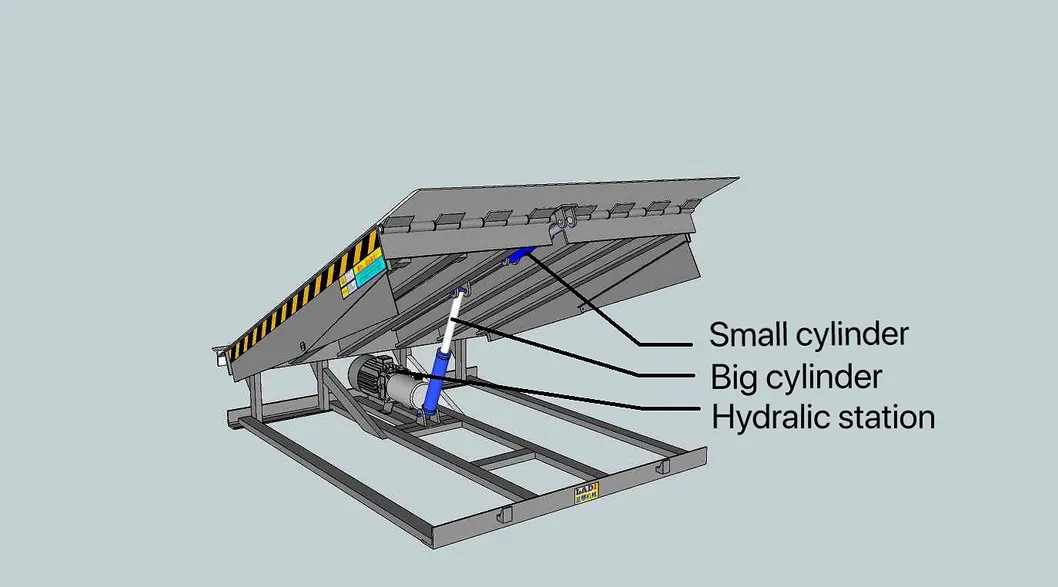

Platform Details Platform Details Platform Details

Main Platform

  • 6mm-8mm thick whole set steel plate
  • Whole-piece sheet for higher strength
  • High-density steel tube or C-channel support
  • Blasting and powder coating treatment

Top Lip

  • 12-16mm thick steel sheet
  • Special embossed antiskidding treatment
  • Durable powder coating finish

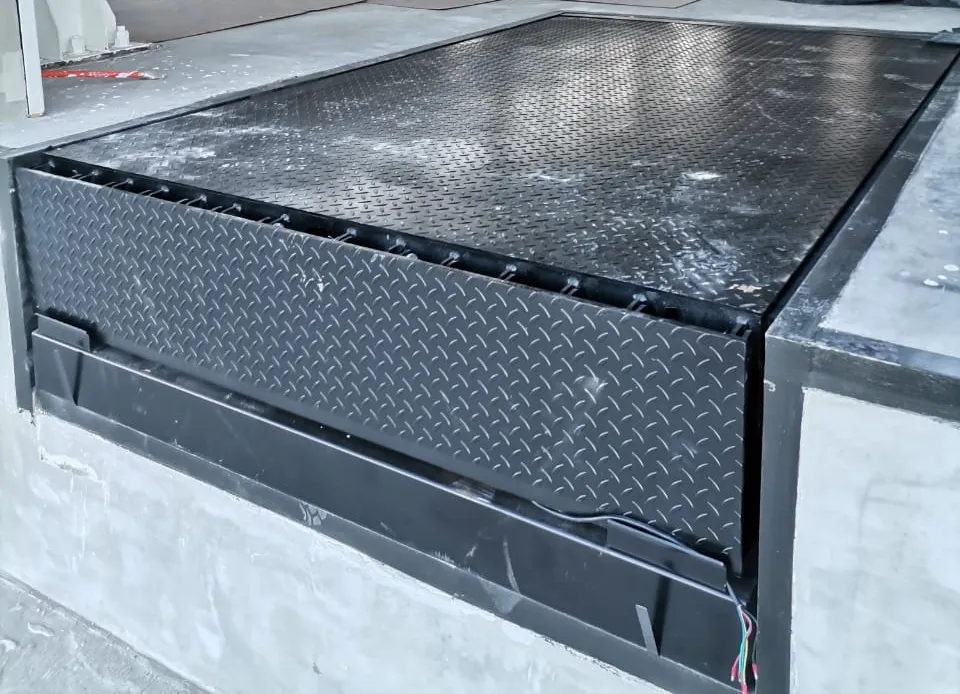

Top Lip Detail

Power & Control System

Hydraulic Motor Control Panel

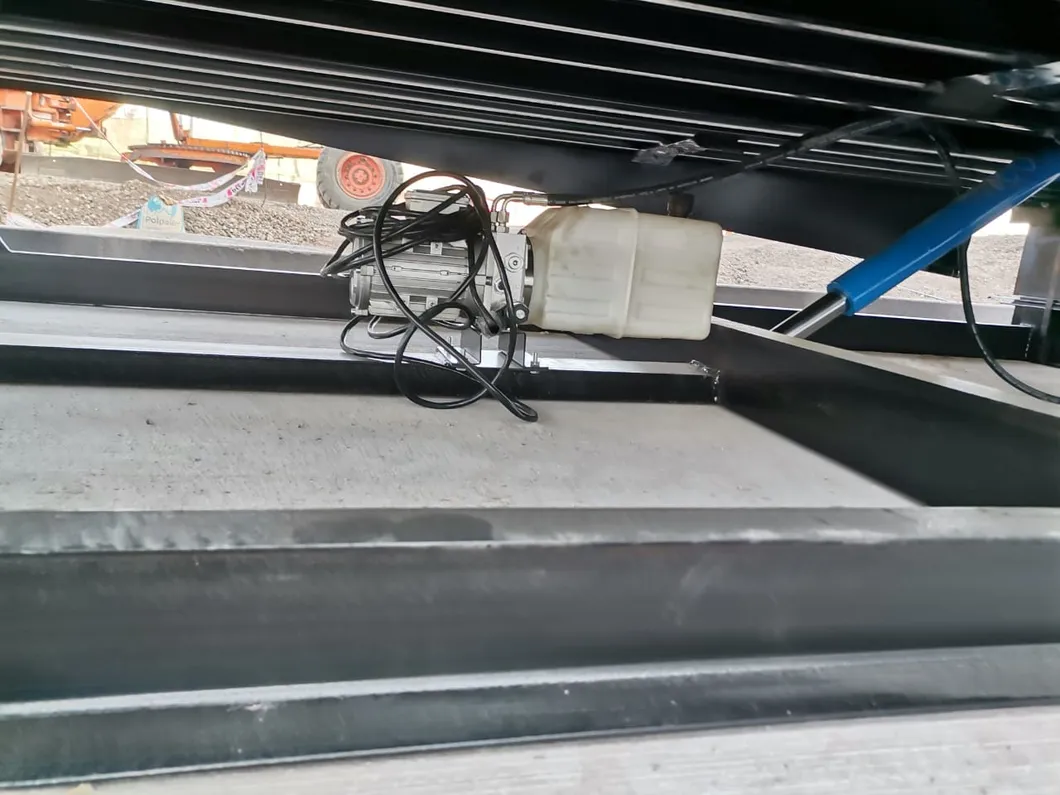

Hydraulic Motor

  • 3-phase 380V/50Hz Power supply
  • Output power: 0.75KW-1.5KW
  • Overheating self-protection function

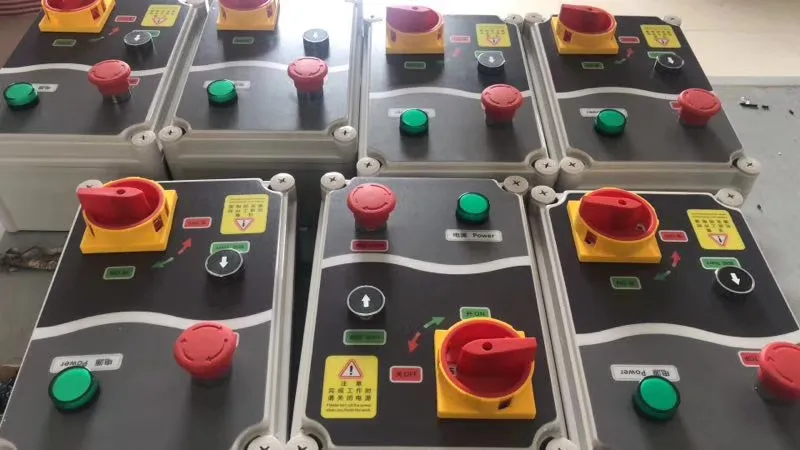

Control Panel

  • One-press automatic operation button
  • Emergency stop for worker protection
  • Integrated power-switch for maintenance

Core Features & Assembly

  • Bears 120% load of standard nominal capacity
  • Deformation within 3mm under 24hr static pressure
  • Hinge and Shaft with High-Temperature heat treatment
  • European imported hydraulic drive station options
  • Epoxy resin paint for high anti-corrosive performance

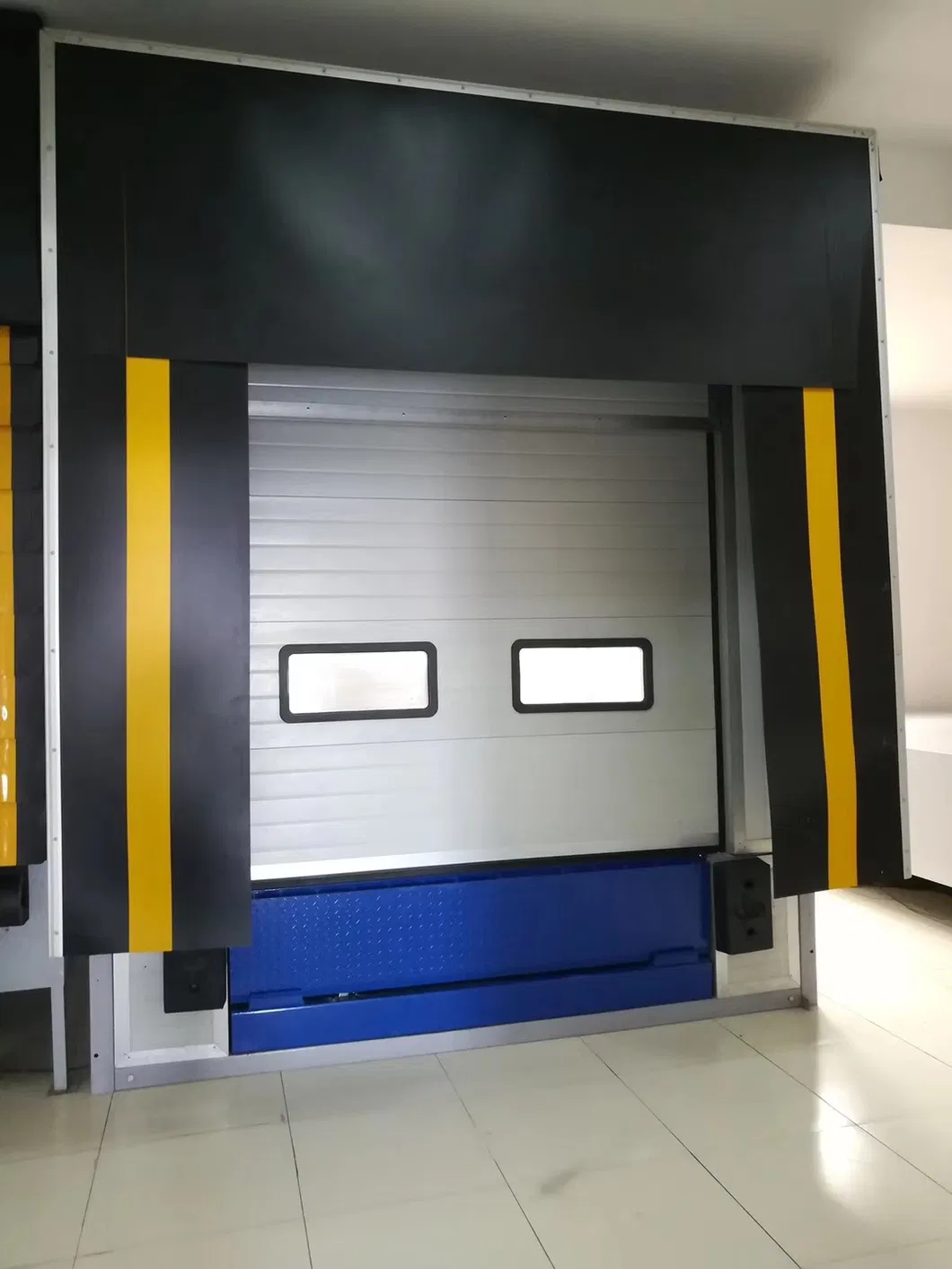

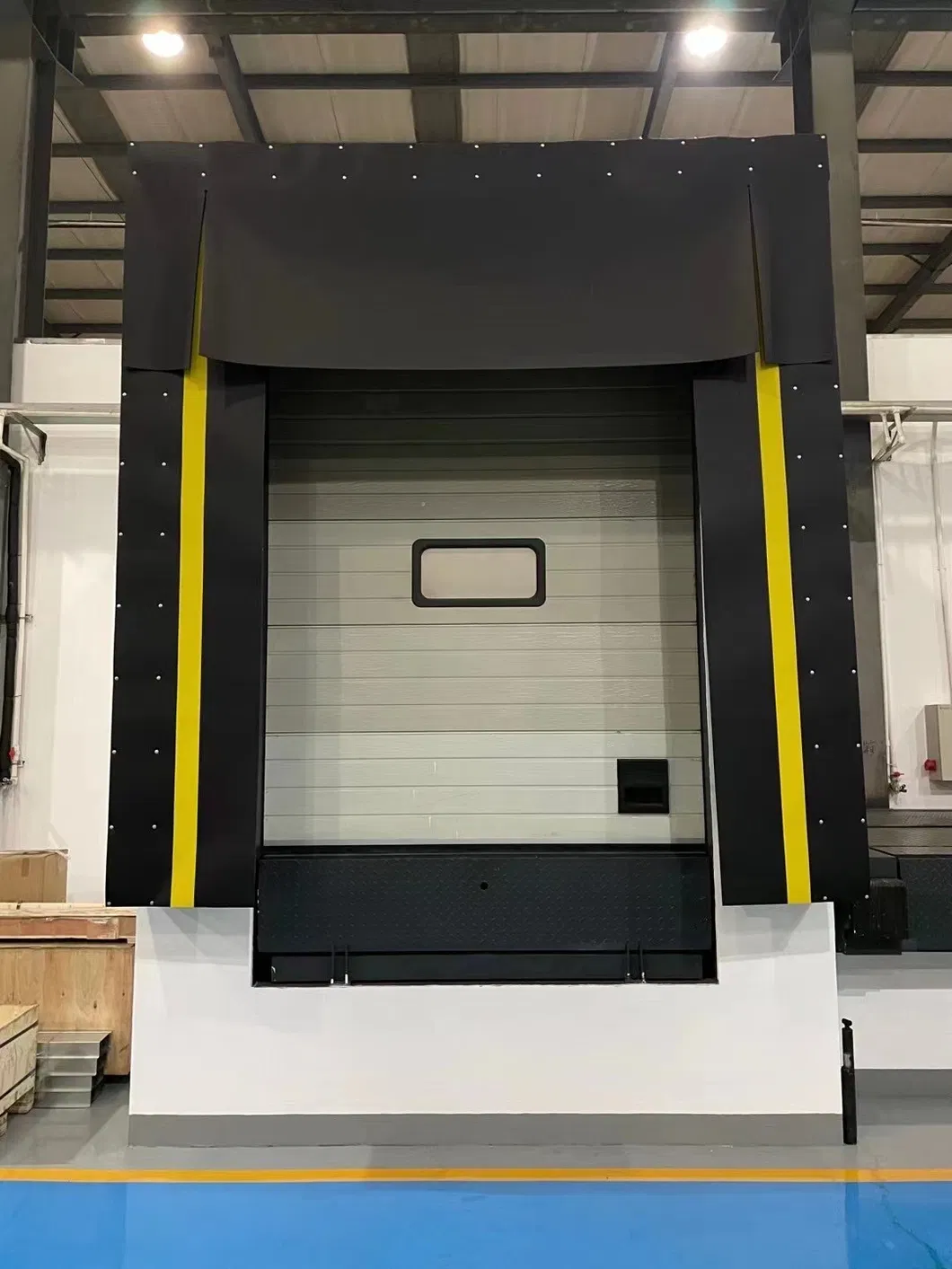

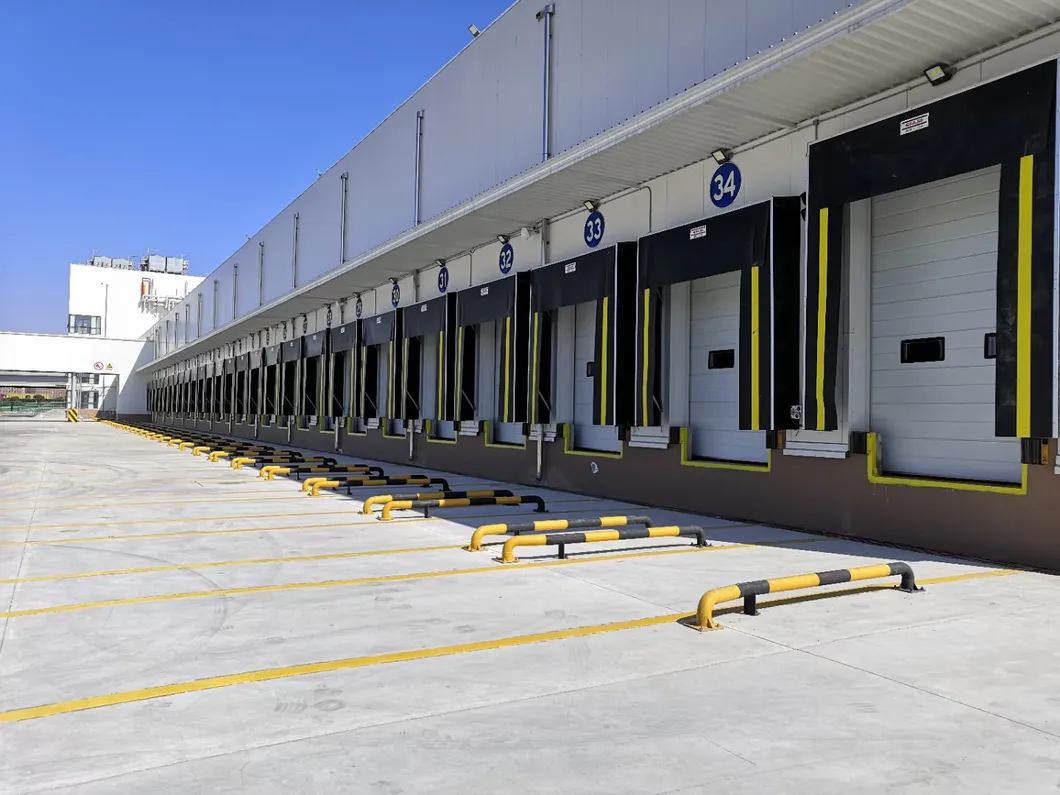

Loading Bay 1 Loading Bay 2 Loading Bay 3

Production & Loading Process

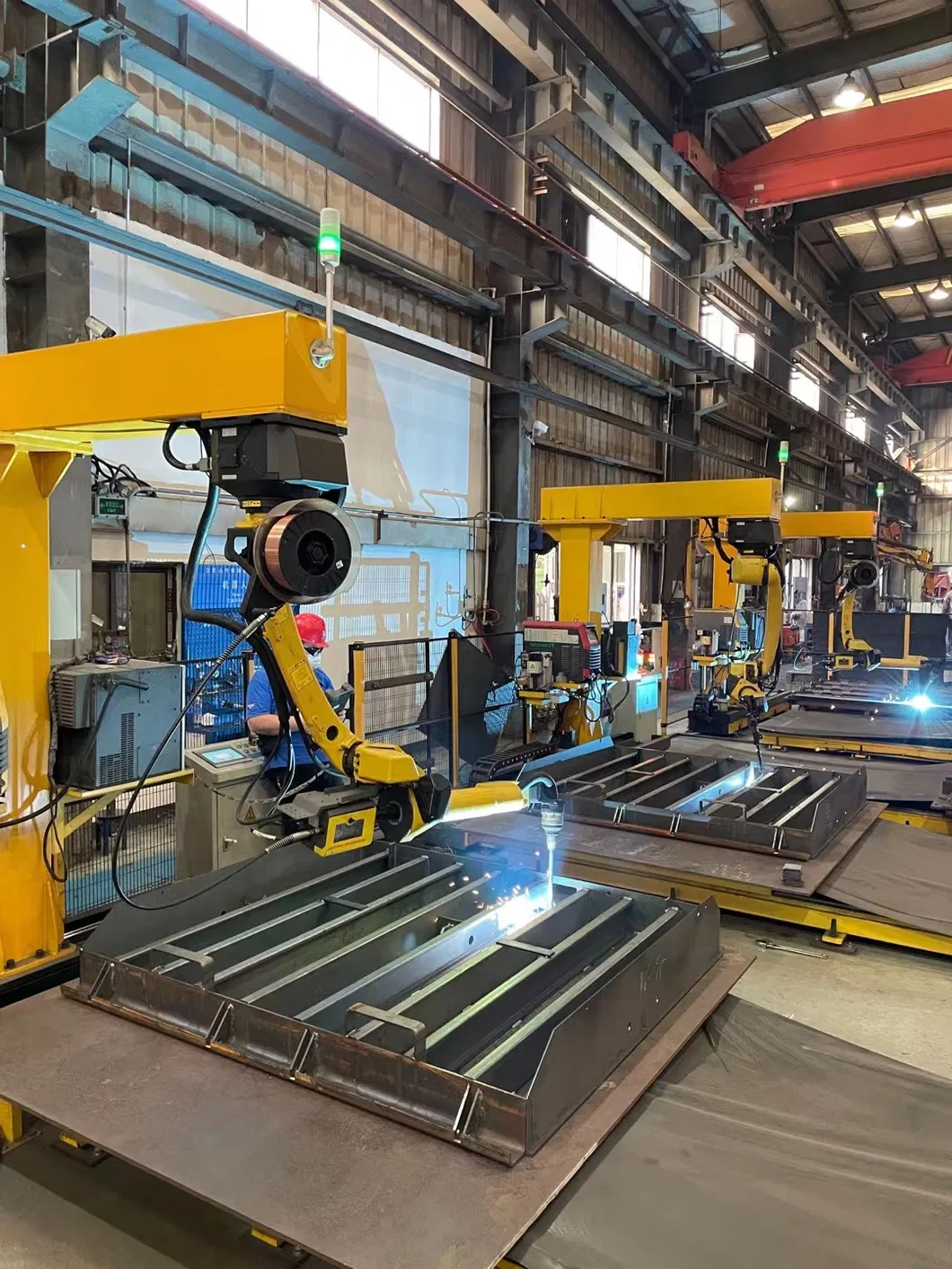

Welding robots ensure high accuracy and structural integrity for every dock leveler.

Welding Robot

Loading Capacity:

  • One 40 feet HQ container can load 20 sets.
  • One 20 feet container can load 8 sets.

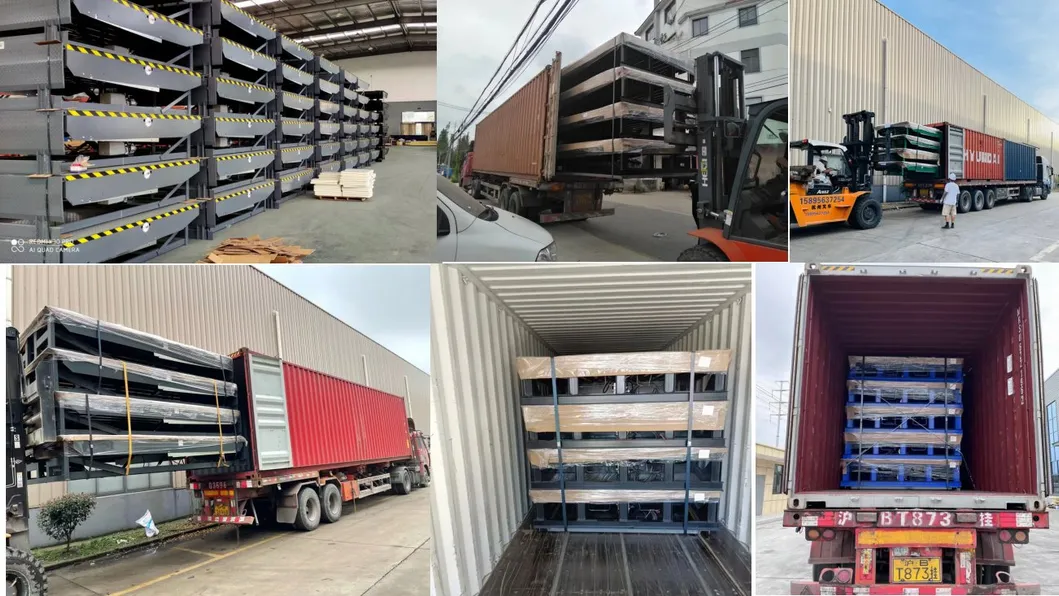

Packing and Loading

Certification & Exhibition

Certifications Exhibition

Frequently Asked Questions

Why choose our products?
We provide the most cost-effective products with stable quality, backed by more than 20 years of production and customization experience and professional technical support.
How can we start a project?
We only need your basic site information and project requirements. If drawings are available, it's even better. We can provide a complete solution based on this info.
What about the installation?
We provide clear installation manuals, videos, and precaution documents. For complex large projects, we can provide engineering guidance to ensure successful setup.
Which kinds of payment do you accept?
We usually accept T/T in advance, L/C for large sums, and Western Union. Please contact us for other preferred payment terms.
How long is the lead time?
Typically, the production lead time is 7-10 days, depending on the order size and customization requirements.
How is the after-sale service?
Spare parts can be delivered within 24 hours via international couriers like DHL, UPS, or TNT to ensure minimal downtime for your operations.
