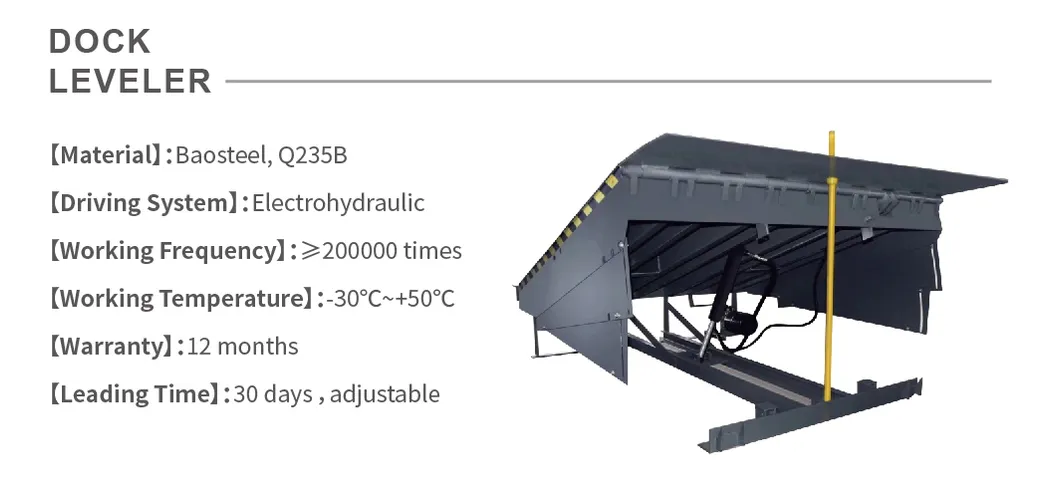

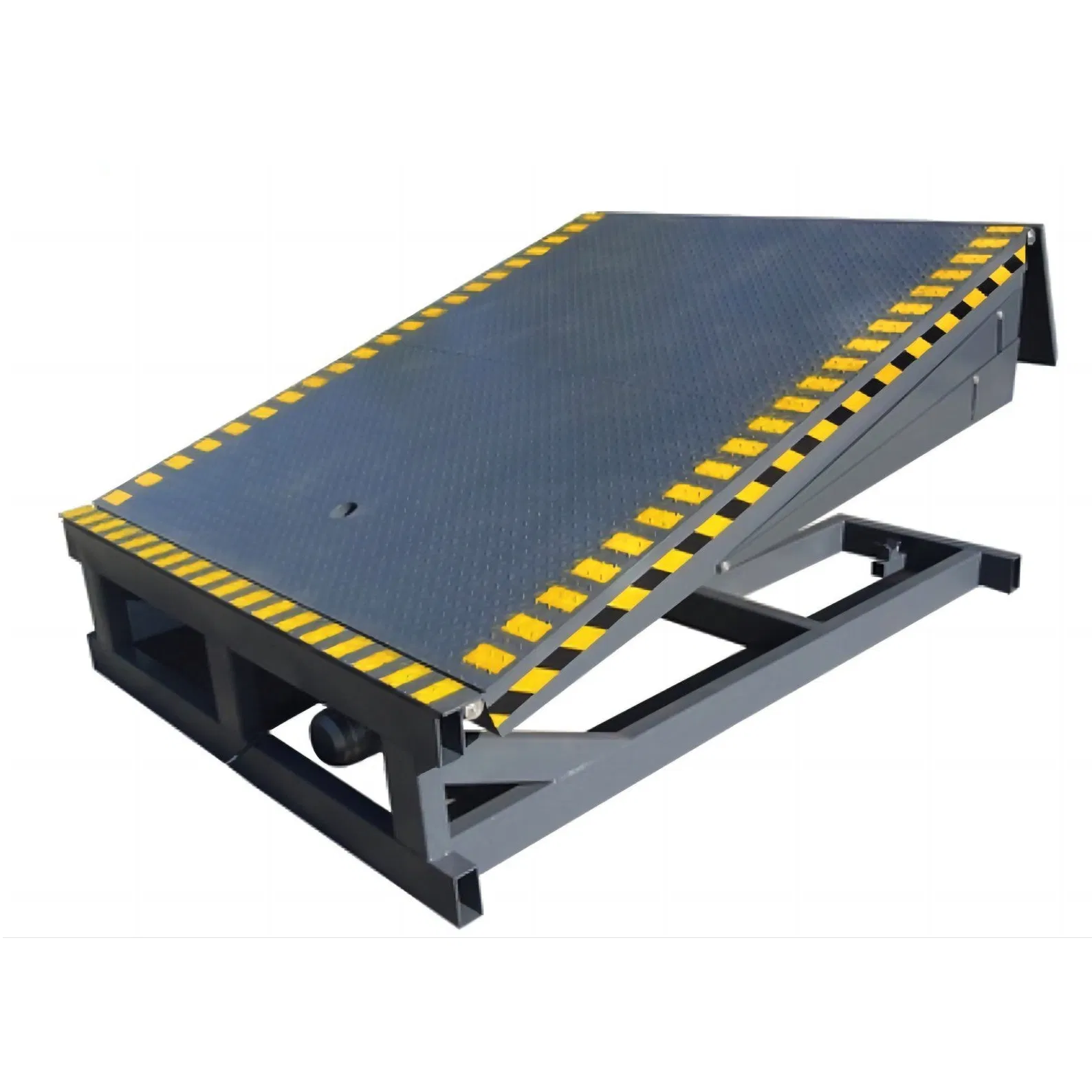

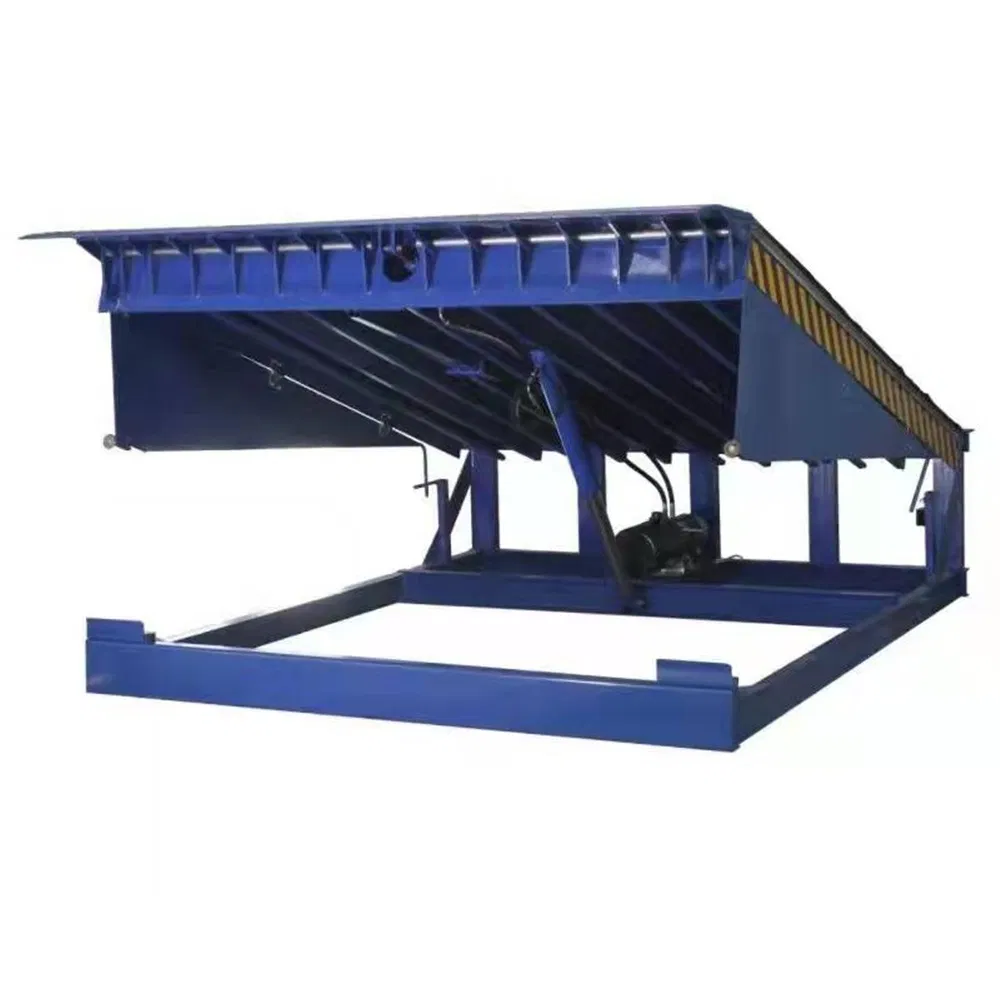

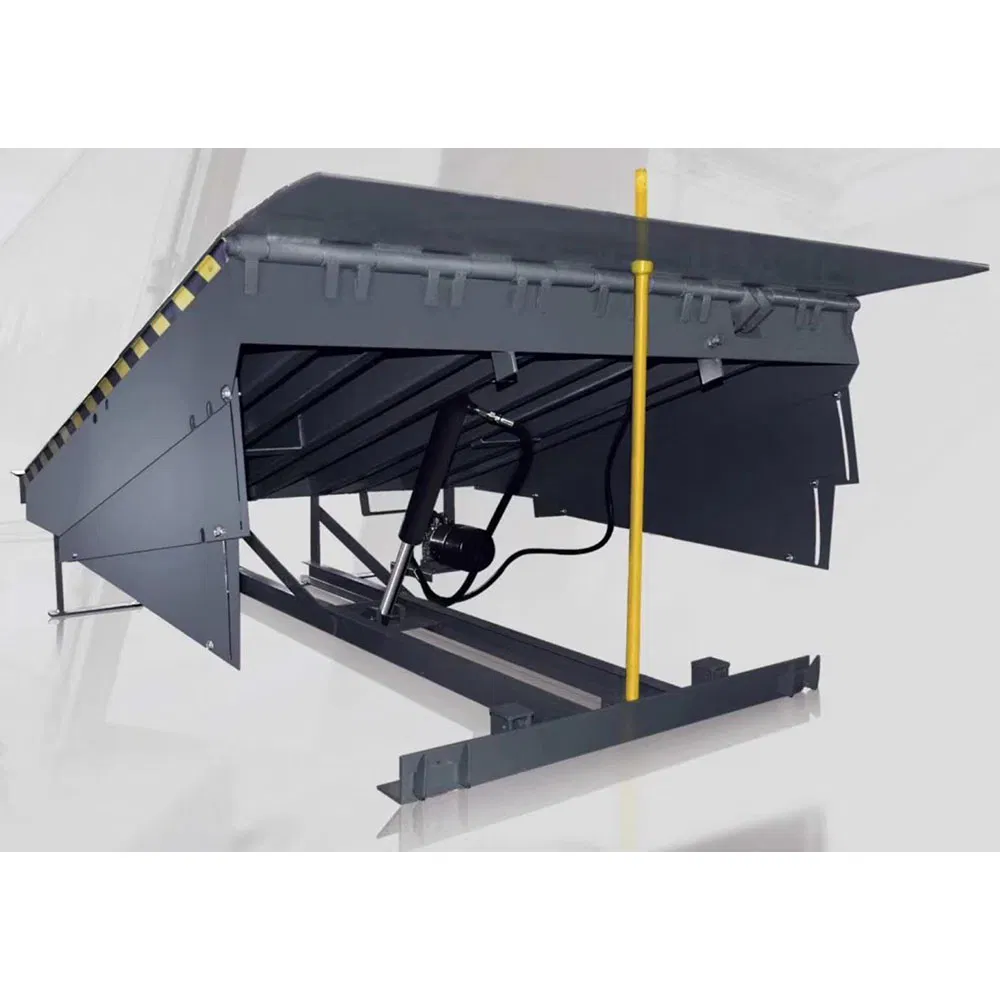

This Hydraulic Electric Ramp is high-performance garage equipment designed for lifting and loading tasks. It serves as an adjustable telescoping lifter and dock ramp leveler, ideal for truck containers and warehouse work platforms. Built with heavy-duty steel and explosion-proof features, it ensures maximum safety and efficiency in logistics operations.

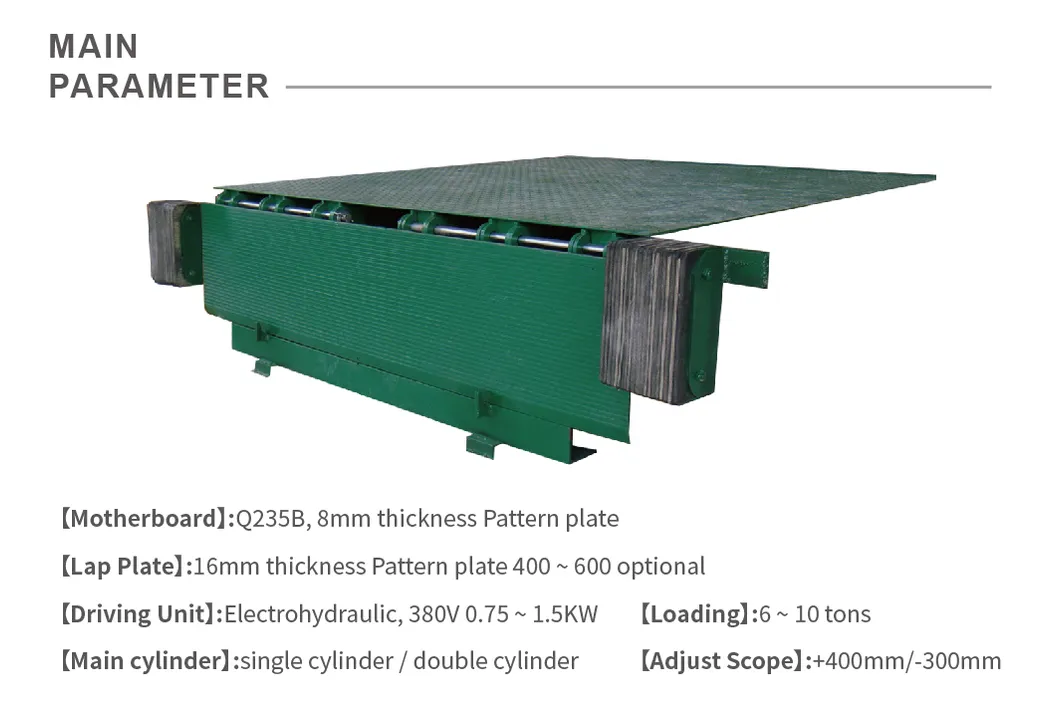

| DETAILED TECHNICAL PARAMETERS | |
|---|---|

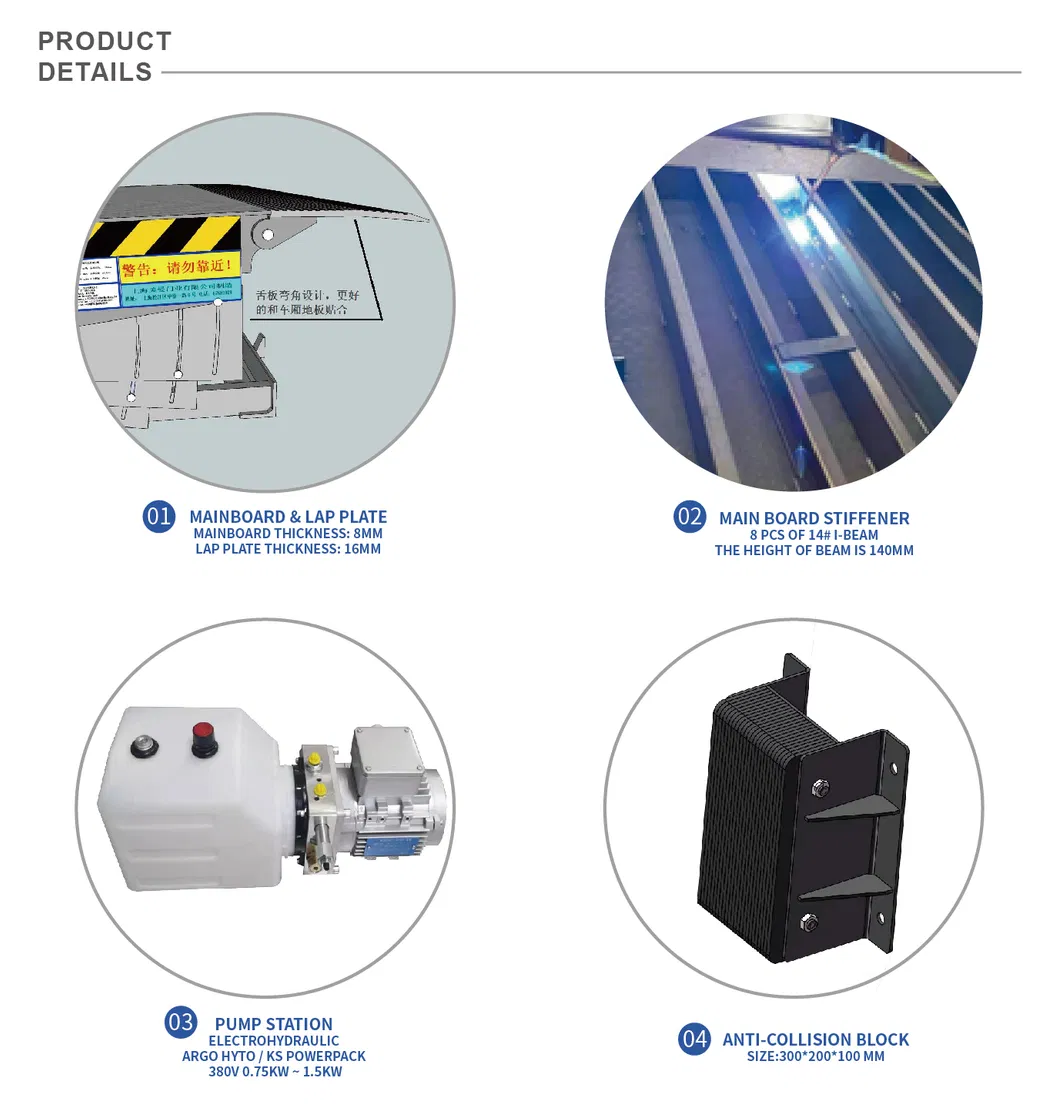

| Main Board | Q235B steel plate with anti-slide pattern, thickness: 6 / 8 mm; blasting surface treatment and powder coating |
| Lap Plate | Q235B steel plate with anti-slide pattern, thickness: 14 / 16mm; blasting and powder coating |
| Hinge | Open type, 8*150mm |
| Loading Weight | Dynamic load: 6T / 8T / 10T / 12T / 15T |
| Driving System | Electrohydraulic, Local brand / ARGO HYTO powerpack, 380V 0.75KW ~ 1.5KW |
| Control System | Standard 380V English interface |
| Adjust Scope | +400mm / -300mm |
| Adjust Time | Up ≤ 16S ; Down ≤ 10S |
| Sealing Parts | Brand: NOK A505 Complete set of seals for oil cylinder |
| Side Baffles | Automatic retraction to ensure safety |
| Working Temperature | -30ºC ~ +50ºC |
| Safety Part | Explosion proof valve |
| Working Frequency | ≥ 200000 times |
