Top Quality Manufacturer Factory Direct High Quality Hydraulic Equipment Loading Dock Leveler with Dock Leveler Power Unit

1 / 5

Top Quality Manufacturer Factory Direct High Quality Hydraulic Equipment Loading Dock Leveler with Dock Leveler Power Unit

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model

Leveler Series

Application

Warehouse Loading Bay

Driven Type

Hydraulic

Feature

Explosion-Proof / Heavy Duty

Certification

CE, ISO 9001

Standard Size

L2000*W2000*H600mm (Customizable)

Power Supply

220V 50Hz / 380V 50Hz

Temperature

-35 to 65 Celsius Degree

Protection

IP55

Capacity

6000kg - 15000kg

Product Description

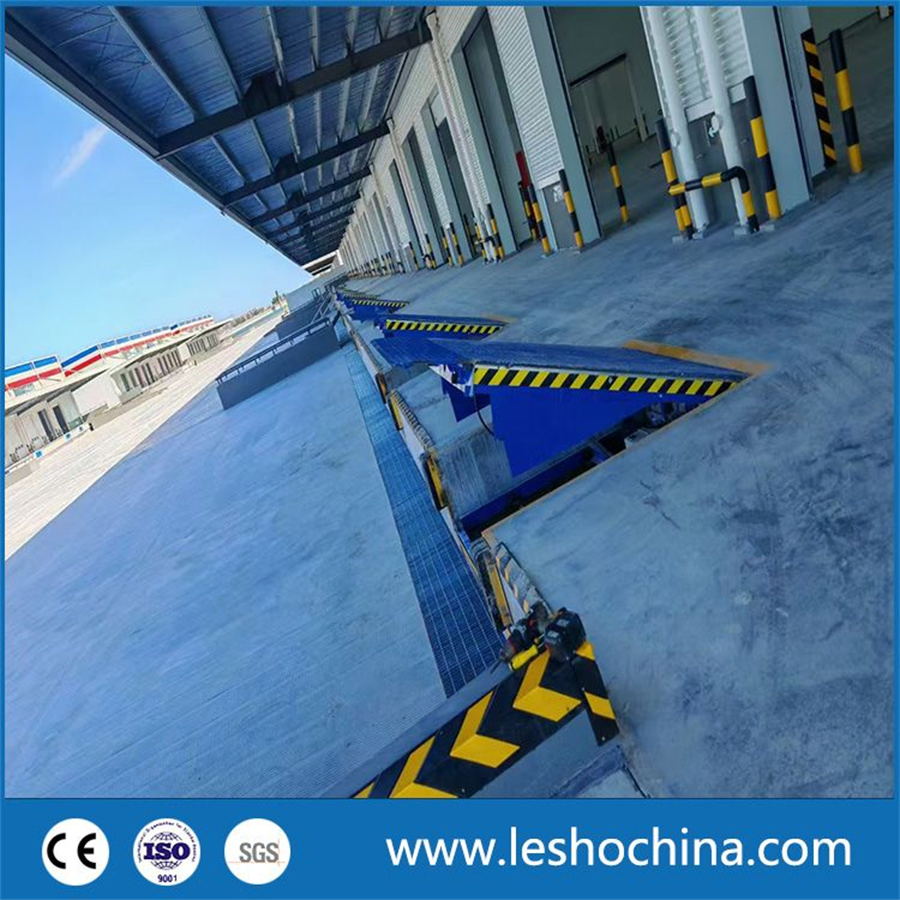

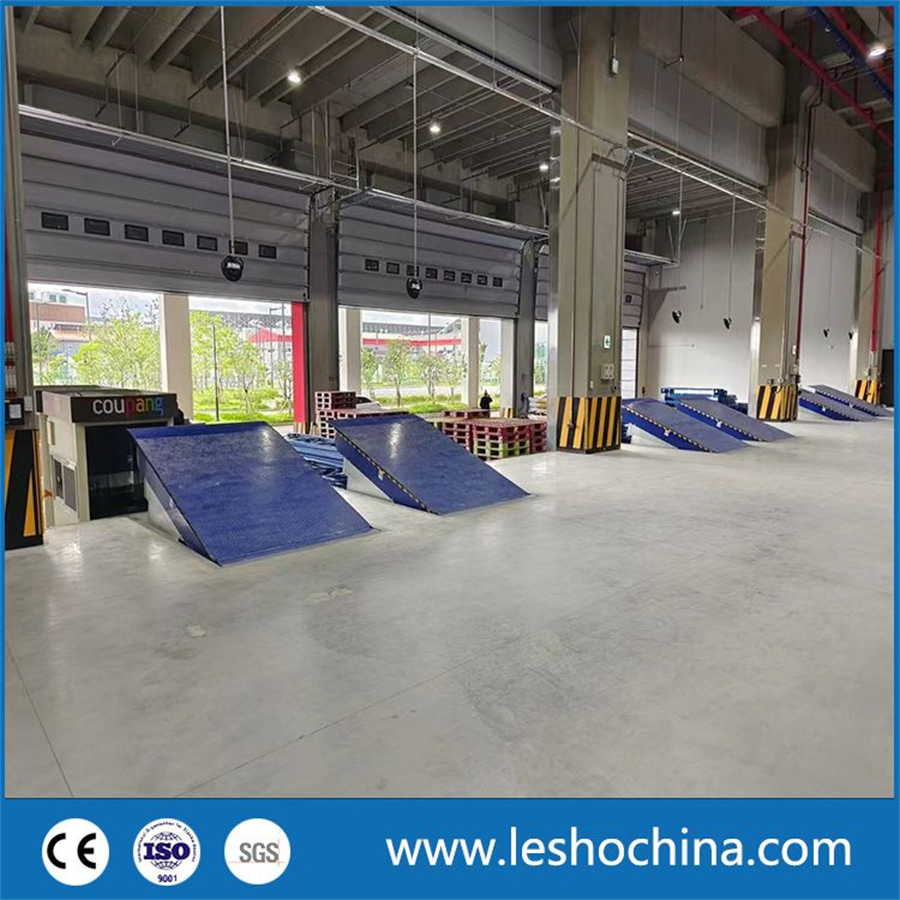

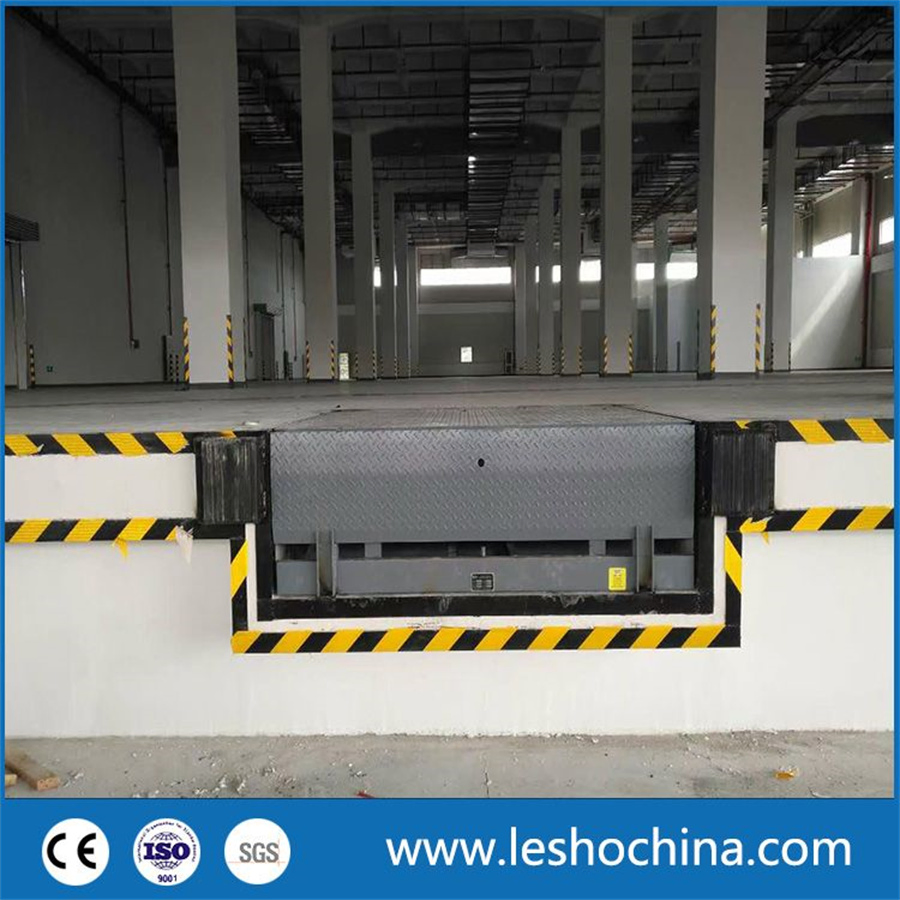

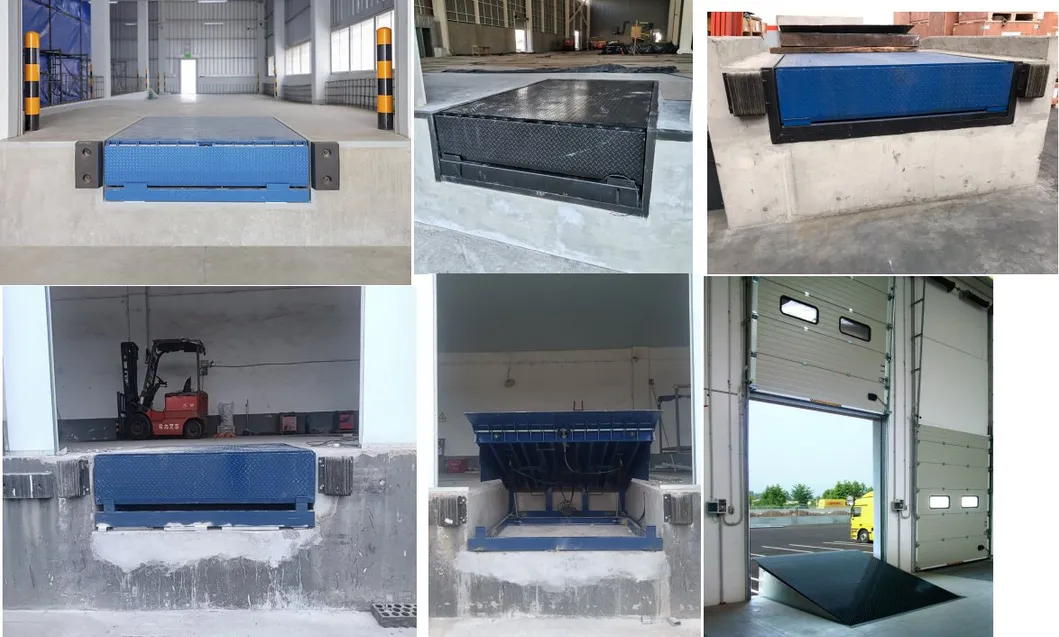

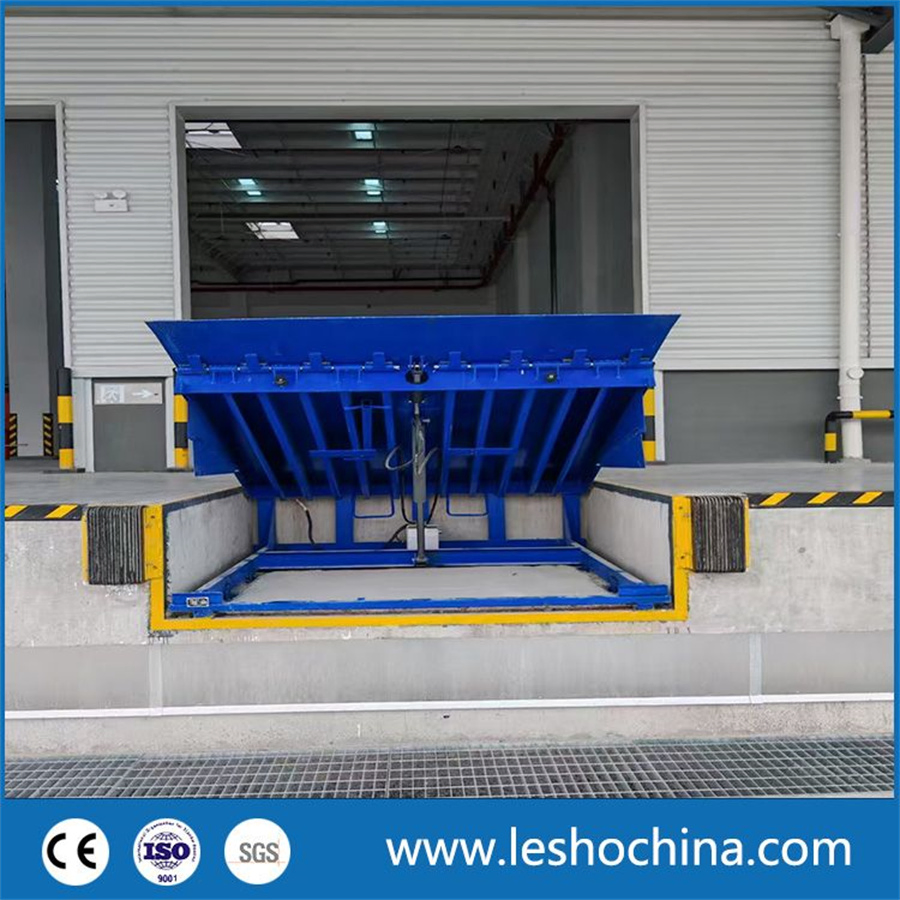

Automatic Stationary Fixed Hydraulic Dock Leveler

The dock leveler is the optimal solution to bridge the height gap between loading platforms and container trucks.

Arbitrary height adjustment with a large range to improve loading efficiency.

Saves manpower and enhances safety in high-traffic logistics hubs.

Ideal for warehouses, stations, postal transportation, and logistics distribution bases.

Loading Capacity & Type Selection

Dynamic Load	Panel Thickness	Reinforcement	Mouth Plate	Static Load	Forklift Range
5 Tons	6mm	4mm L Steel	12mm	8 Tons	2.5 Tons
8 Tons	8mm	4mm L Steel	16mm	11 Tons	3.5 Tons
10 Tons	8mm	14# I-Beam	16mm	13 Tons	5 Tons
14 Tons	10mm	16# I-Beam	16mm	17 Tons	6 Tons

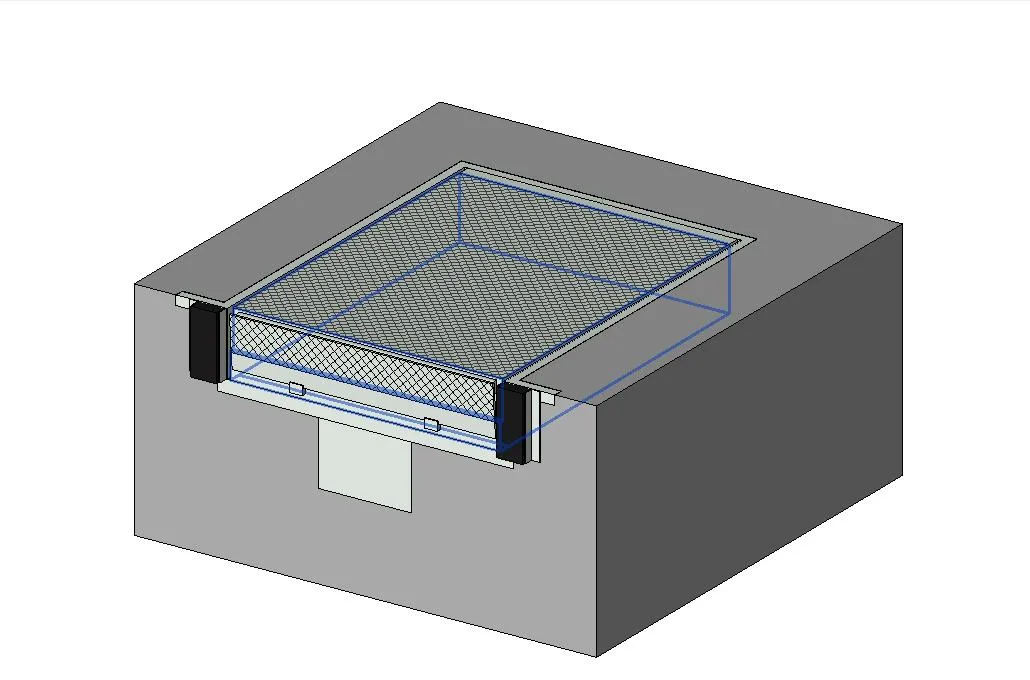

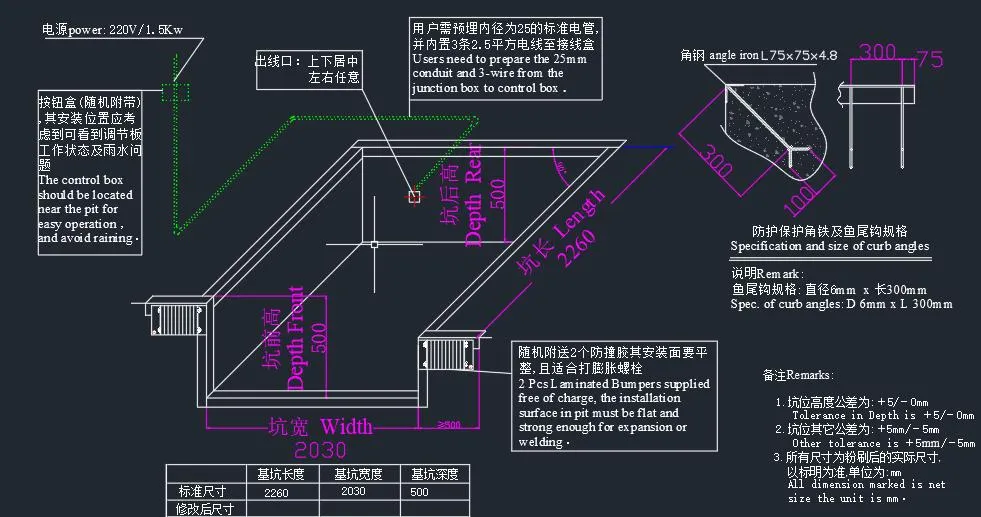

Technical CAD Drawings

Accurate shop drawings provide clear pit dimensions to ensure precise construction and seamless installation.

Common Standard Sizes:

Width 1830mm × Length 2000mm × Height 500mm
Width 2000mm × Length 2000mm × Height 500mm
Width 2000mm × Length 2500mm × Height 500mm

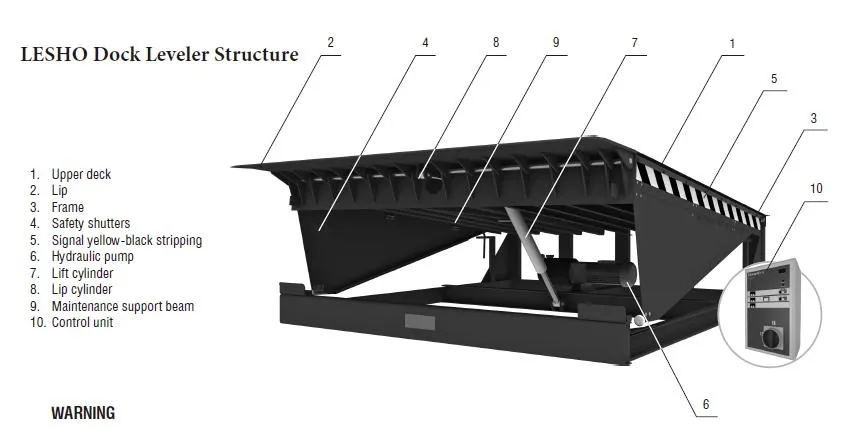

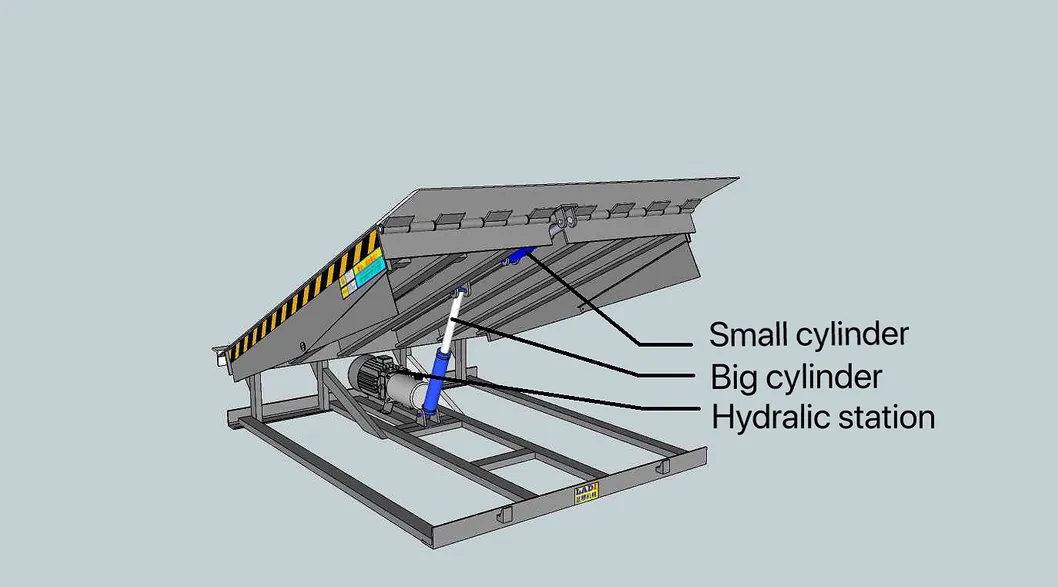

Core Components

Main Platform:

6mm-8mm thick high-strength whole steel plate.
Whole-piece sheet design for superior durability.
High-density steel tube or C-channel support.
Powder-coated surface for anti-rust performance.

Top Lip:

12-16mm thick steel sheet.
Embossed anti-skid treatment for forklift safety.
Blasting and high-grade powder coating.

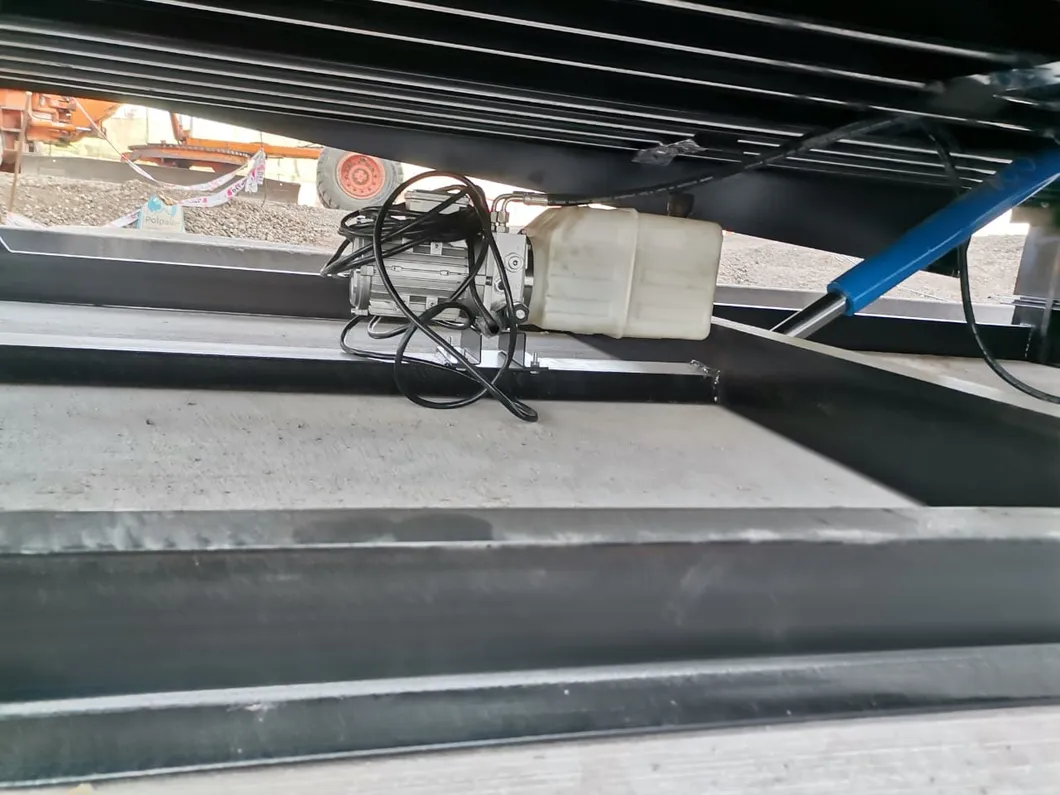

Hydraulic System

Output: 0.75KW-1.5KW with overheating protection.

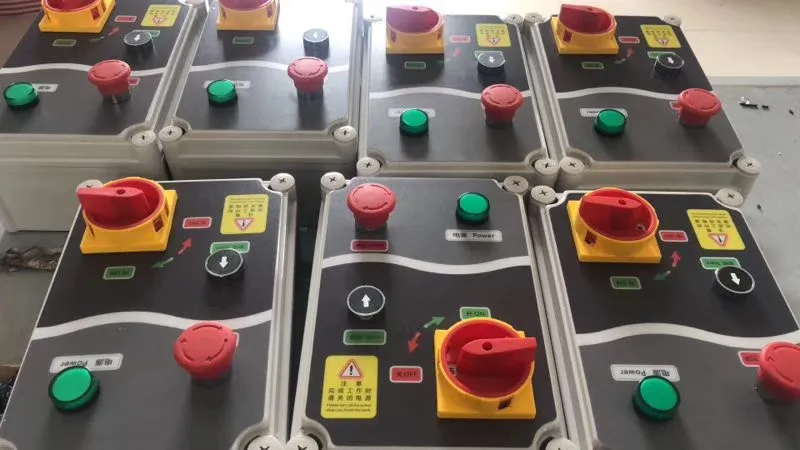

Control Panel

Emergency stop and one-button operation.

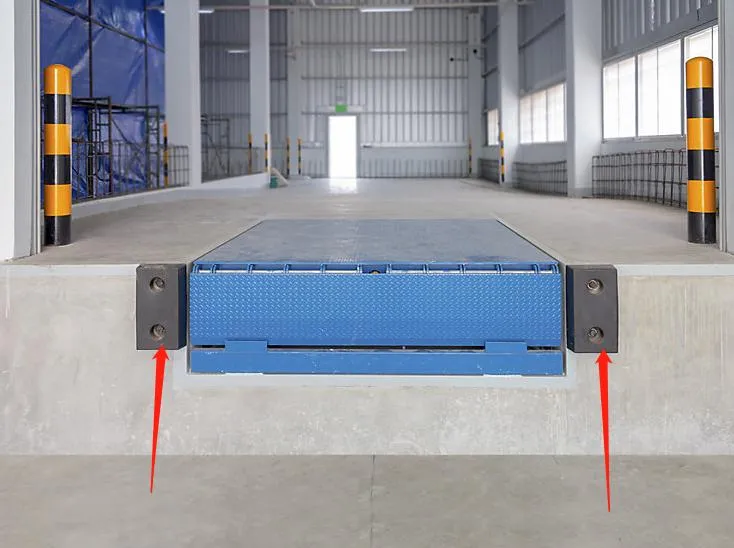

Dock Bumper

Wear-proof rubber with expansion bolt fixing.

Advanced Manufacturing

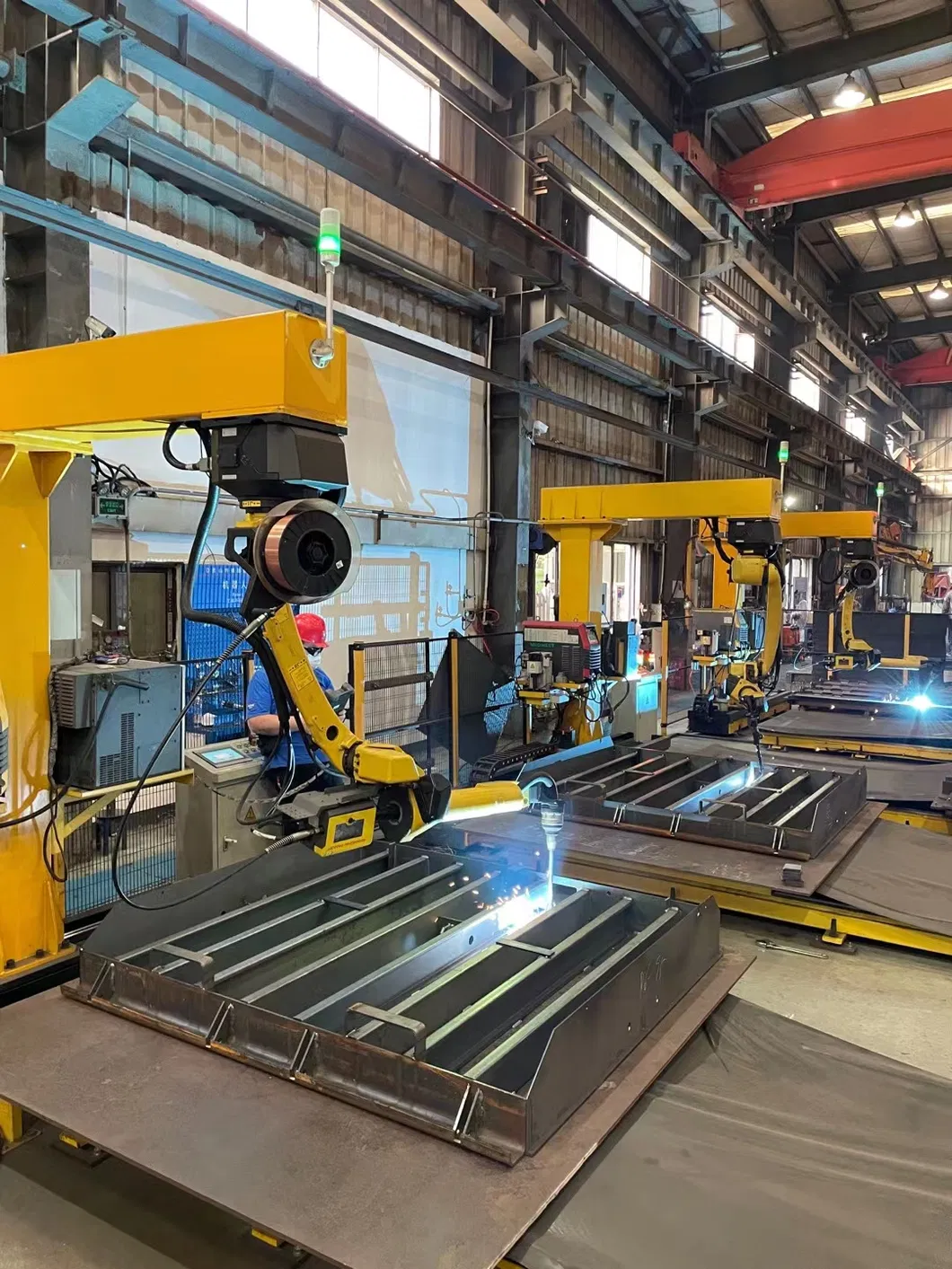

Precision welding robots ensure structural integrity and accurate assembly.

Key Features:

Bears 120% of standard nominal load capacity.
Hinge and Shaft are heat treated to minimize deformation.
Imported hydraulic drive station for stable, high-frequency work.
Epoxy resin paint coating for extreme durability.

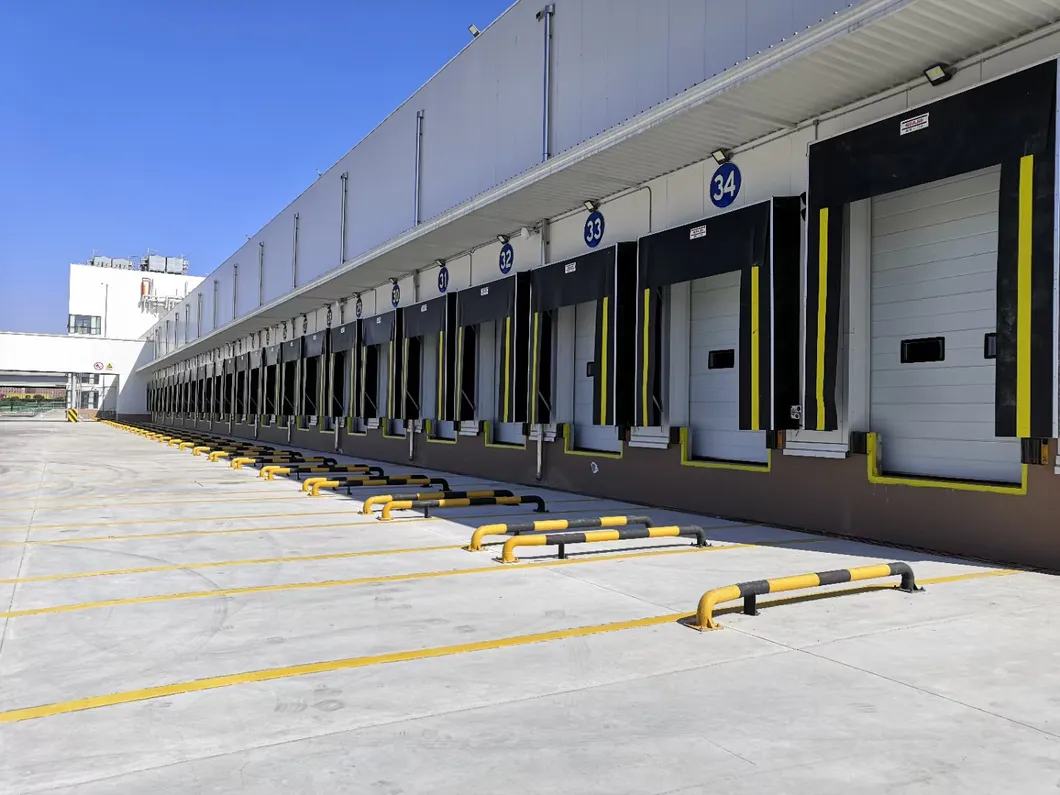

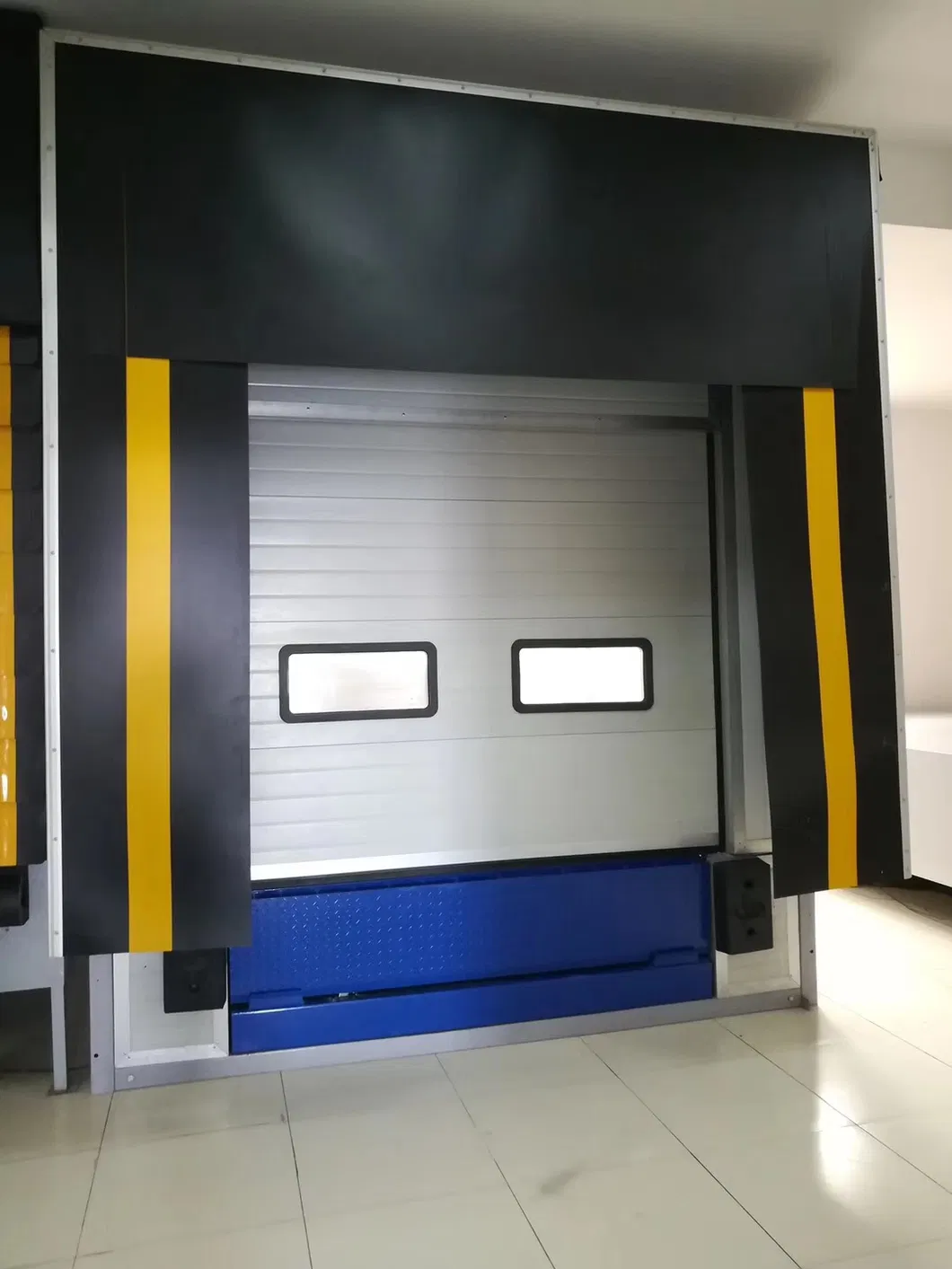

Complete Loading Bay Solutions

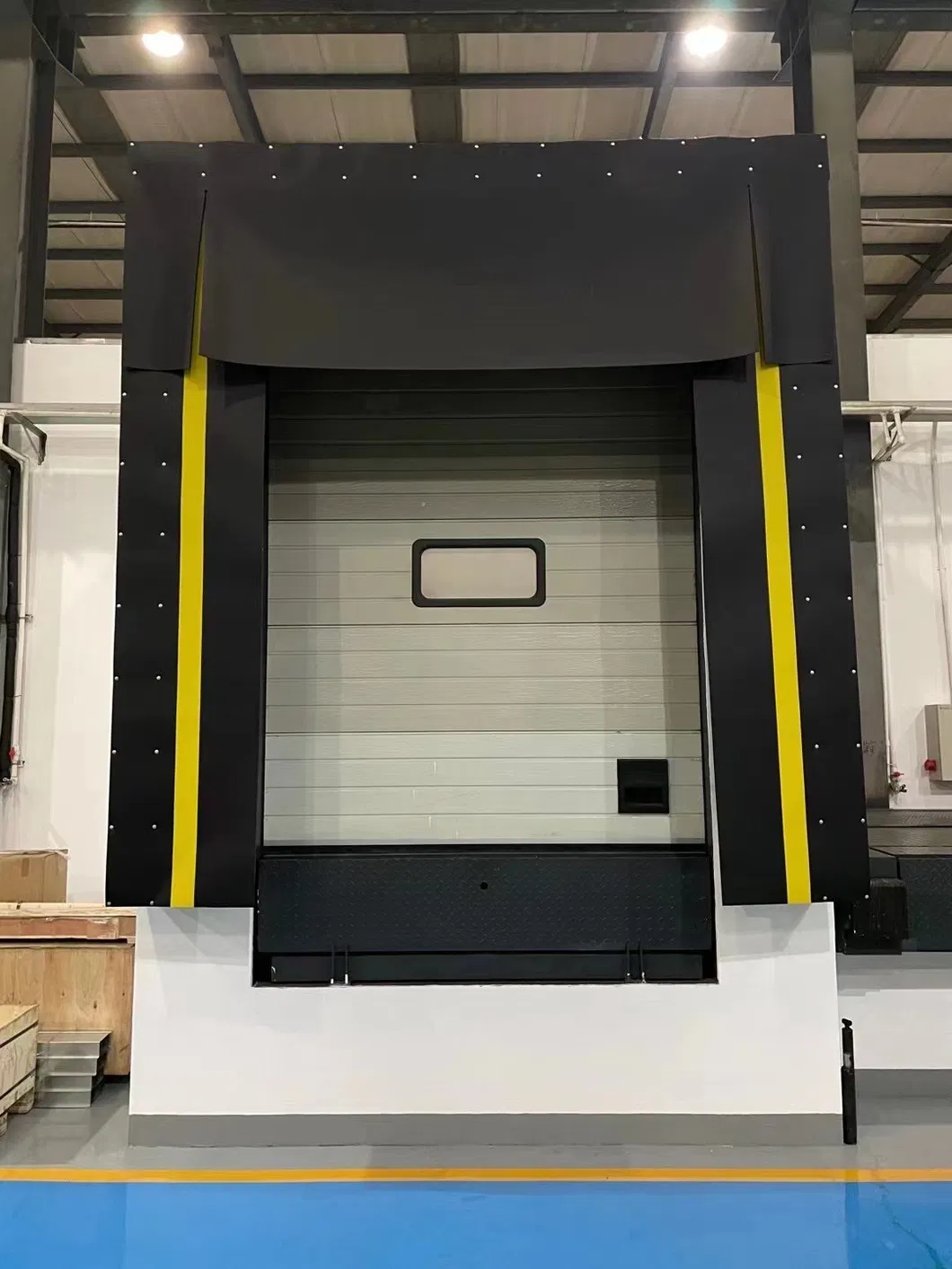

Integration of Sectional Doors, Dock Levelers, and Dock Shelters for maximum efficiency.

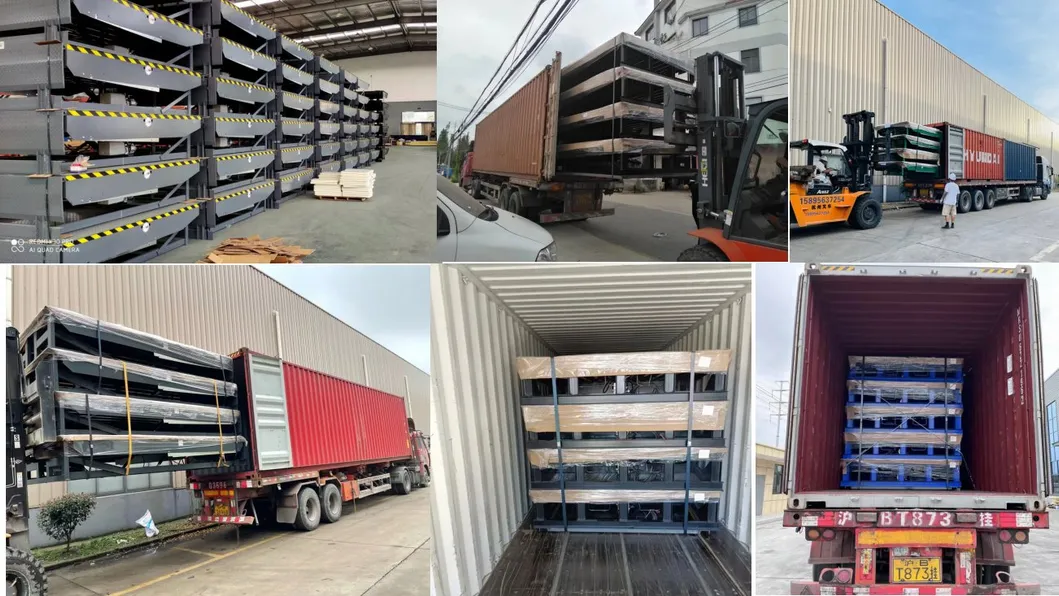

Packaging & Shipping

One 40ft HQ container can load 20 sets; One 20ft container can load 8 sets.

Quality Assurance

Frequently Asked Questions

Why should we choose this hydraulic dock leveler?

We offer the most cost-effective products with stable quality, professional technical support, and over 20 years of manufacturing experience.

How do we start a customized project?

Simply provide your basic site background and project dimensions. If you have factory site plan drawings, that's even better for a complete solution.

Is the installation difficult for new users?

No. We provide clear installation manuals, videos, and precaution documents. Even workers without experience can follow our guides for a successful setup.

What are the accepted payment terms and lead times?

We typically accept T/T, L/C, and West Union. The standard lead time for production is approximately 7-10 days.

What happens if spare parts are needed after purchase?

Spare parts can be dispatched within 24 hours via international couriers like DHL, UPS, or TNT to ensure minimal downtime for your operations.

Can the color and size be customized?

Yes, we support RAL color customization (Blue, Grey, Green, etc.) and can adjust dimensions to fit your specific pit requirements.
