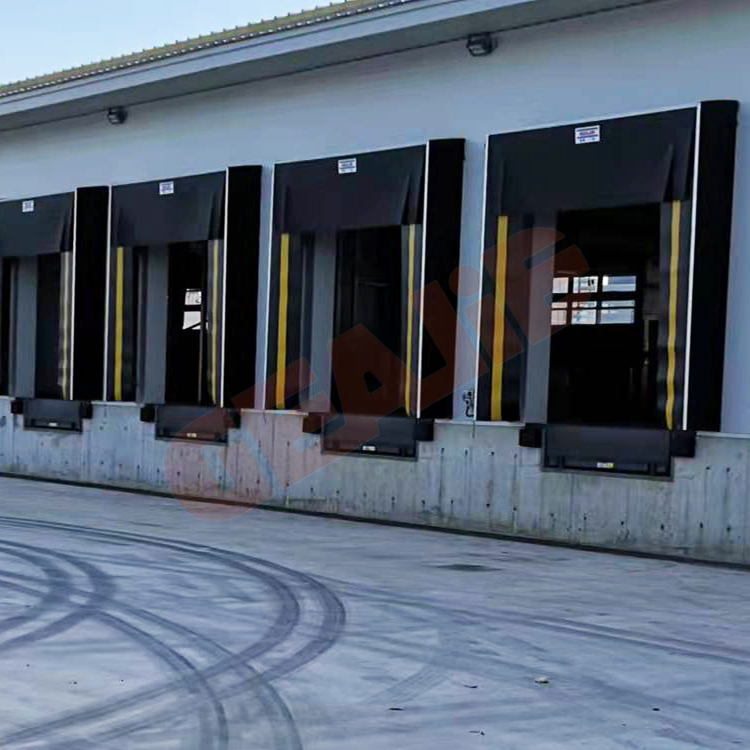

Factory Direct Sale Industrial Mechanical Door Seal Fixed Dock Shelter

1 / 5

Factory Direct Sale Industrial Mechanical Door Seal Fixed Dock Shelter

Customization:	Available
After-sales Service:	Available
Warranty:	12 Months

Send Inquiry

Product Description

📋Basic Information

Model NO.

MDS12

Material

Aluminum Alloy

Type

Dock Seal

Open Style

Automatic

Opening Type

Rolling

Special Function

PVC

Color

Customized

Certification

TUV, CCC, ISO9001, RoHS, CE

Surface Finishing

Finished

Production Capacity

1500 Pieces/Month

📦Packaging & Delivery

Package Size

50.00cm * 30.00cm * 150.00cm

Gross Weight

350.000kg

Transport Package

Standard Seaworthy Package

🛠️Product Description

Dock Shelters are enclosures that seal the perimeter of the trailer to form a seal. This is accomplished by applying pressure against the sides of the trailer with fabric curtains fitted with fiberglass stays. A dock shelter closes the gap between the building wall and the truck by sealing the top, sides, and back of the transport vehicle, essentially creating an extension of the warehouse.

Material Description
W (Width)	3400mm, 3500mm, 3600mm
H (Height)	3500mm, 3600mm, 3700mm
Side door curtain	W630mm
Top curtain	Standard: 1000mm. Options: 1200mm, 1500mm. Adjustable available.
Non-standard size	Can be customized according to vehicle compartment dimensions.

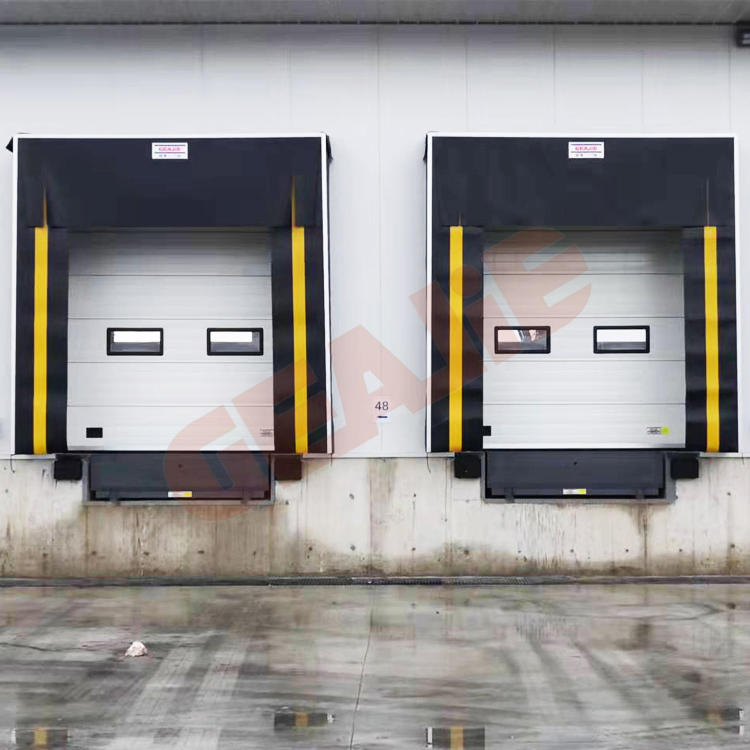

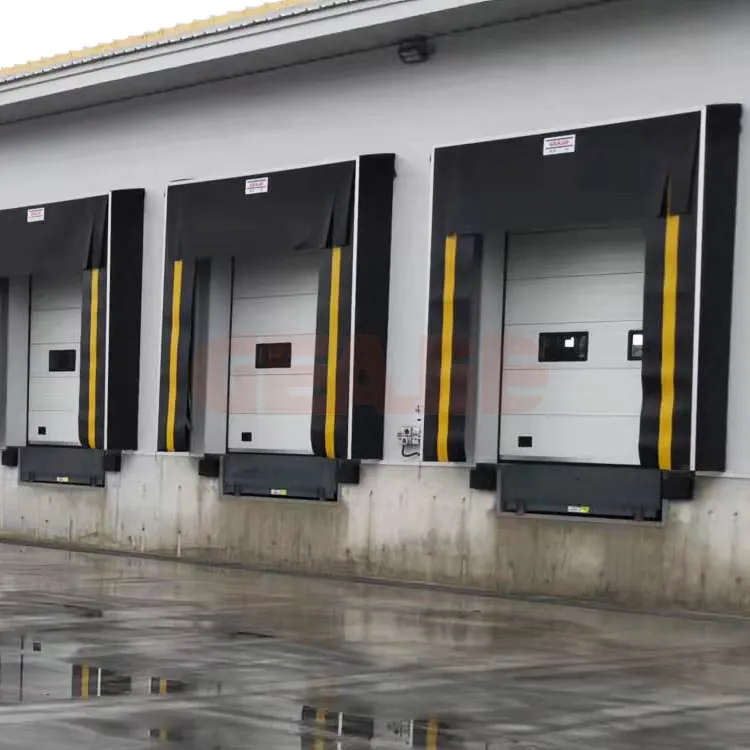

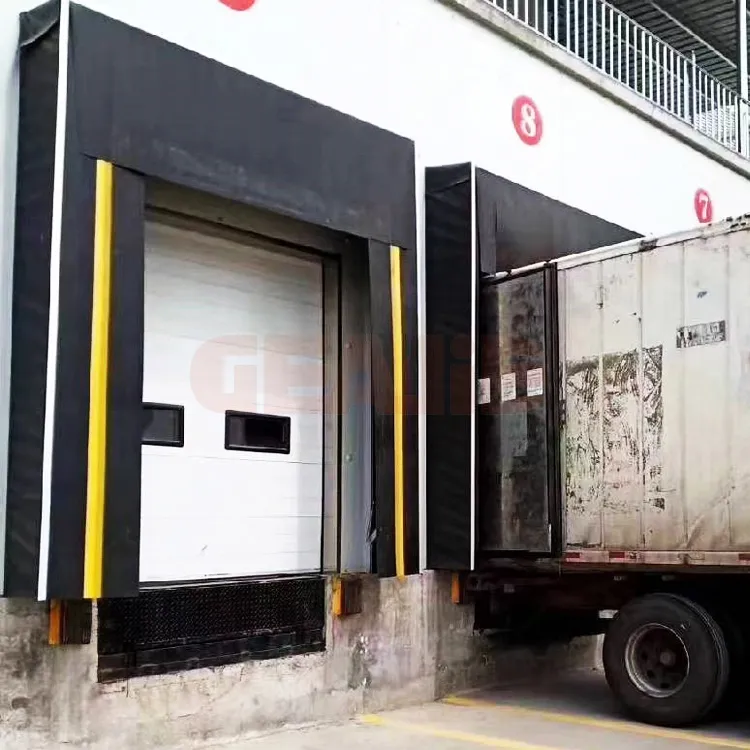

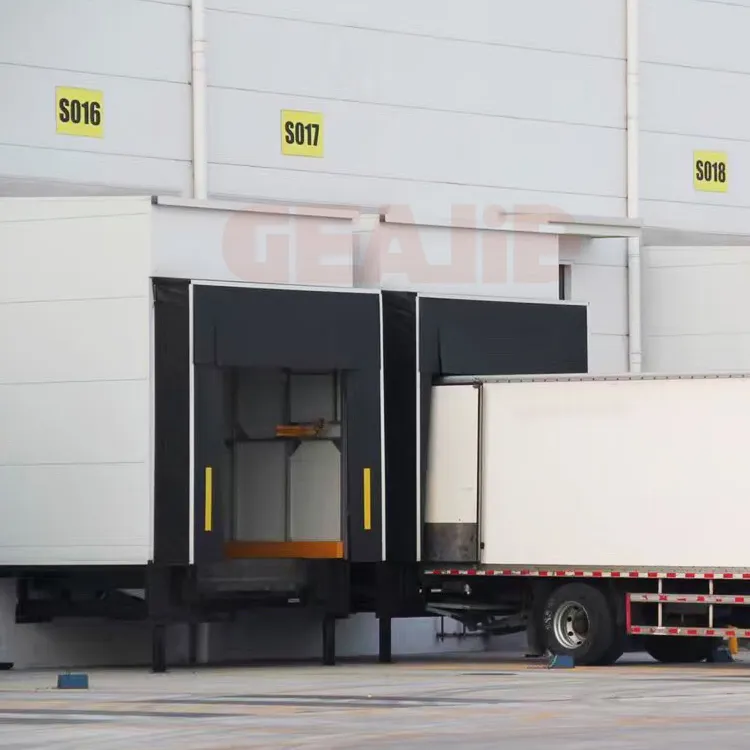

🖼️Product Show

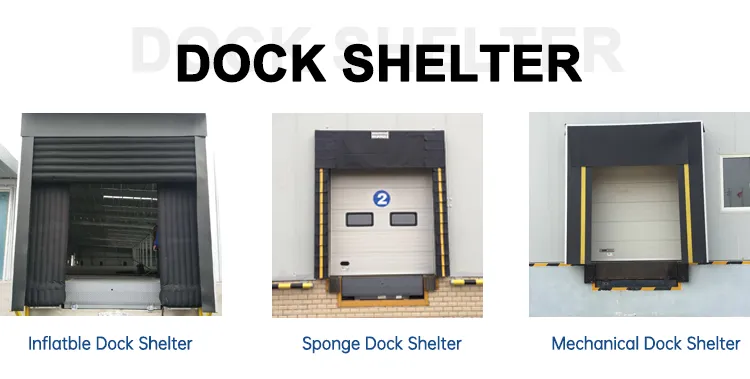

⚙️Dock Shelter Options

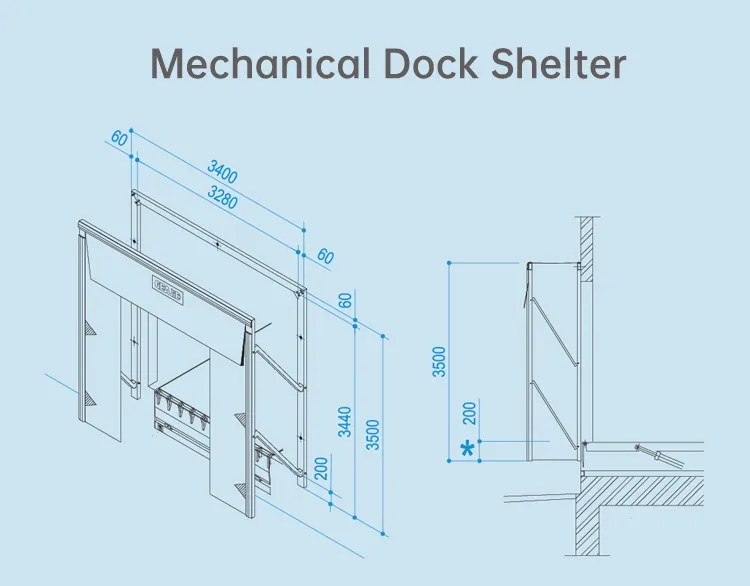

A. Mechanical Dock Shelter (Retractable)

Compatible with various vehicle types; requires less wall load-bearing capacity.
Retractable frame made of galvanized steel (60*30mm cross section).
PVC curtains: 1mm thickness, 750g/m² weight.

B. Insulated Sponge Dock Shelter

Ideal for strict insulation requirements.
High-density compression sponge (30KG/m³).
Self-extinguishing PVC curtains (800 g/m²) with pleated blinds for wear resistance.

C. Inflatable Dock Shelter

Maximum insulation for temperature-controlled cold storage.
Fast operation: Inflation in 15 seconds, closing in 15 seconds.
Consists of 2 side and 1 top inflatable PVC fabrics powered by an air blower.

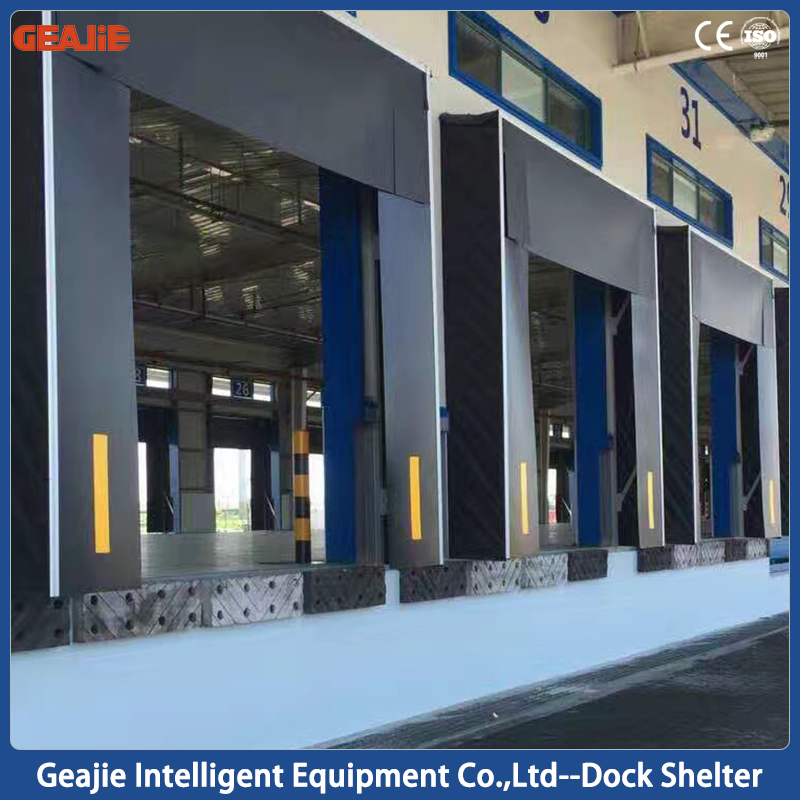

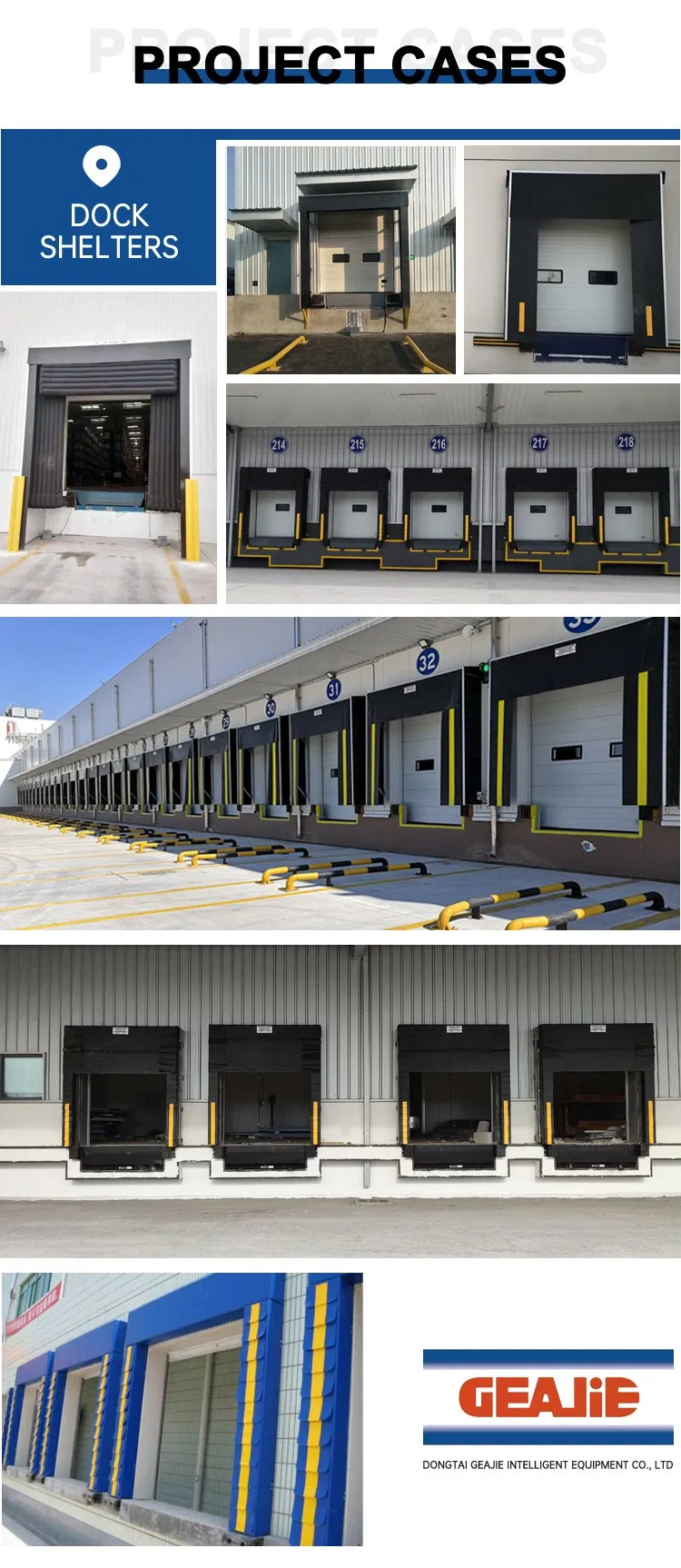

🏆Project Cases & Facilities

🏭Manufacturing Excellence

❓Frequently Asked Questions

1. What is the Minimum Order Quantity (MOQ)?

The minimum order quantity is 1 set.

2. What are the maximum available sizes for the doors?

The maximum length can reach 6.5M, and the maximum width is 6M. Sizes are adjustable to meet your specific requirements.

3. Where are dock levelers and shelters typically used?

They are primarily used in factory outlets, logistics parks, outgoing ports, and cold storage warehouses to improve cargo handling efficiency.

4. What is the primary benefit of using a dock leveler?

It significantly improves the efficiency of cargo handling, making the unloading and loading of goods easier and safer.

5. Is the installation process difficult?

No, our products are designed for easy installation. We provide the necessary guidance to ensure a smooth setup.

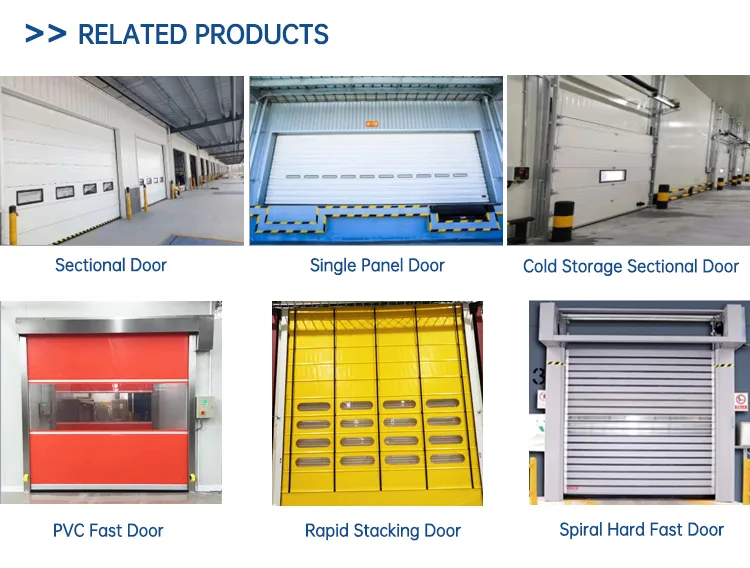

6. Do you produce other industrial door accessories?

Yes, we also manufacture sliding doors, rapid doors, garage doors, rolling shutter doors, industrial fans, and door seals. We produce parts in-house to strictly control quality and costs.
