Application: The Dock Shelter and Dock Seal are the ideal solutions to achieve a perfect seal between the loading/unloading port and the vehicle carriage. Modern logistics facilities require high cleanliness, temperature control, and thermal insulation during the loading process. Our solutions improve the clean environment inside the plant effectively.

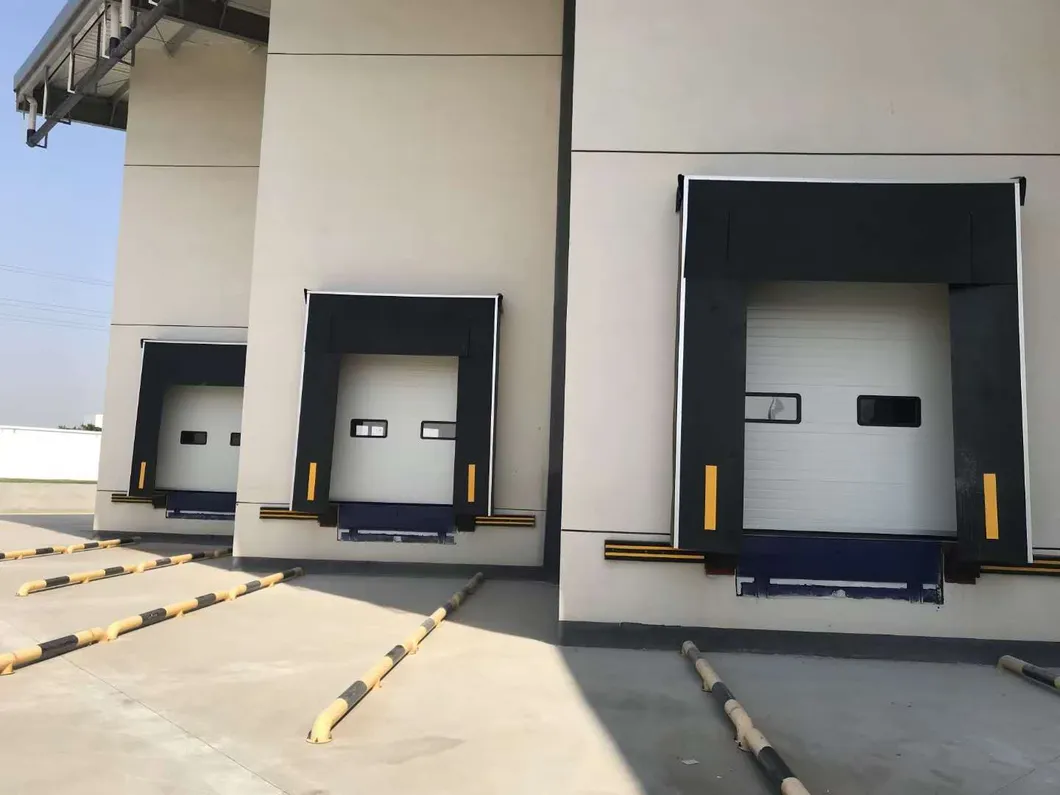

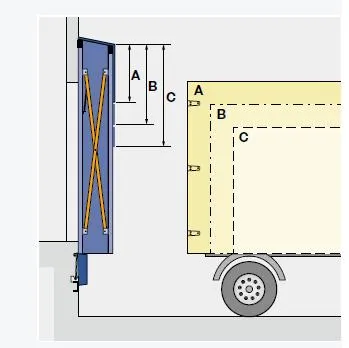

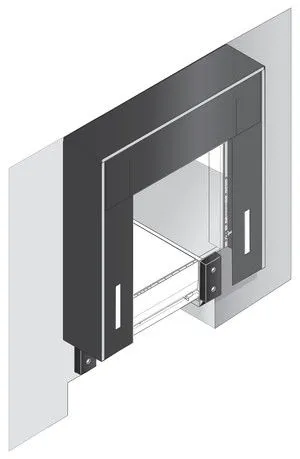

The mechanical dock shelter can be flexibly adjusted according to the size of the car, suitable for various occasions. The top and side curtains are mounted on a retractable galvanized steel frame, providing a stable, durable, and flexible structure. It protects cargo from wind and rain, saves energy, and avoids gas convection.

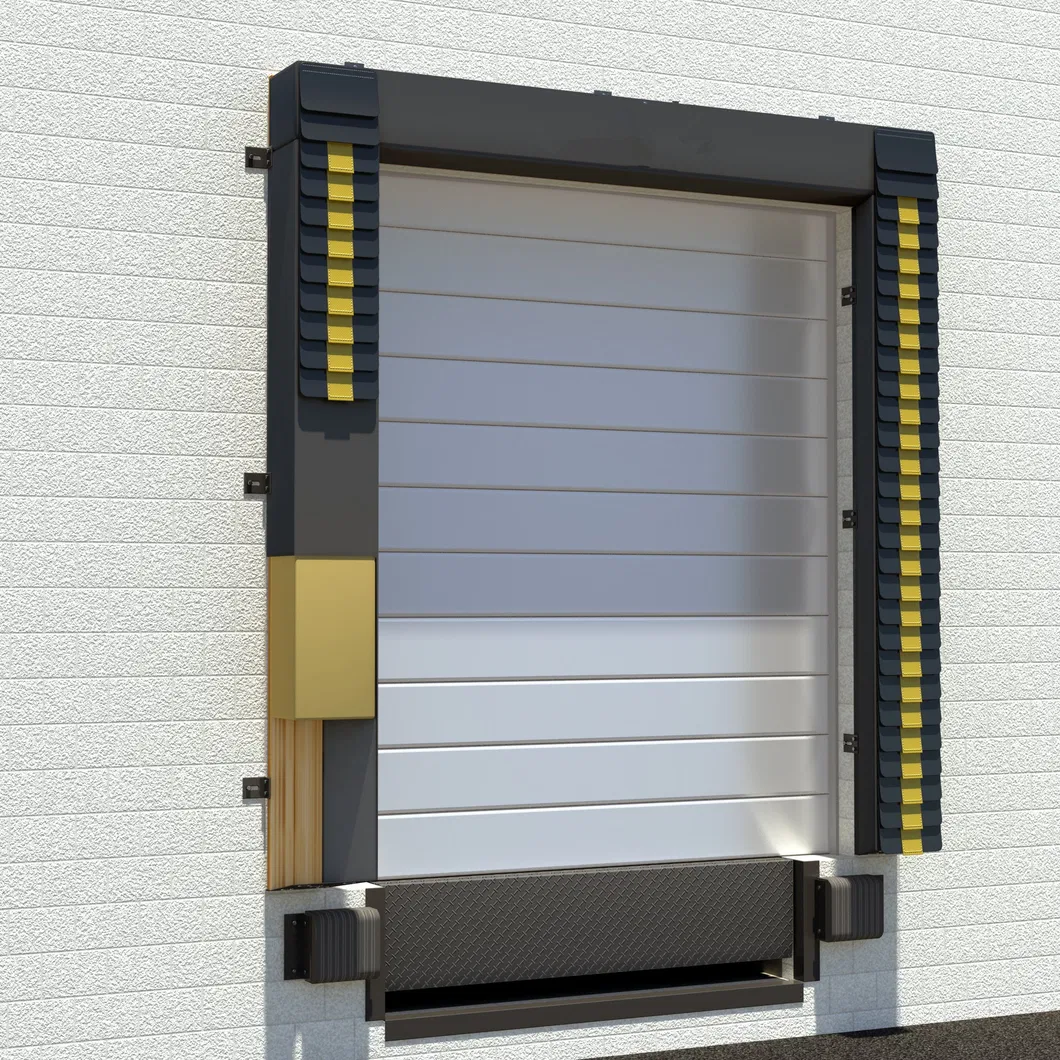

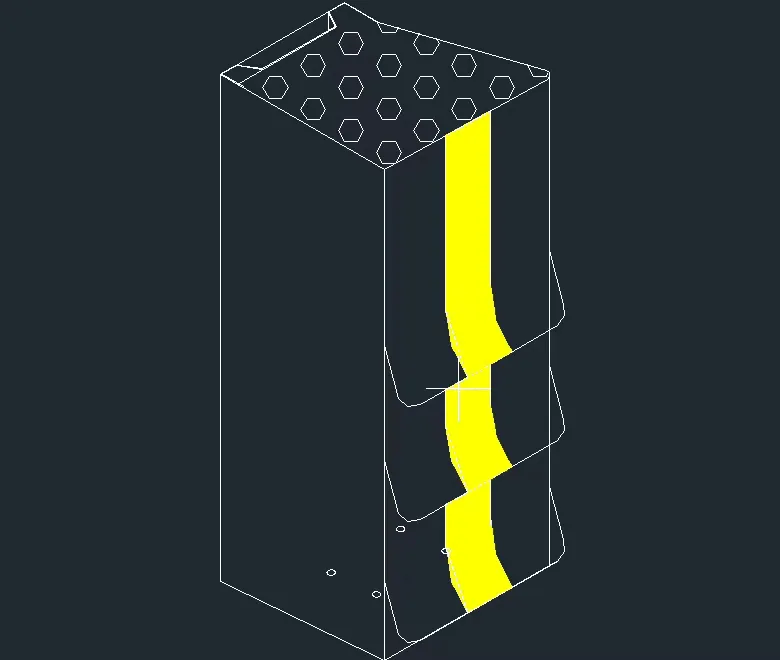

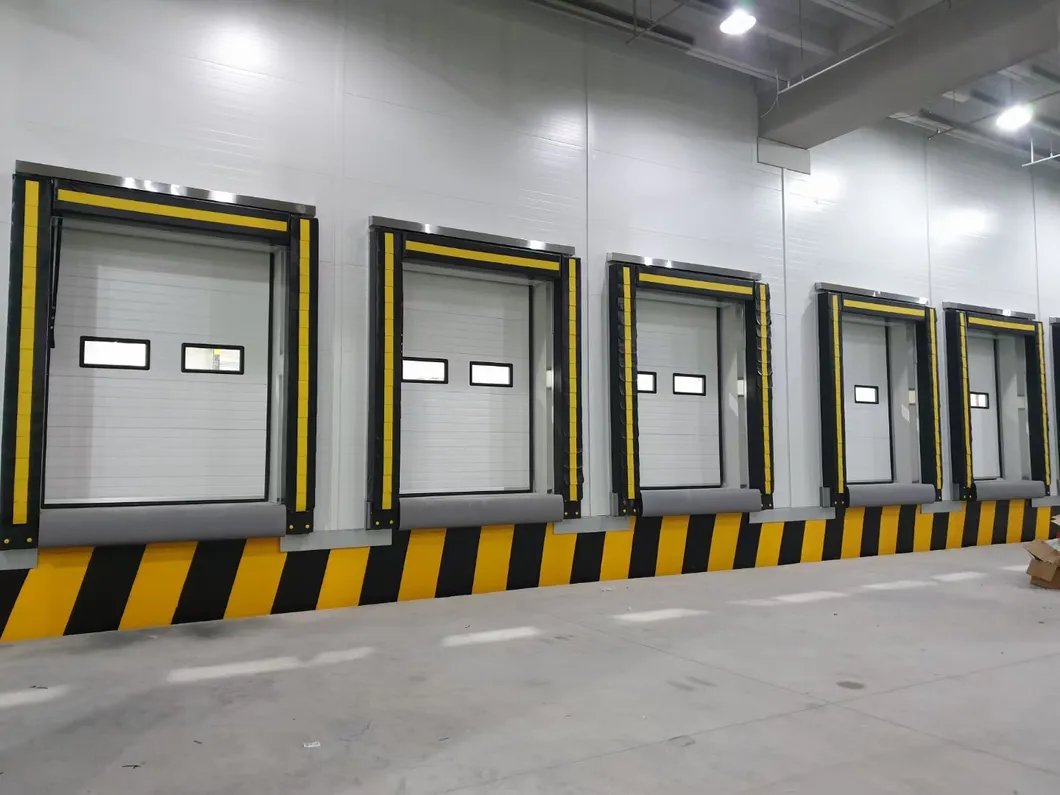

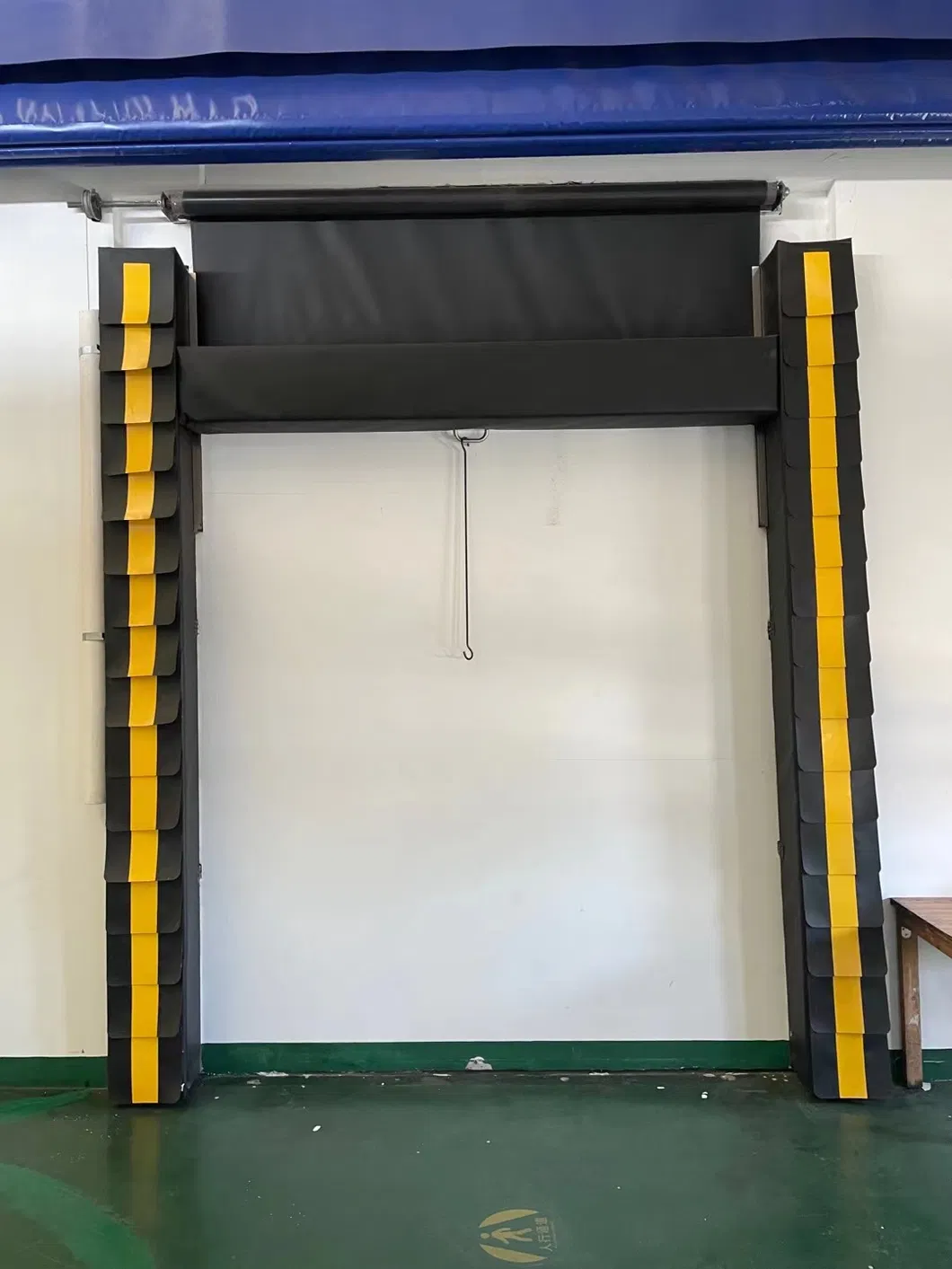

Filled with fireproof sponge, this shelter offers excellent thermal insulation, making it perfect for low-temperature preservation or freezing loading ports. It significantly reduces heat exchange and cooling energy consumption.

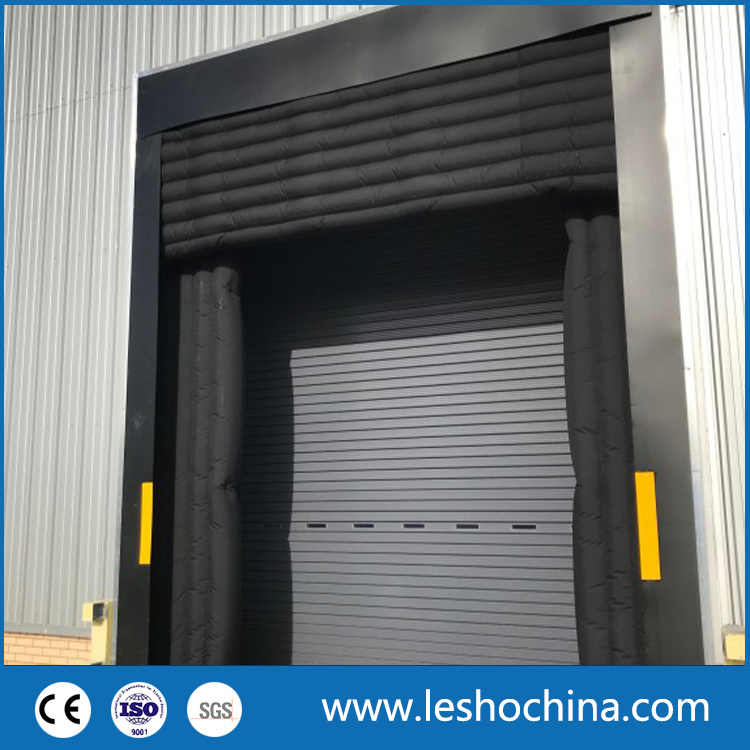

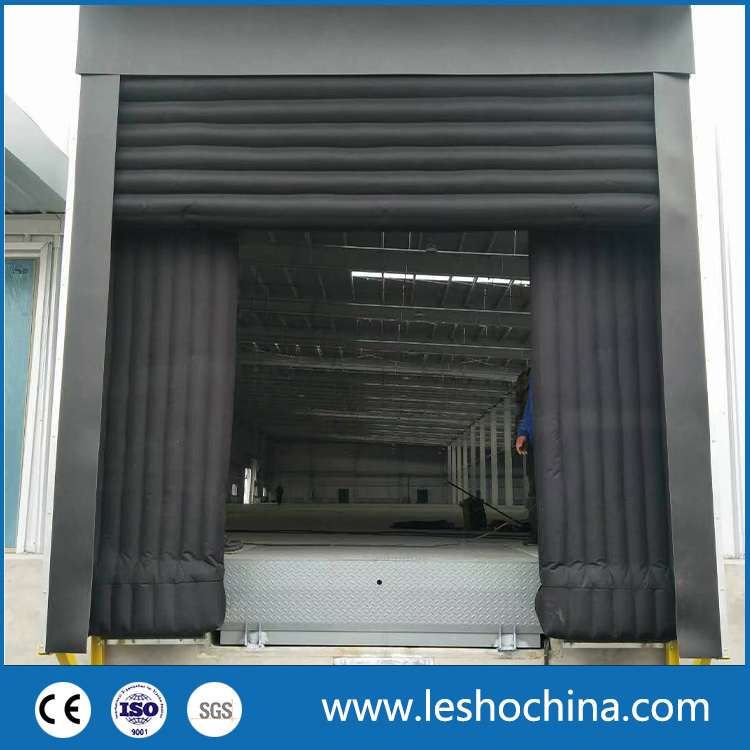

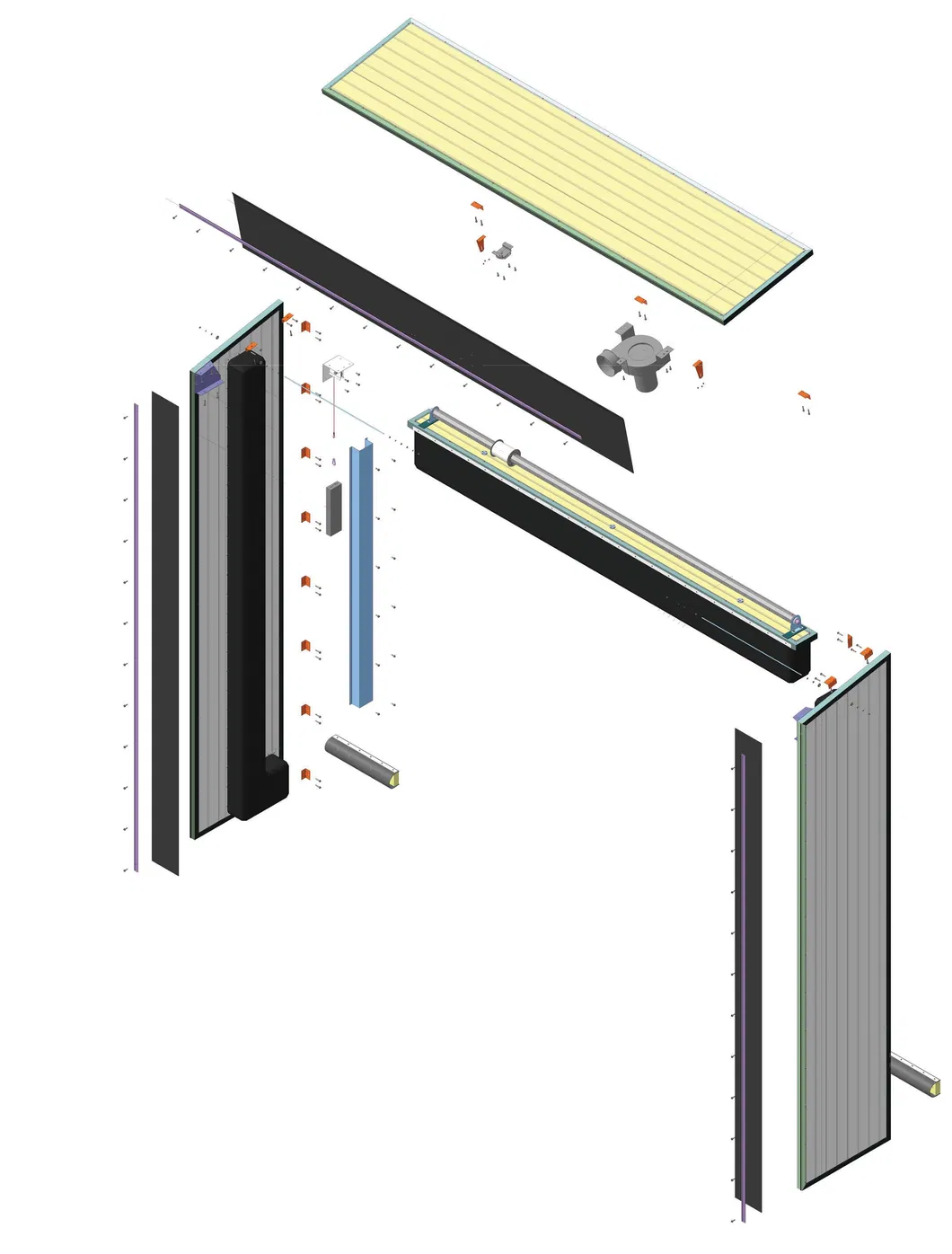

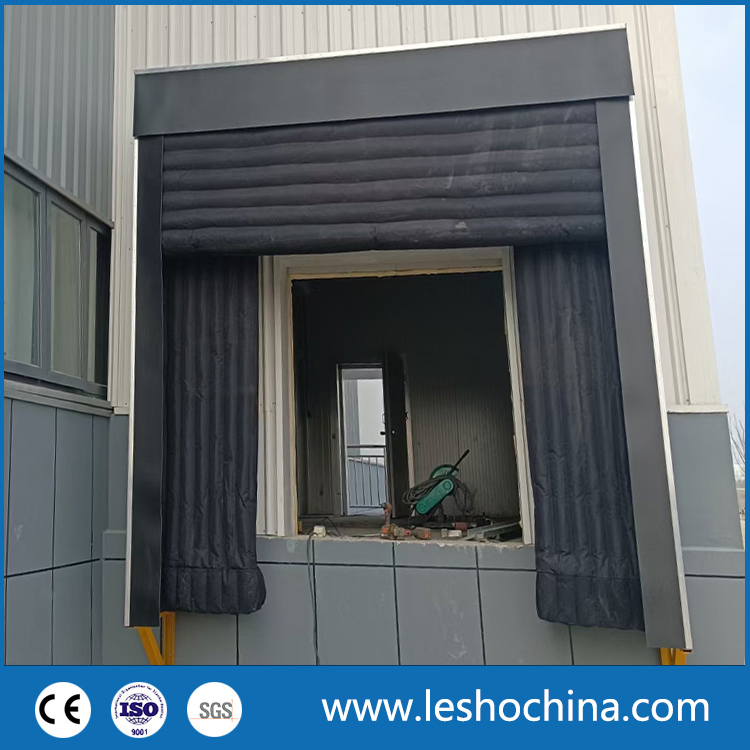

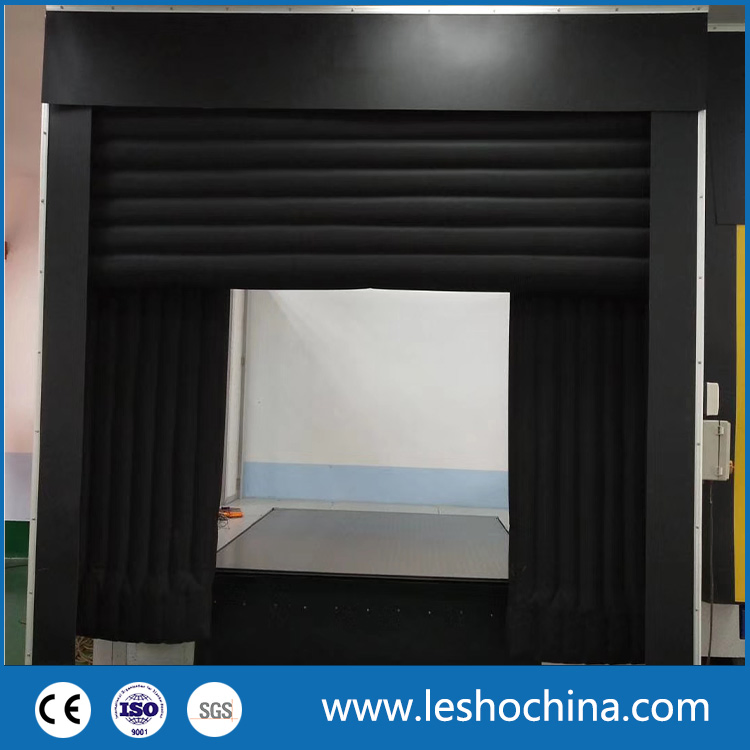

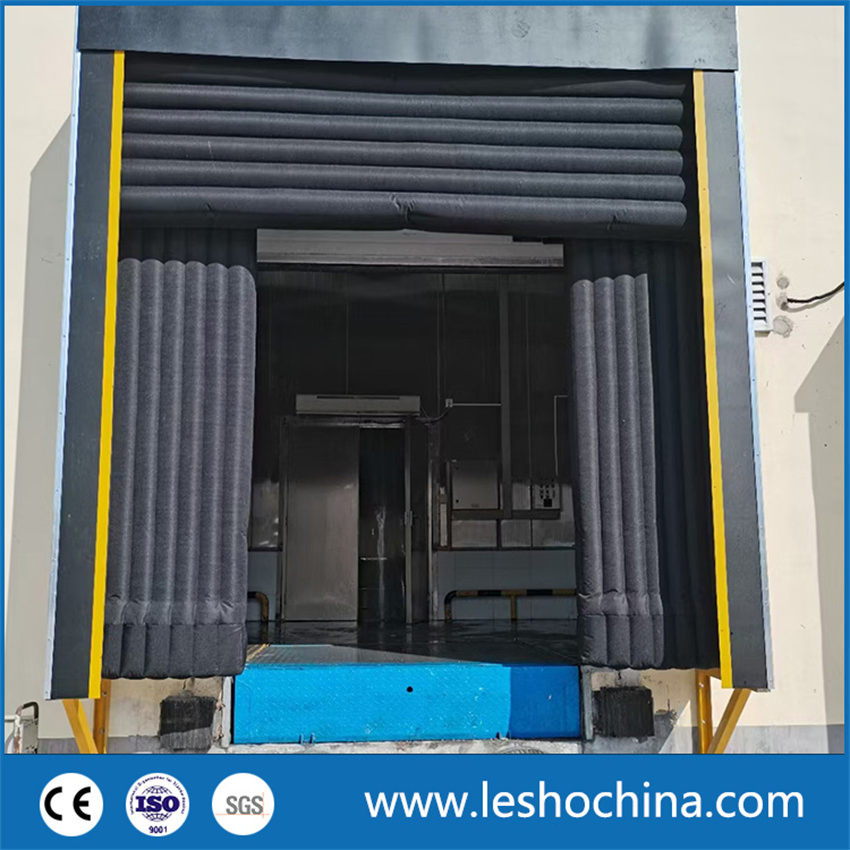

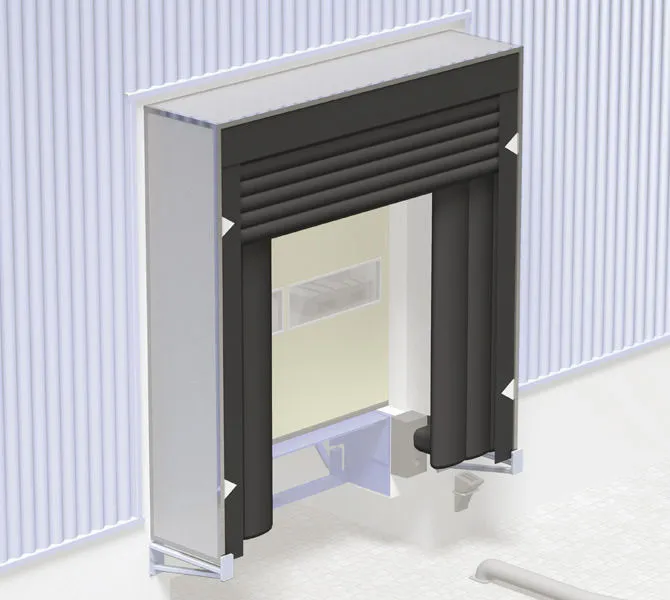

The adjustable range of the Inflatable Dock Shelter is very large, making it ideal for varying truck sizes. The inflatable seal tightly surrounds the freight compartment, preventing air leakage. After operation, the blower turns off and the airbag quickly discharges gas via built-in tension ropes.
| Application location | Warehouse Center, Cold Chain Warehouse, Cold Storage... |
| Power supply | 3-phase 380±10%V, 50/60HZ, 0.75kw |
| Working temperature | -30 ºC to 70 ºC |
| Air Bag Material | Highly PVC airtight material; 0.9mm thick |
| Running Speed | 10 seconds (Inflate/Deflate) |
| Shrinkage | Top 600-1000mm, Side 600 mm |
| Standard size | W3400 * H3600 mm |

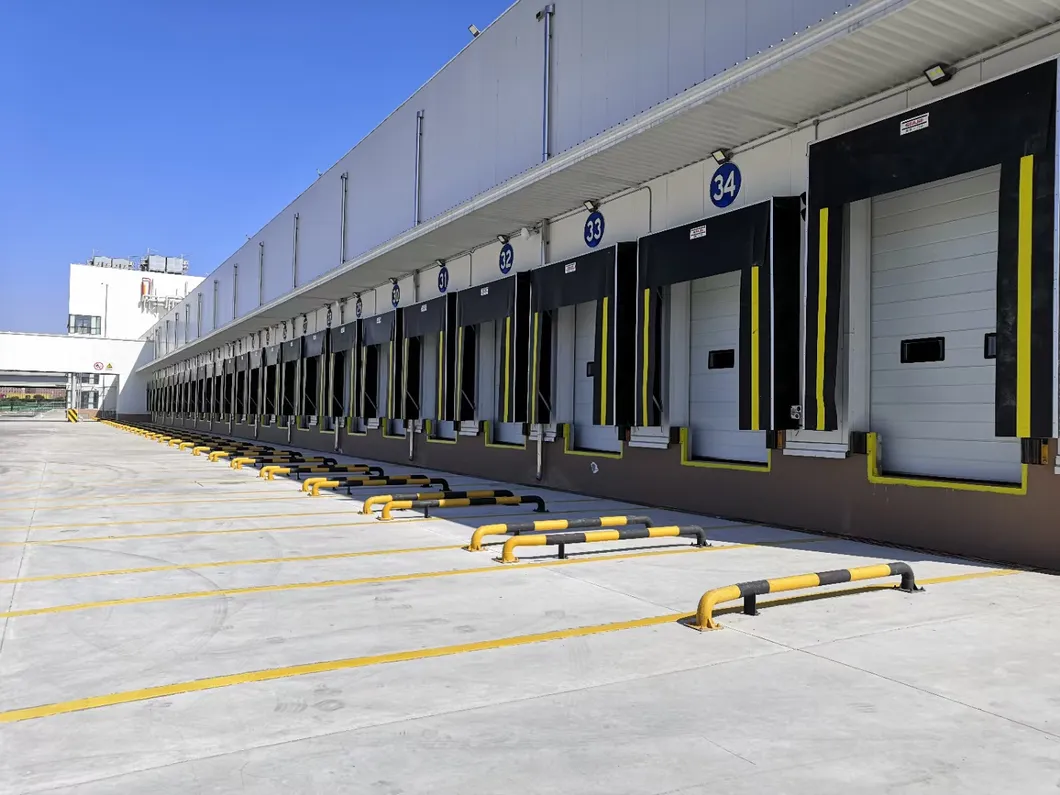

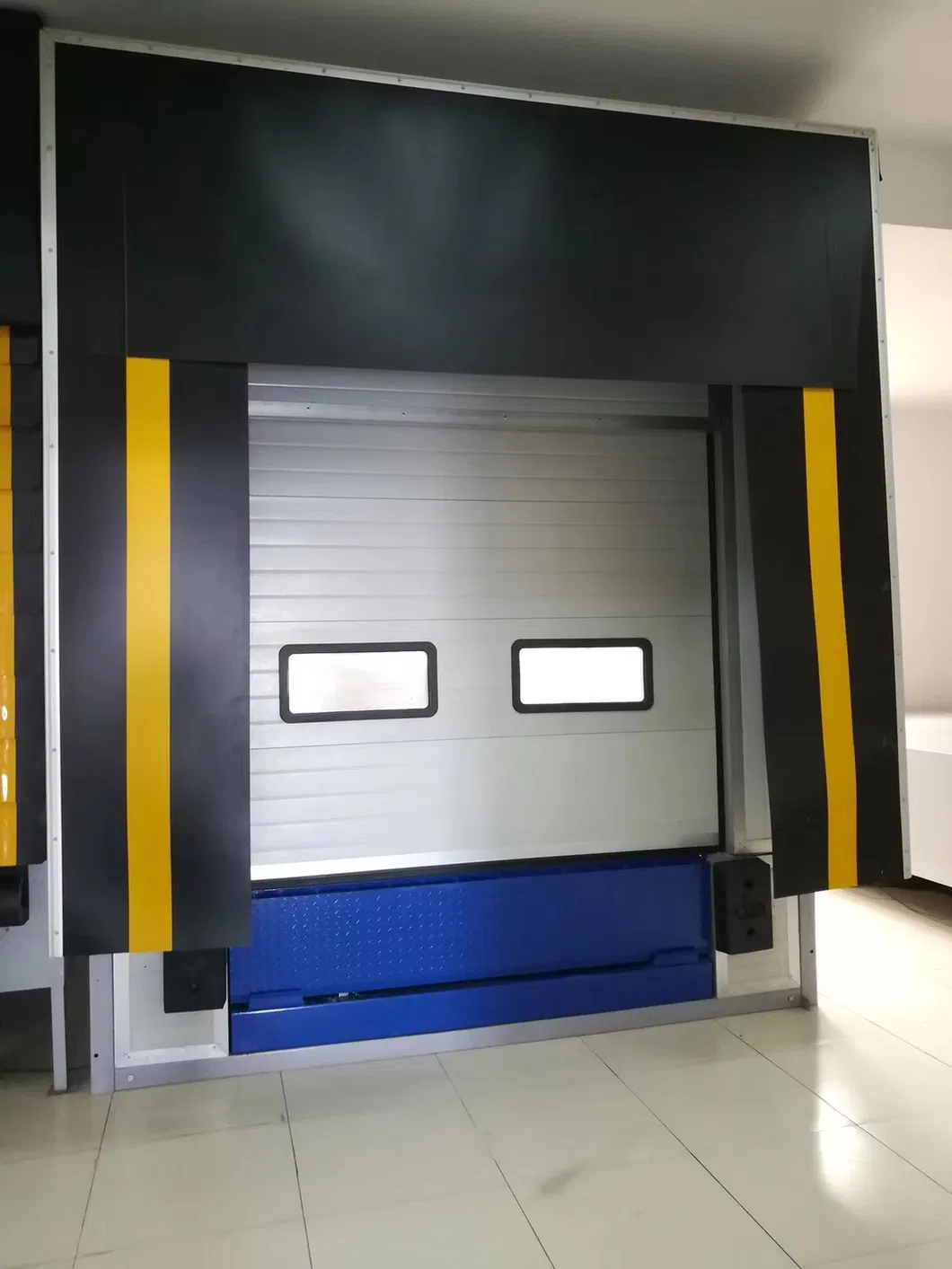

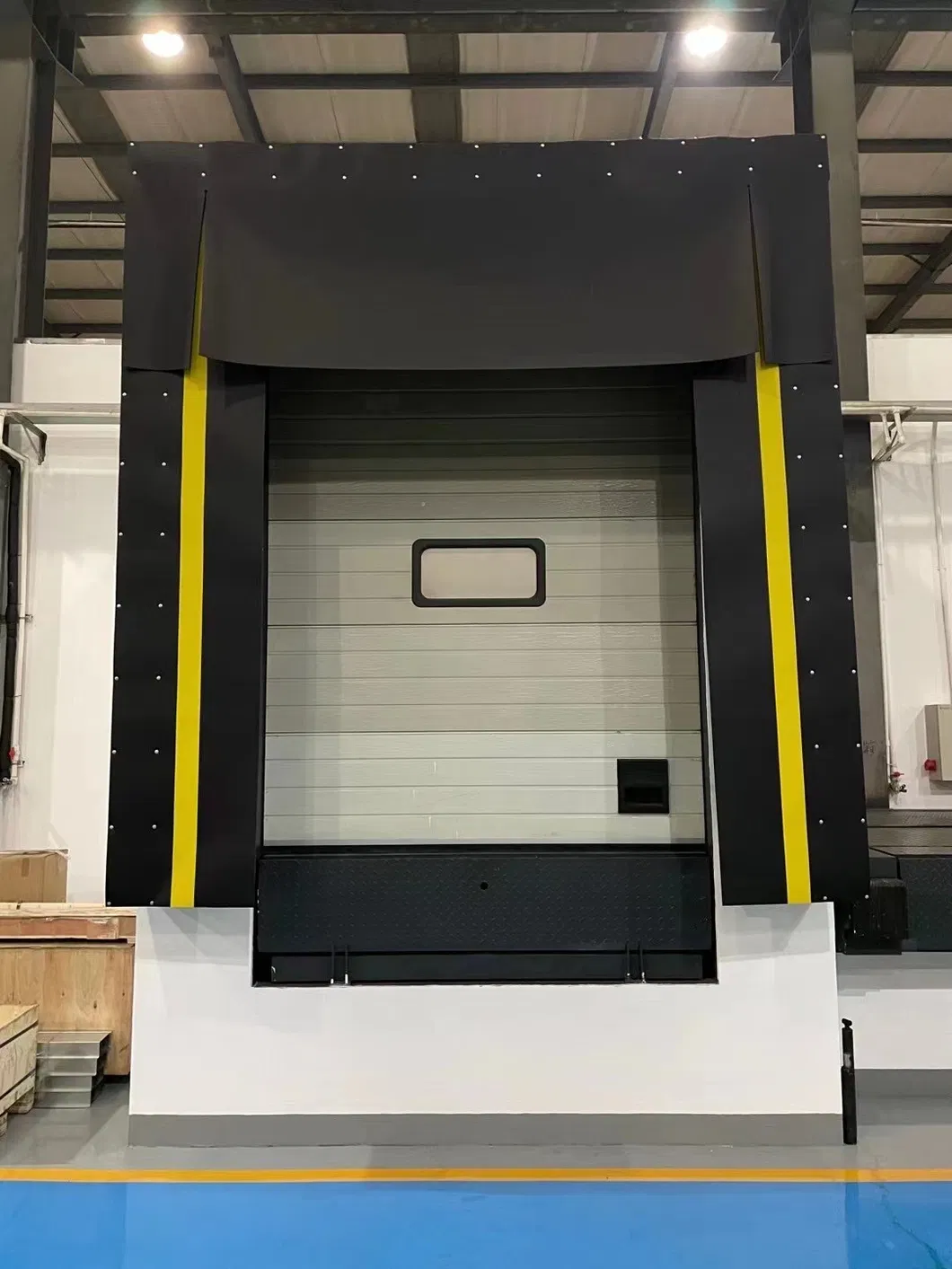

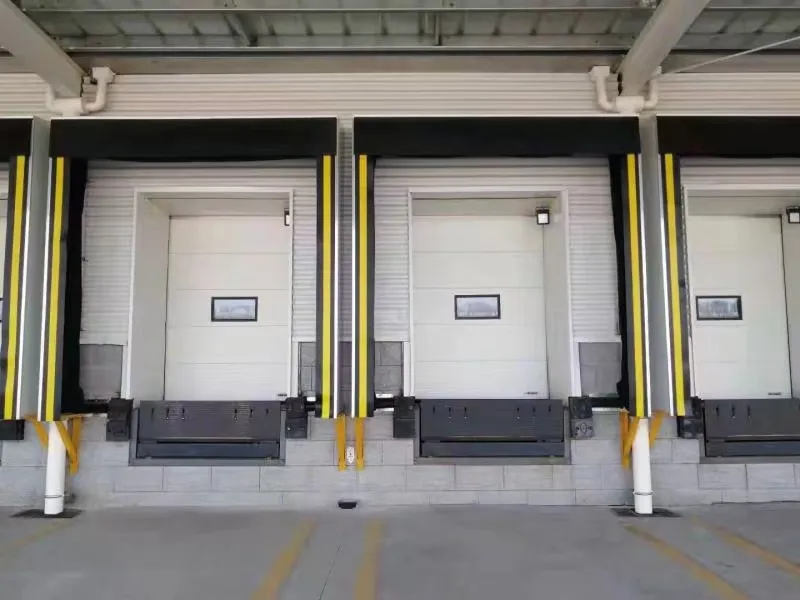

A Loading Bay is a complete assembly consisting of an Overhead Door, Dock Leveler, and Dock Shelter. These parts work together to improve efficiency and protect the indoor environment.
