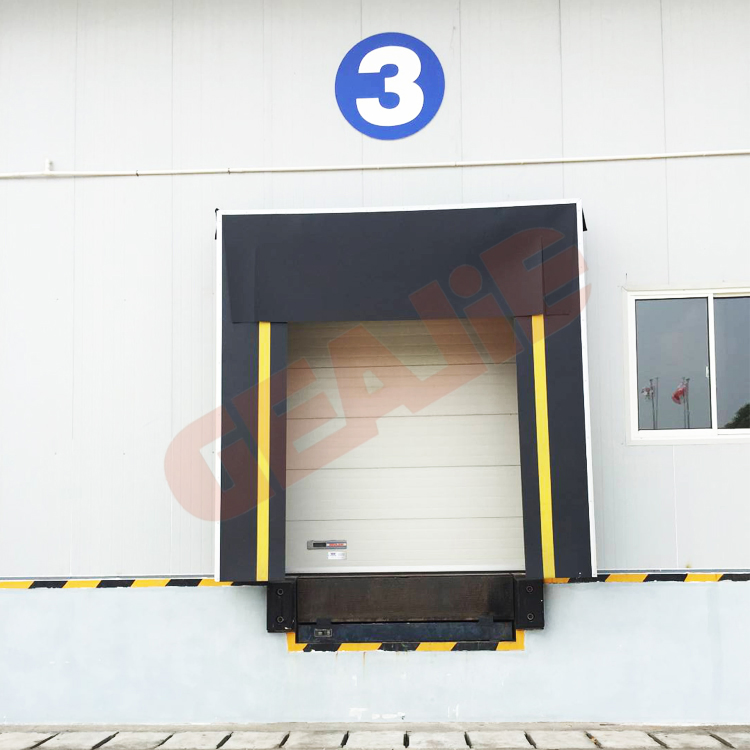

Hot Sale High Quality Inflatable and Mechanical Dock Shelter with Good Price

Customization:	Available
After-sales Service:	Available
Warranty:	12 Months

Basic Specifications

Model NO.	MDS16	Material	Aluminum Alloy
Type	Dock Seal	Open Style	Automatic
Opening Type	Rolling	Special Function	PVC
Color	Customized	Certification	TUV, CCC, ISO9001, RoHS, CE
Application	Logistic System/Warehouse	Capacity	1500 sets/Month

Product Description

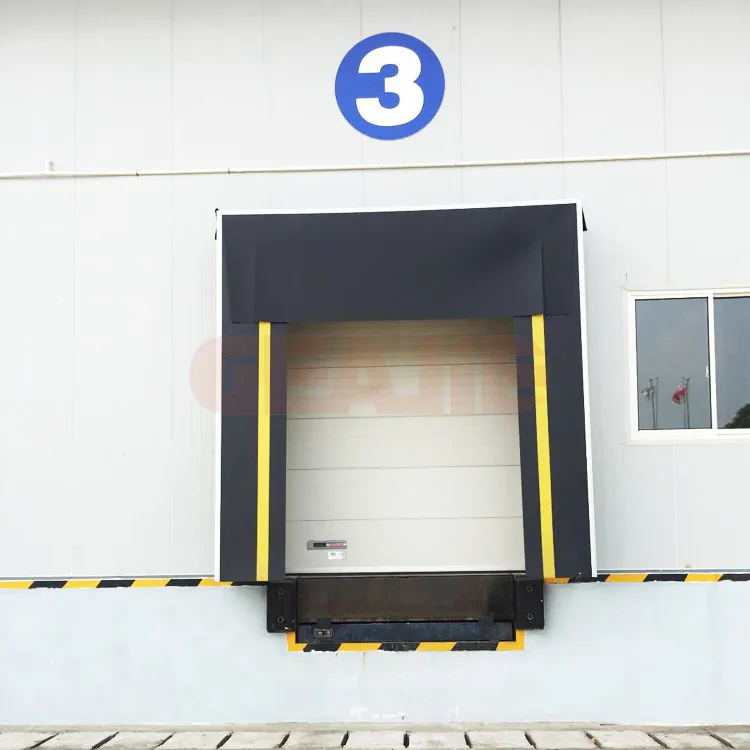

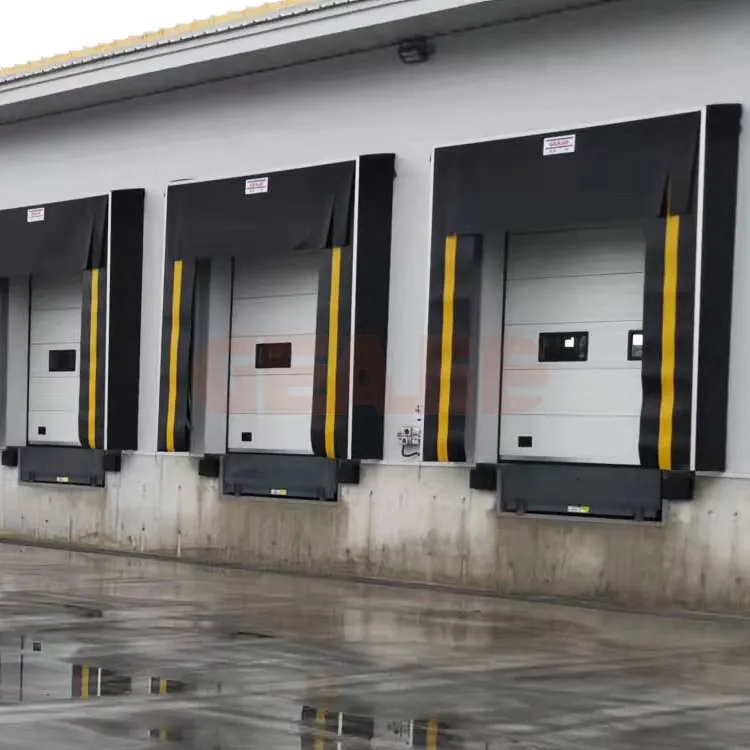

Dock Shelters are enclosures that seal the perimeter of the trailer to form a seal. This is accomplished by applying pressure against the sides of the trailer with fabric curtains fitted with fiberglass stays. A dock shelter closes the gap between the building wall and the truck by sealing the top and sides, essentially creating an extension of the warehouse.

Material Description

Parameter	Details
Width (W)	3400mm, 3500mm, 3600mm
Height (H)	3500mm, 3600mm, 3700mm
Side Door Curtain	W 630mm
Top Curtain	Standard: 1000mm. Options: 1200mm/1500mm or adjustable structure.
Non-standard Size	Fully customizable according to freight vehicle dimensions.

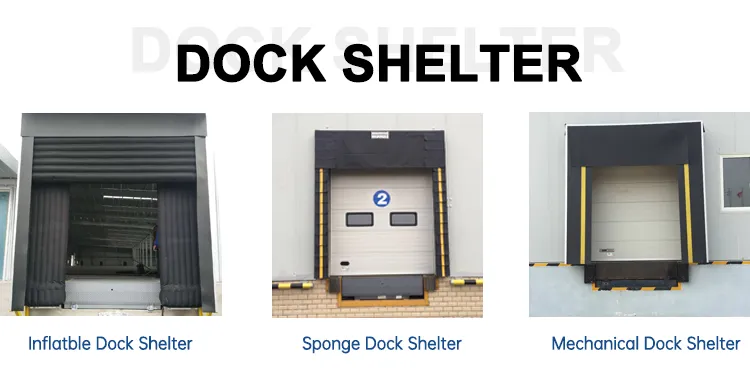

Product Advantages & Options

⚙️

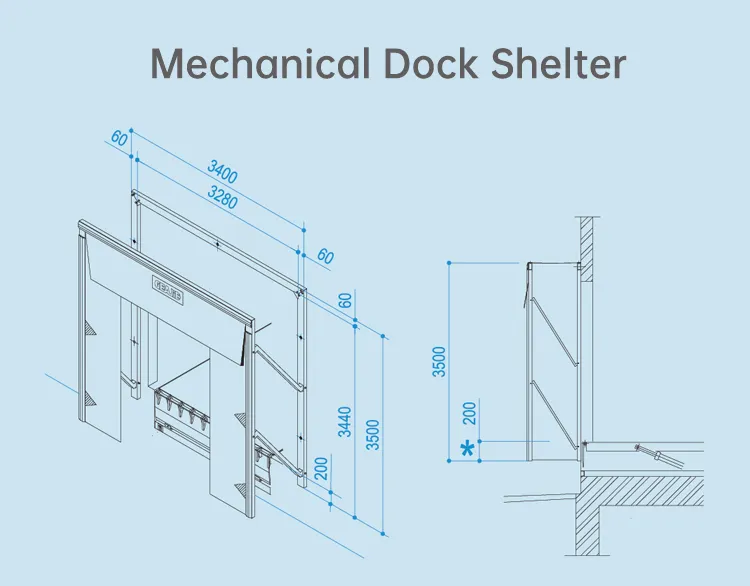

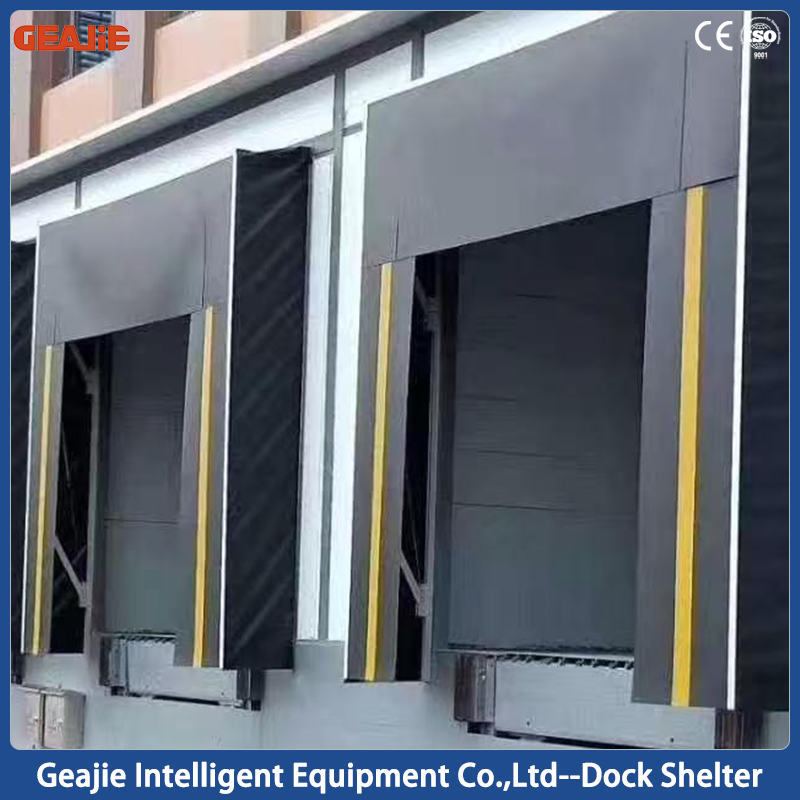

A. Mechanical Dock Shelter (Retractable)
1. Adaptable to various vehicle types with low building wall load requirements.
2. Features a retractable framework made of galvanized steel (60*30mm).
3. PVC curtains: 750g/m² weight with high tear strength.

🛡️

B. Insulated Sponge Dock Shelter
1. High density 30KG cubic compression sponge for superior thermal insulation.
2. Durable pleated blinds to withstand wear and compression.
3. Fits vehicles with consistent sizes perfectly.

💨

C. Inflatable Dock Shelter
1. Exceptional insulation for cold storage or strict temperature requirements.
2. Rapid inflation/deflation (approx. 15 seconds) via a 3-phase air blower.

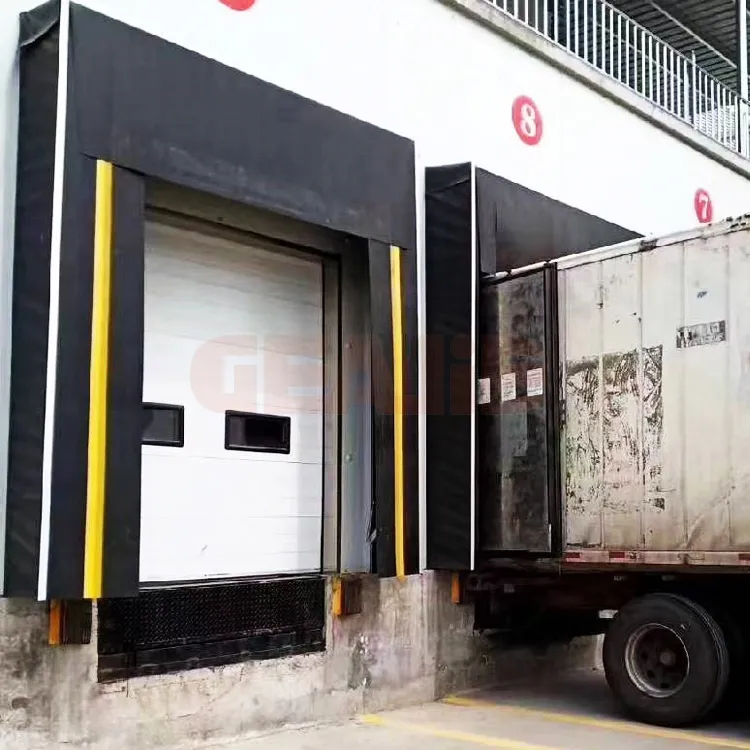

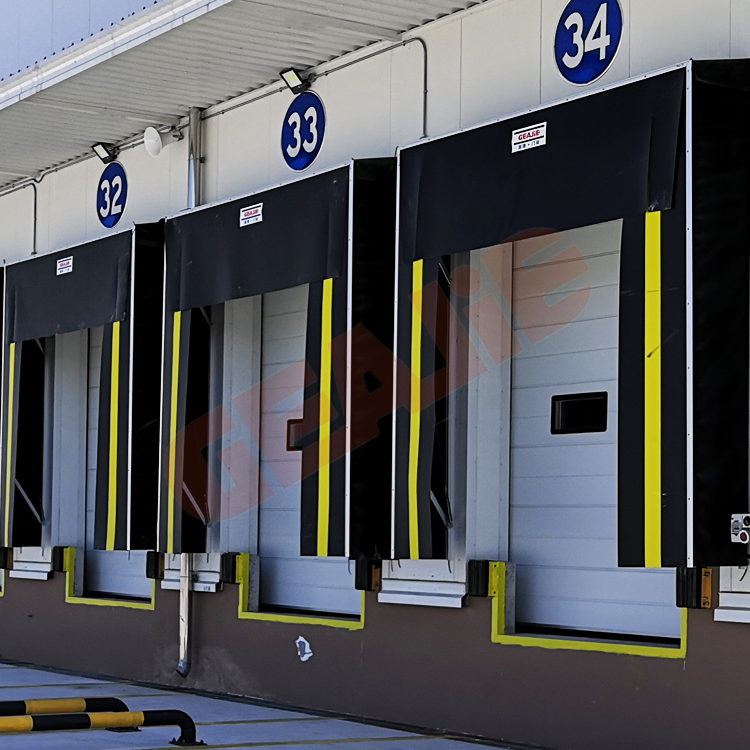

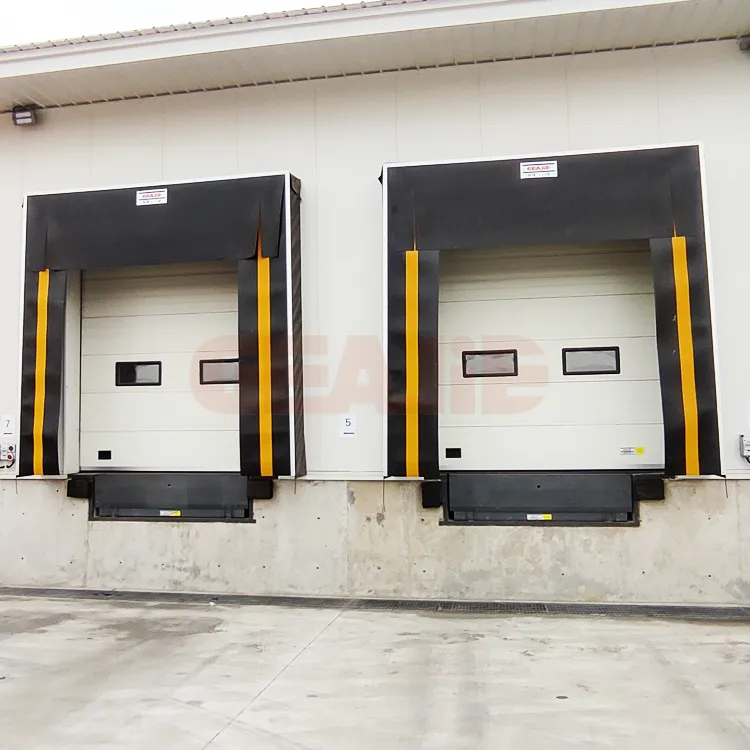

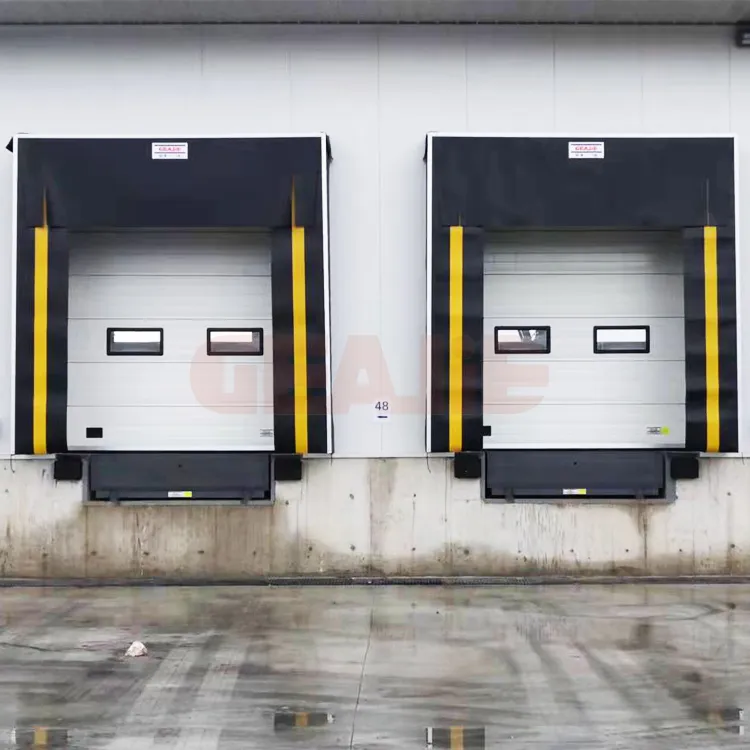

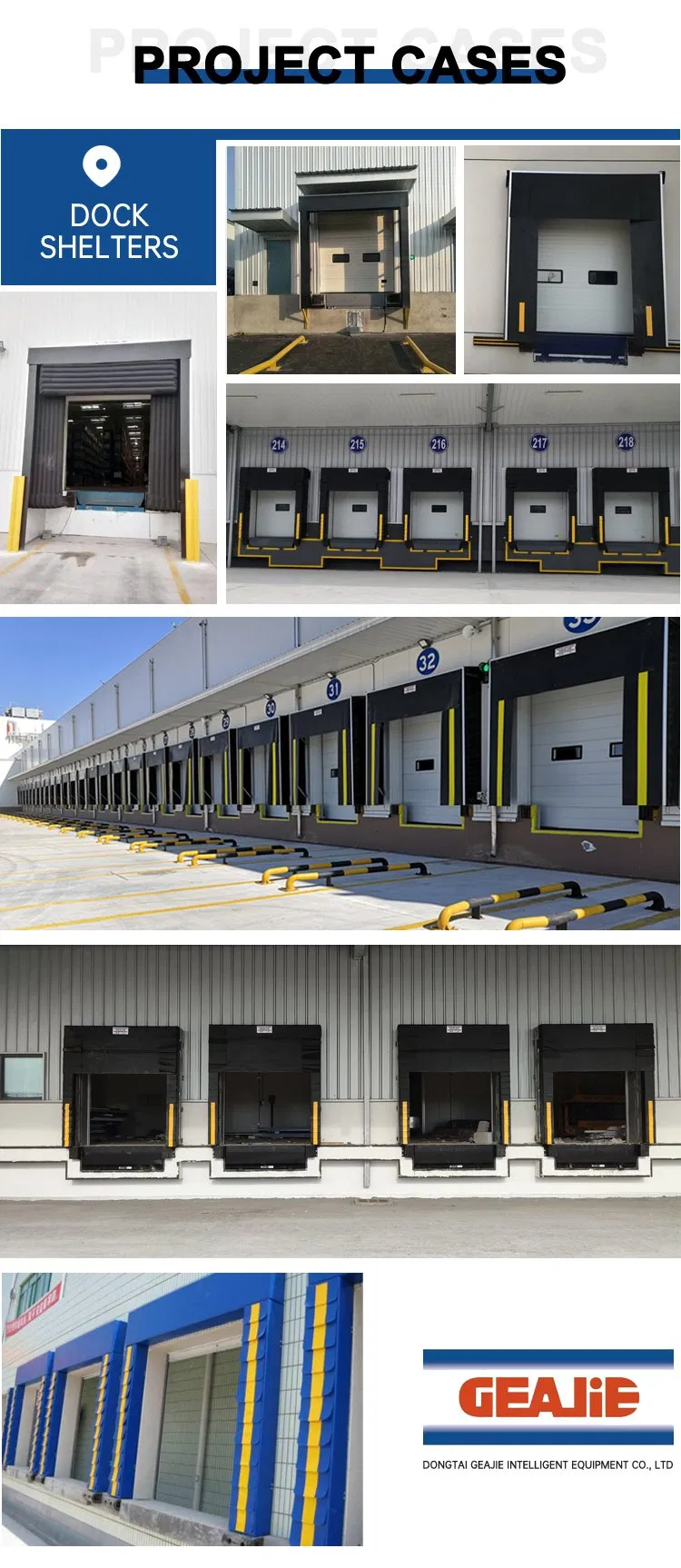

Project Cases

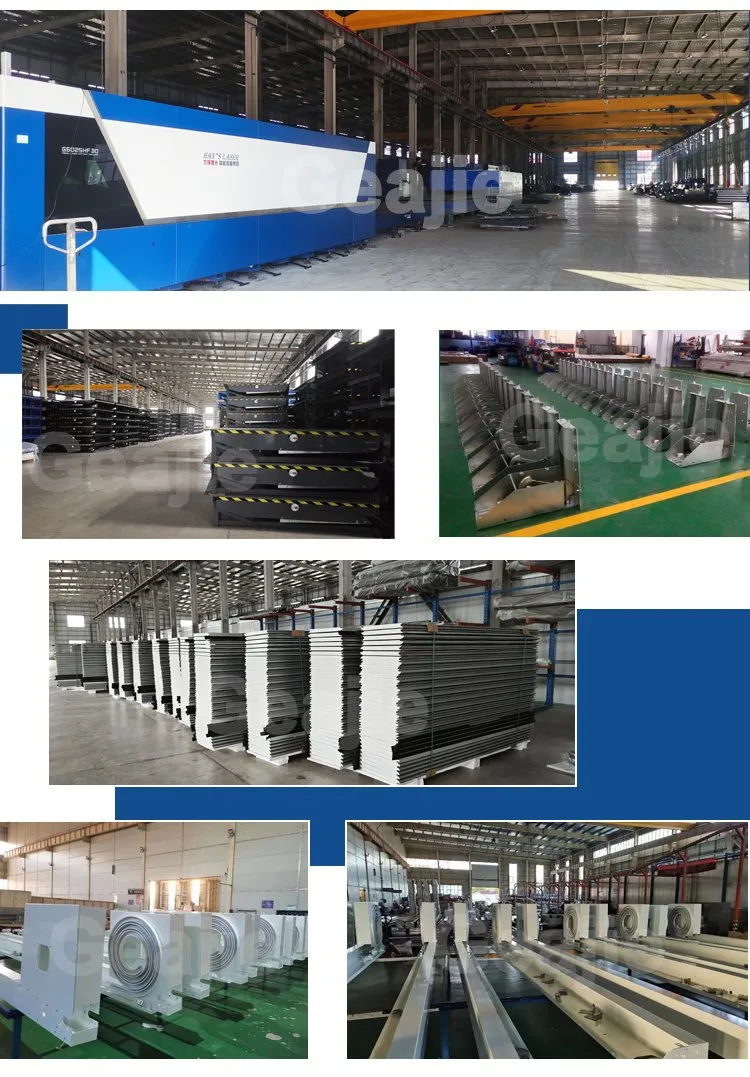

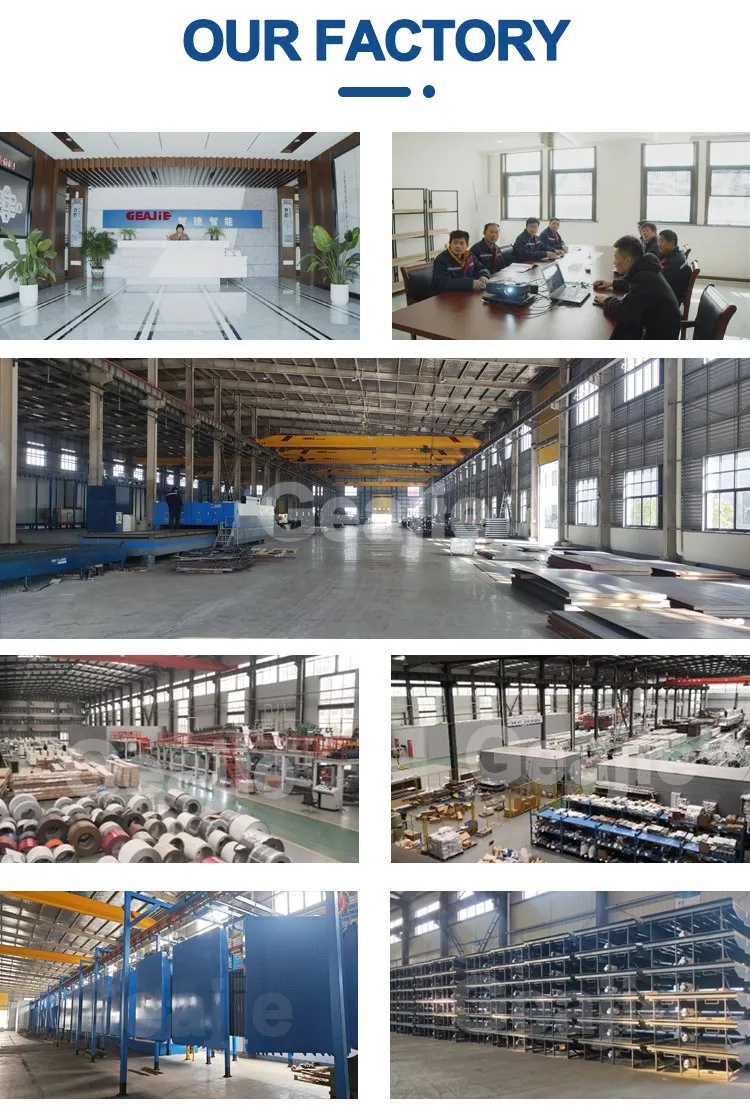

Production Facilities

Frequently Asked Questions

Q1: What is your minimum order quantity (MOQ)? A: 1 set is acceptable.

Q2: What is the maximum available size for these doors? A: The maximum length is 6.5M and the maximum width is 6M (adjustable).

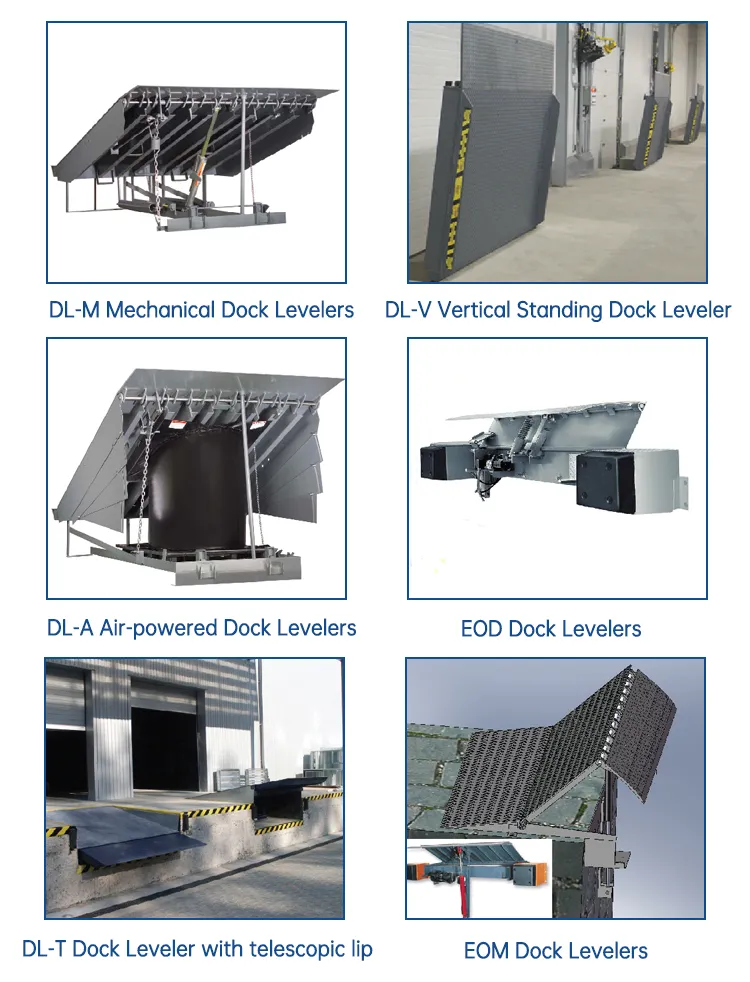

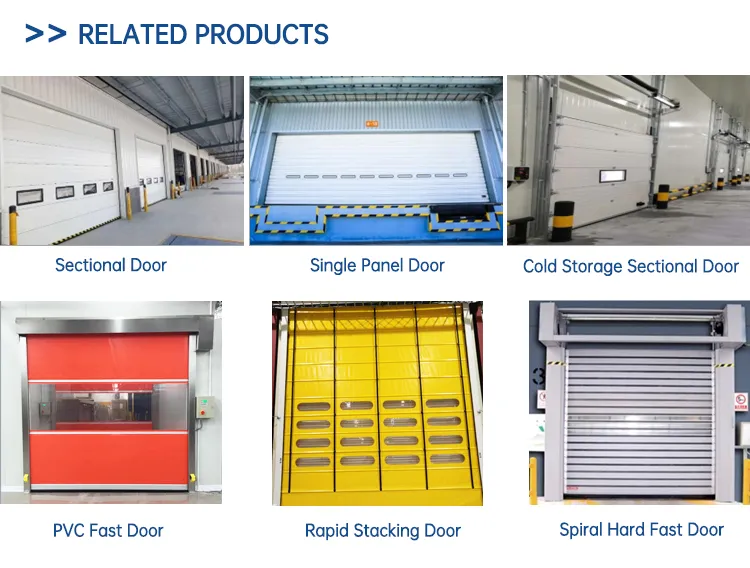

Q3: Do you provide other loading bay accessories? A: Yes, we also offer sliding doors, rapid doors, garage doors, rolling shutters, dock levelers, door seals, and industrial fans.

Q4: Is the installation process difficult? A: No, our products are designed to be very easy to install.

Q5: Where are dock shelters typically used? A: They are ideal for factory outlets, logistics parks, and warehouse loading bays.

Q6: What are the main benefits of using a dock shelter? A: They significantly improve the efficiency of cargo handling while maintaining internal climate control during loading and unloading.
