| Model NO. | MLK-HDL-001 |
| Application | Warehousing Docking |
| Lift Mechanism | Hydraulic Lift |
| Carrying Capacity | Middle-Level |
| Driven Type | Hydraulic |
| Feature | Heavy Duty |
| Certification | GS, CE, RoHS, ISO 9001 |
| Size | W2000*L2000*H600mm (Customizable) |
| Power | 3 Phase/380V/50Hz, 0.75/1.1/1.5kw |
| Load Capacity | Dynamic 8 Tons, Static 16 Tons |
| Adjust Range | +350mm, -300mm |
| Hydraulic System | German Argo-Hytos/Switzerland Bucher |
| IP Grade | IP55 |
| Lead Time | 2-4 Weeks |

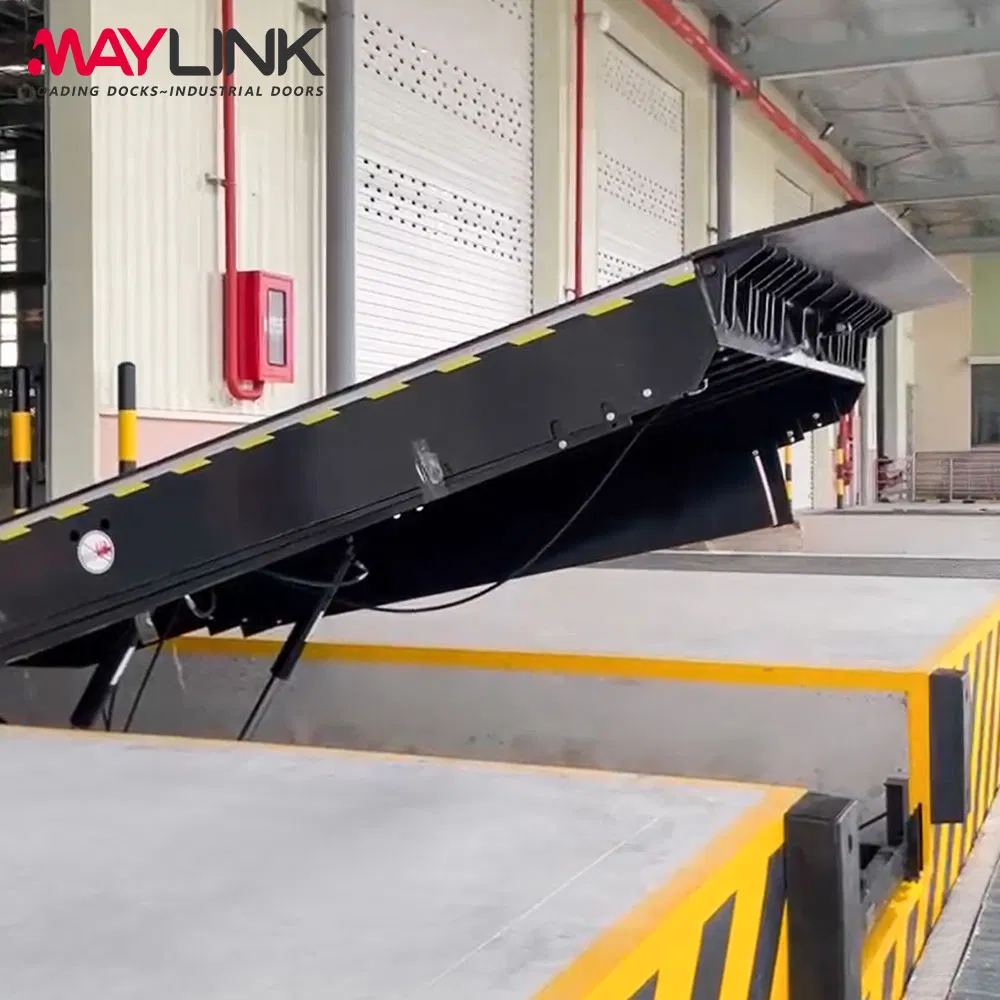

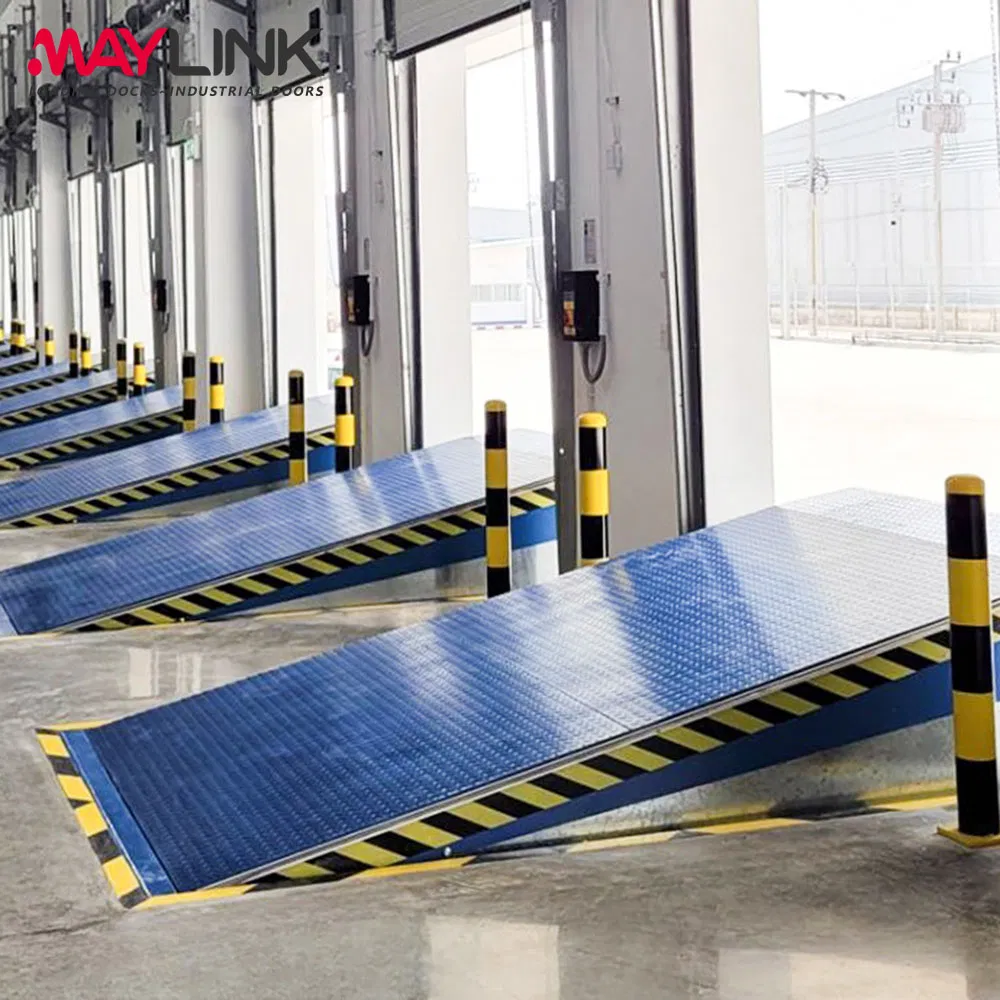

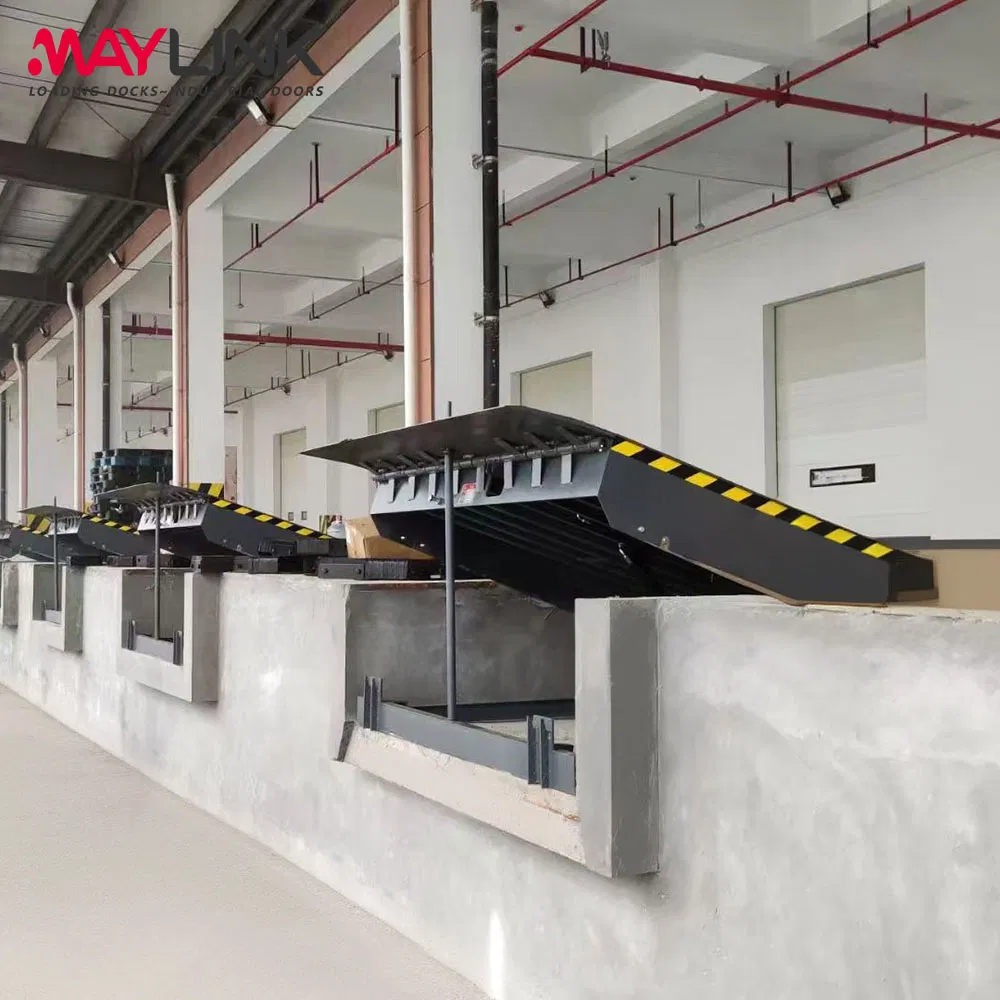

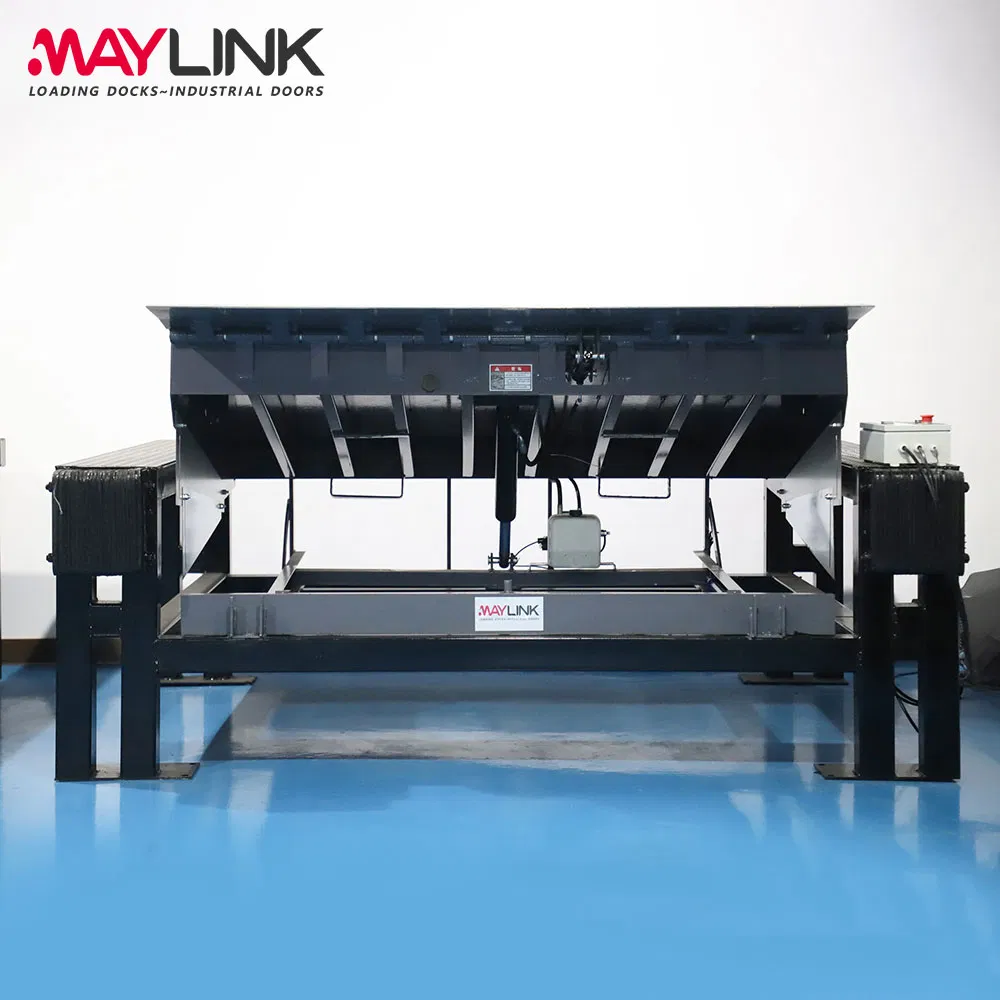

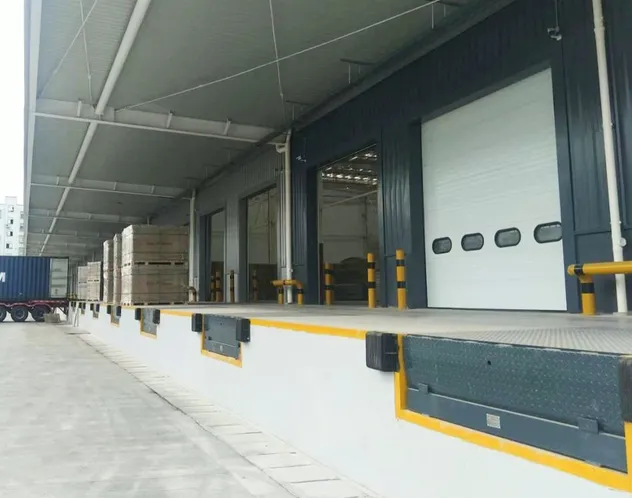

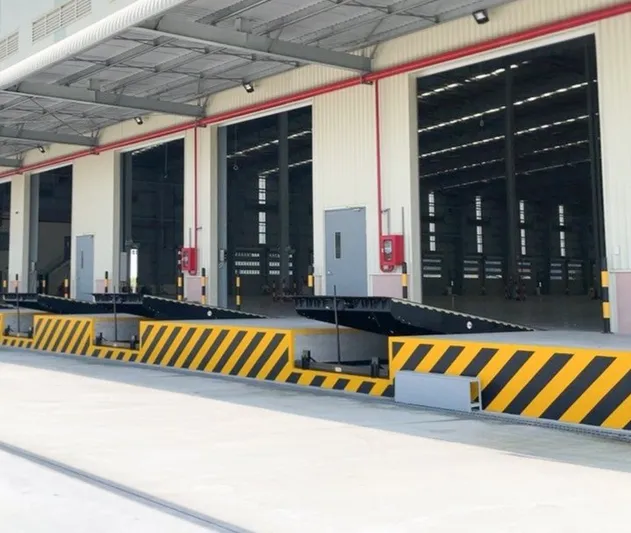

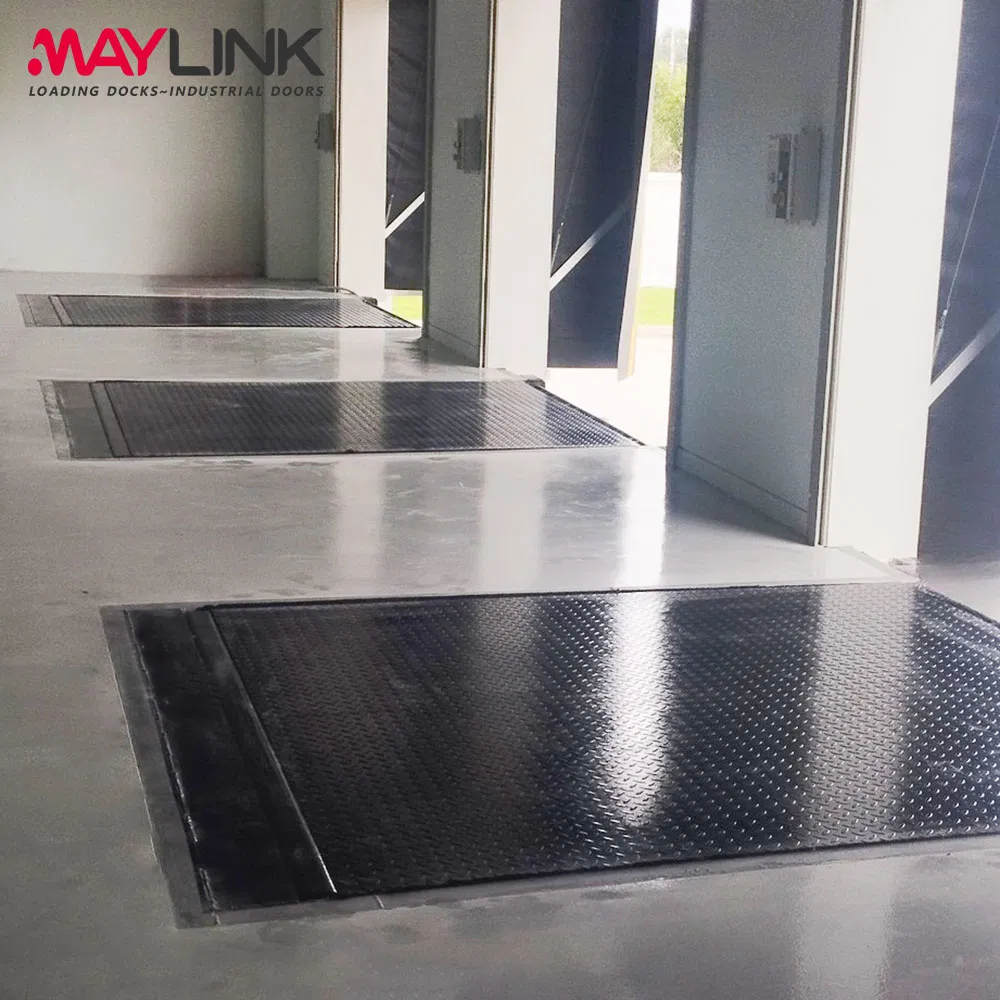

This electric hydraulic dock leveler is designed to bridge height differences between loading docks and truck carriages of varying heights. With the press of a button, the dock plate automatically rises and the lip extends to create a smooth, adjustable slope for forklift access, greatly improving loading and unloading efficiency.
Heavy-duty steel frame handles extreme loads (up to 20 tons) with corrosion-resistant finishes.
Smooth, low-noise operation with one-button control reduces manual labor.
Equipped with lip locks, safety legs, and anti-slip surfaces to prevent accidents.
| Feature | Technical Specifications |
| Dock Plate | 8mm thick Non-spliced Non-slip pattern steel |
| Tongue Plate | 16mm thick Non-slip pattern steel (400/500mm) |
| Hydraulic Oil | Aviation hydraulic oil, limit – 25℃ |
| Control Box | IP54 Integrated Control Box with Emergency Stop |
| Warranty | 3 Years |

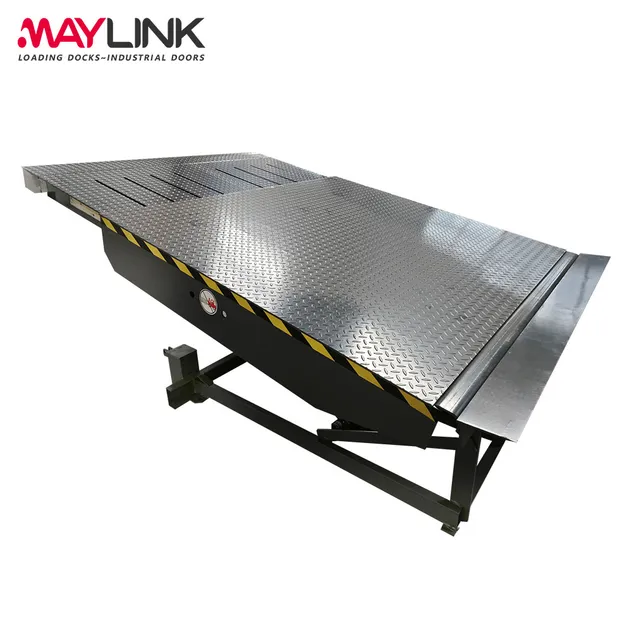

Telescopic Dock Leveler

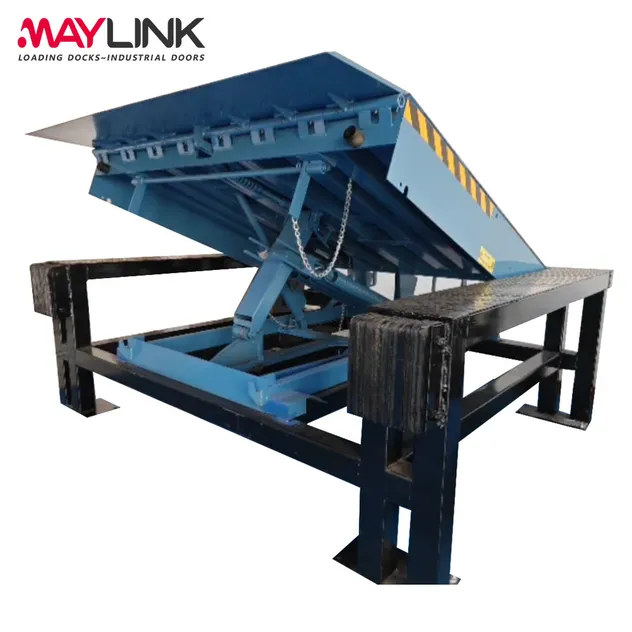

Mechanical Dock Leveler

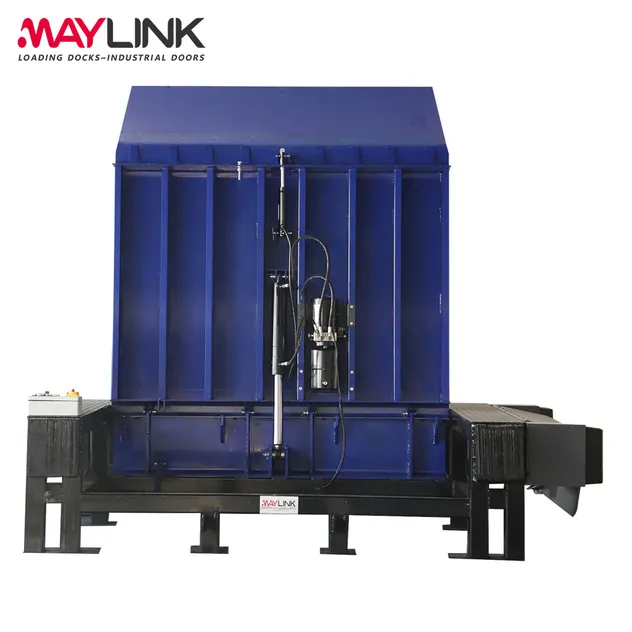

Vertical Dock Leveler
Industry Expertise: Over 10 years of experience in logistics equipment and industrial doors. We deliver tailored solutions for logistics parks, cold storage, and e-commerce.

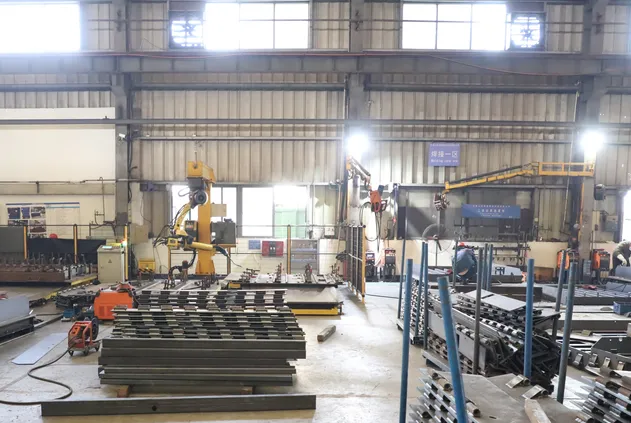

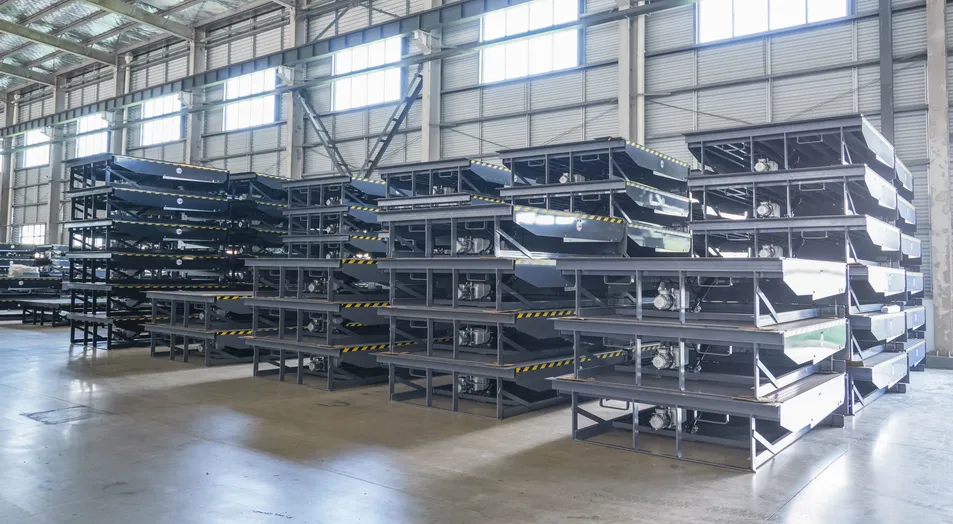

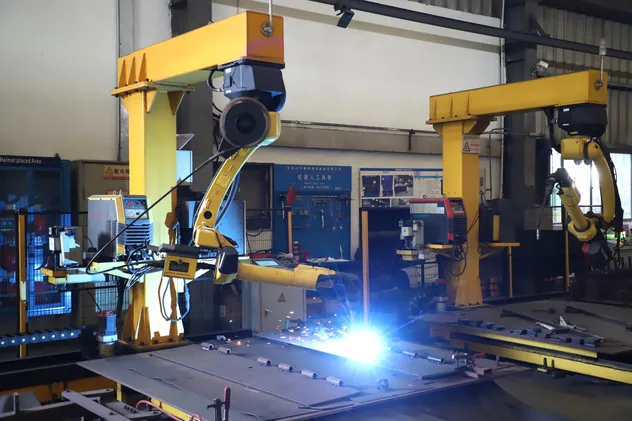

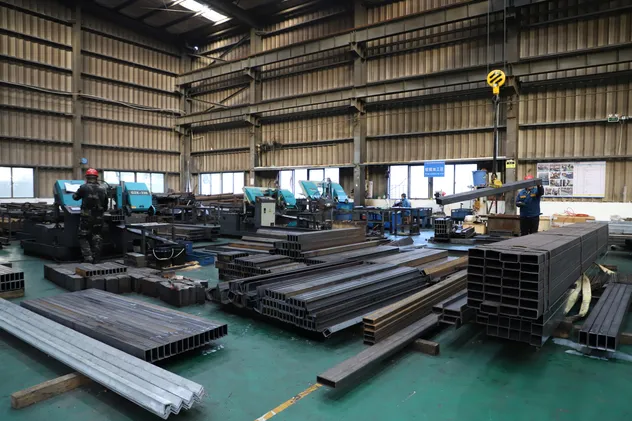

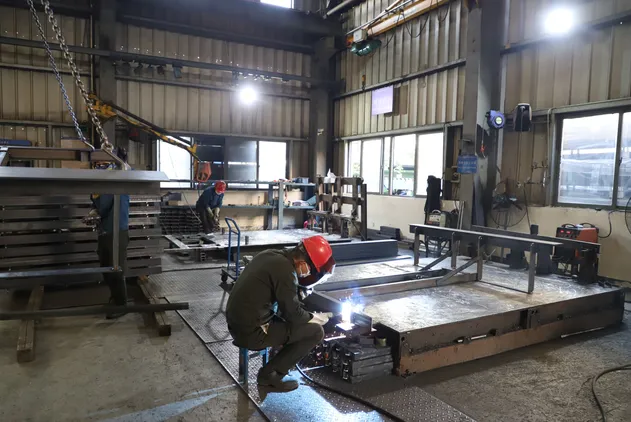

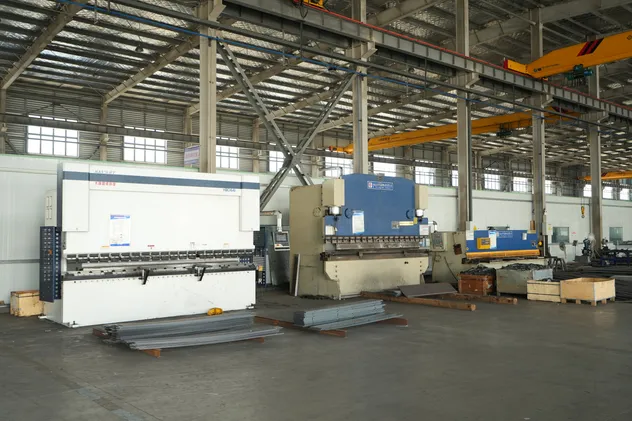

Advanced Manufacturing: Automated production lines from Germany, Japan, and Switzerland. Annual output exceeds 6,000+ docking system products.

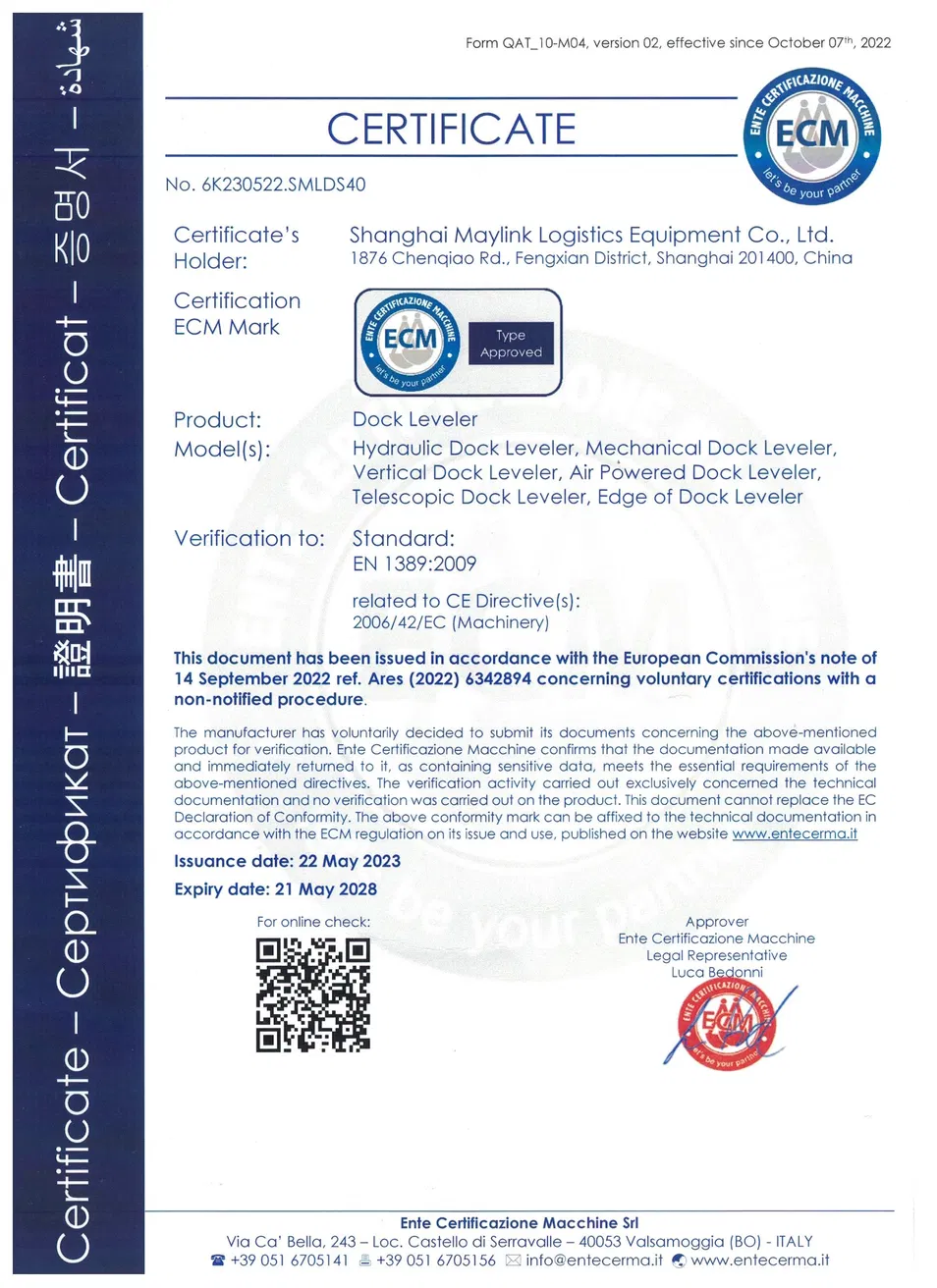

Global Quality: All products are CE-certified and designed to meet European standards, trusted by global partners in over 60 countries.
