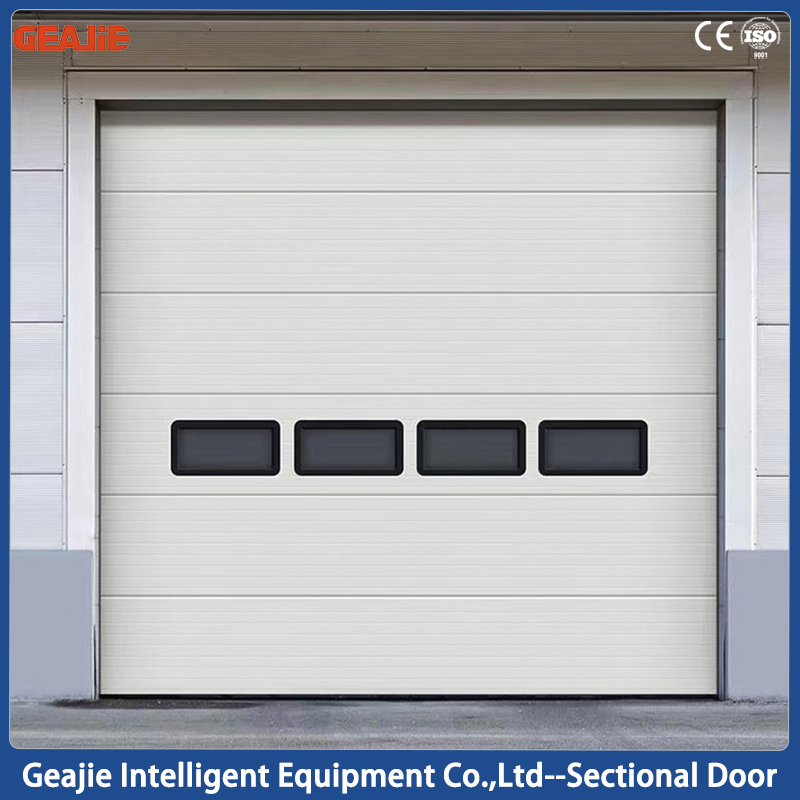

Modern Design Electric Sectional Commercial Automatic Industrial Door

Customization: Available
After-sales Service: Available
Warranty: 12 Months

Product Description

i

Overview & Basic Info

Model NO.
ISD-124
Material
Aluminum Alloy
Type
Sliding
Open Style
Sliding
Opening Type
With Remote Control
Special Function
Insulated and Cold Storage
Color
Customized
Certification
TUV, CCC, ISO9001, RoHS, CE
Wind Resistant
Standard 450PA, Higher to 700PA
Panel Thickness
Anti-Pinch: 40mm
Size Range
W:1500-6000mm H:2000-6000mm
Production Capacity
50,000 SQM / Month

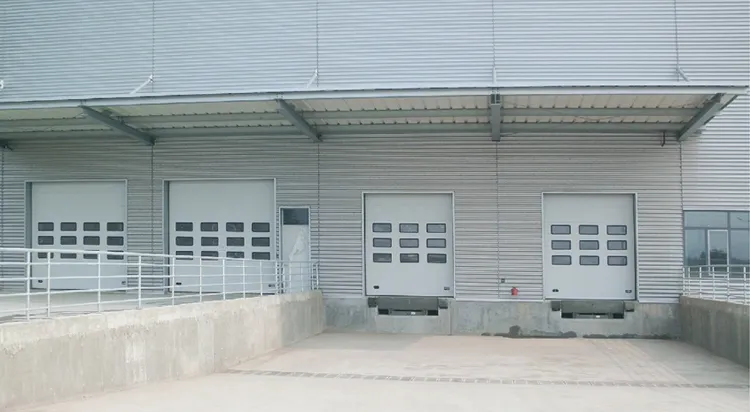

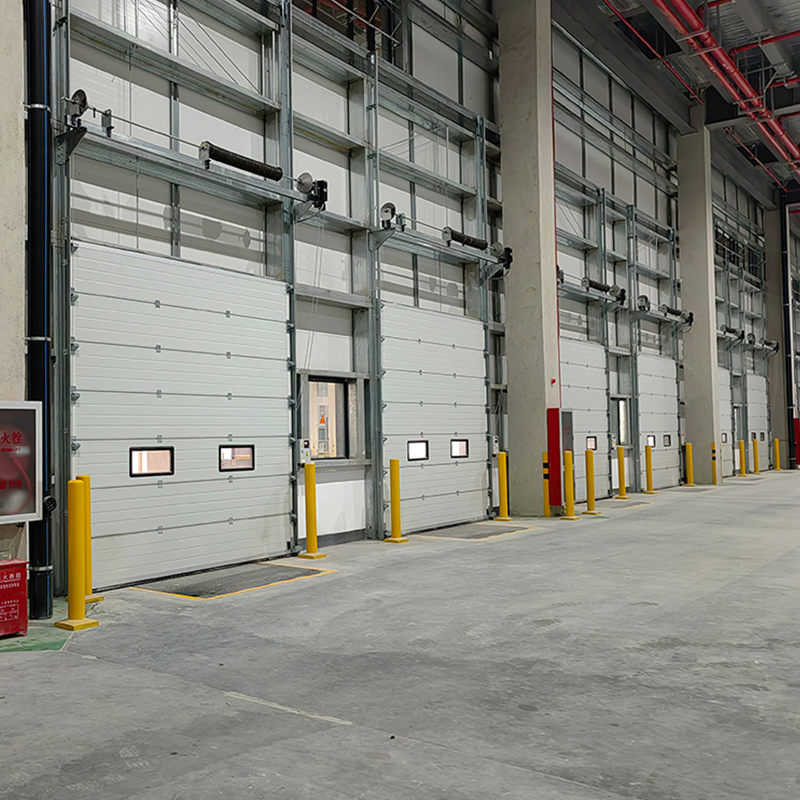

Industrial Sectional Door Display

Industrial Sectional Door

Material Description

FeatureSpecifications
Size RangeW: 6000-12000mm, H: 2000-8000mm
Operating Speed0.25m/s
Panel MaterialGalvanized steel or aluminum plate
Panel ThicknessAnti-pinch: 40mm | Insulated bridge: 43mm
Safety DevicesWire rope breakage protection, torsion spring protection, wireless airbag
Wind ResistanceStandard 450Pa, up to 700Pa

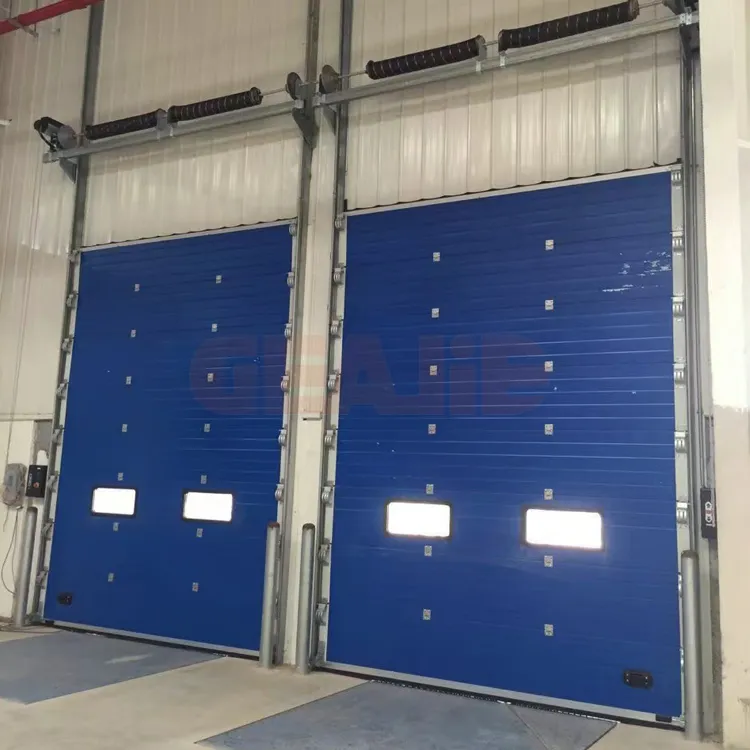

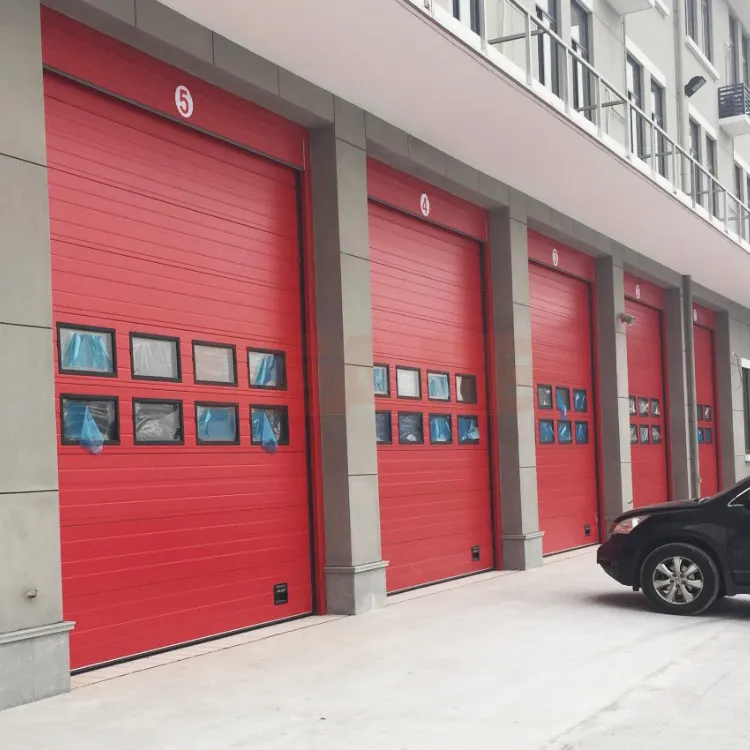

Color OptionsRAL9002, RAL9016, RAL1023, RAL5005, RAL3002, Customizable
M

Motor Technical Parameters

Model 10DI 10C 14 H-F
Output torque100Nm100Nm140Nm
Output shaft speed24 rpm24 rpm14 rpm
Rated power0.37KW0.37KW0.55KW
Rated voltage1*AC 230/440V3*AC 230/440V1*AC 230V
Protective levelIP 54IP 54IP 54

Product Advantages

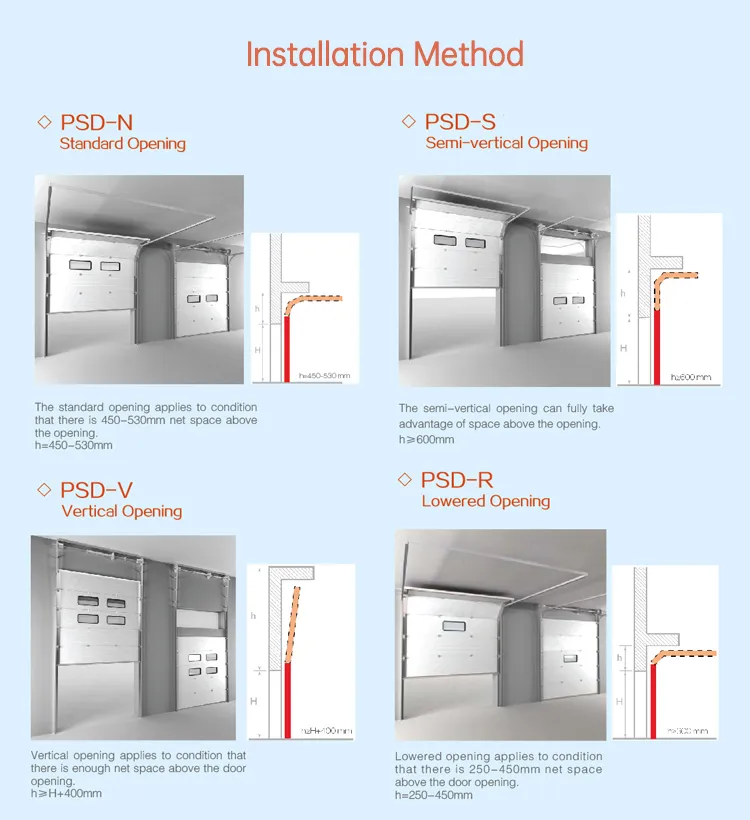

Customizable Lifting: Multiple methods including straight, standard, high lintel, and low lintel lifting to fit any building structure.
Enhanced Durability: Unique roller shaft design distributes force to extend the overall service life and ensure gentle operation.
Superior Insulation: High-density polyurethane foam layer and double-sided hot-dip galvanized steel for maximum thermal efficiency.
Safety First: Features anti-pinch design, spring brake devices, and wireless safety airbags to prevent accidents.
Details

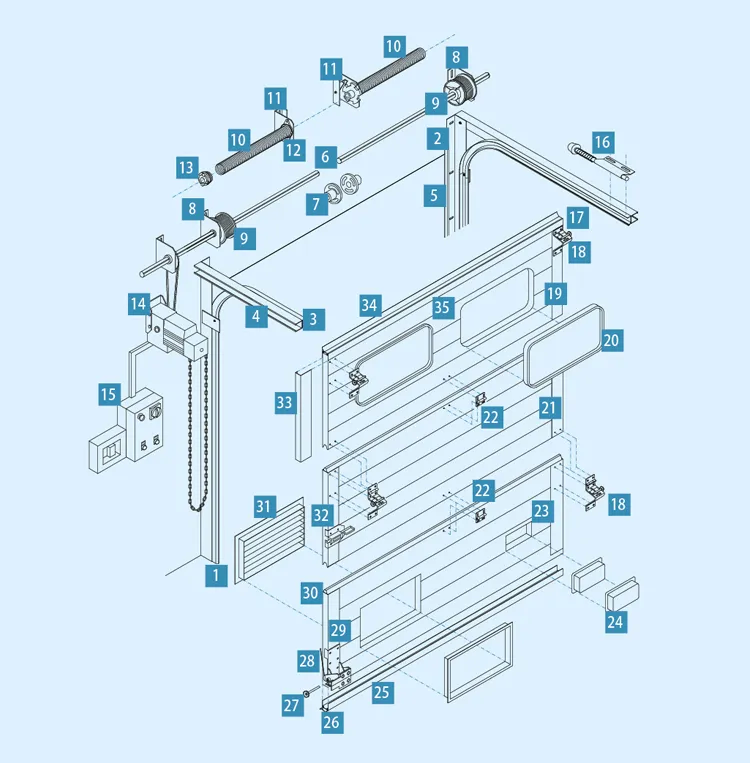

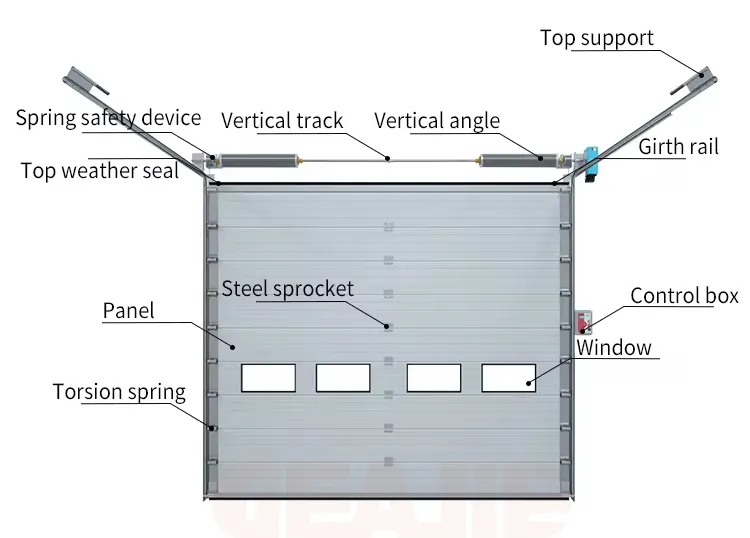

Structural Drawing

Structural Drawing
1. Rail2. Vertical rail support3. Horizontal rail4. Sealing strips
5. Door shaft6. Motor7. Control box8. Roller Bracket
9. Door panel10. Lighting window11. Lifting cable12. Safety device

Production & Quality Control

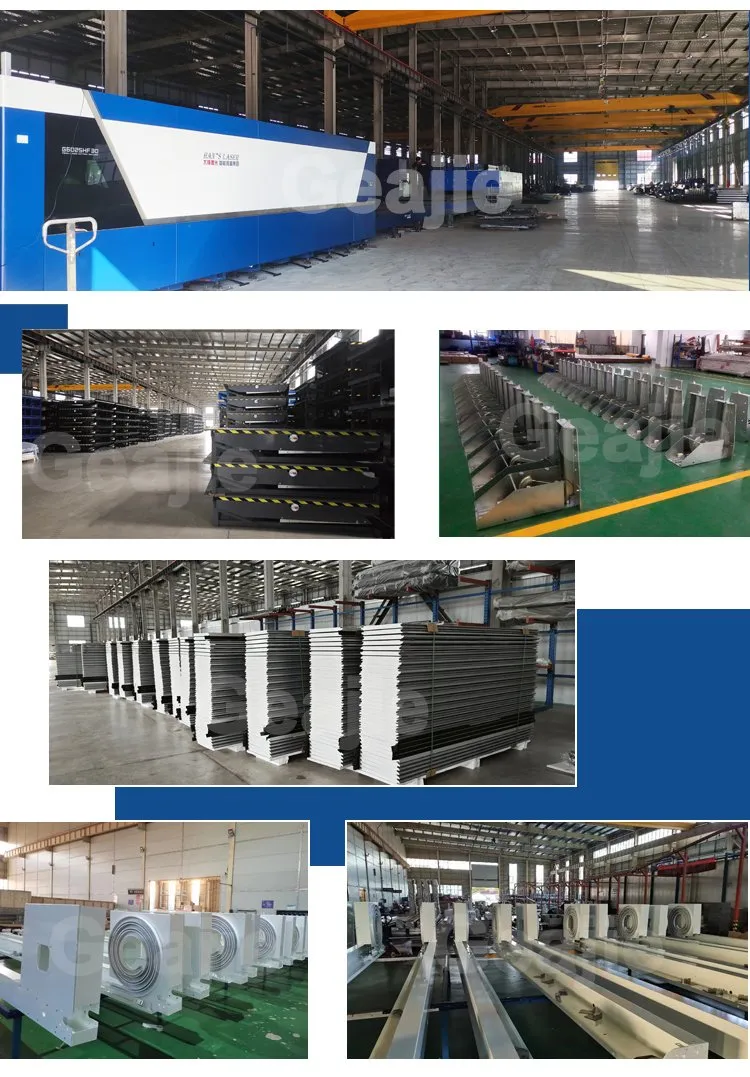

Manufacturing
?

Frequently Asked Questions

What is your Minimum Order Quantity (MOQ)?
The MOQ is 1 set.
What is the maximum available size for these industrial doors?
The maximum length is 6.5M and the maximum width is 6M, which is adjustable.
What other products do you offer?
We also produce sliding doors, rapid doors, garage doors, rolling shutter doors, cold storage doors, dock levelers, door seals, and industrial fans.
Is the installation of the sectional door difficult?
Our products are designed for easy installation. We provide technical guidance to assist you.
What are the benefits of using a dock leveler?
It significantly improves the efficiency of cargo handling, making loading and unloading goods much easier and safer.
Do you provide OEM services?
Yes, OEM is highly welcomed and we have extensive experience in professional exporting worldwide.
