Basic Specifications
Aluminium Profile
60 Series
Surface Finishing
Powder Coating
Certification
CE, ISO, CIQ, RoHS, TUV
Product Technical Details
| Thickness: | 11.3mm |
| Weight: | 5.6Kg/m² |
| Maximum Dimensions: | Width: 4.0m / Height: 3.5m |
| Maximum Area: | 12.0m² |
| Quantity per meter: | 18 pieces |
| Surface Treating: | Powder Coating |
| Standard Colors: | White, Beige, Grey (Custom colors available) |
| Pattern Options: | Unperforated, Perforated 2% |
⚙️ 55 double layer slat compatible with: 75mm Guide rail, Short Slat connection fittings, and Rubber/Brush inserts.
| Height Limit |
Side Plate Size (A) |
| < 1.6m | 200mm |
| < 2.1m | 220mm |
| < 2.7m | 240mm |
| < 3.5m | 280mm |

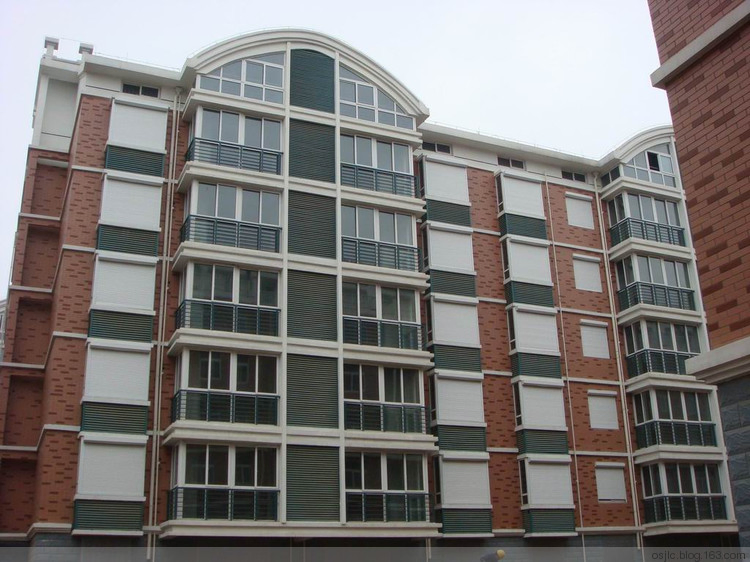

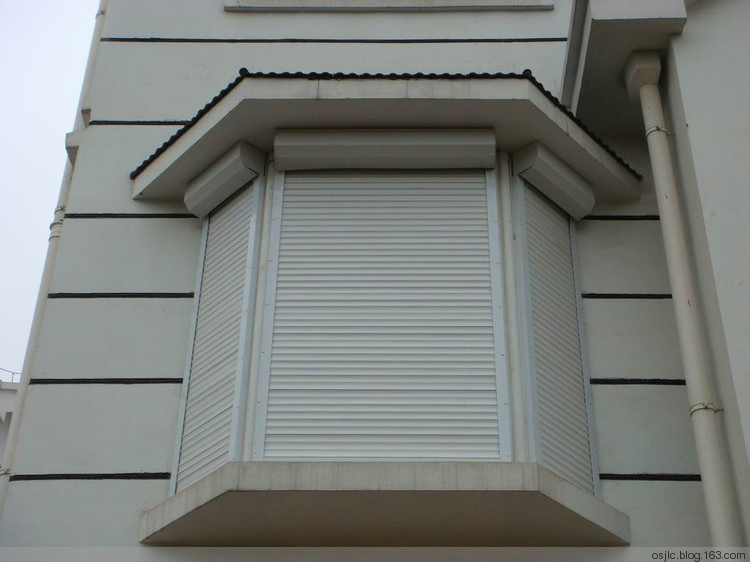

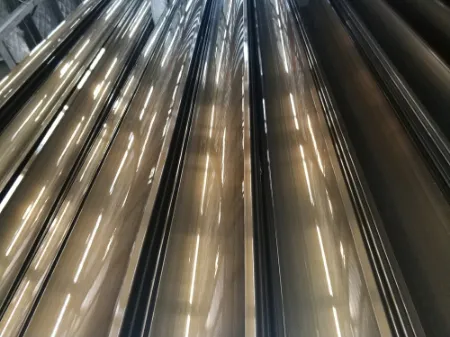

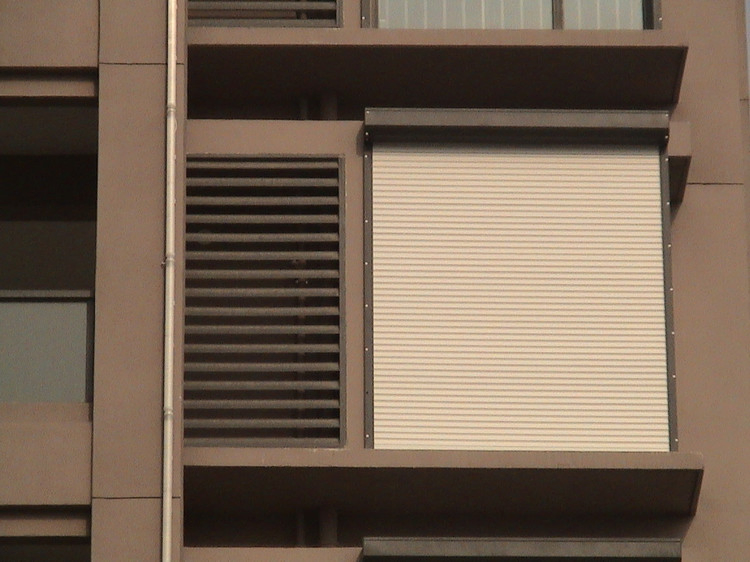

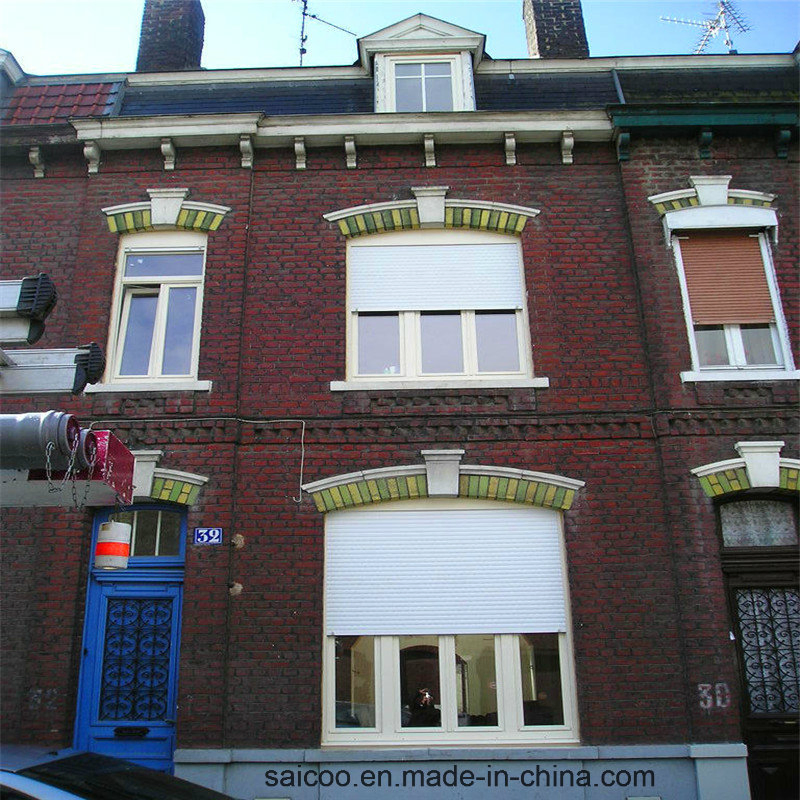

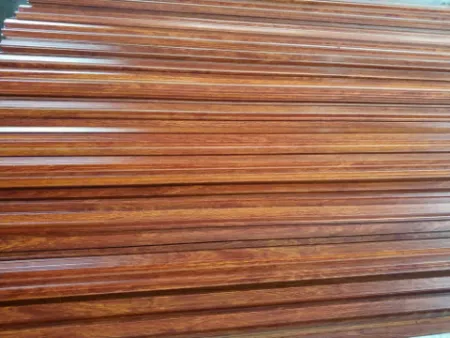

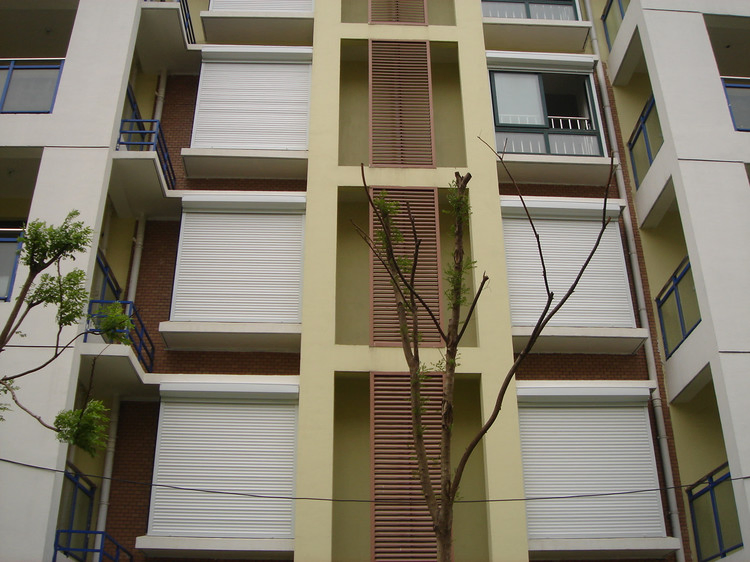

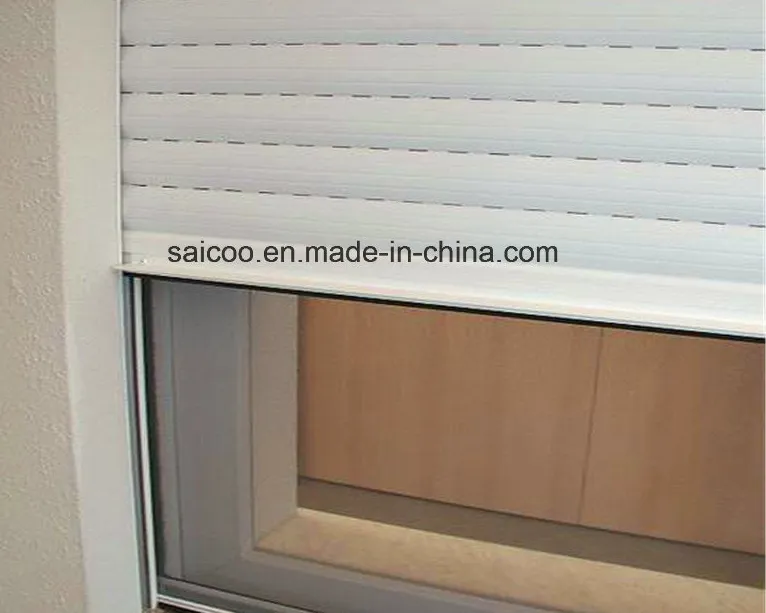

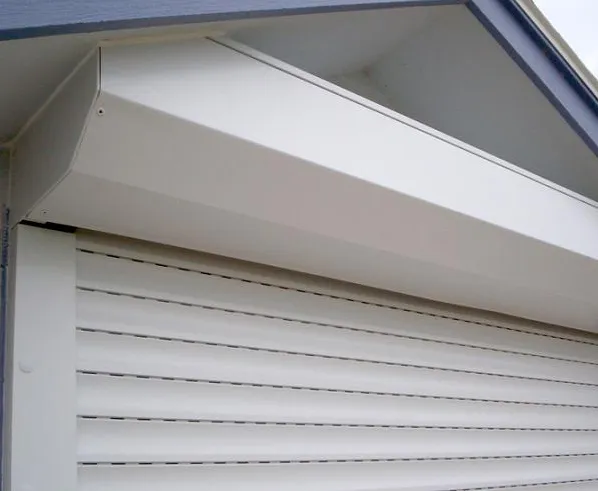

Product Display
Frequently Asked Questions
What are the primary materials used in these profiles?
The profiles are made from high-quality 1000 series and 6063 aluminum alloy with T5 temper for optimal durability.
Can I customize the color of the roller shutters?

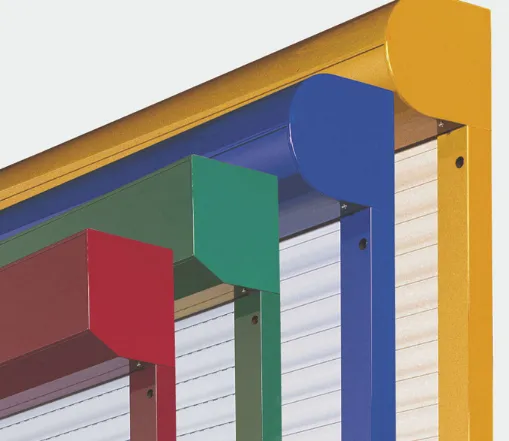

Yes, while standard colors include White, Beige, and Grey, other colors can be manufactured based on specific customer requests via powder coating.
What is the maximum coverage area for a single unit?
A single motorized fire-rated roller shutter can cover a maximum area of 12.0 square meters, with a max width of 4.0m.
What certifications do these products hold?
Our aluminum profiles and shutter systems are certified by CE, ISO, CIQ, RoHS, and TUV standards.
Are there different slat patterns available?

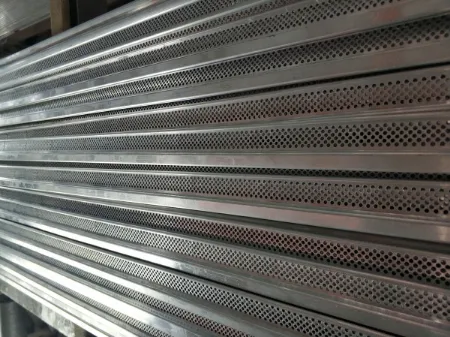

We offer both unperforated slats and perforated slats (2% perforation) to suit different ventilation and security needs.
What type of surface finishing is applied?
The product features a high-grade powder coating finish, providing excellent resistance to weather and wear.
