| Model | Highway guardrail |

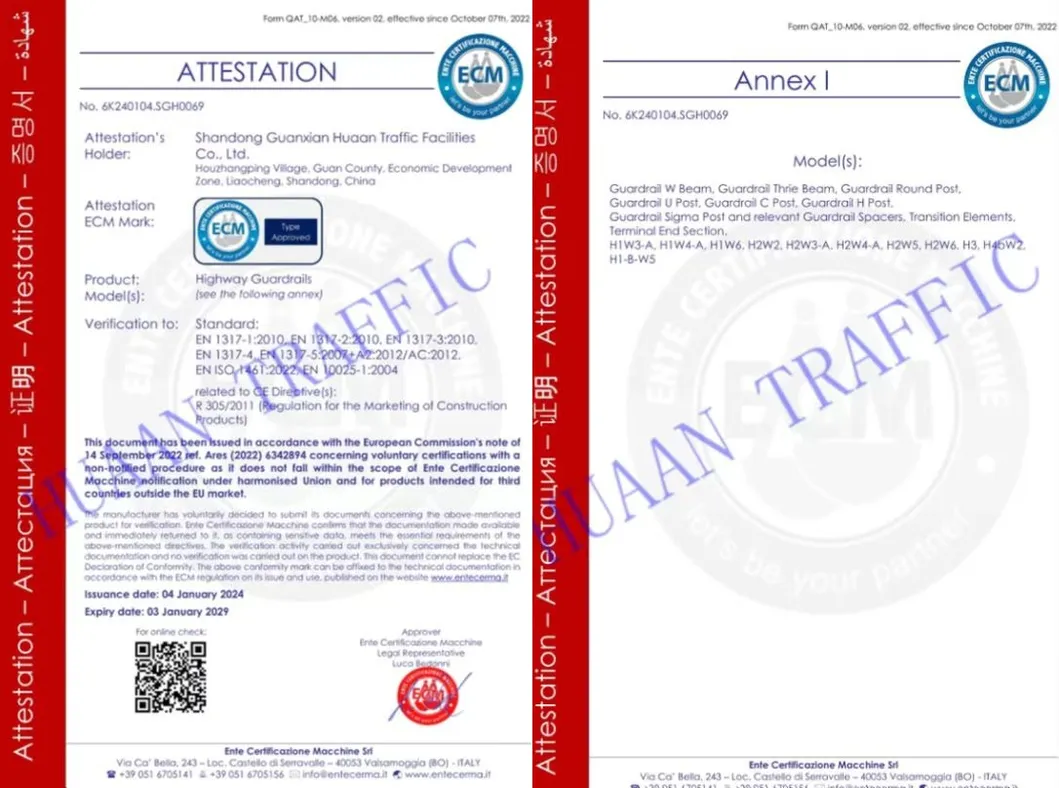

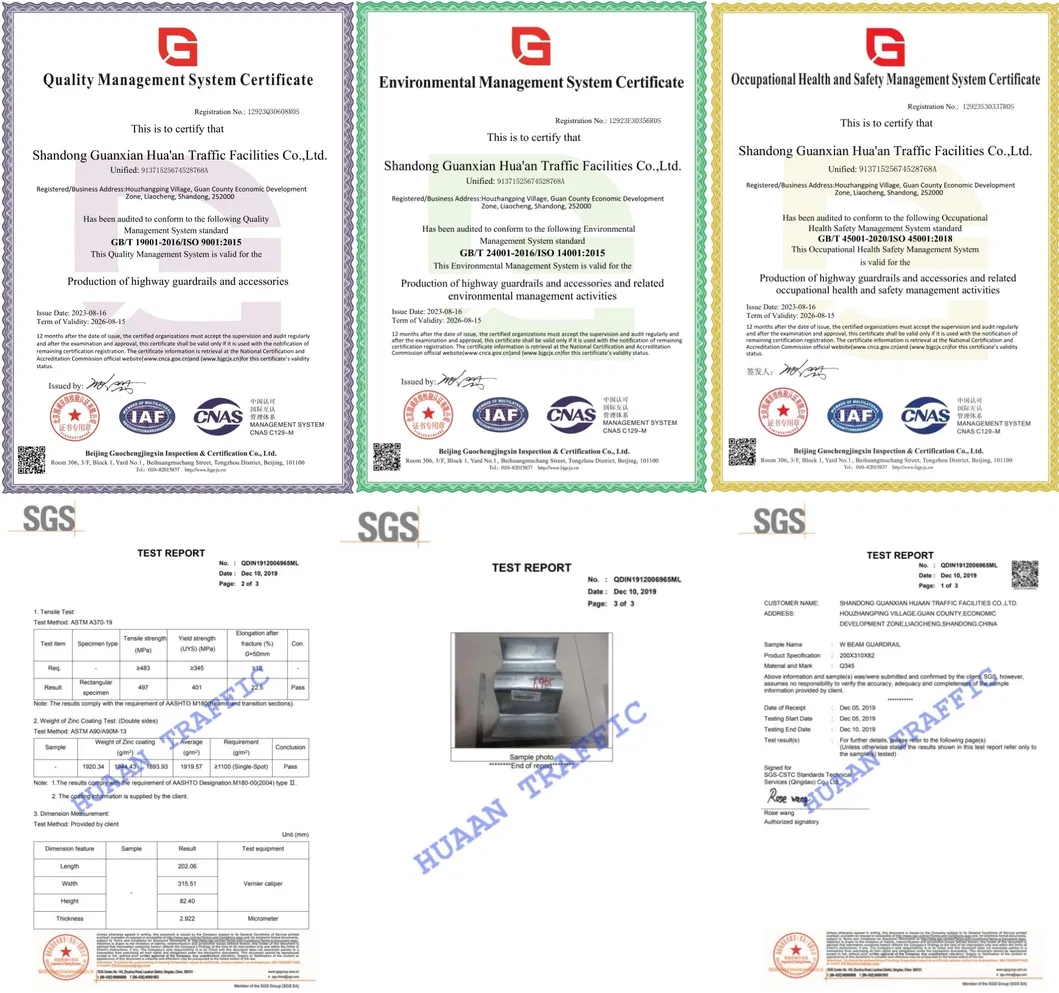

| Certification | ASTM, ISO9001, RoHS, CE, ISO45001, ISO14001, SGS, Ecm |
| Surface Treatment | Hot Dipped Galvanized or Plastic Sprayed Coating |
| Position | Road Side |
| Material | Steel (Q235B, Q355, Q345B) |
| Guardrail Style | W Beam / Thrie Beam Guardrail |
| Standard | Aashto M180, En1317, Ral RG620, AS NZS 3845 |
| Zinc Coating | 100 - 1200G/M2 (Customizable) |
| Tensile Strength | Minimum 495MPa |

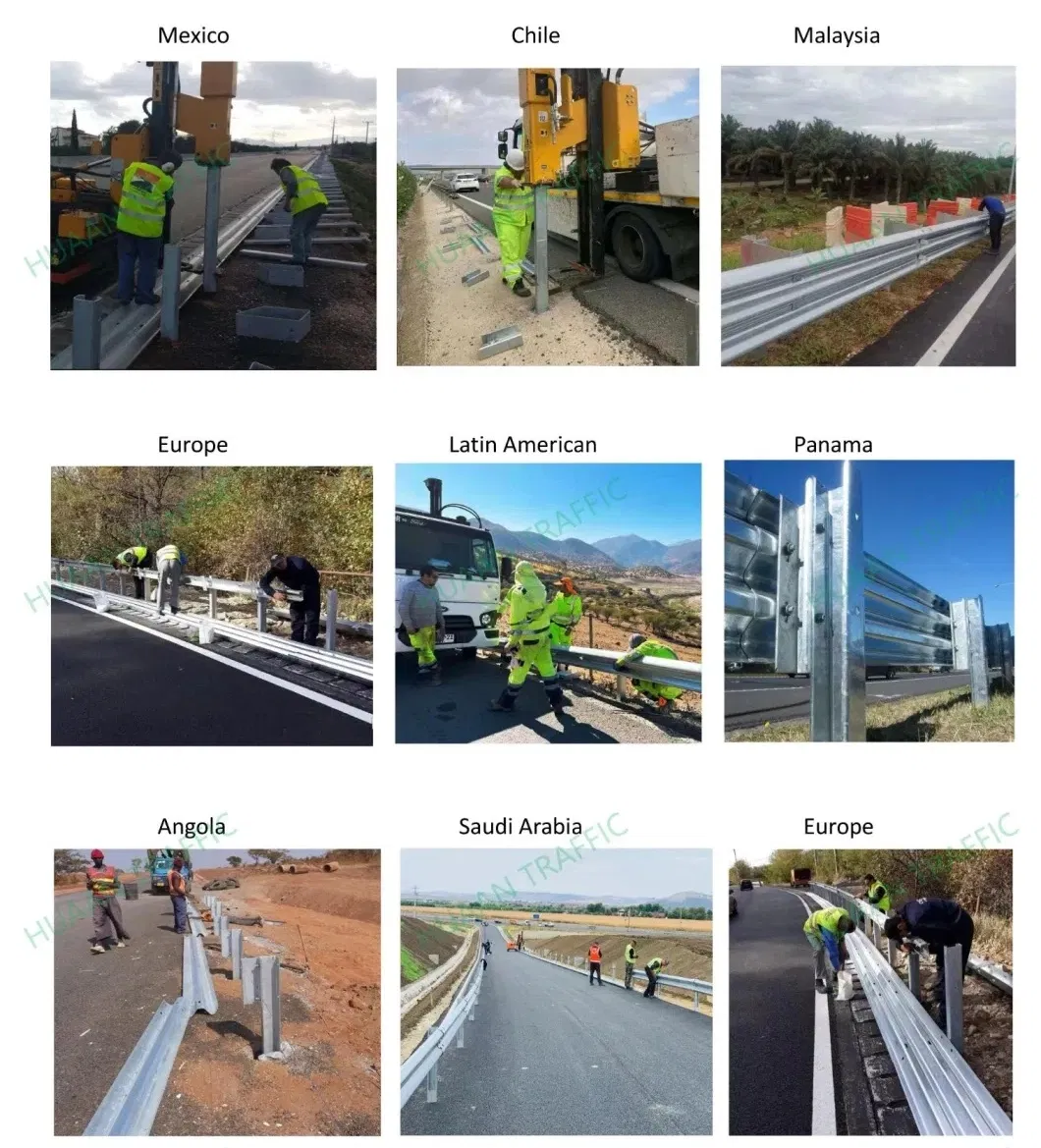

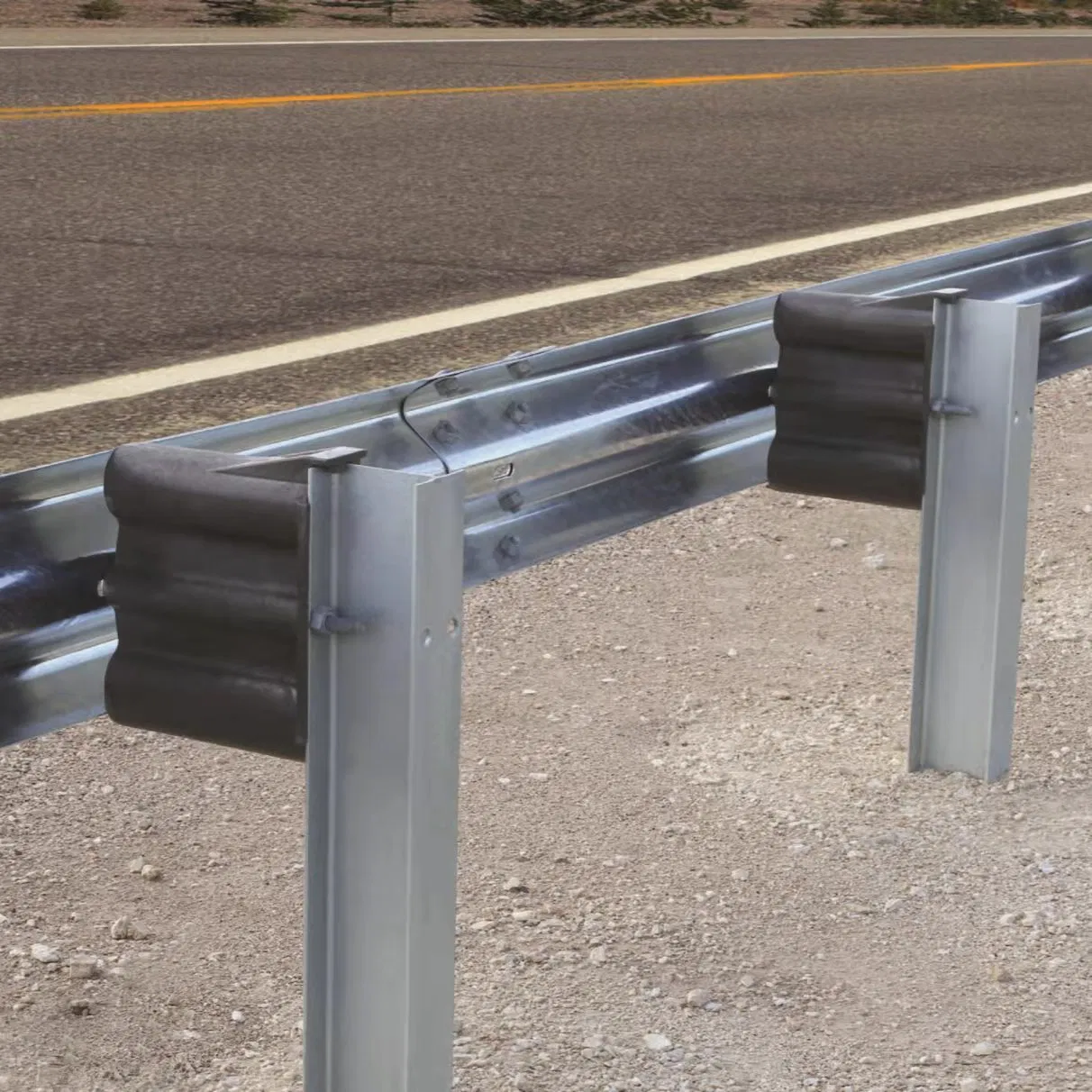

Our highway guardrails are engineered to meet the most rigorous safety standards globally, including M180 and EN 1317. These systems are essential for road safety, strategically installed along highways, docks, and bridges—particularly in high-risk areas like sharp curves and steep slopes. They are designed to absorb impact and redirect vehicles, preventing them from leaving the roadway.

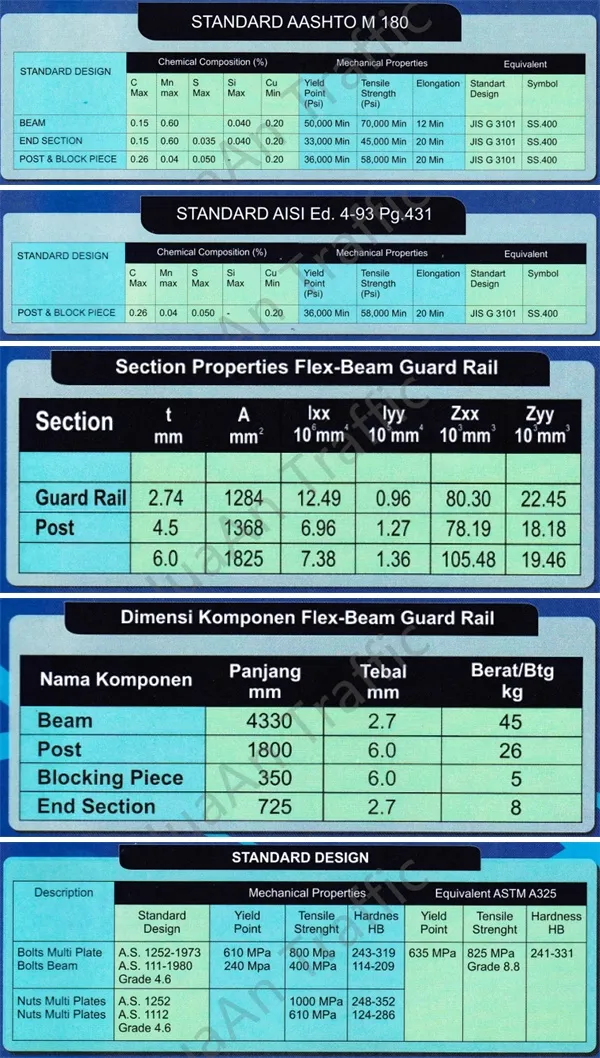

| Feature | Specification Details |
|---|---|
| Beam Length | 3200 / 3810 / 4000 / 4320 mm |
| Beam Width | 306 / 310 / 312 / 380 mm |
| Beam Height | 80 / 82 / 83 / 85 mm |
| Thickness | 2.5mm to 4.15mm (Customizable) |

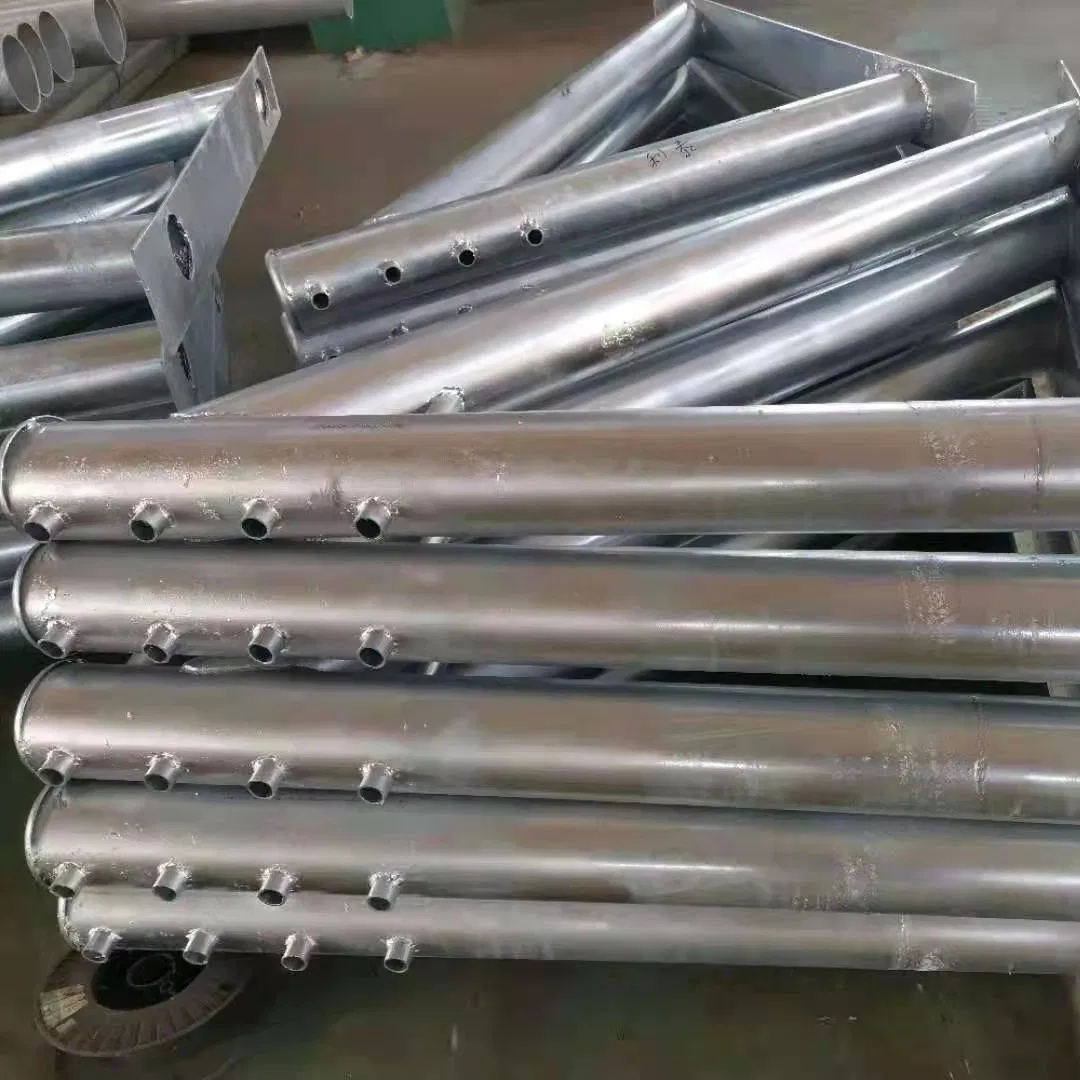

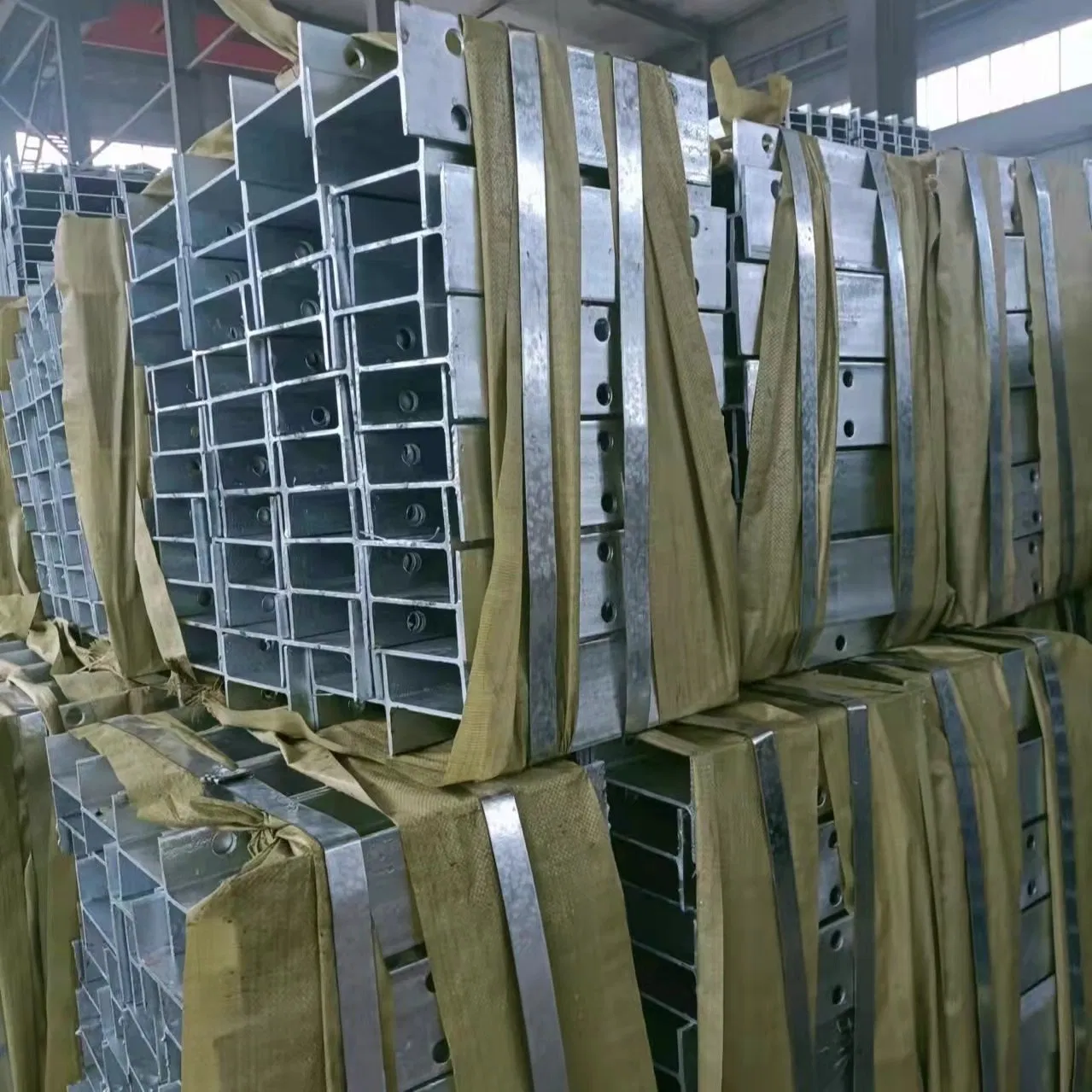

| Post Types | C, U, H, Z, Round, Square, and Sigma shapes |
| Steel Grades | Q235B (S235JR), Q355 (S355JR / ASTM A529M) |
| Capacity | 150,000 MT per Year |

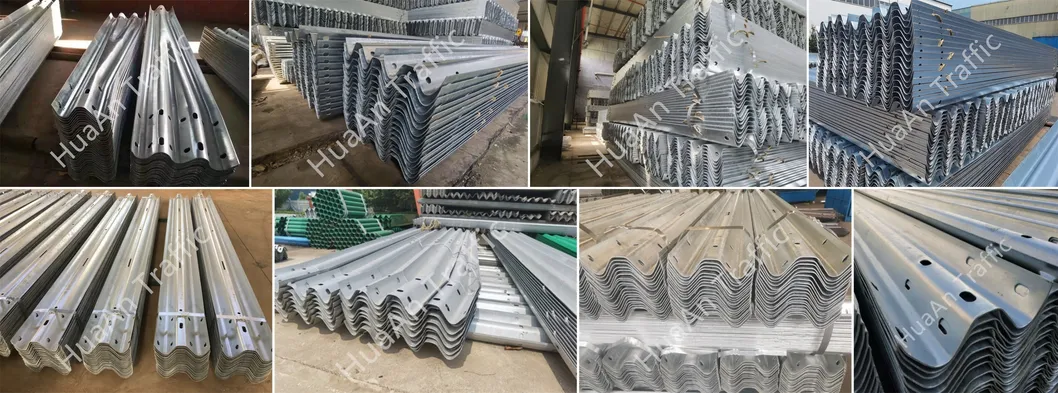

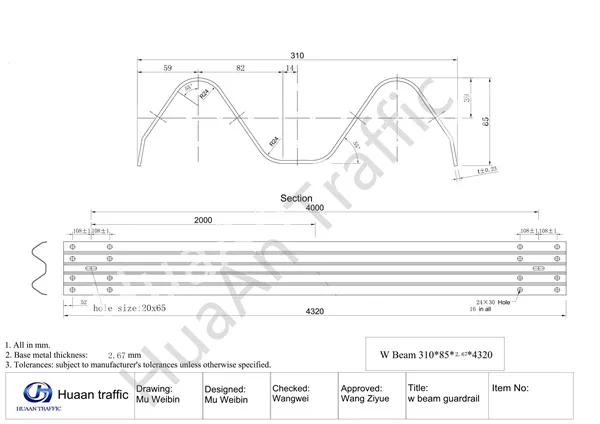

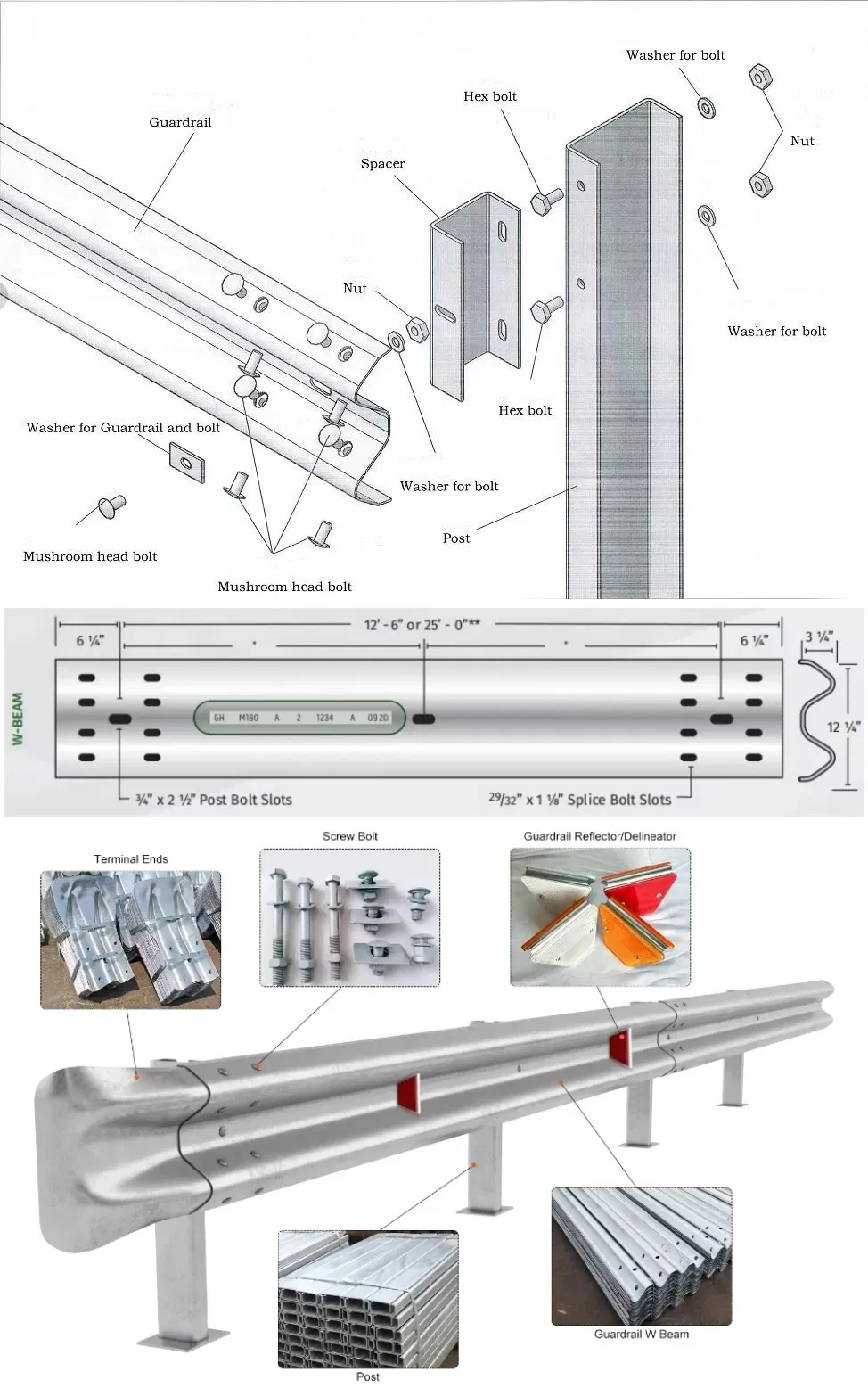

W-Beam Guardrail Structure

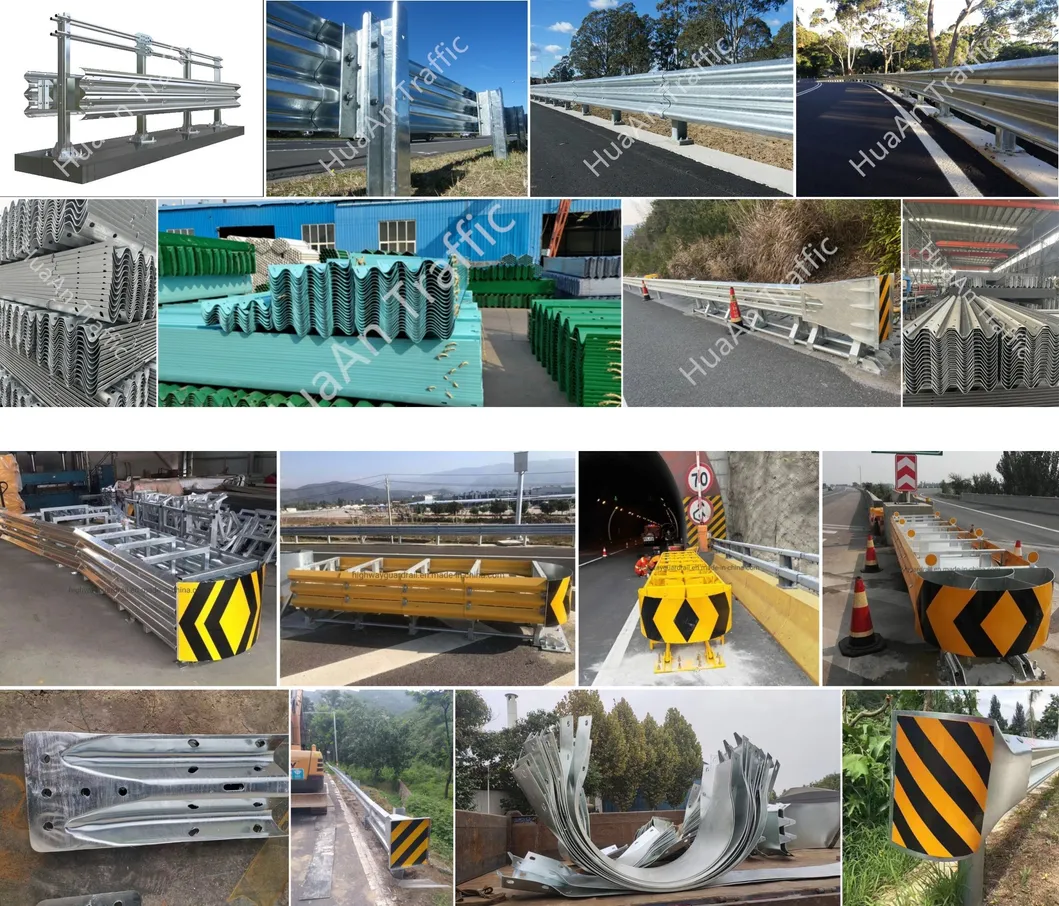

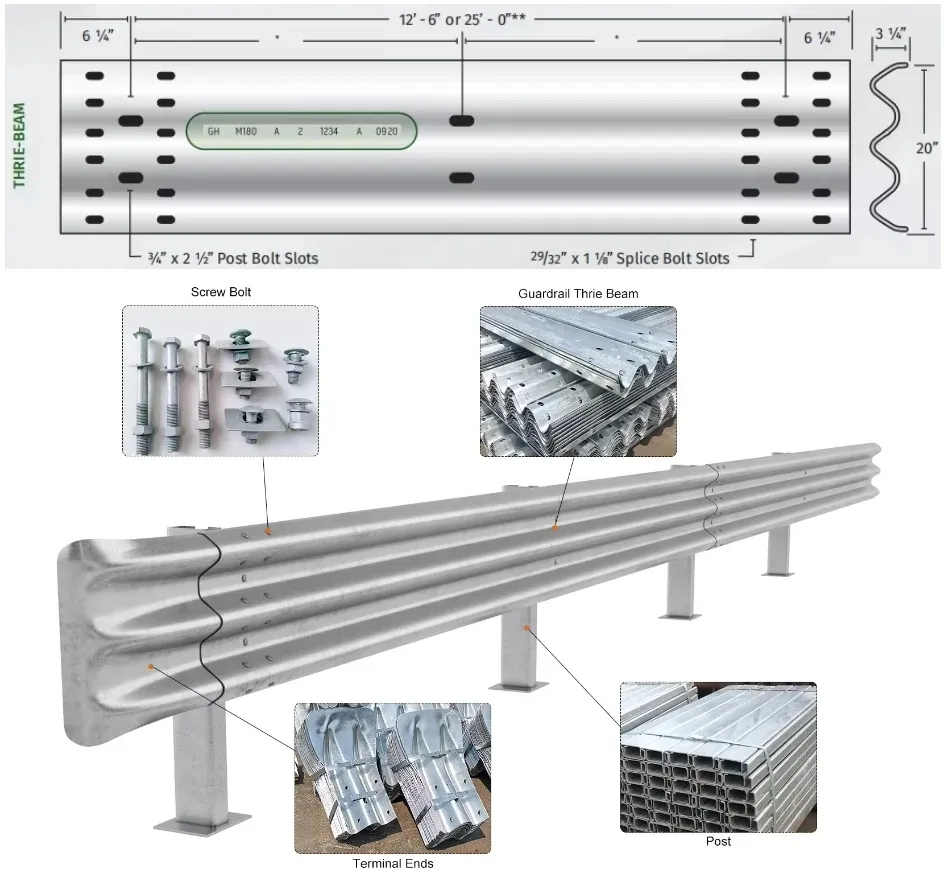

Thrie-Beam Guardrail Structure
Beam Comparison

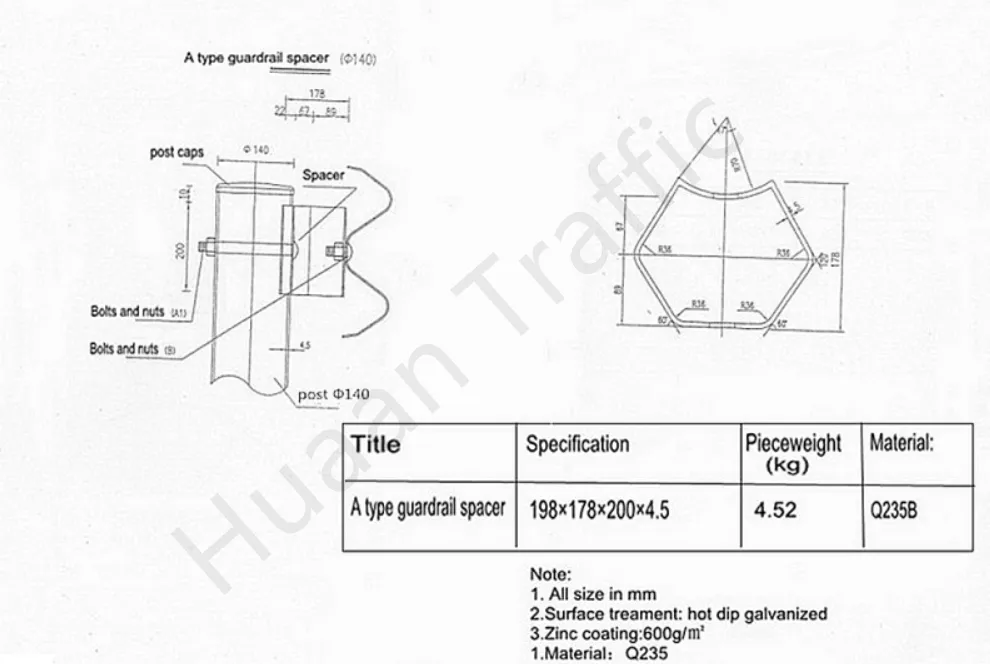

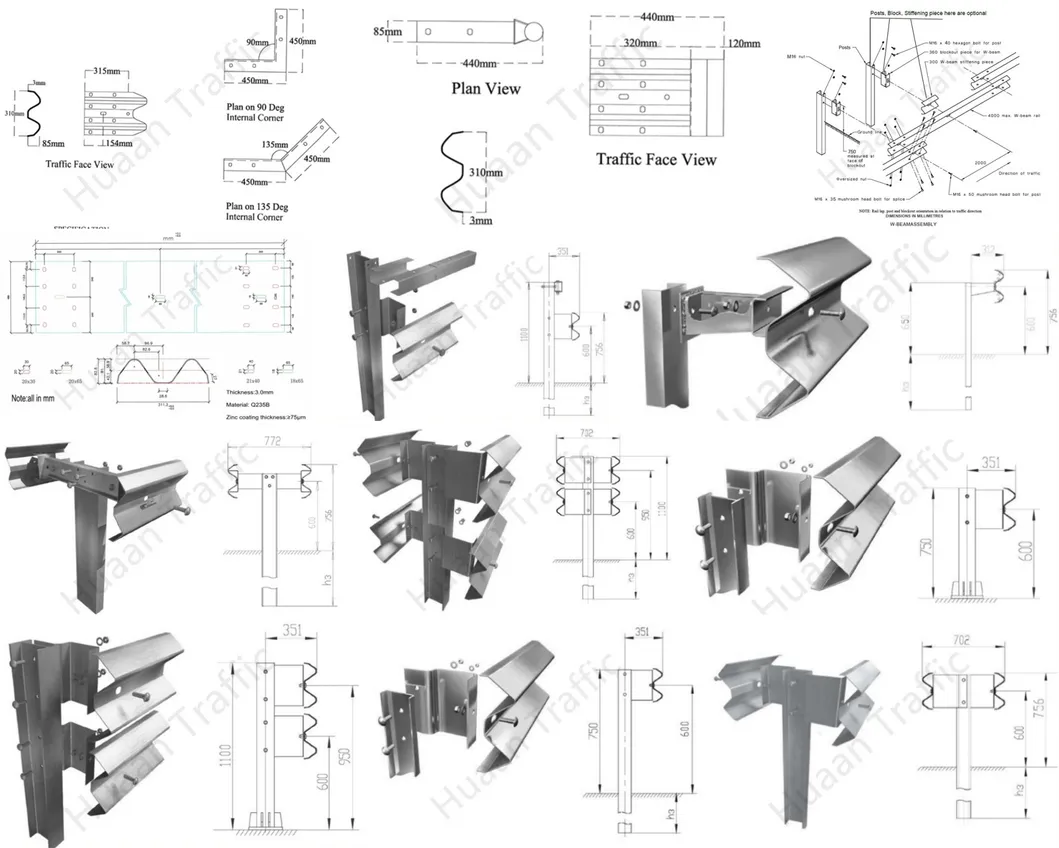

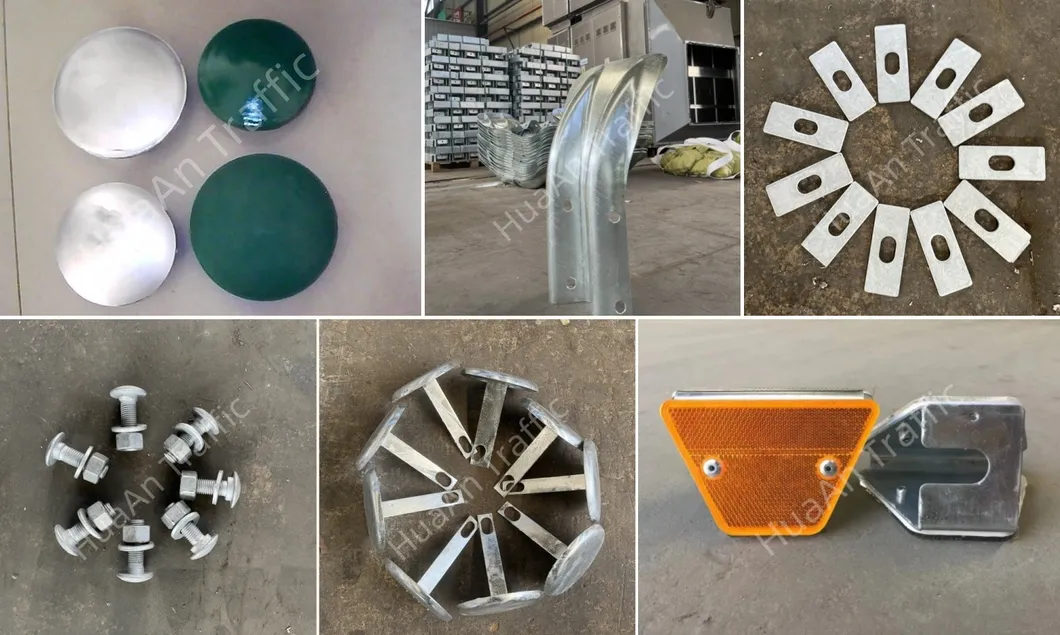

Essential Components (Posts, Spacers, Bolts & Terminals)

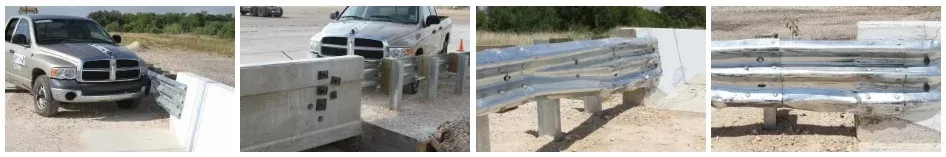

MGS Barrier Crash Test Performance:

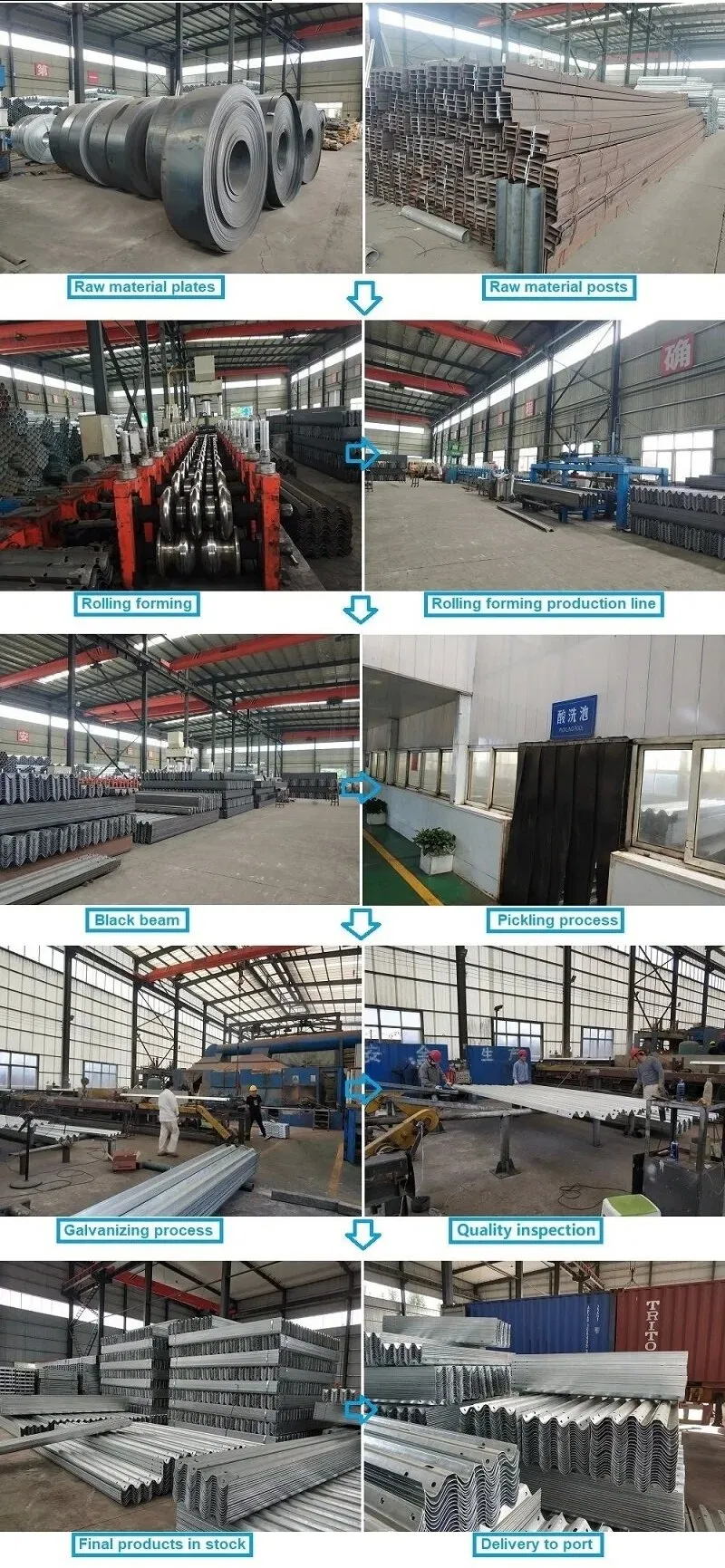

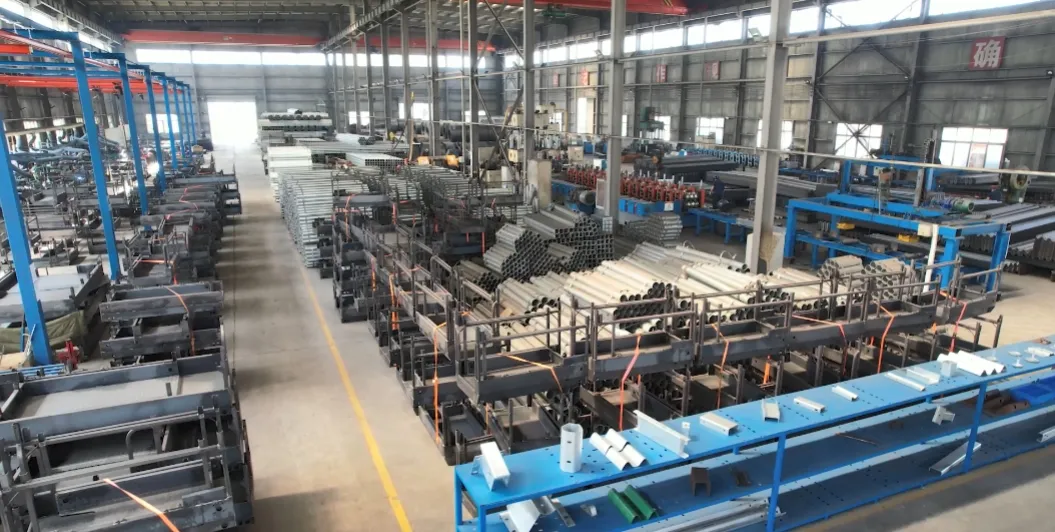

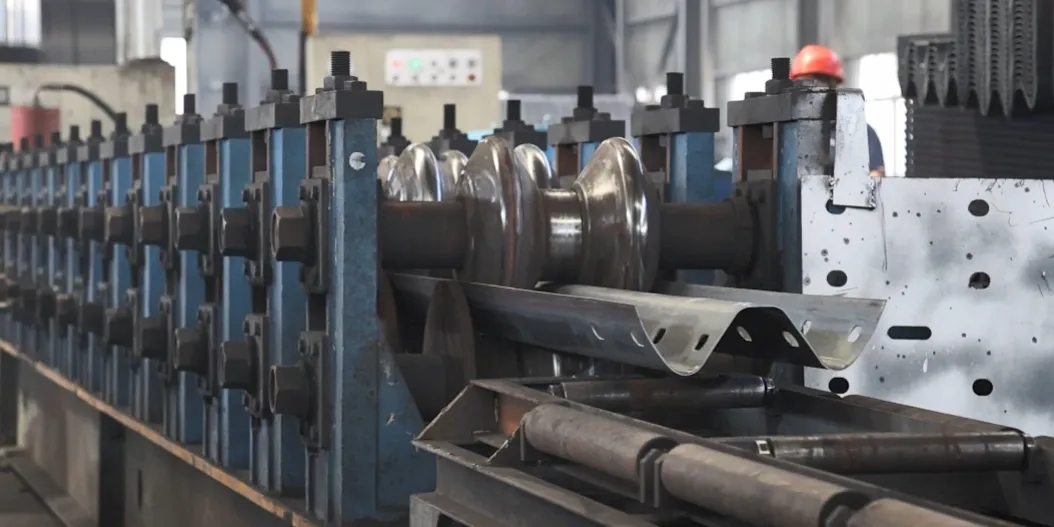

Our manufacturing process utilizes advanced robotic welding, laser cutting, and fully automated hot-dip galvanizing technology. The facility spans 150,000 square meters, ensuring a massive production capacity while maintaining precision.

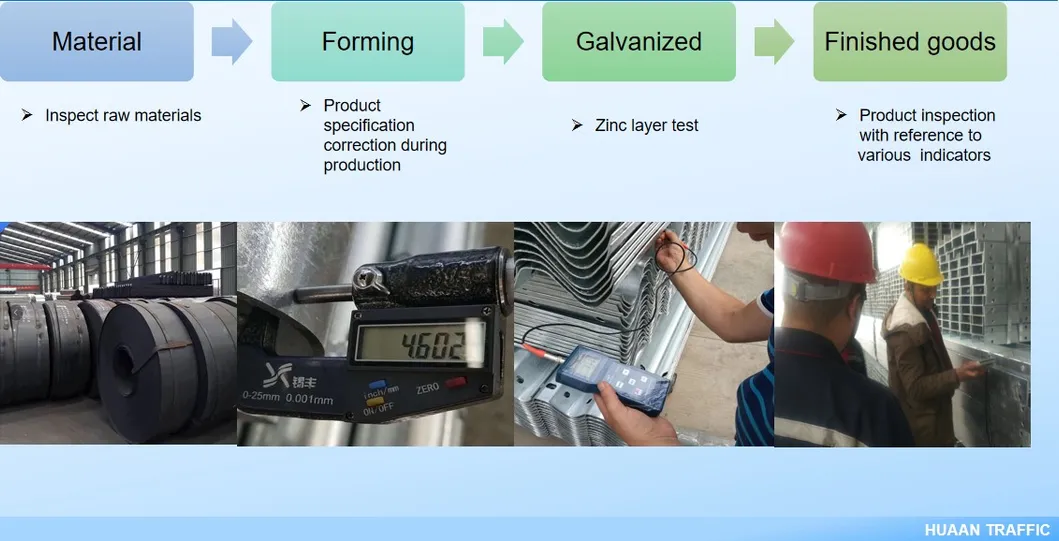

Production Flow:
