📋 Basic Specifications
Product Name
Fully Automatic Chicken Coop
Material
Galvanized Aluminum
Tiers
3, 4, 5, 6, 8 Tiers (Customizable)
Usage
Chicken / Farms / Coop
Power Source
Electric / Computerized
Feature
Durable and Easy to Install
🏗️ Product Overview
Professional equipment manufacturer integrating research and development, production, and sales of modern poultry and livestock breeding equipment. Our principle is "quality is life, integrity is the soul, and innovation is the way out." We undertake entire turnkey projects including program planning, building structure design, and equipment provision for poultry and livestock projects.

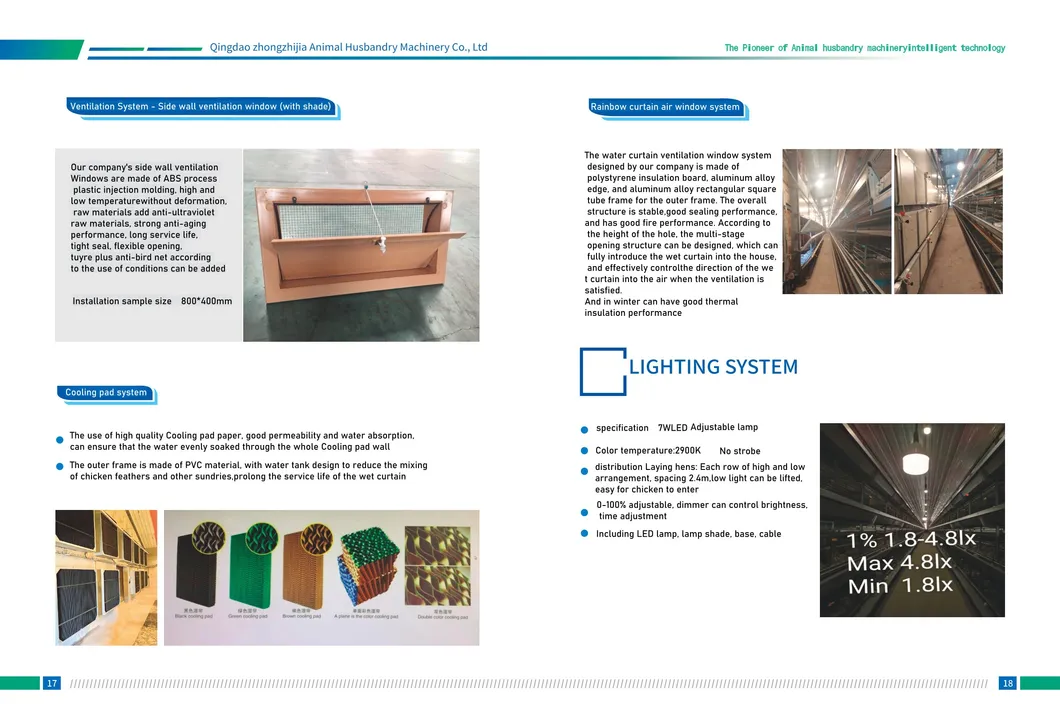

Providing European advanced technology for cage equipment, including laying chicken houses, brood breeding, and meat chicken houses. Supported systems include manure and egg collection, environmental control ventilation, feeding, drinking water, and heating.
📊 Technical Specifications: 4-Tier H Frame
| Product Name |
4 tier H type chicken laying hens cage |
Model |
Zhongzhijia No.001 |
| Material |
Galfan metal |
Tiers |
4 |
| One Unit Size |
1206mm*1540mm*2790mm |
Unit Capacity |
256 hens |
| Cell Size |
1206mm*770mm*640mm |
Cell Capacity |
8 hens per cell |
| Life Span |
At least 20 years |
Living Space |
301.5 cm² |
⭐ Key Material Features

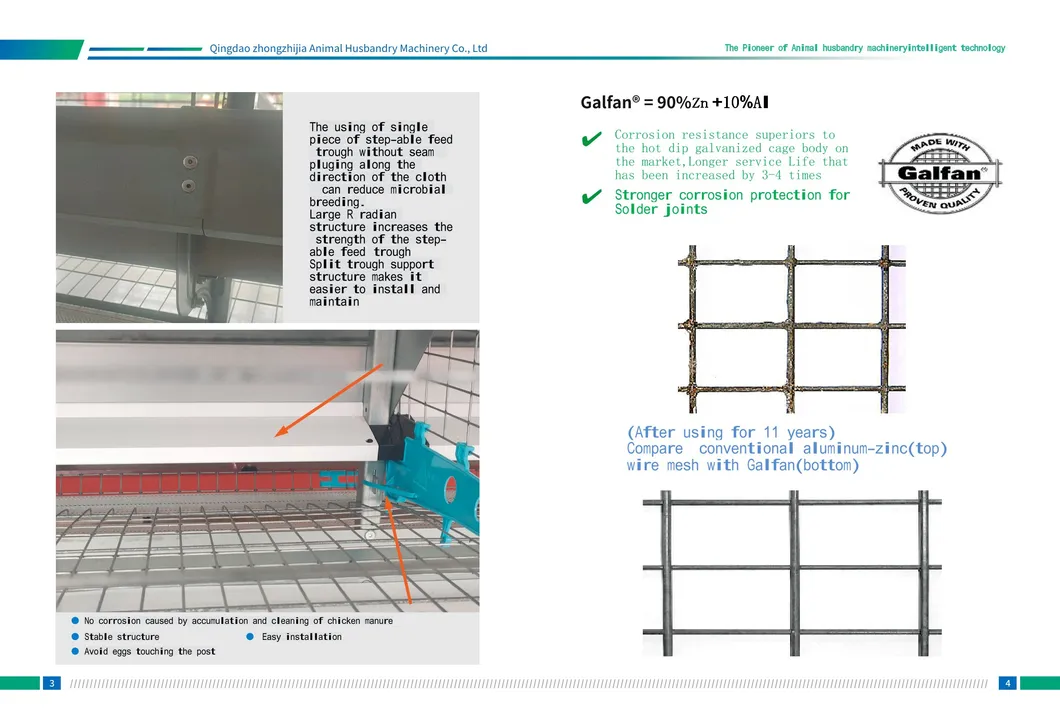

Cage mesh is crafted from aluminum-plated zinc wire (10% aluminum content), offering:
- Wire mesh without corrosion marks and excellent solder joint protection
- Bright and smooth surface for long-term aesthetic maintenance
- High elasticity mesh with a secure bottom net design
- Easy to clean for optimal sanitary conditions
- Tested for sulfur dioxide and salt spray requirements
- Proven by 14 years of farm field testing

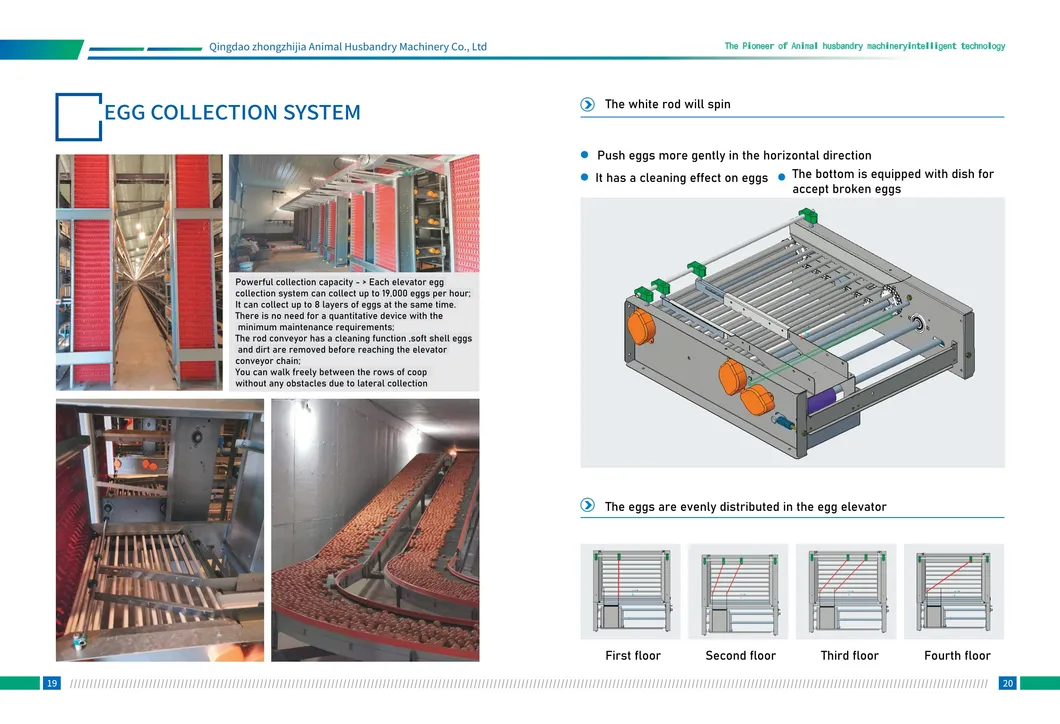

🥚 Advanced Egg Collection & Cleaning
Our system features a powerful collection capacity: up to 19,000 eggs per hour across 8 layers simultaneously. The rod conveyor includes an automatic cleaning function to remove soft-shell eggs and waste instantly. The design ensures eggs travel freely without lateral congestion.

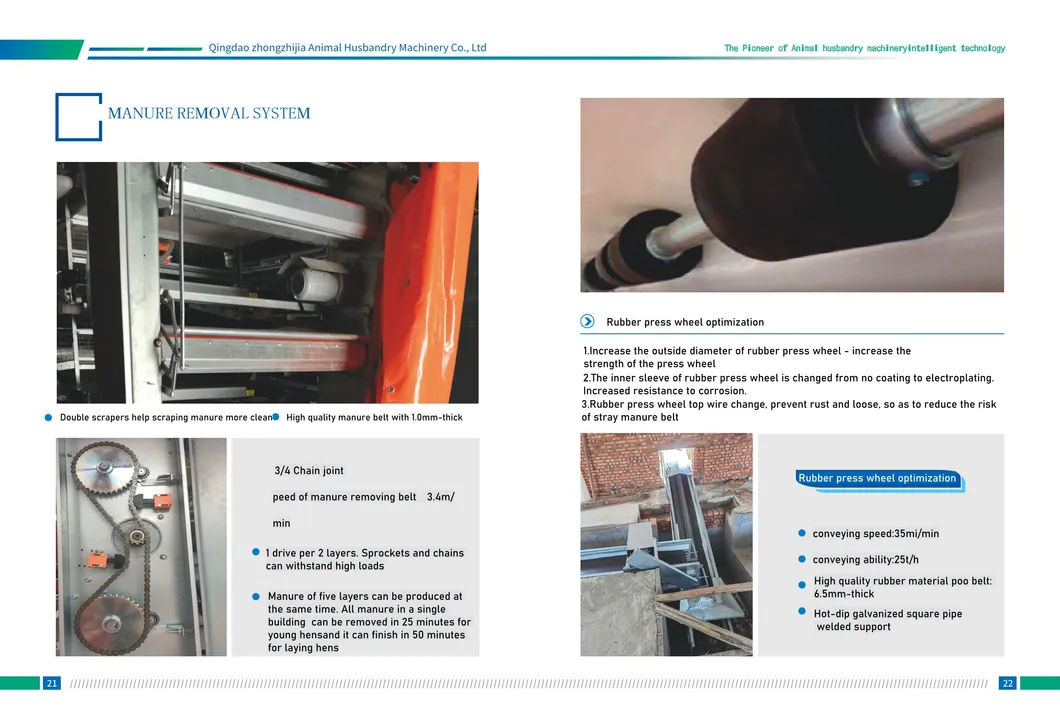

💩 Efficient Manure Removal System
Equipped with an advanced defecation system featuring a belt removal speed of 3.4 meters per minute. High-load operation is supported by one drive per two layers, ensuring rapid waste removal for systems up to five layers deep.
❓ Frequently Asked Questions
What materials are used in the cage construction?
The cages are made from high-grade galvanized aluminum and Galfan metal (10% aluminum-plated zinc wire) for maximum corrosion resistance and durability.
What is the estimated lifespan of the equipment?
The equipment is designed for long-term industrial use, with a projected lifespan of at least 20 years under proper maintenance.
Is the system fully automated?

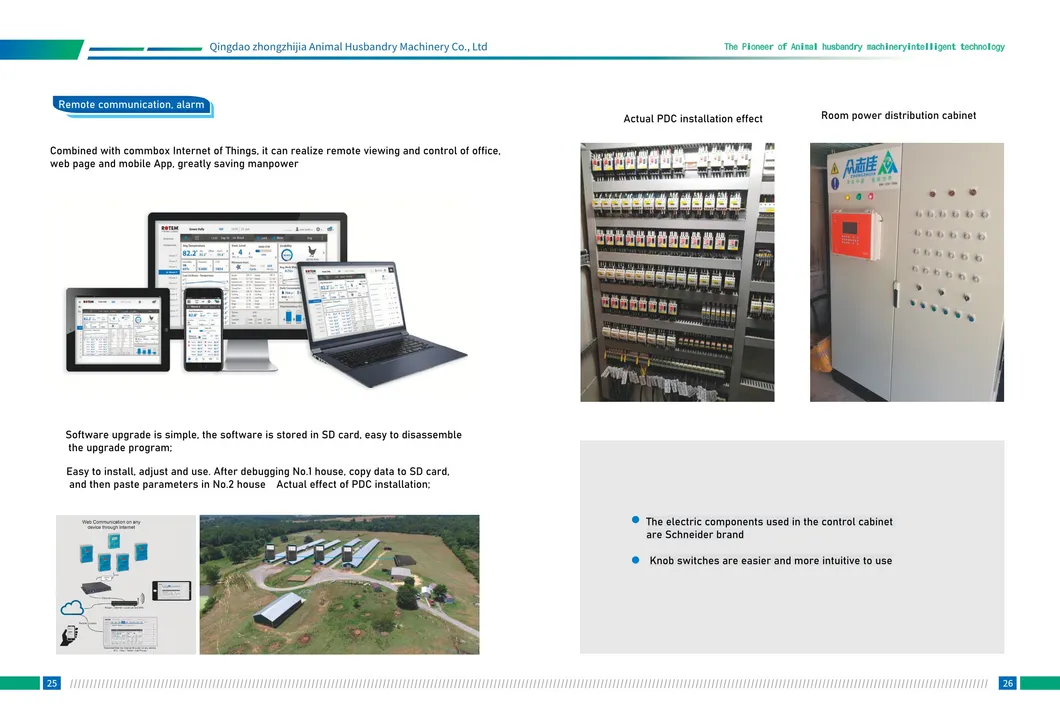

Yes, the system is computerized and electric, featuring automatic feeding, egg collection, manure removal, and environmental control.
Can the tier configuration be customized?
Yes, we offer flexible configurations including 3, 4, 5, 6, and 8 tiers to suit different farm sizes and requirements.
How efficient is the egg collection system?
The elevator collection system can process up to 19,000 eggs per hour and includes automatic waste removal for soft-shell eggs.
Does the product come with a warranty?
We provide a 1-year warranty on the equipment, along with on-site service support.
