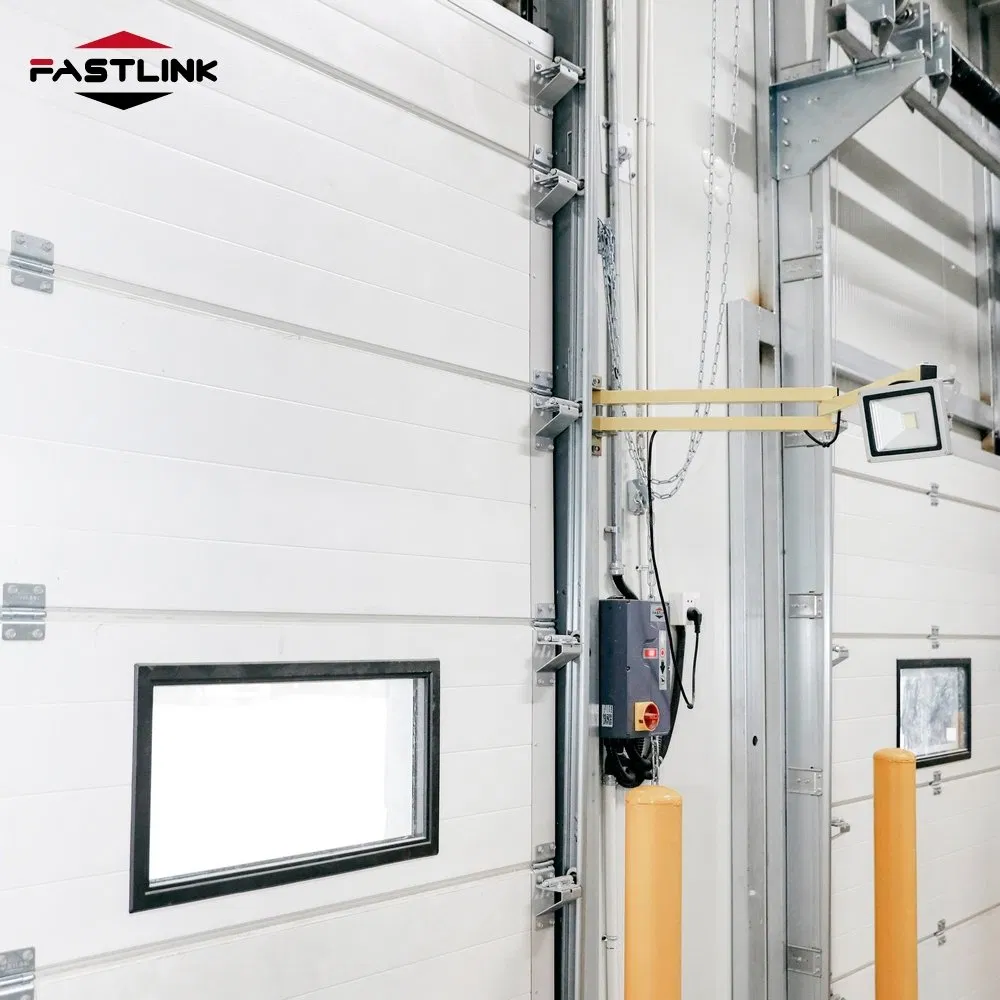

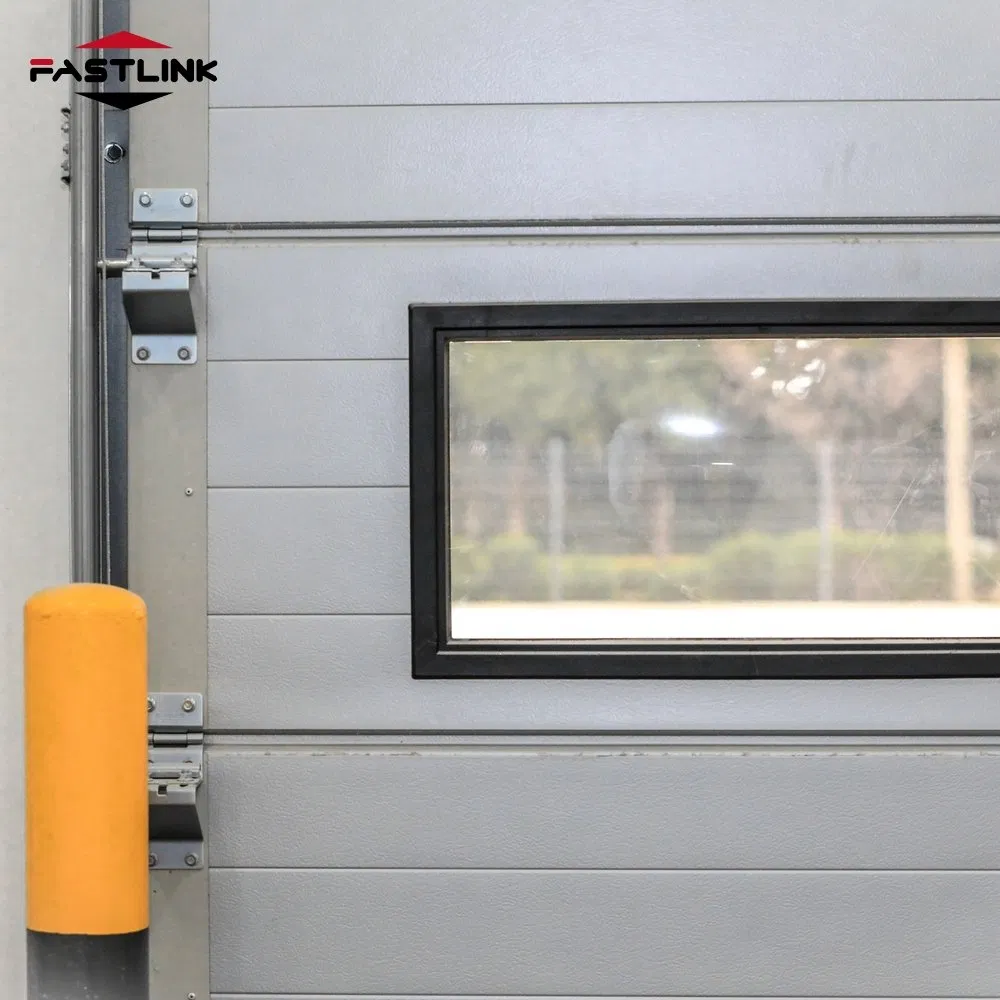

Fastlink Premium Industrial PU Dust-Proof Automatic Energy Efficient Air Tight Insulated Electric Sectional Doors

1 / 5

Fastlink Premium Industrial PU Dust-Proof Automatic Energy Efficient Air Tight Insulated Electric Sectional Doors

Customization:	Available
After-sales Service:	2 Years
Warranty:	1year

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.:SSD-IAS

Material:Aluminum / Steel Alloy

Type:Sliding / Sectional

Open Style:Electric / Manual

Function:Insulation, Wind Resistance

Color Options:RAL9002 / RAL9006 / RAL7040 / RAL7045

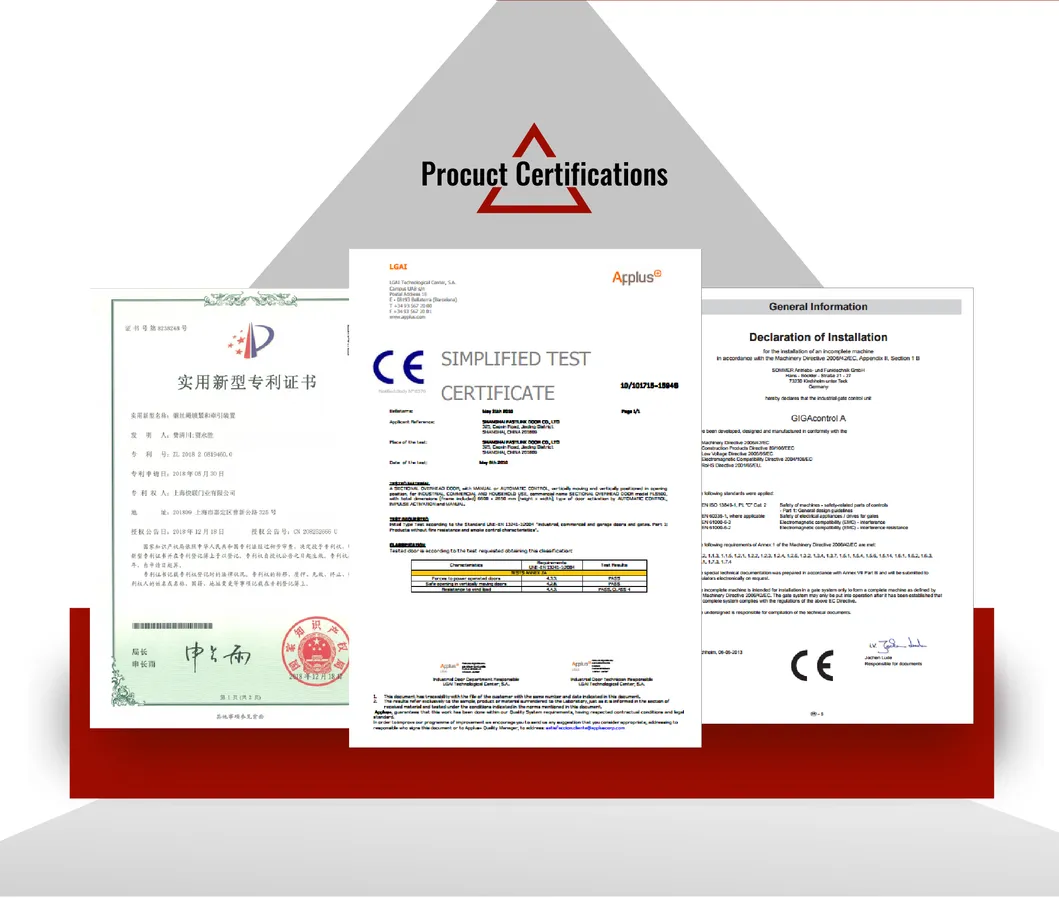

Certification:CE, CPR, UL

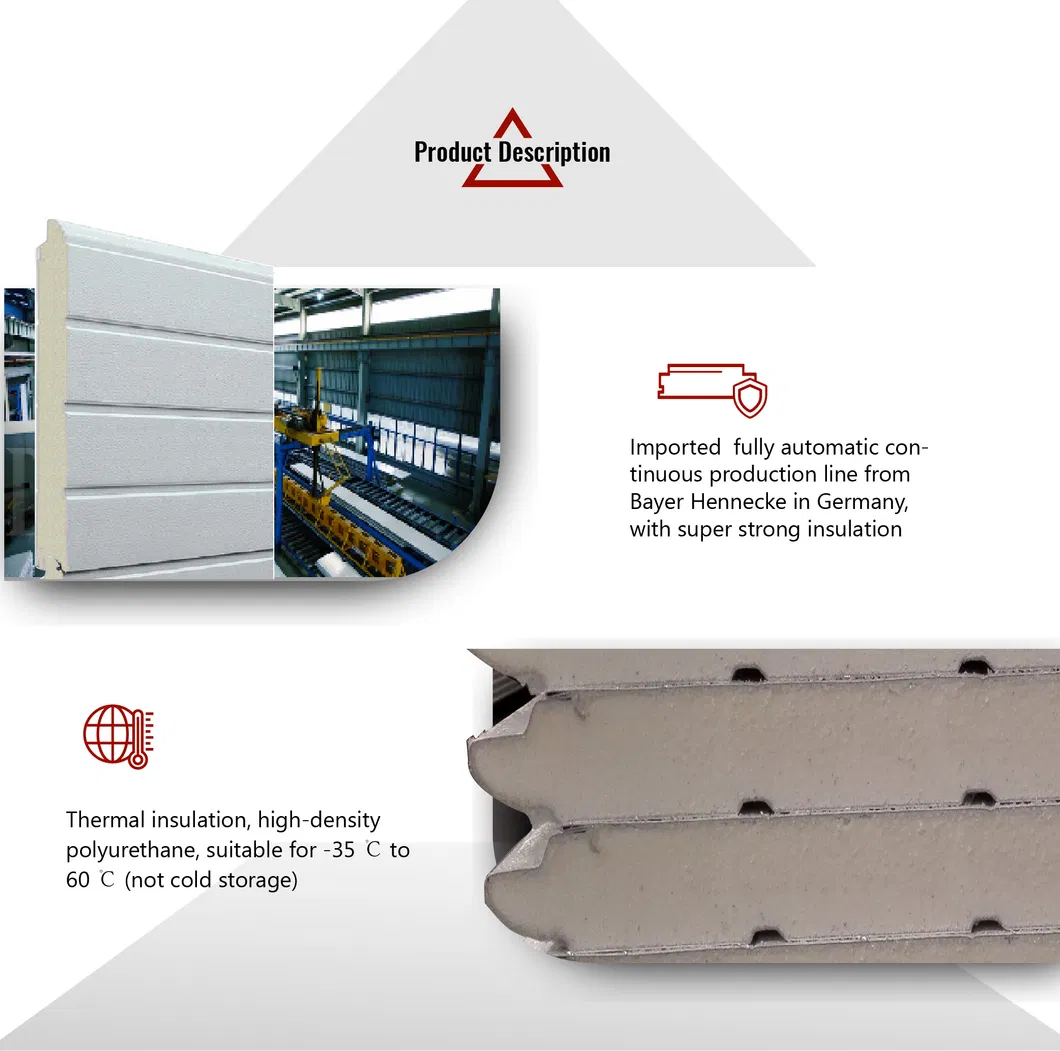

Door Panel:PU Sandwich Panel (42mm thickness)

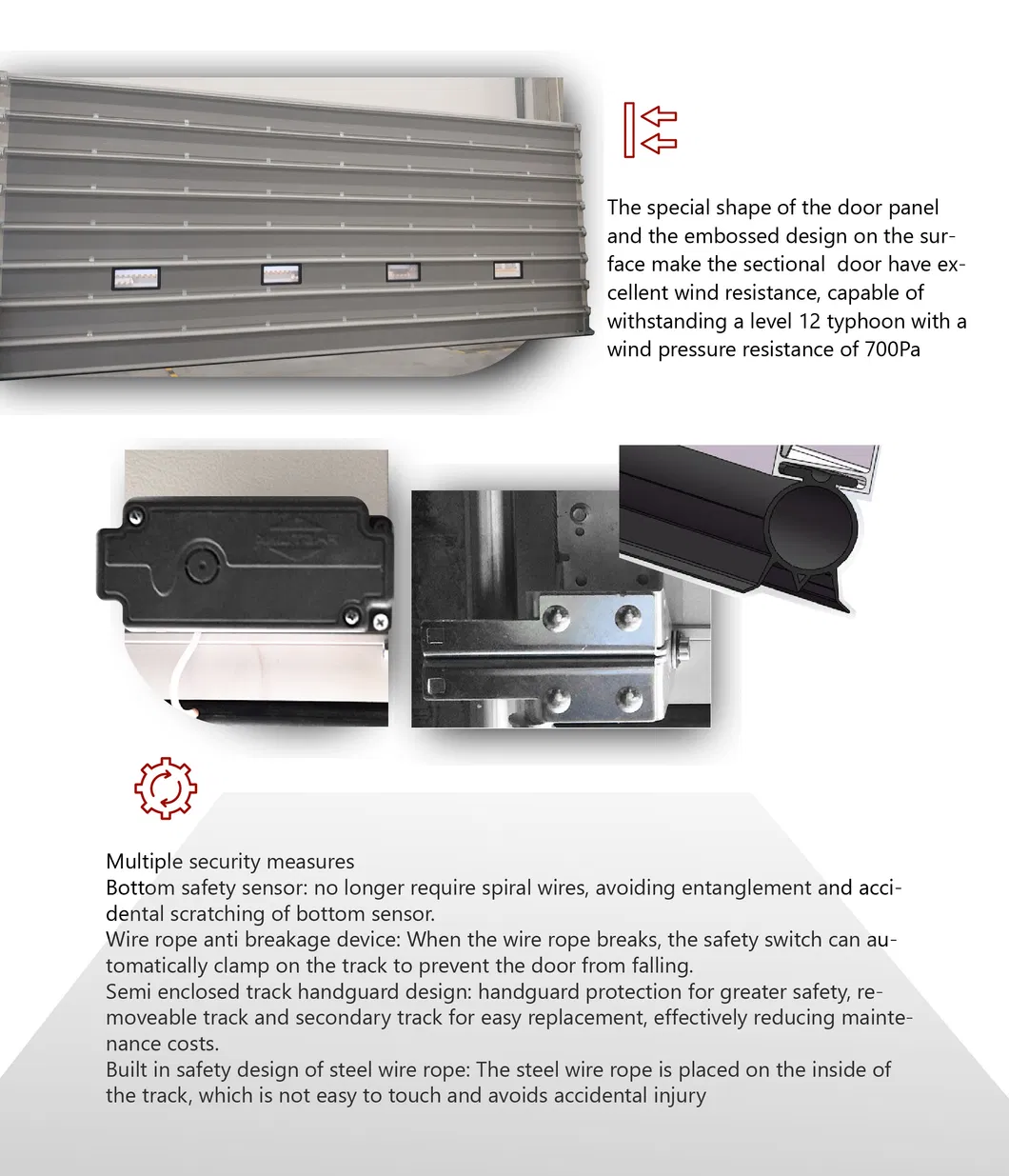

Wind Resistance:700pa (Grade 1)

Operating Speed:0.25m/s

🚀

Product Description & Features

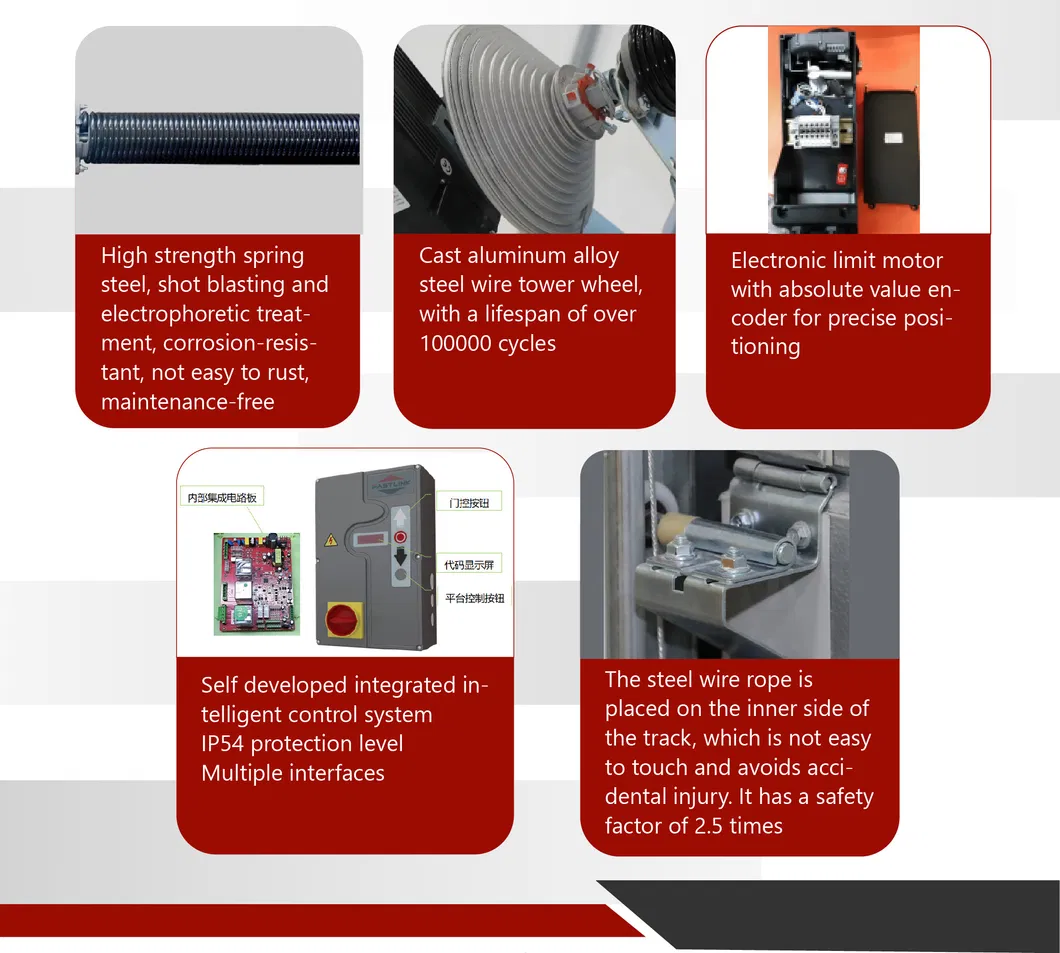

✔ High-density PU Insulation (48kg/m³)

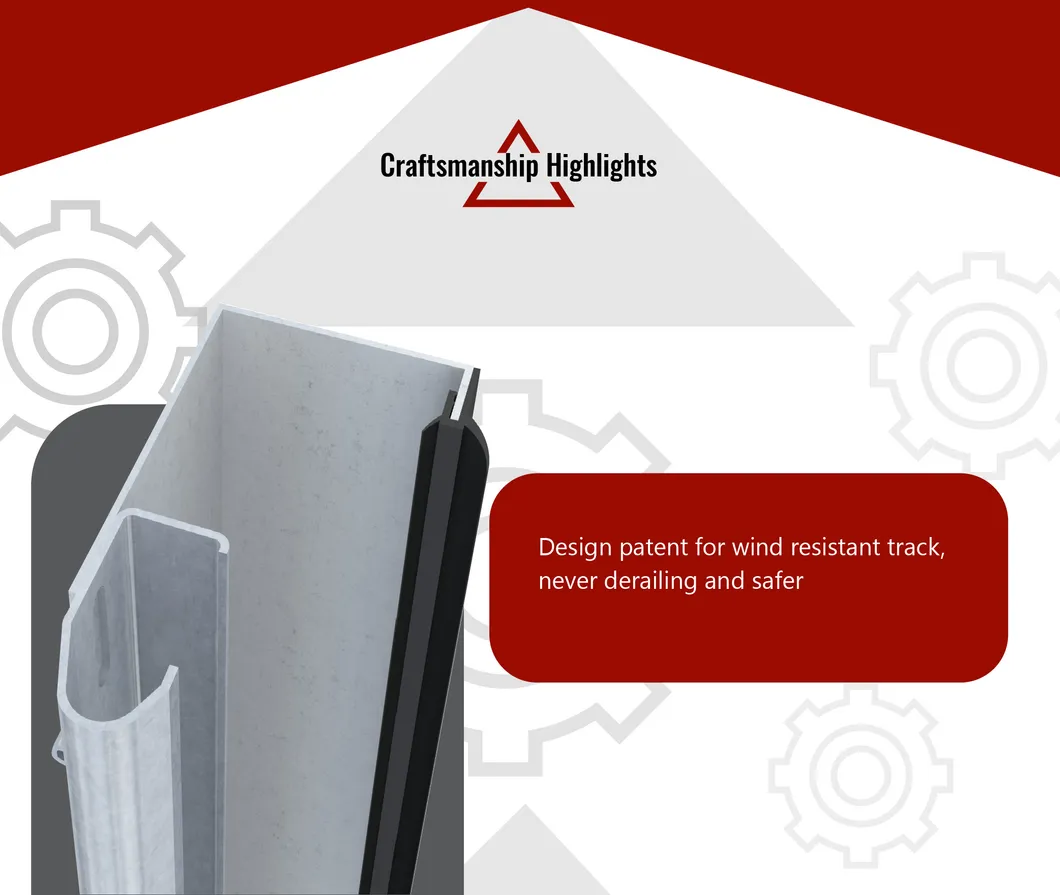

✔ Patented Wind-Resistant Track Design

✔ Anti-Pinch Hand Safety Design

✔ Intelligent Control System

✔ Wire Rope Anti-Breaking Device

✔ Freon-free Thermal Insulation

Technical Attributes

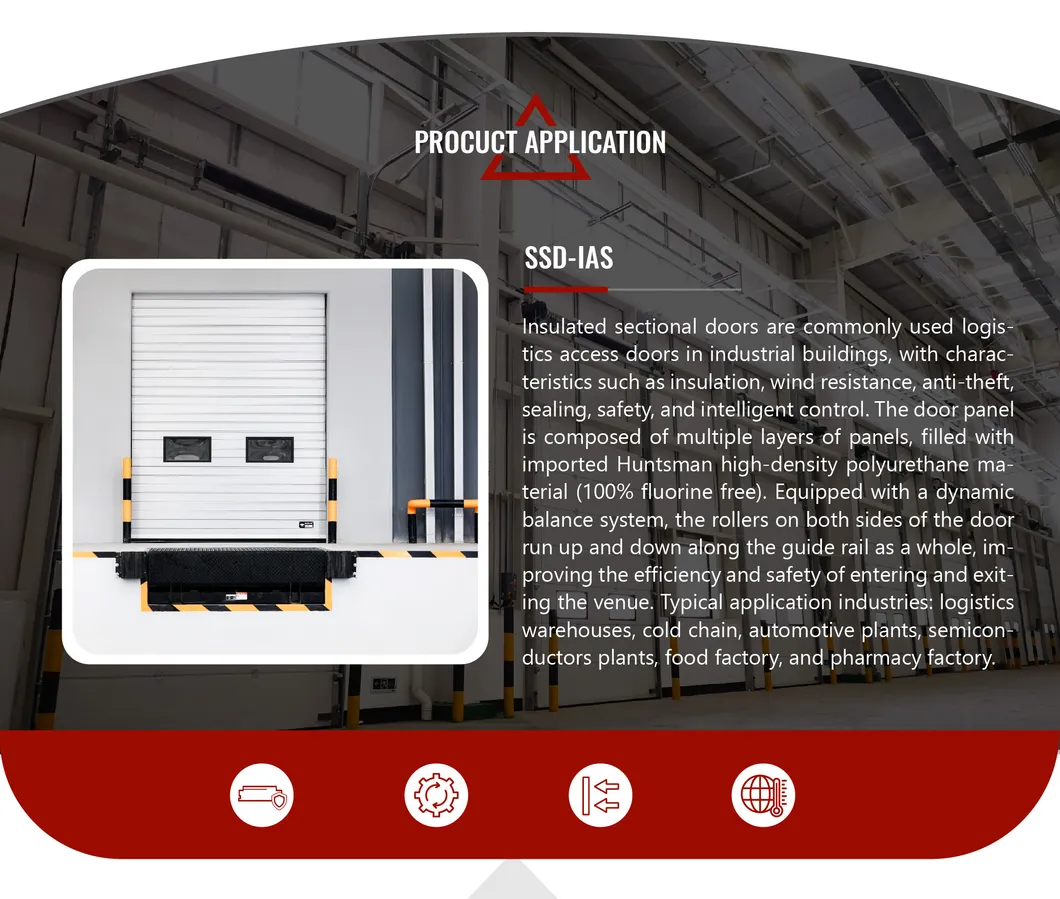

Industry Attributes	Industrial Door / Insulated Sectional Door
Surface Operation	Embossed on the metal surface

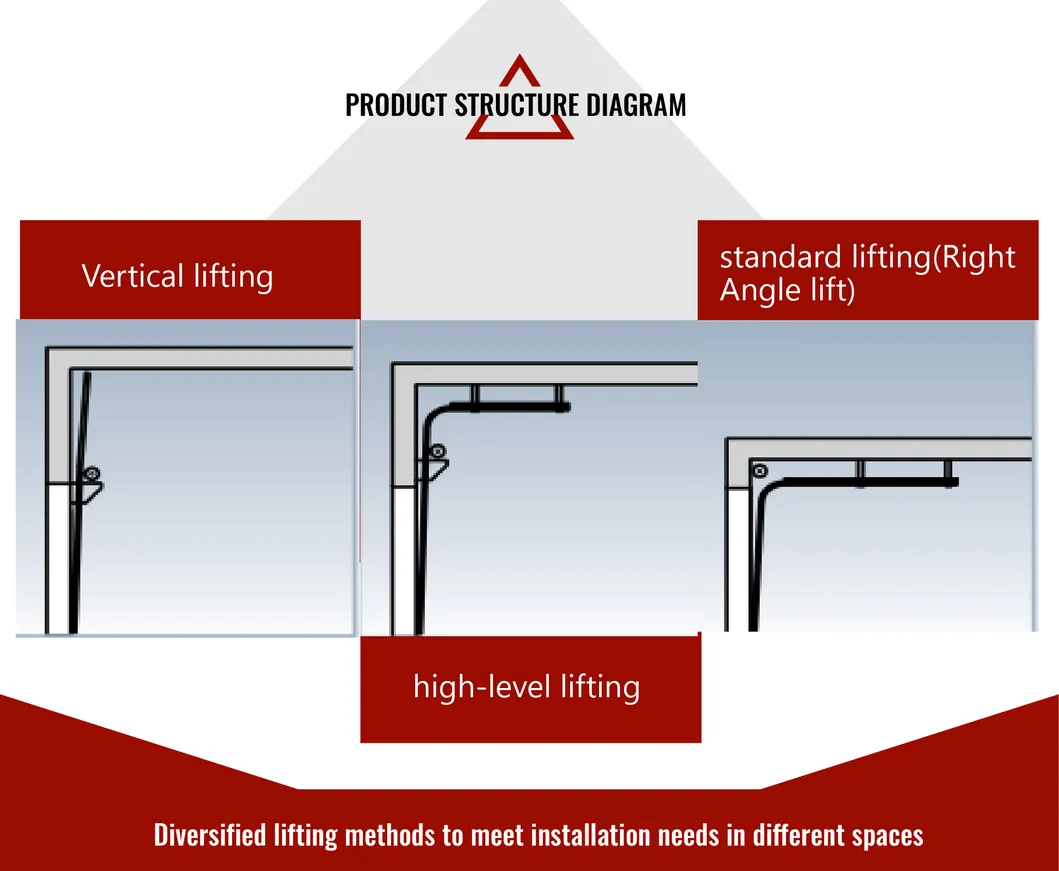

Lifting Mode	Vertical Lift / High Lift / Standard Lift
Motor Type	Electronic limit motor with absolute encoder
Safety Configuration	Wireless bottom safety device, infrared optional
Package Size	406.40cm * 66.40cm * 97.10cm
Gross Weight	190.000kg

Frequently Asked Questions

❓ Is the Insulated Sectional Door safe to use?

Yes. The door is designed with comprehensive safety features including rebounding bottom panels upon resistance, wire rope anti-breakage protection, spring safety devices, and anti-pinch panel designs. It has passed CE certification.

❓ How much installation space is required above the opening?

A minimum overhead space of 500mm is required for standard installation.

❓ Can these sectional doors be used for residential garages?

As long as the installation space is sufficient, these doors can be effectively installed in garages as vehicle access doors, providing excellent insulation and security.

❓ What is the expected lifespan of the door?

With normal maintenance, these sectional doors can be used for more than 10 years. Proper usage and regular servicing help extend the service life significantly.

❓ What are the thermal insulation properties?

The door utilizes high-quality PU sandwich panels with a thermal insulation property of K=1.1W/(m².K), ensuring energy efficiency for workshops and warehouses.

❓ Are the doors resistant to harsh weather?

Yes, they feature a wind resistance rating of 700pa, Grade 1 watertightness, and Grade 7 air tightness (according to GB/T 7106-2008 standards).
