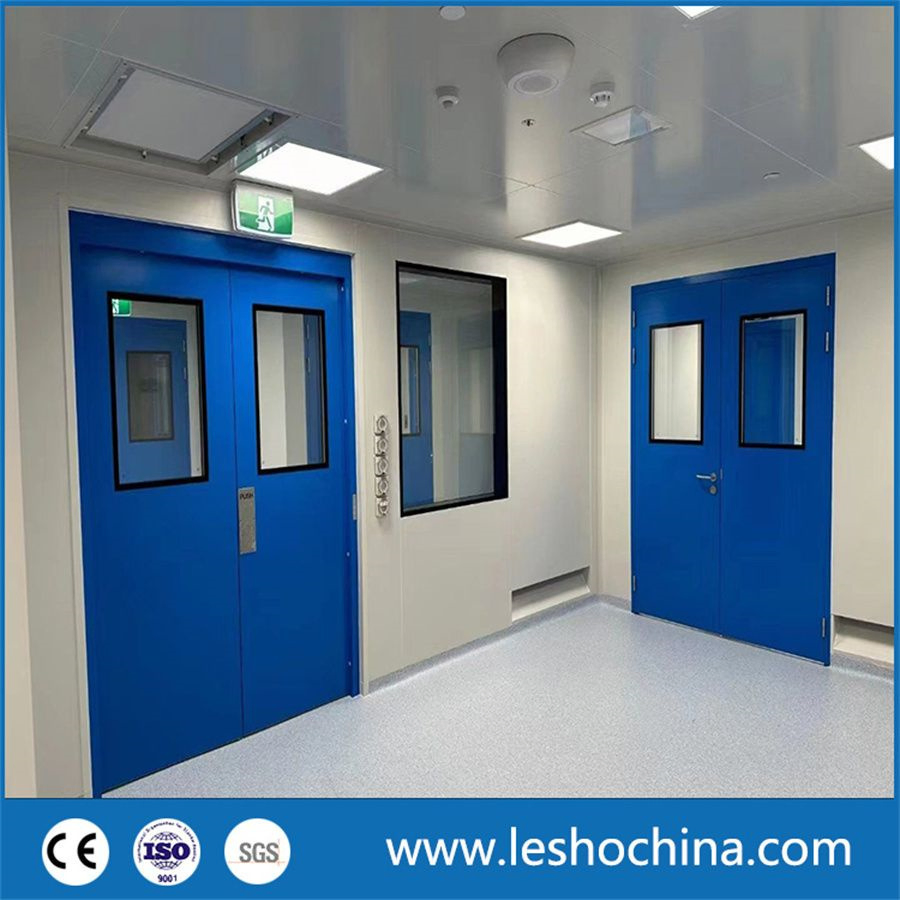

Automatic (Manual) Clean Room Steel Swing Door
| Door leaf | 1.0mm 304 stainless steel or galvanized steel sheet materials with high-quality powder coating finish. Inside is filled with high-density paper honeycomb or Aluminium honeycomb. |
| Door frame | 1.5mm galvanized steel or 1.0mm thick 304 stainless steel. |
| Vision window | Special clean room glass. Made from double layer tempered glass, flush with door leaf to avoid dust retention and realize easy cleaning. |
| Hinge & Lock | 304 stainless steel hinges and handle lock, beautiful and durable. |
| Seal structure | 3mm EPDM seal rubber all-round the door frame. Automatic seal rubber at the bottom closes the gap with the floor when closed. |
Key Applications:
Due to the following features: 1. Pure flat, Seamless, 2. Dust free, easy clean, 3. Corrosion-resistant.
Widely used in food or drug factory clean workshops, pharmaceutical factories, laboratories, and hospitals. Complies with Food-grade, pharmaceutical GMP standards, and Electronic dust-free grade.

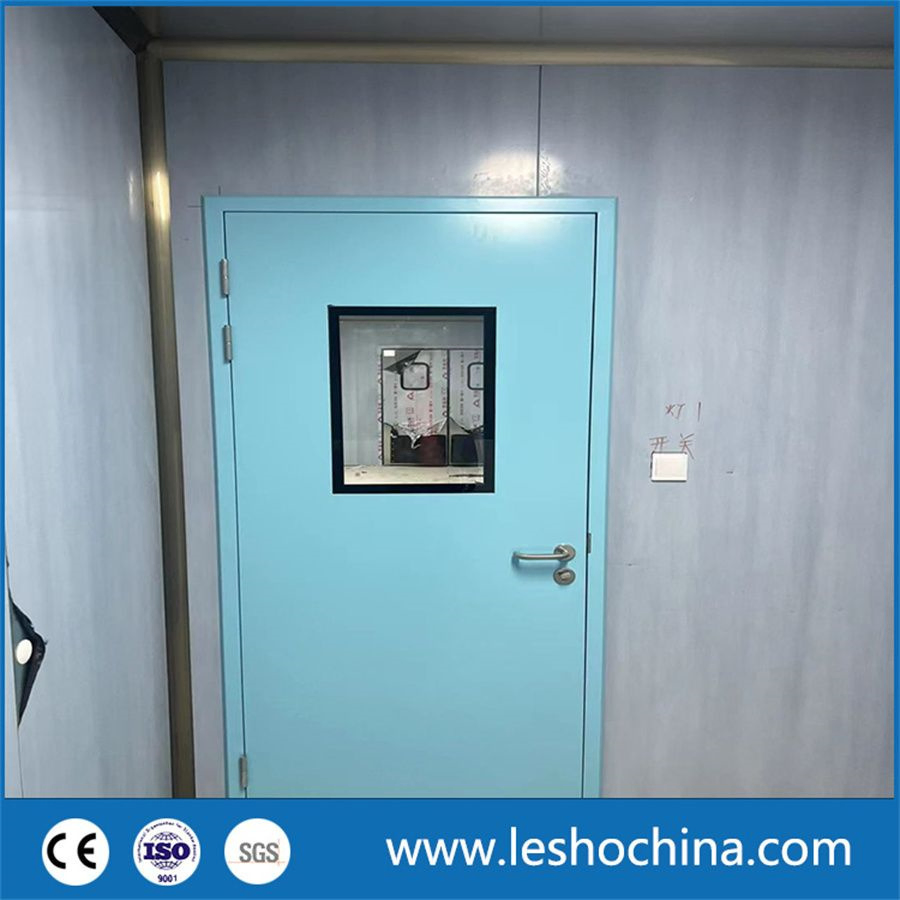

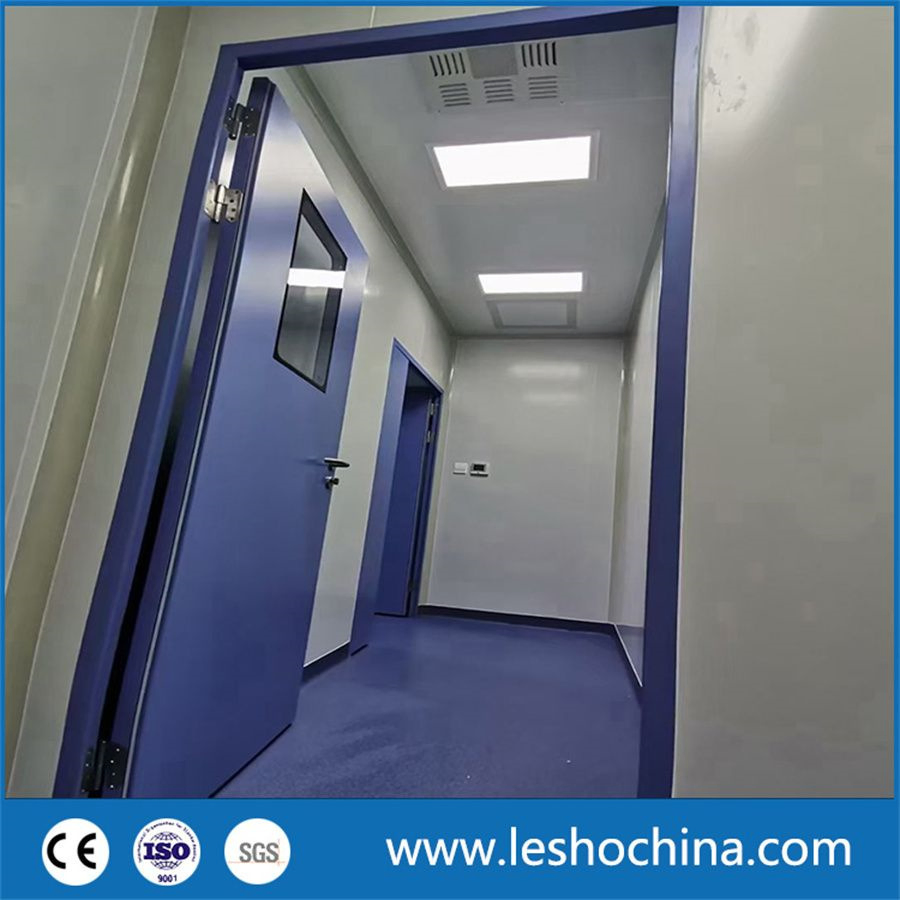

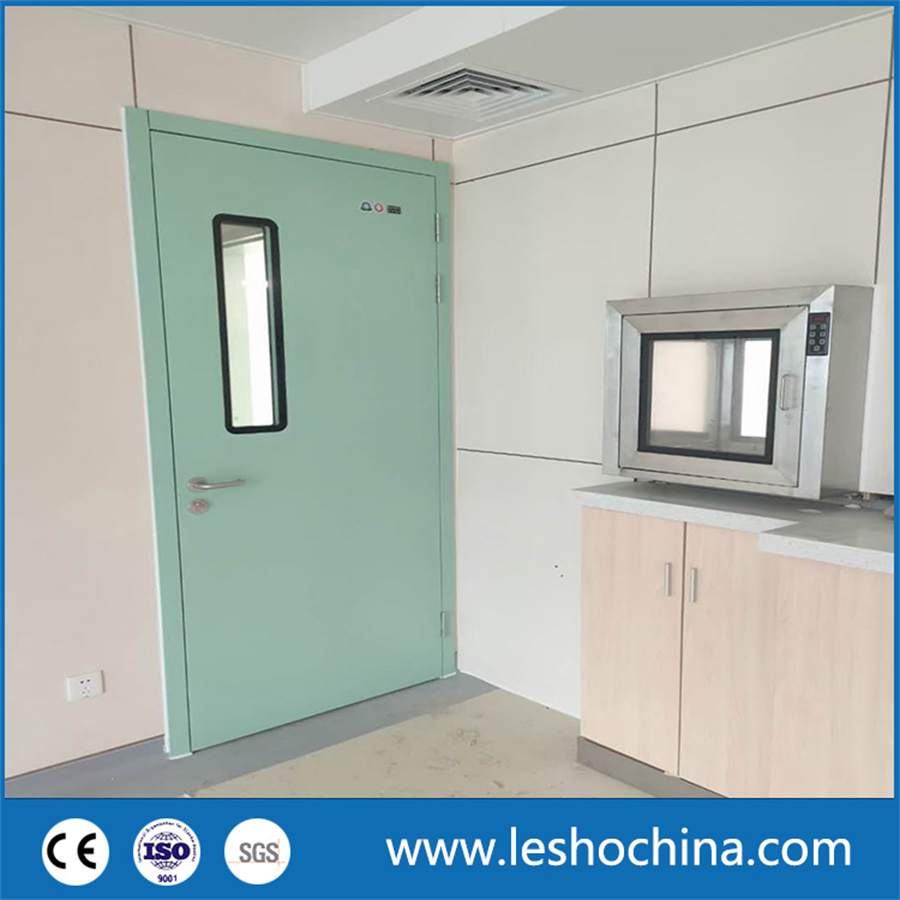

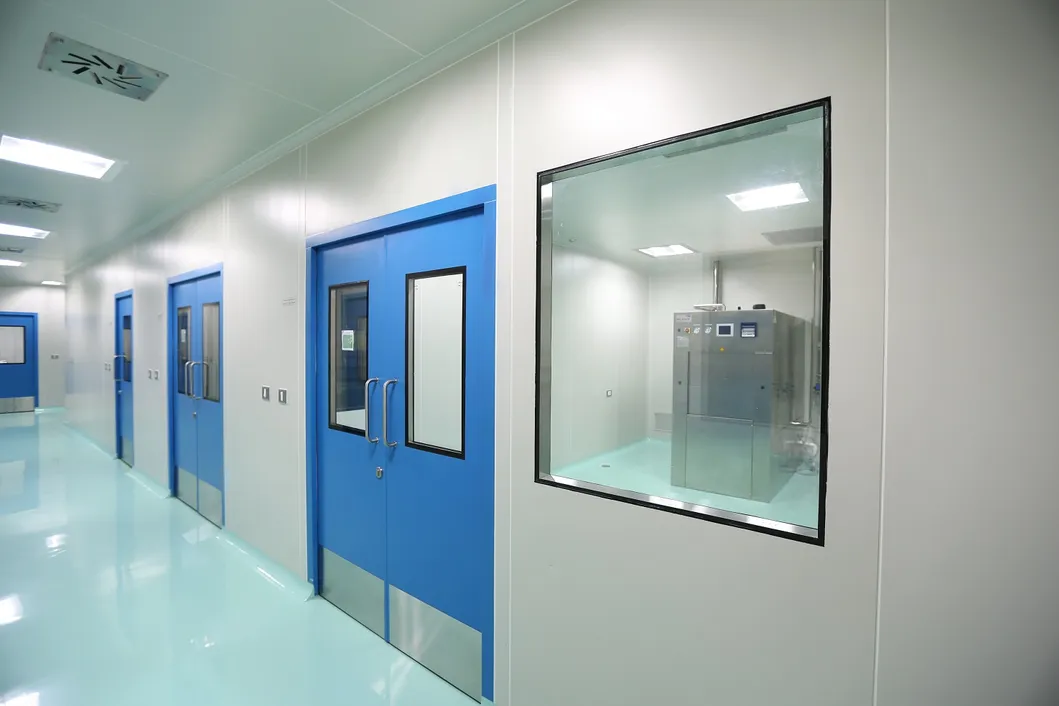

Manual Clean Room Steel Swing Door

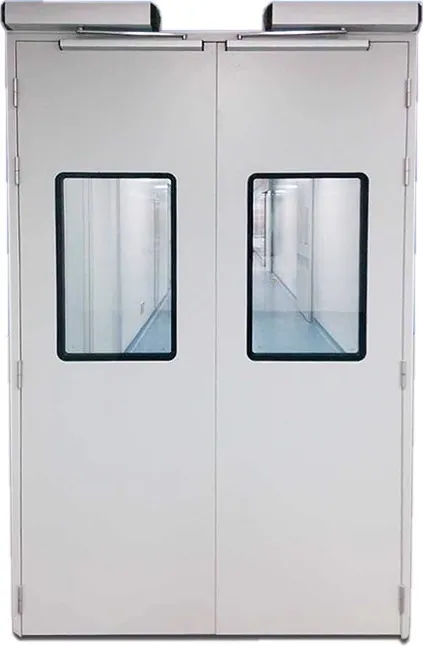

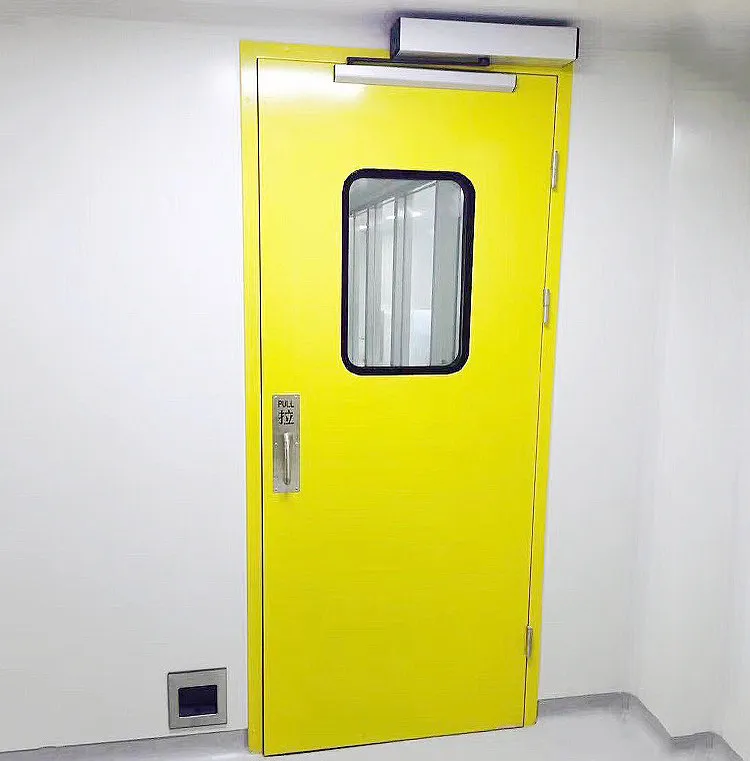

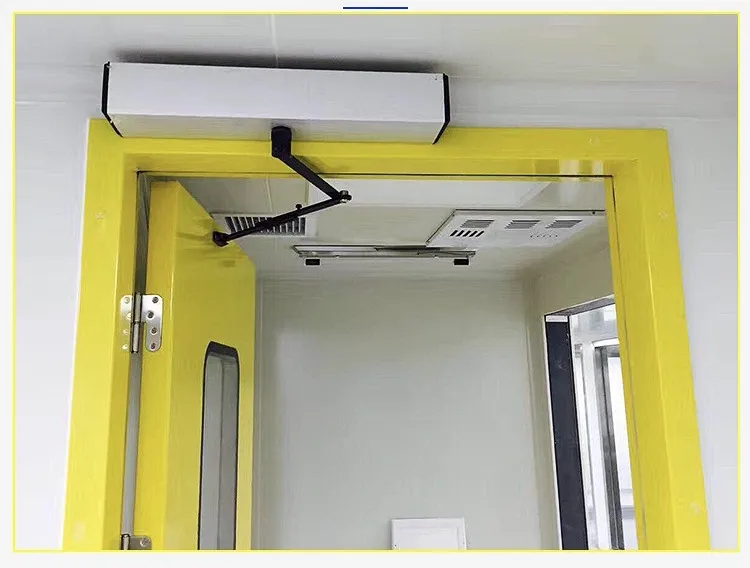

Automatic Clean Room Steel Swing Door

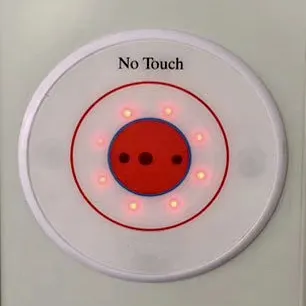

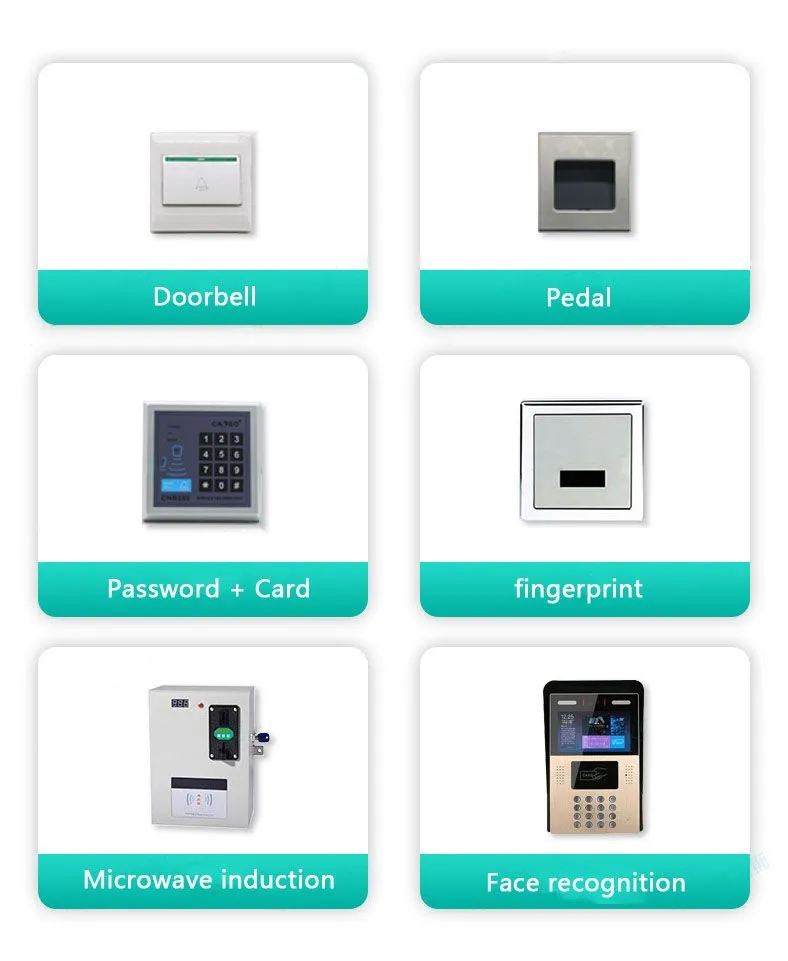

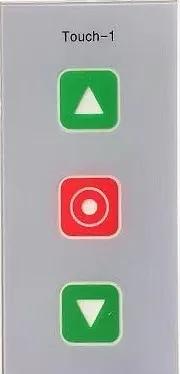

Touch and No touch operation both available to choose.
1. Continuous-Seam Welds: Smooth surfaces and corners are easy to clean, ideal for bio/pharmaceutical facilities.
2. Electrostatic Resin Powder: Thickness ≥ 70um. Resistant to general disinfection, suitable for long-term pharmaceutical industry use.

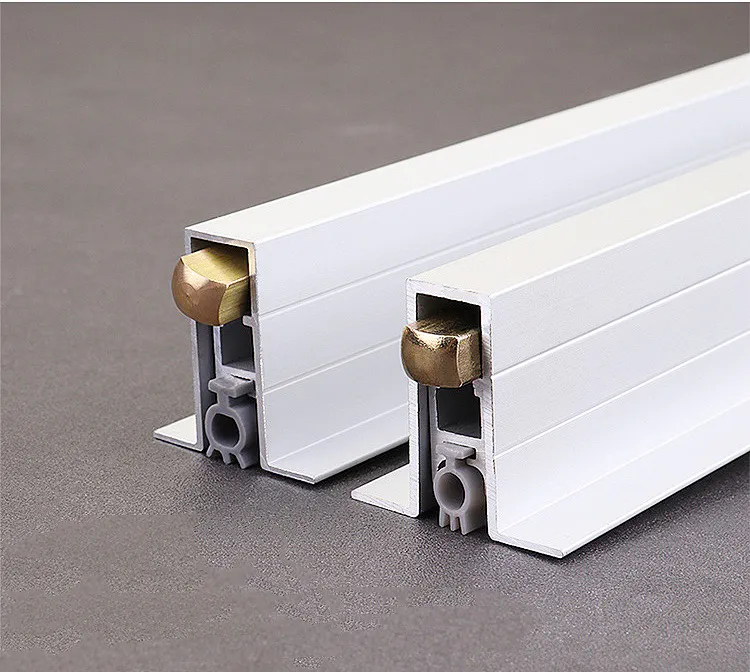

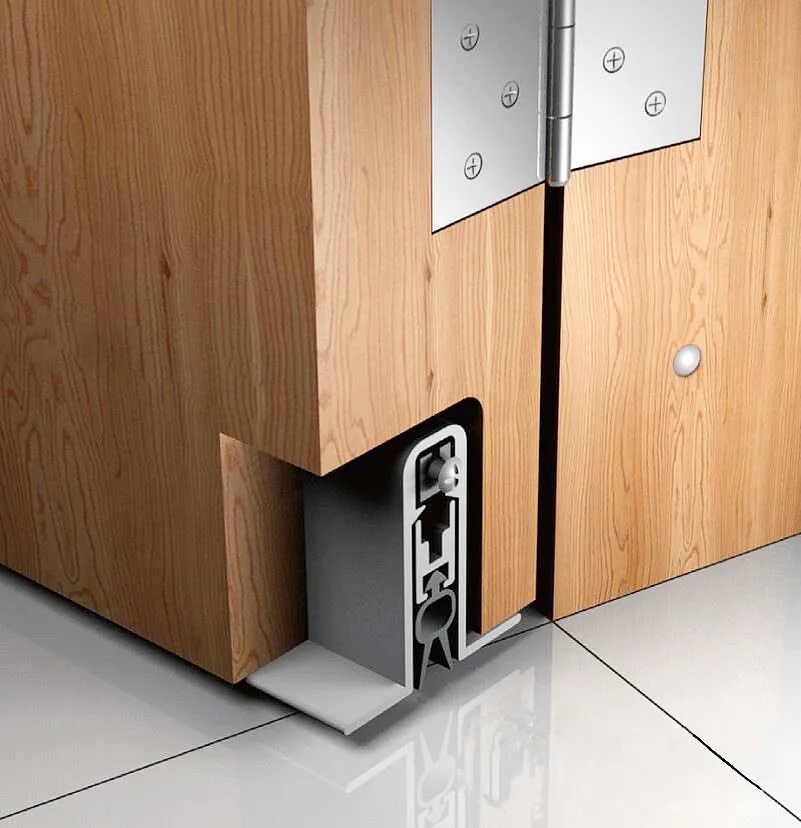

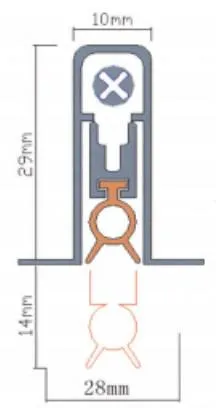

3. All-around Seal Structure: Food grade silicone rubber. The automatic bottom seal strip goes down to close the gap between the door and ground, complying with GMP requirements.

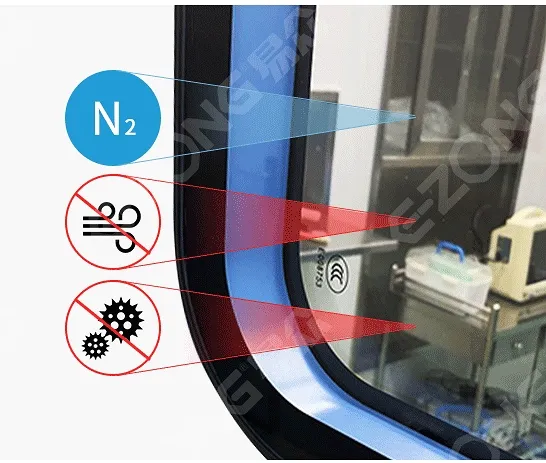

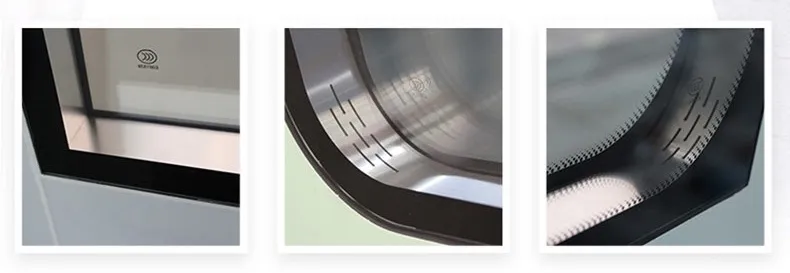

4. Vision Panel: Double-layer hollow tempered glass with printed edges. Flush with door surface, easy to clean, and prevents fogging.

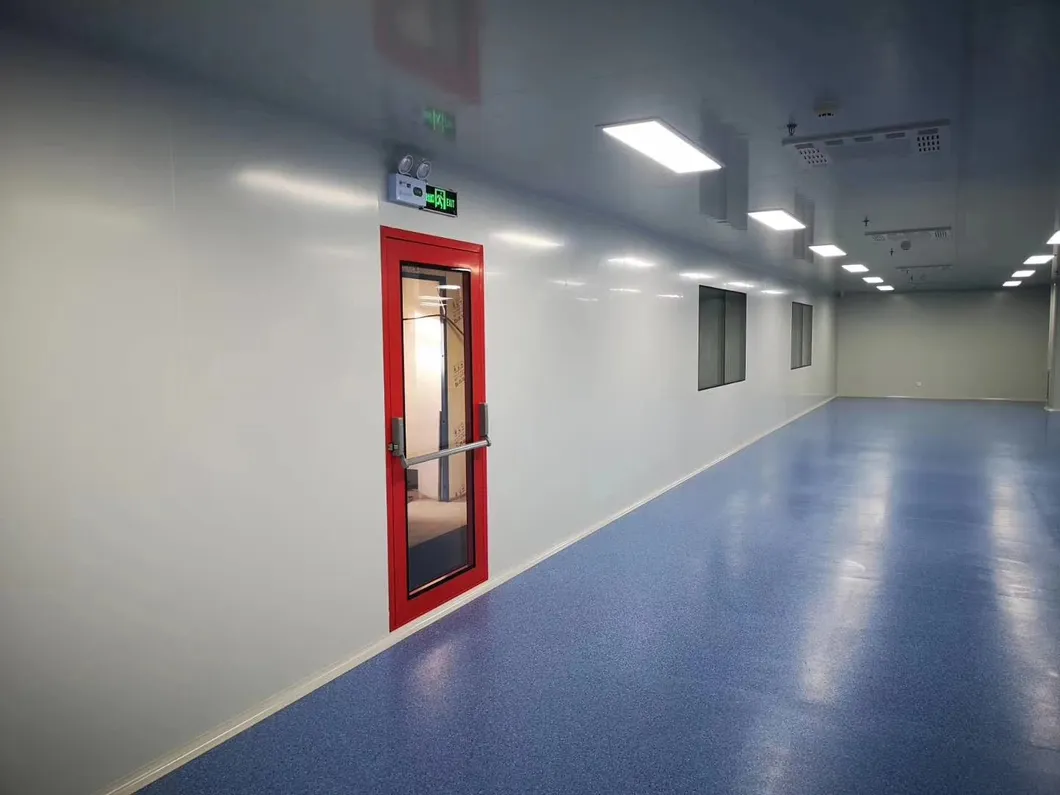

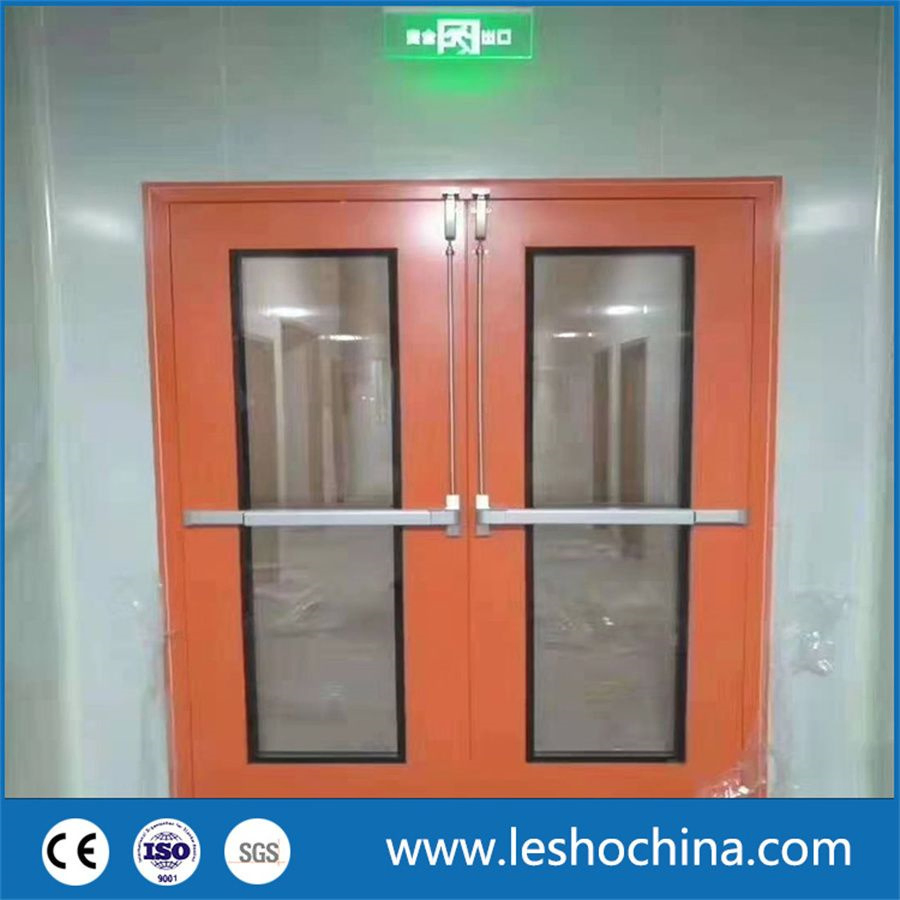

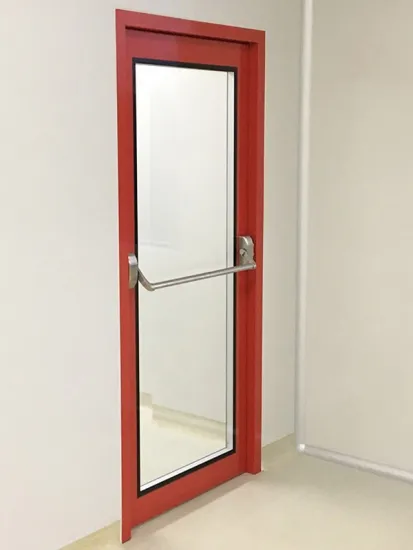

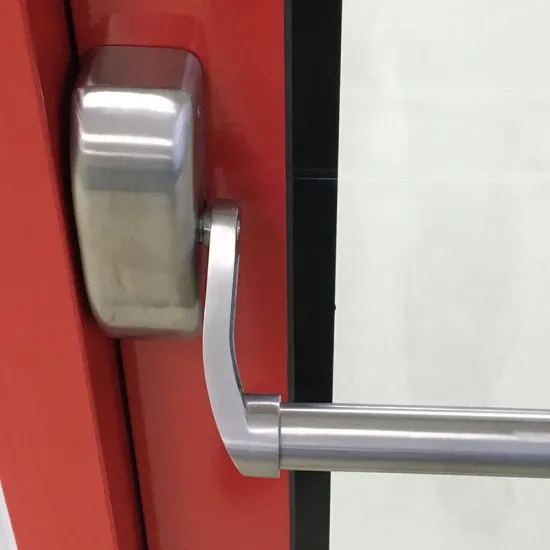

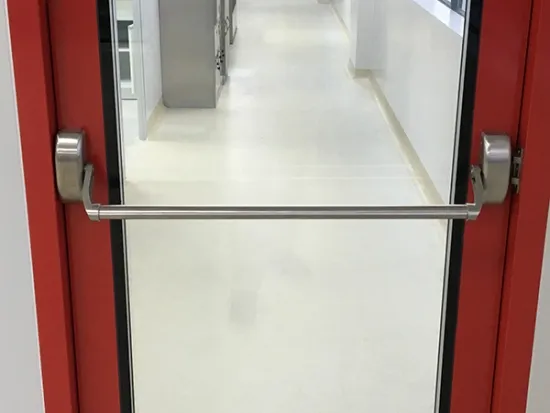

5. Panic Device + Fire Rated Tempered Glass
