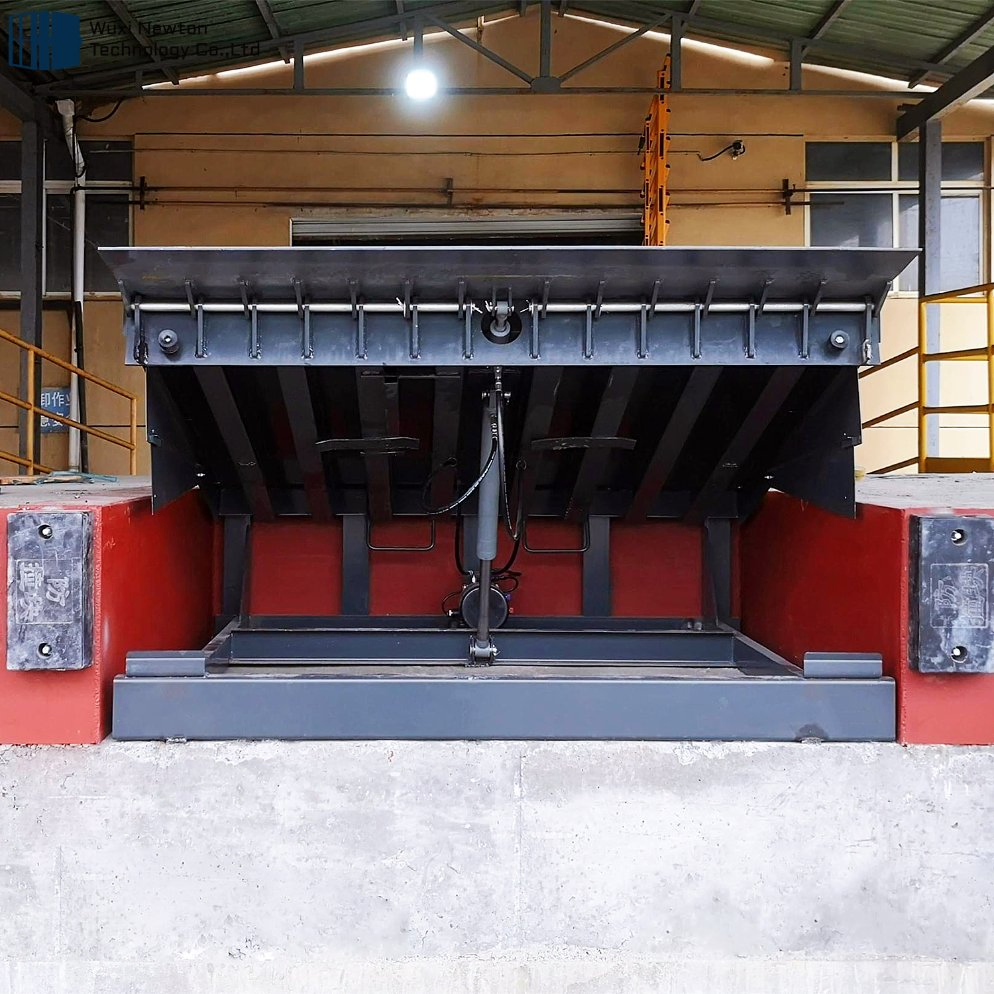

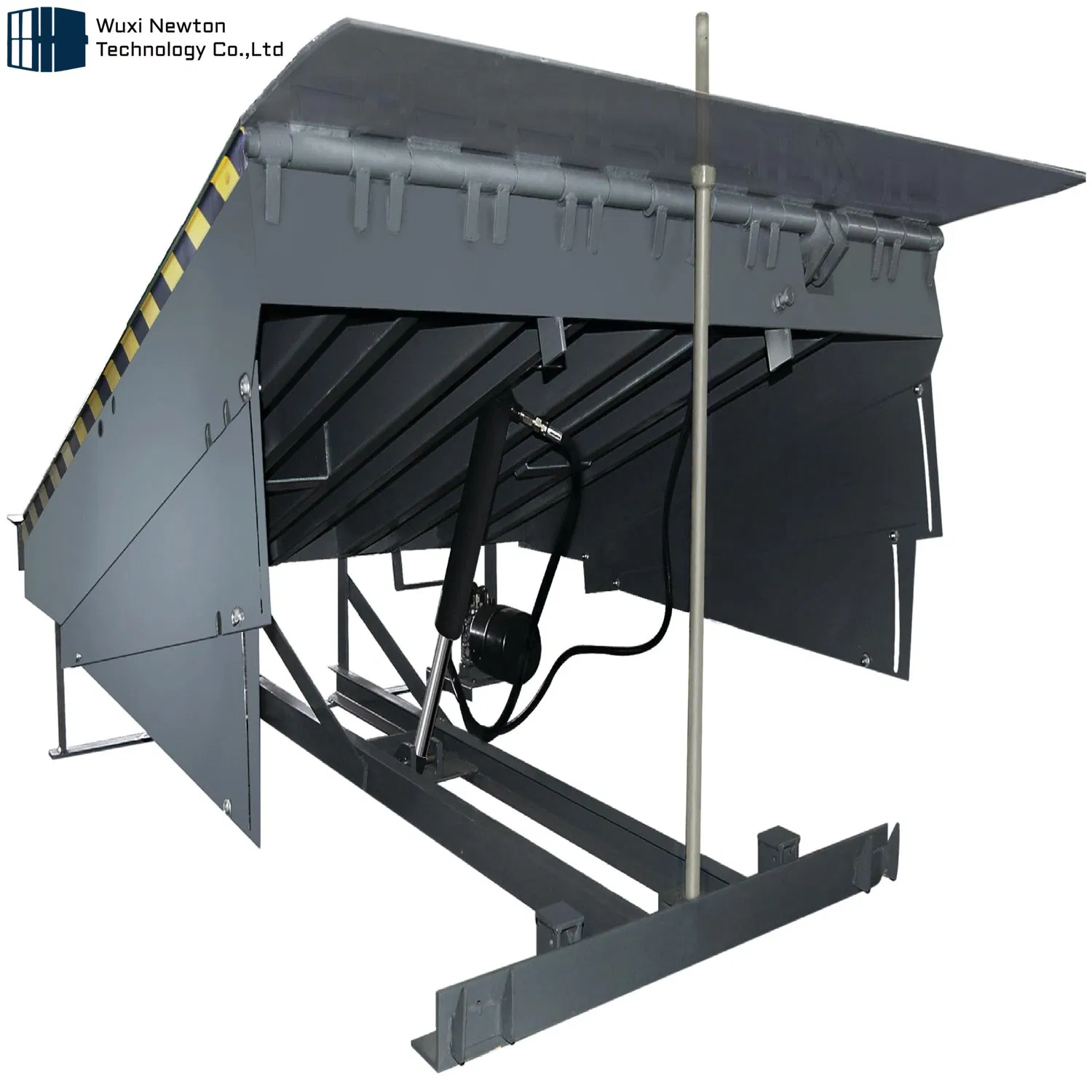

Warehouse Loading Dock Ramp Leveler Forklift Dock Leveler for Loading & Unloading

1 / 5

Warehouse Loading Dock Ramp Leveler Forklift Dock Leveler for Loading & Unloading

Customization:	Available
After-sales Service:	Available
Warranty:	5 Years

Send Inquiry

Product Description

📋 Basic Specification

Model NO.

NTDD

Application

Workshop, Shipboard, Warehouse, Building, Logistics

Lift Mechanism

Articulated Lift

Driven Type

Hydraulic

Loading Capacity

10000kg

Table Size

2.0*2.0m

Upper Plate

8mm Thickness Steel

Working Range

-300 to +350mm

Supply Voltage

380V/50Hz

Motor Power

0.75kw

📦 Product Description

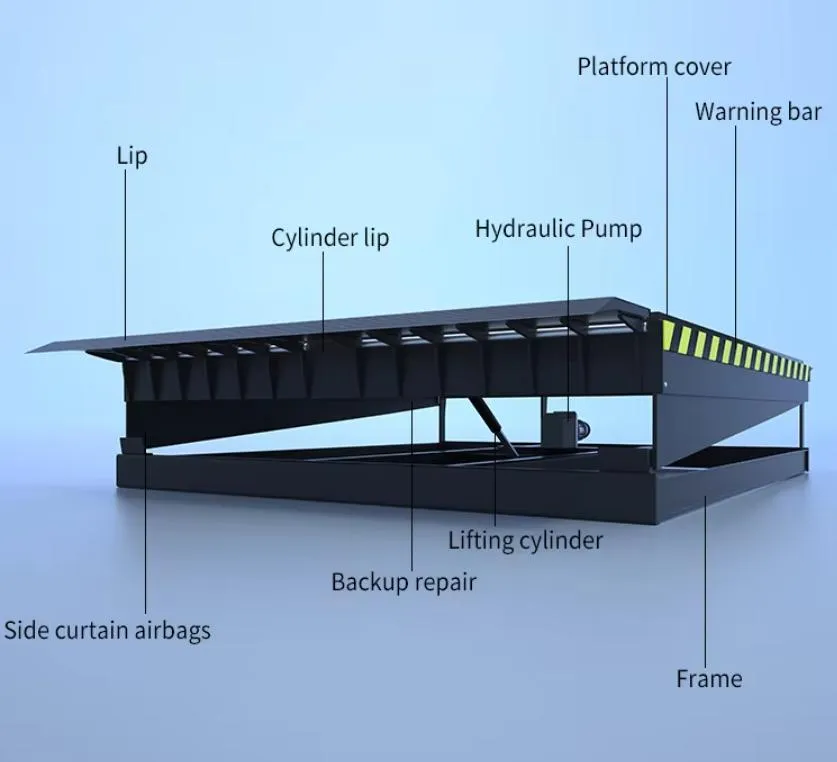

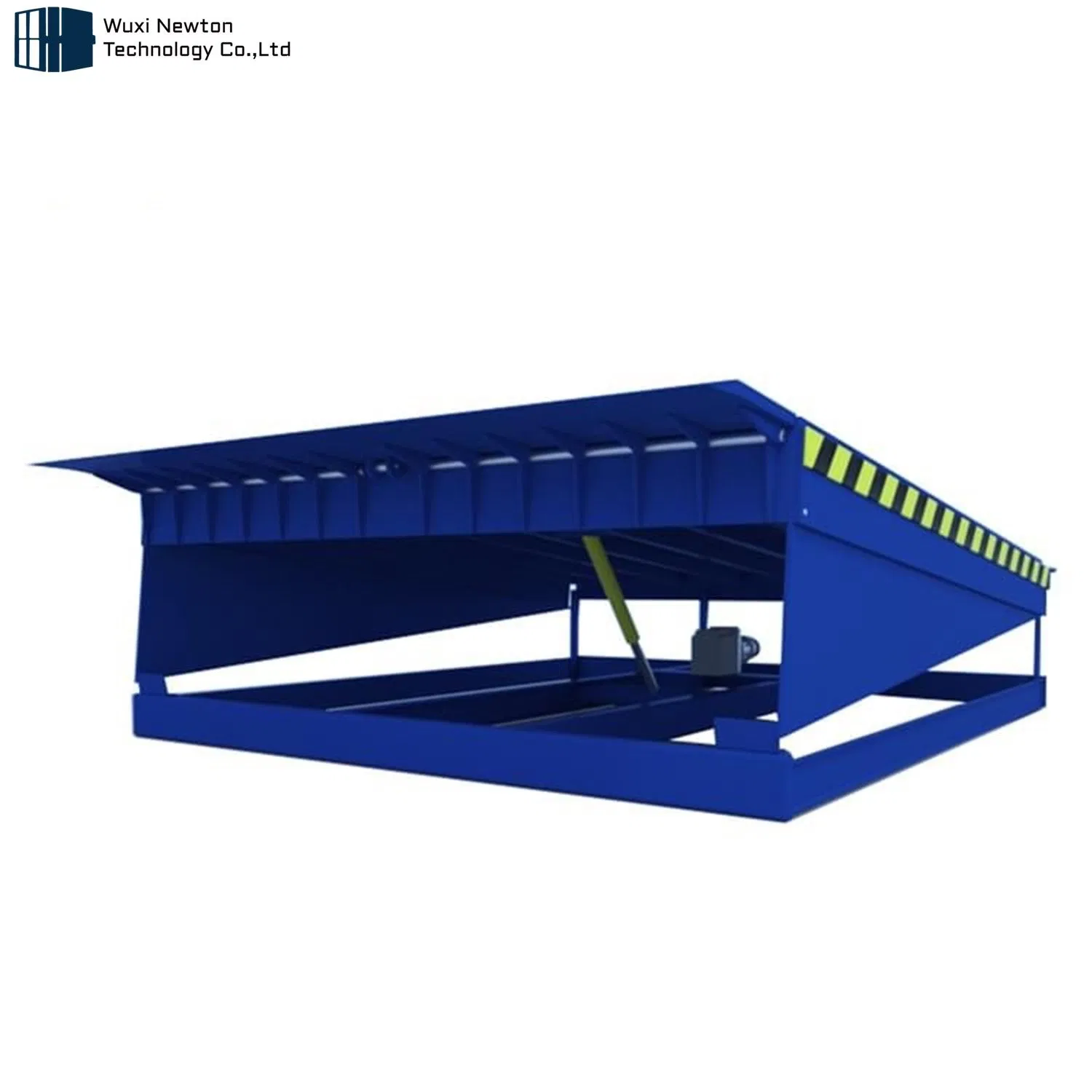

Warehouse Loading Dock Leveler / Loading Dock Ramp Leveler

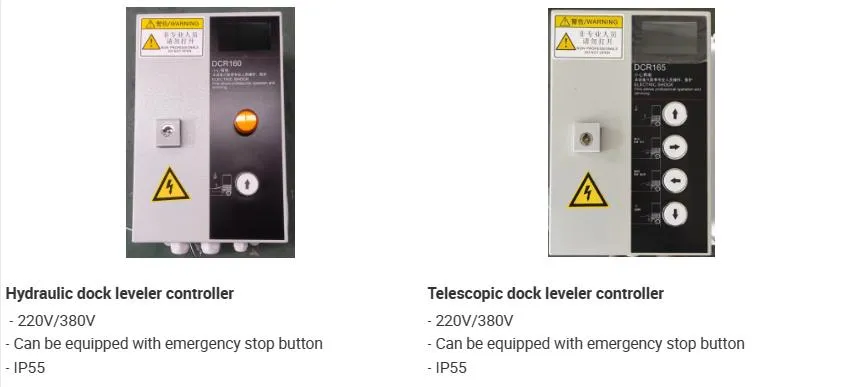

⚙️ Control System

⭐ Our Advantages

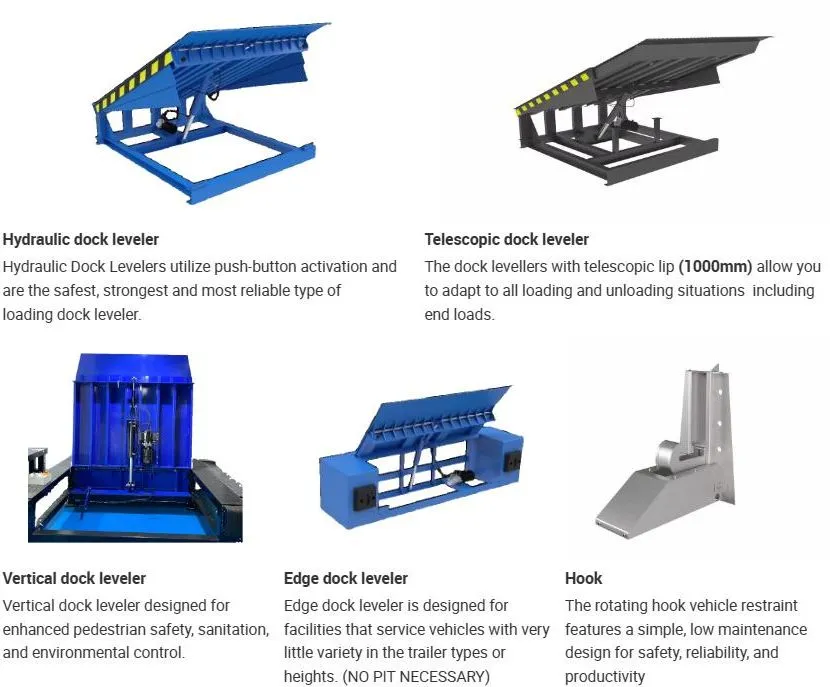

Diverse Types: Available in hydraulic, pneumatic, and mechanical versions to accommodate different unloading requirements.
Durable Material: Constructed with high-strength steel often treated for corrosion resistance to ensure long-term durability.
High Load Capacity: Designed to handle everything from light goods to heavy industrial equipment (up to 10 tons).
Advanced Safety: Equipped with anti-slip surfaces, safety barriers, and sensors for maximum personnel protection.
Height Adjustability: Flexible working ranges to match various truck and dock heights seamlessly.

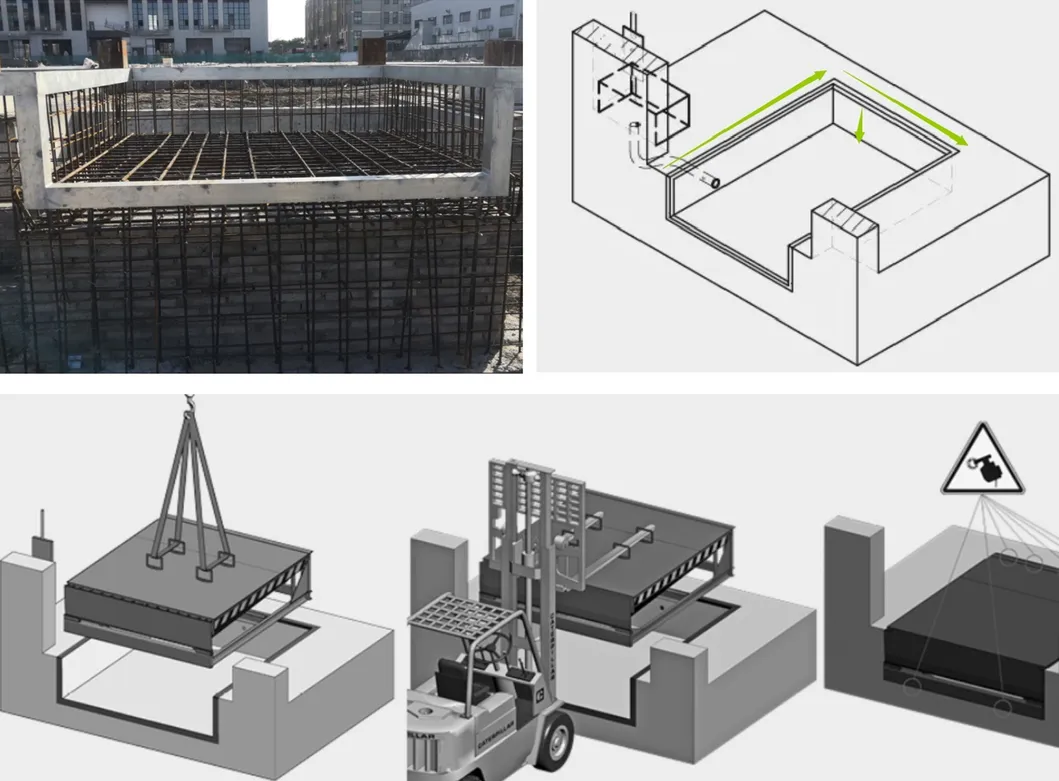

🛠️ Quick Installation & Specs

Our dock levelers are designed for easy installation. We provide CAD drawings for pit preparation, detailed instruction manuals, and online technical support.

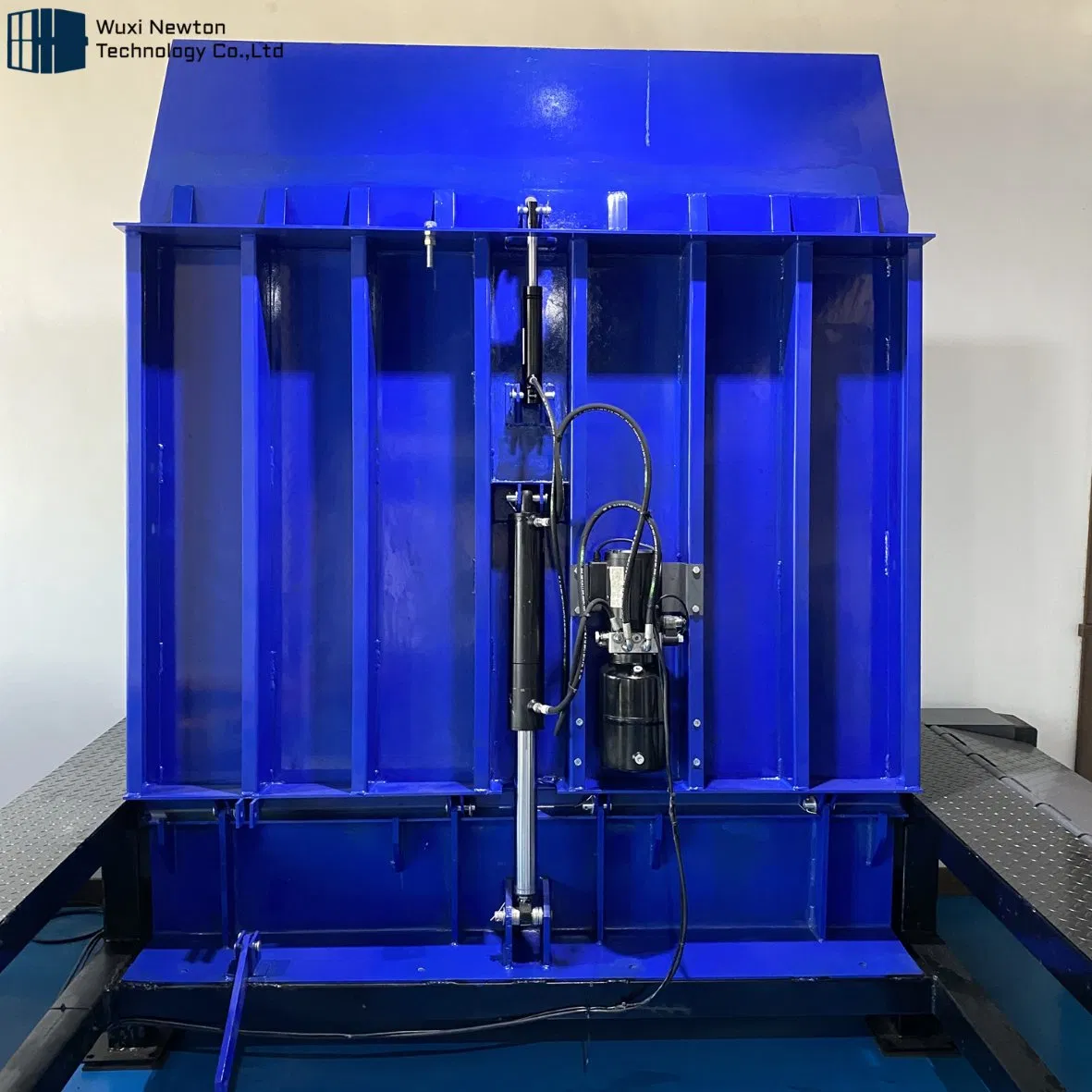

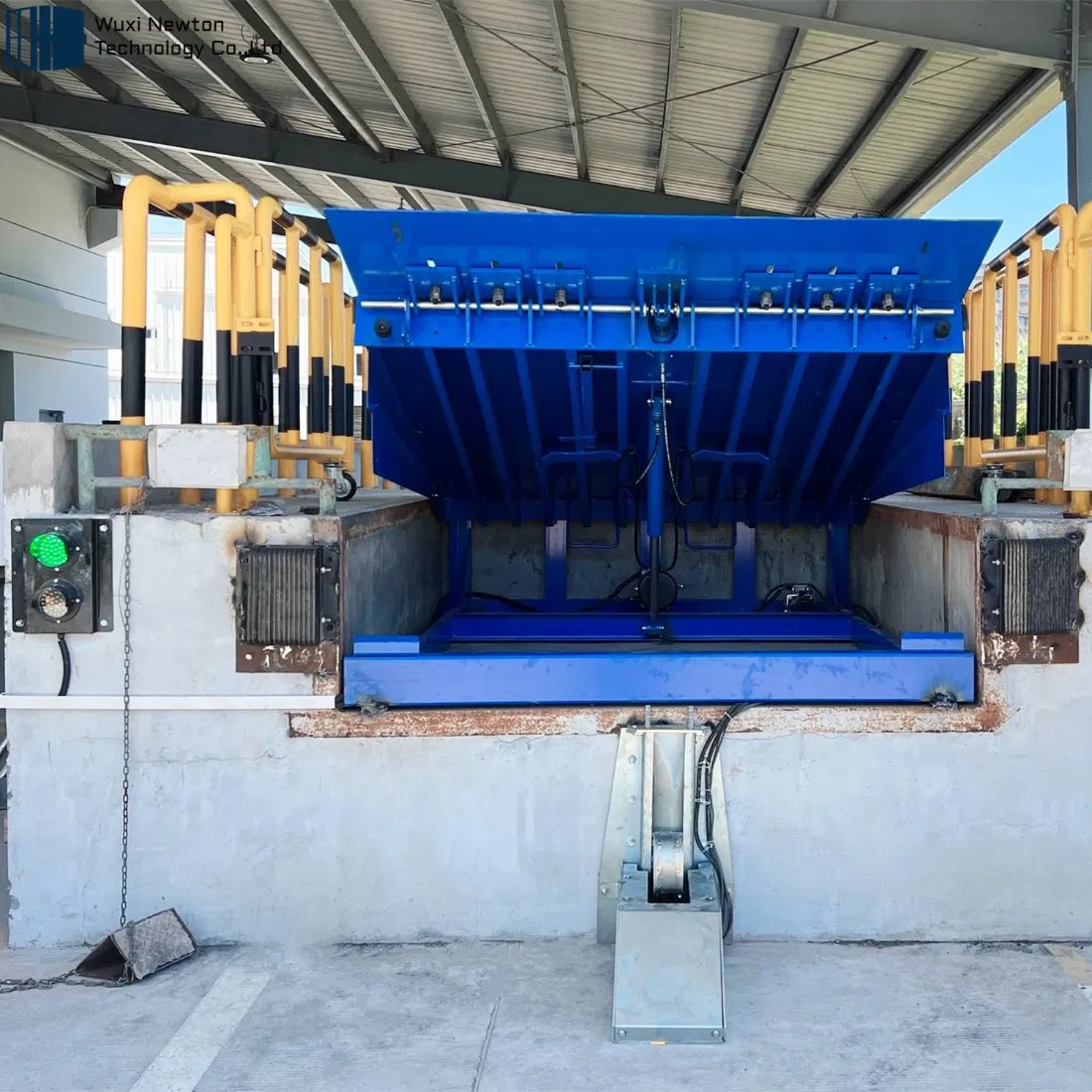

Hydraulic Single Cylinder Unloading Platform

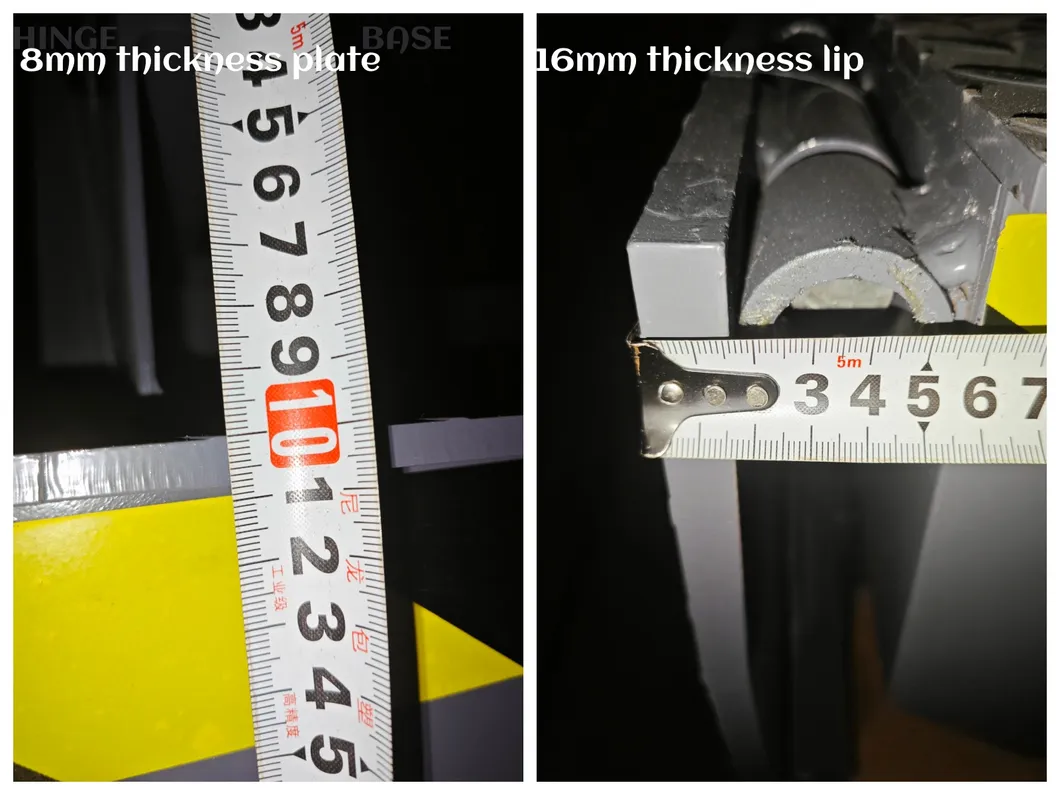

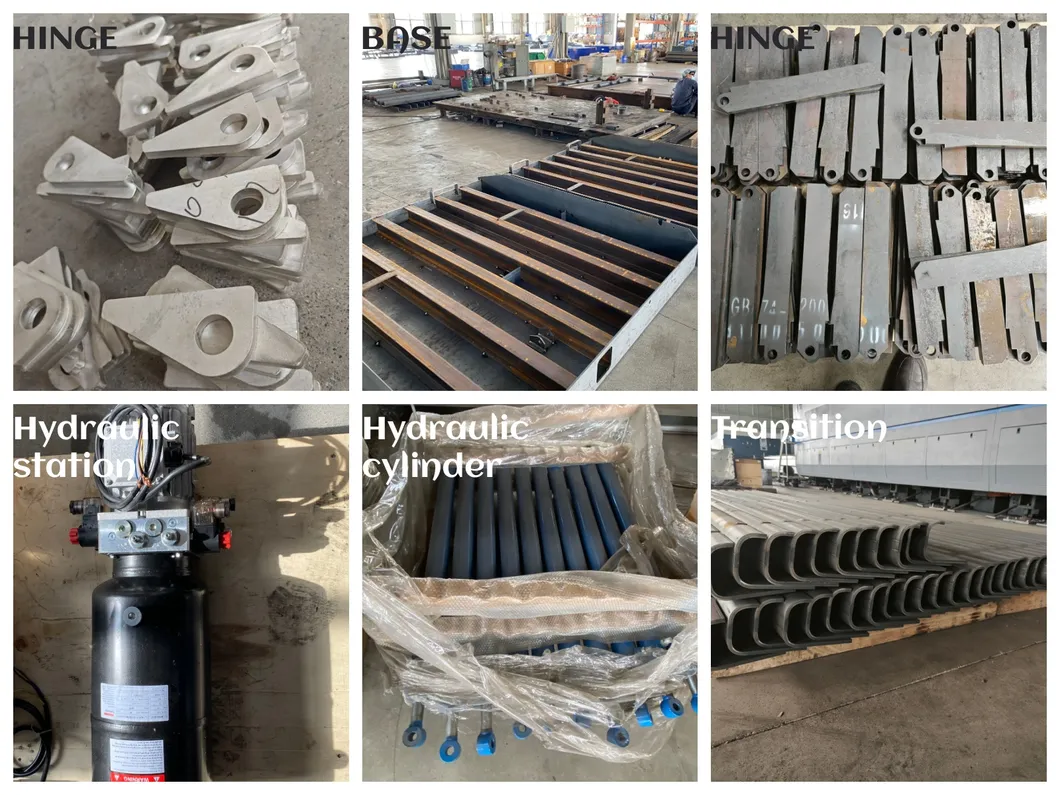

Structure: 8mm pattern steel plate with I-steel base and channel steel support.
Hydraulic System: High-quality Swiss technology.
Security: Movable side guards and anti-collision rubber pads.
Parameters: Dynamic load 6-8 tons, static load 13.6 tons.

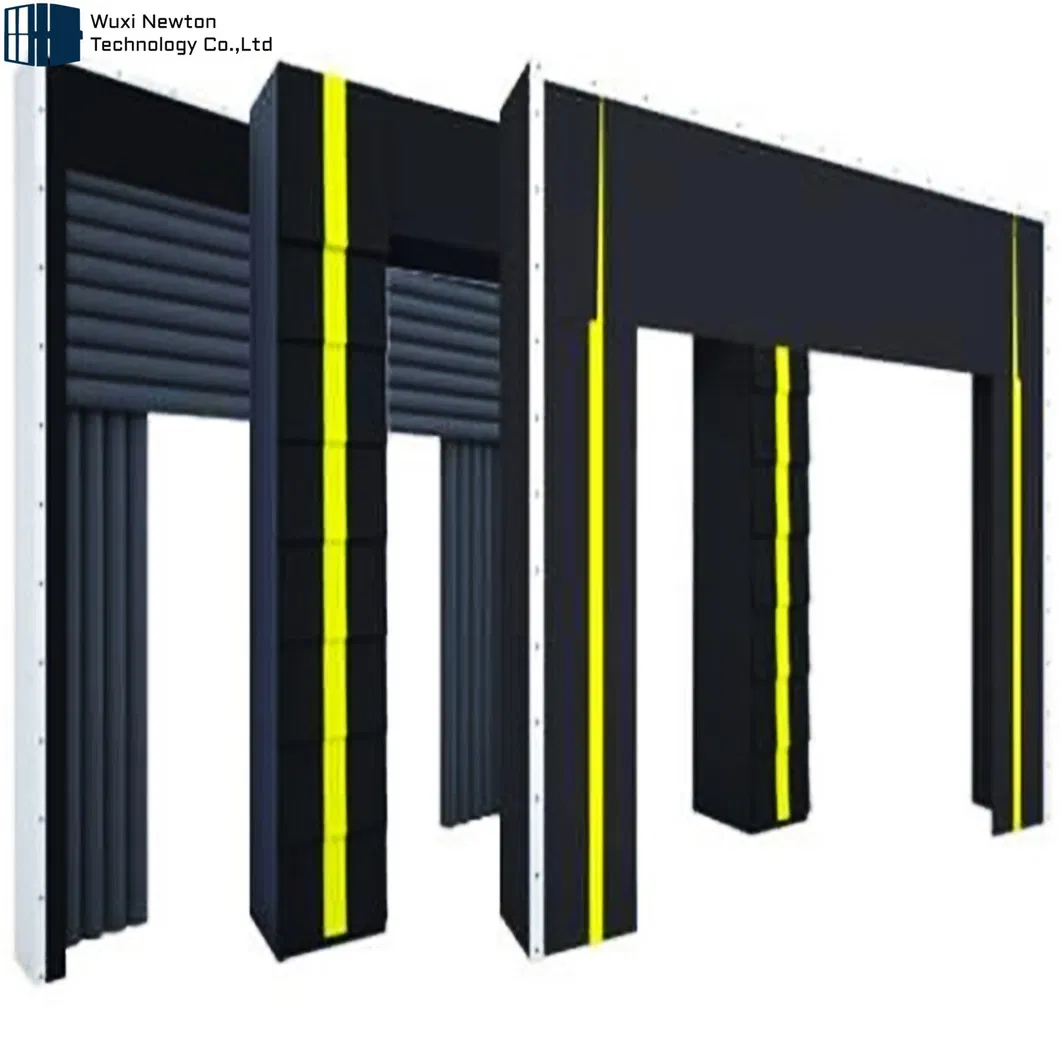

🛡️ Dock Shelter Options

Dock Shelters seal the perimeter of the trailer to protect goods and maintain warehouse temperature during loading/unloading.

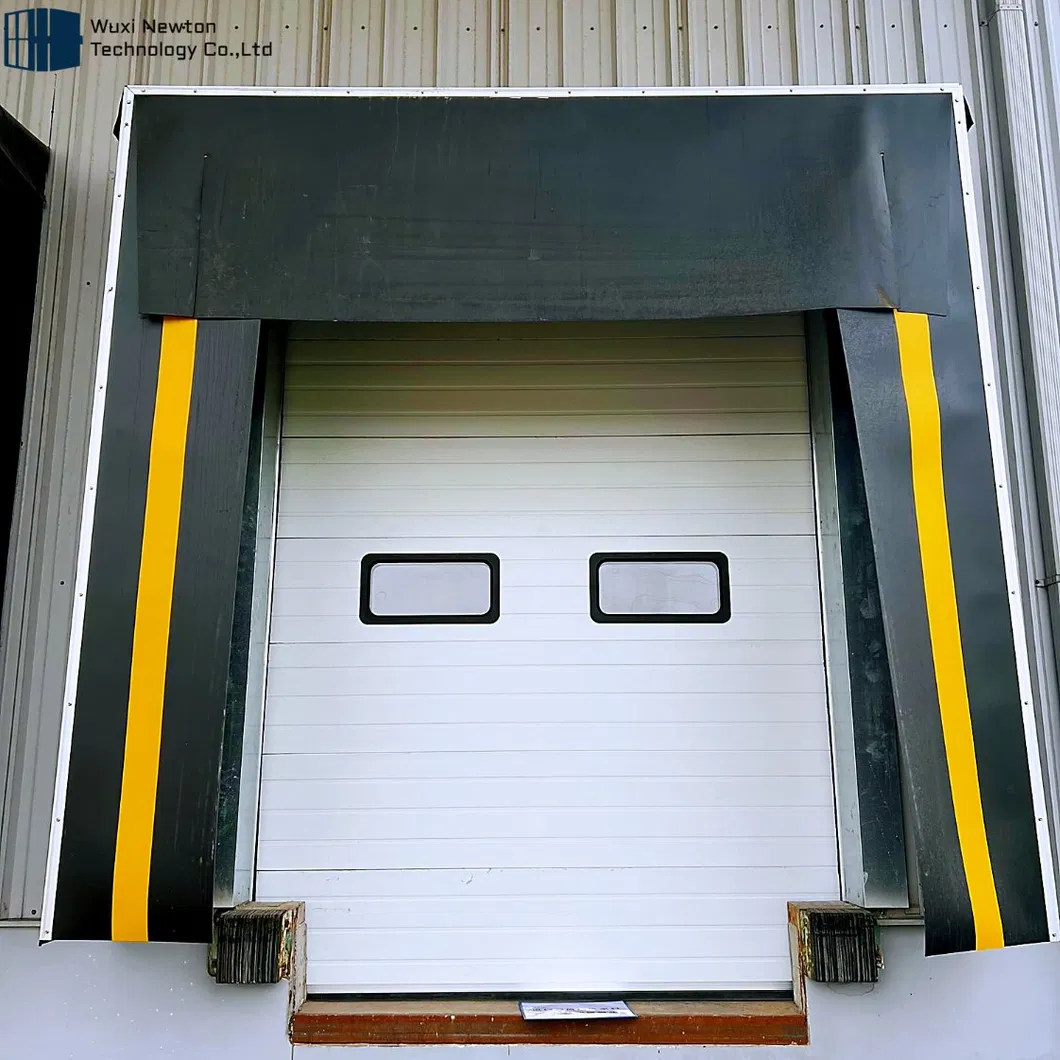

A. Mechanical Dock Shelter

Suitable for large vehicles with high elastic door seals. Protects against air and dust.

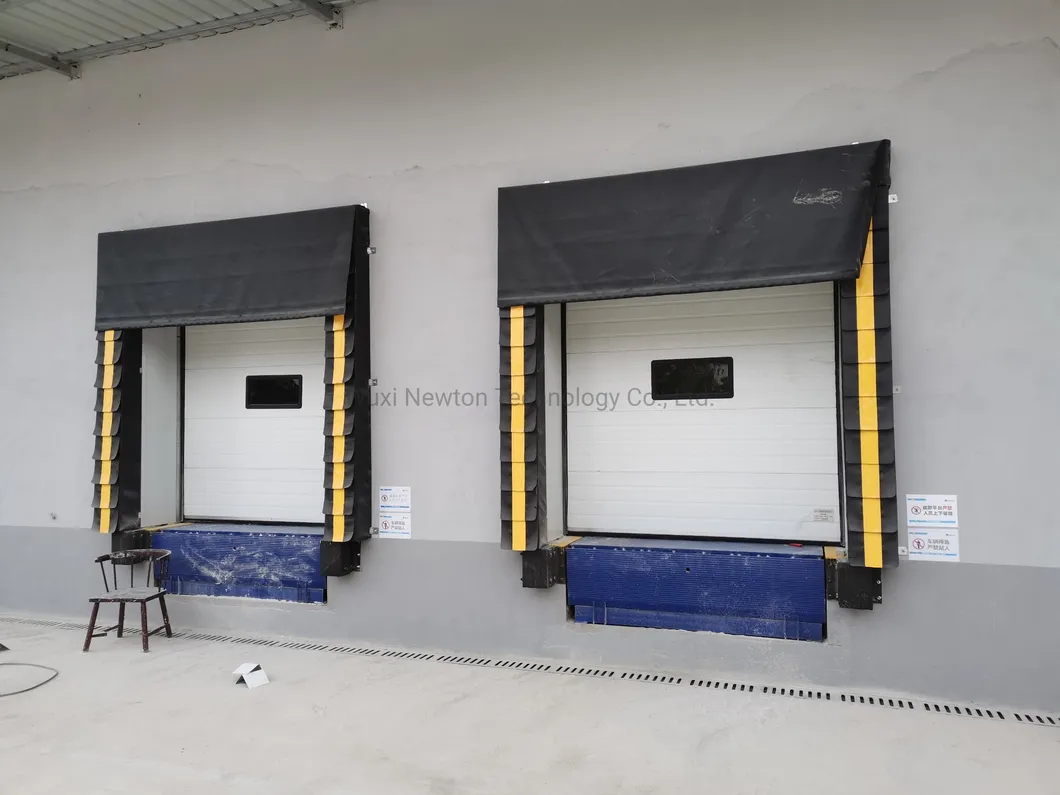

B. Insulated Sponge Shelter

Effective seal and thermal insulation for vehicles of similar sizes.

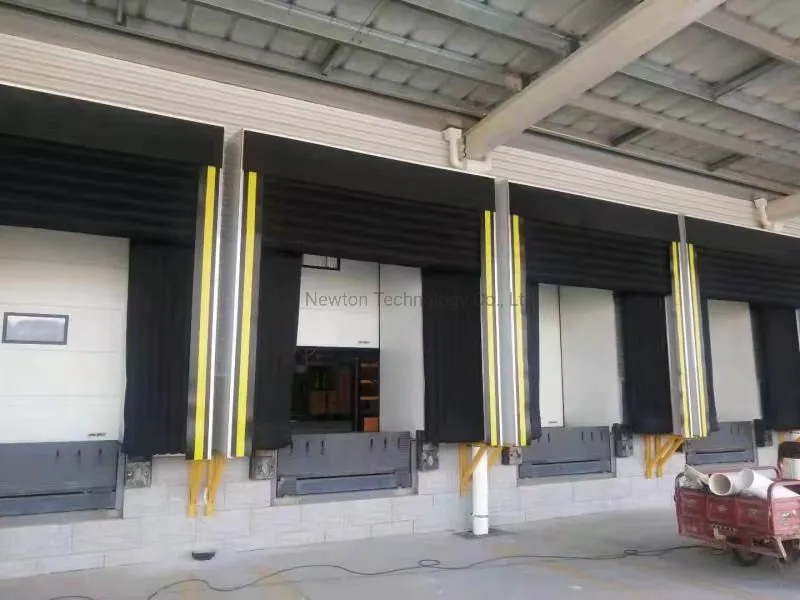

C. Inflatable Dock Shelter

Advanced air-tightness for food and medicine industries. Blocks insects and dust.

Technical Parameters (Inflatable Type)
Voltage	220V/380V, 50 Hz
Power	0.18-0.35kw
Airbag filling time	Avg. 40 sec
Working Temperature	-35 up to +70 degree
Material	Cordura 1000 / PVC

🚢 Packing & Service

Package: Qualified plywood for LCL; Qualified carton or pallet for FCL. Custom packaging available on request.

❓ Frequently Asked Questions

Q1: What are the main types of dock levelers available?

We offer hydraulic, pneumatic, and mechanical dock levelers. Each type is designed to meet specific operating methods and frequency requirements for various loading bays.

Q2: What is the maximum load capacity of the NTDD model?

The standard loading capacity is 10,000kg (10 tons), with dynamic load ratings typically between 6-8 tons and static load capacity up to 13.6 tons.

Q3: How do dock shelters improve warehouse efficiency?

Dock shelters create a seal between the truck and the building, preventing energy loss, blocking dust/insects, and protecting goods from weather conditions during the transfer process.

Q4: Can the dock leveler operate in extreme temperatures?

Yes, our systems and materials (like the PVC curtains and hydraulic oil) are designed to function reliably in temperatures ranging from -35°C up to +70°C (or +90°C depending on specific materials).

Q5: What safety features are included for operators?

Key safety features include anti-slip pattern steel surfaces, movable side guards to prevent foot entrapment, safety sensors, and anti-collision rubber pads to protect both the platform and the vehicle.

Q6: Do you provide installation support?

Yes, we provide full CAD drawings for pit construction, comprehensive instruction manuals, installation video supports, and online technical guidance to ensure a successful setup.
