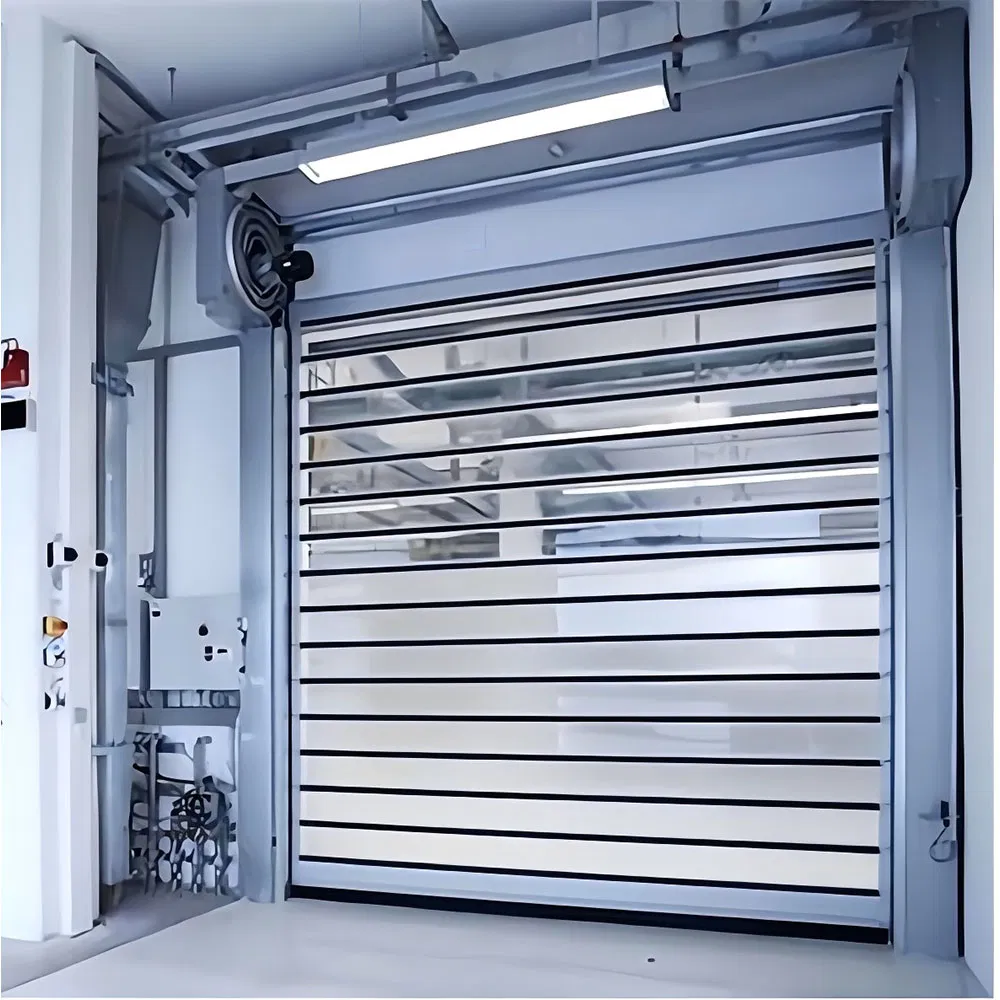

Commercial Thermal Insulated Burglar Proof Quick Performance Aluminum Spiral High Speed Garage Door

1 / 5

Commercial Thermal Insulated Burglar Proof Quick Performance Aluminum Spiral High Speed Garage Door

Customization:	Available
After-sales Service:	Yes
Warranty:	Yes

Send Inquiry

Product Description

⚡

High Speed

1.5 ~ 2.5 m/s opening speed

🛡️

Security

Burglar-proof aluminum alloy

🌡️

Insulated

PU sandwich thermal structure

🌀

Spiral Design

Circular non-contact track

Basic Specifications

Model NO.

XF-H-3000

Material

Aluminum Alloy

Opening Type

Power Driven / Rolling

Certification

ISO9001, CE

Thermal Insulation

PU Sandwich

Max Dimension

5000*7500 mm

Wind Resistance

Beaufort scale 12 (35 m/s)

Origin

China

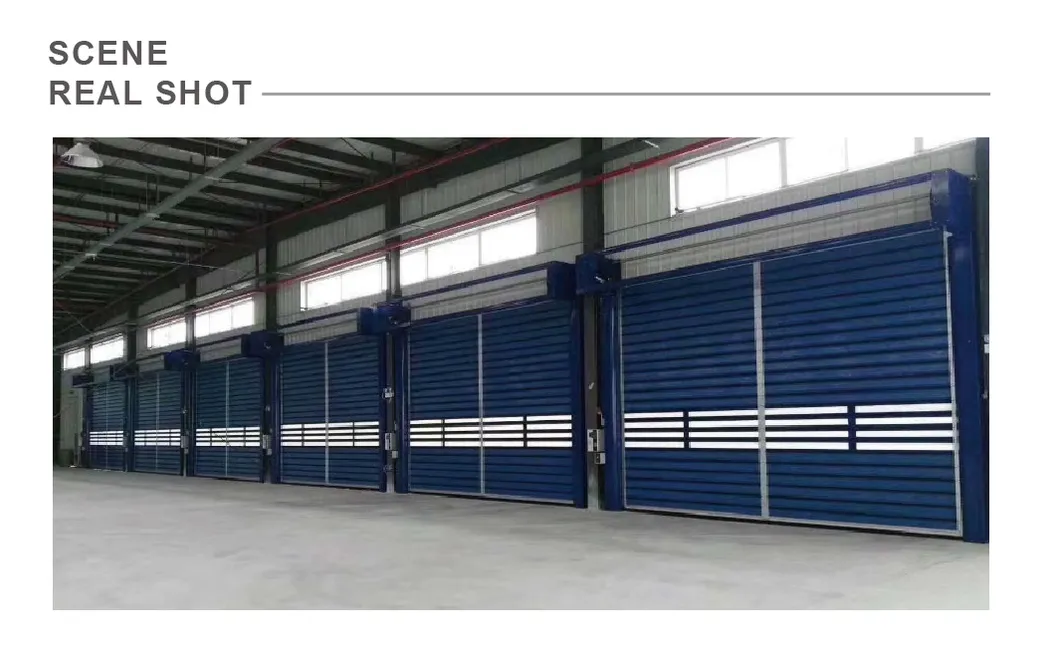

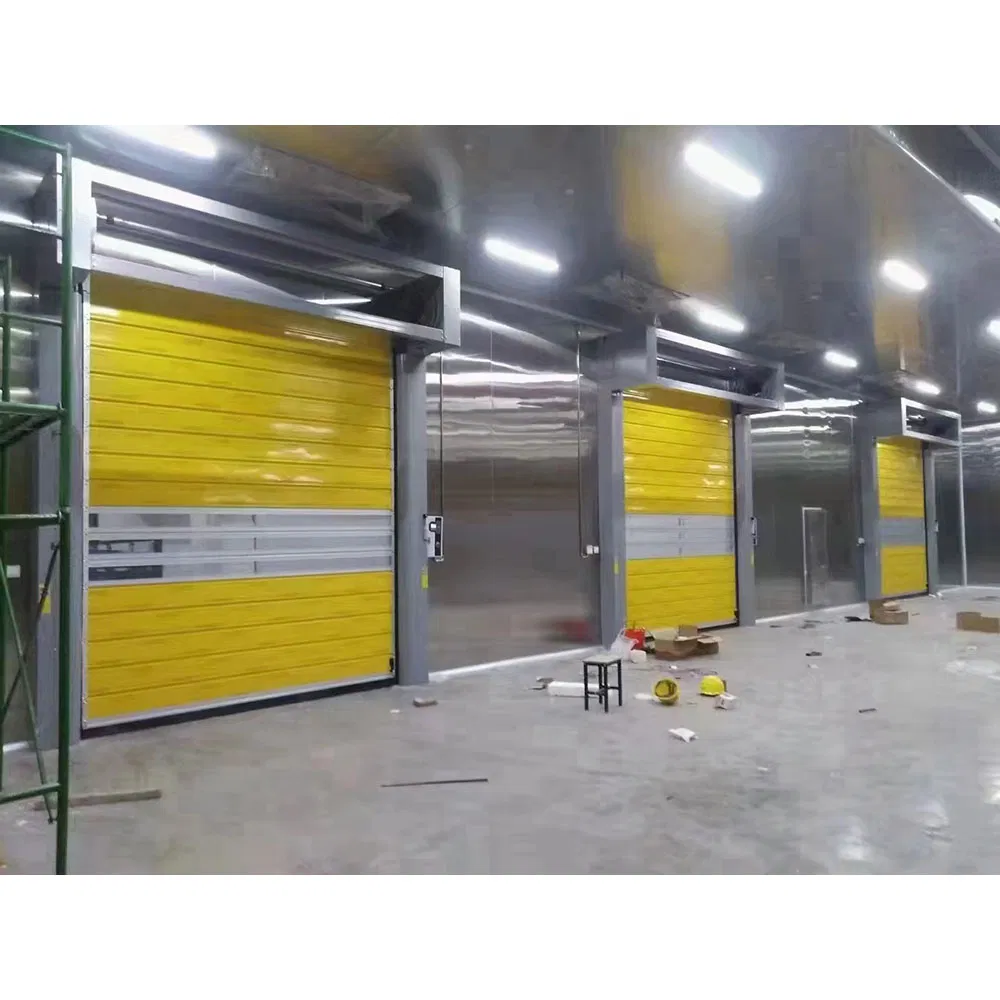

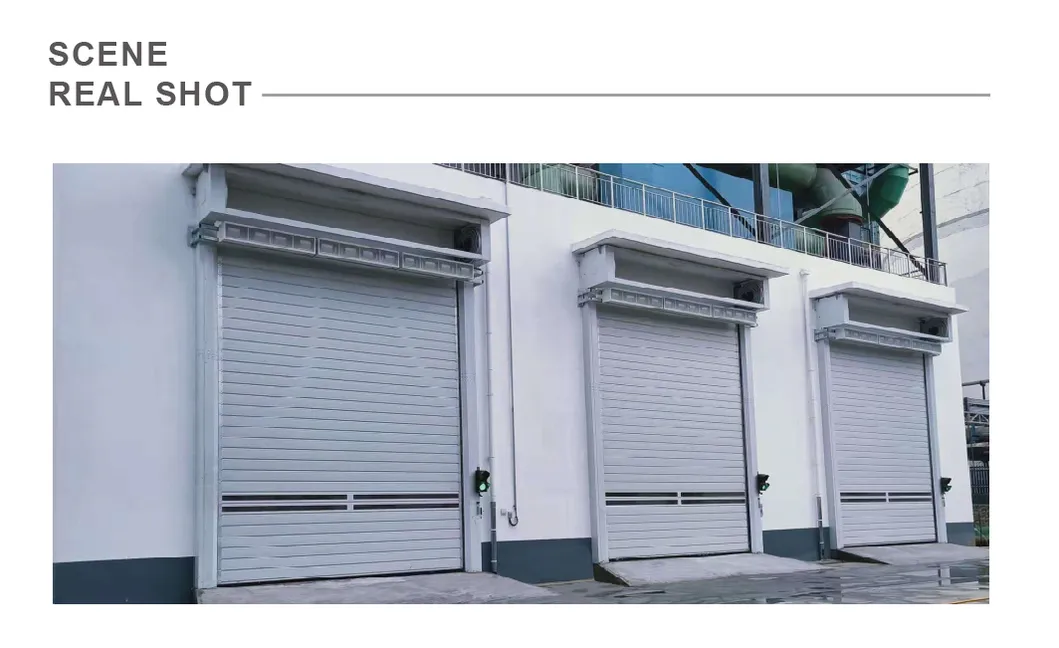

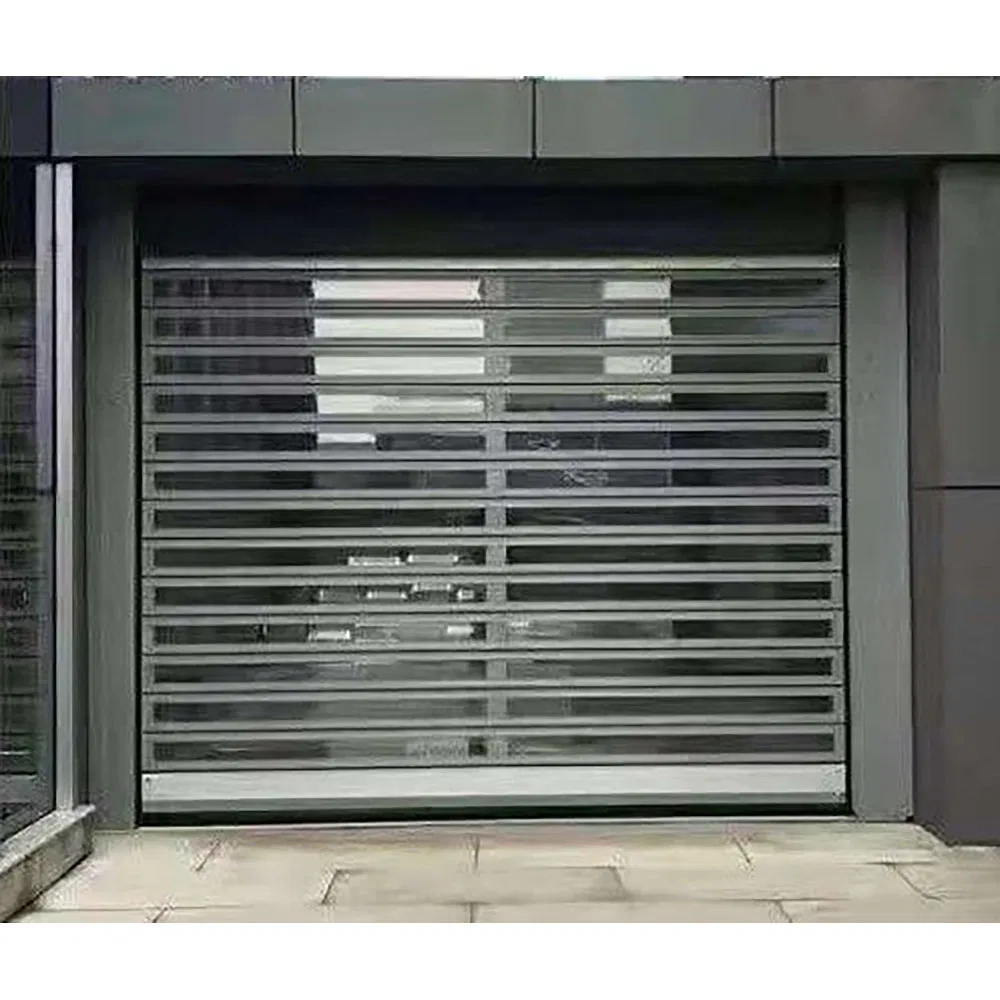

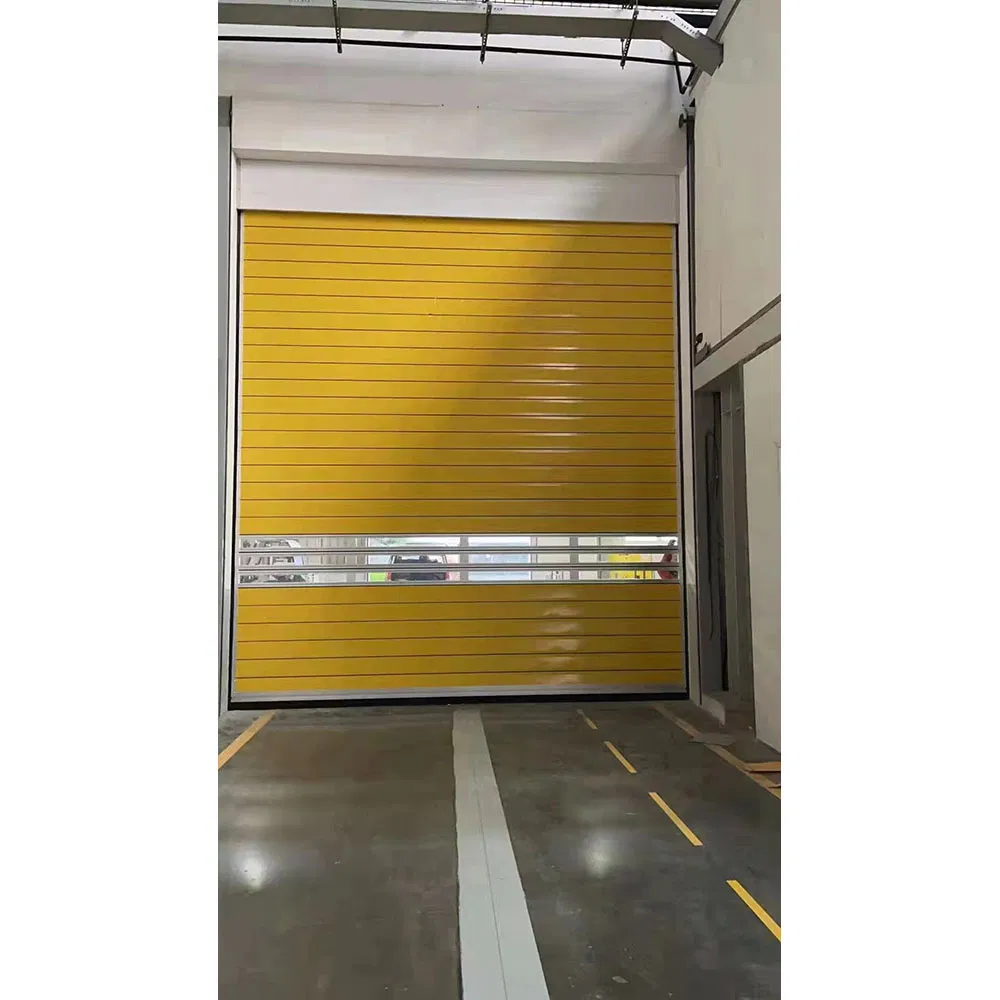

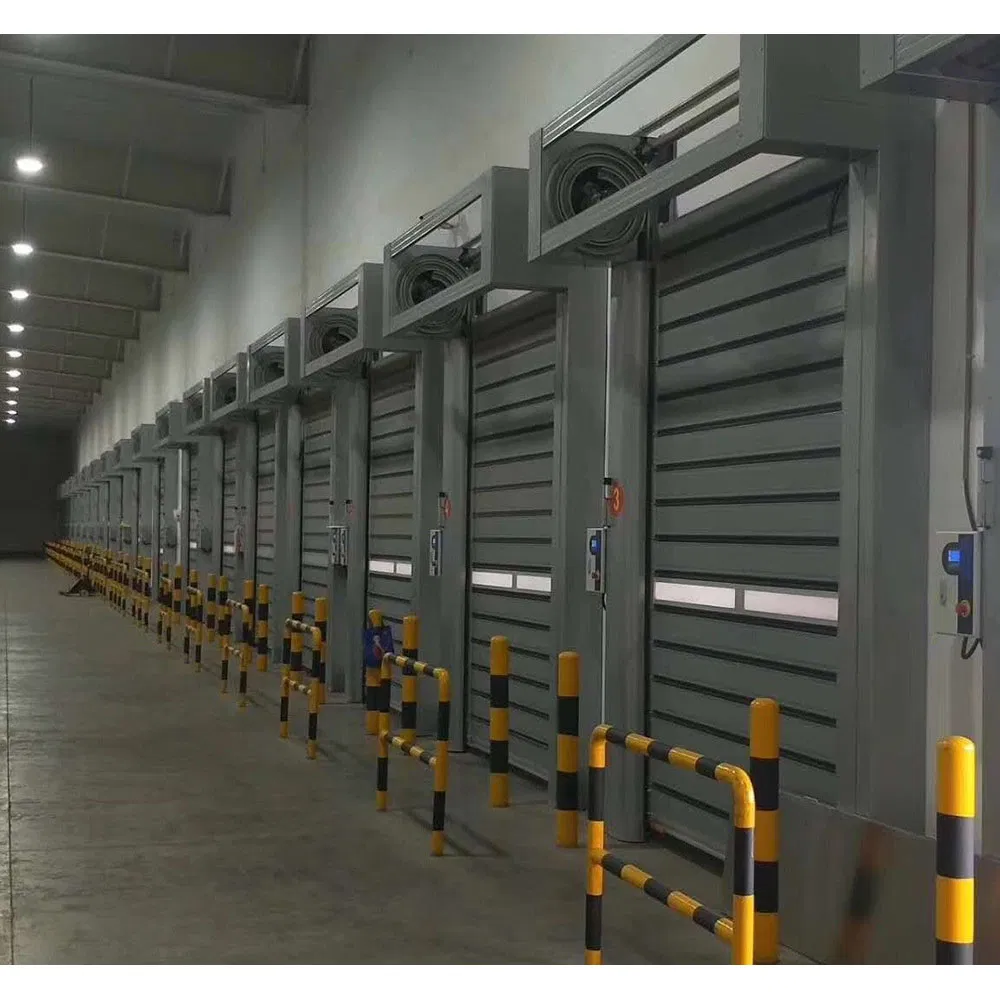

Product Gallery

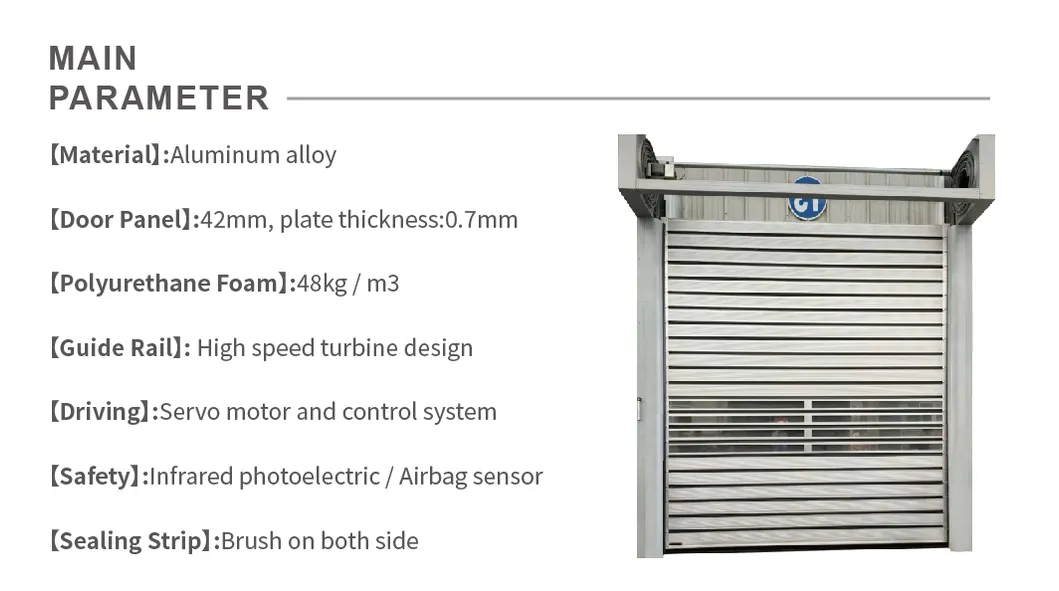

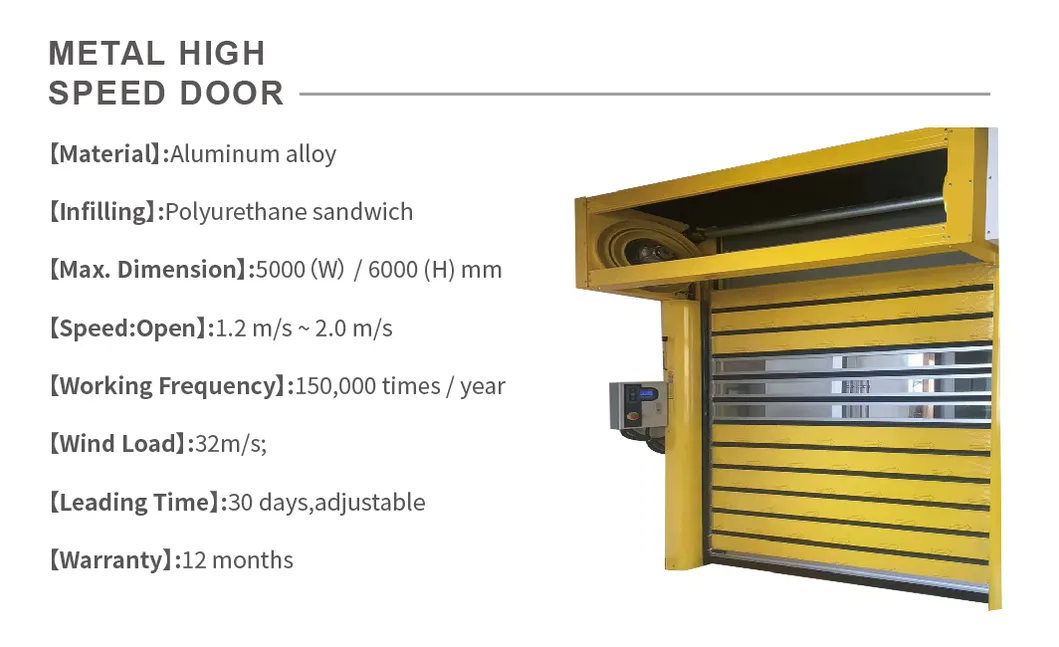

Technical Parameters

Item	Description
Material	Aluminum Alloy Profile (with or without PU Sandwich) / Transparent PVC Strip
Thickness of Material	Double-layer Aluminum with PU Sandwich (0.8 mm) / Without PU (1.2mm)
Thickness of Panel	40mm, surface treated by anodizing and organic coloring
Speed	1 ~ 2.5 m / s
Noise Level	< 60dB
Lifting Way	90° Vertical Lift / Turbo Type / Ellipse Type

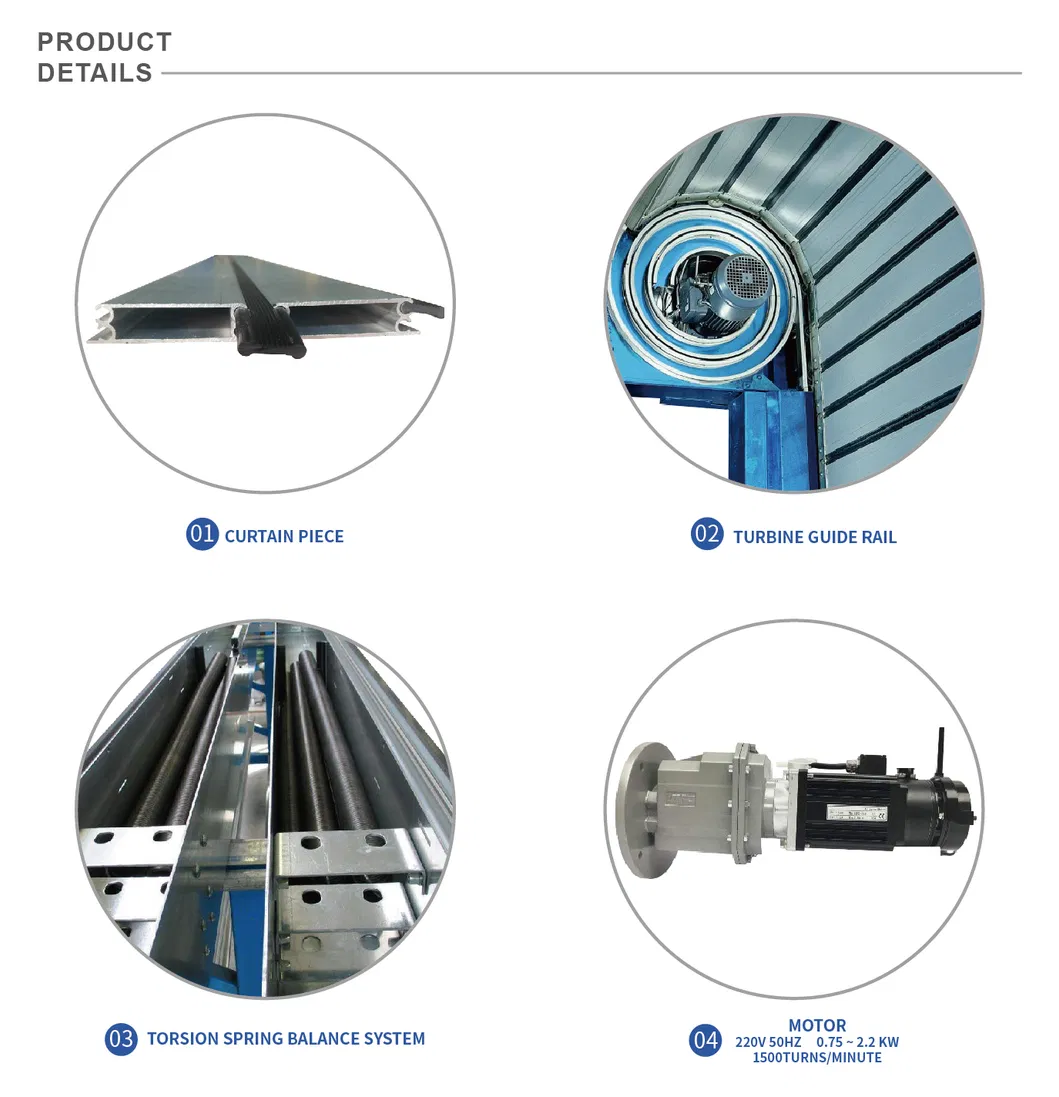

Drive System	Servo Motor (220V 50HZ / 380V 50HZ, 0.75Kw - 2.2Kw)
Control System	Frequency Converter + PLC or Servo Type
Safety Features	1) Photocell Sensor; 2) Airbag Installed at Door Edge Bottom
Sealing	Complete seal for guide rail, middle panel, top, and bottom

Frequently Asked Questions

1. What is the maximum opening speed of the XF-H-3000?

The door offers a high-performance speed range of 1.5 to 2.5 meters per second, depending on the configuration and motor power.

2. Is this door suitable for high-wind environments?

Yes, it is designed with high wind resistance, capable of withstanding Beaufort scale 12 (up to 35 m/s).

3. What safety mechanisms are included as standard?

The door is equipped with a photocell sensor and a safety airbag installed at the bottom edge to prevent accidents during operation.

4. How does the thermal insulation work?

The door panels feature a 40mm thick aluminum structure with a PU (polyurethane) sandwich foam filling, providing excellent thermal retention and energy efficiency.

5. Can the door size be customized?

Yes, while the maximum standard dimension is 5000*7500 mm, the color and specific dimensions can be tailored to meet your industrial requirements.

6. What is the expected noise level during operation?

Thanks to the precision spiral track and servo motor system, the noise level is kept very low, specifically below 60dB.
