Fastlink High Performance Industrial Logistic Electric Automatic Rapid Roll up Spiral High Speed Doors
Fastlink High Performance Industrial Logistic Electric Automatic Rapid Roll up Spiral High Speed Doors
Fastlink High Performance Industrial Logistic Electric Automatic Rapid Roll up Spiral High Speed Doors
Fastlink High Performance Industrial Logistic Electric Automatic Rapid Roll up Spiral High Speed Doors
Fastlink High Performance Industrial Logistic Electric Automatic Rapid Roll up Spiral High Speed Doors
1 / 5
Fastlink High Performance Industrial Logistic Electric Automatic Rapid Roll up Spiral High Speed Doors
Fastlink High Performance Industrial Logistic Electric Automatic Rapid Roll up Spiral High Speed Doors
Fastlink High Performance Industrial Logistic Electric Automatic Rapid Roll up Spiral High Speed Doors
Fastlink High Performance Industrial Logistic Electric Automatic Rapid Roll up Spiral High Speed Doors
Fastlink High Performance Industrial Logistic Electric Automatic Rapid Roll up Spiral High Speed Doors

Fastlink High Performance Industrial Logistic Electric Automatic Rapid Roll up Spiral High Speed Doors

Customization: Available
After-sales Service: 2 Years
Warranty: 1 Year
Send Inquiry

Product Description

Technical Specifications
Model NO.
HSV-HAS
Material
Aluminum Alloy
Type
Sliding
Open Style
Electric
Special Function
Security
Motor
Servo Motor
Panel Thickness
42mm Polyurethane Sandwich
Wind Resistance
1500PA~3000pa
Opening Speed
Max 2.5m/s
Certification
CE / UL
High Performance Spiral High Speed Door
Critical Performance Attributes
System Parameters
Product nameSpiral High-Speed Door

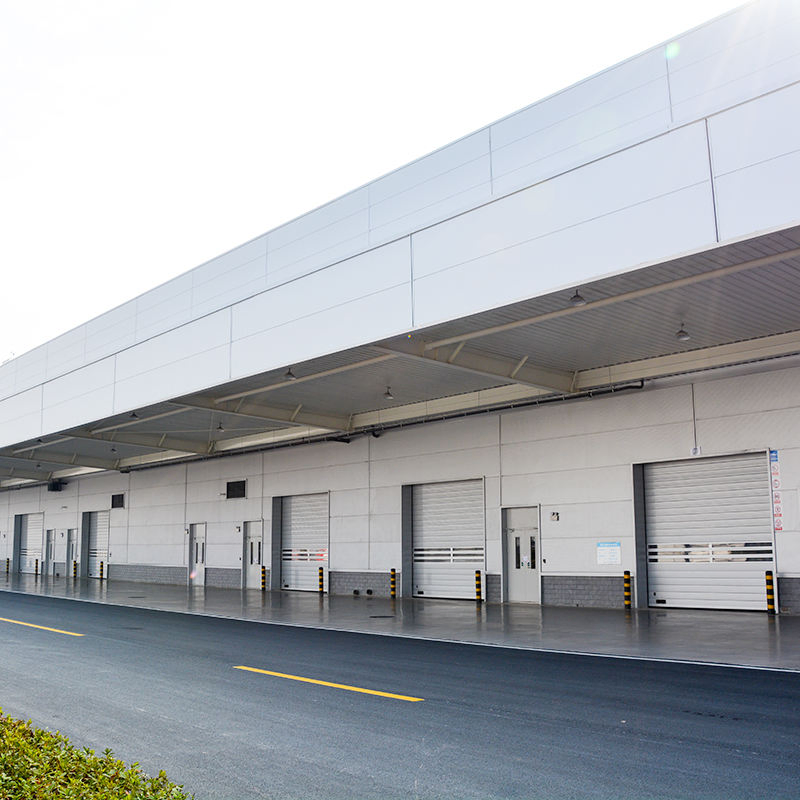

Application scenariosIndustrial plants, logistics and warehousing buildings
Size RangeMin: 1250*2000mm / Max: 8000*9000mm
Thermal insulationHeat transfer coefficient K=1.1W/(m². K)
Water tightnessLevel 6(GB/T 7106-2019)
Air tightnessLevel 8(GB/T 7106-2019)

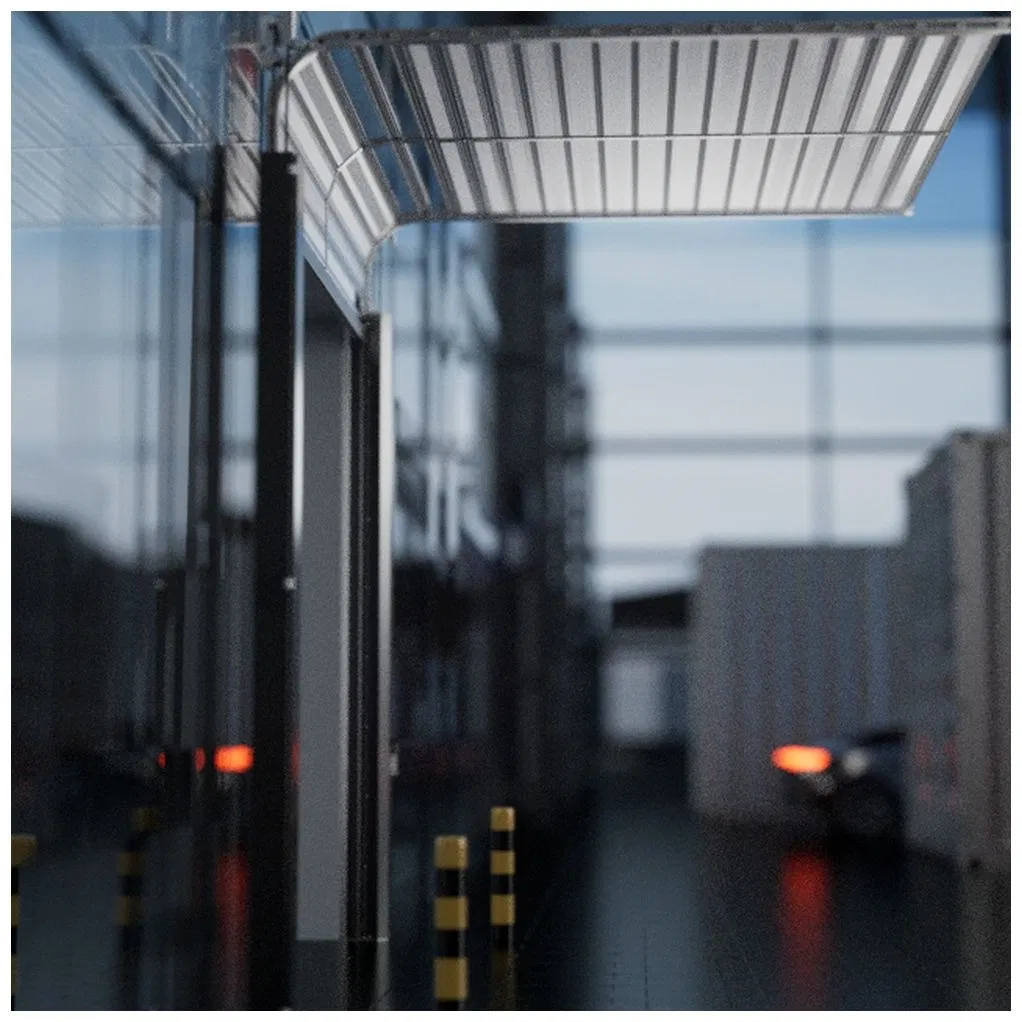

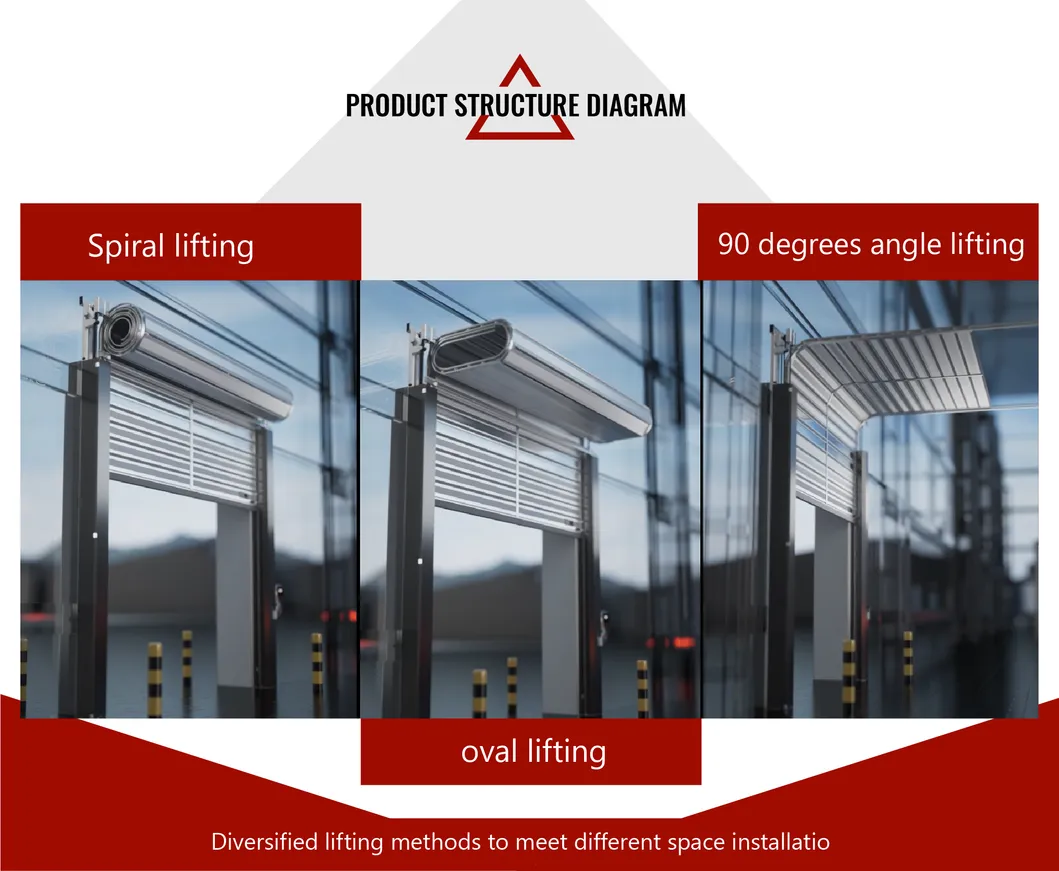

Lifting methodSpiral lift / oval lift / 90 degree right angle lift
Balanced systemCounterweight (standard) / tension spring (customized)

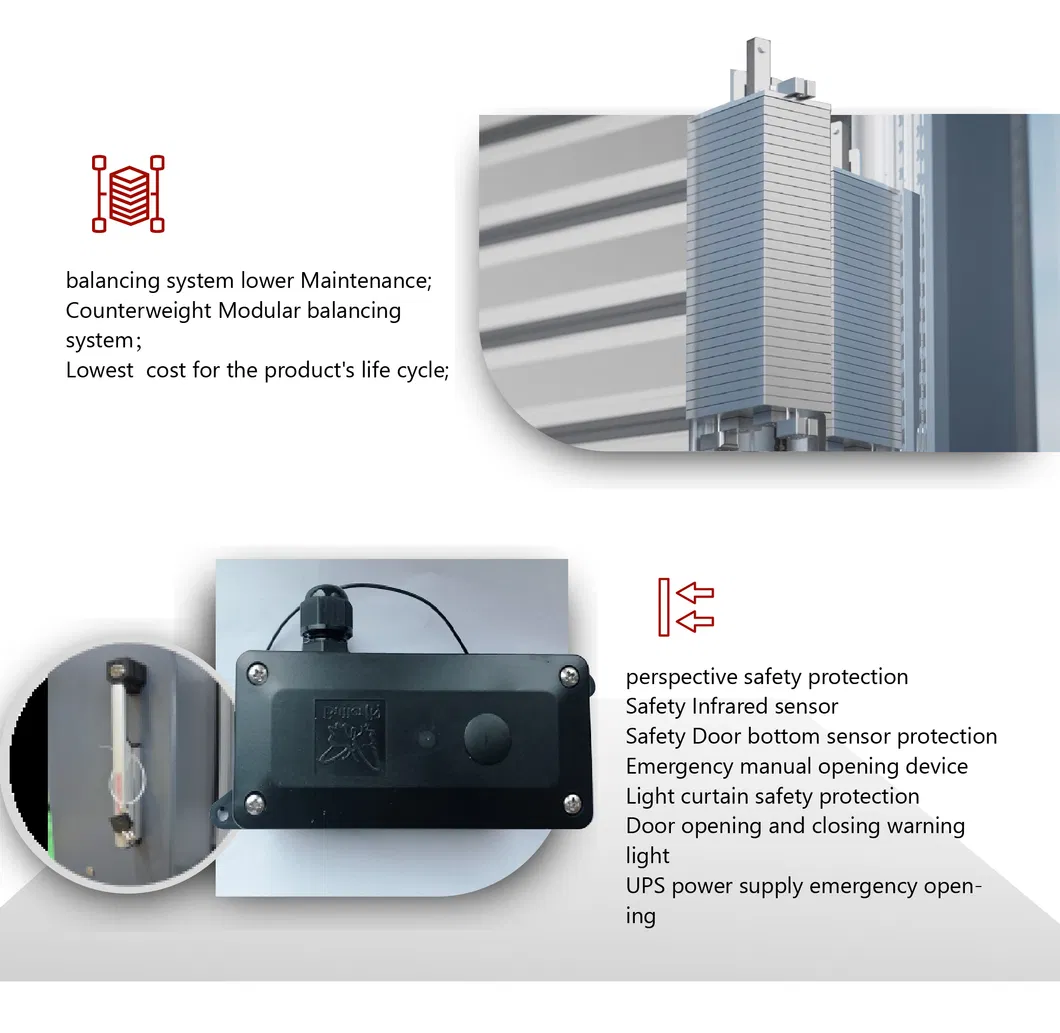

🛡️ Security Configuration
  • Safety proximity sensor for obstacle rebound
  • Standard safety optoelectronics
  • Emergency manual opening device
  • Optional safety light curtain and UPS power
Product Display

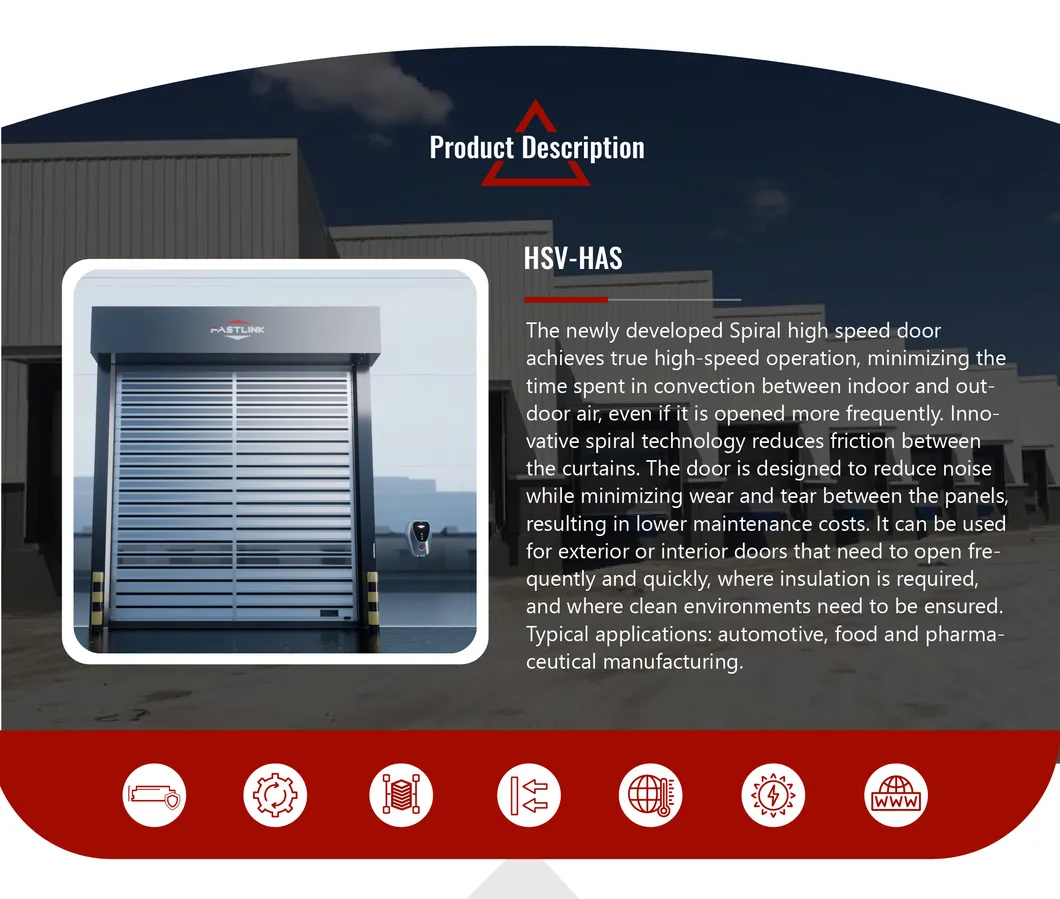

Spiral Door Detail

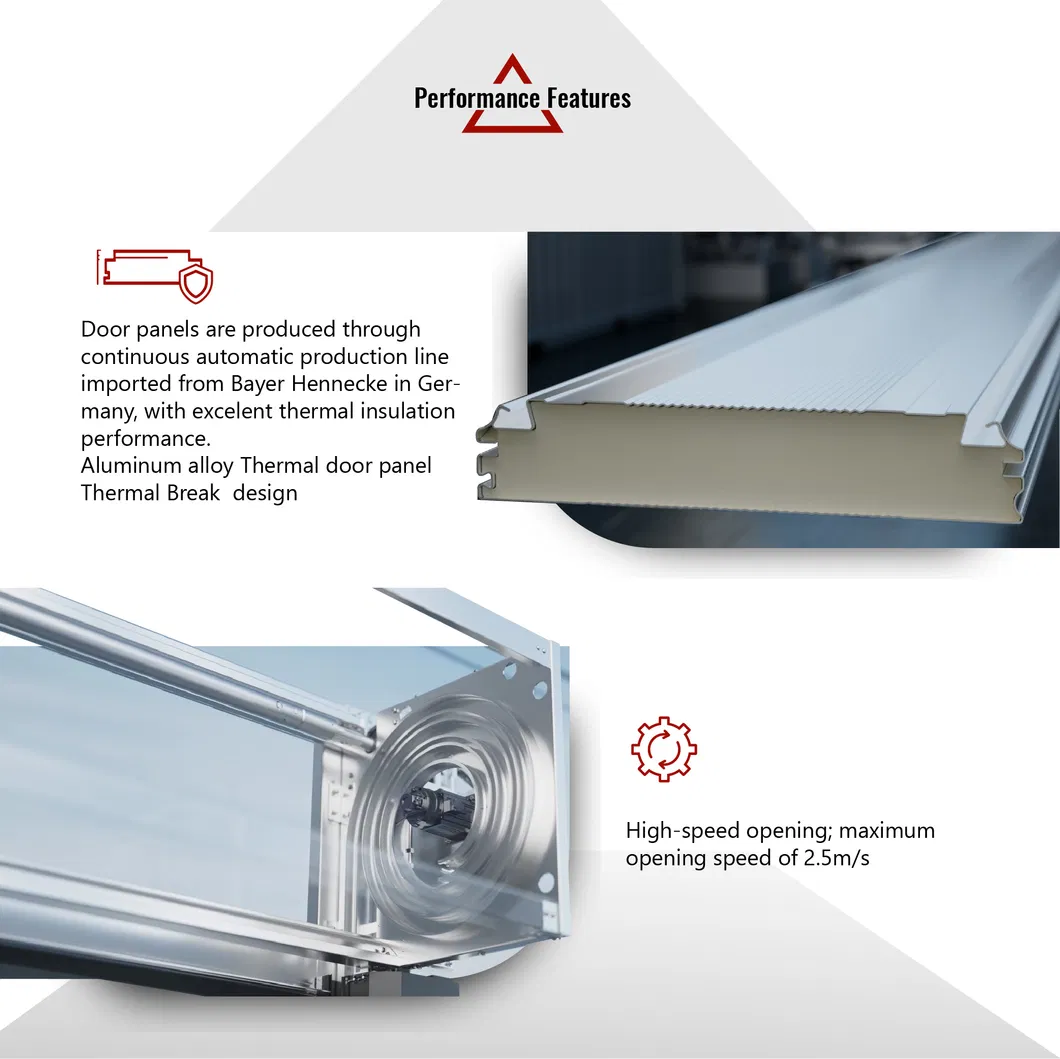

Spiral Door Construction
Spiral Door Mechanism

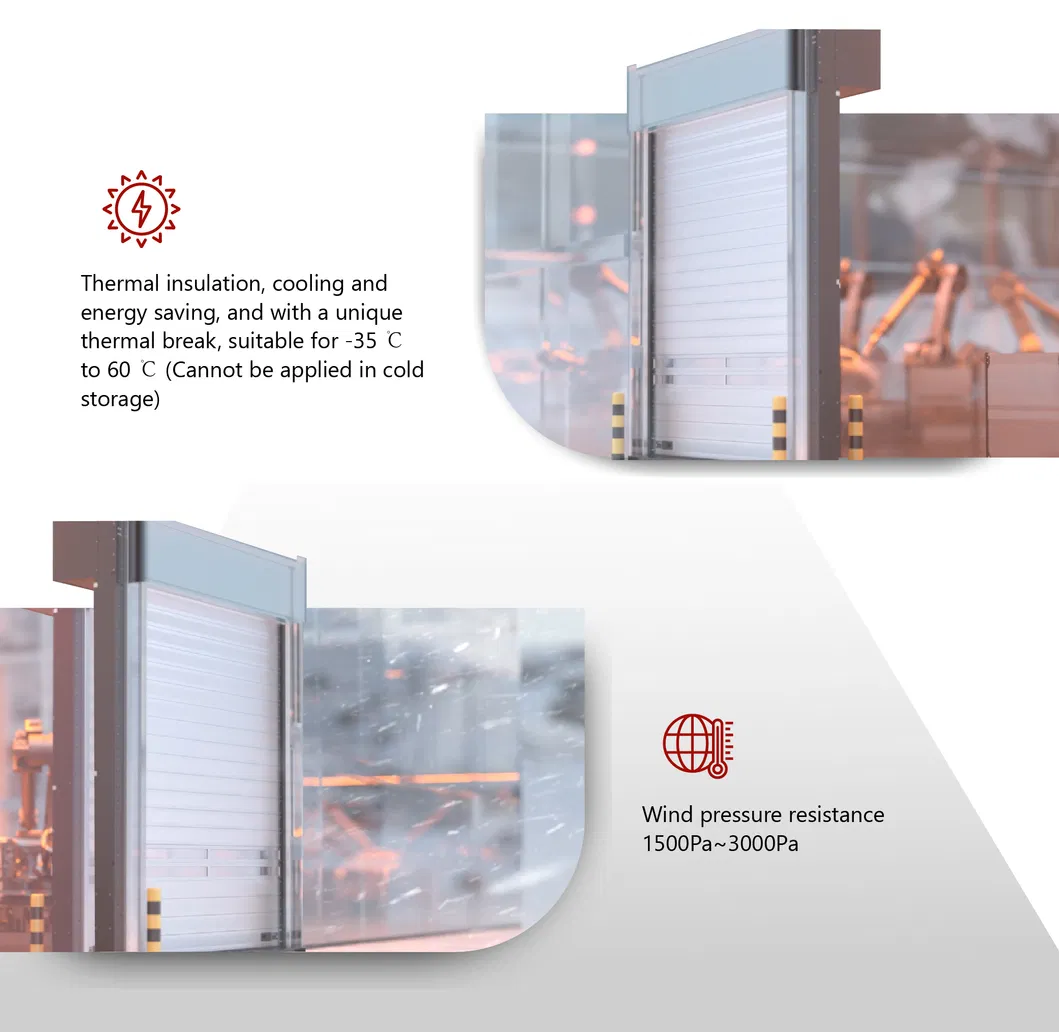

Spiral Door Installation
Spiral Door View

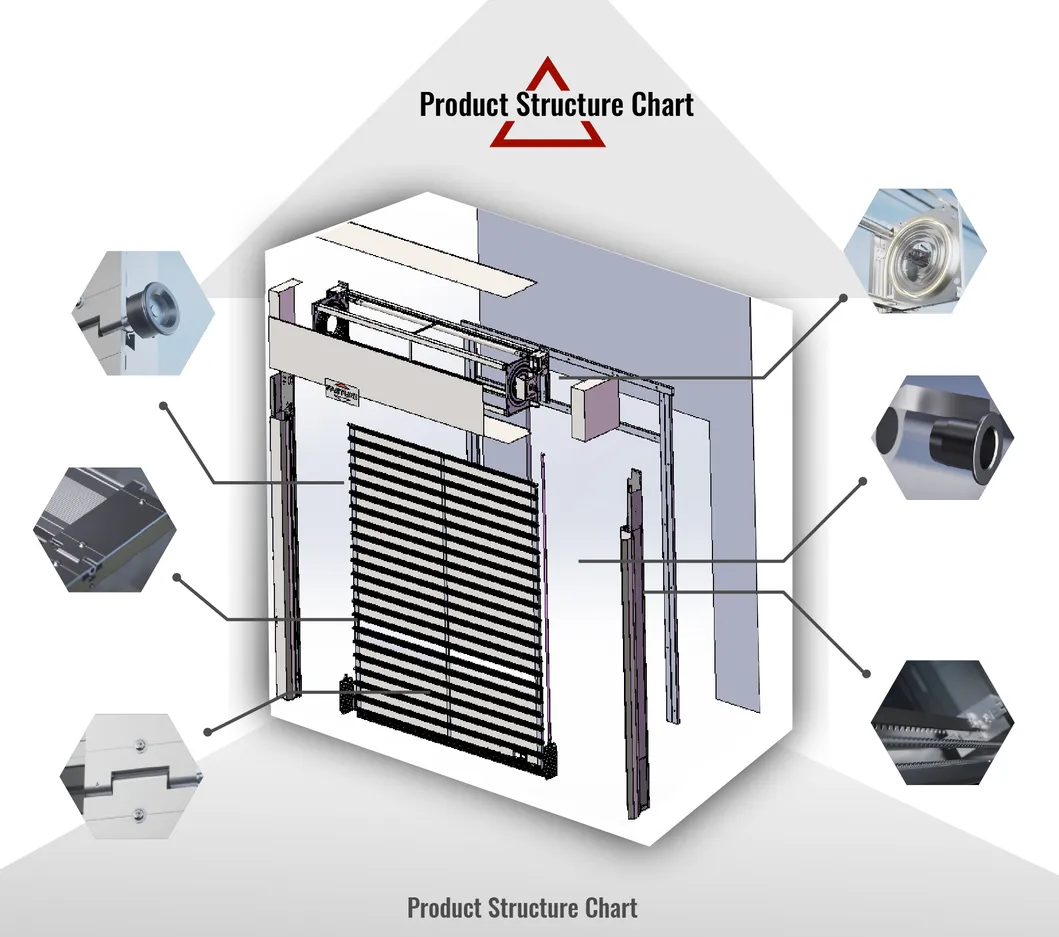

High Speed Operation
Industrial Logistics Door
Aluminum Alloy Panel
Door Design

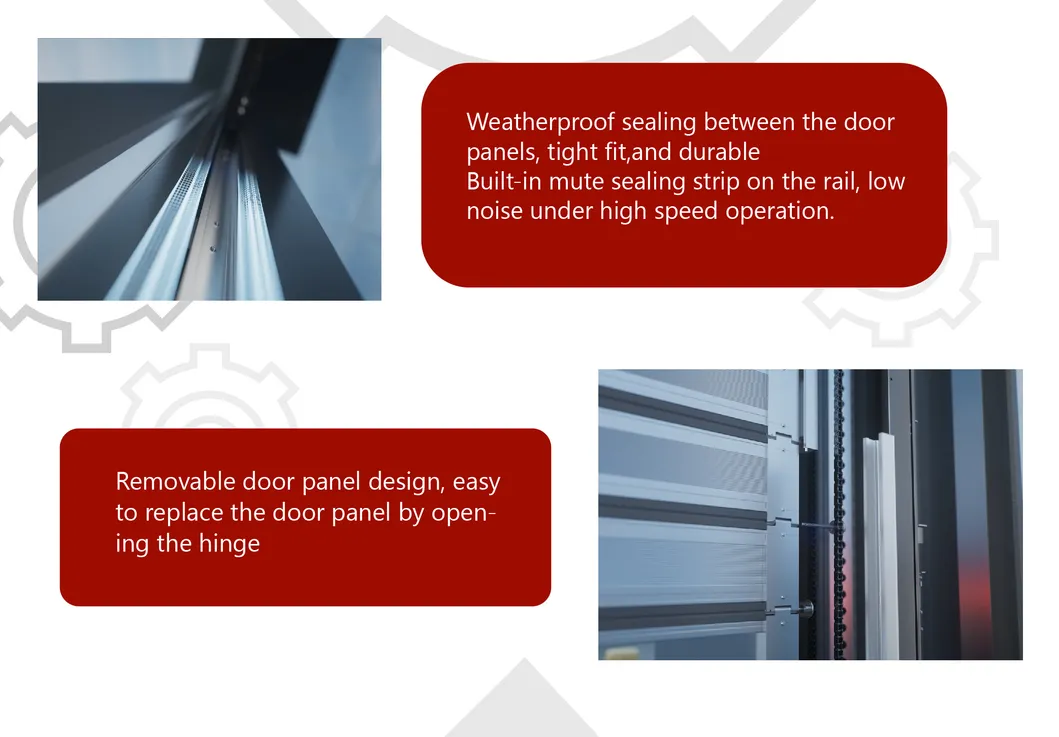

Thermal Insulation
Production Line
Quality Control
Logistics Access
Package Details
Shipping Box
Final Product
Frequently Asked Questions
How much installation space is required above the doorway?
A minimum space of 1000mm is recommended to be reserved above the doorway for the spiral mechanism and head unit installation.
Can the spiral high-speed door withstand typhoons?
Yes. The door features a unique panel structure and hinge design providing remarkable stability. It can withstand frontal pressure of 700pa to 3000pa without structural impact.
Is this door suitable for residential or commercial garages?
Absolutely. These doors are widely used in civil and commercial garages. They offer remote control and mobile app operation, combined with high security, anti-theft, and wind resistance features.
How easy is it to operate the door?

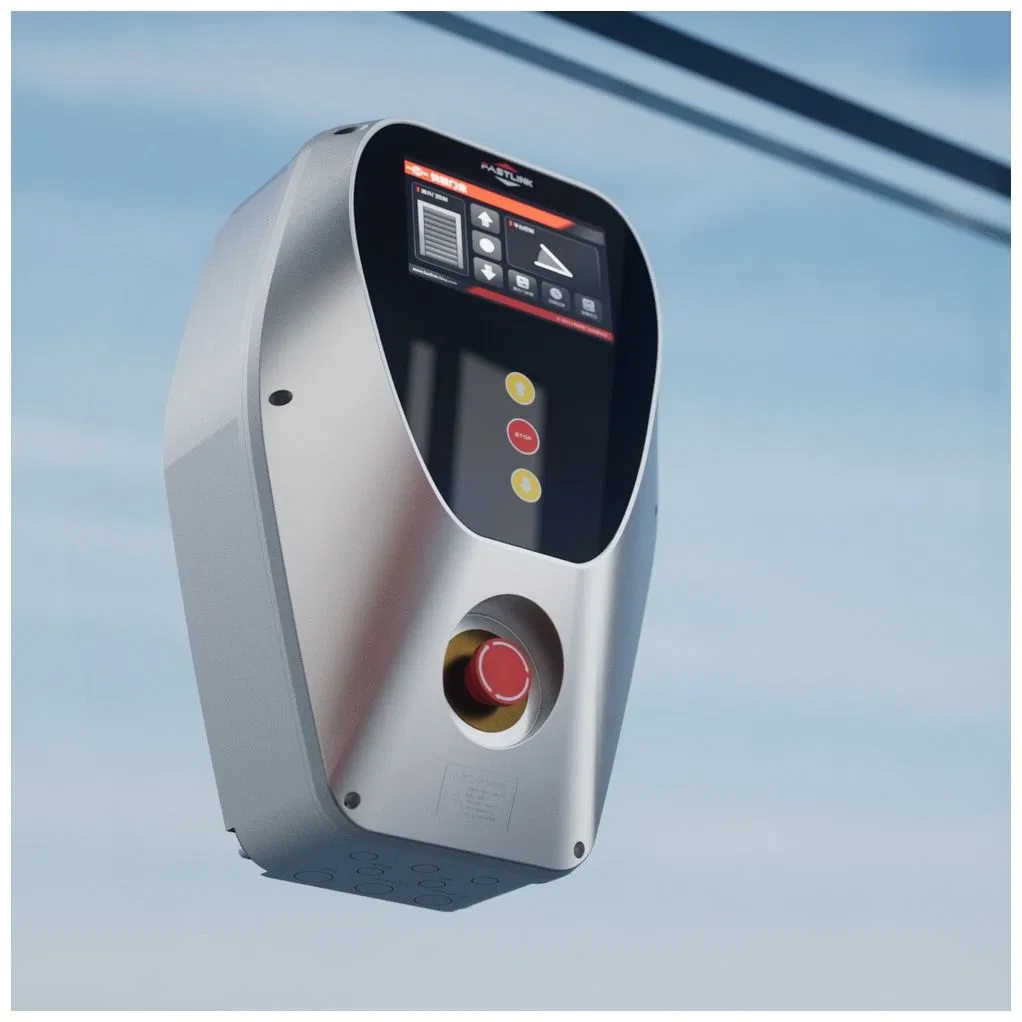

Operation is very simple. The control box features intuitive on/off/stop switches and modular integrated circuits. Recommended operating instructions and remote guidance are also provided.
What is the maintenance requirement for these doors?
Due to the counterweight balancing system, these doors are rated for 1 million cycles. We recommend a maintenance check once a year or every 200,000 cycles to maintain optimal performance.
What are the power requirements and opening speeds?
The door is powered by a high-efficiency servo motor, achieving a maximum opening speed of 2.5m/s and a closing speed of 0.8m/s for rapid logistics flow.
