Warehouse Customized Aluminum Alloy Explosion-Proof Fast Sectional Industrial Door

1 / 5

Warehouse Customized Aluminum Alloy Explosion-Proof Fast Sectional Industrial Door

Customization:	Available
After-sales Service:	Available
Warranty:	12 Months

Send Inquiry

Product Description

📋 Basic Information

Model NO.

ISD-44

Material

Aluminum Alloy

Type

Sliding

Open Style

Sliding

Opening Type

With Remote Control

Special Function

Insulated and Cold Storage

Color

Customized

Certification

TUV, CCC, ISO9001, RoHS, CE

Position

Interior and Exterior

Surface Finishing

Finished

Wind Resistant

Standard 450PA, Higher to 700PA

Open Method

Electric, Manual

Door Panel Material

Galvanized Steel or Aluminum Plate

Door Panel Thickness

Anti-Pinch Door Panel:40mm

Opening/Closing Speed

0.25m/S

Size Range

W:1500-6000mm H:2000-6000mm

Production Capacity

50000 Sqaure Meters Per Month

Application

Factory, Garage, Hotel, Warehouse etc

📦 Packaging & Delivery

Package Size

200.00cm * 300.00cm * 150.00cm

Package Gross Weight

500.000kg

🚪 Product Description

Industrial Sectional Door

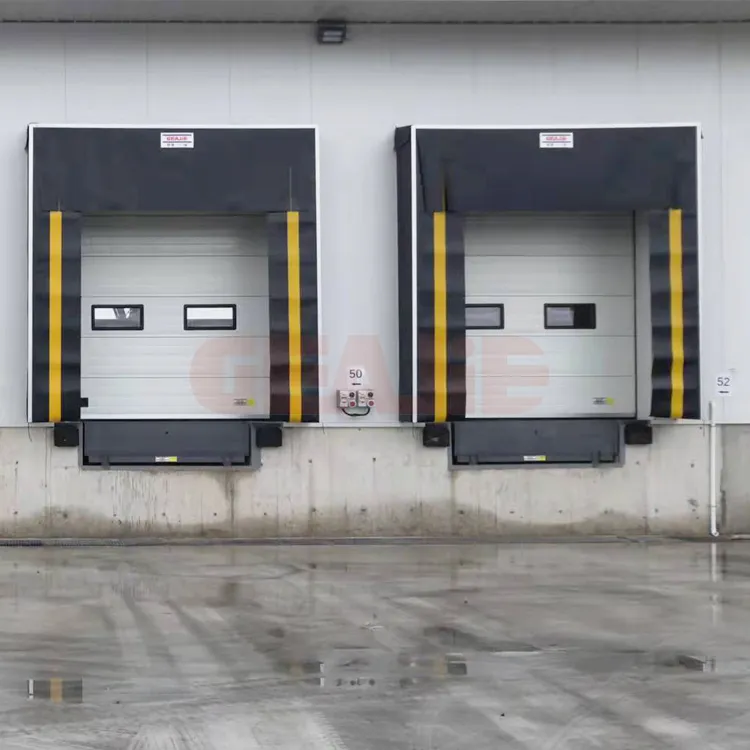

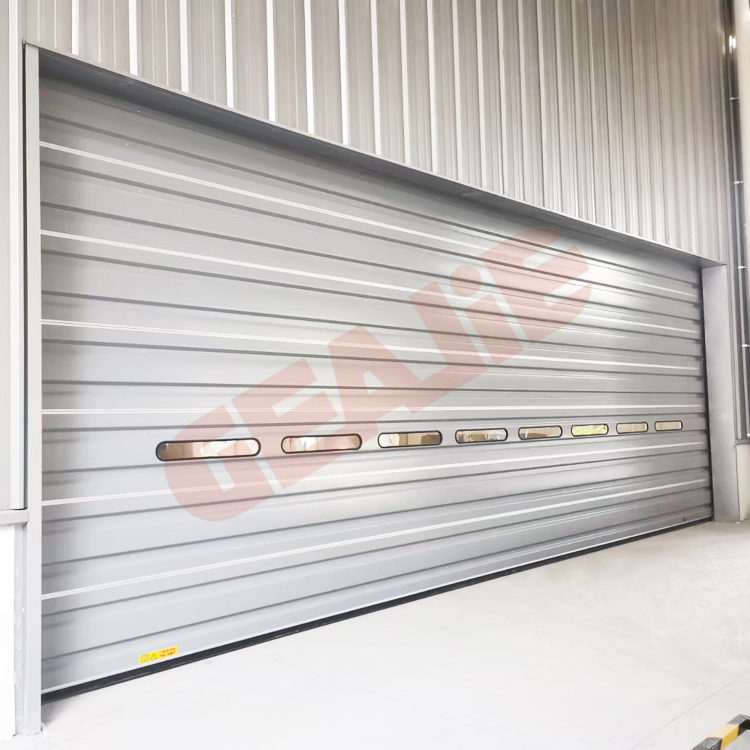

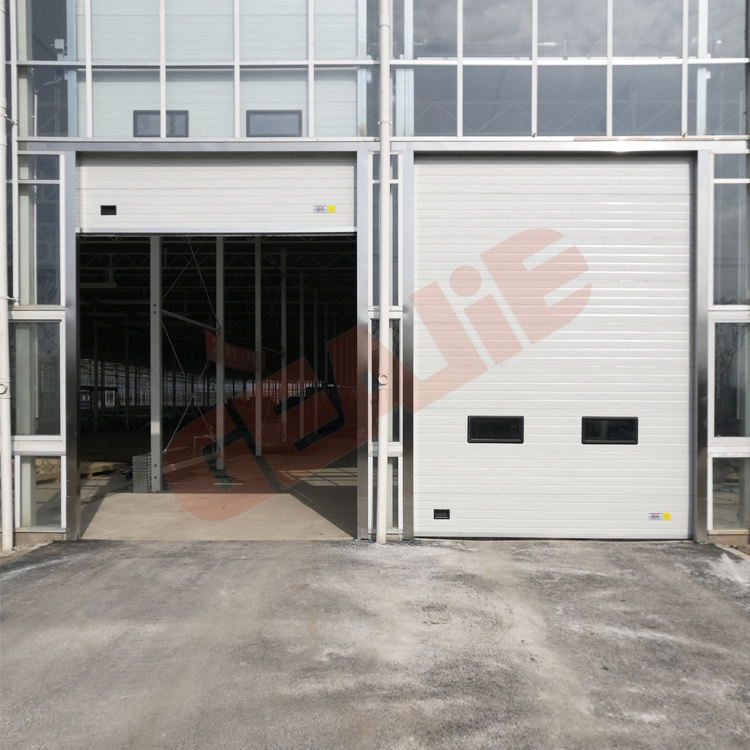

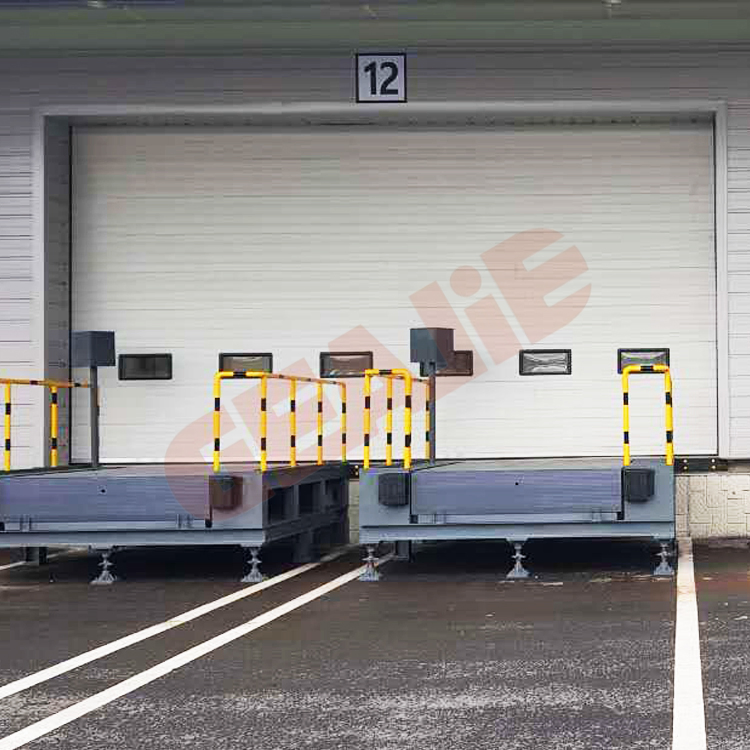

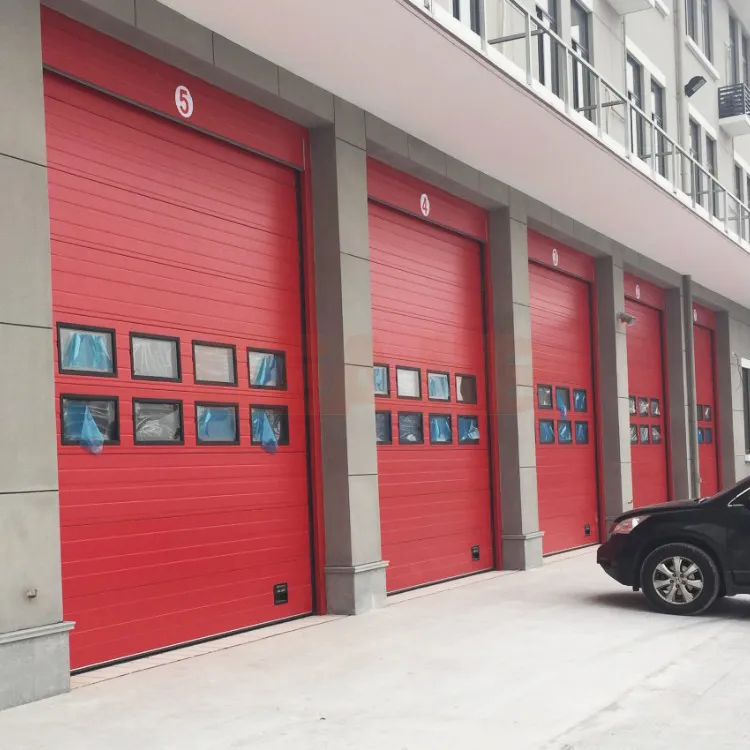

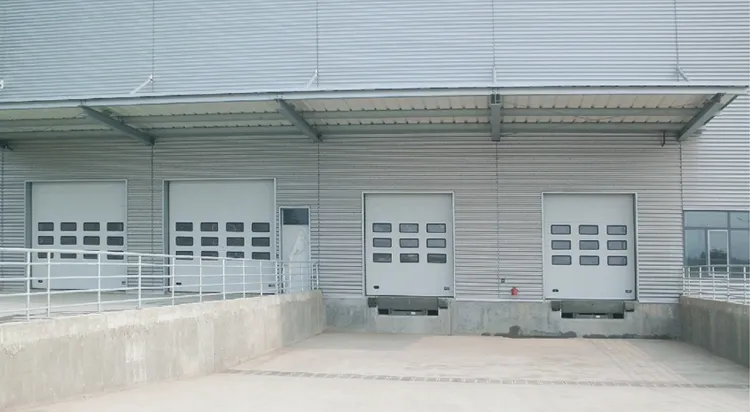

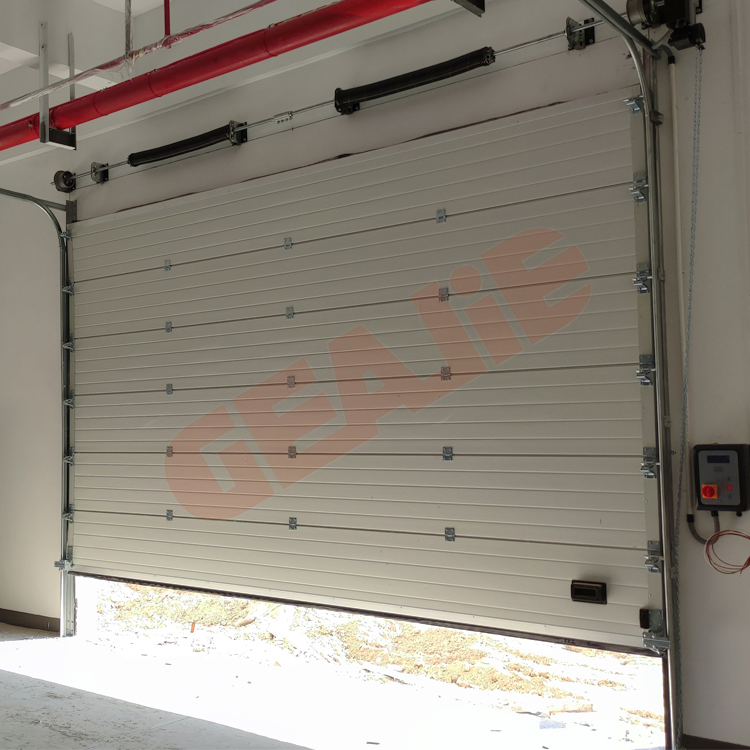

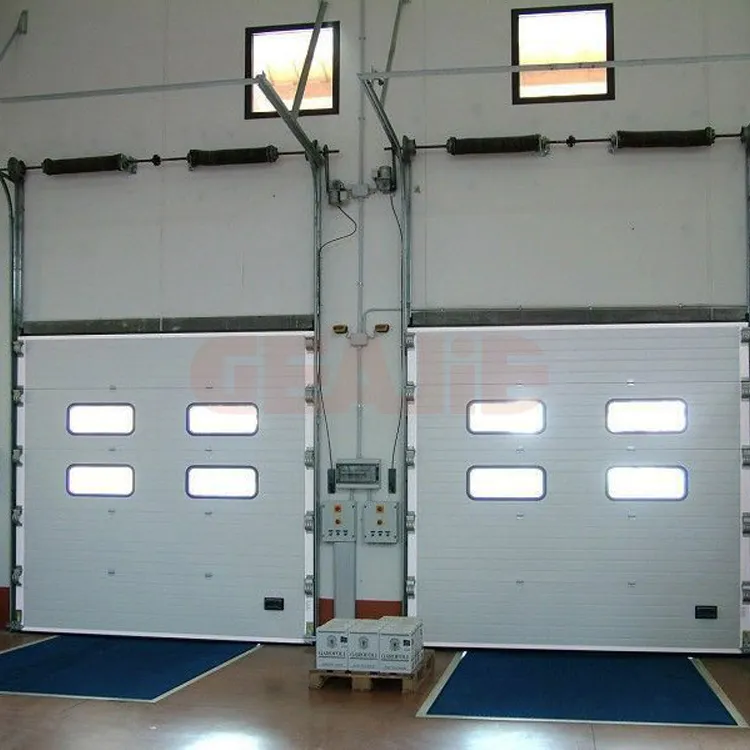

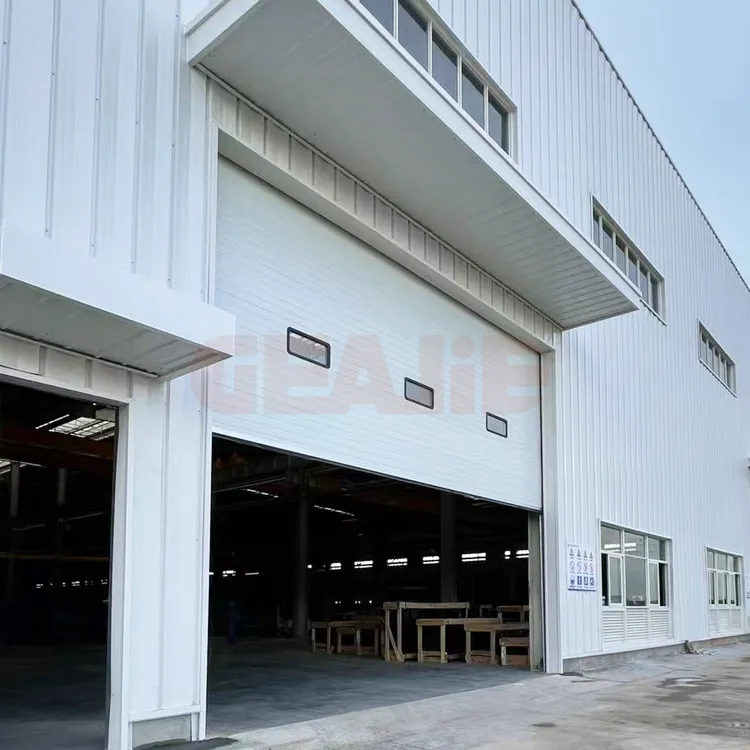

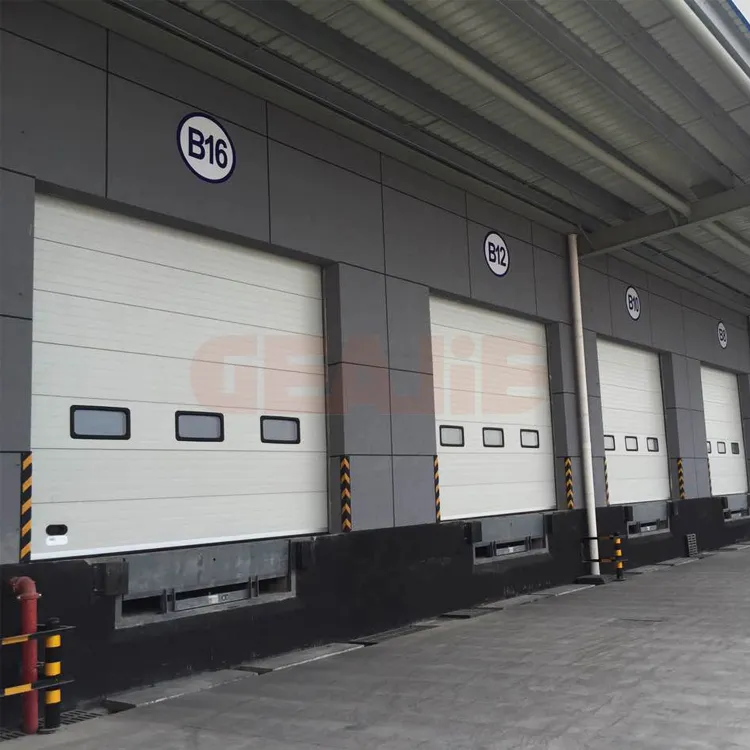

📸 Product Show

Material Description
Size range	W:6000-12000mm, H:2000-8000mm
Opening and closing speed	0.25m/s
Door panel material	Galvanized steel or aluminum plate
Door panel thickness	Anti-pinch door panel:40mm; Insulated bridge door panel:43mm
Windows / Pass gate	Optional
Safety devices	Wire rope breakage protection, torsion spring breakage protection, wireless airbag
Wind resistant	Standard 450Pa, higher up to 700Pa

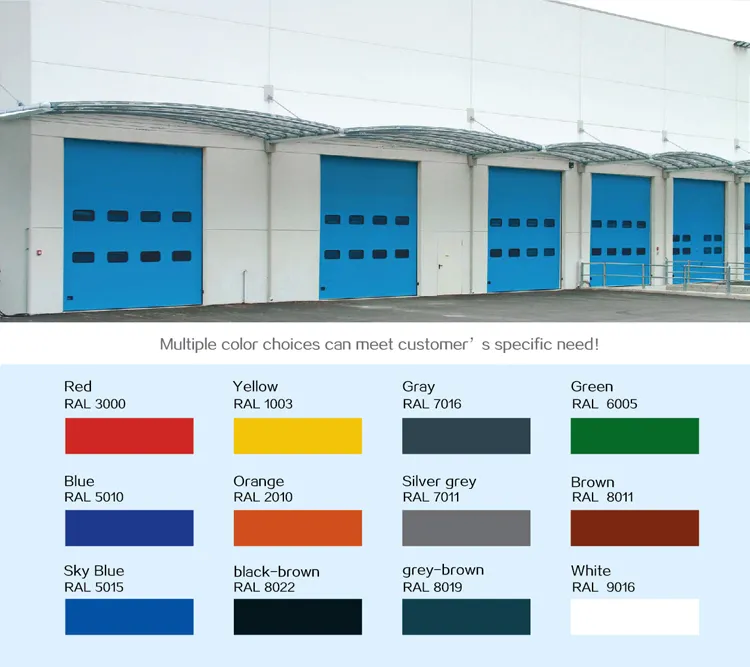

Color	RAL9002, RAL9016, RAL1023, RAL5005, RAL3002, customizable

Excellent insulation and closeness performance, good anti-wind structure, safe and reliable operation guarantee!

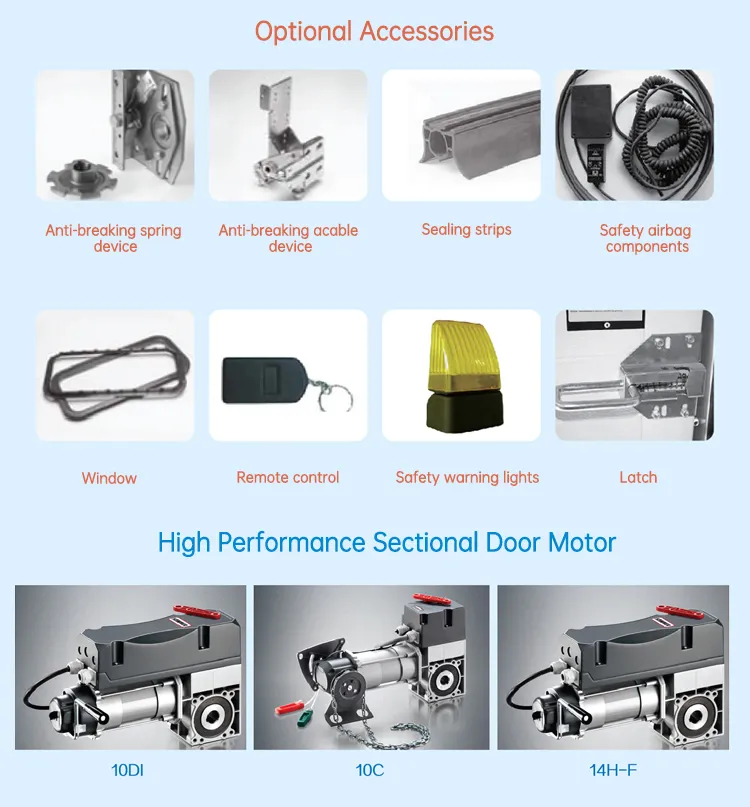

Motor Technical Parameters
Model	10DI	10C	14 H-F
Output torque	100Nm	100Nm	140Nm
Output shaft speed	24 rpm	24 rpm	14 rpm
Rated power	0.37KW	0.37KW	0.55KW
Rated voltage	1*AC 230/440V	3*AC 230/440V	1*AC 230V
Protective level	IP 54	IP 54	IP 54

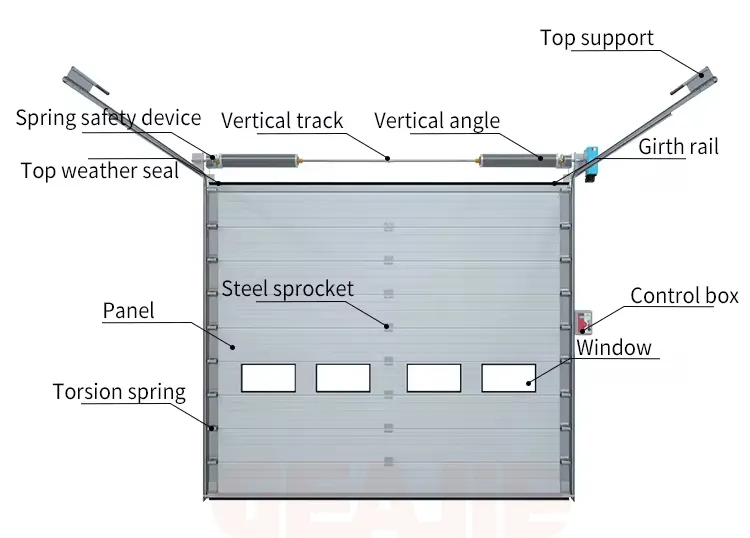

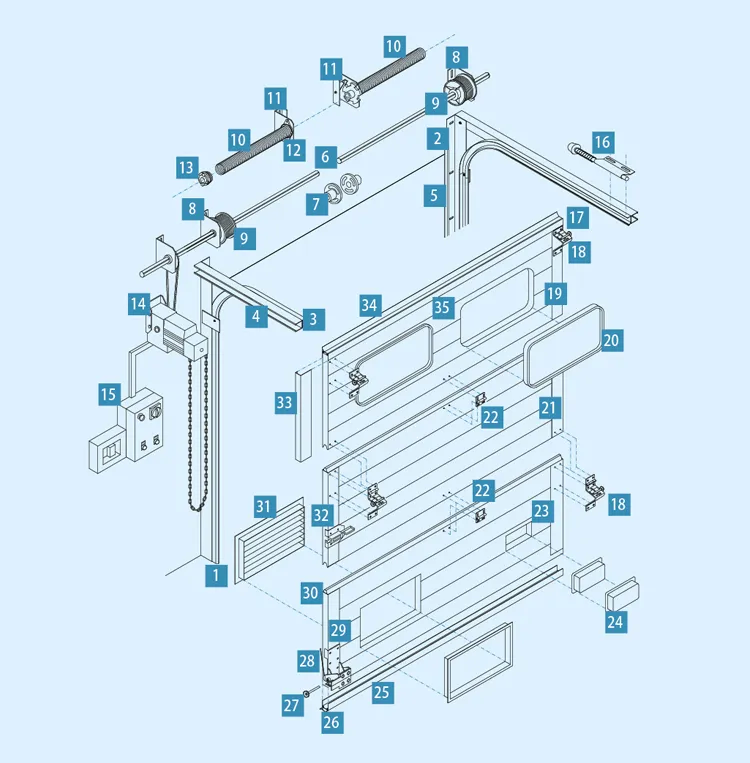

📐 Structural Drawing

⭐ Product Advantages

➤

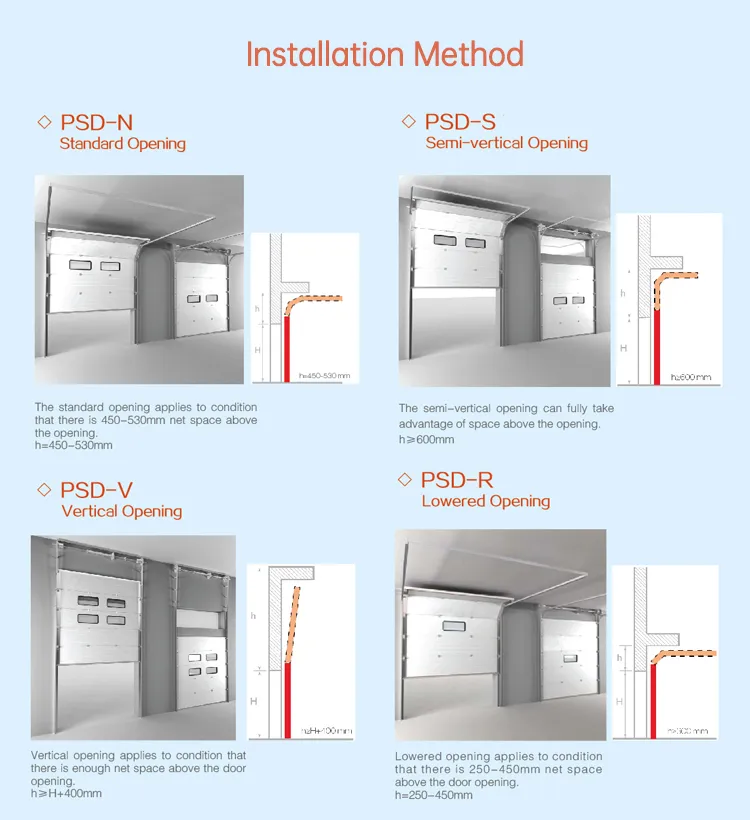

Industrial sectional doors can provide a variety of lifting methods: straight type, standard lifting, high lintel lifting, low lintel lifting, etc.

➤

Unique roller shaft design distributes force to wheels on both sides, ensuring smooth operation and extended service life.

➤

Panel: Two layers of 0.4mm powder coated galvanized steel plate with PU foaming density 48±2kg/m3.

➤

Safety: Equipped with spring brake device, accident dropping safety cord, and wireless safety airbag.

➤

Guide Rail: Special design three-angle wheel brace for smooth rolling; Mute nylon wheels (noise ≤60db).

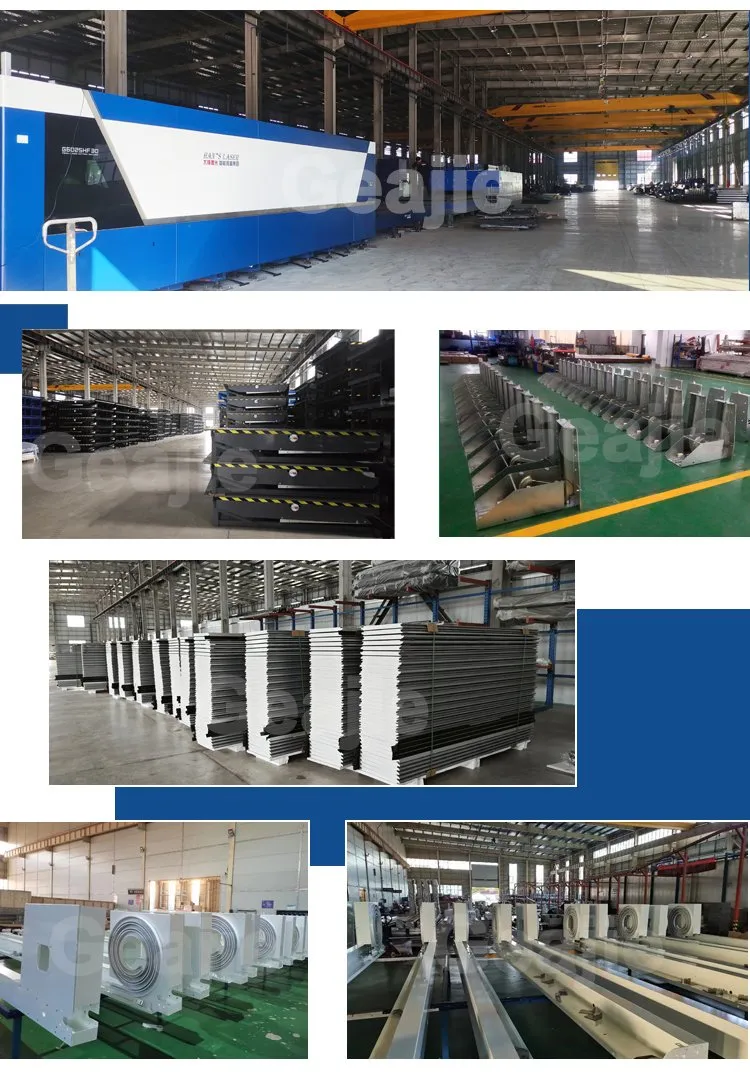

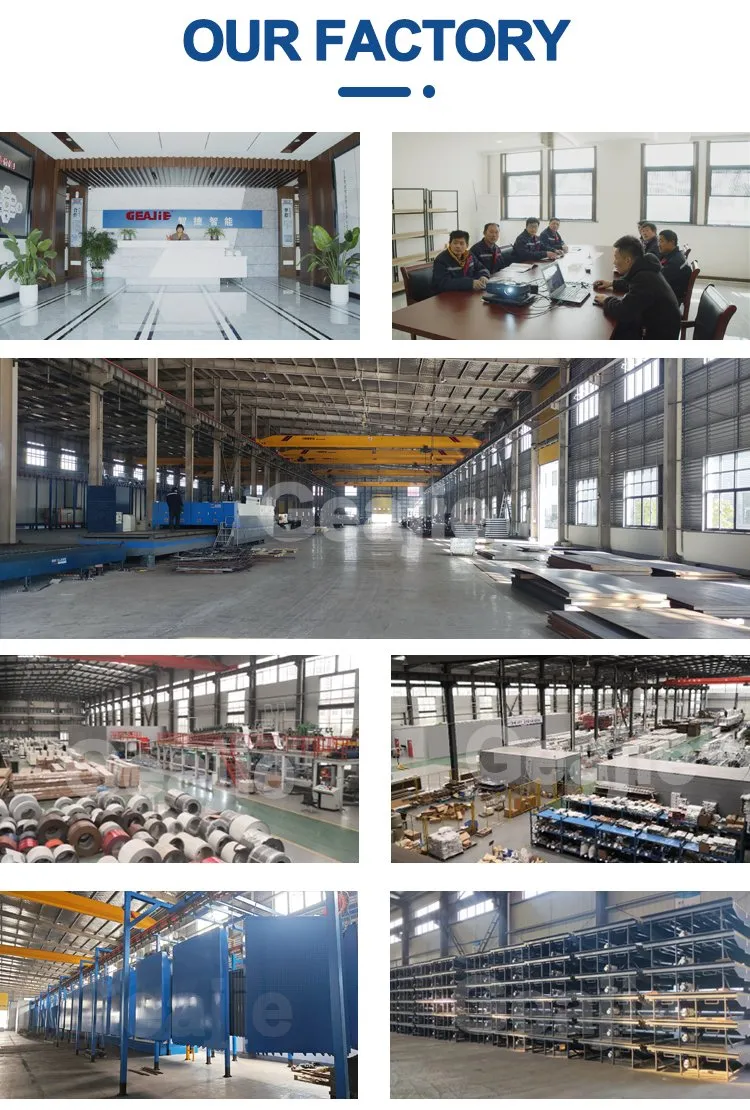

🏭 Production & Facilities

❓ Frequently Asked Questions

Q1: What is your MOQ?

A: 1 set is OK.

Q2: What is the maximum available size of the doors?

A: The maximum length can be 6.5M. The maximum width is 6M, and it is adjustable.

Q3: Do you produce other products or accessories?

A: Yes, we also produce sliding doors, rapid doors, garage doors, rolling shutter doors, cold storage doors, loading platforms, door seals, and industrial fans. We produce parts in-house to control quality and cost.

Q4: How to install the product, is it difficult?

A: It is very easy to install.

Q5: Where are dock levelers typically used?

A: Factory outlets and outgoing ports of logistics parks.

Q6: What is the main effect of a dock leveler?

A: It improves the efficiency of cargo handling, making it easy to unload and load goods.
