| Speed | Up to 2.5m/s (98.43 inches/second) with servo drive. |
| Size Range | Min: 1000mm x 1000mm; Max: 8000mm x 9000mm |
| Panel Material | 0.7mm thick aluminum plate; Foaming density 45kg/m3; Thickness 43mm/80mm |
| Drive System | Servo-motor (0.75KW, 1.5KW, 2.2KW) with gearbox and brake. |
| Electrical Requirements | Standard: 220V/1PH/50/60Hz; Oversize: 380V/3PH/50/60Hz |
| Safety Features | Photoelectric sensors, wireless airbags, optional light curtain. |
| Lift Style | Round Spiral, Oval Spiral |

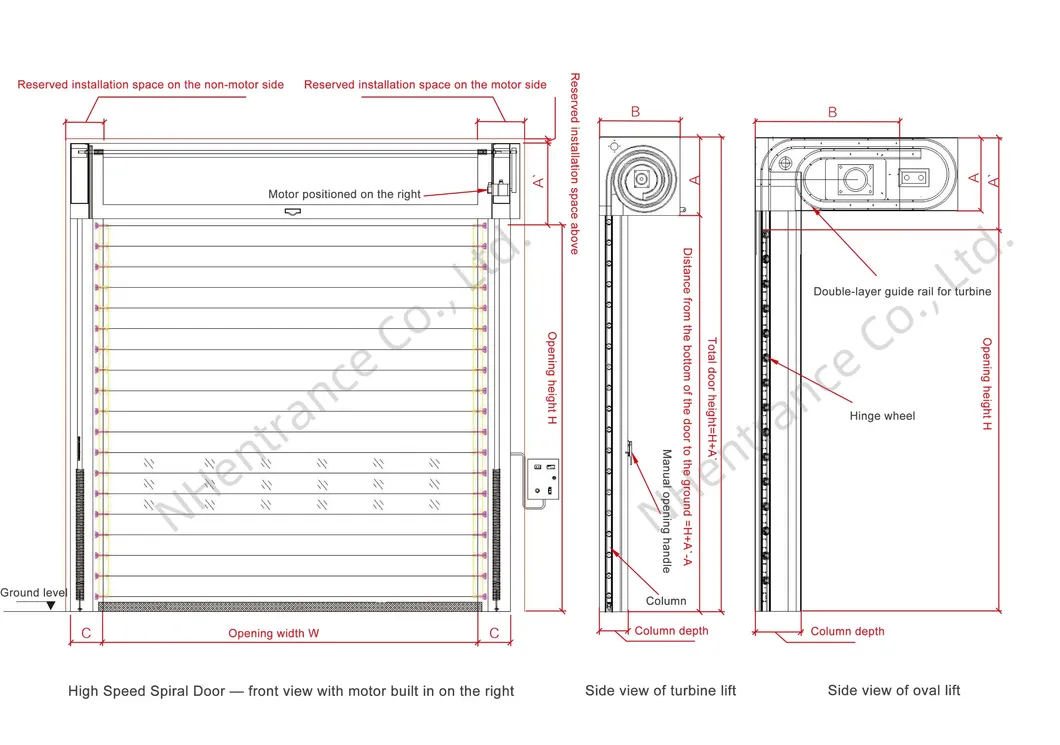

Structural Diagram
Opening speed 0.8m/s ~2m/s (adjustable). Archimedean spiral principle reduces friction and resistance.
Patented broken bridge design for heat preservation. Resistant to 12 winds (National standard level 3).
Designed for high-frequency use. Total trouble-free operation exceeds 1 million cycles.

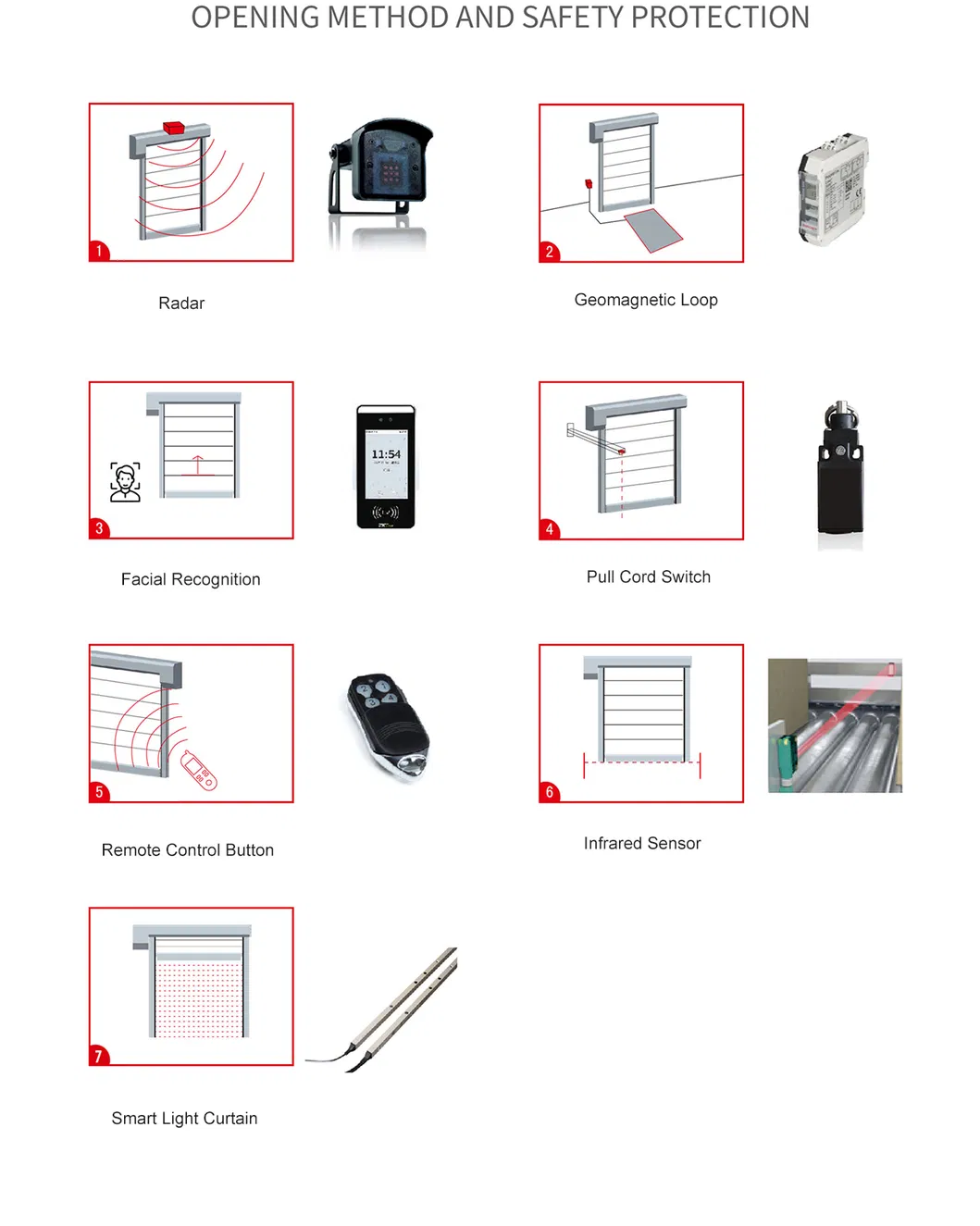

Supports Radar, geomagnetism, remote control, Bluetooth, and APP opening methods.
