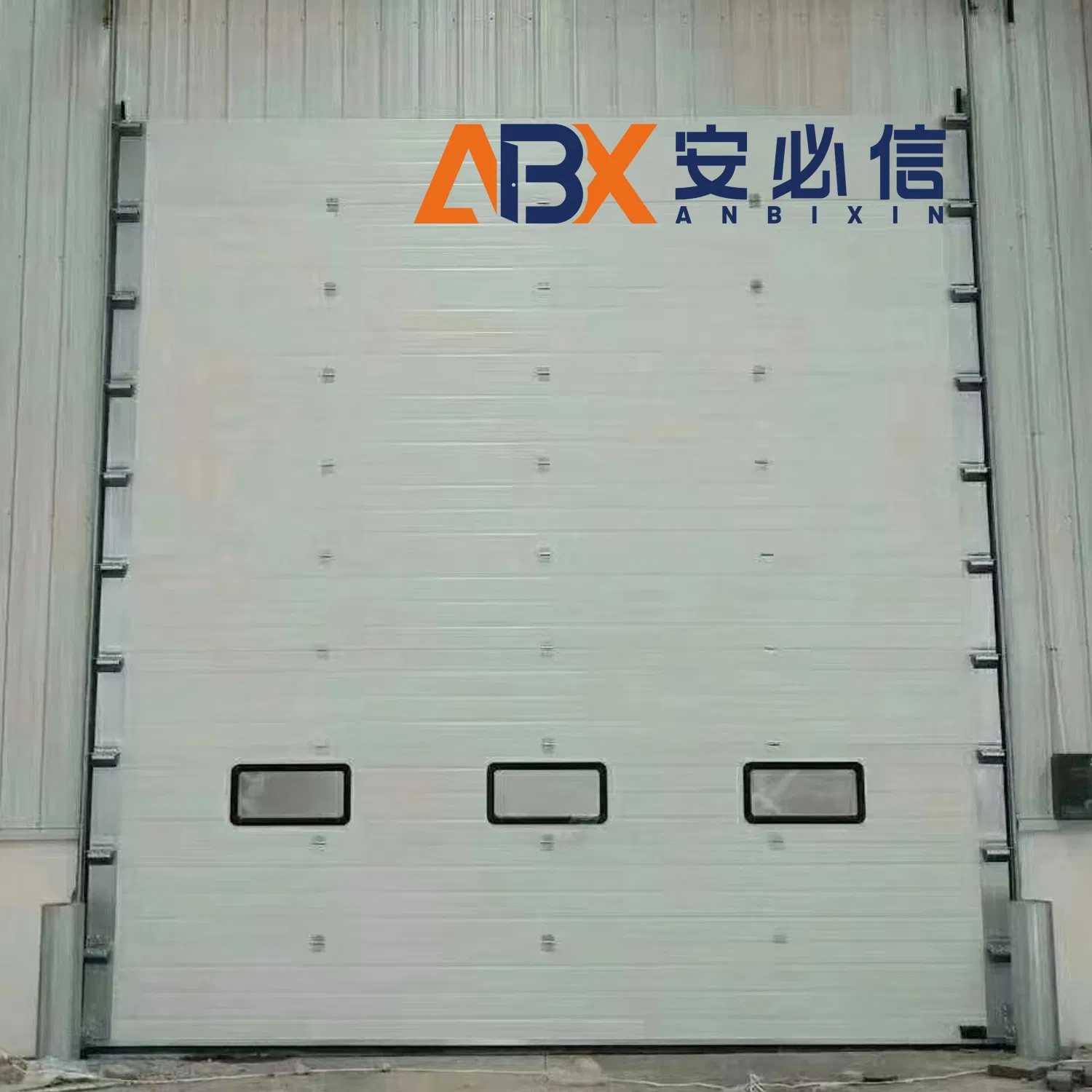

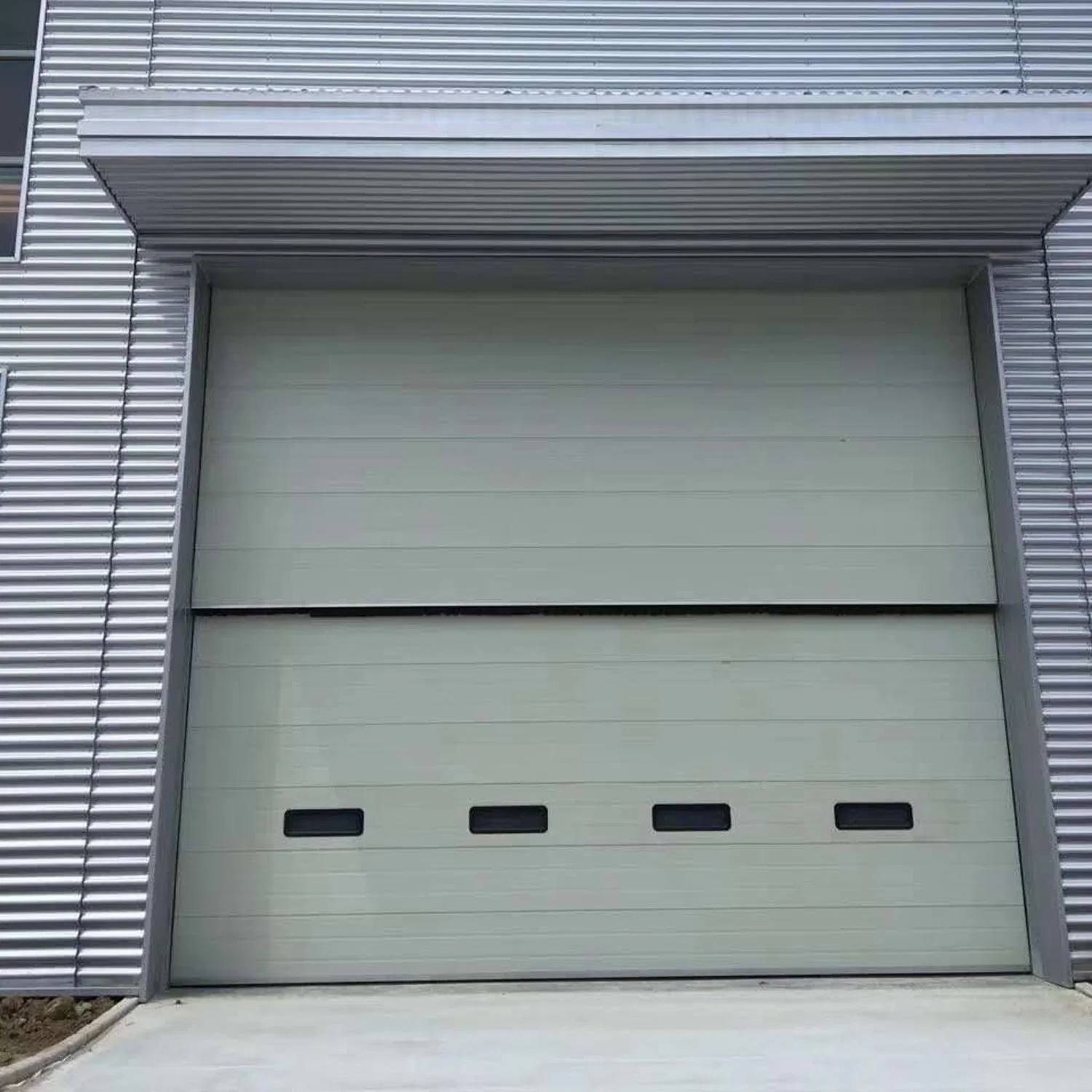

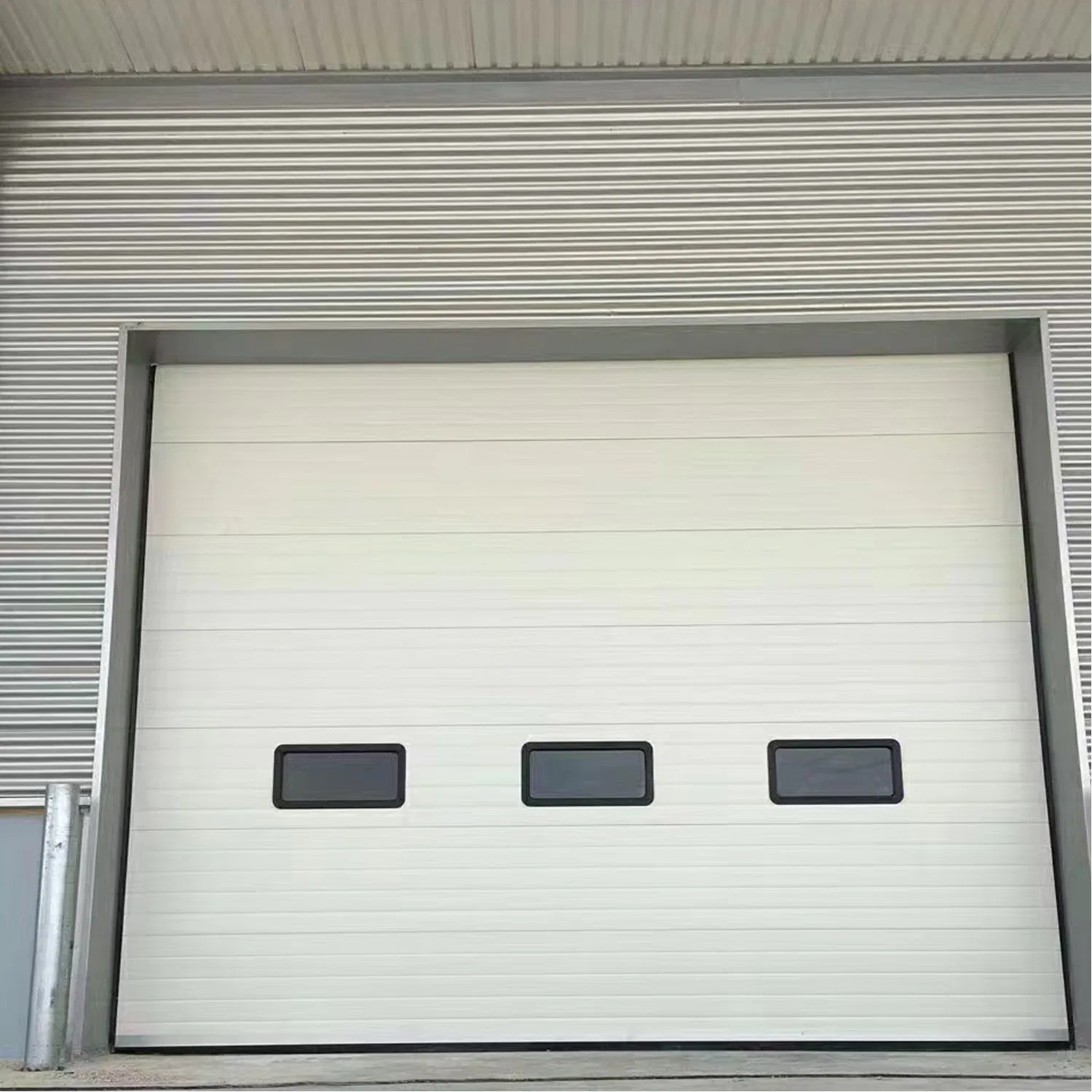

Industrial lifting door is a professional industrial exterior door. It can meet the requirements of insulation, sealing, high-frequency switching, service life, professional control, and safe use. At present, it is increasingly adopted by industrial and logistics projects.
The lifting methods of industrial doors are divided into three types: standard lifting, segmented vertical lifting, and high-position lifting. Among them, industrial doors with standard lifting are also called industrial sliding doors. Industrial doors with segmented vertical lifting and high-position lifting are called industrial lifting doors.
Industrial lifting doors are composed of door bodies, balance systems, drive and control systems, safety devices, tracks, seals, and other options.
| Speed | 0.2-0.3m / s |
| Door panel | 42mm |
| Safety protection | anti-wire rope break device, bottom airbag device, torsion spring anti-break function. |
| Torsion spring | ≥30,000 times |
| Motor | Intelligent control system |
| Watertight | Level 3 (water pressure 30Pa) |
| Foam material | high-density polyurethane foaming material (48kg ± 2kg / m³) |
| Wind loading rating | 4*4 Newton 700 / m2 |
| Sound insulation | 24dB |
