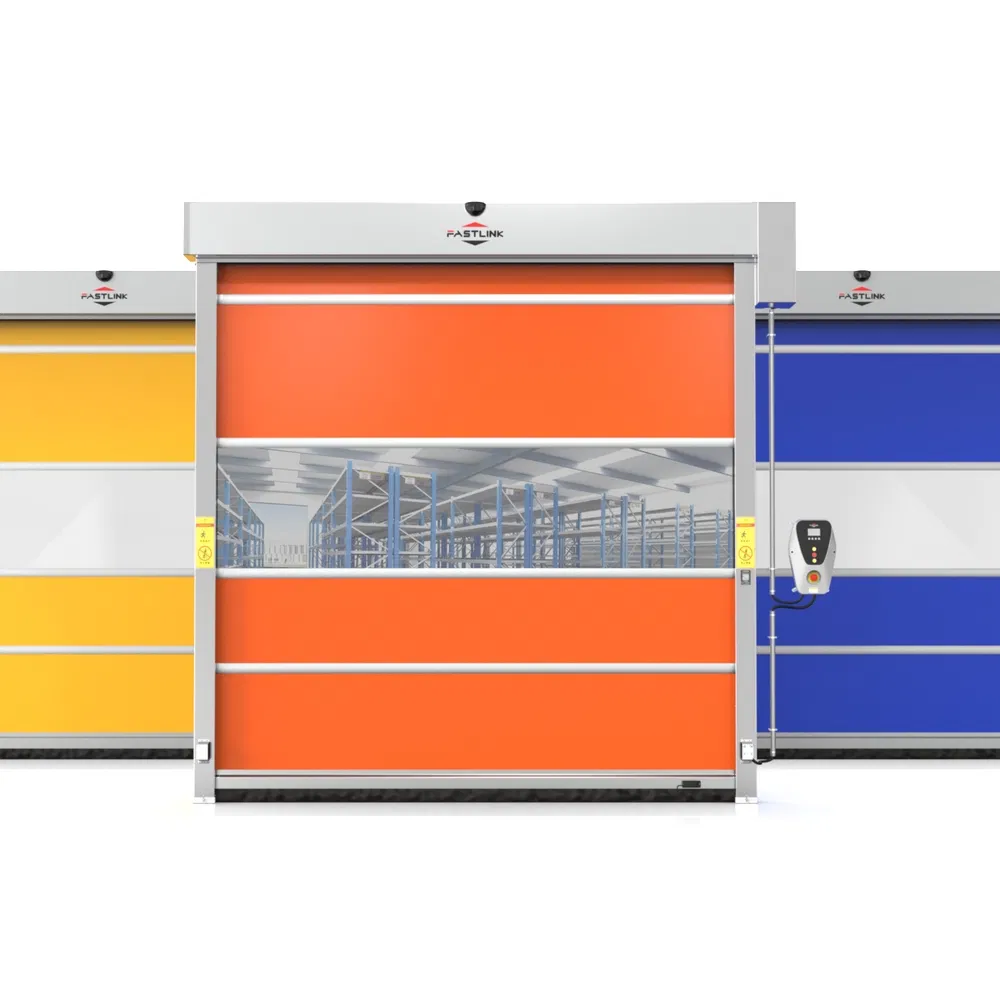

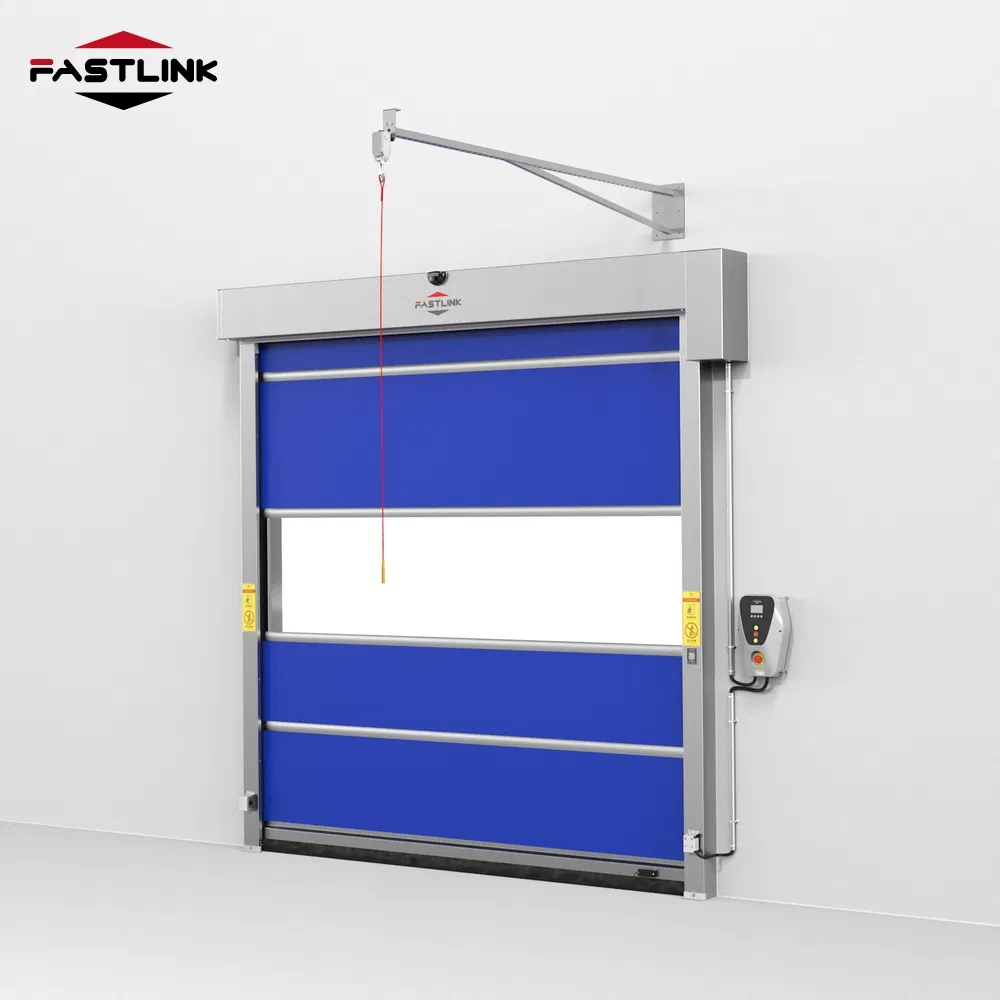

Fastlink New Design Industrial PU High Speed Electric Explosion Proof Interior High Speed Rolling Shutter Doors
Fastlink New Design Industrial PU High Speed Electric Explosion Proof Interior High Speed Rolling Shutter Doors
Fastlink New Design Industrial PU High Speed Electric Explosion Proof Interior High Speed Rolling Shutter Doors
Fastlink New Design Industrial PU High Speed Electric Explosion Proof Interior High Speed Rolling Shutter Doors
Fastlink New Design Industrial PU High Speed Electric Explosion Proof Interior High Speed Rolling Shutter Doors
1 / 5
Fastlink New Design Industrial PU High Speed Electric Explosion Proof Interior High Speed Rolling Shutter Doors
Fastlink New Design Industrial PU High Speed Electric Explosion Proof Interior High Speed Rolling Shutter Doors
Fastlink New Design Industrial PU High Speed Electric Explosion Proof Interior High Speed Rolling Shutter Doors
Fastlink New Design Industrial PU High Speed Electric Explosion Proof Interior High Speed Rolling Shutter Doors
Fastlink New Design Industrial PU High Speed Electric Explosion Proof Interior High Speed Rolling Shutter Doors

Fastlink New Design Industrial PU High Speed Electric Explosion Proof Interior High Speed Rolling Shutter Doors

Customization: Available
After-sales Service: 2years
Warranty: 1year
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
HSR-IPB
Material
PVC
Type
High Speed Door
Open Style
Electric
Opening Type
Intelligent Control
Function
Windproof & Sealing
Certification
CE, CPR, UL
Position
Industrial Interior
Sheet Material
PVC Curtain
Main Material
Aluminum & Stainless Steel
Window Thickness
1.0mm
Production Capacity
50,000 PCS/Year
★

Product Description

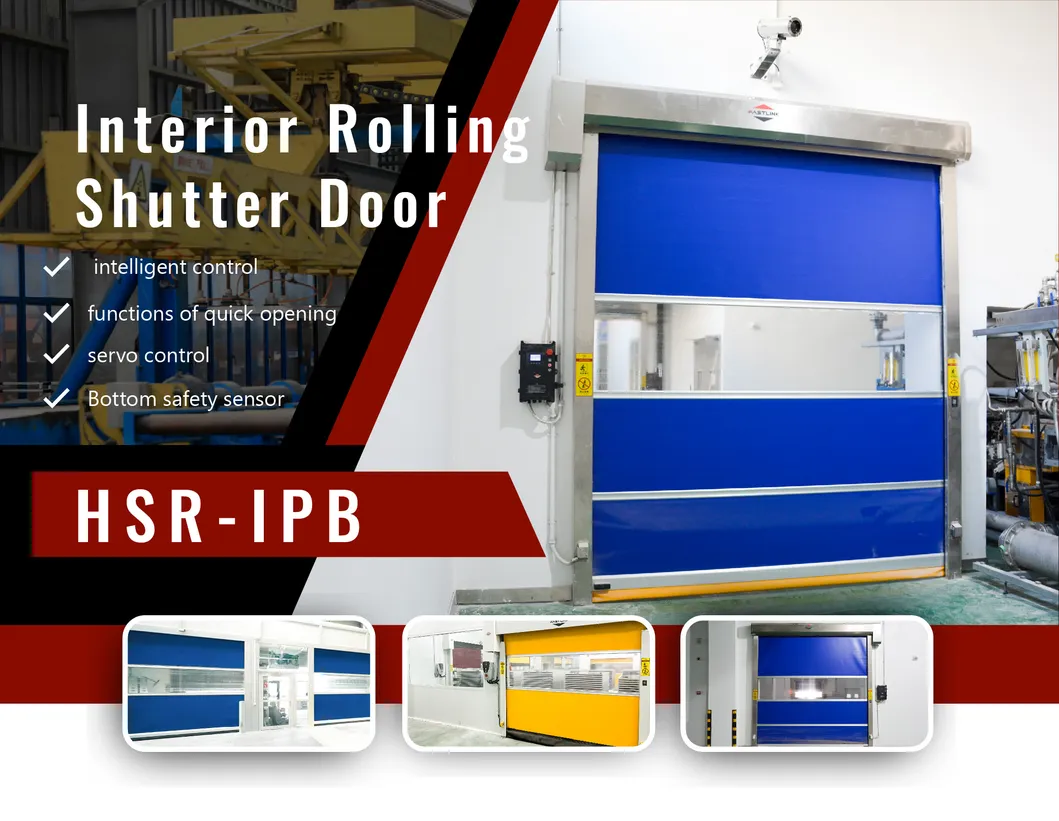

High Speed Electric Rolling Shutter Door

This Interior-use Rolling Shutter Door is designed for high-frequency industrial environments. It provides essential functions such as insulation, high-speed sealing, security, and intelligent control. Ideal for industrial plants and logistics warehousing buildings.

Technical Attributes

Min Size
W1500mm * H2000mm
Max Size
W6000mm * H6000mm
Curtain Thickness
0.8mm / 1.2mm
Max Opening Speed
1.0m/s - 1.2m/s

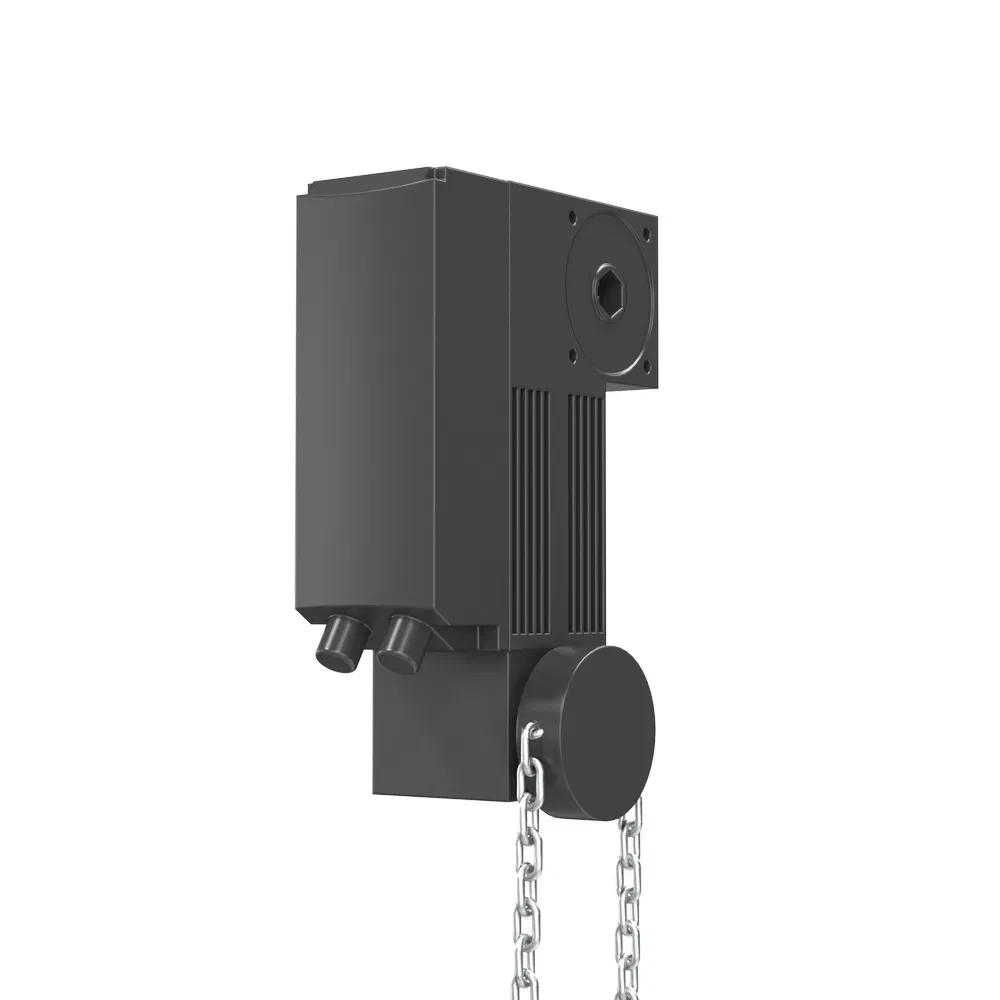

Motor Type
Servo Motor
Wind Resistance
260pa (JG/T302-2022)
P

Product Details & Packaging

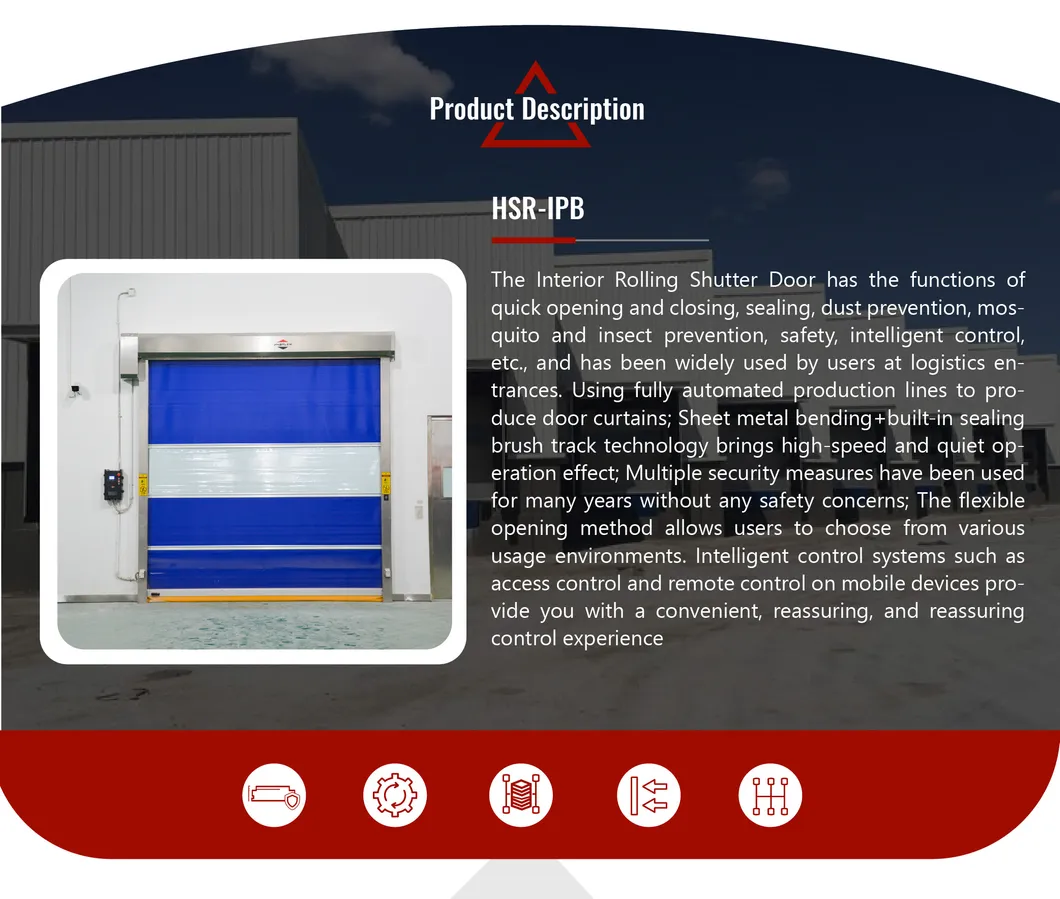

Industrial Door Detail 1

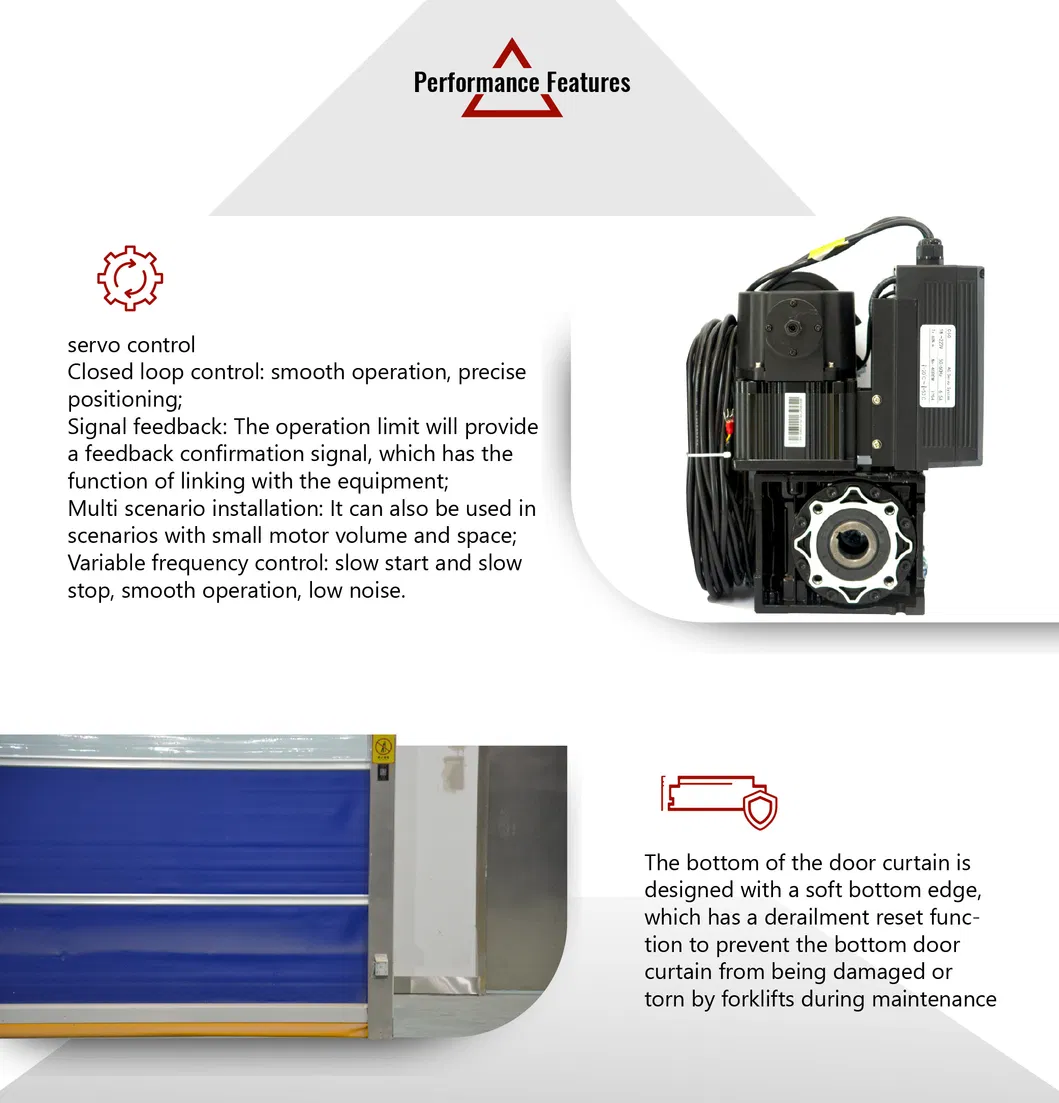

Industrial Door Detail 2

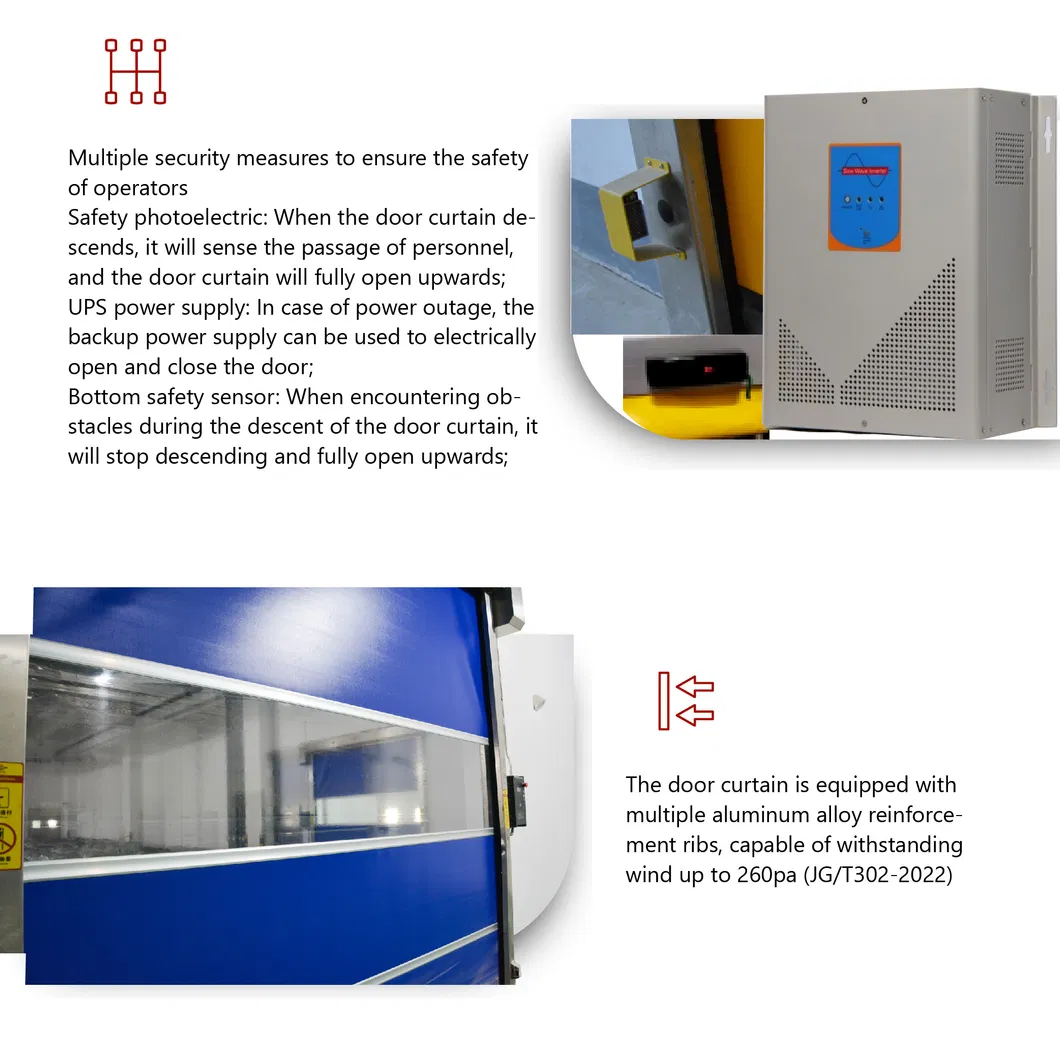

Industrial Door Detail 3

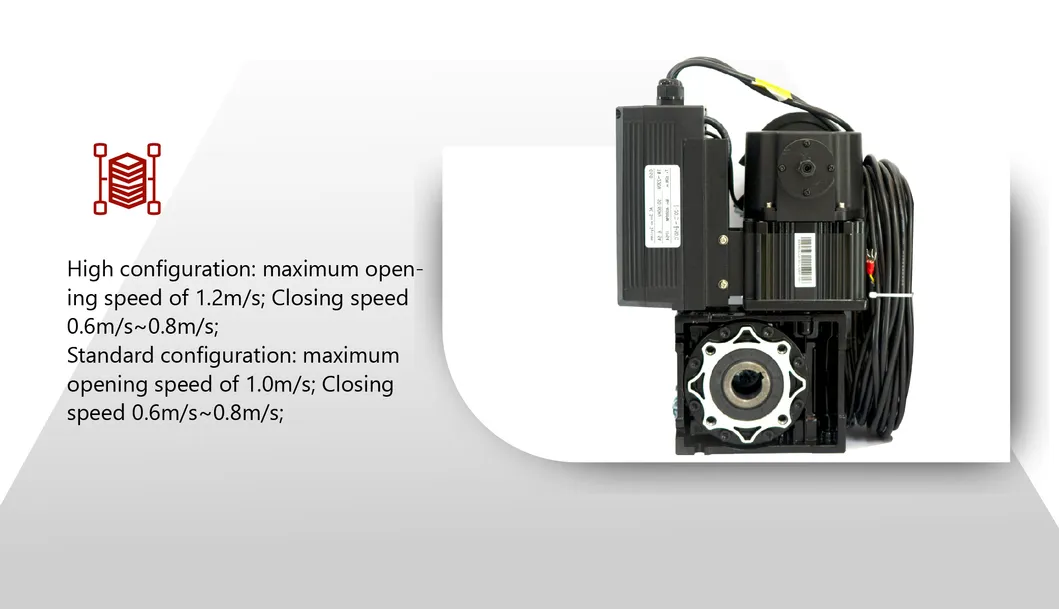

Industrial Door Detail 4

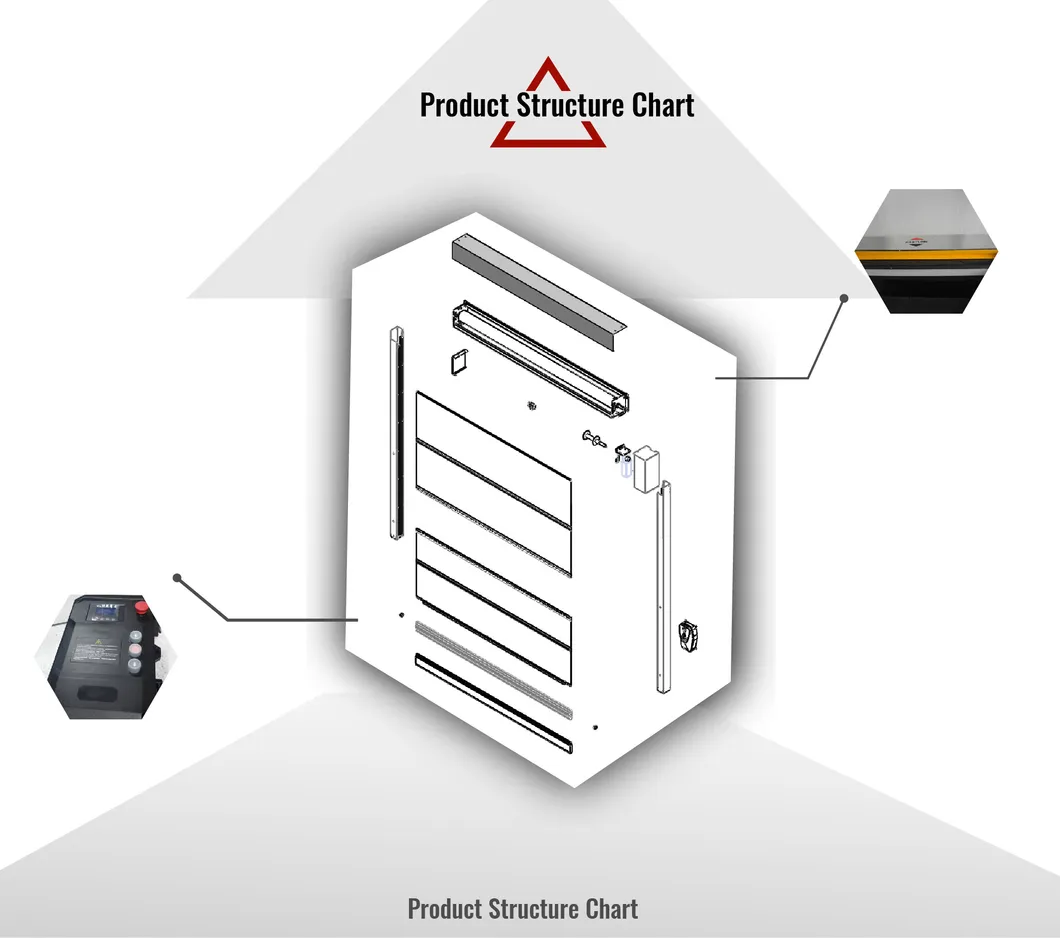

Industrial Door Detail 5

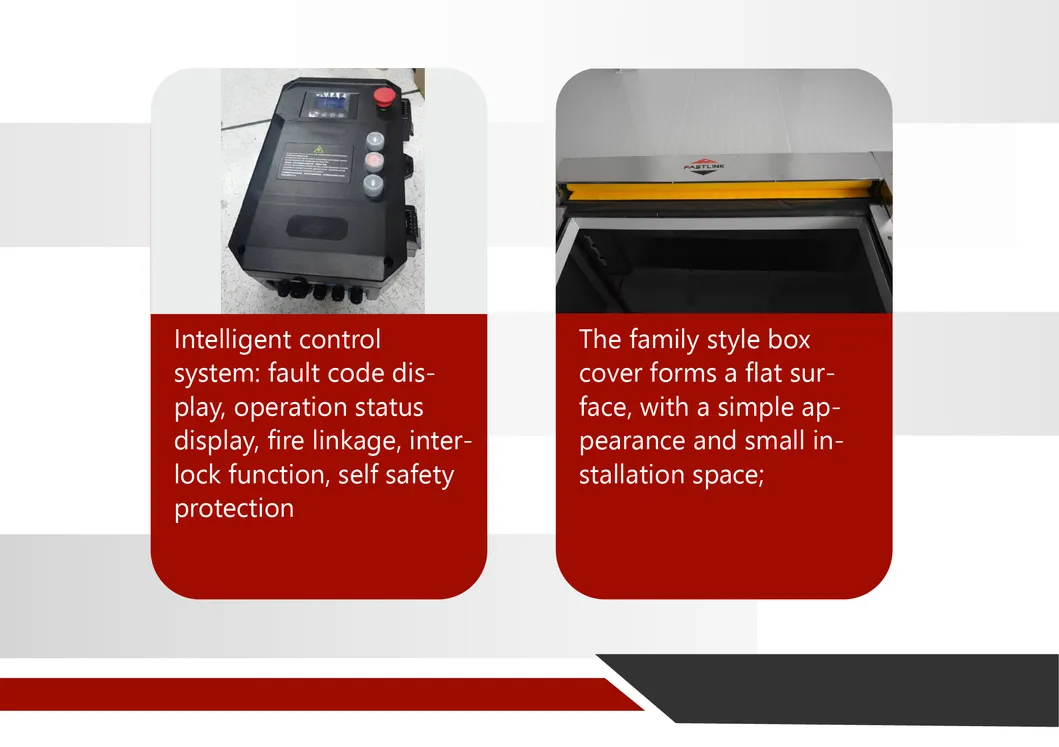

Industrial Door Detail 6

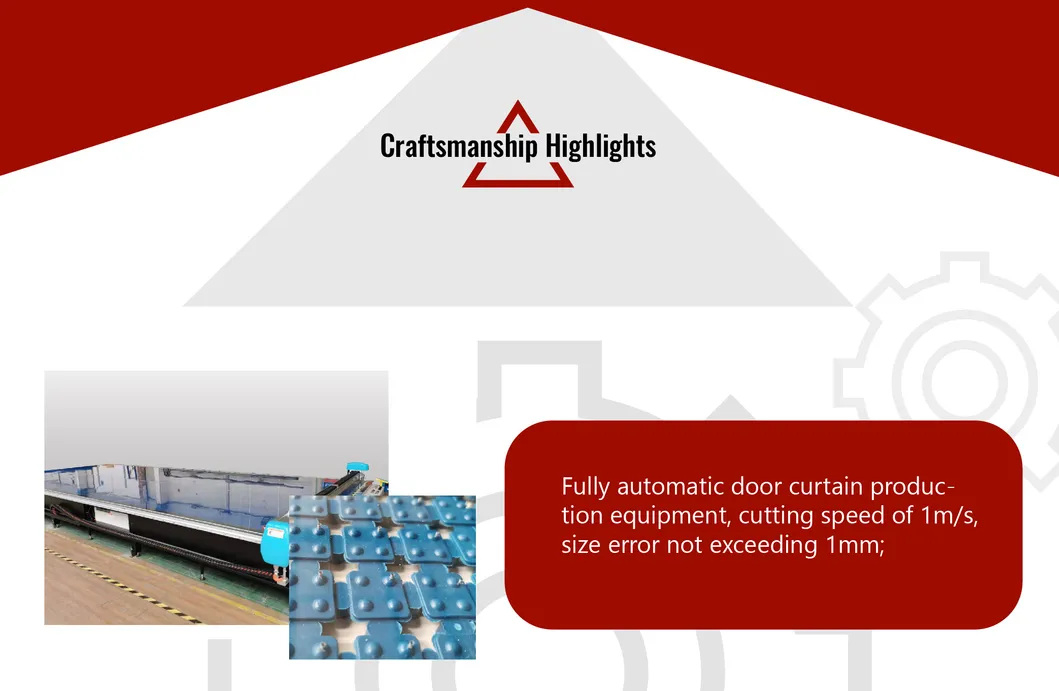

Industrial Door Detail 7

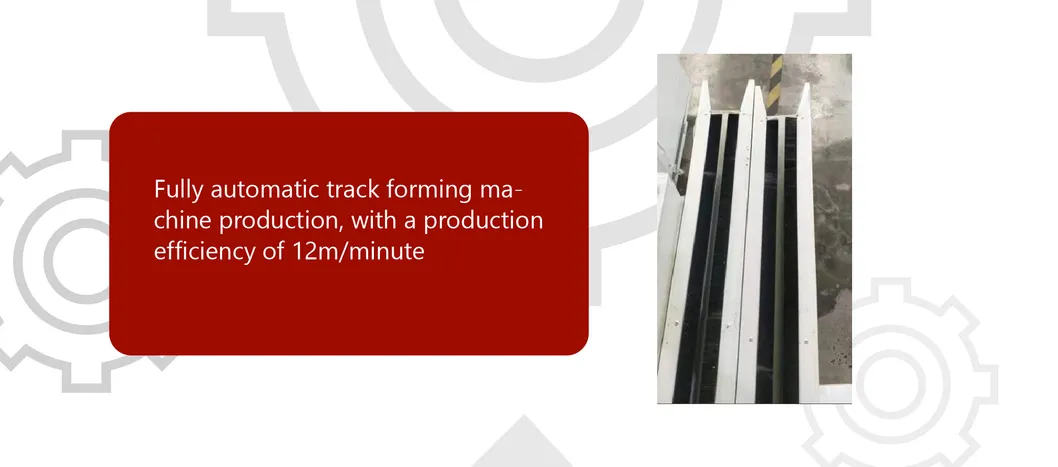

Industrial Door Detail 8

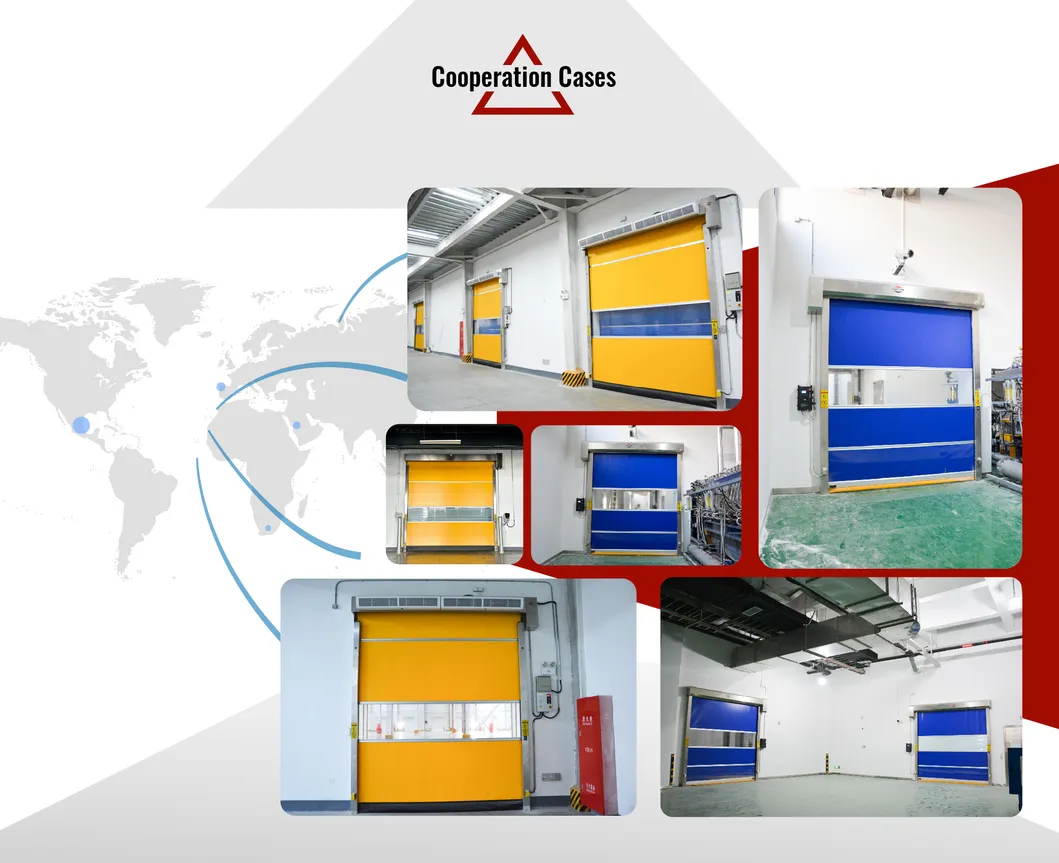

Industrial Door Detail 9

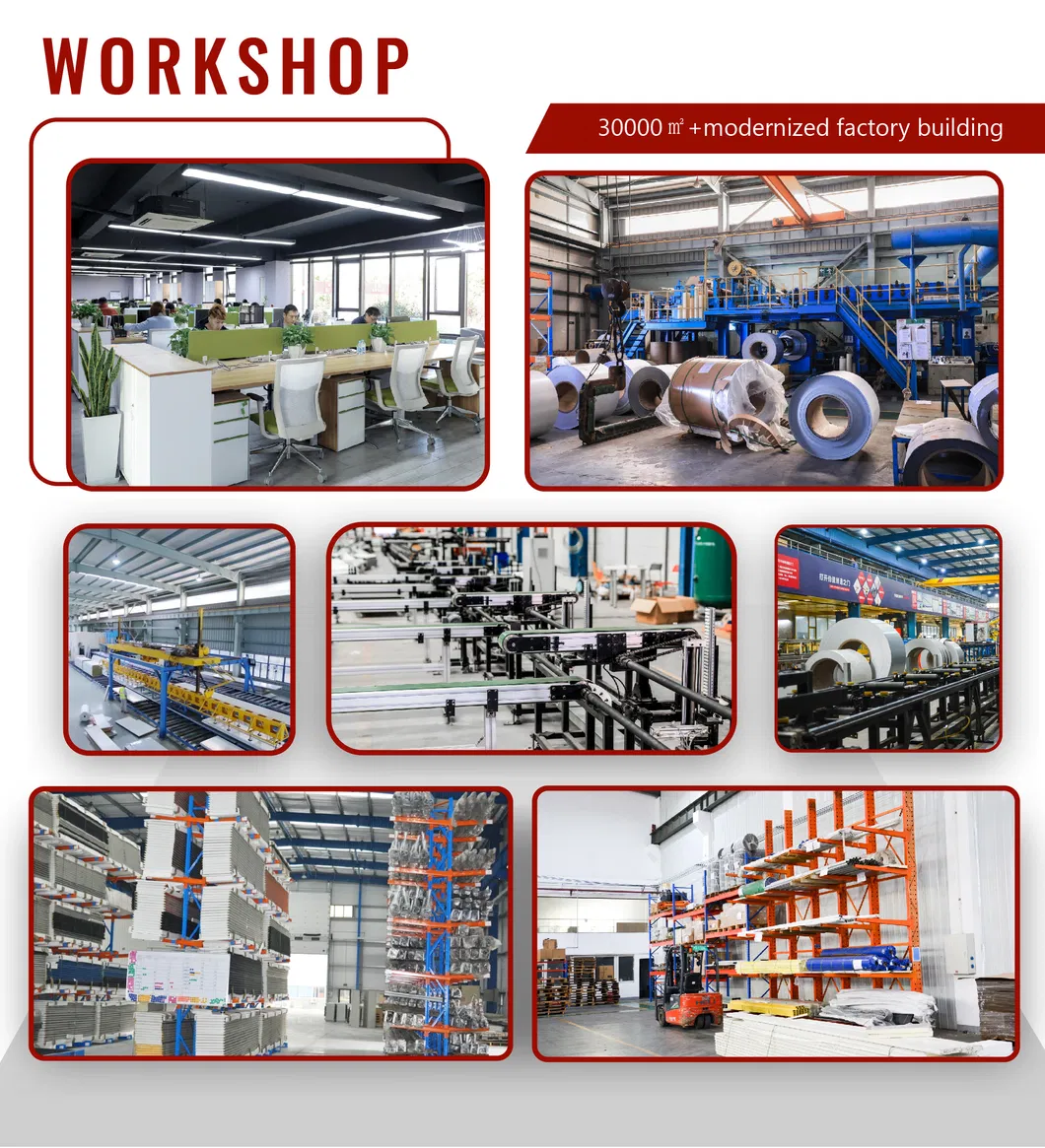

Industrial Door Detail 10
Industrial Door Detail 11

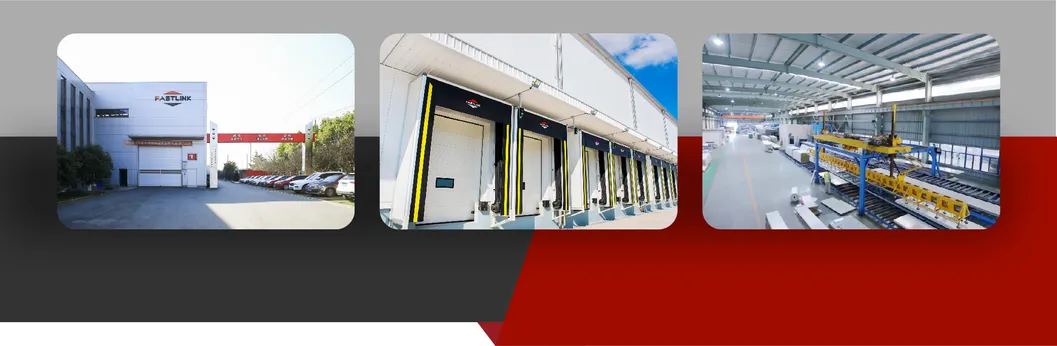

Industrial Door Detail 12
Installation Overview
?

Frequently Asked Questions

What environments are these doors mainly used in?
Interior Rolling Shutter Doors provide functions such as sealing and dust prevention. They are widely used in building interiors for food, medicine, electronics, automotive, logistics, and chemical industries.
How much installation space is required?
You should reserve not less than 500mm above the door opening. The motor-side space should be at least 500mm, and the non-motor side at least 200mm.
Can the PVC curtain be washed?
Yes, PVC door curtains are non-absorbent and can be rinsed or wiped with water. For specific requirements, the rail and electrical control IP levels can be customized for washable environments.
Will the door be damaged if hit by a forklift?
The door can be equipped with a soft bottom edge. Upon strong impact, it can detach from the side aisles and automatically reset to the track during the upward process to avoid permanent damage.
What are the opening and closing speeds?
The maximum opening speed is 1.0m/s (standard) or 1.2m/s (high configuration), while the closing speed is approximately 0.8m/s.
What control options are available?
Options include push-button boxes, remote control, radar (man-vehicle separation), geomagnetic sensors, pull-rope switches, and access control systems (swipe cards, passwords, or facial recognition).
