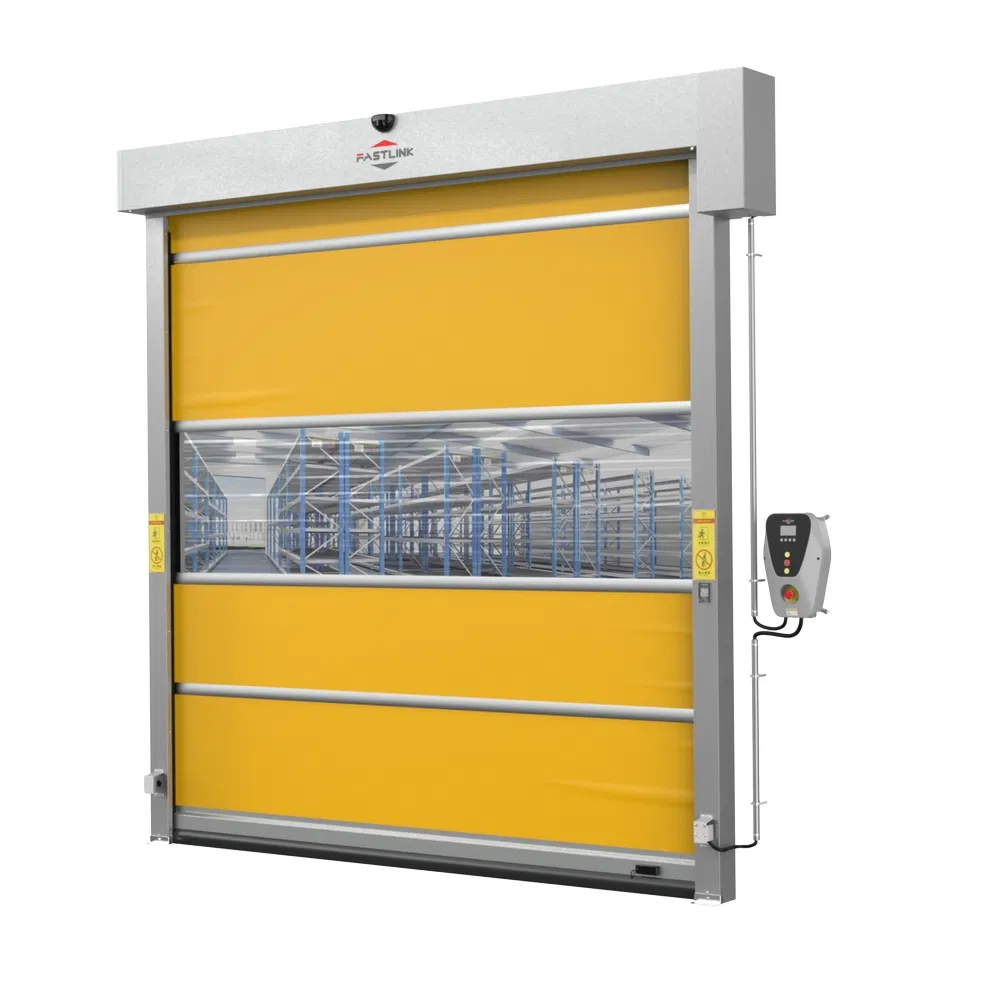

Fastlink Hot Sale Industrial PU High Speed Automatic Explosion Proof Rapid Action Rolling Shutter Interior High Speed Rolling Shutter Doors
Fastlink Hot Sale Industrial PU High Speed Automatic Explosion Proof Rapid Action Rolling Shutter Interior High Speed Rolling Shutter Doors
Fastlink Hot Sale Industrial PU High Speed Automatic Explosion Proof Rapid Action Rolling Shutter Interior High Speed Rolling Shutter Doors
Fastlink Hot Sale Industrial PU High Speed Automatic Explosion Proof Rapid Action Rolling Shutter Interior High Speed Rolling Shutter Doors
Fastlink Hot Sale Industrial PU High Speed Automatic Explosion Proof Rapid Action Rolling Shutter Interior High Speed Rolling Shutter Doors
1 / 5
Fastlink Hot Sale Industrial PU High Speed Automatic Explosion Proof Rapid Action Rolling Shutter Interior High Speed Rolling Shutter Doors
Fastlink Hot Sale Industrial PU High Speed Automatic Explosion Proof Rapid Action Rolling Shutter Interior High Speed Rolling Shutter Doors
Fastlink Hot Sale Industrial PU High Speed Automatic Explosion Proof Rapid Action Rolling Shutter Interior High Speed Rolling Shutter Doors
Fastlink Hot Sale Industrial PU High Speed Automatic Explosion Proof Rapid Action Rolling Shutter Interior High Speed Rolling Shutter Doors
Fastlink Hot Sale Industrial PU High Speed Automatic Explosion Proof Rapid Action Rolling Shutter Interior High Speed Rolling Shutter Doors

Fastlink Hot Sale Industrial PU High Speed Automatic Explosion Proof Rapid Action Rolling Shutter Interior High Speed Rolling Shutter Doors

Customization: Available
After-sales Service: 2years
Warranty: 1year
Send Inquiry

Product Description

Basic Specifications

Model NO.
HSR-IPB
Material
PVC
Type
High Speed Door
Open Style
Electric
Opening Type
Intelligent Control
Special Function
Windproof
Color
Ral7015/Ral9002/Ral1003
Certification
CE, CPR, UL
Sheet Material
PVC Curtain
Gross Weight
180kg/M²

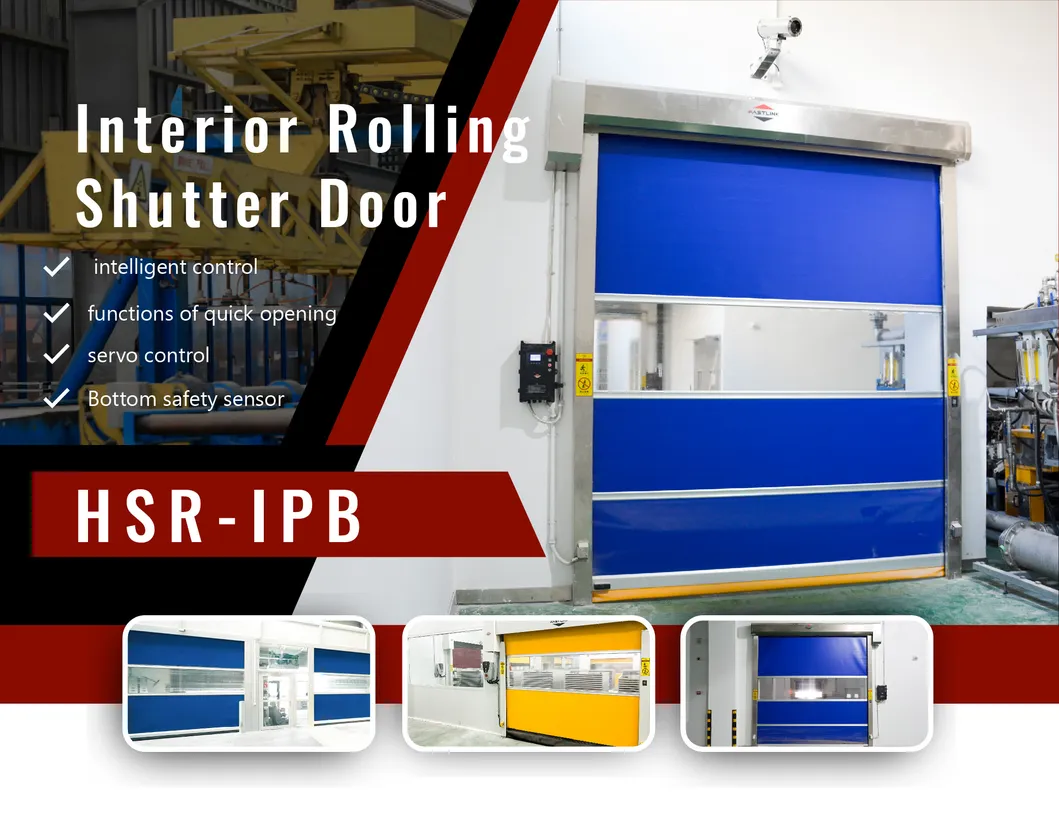

High Speed Shutter Door

Key Features & Highlights

⚡ High Speed Operation 🛡️ Windproof Design 🤖 Intelligent Control 🧼 Easy to Clean 🔒 Security Protection

Technical Parameters

Attribute Details
Size RangeMin: W1500mm*H2000mm | Max: W6000mm*H6000mm
Opening SpeedMax 1.0m/s (Standard) - 1.2m/s (High Configuration)
Closing Speed0.8m/s
Curtain Thickness0.8mm / 1.2mm
Window MaterialPVC, Height 650mm/700mm, Thickness 1.0mm
Rail/Box MaterialMetal painted or Stainless Steel
Wind Resistance260pa (JG/T302-2022)
Motor TypeServo Motor
Safety FeaturesWireless safety bottom sensor, Standard infrared device, Optional light curtain

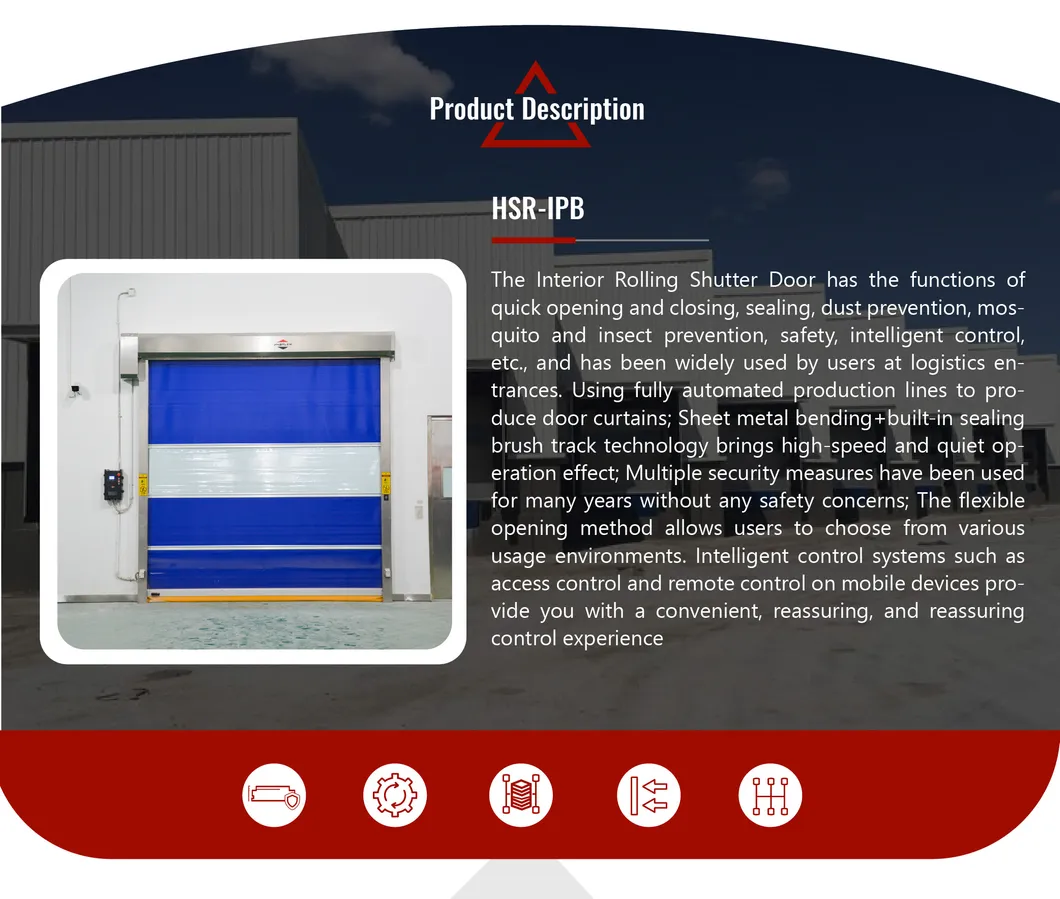

Industrial Door View 1

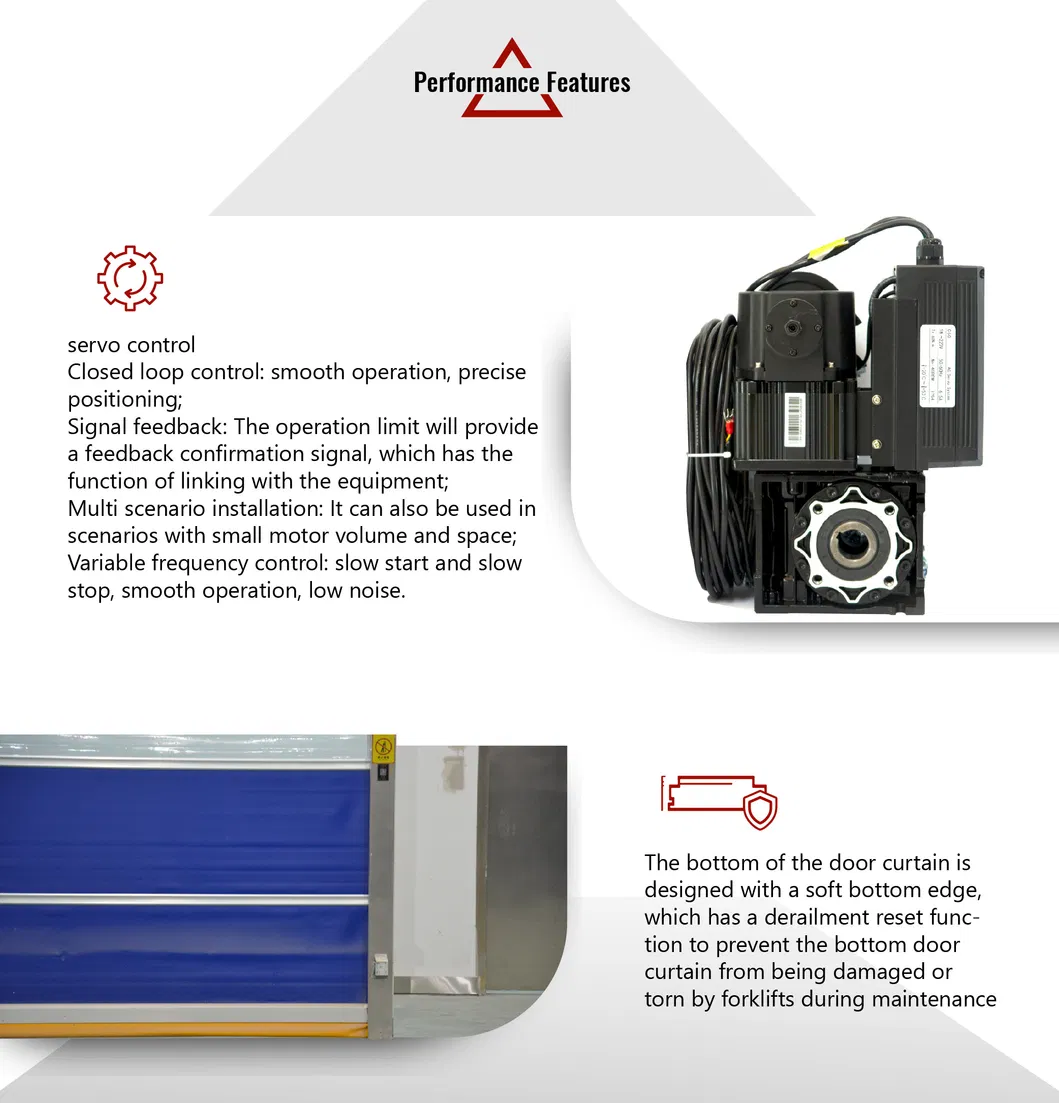

Industrial Door View 2

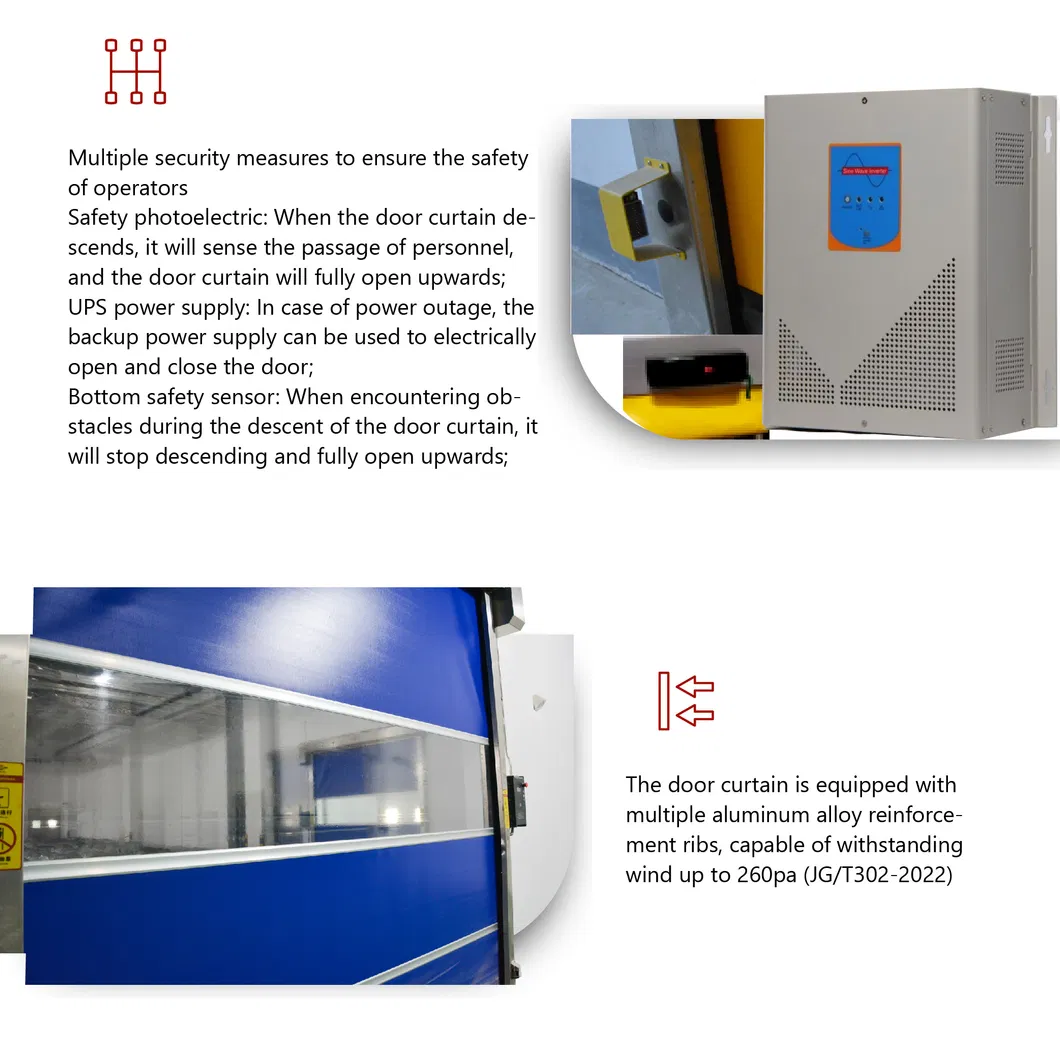

Product Detail 1

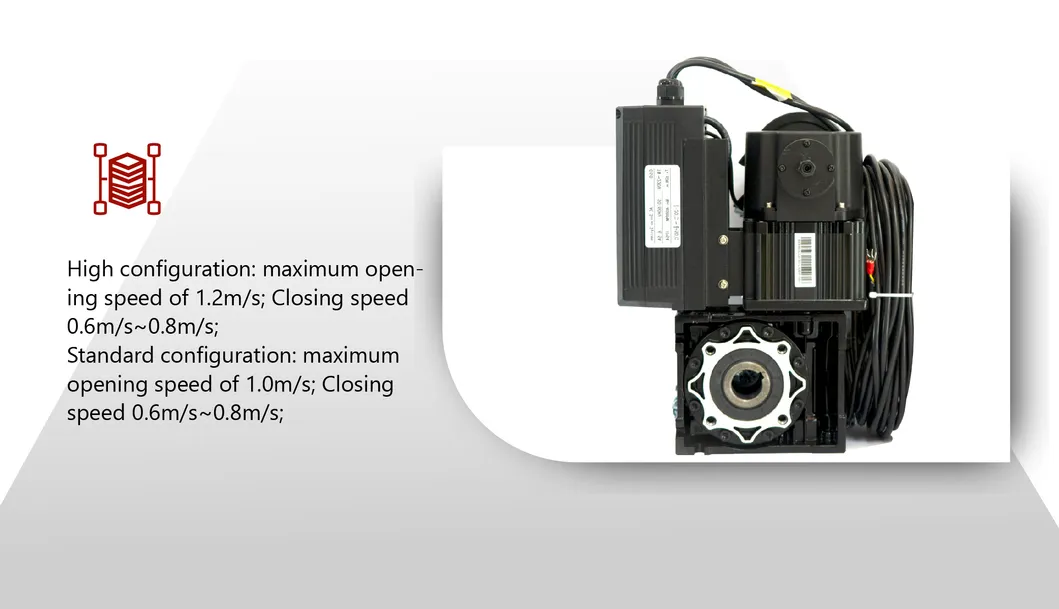

Product Detail 2

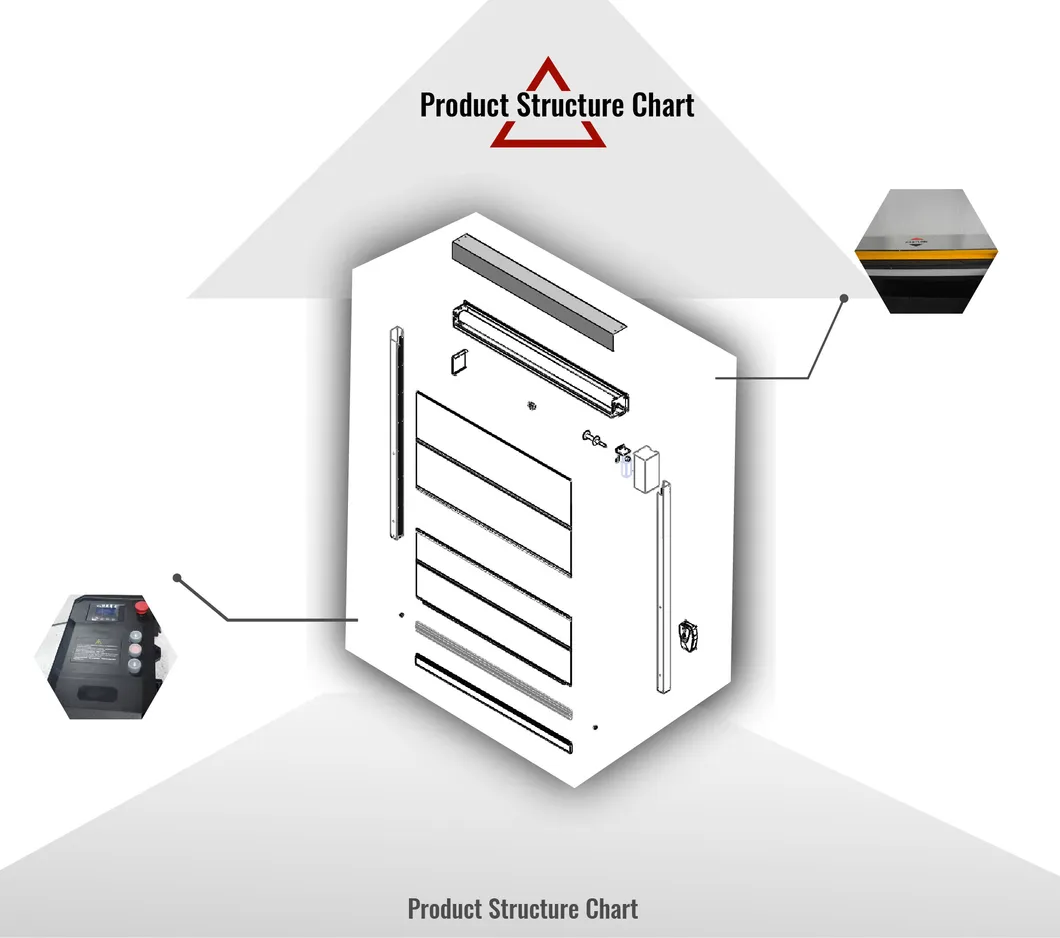

Product Detail 3

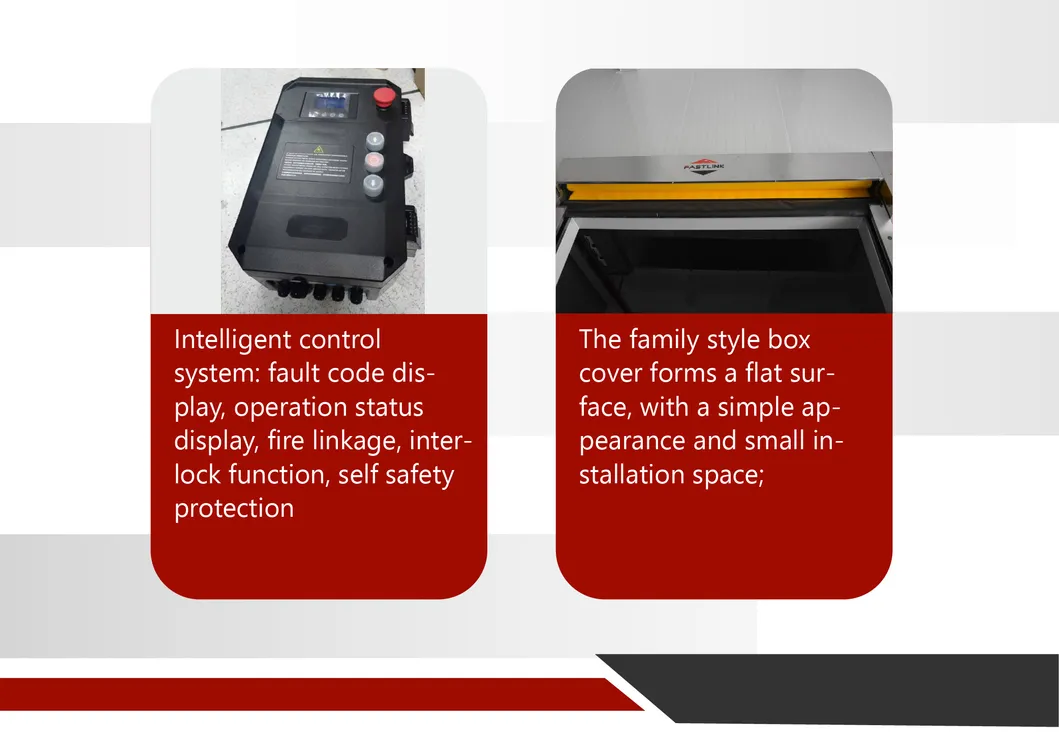

Application Scenario

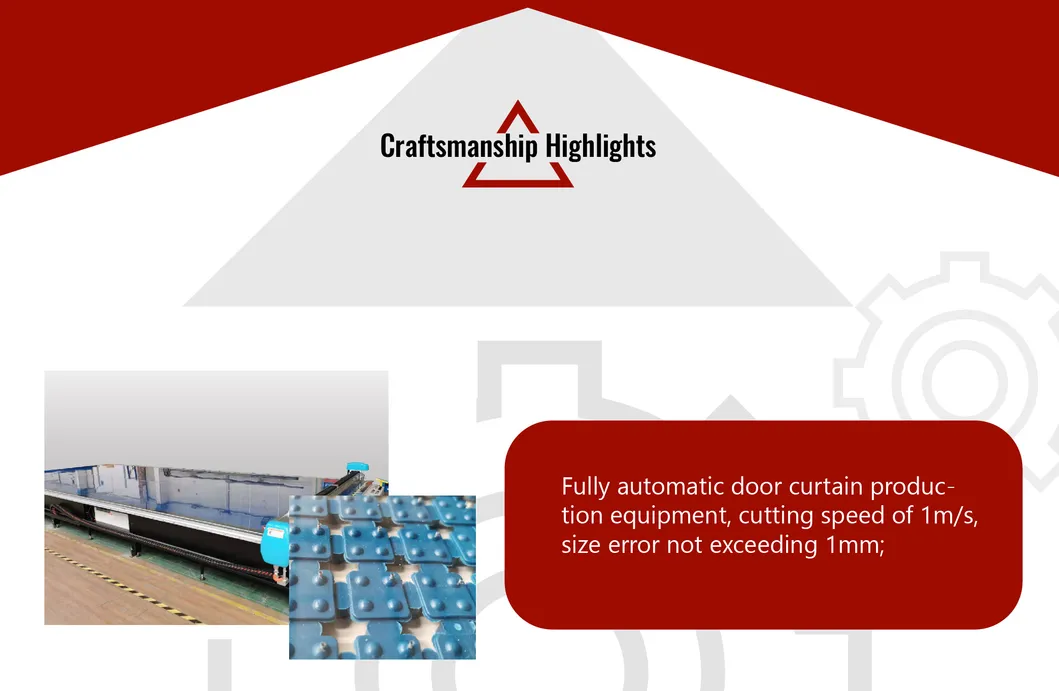

Technical Drawing

Packaging & Delivery

Package Size
356.40cm * 66.40cm * 77.10cm
Gross Weight
580.00kg
Lead Time
30 days
Transport Package
Wooden Box

Frequently Asked Questions

What environments are these doors mainly used in?
Interior Rolling Shutter Doors provide sealing, dust prevention, and efficient passage. They are widely used in food, medicine, electronics, automotive, textile, logistics, rubber, and chemical industries.
How much installation space is required above the door?
You should reserve not less than 500mm above the door opening. The motor side requires at least 500mm, and the non-motor side requires at least 200mm.
Can the Interior Rolling Shutter Door be rinsed and cleaned?
Yes, the PVC curtains are non-absorbent and can be rinsed and wiped with clean water. For high-hygiene requirements, washable versions with customized IP-rated electrical components can be selected.
Will the door be damaged if a forklift hits it?

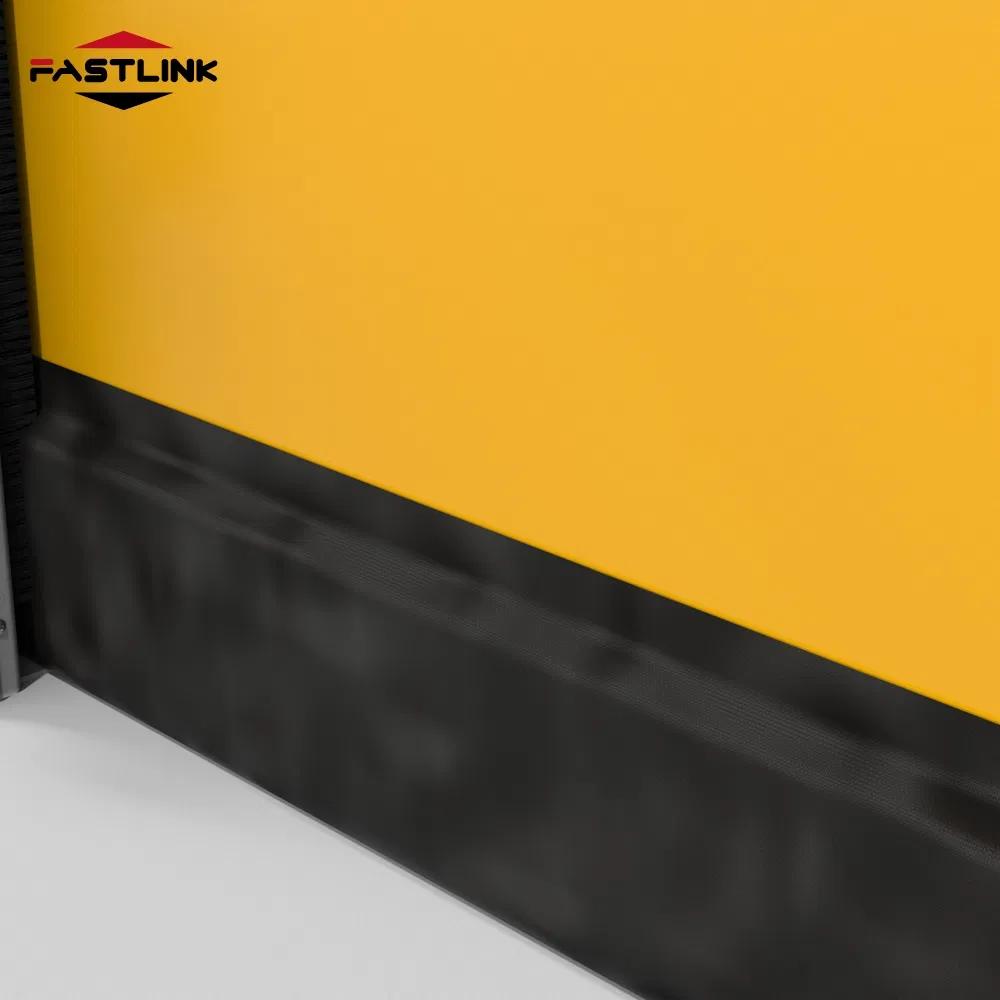

The door can be equipped with a soft bottom edge configuration. Under strong impact, it detaches from the tracks and automatically resets during the upward cycle to prevent structural damage.
What is the maximum opening speed available?
The standard maximum opening speed is 1.0m/s, while high-configuration models can reach up to 1.2m/s.
What safety devices are included as standard?
Standard safety features include a wireless safety bottom sensor and a safety infrared device to ensure the door reopens automatically if an obstruction is detected.

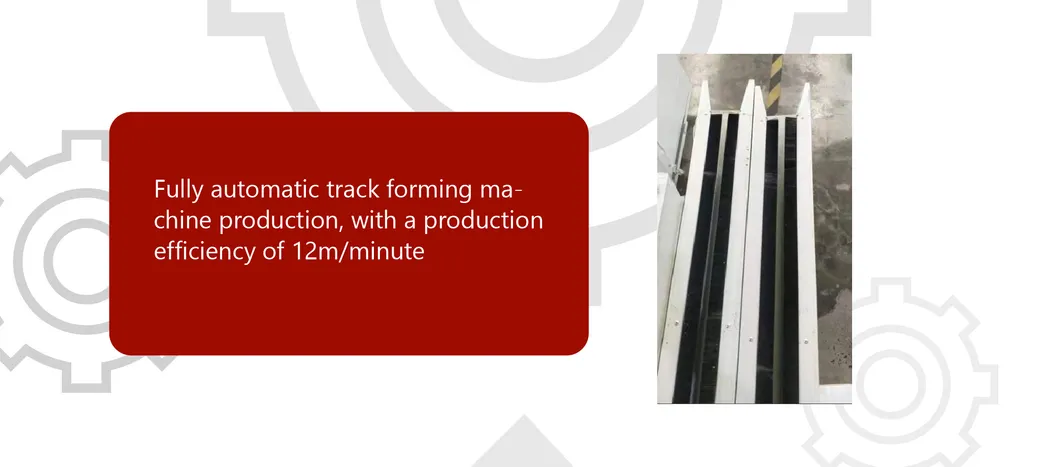

Component View 1

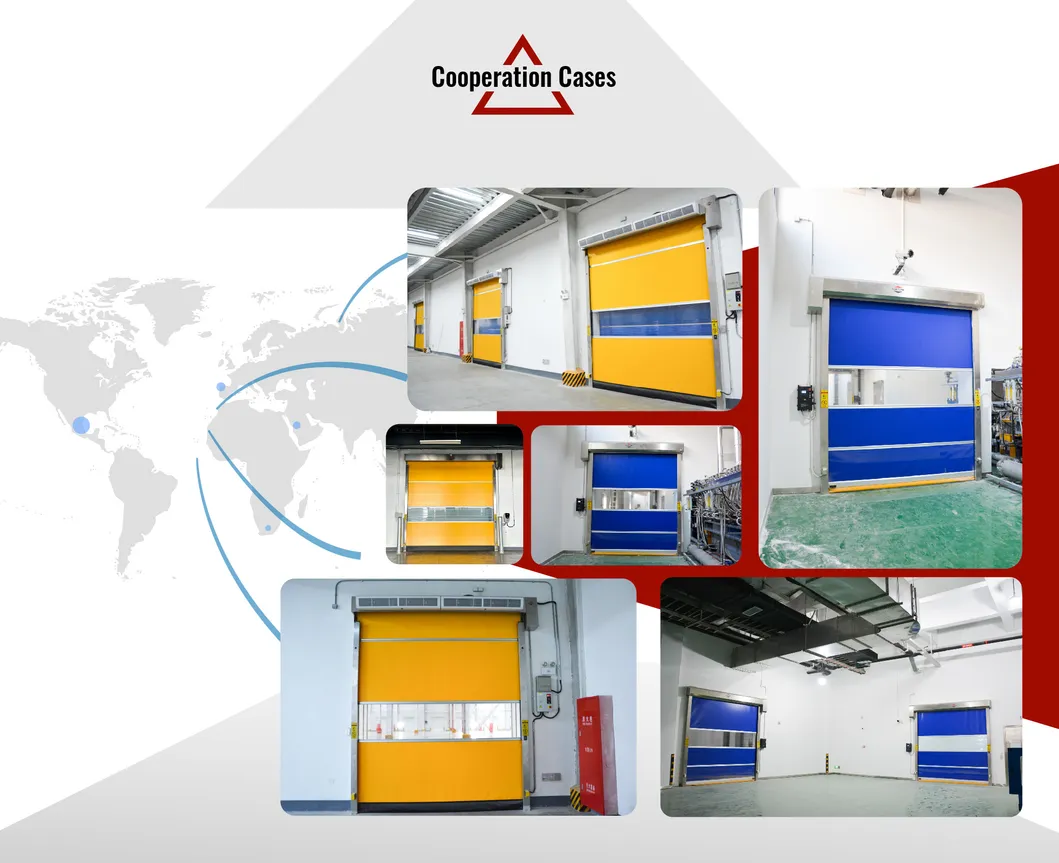

Component View 2

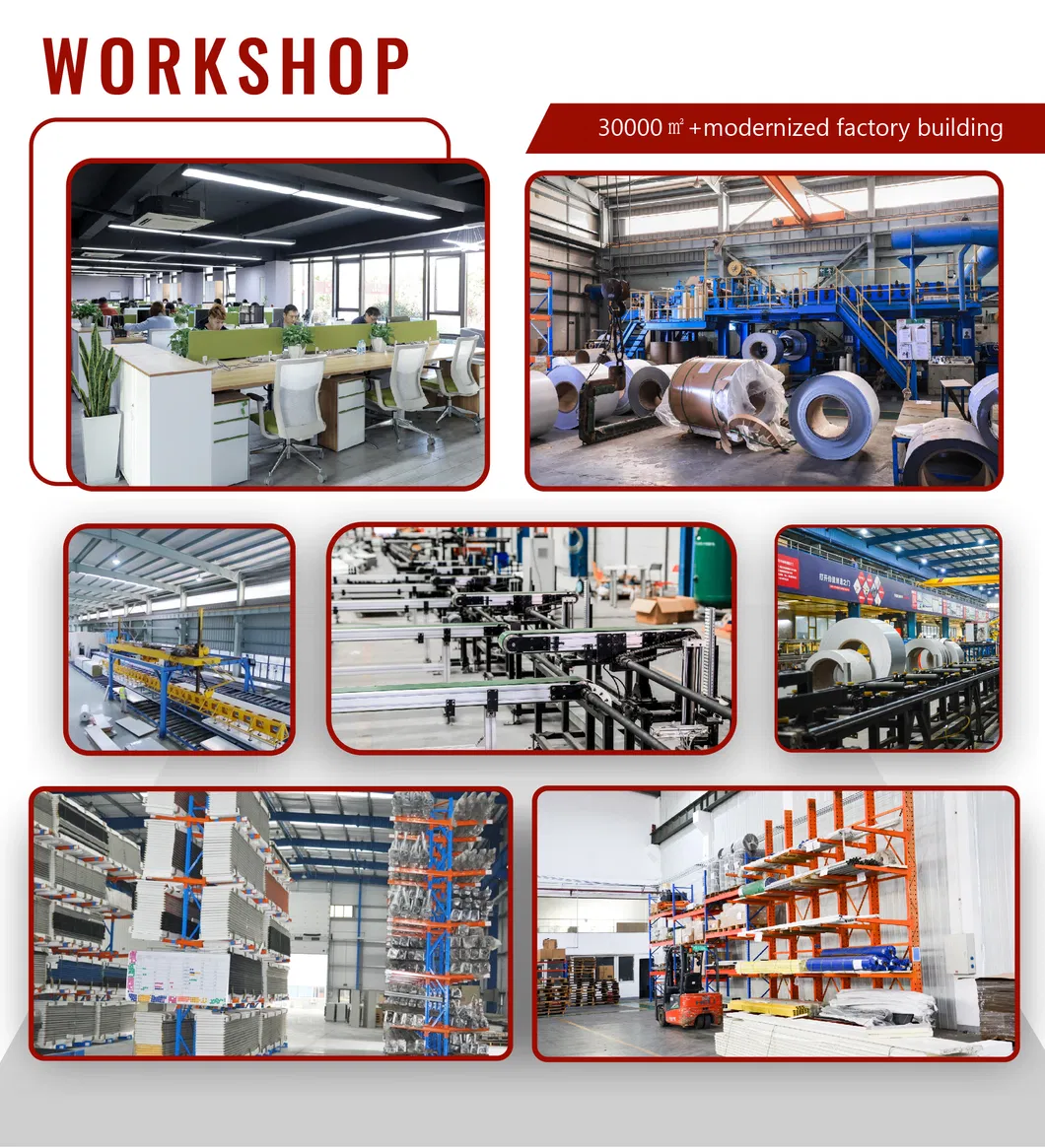

Full Installation
Track System
